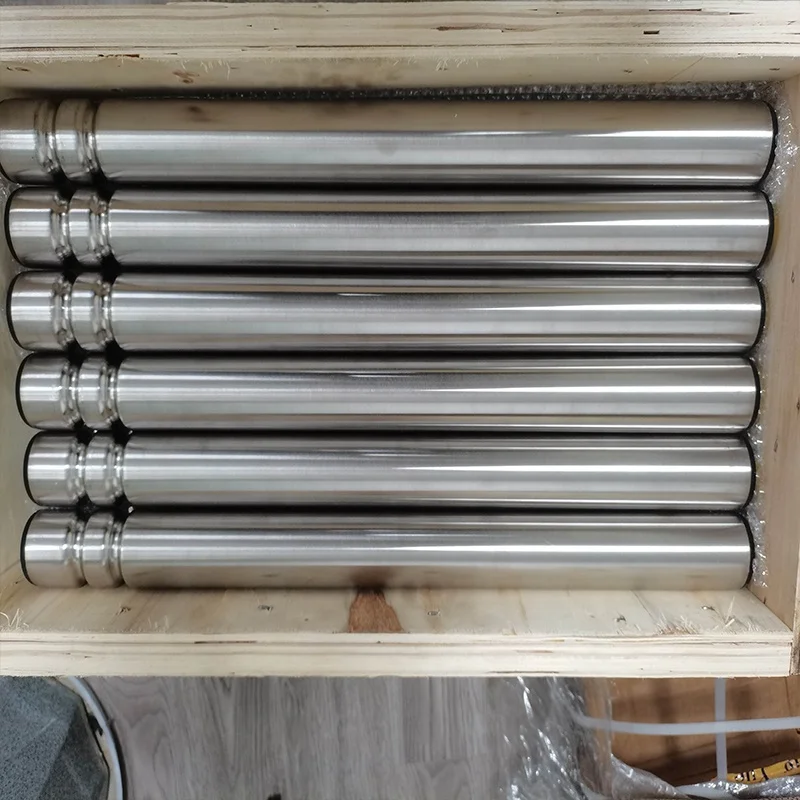

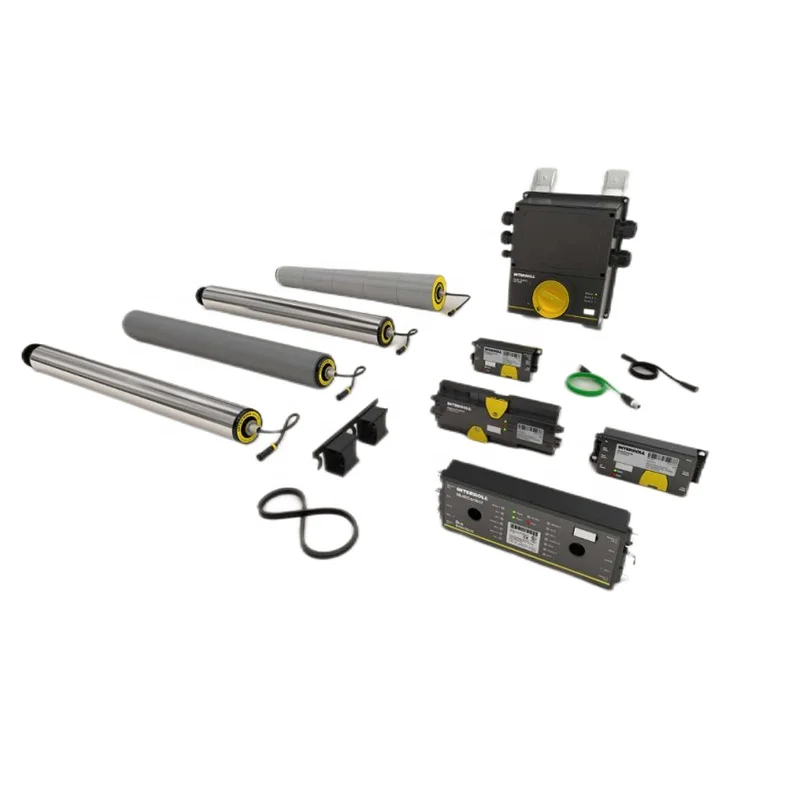

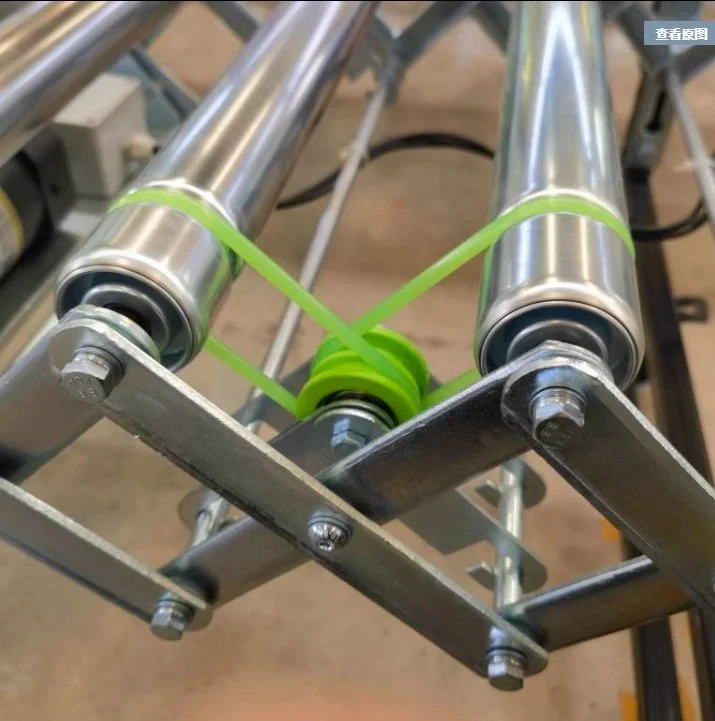

Interroll Mini Electric Roller ROLLERDRIVE EC5000 Series Circular Belt Groove Conveyor Roller
- Category: >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600950474305):
Product Overview
Description
EC5000 is an upgraded product of EC310. The power 30W series is distinguished by 32W for EC310 and 35W for EC5000.
Product Description
Technical Parametersnter

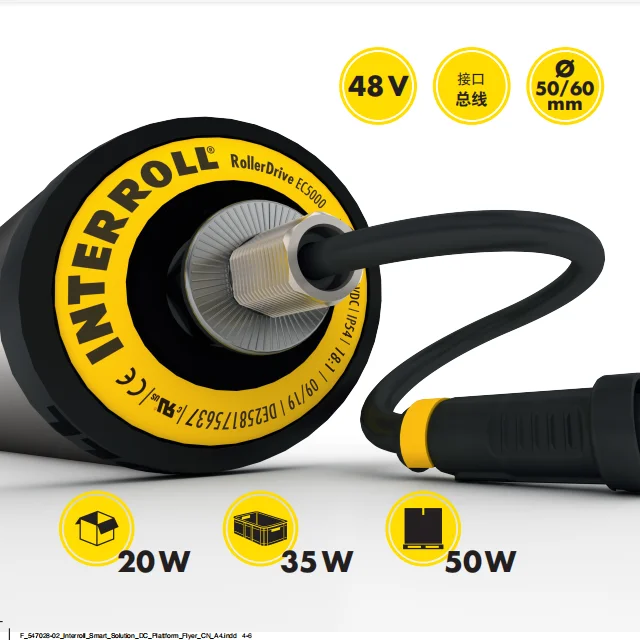

Smart RollerDrive EC5000
This series is the most comprehensive series of electric rollers on the market, equipped with an ideal drive to meet the needs of any conveyor system.
20 W series:
An economical conveyor solution for moving light materials or empty pallets.
35 W series:
Covers most pallet conveyor applications and is compatible with its mature pre-series EC310.
50 W series:
The perfect choice for conveying heavy materials weighing up to 250 kg; products with a diameter of 60 mm are also available.
20 W series:
An economical conveyor solution for moving light materials or empty pallets.
35 W series:
Covers most pallet conveyor applications and is compatible with its mature pre-series EC310.
50 W series:
The perfect choice for conveying heavy materials weighing up to 250 kg; products with a diameter of 60 mm are also available.
Smart RollerDrive EC5000 | ||
Voltage | 24 V DC and 48 V DC | |
power | 20 W/35 W/50 W | |
Conveyor speed | Up to 2.41 m/s | |
Acceleration torque | Up to 13 Nm | |
interface | Analog/Bus | |
Pipe diameter | 50/60 mm | |
Protection level | IP54/IP66 | |
Ambient temperature | –30°C to +40°C | |
Design type
