Acid and Alkali Resistant Design Two Tanks Ultrasonic Cleaning and Rinsing with Single Tank Drying Machine
- Category: >>>
- Supplier: Guangdong Blue Whale Ultrasonic Cleaning Technology Co. Ltd.
Share on (1600950487232):
Product Overview
Description
Products Description
Blue Whale Two Tanks Ultrasonic Cleaner | ||
Items | Value | |
Tank size: | 350*350*250mm | |
Tank capacity: | 30L | |
Tank material for ultrasonic cleaning and heating machine | stainless steel SUS316 in 2.0mm coated with teflon | |
Material of the exterior part of the machine | stainless steel SUS304 in 1.0mm | |
Transducer quantity: | 15pcs for each tank, total 30pcs | |
Ultrasonic frequency: | 40khz | |
Ultrasonic power: | 750W for each tank, total 1500W | |
Heating power: | 1000W for each tank, total 2000W. | |
Total power of the machine | 3500W | |
Function of 1st tank: | Ultrasonic Cleaning+heating | |
Function of 2nd tank: | Ultrasonic Rinsing+heating | |
Other configuration: | With digital time display + digital temperature display + separate water inlet pipes and valves + cleaning basket for each tank | |
Cover: | Two portable cover with handle, the material is PP. | |
Blue Whale Single Tank Dying Machine | ||
Items | Value | |
Tank size: | 350*350*250mm | |
Tank capacity: | 30L | |
Tank material for drying machine | stainless steel SUS304 in 2.0mm | |
Material of the exterior part of the machine | stainless steel SUS304 in 1.0mm | |
Heating power: | 1500W | |
Other configuration: | 1 set of air blower, 1 set of digital time display, 1 set of digital temperature display, 1pc of stainless steel basket, 1pc of gas stay cap. | |

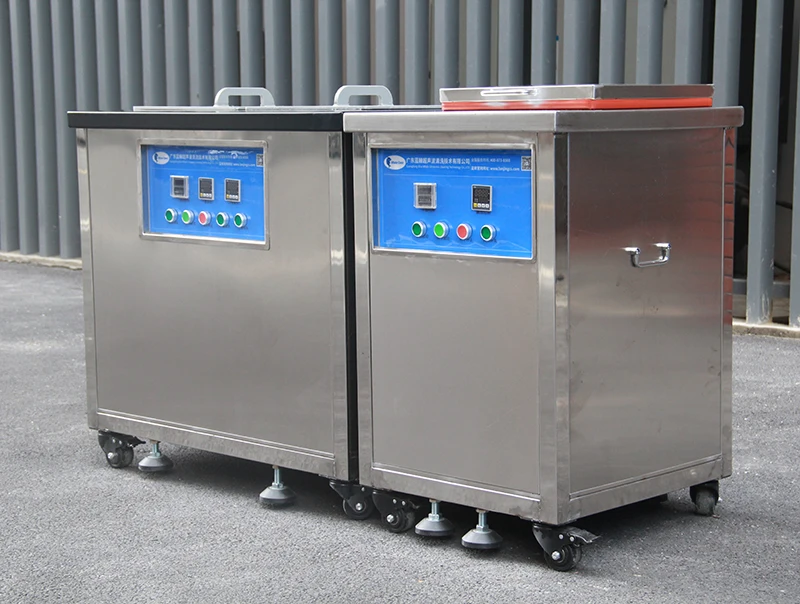

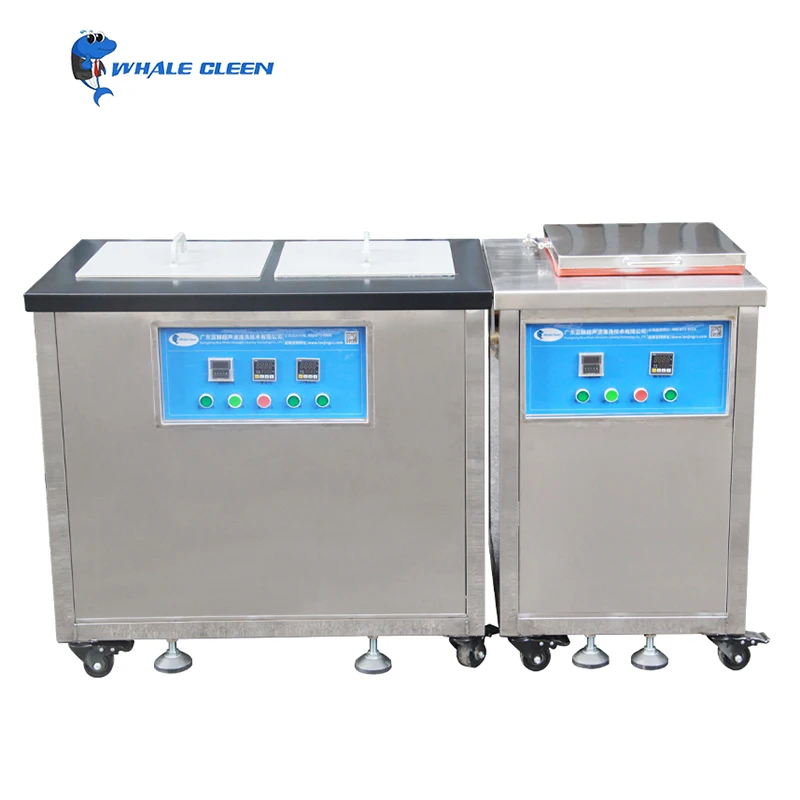

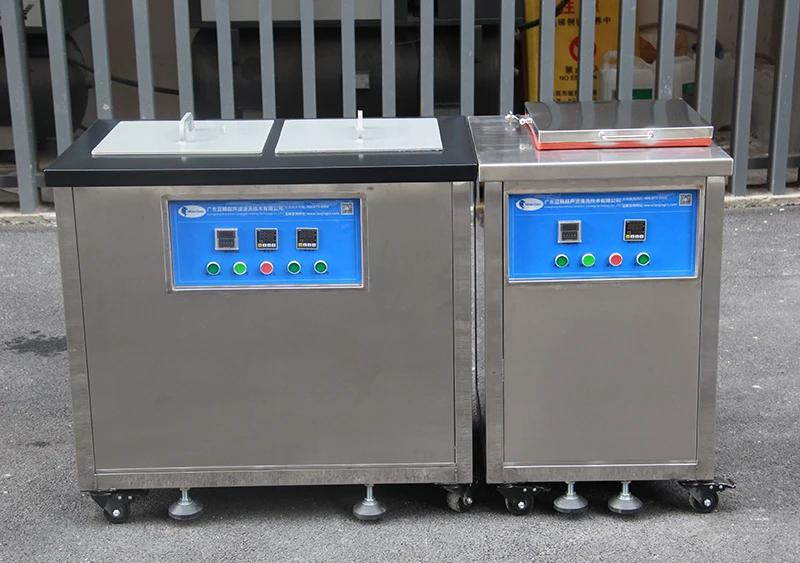

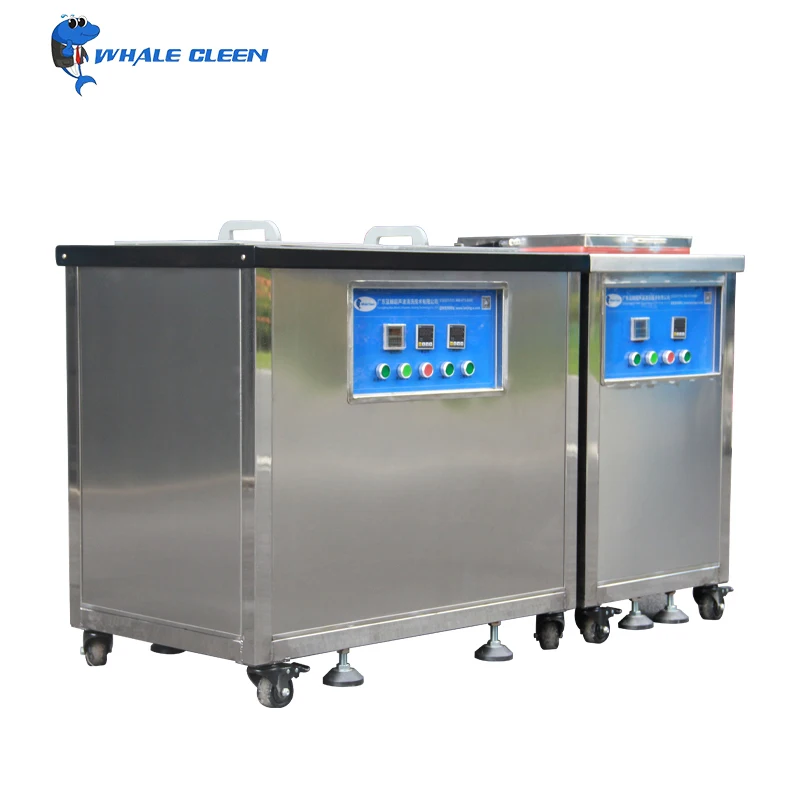

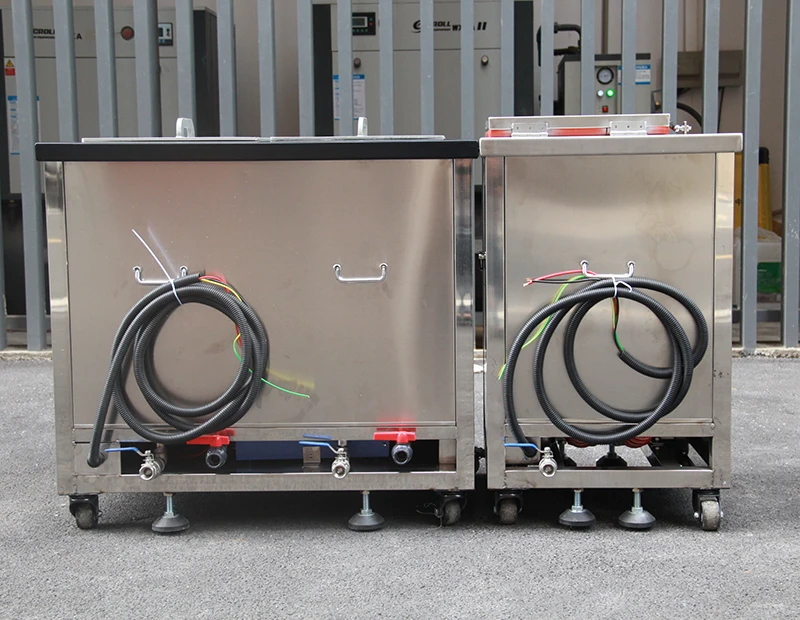

Blue Whale Two Tanks Ultrasonic Cleaning Machine
1). 1st tank Ultrasonic Cleaning+heating, 2nd tank ultrasonic rinsing+heating.2). Each tank size is 350*350*250mm, each tank capacity is 30L.
3). Each tank material is high quality stainless steel SUS316L in 2.0mm coated with teflon so it is with excellent heat and cold
resistance, can be used for a long time at -180 ~ 260ºC. This material has the characteristics of acid and alkali resistance and
resistance to various organic solvents.
4). Install 15pcs of transducers at the bottom of each tank, ultrasonic frequency 40Khz, each transducer is with 50W and total
ultrasonic power for each tank is 600W.
5). With heating tubes and the heating power is 1000W for each tank.
6). With digital time display and digital temperature display for each tank.

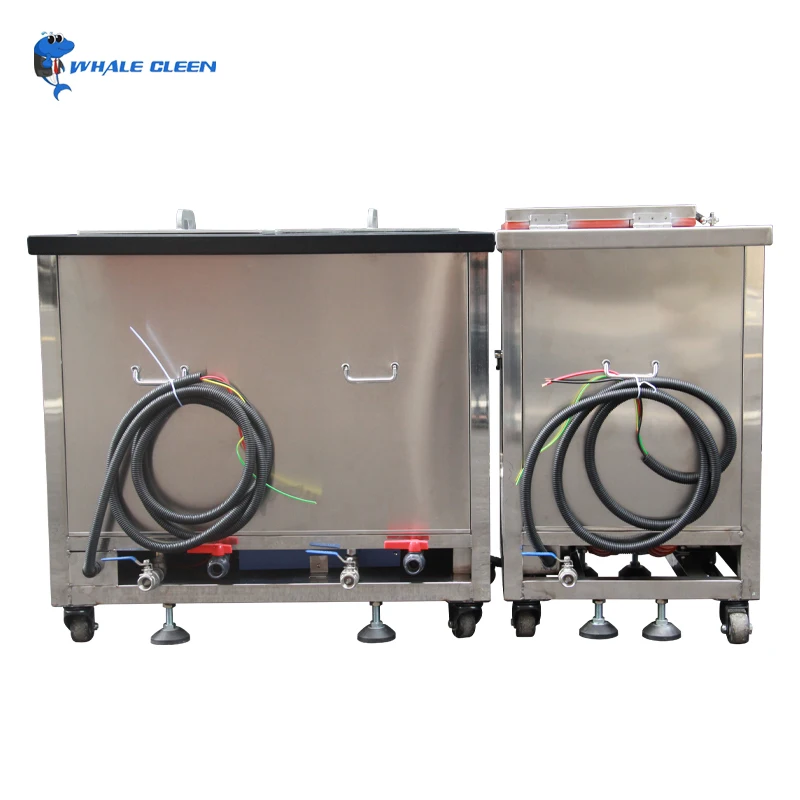

7). Equipped with separate water inlet pipes and valves for each tank.
8). 1 ultrasonic generator for two tanks which is built-in the bottom of the tank.

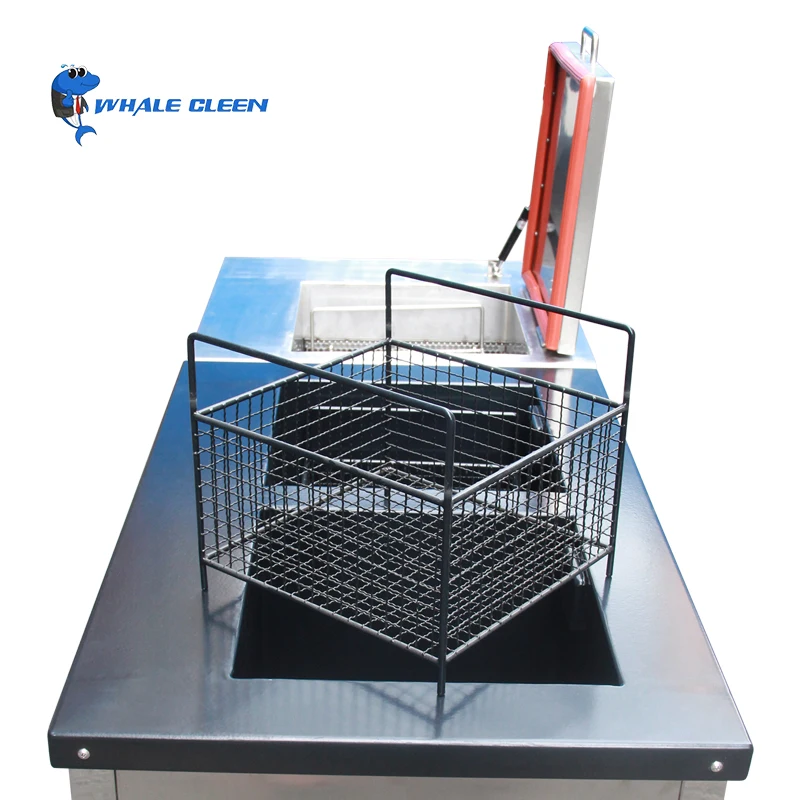

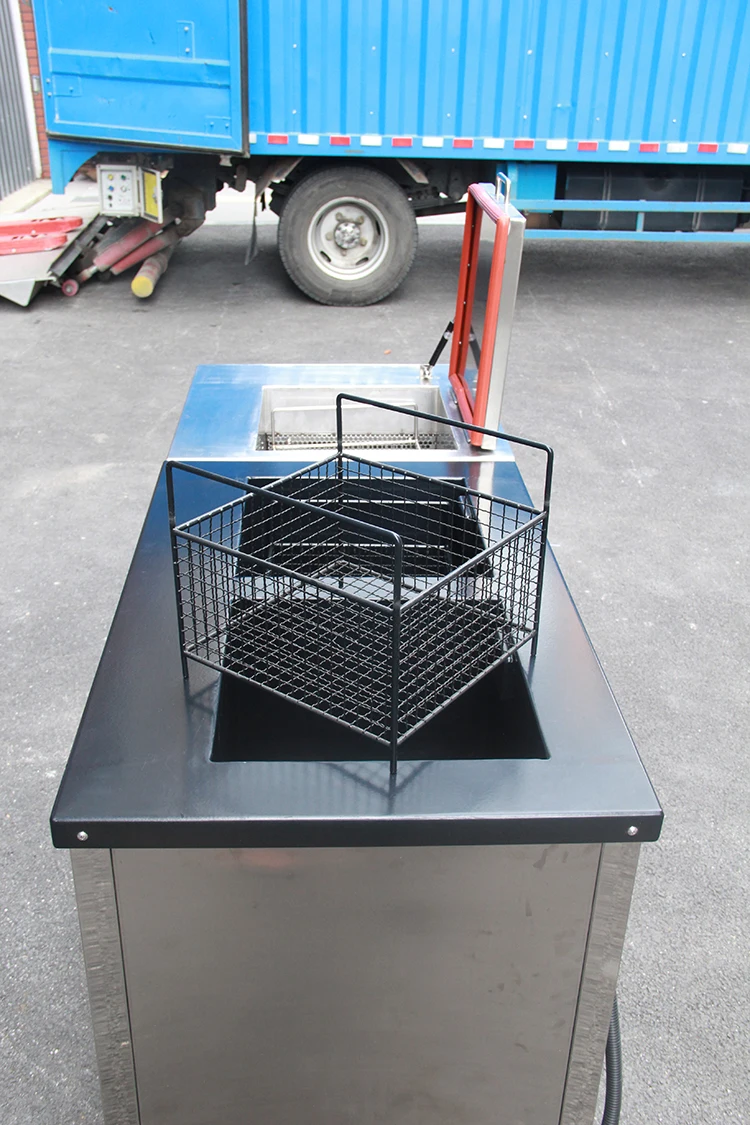

9). With two cleaning basket, the material is stainless steel SUS316L coated with teflon.
10). With two portable cover with handle, the material is PP.
11). The exterior machine material is stainless steel SUS304 in 1.0mm
12). All the product parameters can be customized as per customer’s needs. Welcome to ODE and OEM.
Blue Whale Single Tank Drying Machine
1). Tank size is 350*350*250mm, tank capacity is 30L.
2). Tank material is stainless steel SUS304 in 2.0mm, exterior machine material is SUS304 in 1.0mm.
3). Equipped with 1 set of air blower.
4). Heating power is 1500W, fast heating speed.
5). With 1pc of digital time display and 1pc of digital temperature display.
6). With 1pc of stainless steel basket.
7). With 1pc of gas stay cap.
