LONGi Hi MO 6 Scientist LR5 54HTB 440 450M Half Cell All Black Solar Panels 440W 445W 450W
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600950493393):
Product Overview
Description
About LONGi
Picture of Longi Xi'an Headquarters
Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.
Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.
LONGi Authorizes SOLARMAN's Certificate
LONGi × SOLARMAN
Product Description
Electrical Performance Parameters (STC Test)
Module model | LR5-72HTH-440M | LR5-72HTH-445M | LR5-72HTH-450M | ||
Maximum power (Pmax/W) | 440 | 445 | 450 | ||
Open circuit voltage (Voc/V) | 39.83 | 40.03 | 40.23 | ||
Short circuit current (Isc/A) | 14.15 | 14.23 | 14.31 | ||
Peak power voltage (Vmp/V) | 33.56 | 33.76 | 33.96 | ||
Peak power current (Imp/A) | 13.12 | 13.19 | 13.27 | ||
Module efficiency(%) | 22.5 | 22.8 | 23.0 | ||
Standard test conditions | STC：AM1.5 1000W/m² 25℃ | ||||

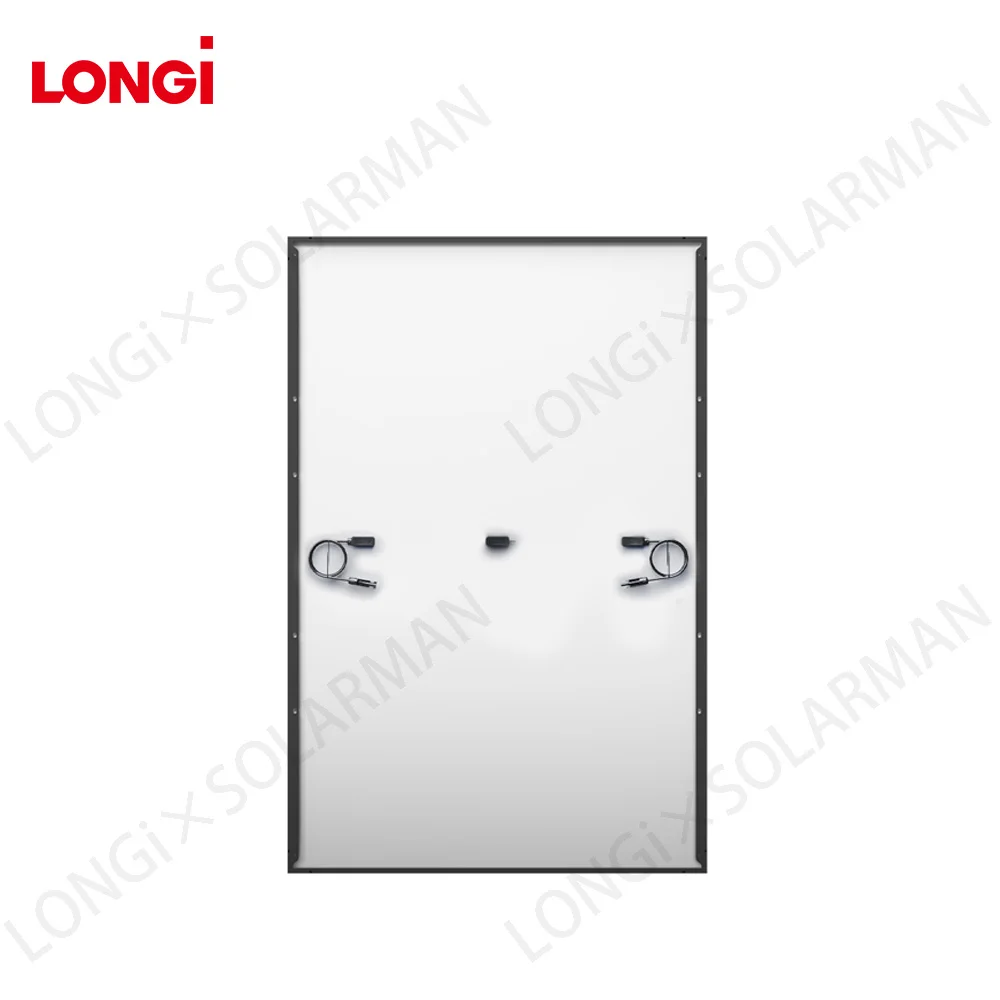

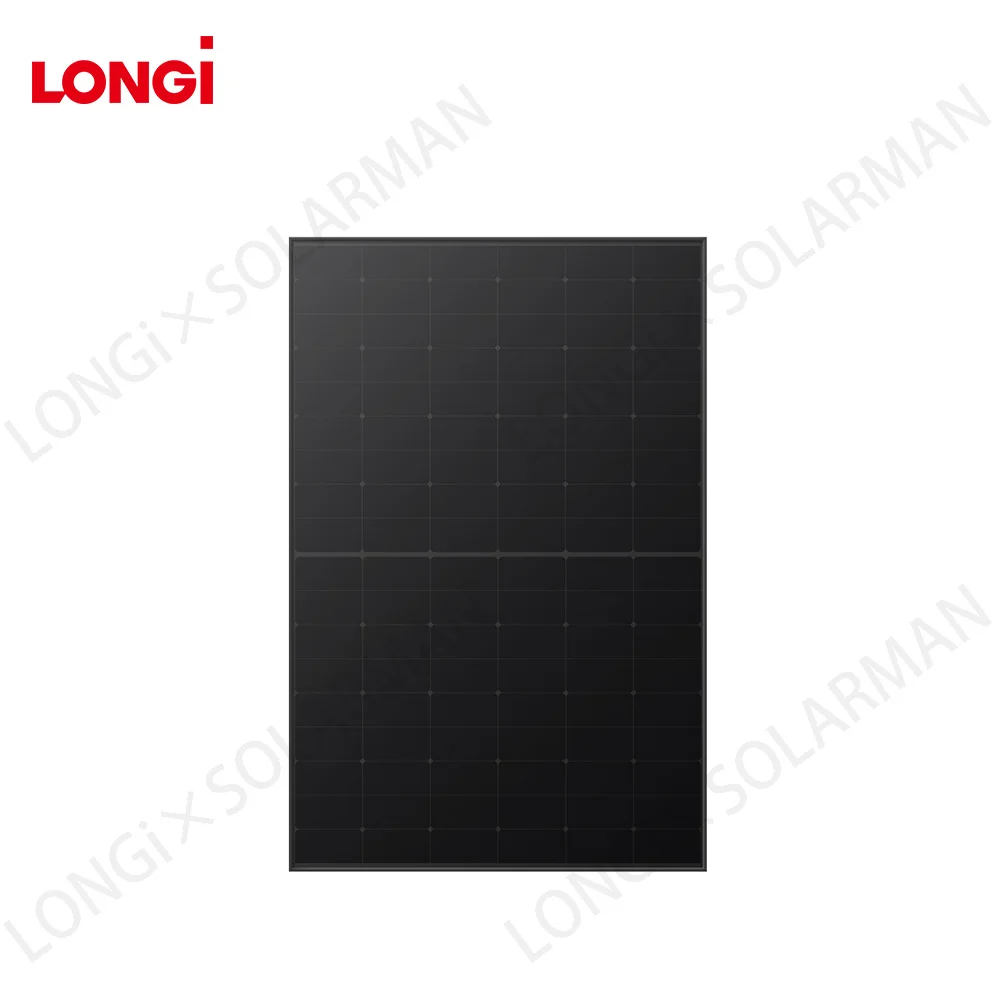

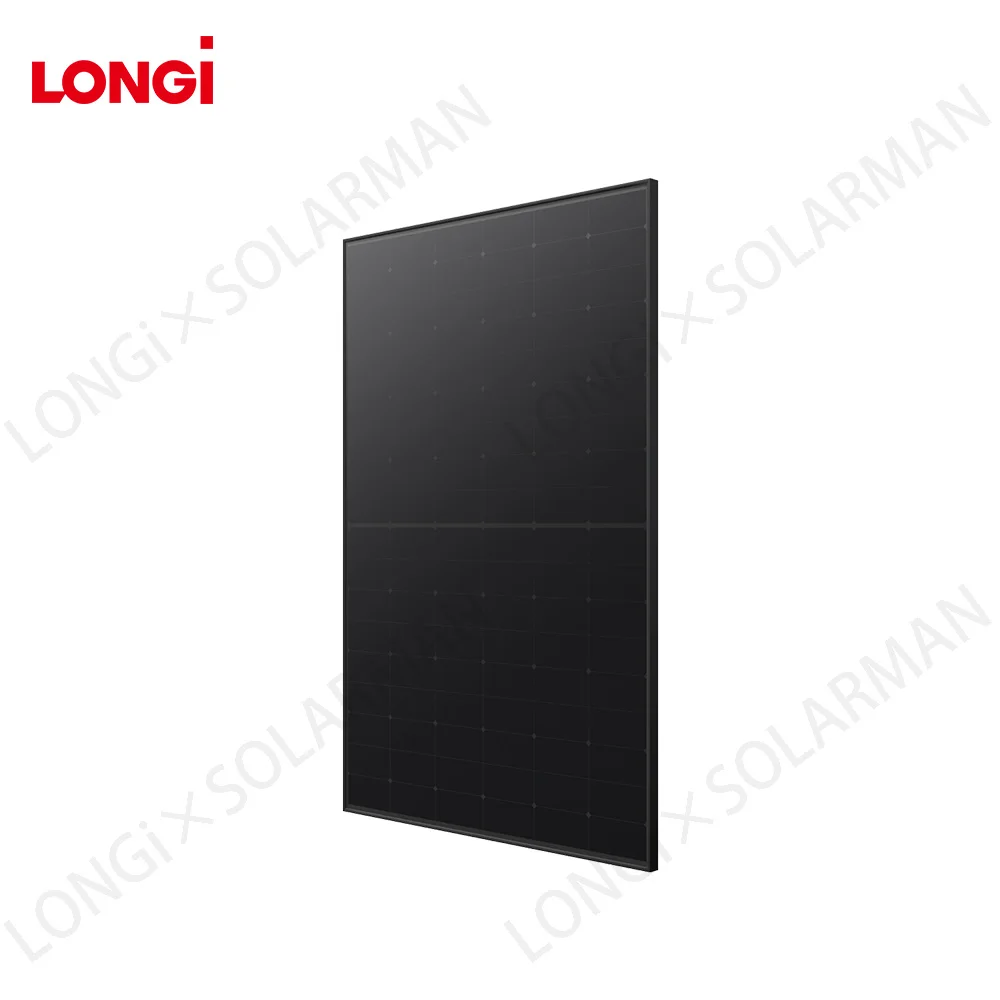

Product image
Mechanical Parameters
LONGi Hi-MO 6 Scientist LR5-54HTB 440-450M | ||||||||
Number of solar cells | 108（6×18） | |||||||
Junction box | Split junction box，IP68，3 diodes | |||||||
Output cable | 4mm²，long cable，±1000mm/±1400mm | |||||||
Single Glass | 3.2mm coated tempered glass | |||||||
Weight | 20.8kg | |||||||
Size | 1722*1134*30mm | |||||||
Packaging | 36pcs per pallet / 216pcs per 20‘GP / 936pcs per 40‘HC | |||||||
Packaging and container loading
Projects cases
Longi Factory Roof Solar Power Station（see above）
Longi Ground Solar Power Station（See below）
