Used High Quality FUJI NXT II M3/M6/M6SP SMT Equipment Machine SMT Mounter
- Category: >>>
- Supplier: Shenzhen Meraif Import And Export Co. Ltd.
Share on (1600950516557):
Product Overview
Description
Used High Quality FUJI NXT II M3/M6/M6SP SMT Equipment Machine SMT Mounter
whatsapp:+8613728632793,skype:Joaquin Xie,wechat:Joaquin15
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
FUJI NXT II M3 Specification:
Model | FUJI NXT ⅡM3/M6/M6SP |
Board size | M3 II / M6 II: 48mm x 48mm ~ 510mm x 534mm (double handling rail) 48mm x 48mm ~ 610mm x 534mm (single transport track) M6 IISP: 48mm x 48mm ~ 510mm x 520mm (double handling rail) 48mm x 48mm ~ 610mm x 520mm (single handling track) |
Component Type | M3 II: MAX 20 (8mm tape conversion) M6 II / M6 IISP: MAX 45 (8mm tape conversion) |
Mounting accuracy | H12S / H08 / H04 / OF: ± 0.05mm (3 sigma) cpk≥1.00 H01 / H02 / G04: ± 0.03mm (3 sigma) cpk≥1.00 GL: ± 0.10mm (3 sigma) cpk≥1.00 |
Production capacity | H04: 6,500 cph; H01: 4,200 cph; G04: 6,800 cph; OF: M3 II not mountable /M6 II 3000 cph; GL: 16,363 dph (0.22 sec / dot)) H04: 6,000 cph; H01: 3,500 cph; G04: 5,100 cph; OF: 2,800 cph, GL: 16,363 dph (0.22 sec / dot)) |
Object components | H12S: 0402 ~ 7.5mm x 7.5mm high: MAX 3.0mm H08: 0402 ~ 12mm x 12mm high: MAX 6.5mm H04: 1608 ~ 38mm x 38mm high: MAX13mm H01 / H02 / OF: 1608 to 74 mm × 74 mm (32 mm × 180 mm) Height: MAX 25.4 mm G04: 0402 ~ 15.0mm x 15.0mm high: MAX 6.5mm |
Component Supply | Smart feeder: corresponding to 8,12,16,24,32,44,56,72,88 mm width of the tape Material feeder: 4≤ element width≤15mm (6≤ tube width≤18mm),15≤ element width≤32mm (18≤ tube width≤36mm) Tray unit: 135.9X322.6mm (JEDEC standard) (Tray unit M), 276X330mm, 138X330mm (Tray unit LT) |
Machine size | 2MII Base: 740 (L) x 1934 (W) 4M II Base: 1390 (L) x 1934 (W) H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP) |
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.

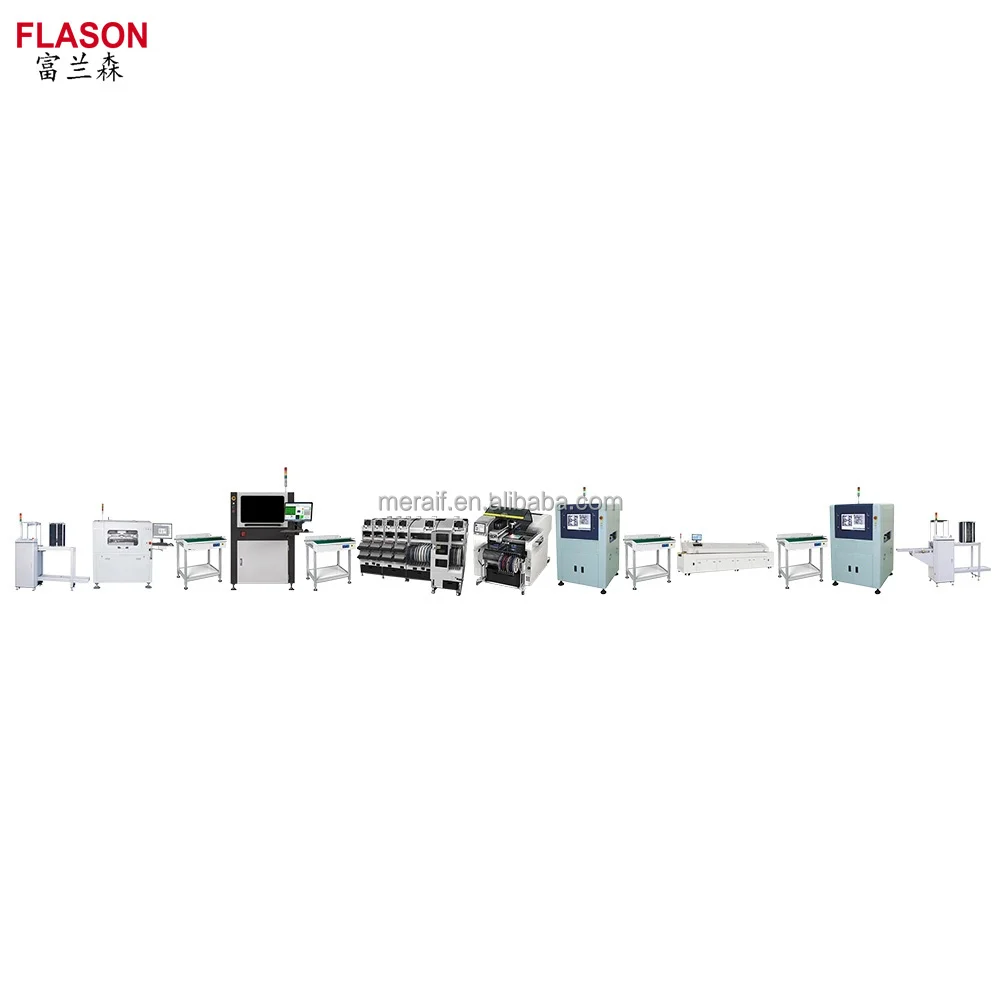

For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

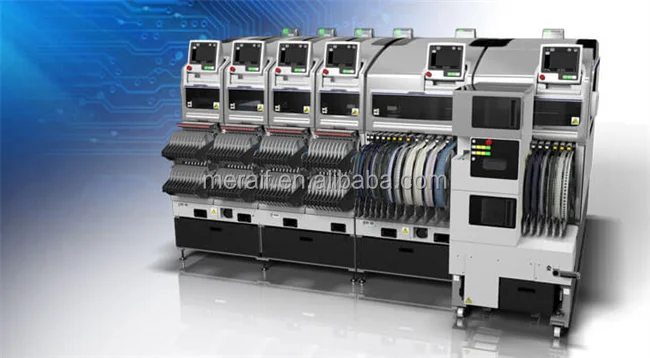

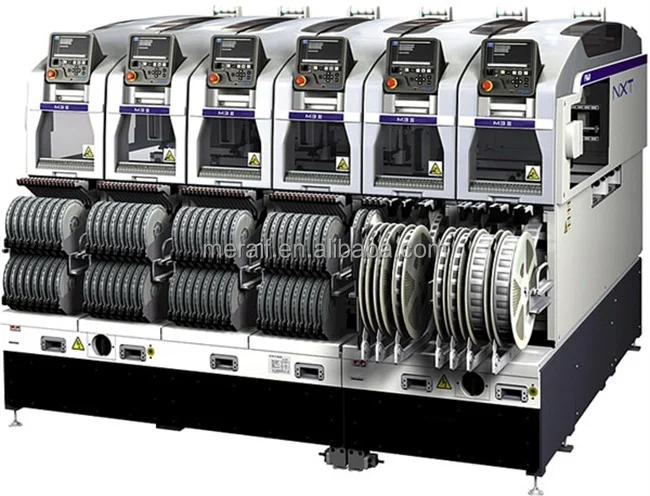

FUJI NXT II M3 picture show
