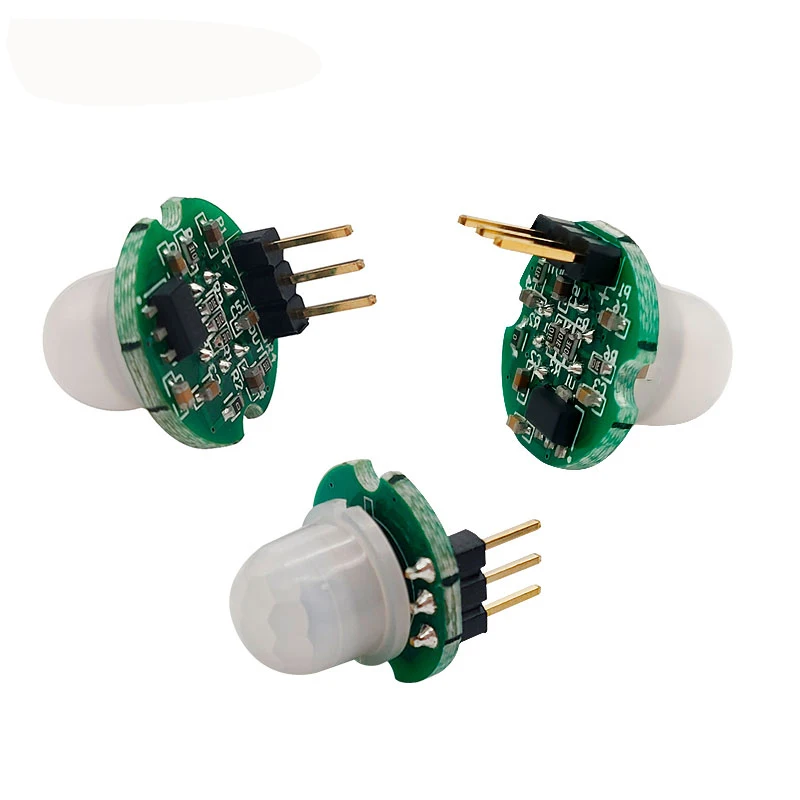

Mini Detector Module Pyroelectric Infrared PIR Sensory Switch Bracket Motion Sensor
- Category: >>>
- Supplier: Hunan Tecnk Electronic Co. Ltd.
Share on (1600950546112):
Product Overview
Description
Products Description

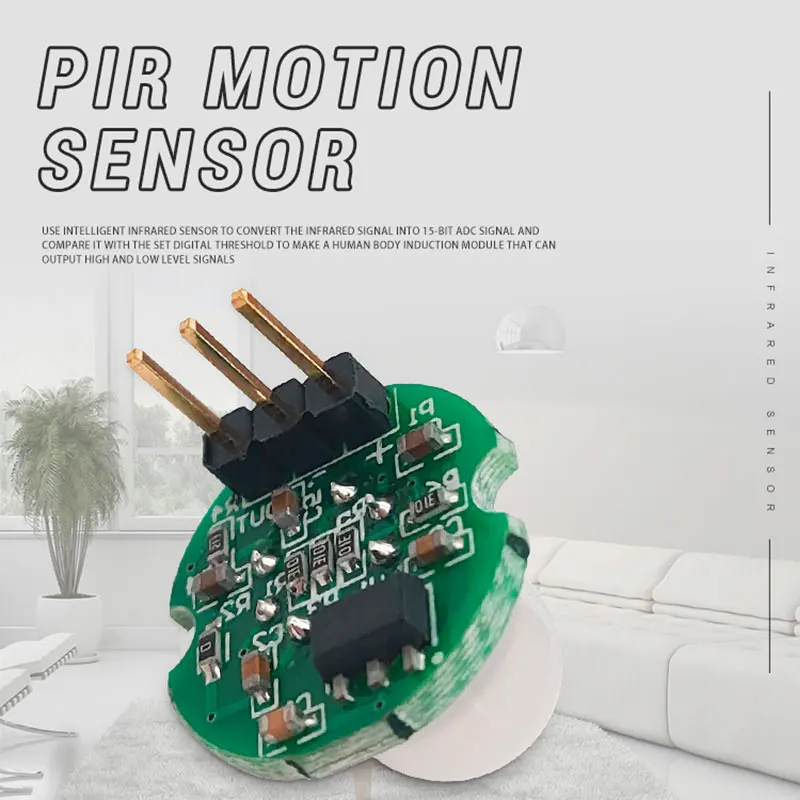

PPM-HW-05A is a pyroelectric infrared sensor that integrates digital intelligent control circuits and human detection sensitive elements in an electromagnetic shield. The human body detection sensitive element replaces the sensed human body movement signal on the digital intelligent integrated circuit chip through a very high sensitivity differential input circuit. The digital intelligent integrated circuit converts the signal into an ADC digital signal. There will be timing REL conversion output. The light sensor is automatically controlled. Sensitivity and time parameters are set by voltage divider resistors. All signal processing is done on the chip.
Features
1. Integration of PIR probes and conditioning circuits to minimize interference.
2. Someone enters the sensing range and outputs a high level. After leaving the sensing range, the high level delays for a set time before outputting a low level.
3. High level delay time and sensor sensing distance can be adjusted.
4. The enable port can be used to set the sensor on or off, for example,
light sensitive control can be added.
light sensitive control can be added.
5. Wide operating voltage range.
Product Paramenters
Working voltage | DC3.7V-22V |
Quiescent current | 21uA |
Output level | high level 3.2V, low level 0V. |
High level delay time | 2~3600 seconds |
Induction distance | 4-6 meters |
Working temperature | -20-+50℃ |
Induction angle | 110 degrees |
Circuit board size | 16.2mm×1.6mm |
Dimensions(unit:mm)
Certifications
Exhibition
FAQ
Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples asap.
Q: How about the quality of the managements ?
A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples asap.
Q: How about the quality of the managements ?
A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
