Full Cover High Speed Disc Drum Brake Cnc Vertical Lathe Turning Center From China With Competitive Price
- Category: >>>
- Supplier: Henan Baishun Machinery Equipment Co. Ltd.
Share on (1600950561641):
Product Overview
Description
Product Overview

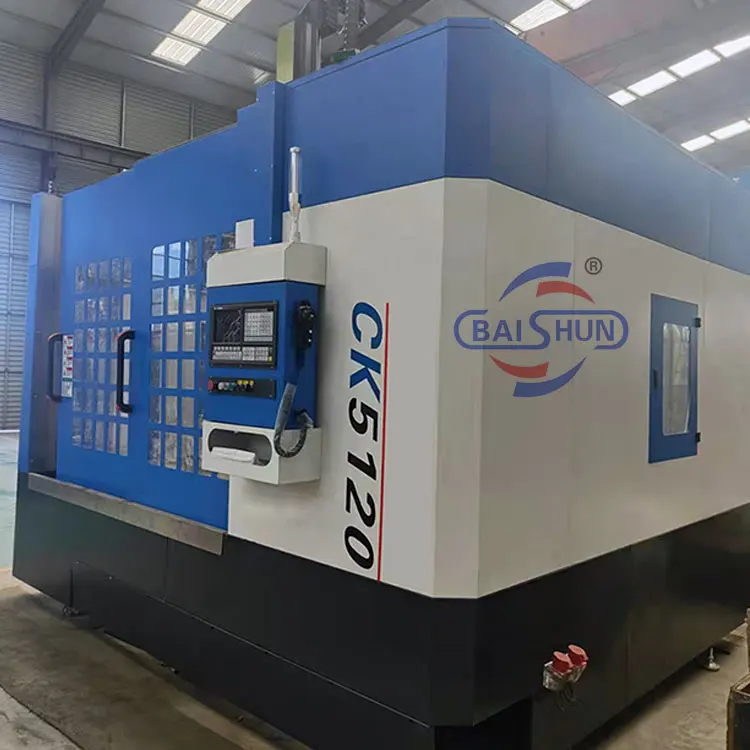

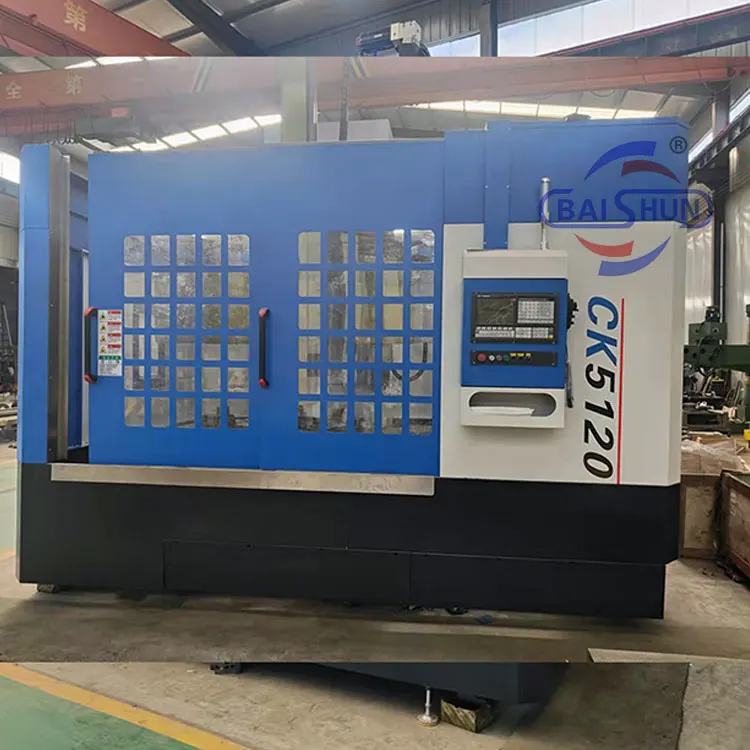

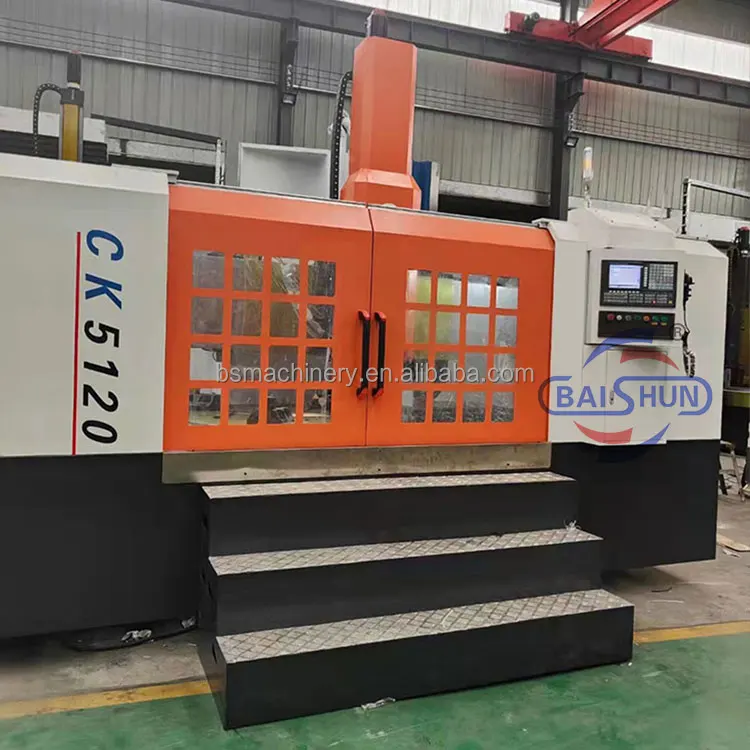

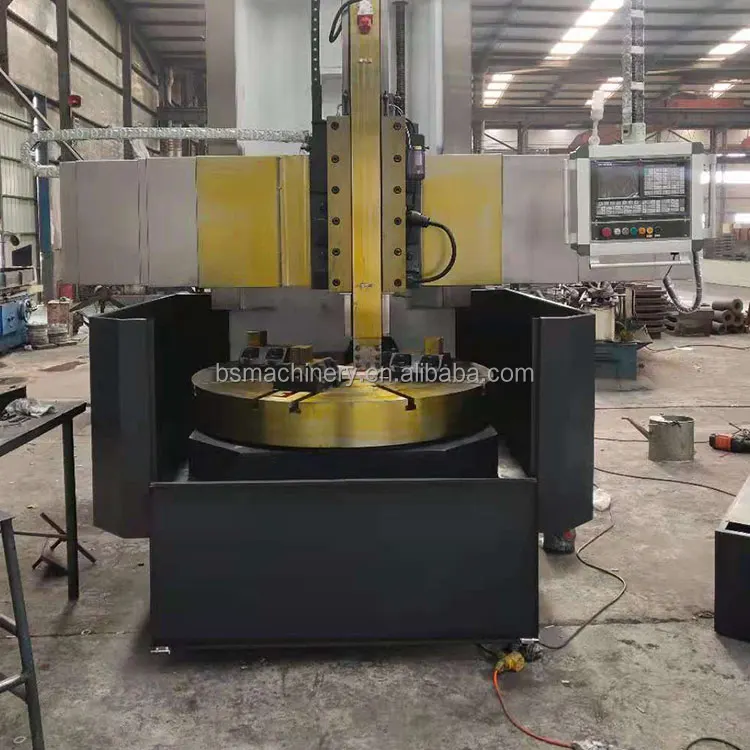

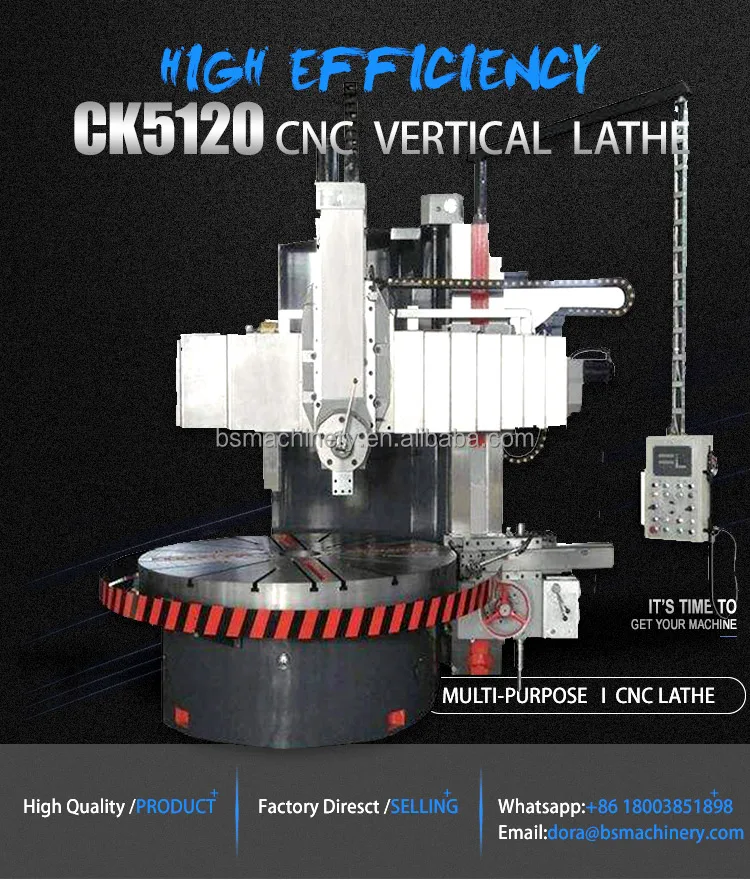

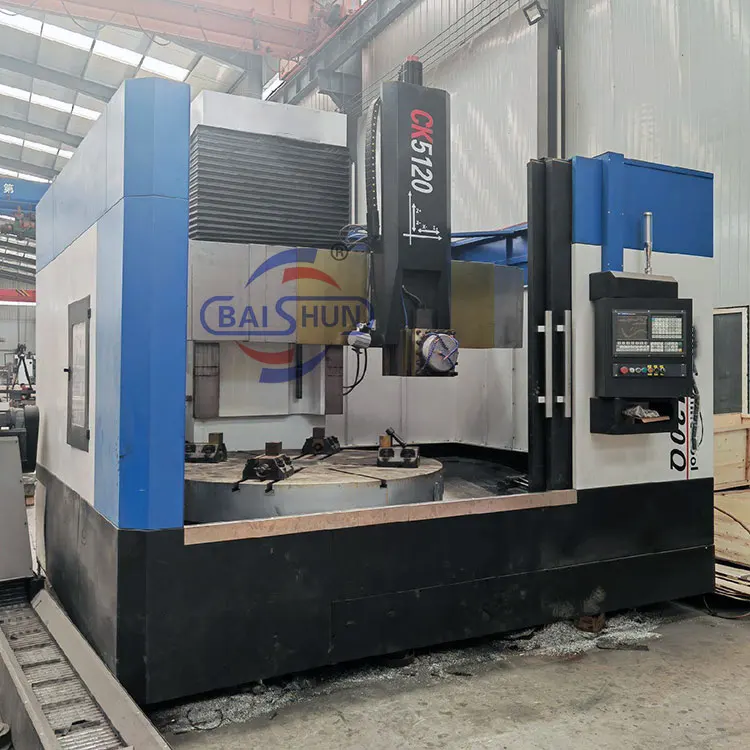

CK5120 Vertical Lathe

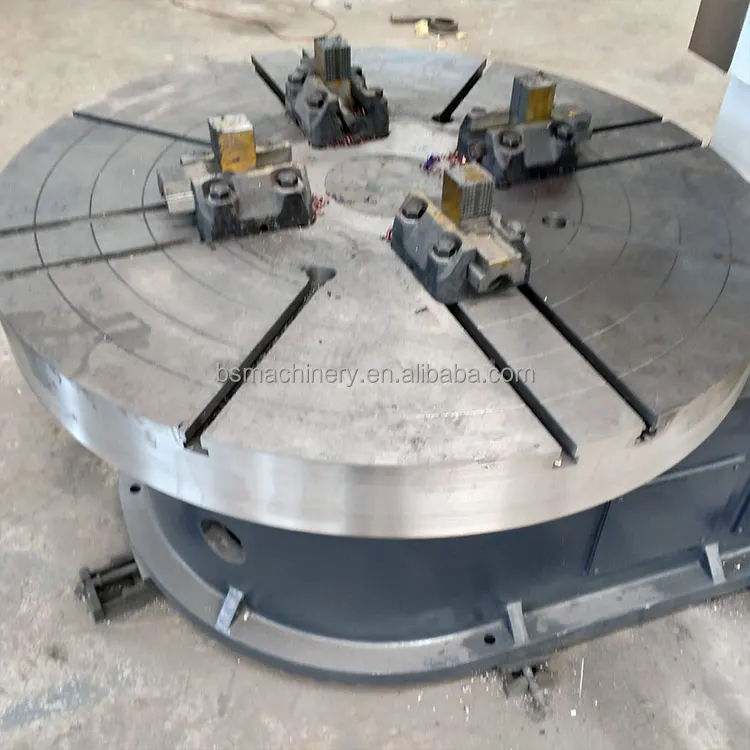

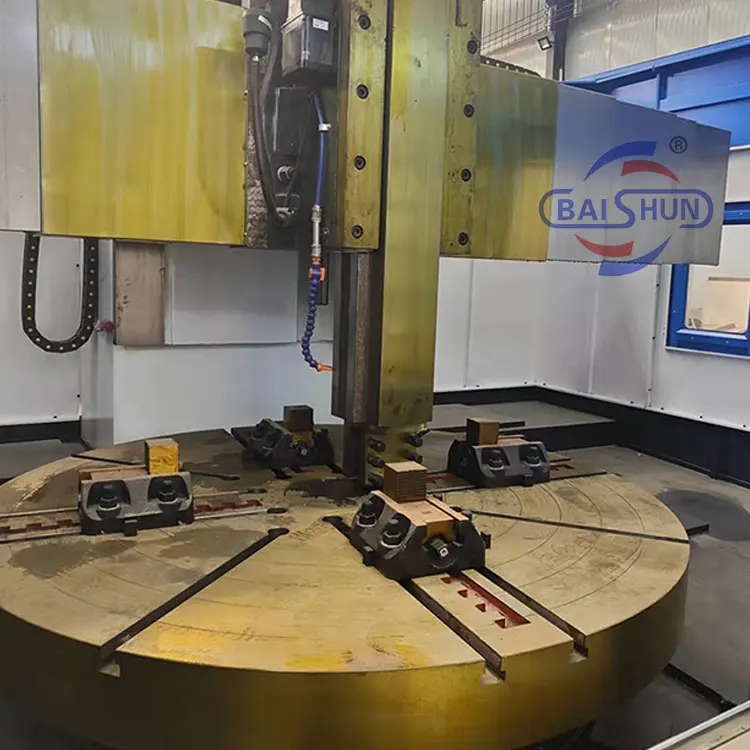

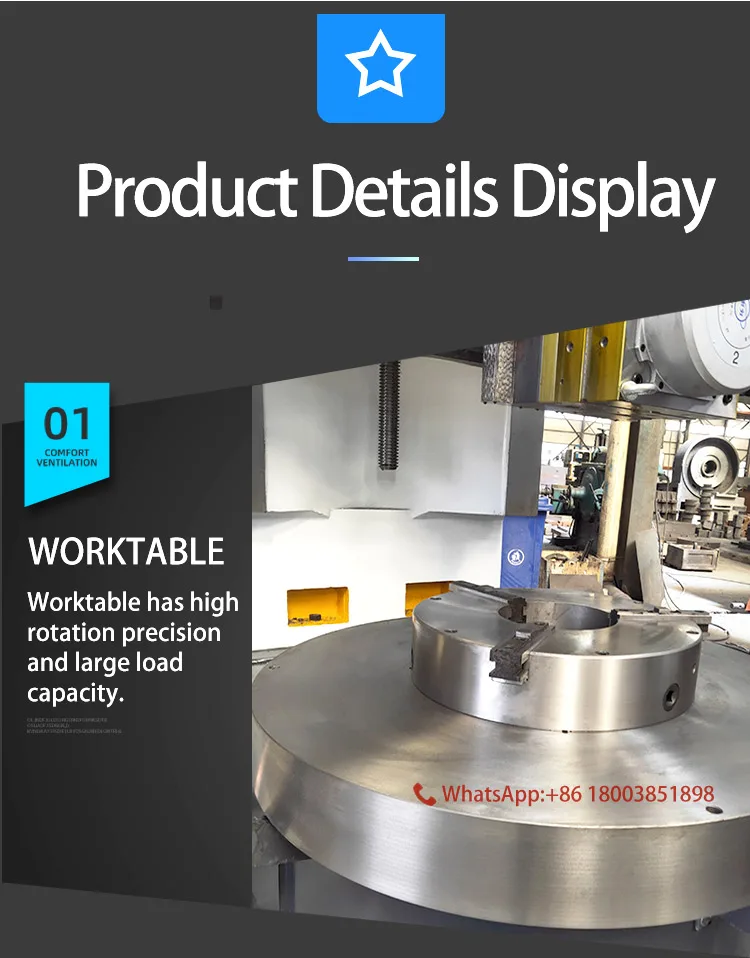

CNC single column vertical lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.
PRODUCT SPECIFICATIONS
No. | Name | Unit | Specification |
1 | Max. cutting diameter | mm | 2000 |
2 | Worktable diameter | mm | 1800 |
3 | Max. height of work piece | mm | 1250 |
4 | Max. weight of work piece | ton | 8 |
9 | Worktable speed changing range | r/min | 3.2-100 |
10 | Feed steps | step | Stepless |
11 | Feed range | mm/min | 0.8-86 |

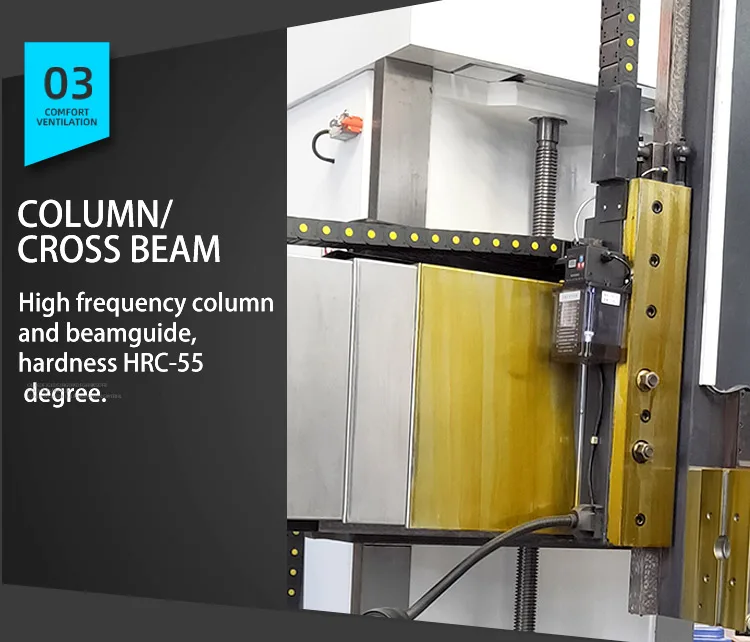

12 | Cross beam travel | mm | 890 |
13 | Vertical tool head travel Horizontal | mm | 1115 |
Longitudinal | mm | 800 | |
14 | Cross beam move speed | mm/min | 440 |

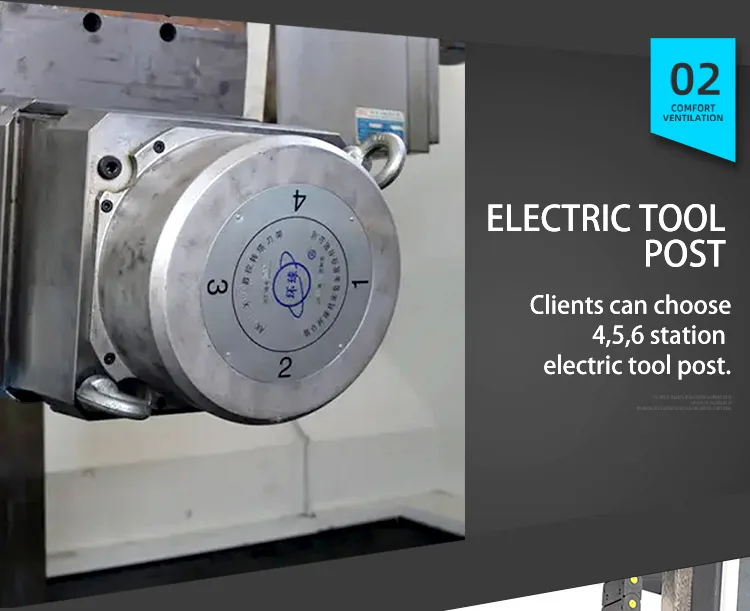

15 | Tool post rapid cross move speed | mm/min | 1800 |
Tool post rapid longitudinal move speed | mm/min | 1500 | |
16 | Swivel of tool head | degree | ±30° |
17 | Knife section(width×Height) | mm | 30×40 |
18 | Main motor power | kw | 30 |
19 | Machine size (LxWxH) | mm | 3135x3070x3150 |
20 | Machine weight about | ton | 16.5 |

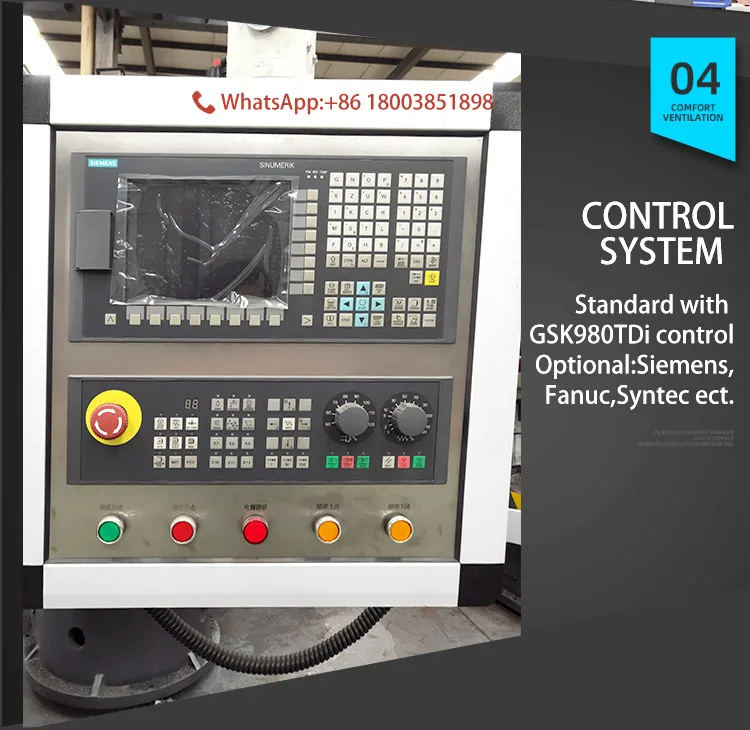

21 | CNC Control System | Siemens808D |
Note:Our factory support customization,it can be customized according to customer needs!
Interested please contact : Whatsapp +86 18003851898
