NEW Original ZXHN F688 V6.0 AC2000 wifi 4ge 2pots CATV 2.4g 5g ont Gpon fiber router 4ge 2ports wifi Compatible with ZTE OL
- Category: >>>
- Supplier: Shenzhen Zexing Zhiyun Technology Co. Ltd.
Share on (1600950563399):
Product Overview
Description
Products Description
The ZXHN F688 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting. At the network side, it supports 2.488Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two
POTS ports, one USB 2.0 port, one CATV port,and 2x2 802.11n@2.4GHz & 4x4
802.11ac@5GHz concurrent.
POTS ports, one USB 2.0 port, one CATV port,and 2x2 802.11n@2.4GHz & 4x4
802.11ac@5GHz concurrent.
The ZXHN F688 is an ONT designed for FTTH application scenarios. By using the ZXHN F688, the home users can access data, video and voice services, and enjoy high-speed Internet access.
Details Images
Specifications

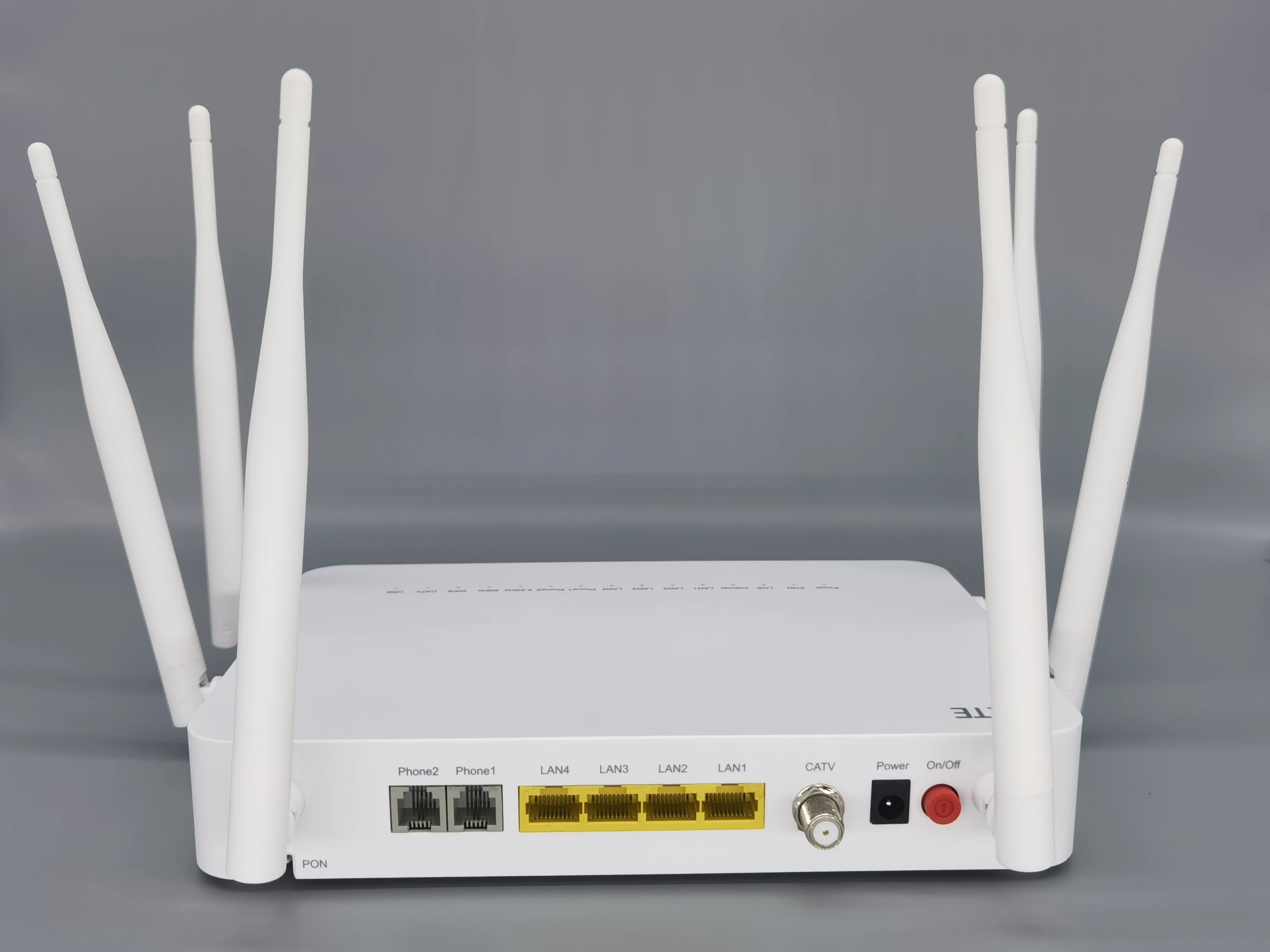

Interface | Description |
PON | SC/APC GPON optical interface. |
Phone1, Phone2 | Supports two POTS ports with RJ-11 connector. |
LAN1-LAN4 | Supports four 10/100/1000Base-T Ethernet ports with RJ-45 connector. Supports half/full duplex and flow control, auto negotiation or manual configuration. Supports MDI/MDIX auto-sensing. |
CATV | supports one CATV interface |
Power | 12 V Power Input Interface. +12 V DC (via external AC/DC adapter: 90–264 V, 50/60 Hz AC input, 12 V DC output ). |
On/Off | Power switch. |
Reset | When the ZXHN F688 is powered on, press and hold the Reset button for one second to restart the ZXHN F688. The user’s settings information will not be lost. When the ZXHN F688 is powered on, press and hold the Reset button for more than five seconds to restore the ZXHN F688 to the factory settings. |
USB | Supports one USB host interface. Complies with USB 2.0 specifications. |
GPON Features
ITU-T G.984 and ITU-T G.988 compatible
Flexible mapping between GEM port and T-CONT
Priority queuing and scheduling for upstream traffic
AES-128 encryption
FEC
Five types of T-CONT
Upstream traffic classification based on VLAN ID and 802.1p
Multicast GEM port
SN, password, and SN+password authentication
Auto-restart and recovery after power failure
ITU-T G.984 and ITU-T G.988 compatible
Flexible mapping between GEM port and T-CONT
Priority queuing and scheduling for upstream traffic
AES-128 encryption
FEC
Five types of T-CONT
Upstream traffic classification based on VLAN ID and 802.1p
Multicast GEM port
SN, password, and SN+password authentication
Auto-restart and recovery after power failure
Wi-Fi Features
The Wi-Fi function provides an easy, convenient, flexible, and cost-efficient method for users to access the Internet via a wireless LAN network.
Supports 2.4GHz (2* 2 MIMO), IEEE802.11b/g/n compliant
Supports 5GHz (4* 4 MIMO), IEEE802.11a/n/ac compliant
Auto and manual channel selection
Auto and manual rate control
Transmission power control
Four SSIDs per frequency band
Maximum 32 users per frequency band
SSID broadcast enabling/disabling
Access control based on MAC address
WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK security authentication
WPS
WMM
Beamforming
MU-MIMO
The Wi-Fi function provides an easy, convenient, flexible, and cost-efficient method for users to access the Internet via a wireless LAN network.
Supports 2.4GHz (2* 2 MIMO), IEEE802.11b/g/n compliant
Supports 5GHz (4* 4 MIMO), IEEE802.11a/n/ac compliant
Auto and manual channel selection
Auto and manual rate control
Transmission power control
Four SSIDs per frequency band
Maximum 32 users per frequency band
SSID broadcast enabling/disabling
Access control based on MAC address
WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK security authentication
WPS
WMM
Beamforming
MU-MIMO
Company Profile
Shenzhen Zexing Zhiyun Technology Co., Ltd. was founded in 2018. Following the rapid expansion of the world's Internet industry, the company is committed to building a reliable and good network for the world, and continues to grow and grow into a leading network equipment provider in China. Technological innovation is the soul of Zexing Zhiyun. The company has a R&D team of nearly 100 people, and has established dual R&D bases in Shenzhen and Chengdu, with a production center of more than 500 people.
The company's products cover: home wireless, commercial wireless, switches, access terminals, PLC power grids, etc., with more than 20 product series. Their common features are: strong performance, stable signal, easy deployment, easy installation, high quality and low price. Zexing is based in China, serves the world, and extends its tentacles to every corner of the world. The company has set up branches in Beijing and Chengdu, and has set up multiple offices in various places. It has established offices in the United States, Brazil, Australia, Russia, India, Indonesia, South Africa and other countries, and established cooperative relations with many agents around the world. Our products are exported to more than 10 countries and regions around the world. As of the fourth quarter of 2021, the total sales volume of Tenda products has exceeded 50 million units.
Exhibition
Certifications
Manufacturing Technique
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
