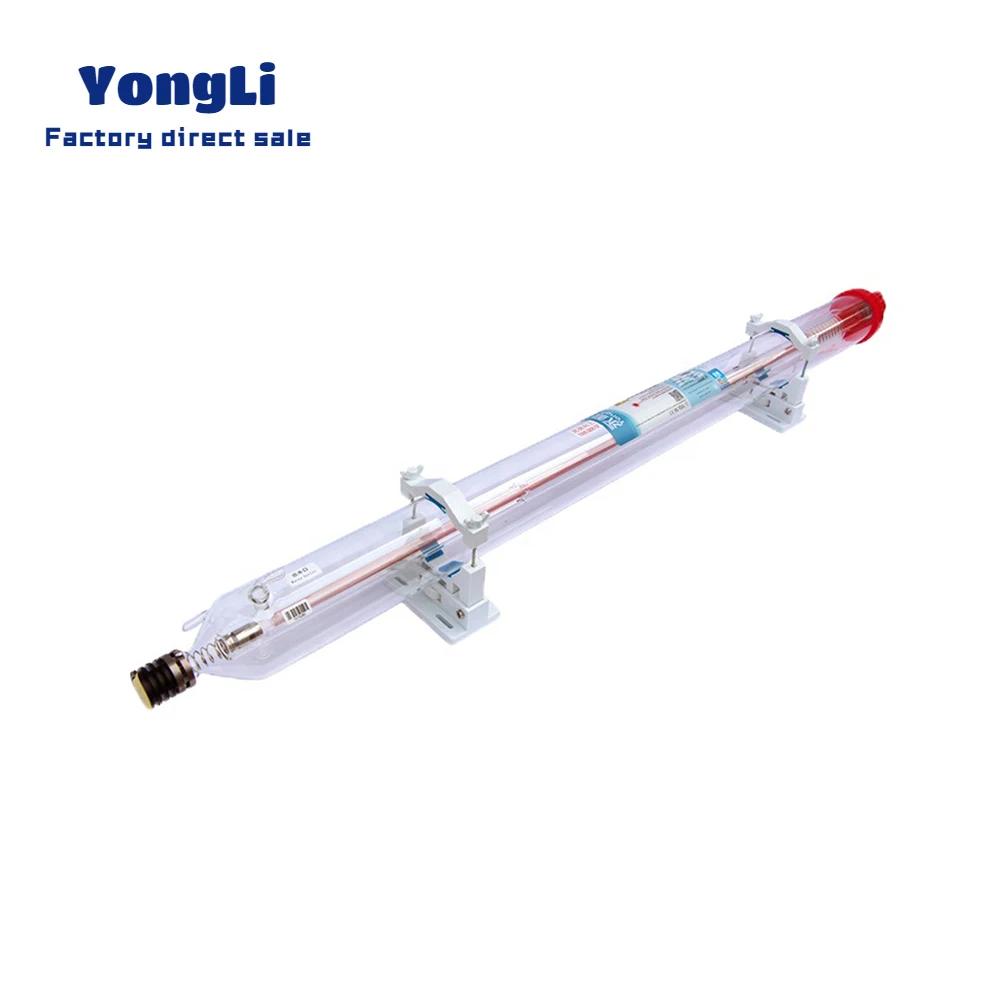

Co2 laser tube 80w 100w 150w 180w YONGLI A1s A2S A4S A6s A8s co2 laser tube cutting machine
- Category: >>>
- Supplier: Jilin Yongli Laser Technology Co. Ltd.
Share on (1600950828049):
Product Overview
Description
Co2 laser tube 80w 100w 150w 180w YONGLI A1s A2S A4S A6s A8s co2 laser tube cutting machine
Products Description
YongLi Top Class As series Co2 Laser Tube is Universal model, it’s a great replacement for the same power or same length laser tube on the Laser Cutting Machine or Co2 Laser Engraving Machine.
No matter how well maintained, laser tubes—like light bulbs—are temporary parts that eventually burn out.
Replace your old tube with The High Quality As Series laser tube. Made of tough German Schott imported glass raw, this durable long service life As series CO2 laser tube leaves competitors behind. Designed for medium to large-sized CO2 laser cutting engraving machines
Order today knowing your purchase is protected by YongLi good name, premium materials, and superior craftsmanship.
No matter how well maintained, laser tubes—like light bulbs—are temporary parts that eventually burn out.
Replace your old tube with The High Quality As Series laser tube. Made of tough German Schott imported glass raw, this durable long service life As series CO2 laser tube leaves competitors behind. Designed for medium to large-sized CO2 laser cutting engraving machines
Order today knowing your purchase is protected by YongLi good name, premium materials, and superior craftsmanship.
Technical Parameters
MODEL | A1s | A2s | A4s | A6s | A8s |
Tube Length | 3 ft. 7 in. | 4 ft. 2 in. | 4 ft. 9 in. | 5 ft. 5 in. | 6 ft. 1in. |
(1100 mm) | (1250 mm) | (1450 mm) | (1650 mm) | (1850 mm) | |
Tube Diameter | φ80±2mm/ 3.1 in. | φ80±2mm/ 3.1 in. | φ80±2mm/ 3.1 in. | φ80±2mm/ 3.1 in. | φ80±2mm/ 3.1 in. |
Rated Power | 75 | 90 | 100 | 130 | 150 |
Peak Power | 90 | 100 | 130 | 160 | 180 |
Ignition Voltage (kV) | 20 | 25 | 28 | 30 | 34 |
Operating Voltage(Kv AC) | 15 kV AC | 18 kV AC | 19 kV AC | 21 kV AC | 22 kV AC |
Operating Current (mA) | 22 | 26 | 28 | 30 | 35 |
Recomended Operating Current (mA) | 18 | 21 | 22 | 24 | 28 |
Power Instability(%) | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 |
Operational Life (hr.) | 10000-12000 hr | 10000-12000 hr | 10000-12000 hr | 10000-12000 hr | 10000-12000 hr |

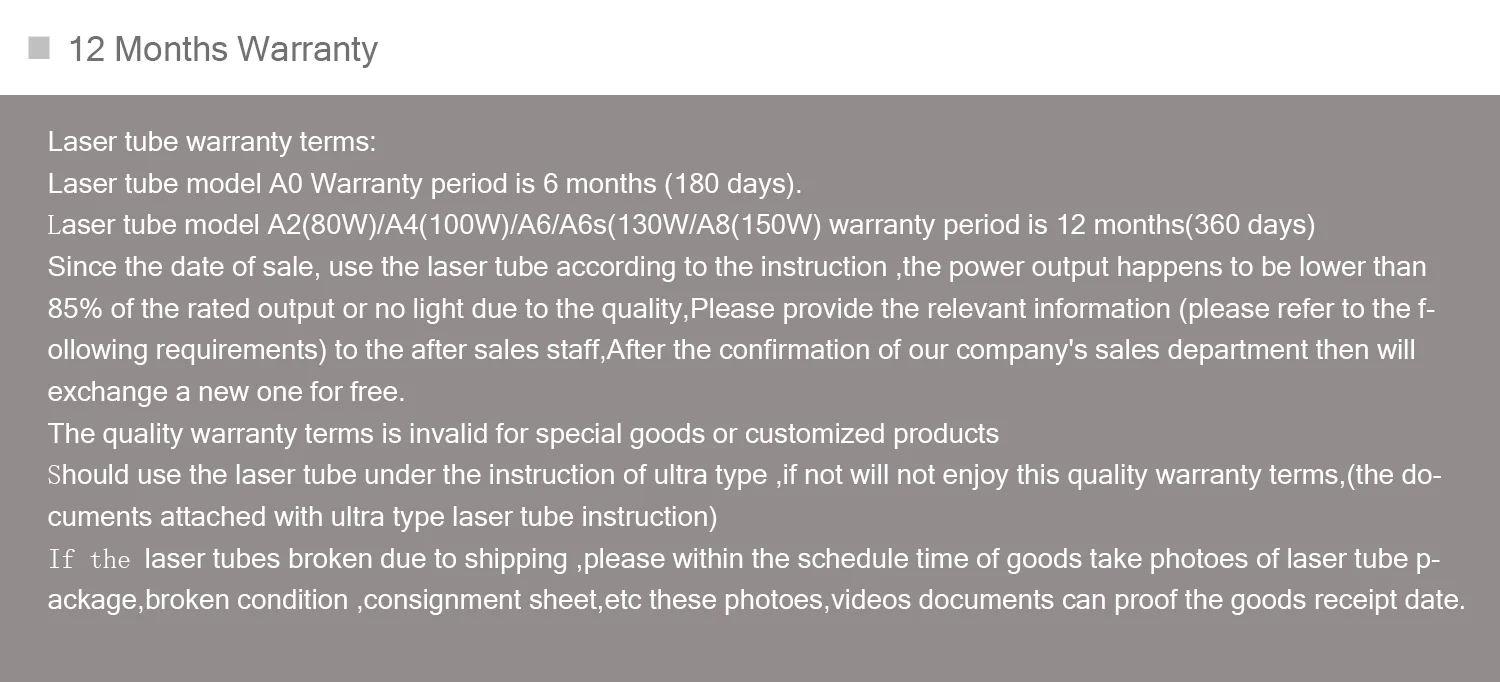

Warranty(Months) | 10 | 12 | 12 | 12 | 12 |
Applicable Material | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Paper/Plywood/MDF | Acrylic/Leather/Plywood/MDF/Stainless steel/Carbon steel | Acrylic/Leather/Plywood/MDF/Stainless steel/Carbon steel |
Product Details
1. High voltage sheath: Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.

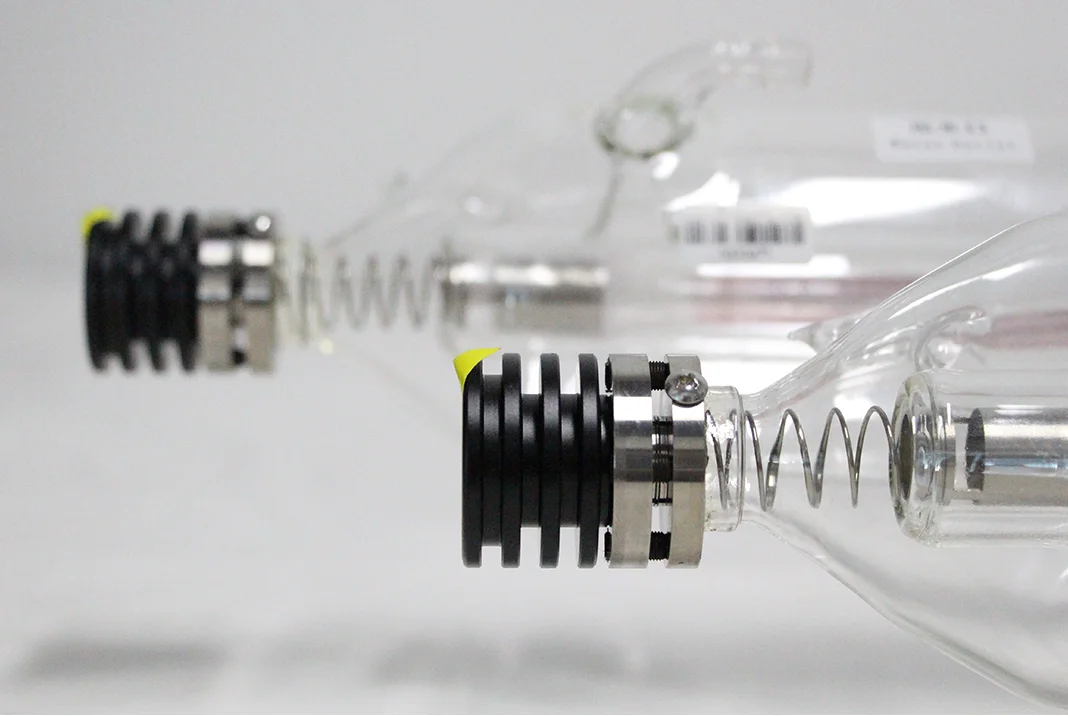

2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.

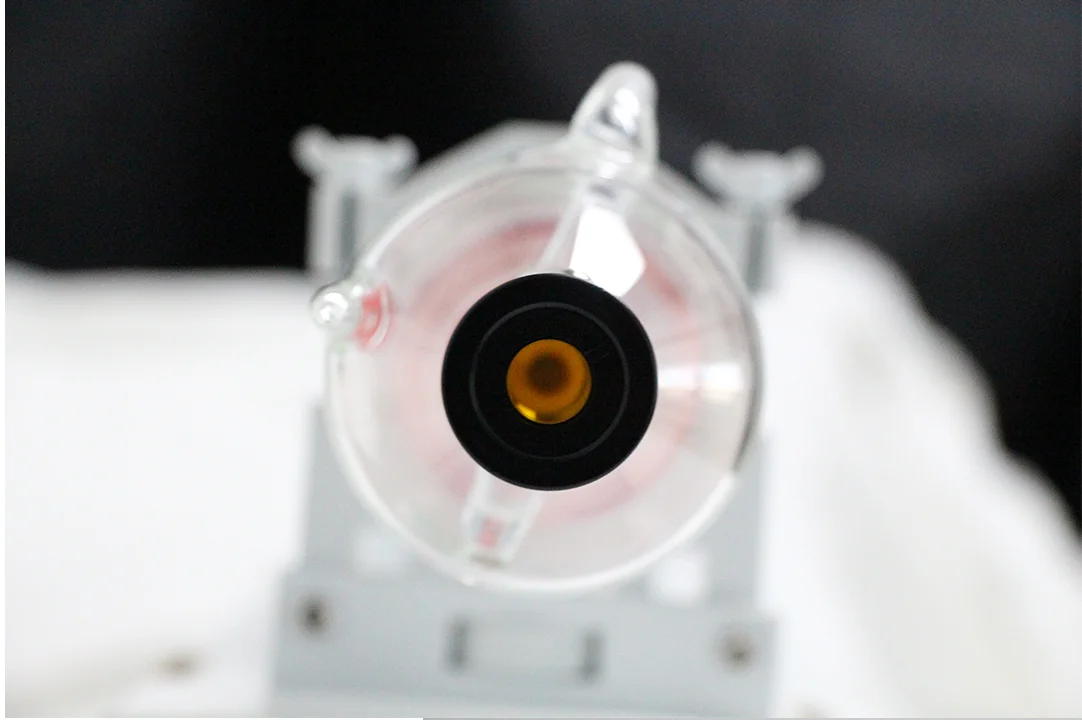

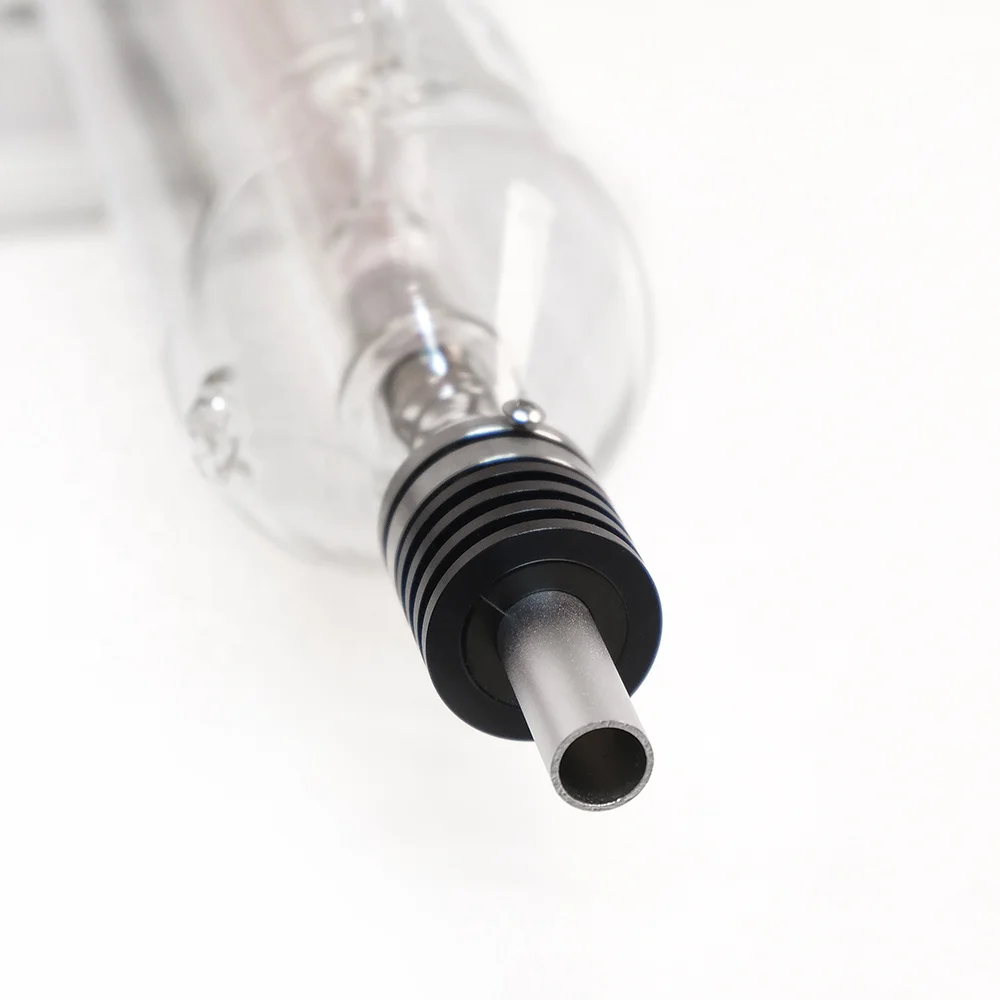

5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing
2. Positive Electrode Terminal：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet:During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection: The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing
Original Patented Manufacturing Process : YongLi As series 80W 90W 100W 130W 150W co2 laser tubes are designed, engineered, and built with safety and reliability in mind. We use parts from the world’s leading suppliers and build the laser tubes to international standards. Using original Catalytic technology to get perfect laser spot, stable power rates, and long life span.
Worry Free Shipment: All As Co2 laser tubes for laser cutting machine have commercial insurance before shipping to you, if there is any broken in transport,we will send the new one free again depend on the broken photos and damage report from the courier.

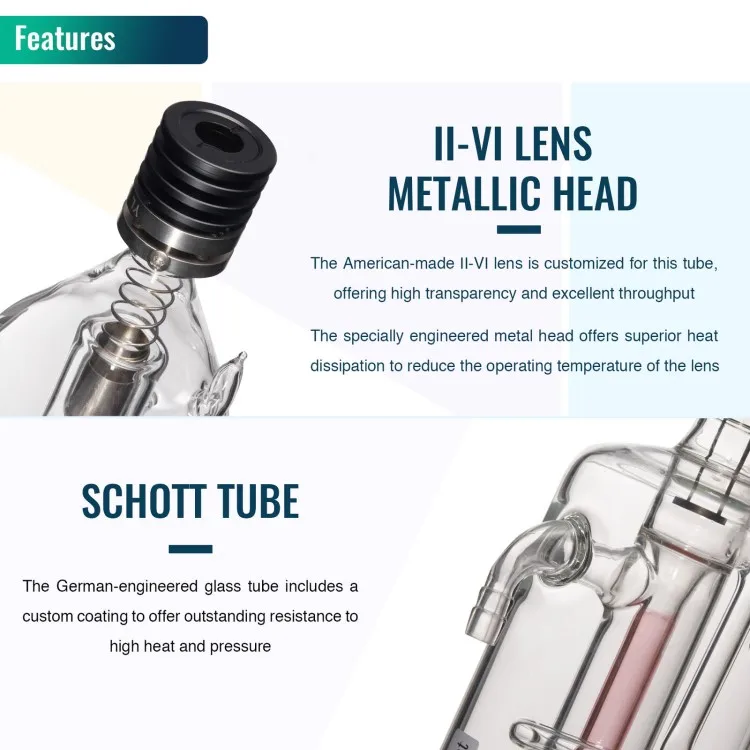

High-Quality Optics: The YongLi co2 laser tubes for Laser Engraver Cutter Engraving Machine are equipped with top-quality, American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure.
High quality laser beam and high power output; Double laser cutting speed, service life is about 10000-12000 hours longer than ordinary laser Glass Tube. We have 12 months warranty for YongLi As Series laser tube;
High Efficient Nano Catalyst Coated: * Unique laser coating technology enhances the laser tube power and improves its service life time, laser cutting speed ,quality of laser beam, and last-longer than ordinary CO2 laser tubes
High-Quality Optics: The YongLi co2 laser tubes for Laser Engraver Cutter Engraving Machine are equipped with top-quality, American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure.
High quality laser beam and high power output; Double laser cutting speed, service life is about 10000-12000 hours longer than ordinary laser Glass Tube. We have 12 months warranty for YongLi As Series laser tube;
High Efficient Nano Catalyst Coated: * Unique laser coating technology enhances the laser tube power and improves its service life time, laser cutting speed ,quality of laser beam, and last-longer than ordinary CO2 laser tubes
World leading manufacturer customized output optics
So co2 laser tube with very engraving and cutting effect.

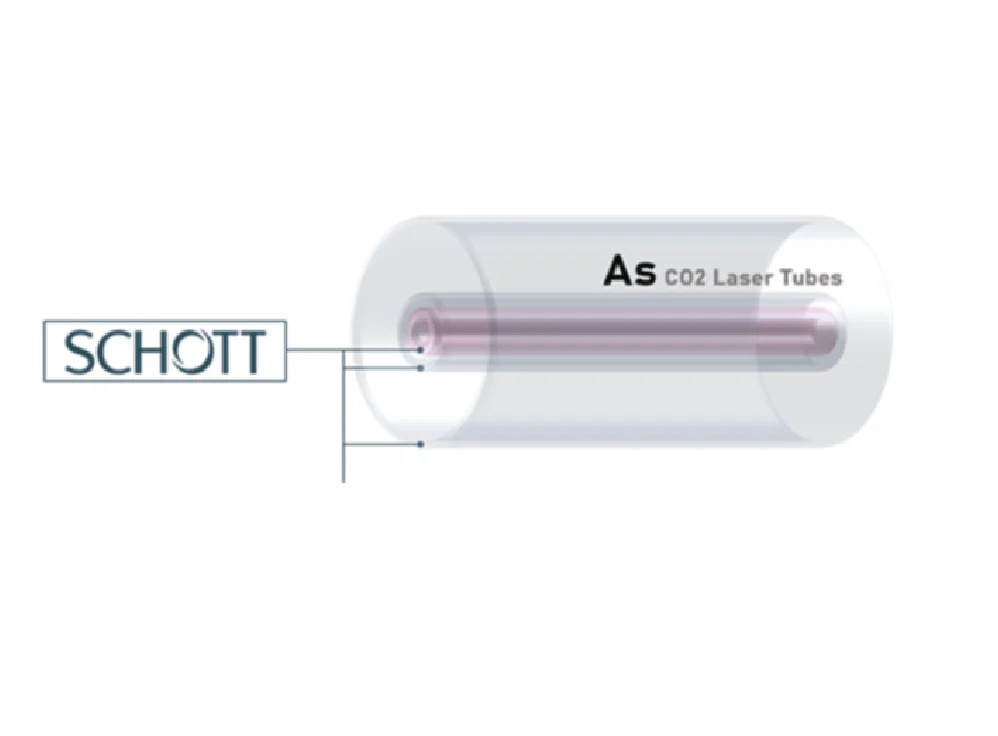

Patented Catalyst and Schott Glass
The catalyst is developed by Yongli it-self,contribute to longer lifespan than ordinary co2 laser tubes.
The glass raw material of the co2 laser tube is imported from Germany Schott company, which is the world wide leading manufacturer of glass products.
So the high quality glass tube make the co2 laser power very stable even using for long time,or delivery for long distance.

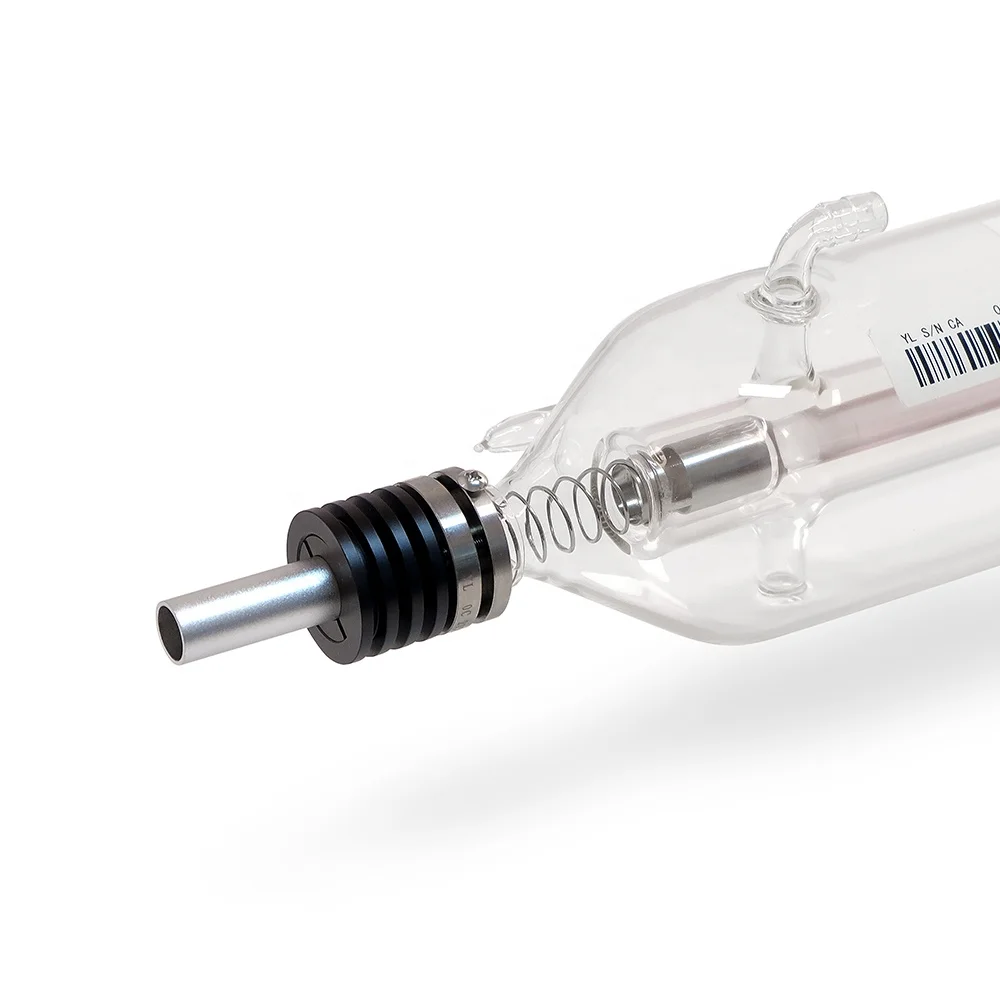

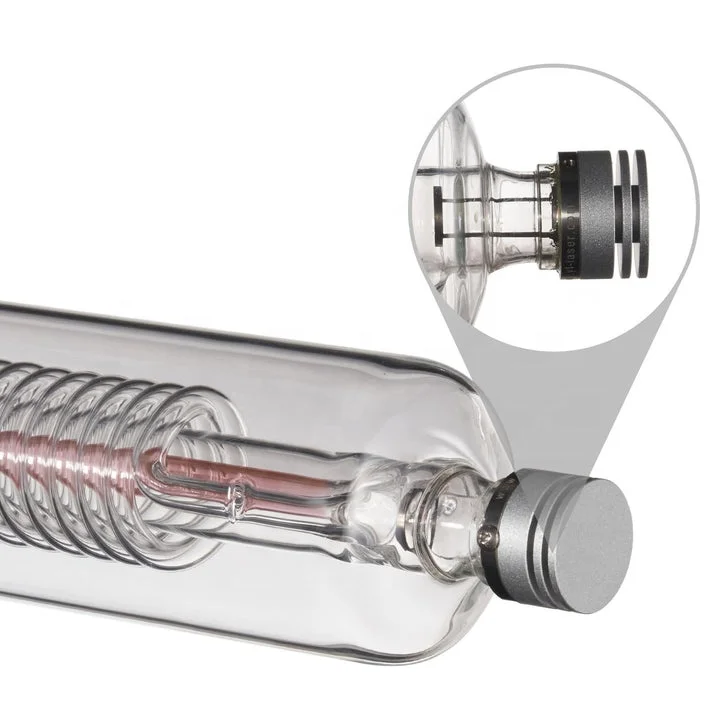

Yongli Self-manufactured flange metal head
The flange metal head is produced by production line of Yongli it-self.
Reduce the gas leaking problems which often caused by traditional type of co2 laser tubes.
After upgrading,less after sales problems, long lifepan
Reduce the gas leaking problems which often caused by traditional type of co2 laser tubes.
After upgrading,less after sales problems, long lifepan

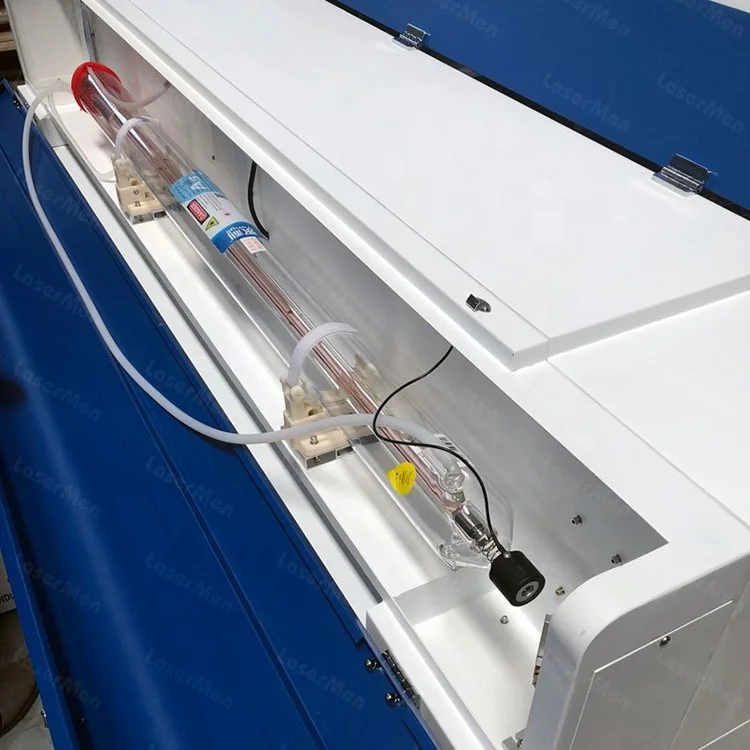

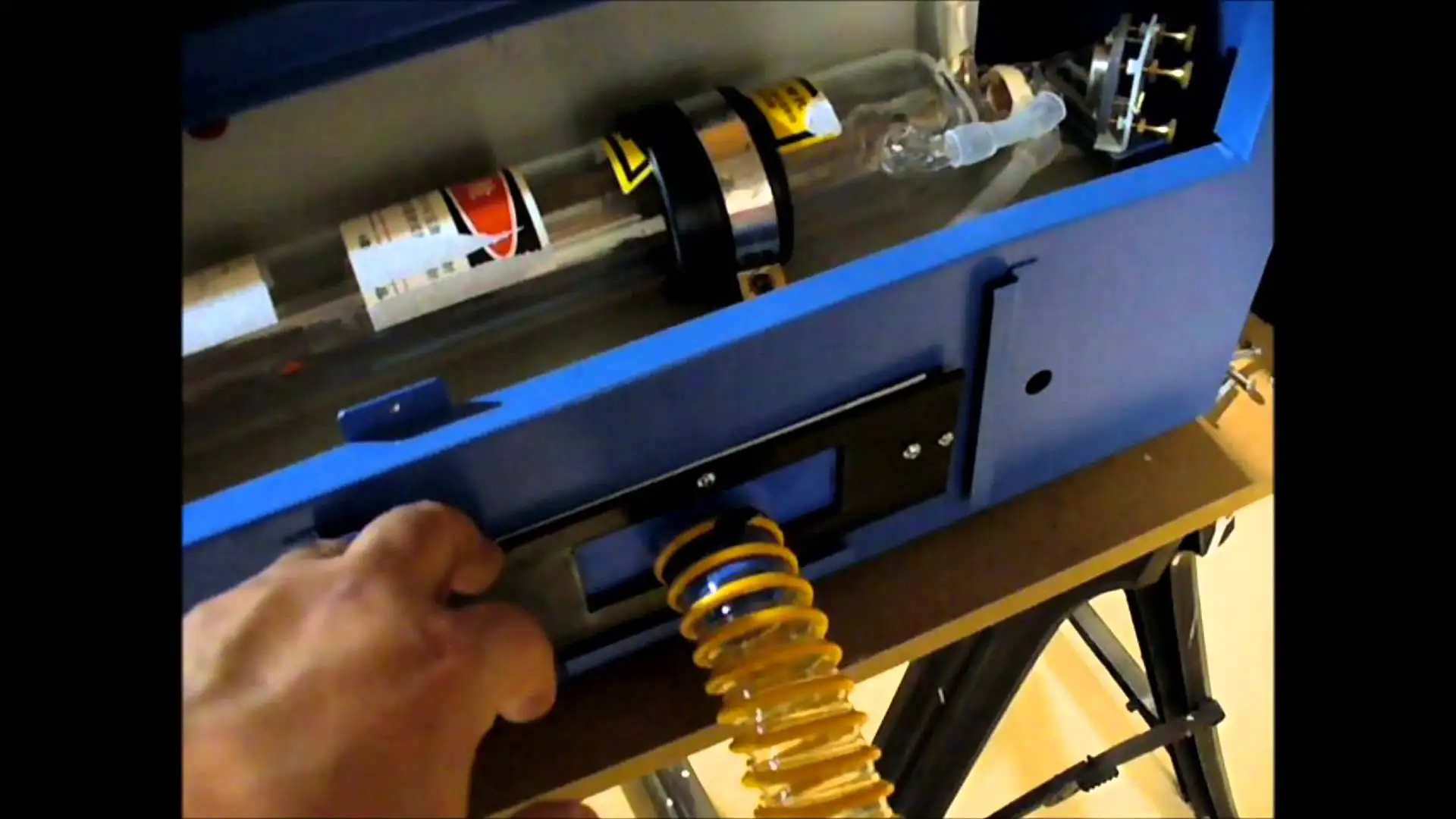

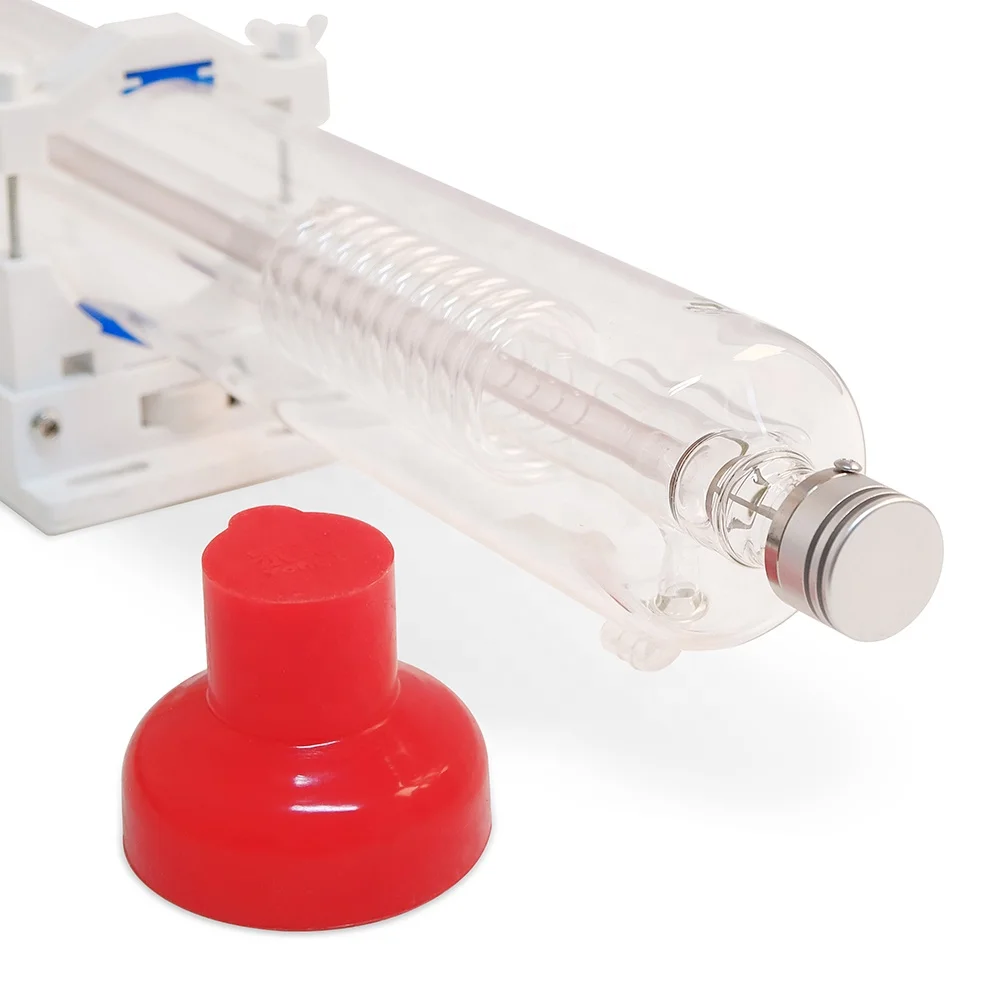

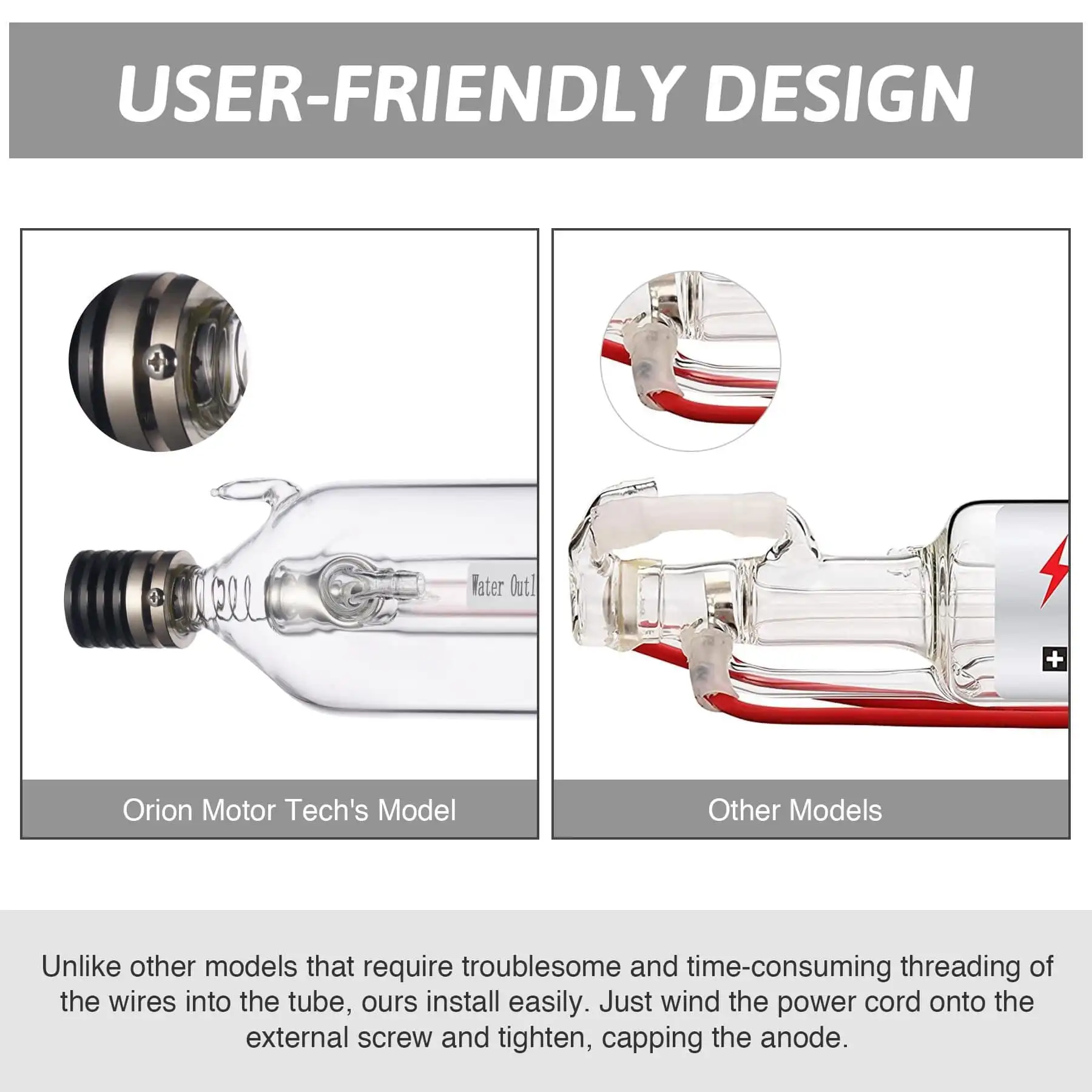

EASY TO INSTALL: Unlike other models that require troublesome and time-consuming threading of the wires into the tube, ours install easily. Just wind the power cord onto the external screw and tighten, capping the anode. It installs quickly and easily: then hook your water cooling system to the pipe fittings at either end.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.

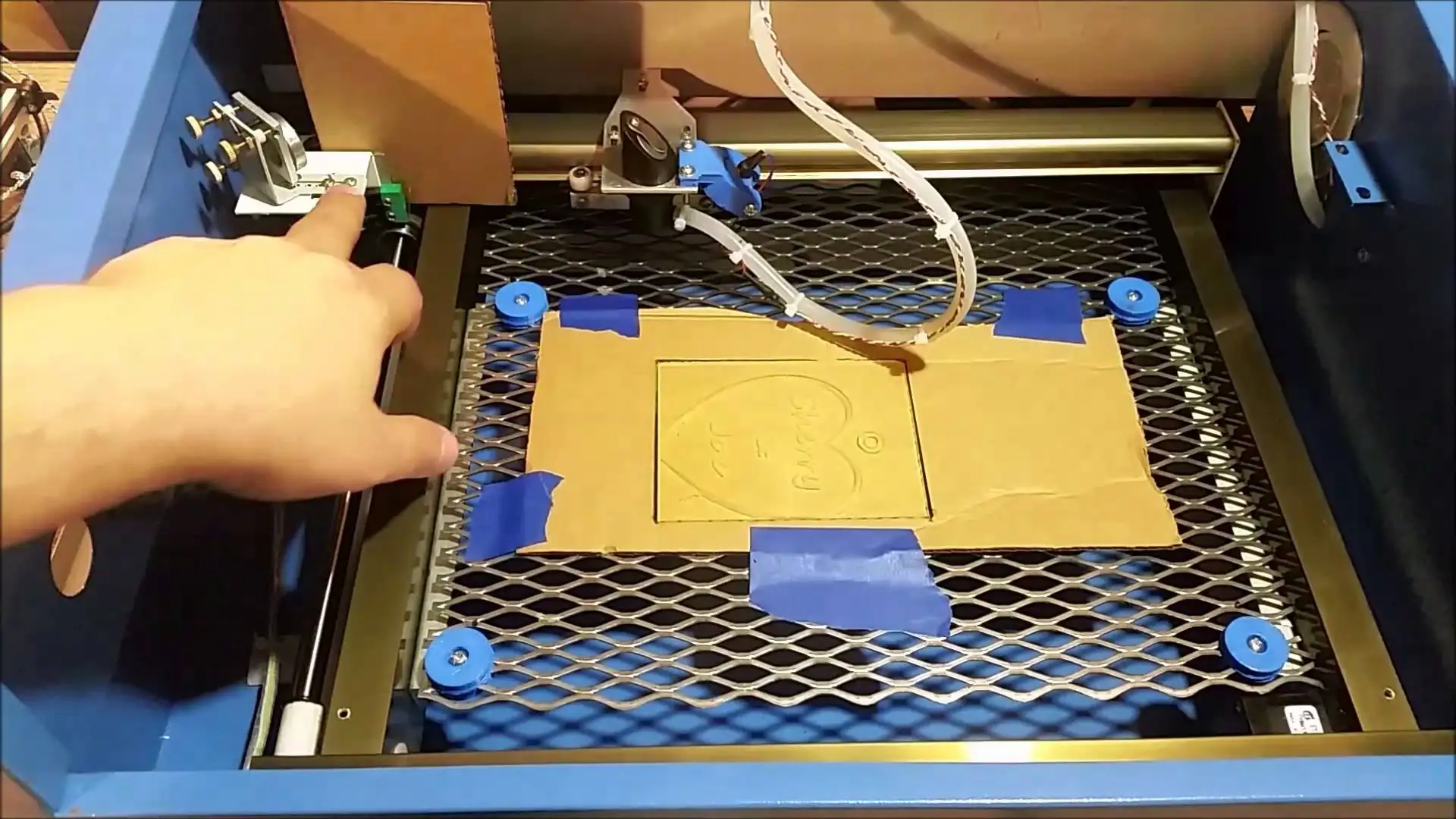

Co2 Laser Beam Alignment Laser Path Red Light Indicator
Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!
Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only work on YongLi As/H series Co2 Laser Tubes.Manufacturing Technique

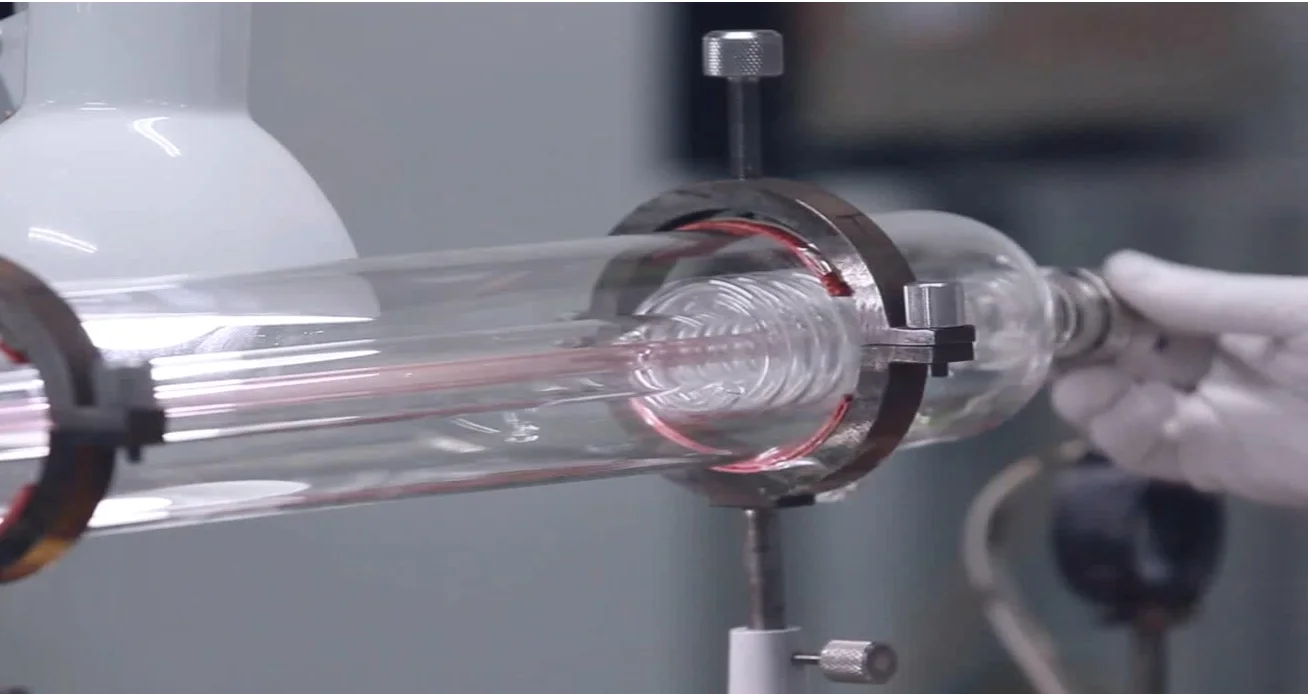

Each laser tube was produced under strict quality control system:
* R&D center developed advanced specification according to customer's requirement
* Raw material(Glass raw material, gas, optics and so on) are tested strictly
* The production process is strictly complete under ISO9001:2015.

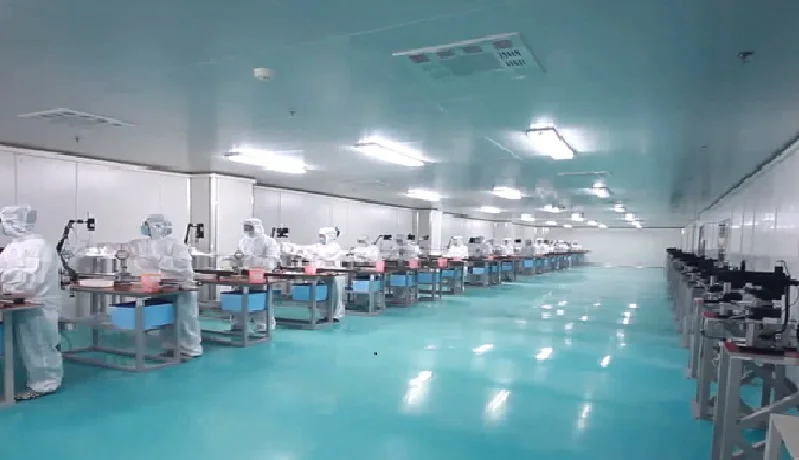

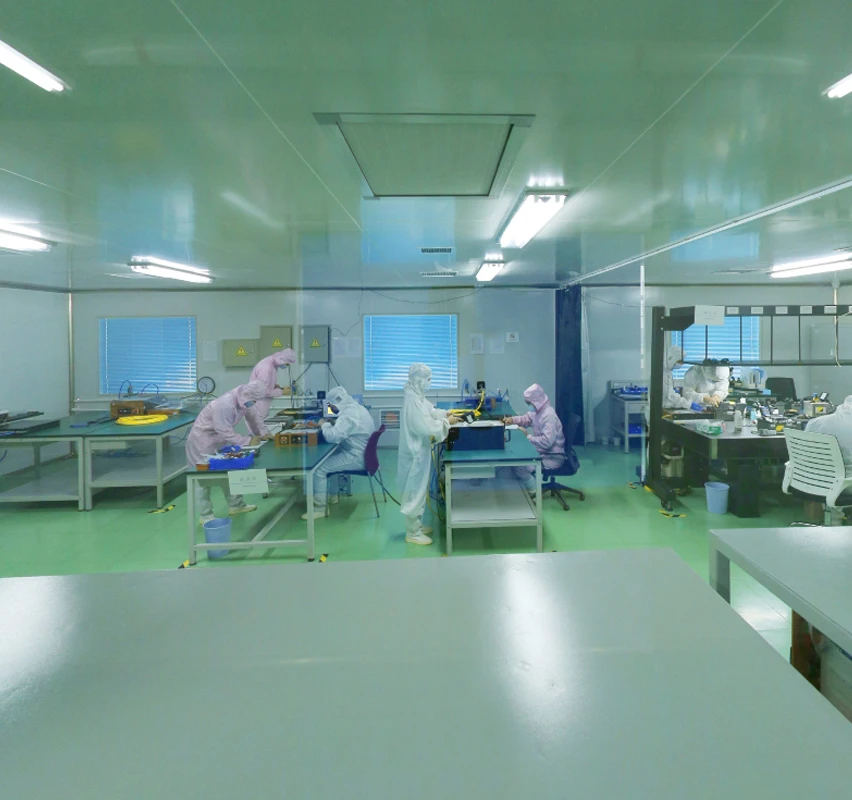

* 10,000 square meters ultra clean working space ensures the co2 laser tube quality
* Each co2 laser tube will be tested for 3 time before delivery
Until now, our company has more than 53 patents concerned about co2 laser tube and fiber laser source techniques, appearance, and applications. Since the year of 1986, we has upgraded the power from 30w to 320w for co2 laser tube, developed 220w and 330w beam combined co2 laser tube, in the future, 500w and 700w co2 laser tube will be pushed out constantly.
Meanwhile, not only the co2 laser tube, all the spare parts concerned about co2 laser tube is developed to make customer use it easily and conveniently, such as the red light indicator,which can make the invisible co2 laser be "visible", the power supply, the Laser tube bracket and Laser power meter, which can test the power of the co2 laser tube.
Meanwhile, not only the co2 laser tube, all the spare parts concerned about co2 laser tube is developed to make customer use it easily and conveniently, such as the red light indicator,which can make the invisible co2 laser be "visible", the power supply, the Laser tube bracket and Laser power meter, which can test the power of the co2 laser tube.
Application
YongLi As Series CO2 Laser Tubes offer superior construction to produce stable laser beams for precise working on a wide variety of materials.

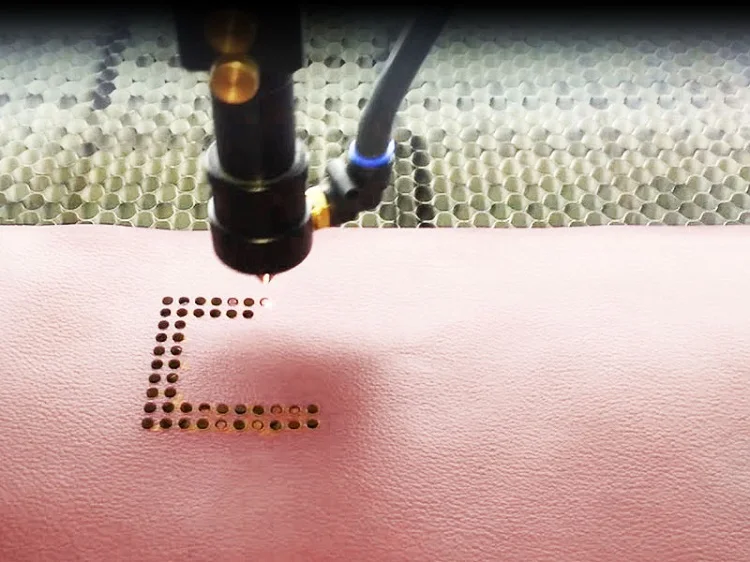

The A1s、A2s、A4s Co2 laser tube generally used for cutting and engraving on Acrylic Leather Paper Plywood MDF, A6s and A8s can also apply on some of the thin metal materials Including Stainless Steel ,Carbon Steel, Metal sheet etc.
The A1s、A2s、A4s Co2 laser tube generally used for cutting and engraving on Acrylic Leather Paper Plywood MDF, A6s and A8s can also apply on some of the thin metal materials Including Stainless Steel ,Carbon Steel, Metal sheet etc.
YongLi As series Co2 laser tube can cut through thick materials and engrave your designs faster, deeper, and clearer. Widely used in textile, medical, material processing, industrial manufacturing and other fields.
APPLICABLE MATERIALS AND INDUSTRIES
Advertising (ss and Acrylic), Sheet metal (carbon steel), Packaging (plywood), Arts and Crafts, Awards and Trophies, Paper cutting, Architectural Models, Lights and Lamps, Electronic Appliances, Photo Frame and Album, Garment Leather and other industries.
Advertising (ss and Acrylic), Sheet metal (carbon steel), Packaging (plywood), Arts and Crafts, Awards and Trophies, Paper cutting, Architectural Models, Lights and Lamps, Electronic Appliances, Photo Frame and Album, Garment Leather and other industries.
