12 volt dc 6mm cartridge heating element heater

Product Overview

Description

12V 40W Ceramic Cartridge Heater For 3D Printer Arduino

Description for 3d printer cartridge heater

Yancheng Nice 3D Printer Cartridge heaters are manufactured in two basic forms - high density and low density.Cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

 Specification of 3d printer cartridge heater

Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Voltages available	380V,240V, 220V,110V,36V,24V or 12V
Max operating temperature	1000ºC
Length tolerance	± 2% or 3.2mm (1/8”), whichever is greater.
Camber tolerance	1.7mm per meter (0.020” per foot).
Diameter tolerance	Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
Standard Unheated Area	5-10mm
Internal thermocouple	type J or K
Thermocouple Location	Disc End, Sheath, Center of Heater
Insulation resistance (cold)	≥ 500 MΩ
Max leakage current (cold)	≤ 0.5 mA
Diametre	from 3.0mm to 30mm

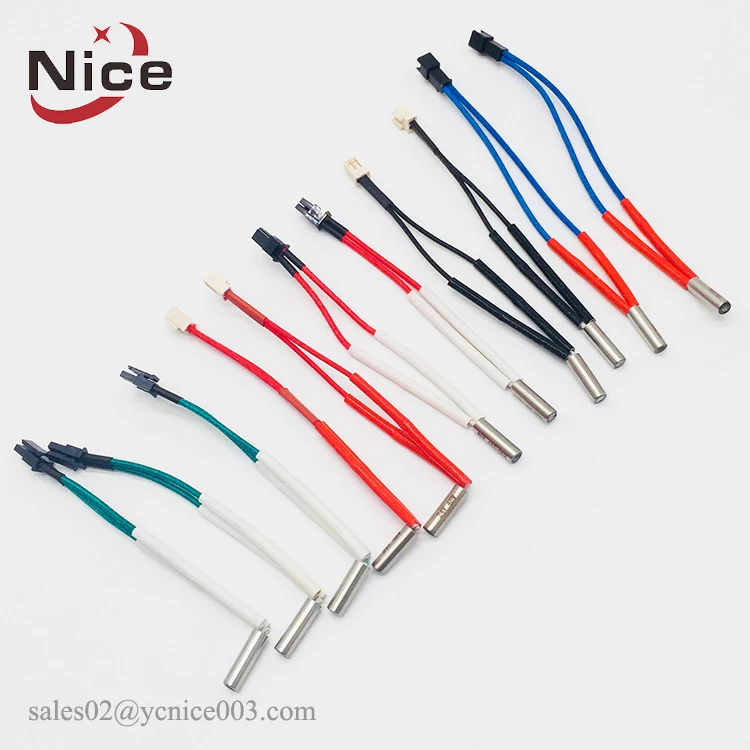

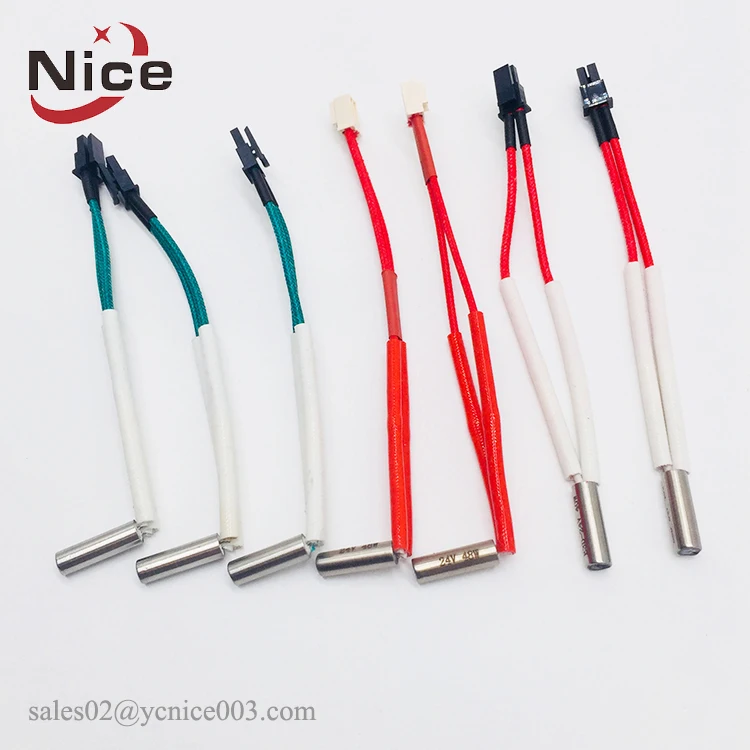

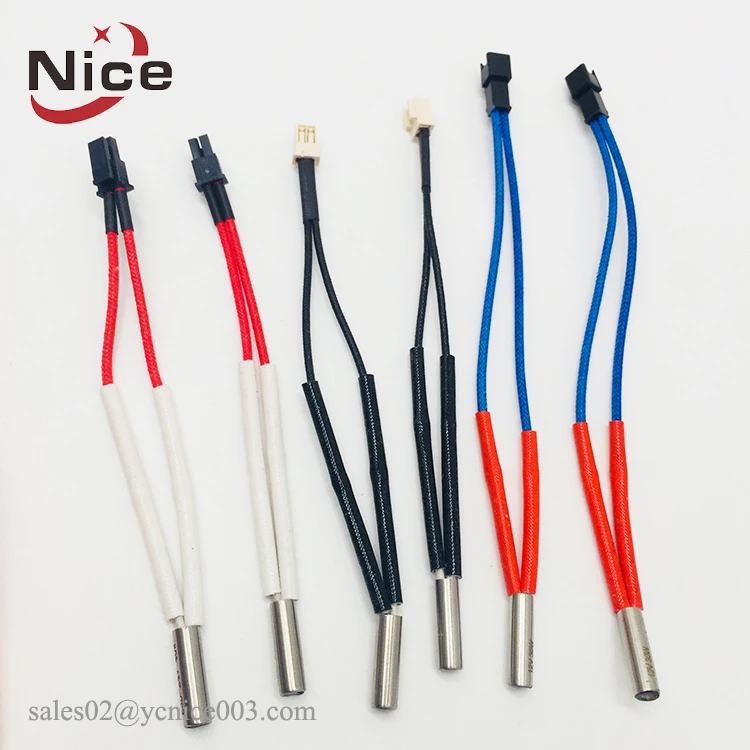

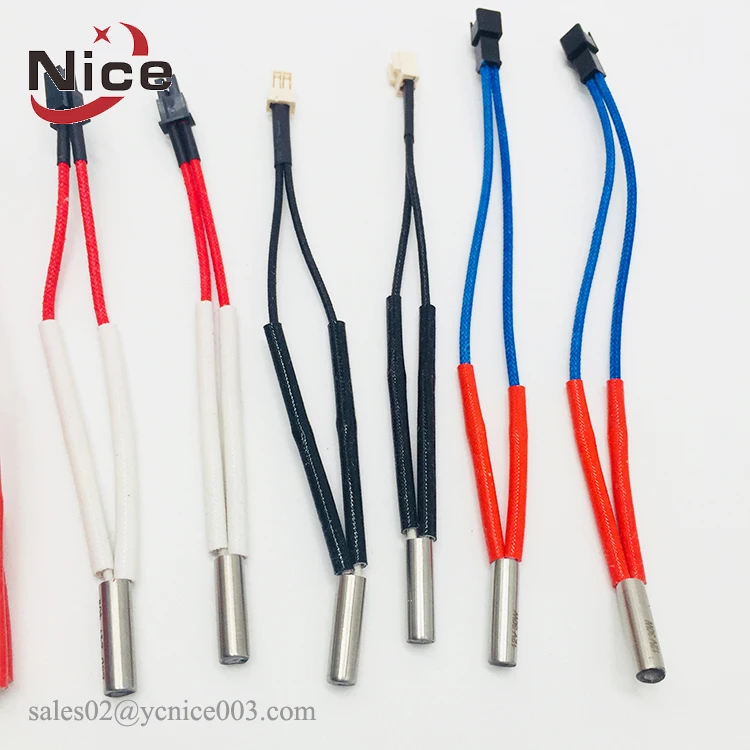

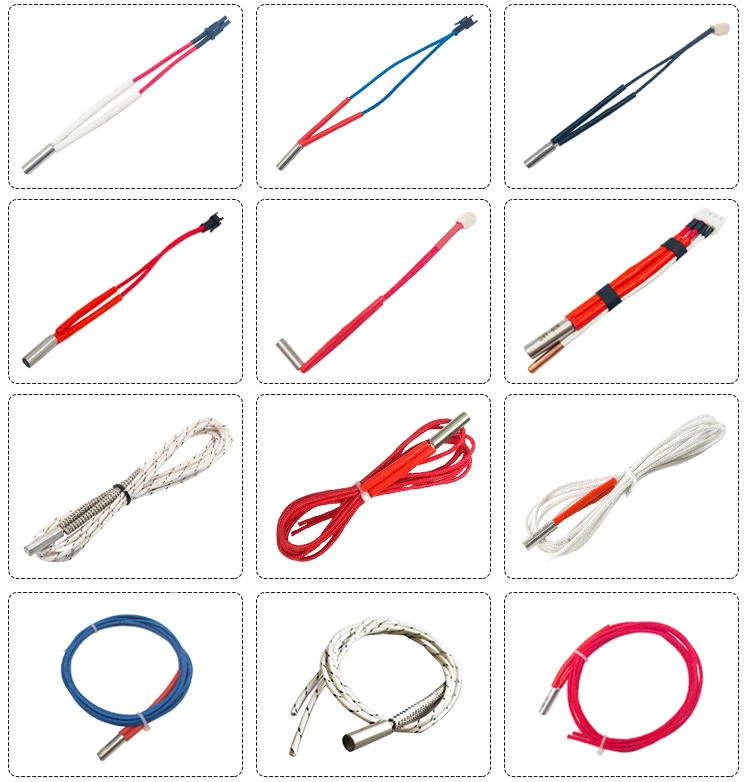

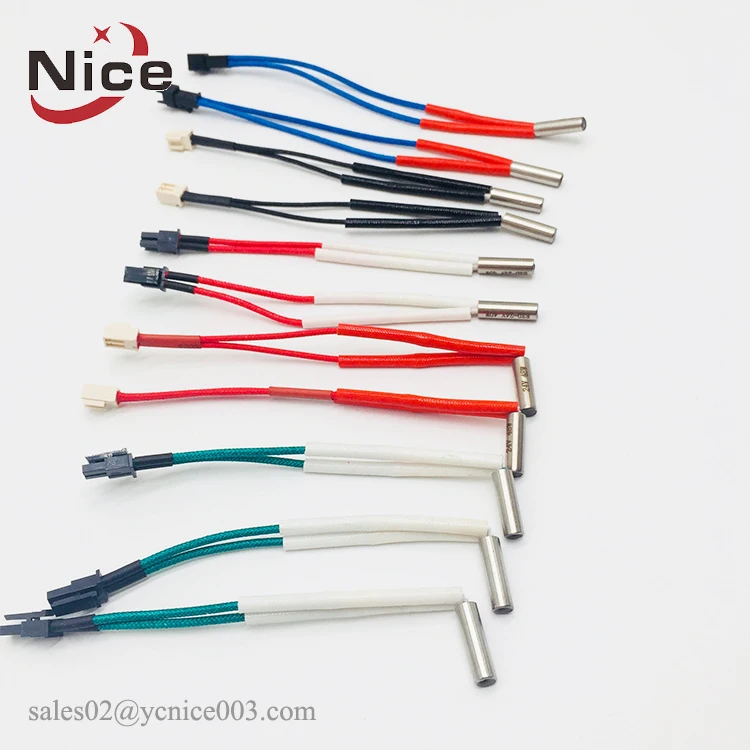

Product Pictures

Application

• Injection moulding-Internal heating of nozzies


• Hot runner systems-Heating of manifolds


• Packaging industry-Heating of cutting bars


• Packaging industry-Heating of hot stamps


• Laboratories-Heating of analytical equipment


• Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy


• Telecommunications:Deicing,Enclosure Heater


• Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters


• Food Service:Steamers,Dish Washers


• Industrial:Packaging Equipment,Hole Punches,Hot Stamp.

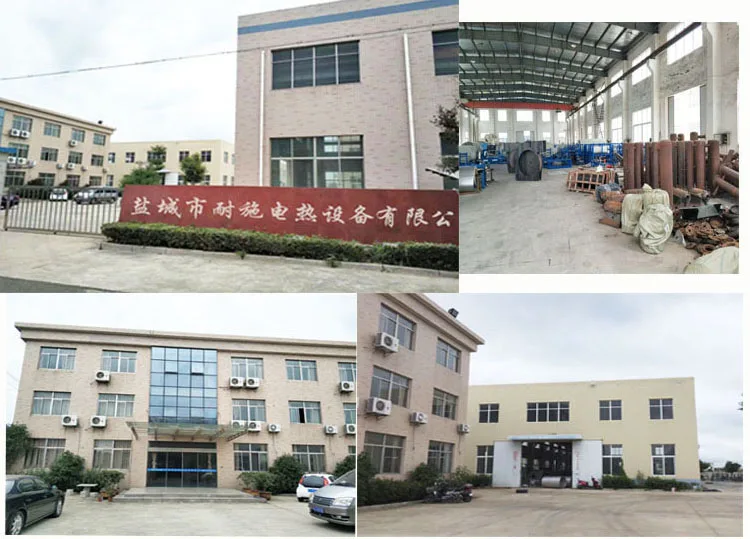

Company Information

Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.

Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.

Thank you for your patience and welcome your cooperation.

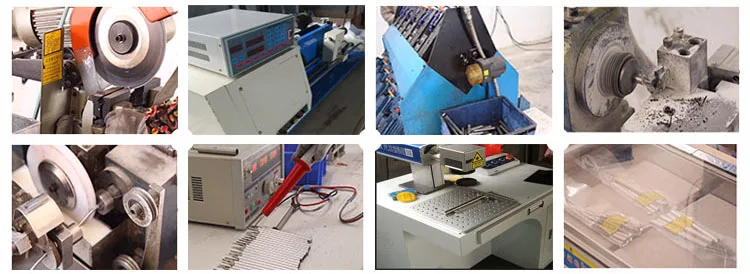

Production Process

Delivery time & Package

Delivery time

For samples:5-7 days after payment

For big order,negociated time

Package

10pcs /plastic bag     40bags /ctn  or customized

Order Guide

 1.Type of Heater
2.Order quantity
3.Wattage and Voltage
4.Dia & length of the heater
5.Material of the pipe, fin, wire
6.Drawing(PDF format is more better ) or Sample
7.Using environment and max temperature
