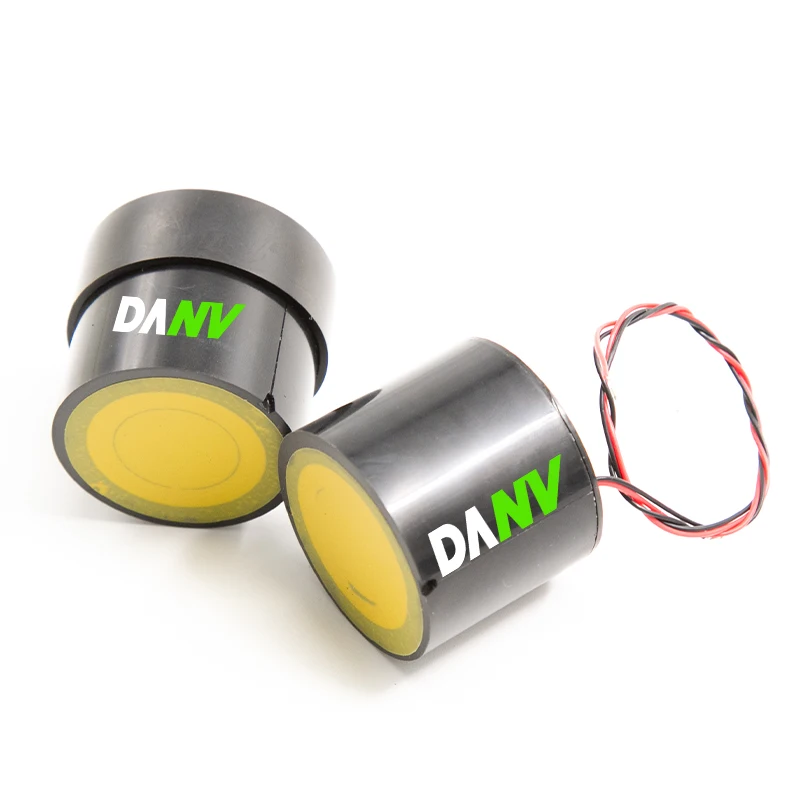

Ir Infrared Night Vision Image Intensifier Green Tubes Gen2 Iii Binocular Night Vision Image Intensifier Tube
- Category: >>>
- Supplier: Shaanxi Ireeda Protective Technology Co. Ltd.
Share on (1600951069653):
Product Overview
Description
Product Overview
There are two types of DA-NT image intensifier tubes, Gen2 and Gen3, and the image is green. DA-NT can effectively assist users in observing, reconnaissance terrain, targets, etc. at night. Users can also integrate image tubes according to their own needs to develop and produce new night vision products. DA-NT tubes are available with green or white phosphors, thin or filmless. Each tube has the advantage of FOM or digital. This number is calculated by multiplying the signal-to-noise ratio by the resolution of the image intensifier, and the FOM number allows a quick estimate of the general performance level of the tube. Each order will come with a space sheet stating the characteristics of the tube and its compliance with the advertised specifications.

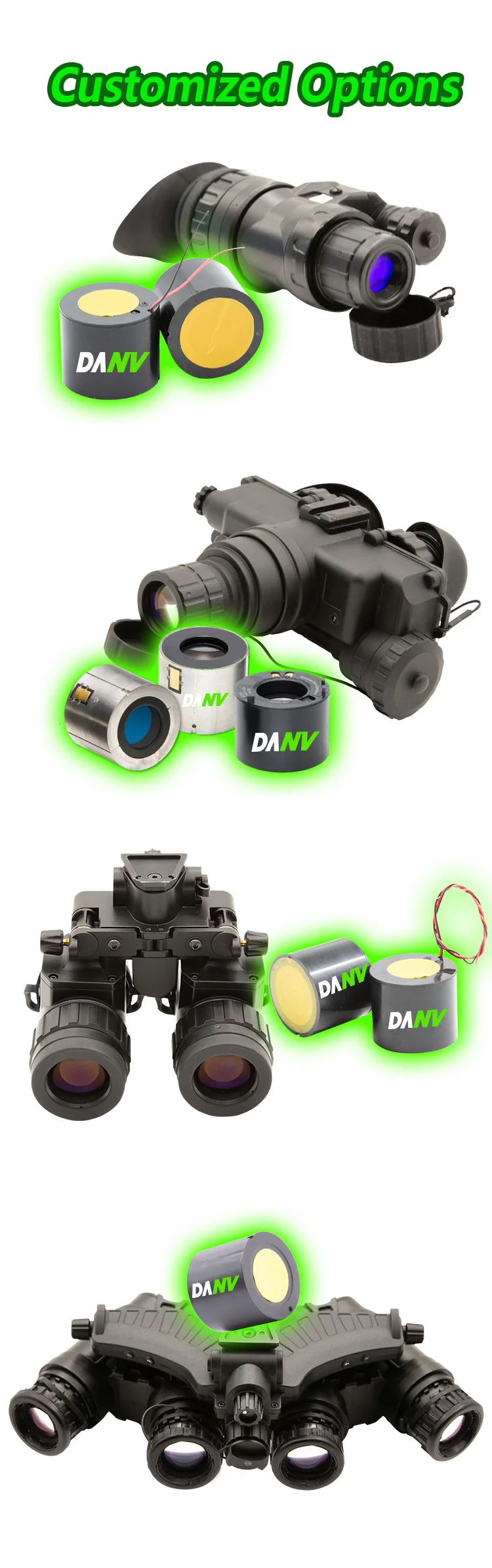

Customized Options
Recommend Products
Specfication
Parameter | Class C | Class B | Class A | Unit I |
Figure Of Merit | 1400 | 1600 | 1800 | |
Sensitivity (2856K) | 700 | 800 | 1000 | M A/lm |
SNR | 23 | 25 | 28 | |
Resolution | 60 | 64 | 64 | Ip/mm |
Highlight resolution (200lx) | - | 54 | 54 | Ip/mm |
Operating voltage | 2.2-3.4 | 22-3.4 | 22-3.4 | V |
Operating current | w25 | 《 35 | w35 | mA |
Luminance gain | 8000- 12000 | 8000- 12000 | 10000-20000 | cd/m2/lx |
Maximum output brightness | 4~8 | 4~8 | 4~10 | cd/m2 |
Working illumination range | / | 1 x 10-6 ~5x104 | 1x10'6~5 x 1(34 | lx |
Uniformity of luminance(2856K) | 3:1 | 3:1 | 3:1 | |
Cathode effective diameter | 17.5 | 17.5 | 17.5 | mm |
Power supply | Normal | Auto-gating | Auto-gating | |
Phosphor powder | P43 | P43 | P43 | |
Weight | w80 | w80 | w80 | g |
Power consumption | 33-51 | 55-85 | 55-85 | mW |
FAQ
Q: Are you manufacturer or trader?
Q:What is the lead time of your products?
A: We are a professional manufacturer of night vision, thermal vision and other photoelectric products.
Q:What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.
Q.:What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
Q:What is the shipping method?
A: Usually shipped by express (DHL, FEDEX UPS and etc).
Q:Do you accept OEM or ODM?
A: Yes, our factory definitely provide OEM or ODM service, it depends on the quantity.
Q: How can I placeorder?
A: You can contact us by send inquiry about your order details, or place order online.
Q: How long is the warranty?
A: Most of our products provide the one year warranty.
