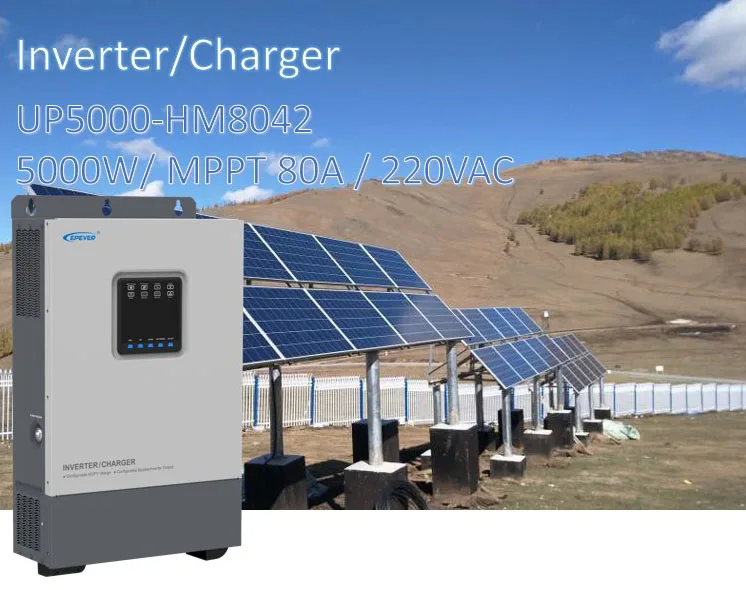

Epever 3KW 5KW 24V 48V DC 220/230V AC Pure Sine Wave Solar Inverter Double MPPT On/Off Grid Solar hybrid Inverter
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1600951229199):
Product Overview
Description
Technical Specifications
Item | UP2000-HM6022 | UP3000-HM10022 | UP3000-HM5042 | UP5000-HM8042 | ||||
Rated battery voltage | 24VDC | 48VDC | ||||||
Battery input voltage | 21.6~32VDC | 43.2~64VDC | ||||||
Max. battery charging current | 60A | 100A | 50A | 80A | ||||
Inverter output | ||||||||
Continuous output power | 2000W | 3000W | 3000W | 5000W | ||||
Max. surge power(3S) | 4000W | 6000W | 6000W | 8000W | ||||
Output voltage range | 220VAC(-6%~+3%), 230VAC(-10%~+3%) | |||||||
Output frequency | 50/60±0.2% | |||||||
Output wave | Pure Sine Wave | |||||||
Load pow er factor | 0.2-1(Load pow er ≤ Continuous output power) | |||||||
Distortion THD | THD≤3%(Resistive load) | |||||||
80% rated output efficiency | 92% | 92% | 92% | 92% | ||||
Max. Rated output efficiency | 91% | 91% | 90% | 91% | ||||
Max. output efficiency | 93% | 93% | 93% | 93% | ||||
Switch time | 10ms(Switch from the utility output to the inverter output), 15ms(Sw itch from the inverter output to the utility output) | |||||||
Utility charging | ||||||||
Utility input voltage | 176VAC~264VAC (Default), 90VAC~280VAC(Programmable) | |||||||
Utility input frequency | 40~65Hz | |||||||
Max. utility charge current | 60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A） | 80A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 40A） | 40A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 20A） | 60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A） | ||||
Solar charging | ||||||||
Max. PV open circuit voltage | 450V(At minimum operating environment temperature) 395V(At 25℃ environment temperature) | 500V(At minimum operating environment temperature) 440V(At 25℃ environment temperature) | ||||||
MPPT voltage range | 80~350V | 120~400V | ||||||
Max. PV input power | 2500W | 4000W | 4000W | 4000W | ||||
(Note: For the curve of Max. PV input pow er Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.) | ||||||||
Max. PV charging power | 1725W | 2875W | 2875W | 4000W | ||||
Max. PV charging current | 60A | 100A | 50A | 80A | ||||
Equalize charging voltage | 29.2V(AGM default) | 58.4V(AGM default) | ||||||
Boost charging voltage | 28.8V(AGM default) | 57.6V(AGM default) | ||||||
Float charging voltage | 27.6V(AGM default) | 55.2V(AGM default) | ||||||
Low voltage disconnect voltage | 21.6V(AGM default) | 43.2V(AGM default) | ||||||
Tracking efficiency | ≥99.5% | |||||||
Temp. compensate coefficient | -3mV/℃/2V(Default) | |||||||
General | ||||||||
Surge current | 50A | 60A | 56A | 95A | ||||
Zero load consumption | <1.8A | <1.2A | ||||||
(without PV and utility connection, turn on the load output) | ||||||||
Standby current | <1.2A | <0.7A | ||||||
(without PV and utility connection, turn off the load output) | ||||||||
Mechanical Parameters | ||||||||
Dimension(H x W x D) | 607.5x381.6x127mm | 642.5x381.6x149mm | 607.5x381.6x149mm | 642.5x381.6x149mm | ||||
Mounting size | 585*300mm | 620*300mm | 585*300mm | 620*300mm | ||||
Mounting hole size | Φ10mm | Φ10mm | Φ10mm | Φ10mm | ||||
Net Weight | 15kg | 19kg | 18kg | 19kg | ||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Environment temperature | -20℃~50℃ | |||||||
Products Description

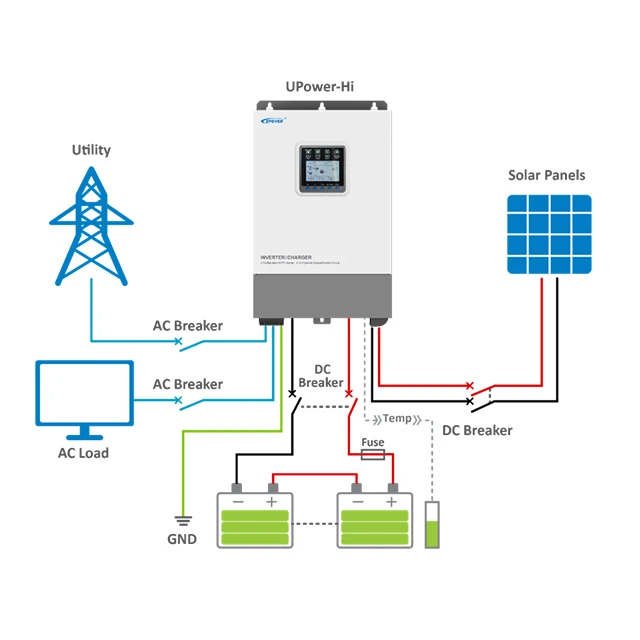

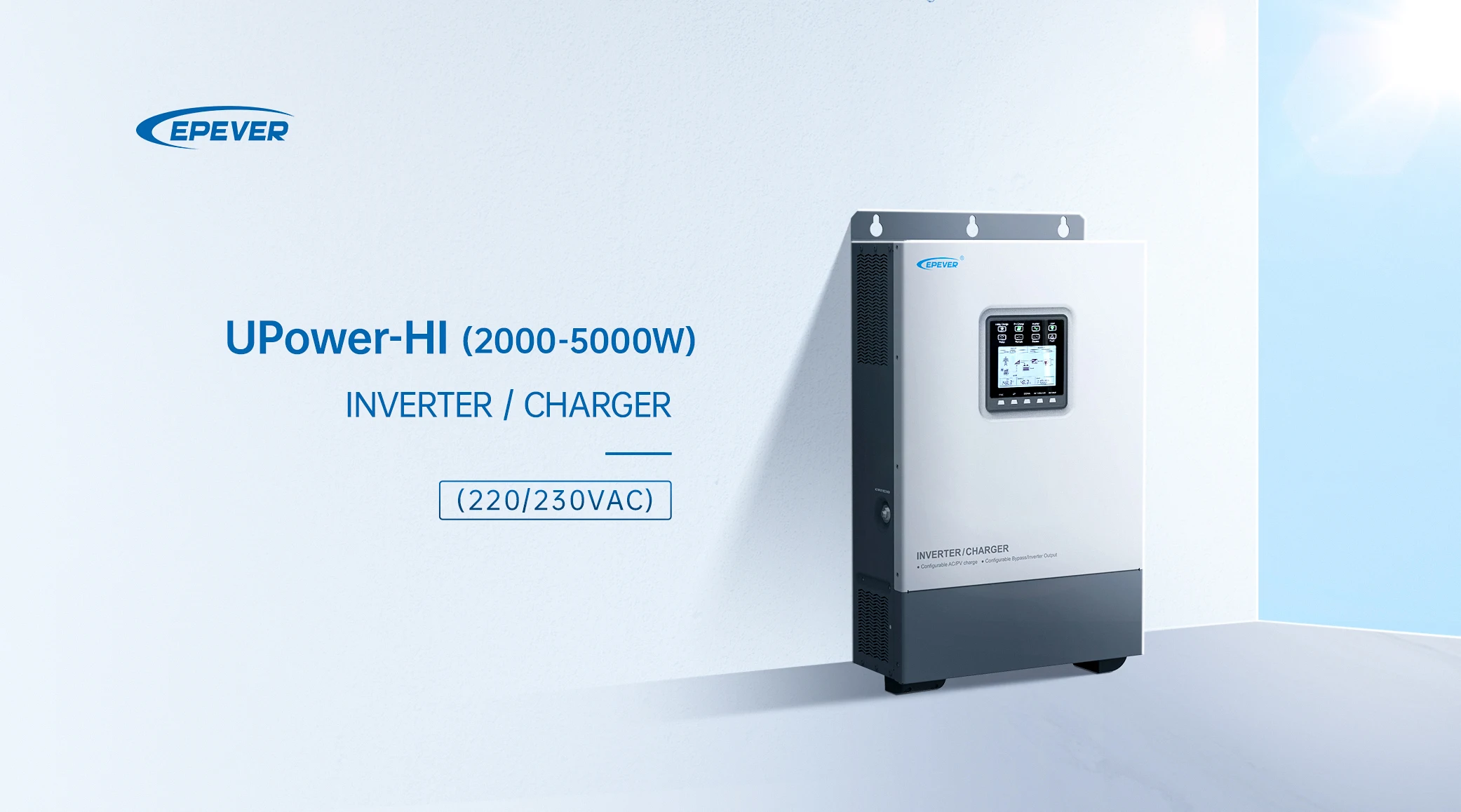

UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Features
* Supports the battery mode or non-battery mode
* Surge current and reverse connection protections to support the lithium battery system perfectly
* Three charging modes: Solar only, Solar priority, Utility & Solar
* Two AC output modes: Utility priority and Inverter priority

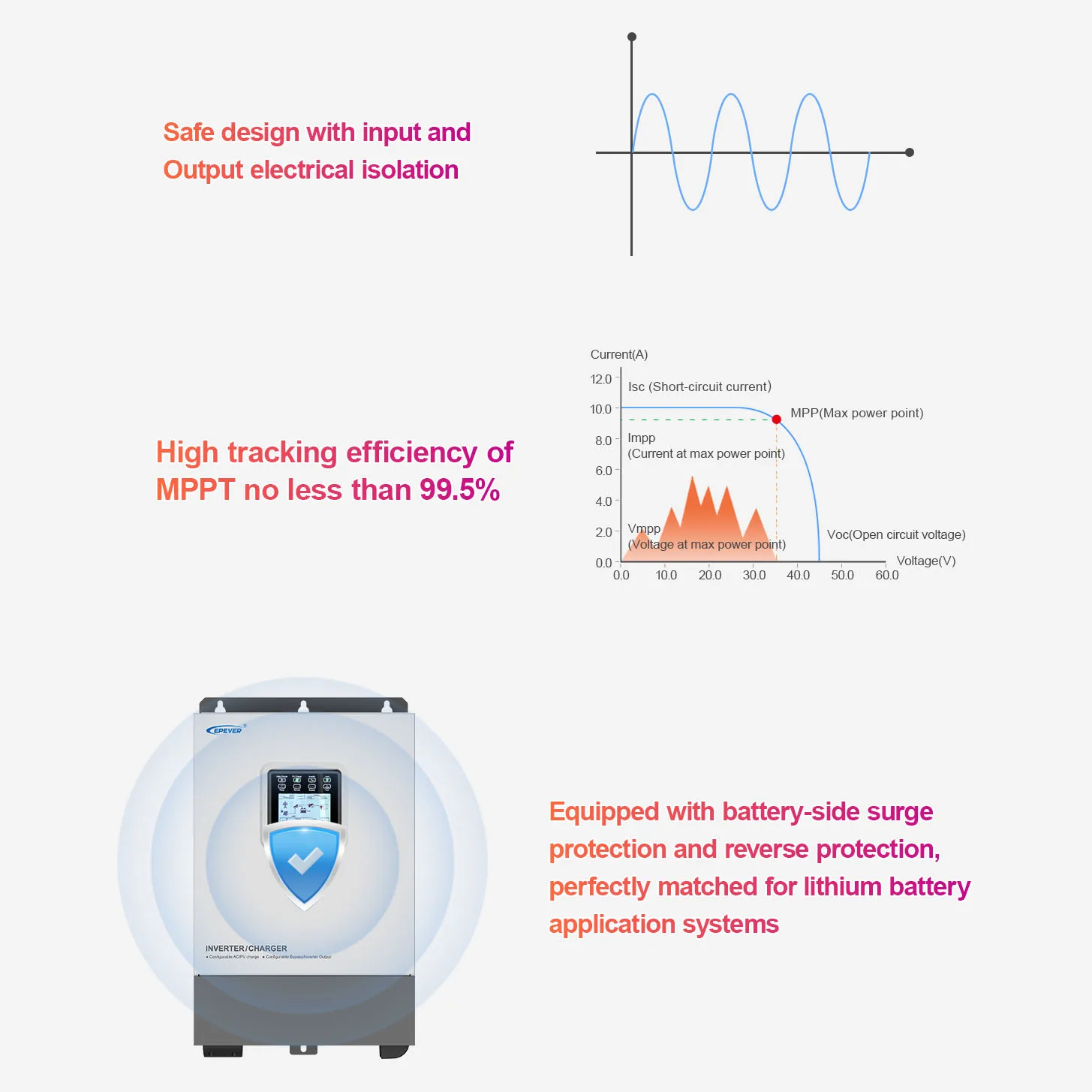

* High tracking efficiency of MPPT no less than 99.5%
* PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of
* Surge current and reverse connection protections to support the lithium battery system perfectly
* Three charging modes: Solar only, Solar priority, Utility & Solar
* Two AC output modes: Utility priority and Inverter priority
* High tracking efficiency of MPPT no less than 99.5%
* PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of
power grid capacity
* Advanced SPWM technology and pure sine wave output
* Configurable battery charging current and discharging current
* Configurable grid charging current
* Self-learning SOC function

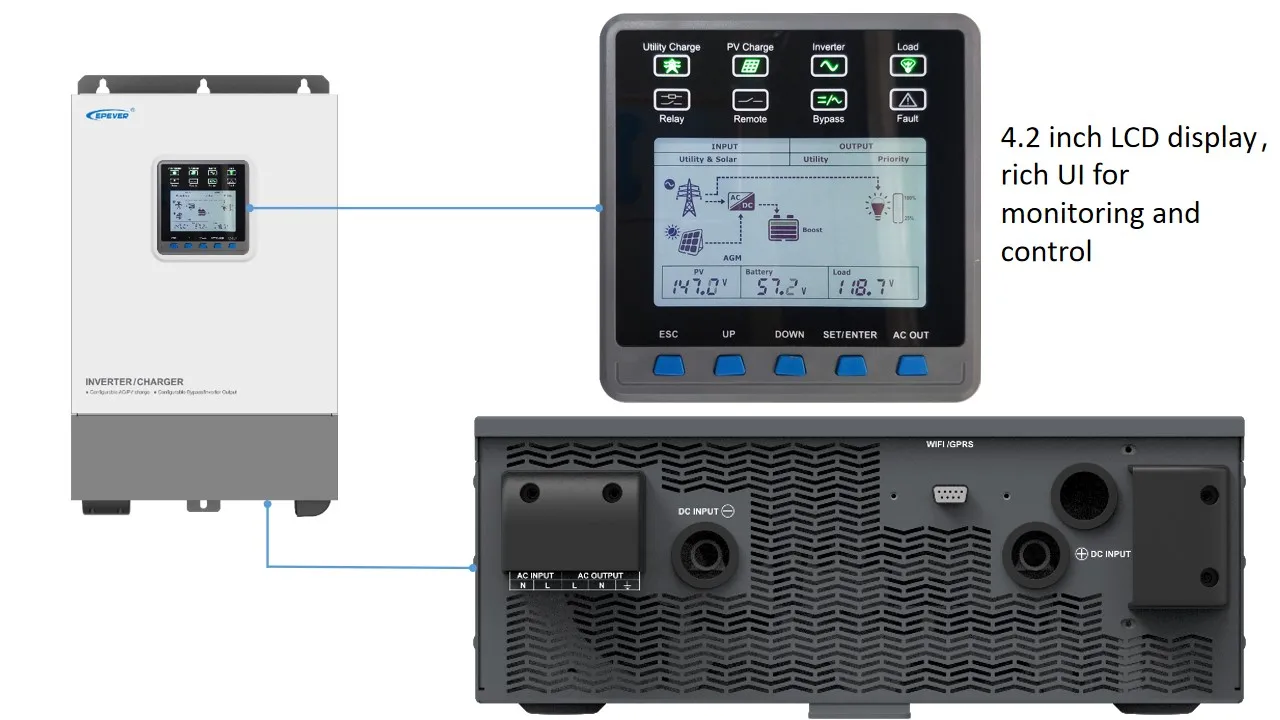

* 4.2 inch LCD to monitor and modify system parameters

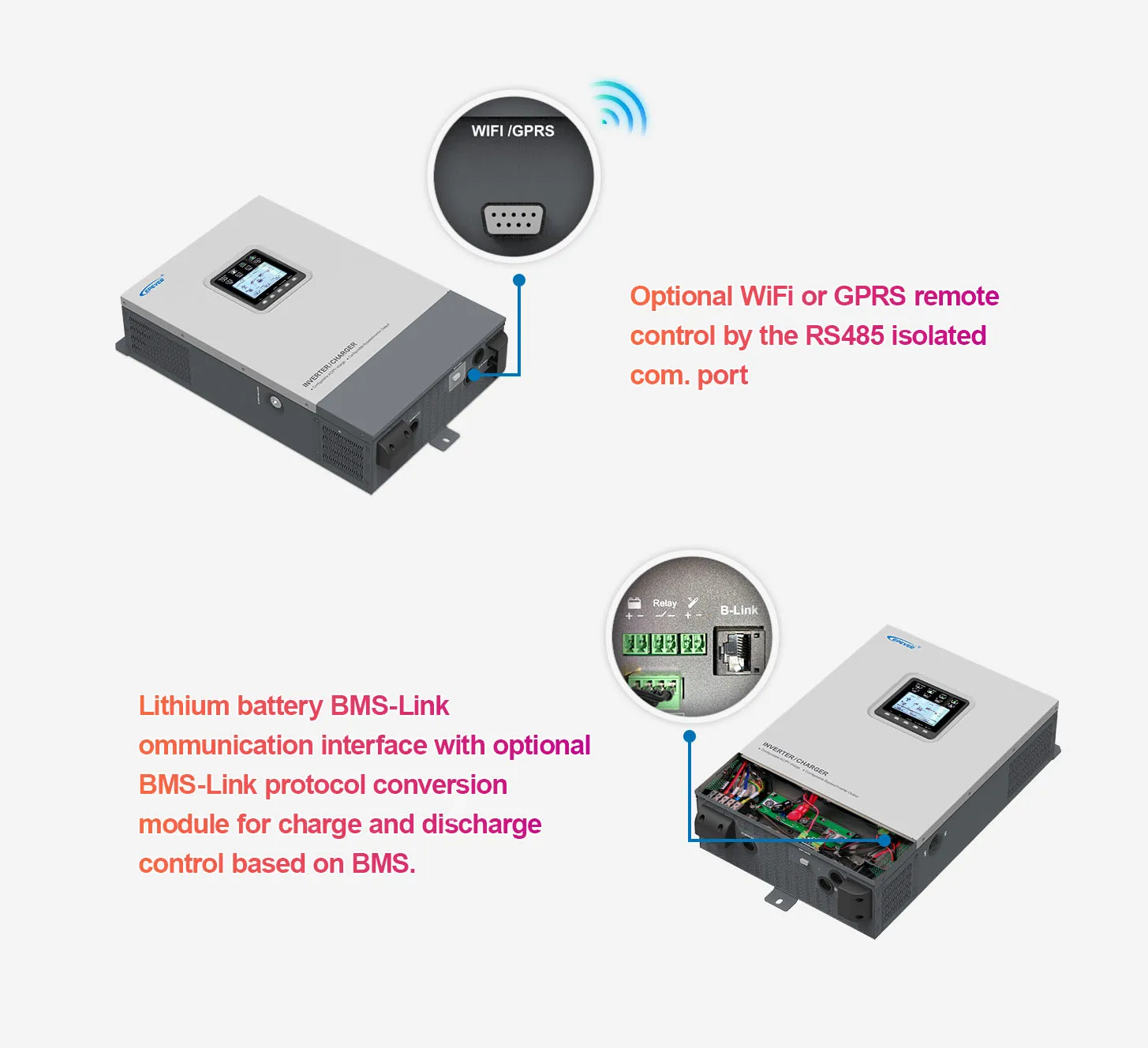

* Optional WiFi or GPRS Remote control via the RS485 isolated communication port
* BMS-Link port and optional BMS-Link communication protocol module
* Advanced SPWM technology and pure sine wave output
* Configurable battery charging current and discharging current
* Configurable grid charging current
* Self-learning SOC function
* 4.2 inch LCD to monitor and modify system parameters
* Optional WiFi or GPRS Remote control via the RS485 isolated communication port
* BMS-Link port and optional BMS-Link communication protocol module
Company Profile

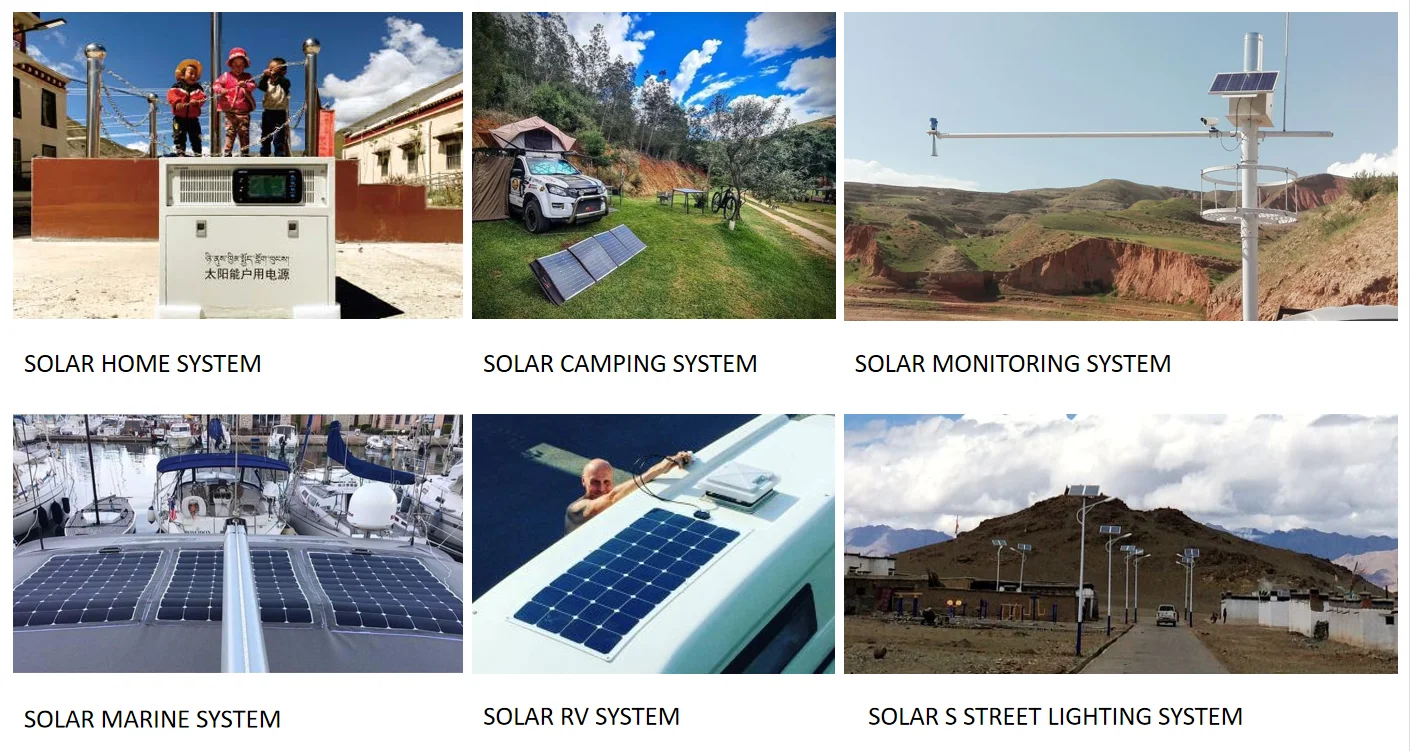

Project Case
