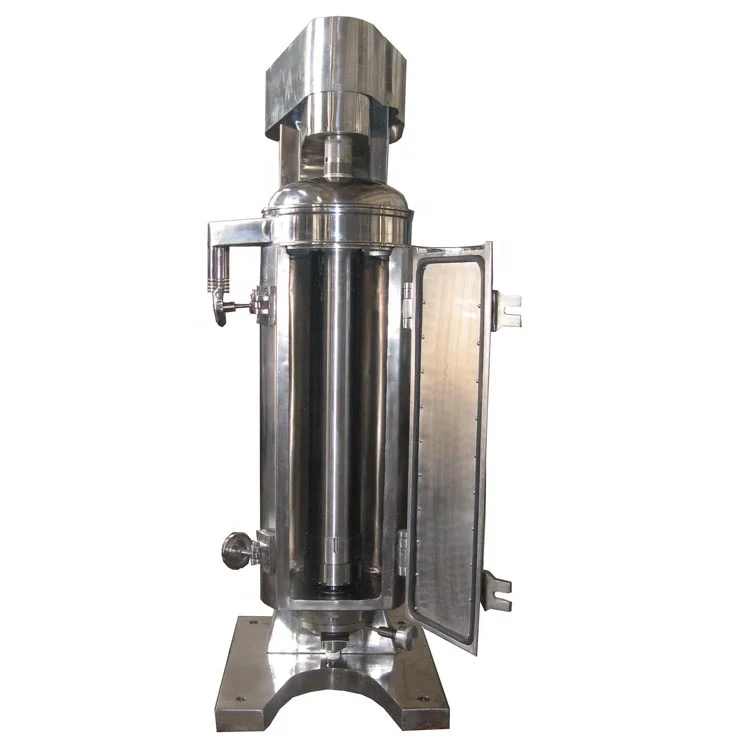

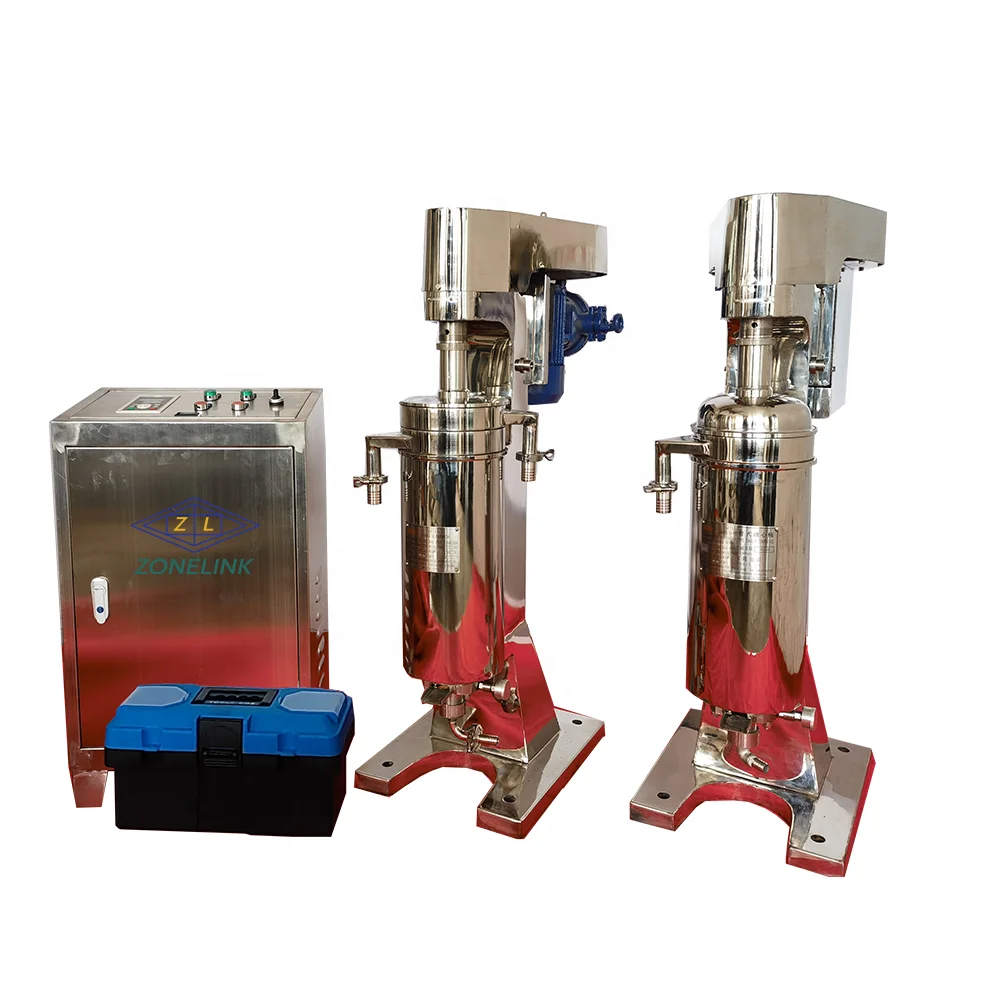

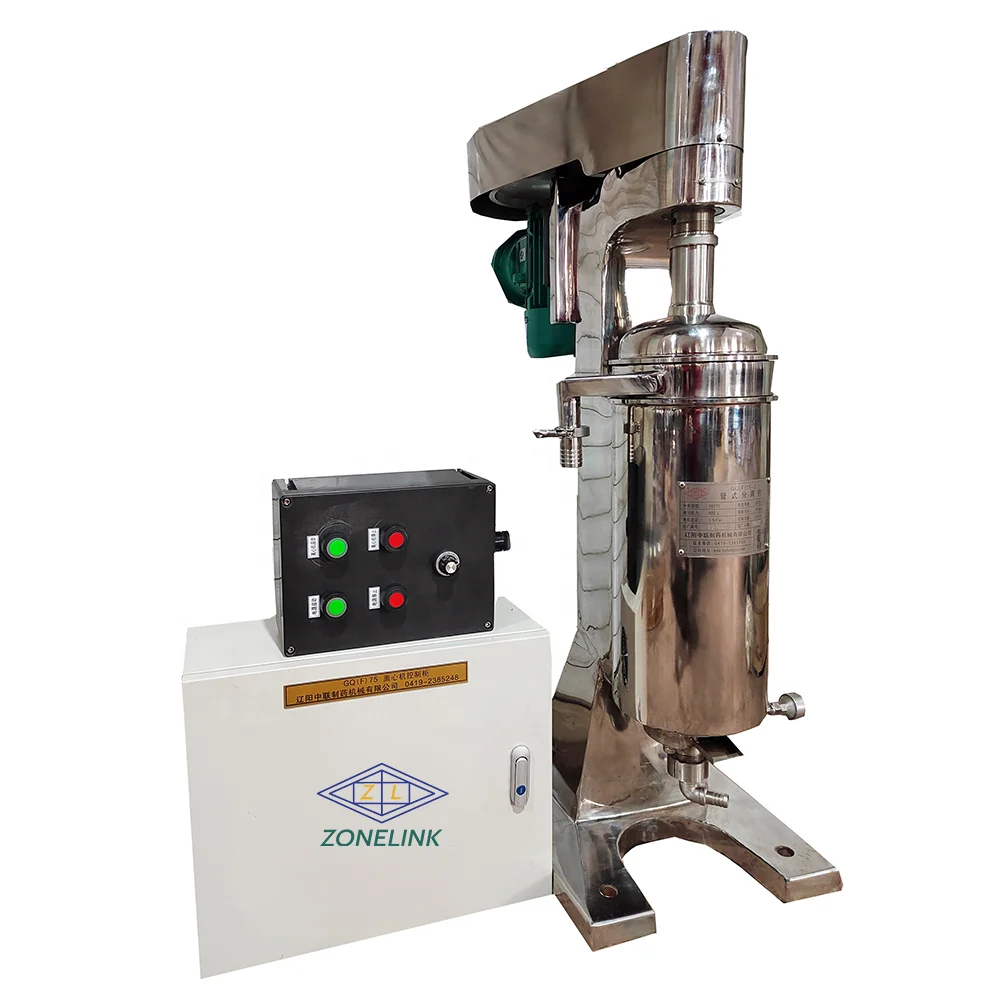

Oil tubular centrifuge filter for latex rubber
- Category: >>>
- Supplier: Liaoyang Zhonglian Pharmaceutical Machinery Co. Ltd.
Share on (1600951306183):
Product Overview
Description
Product Description
Main Application
GQ type tubular centrifuge is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration,
heavy viscosity,fine particles and very small differential gravity of the two phases.For example clarifying all kinds of fluid, glucose chlorhexidine, malic acid, oral solution, radix soghorae tonkinensis, coal tar and graphite; extracting protein, algae, saponin, pectin, sirup; blood separation, settling vaccine mycelia and all kinds of glucose; refining paint, resin, and latex solution.
Painted ink separation
Bacterial broth separation
Silicon powder separation

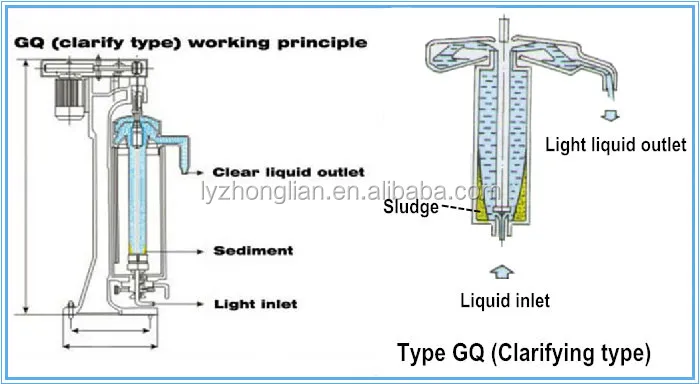

Structure & Principle
Tubular centrifuge separator is high speed centrifuge with strong capacity. The main parts: machine body, driving part,bowl,liquid collecting pan, liquid-in bearing seat.The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force. GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl,and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl.The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. |

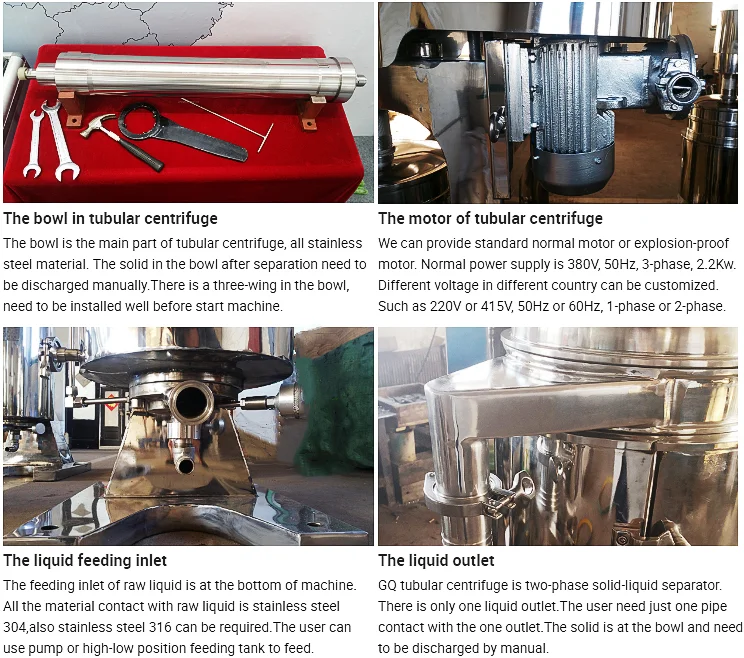

Detailed Images

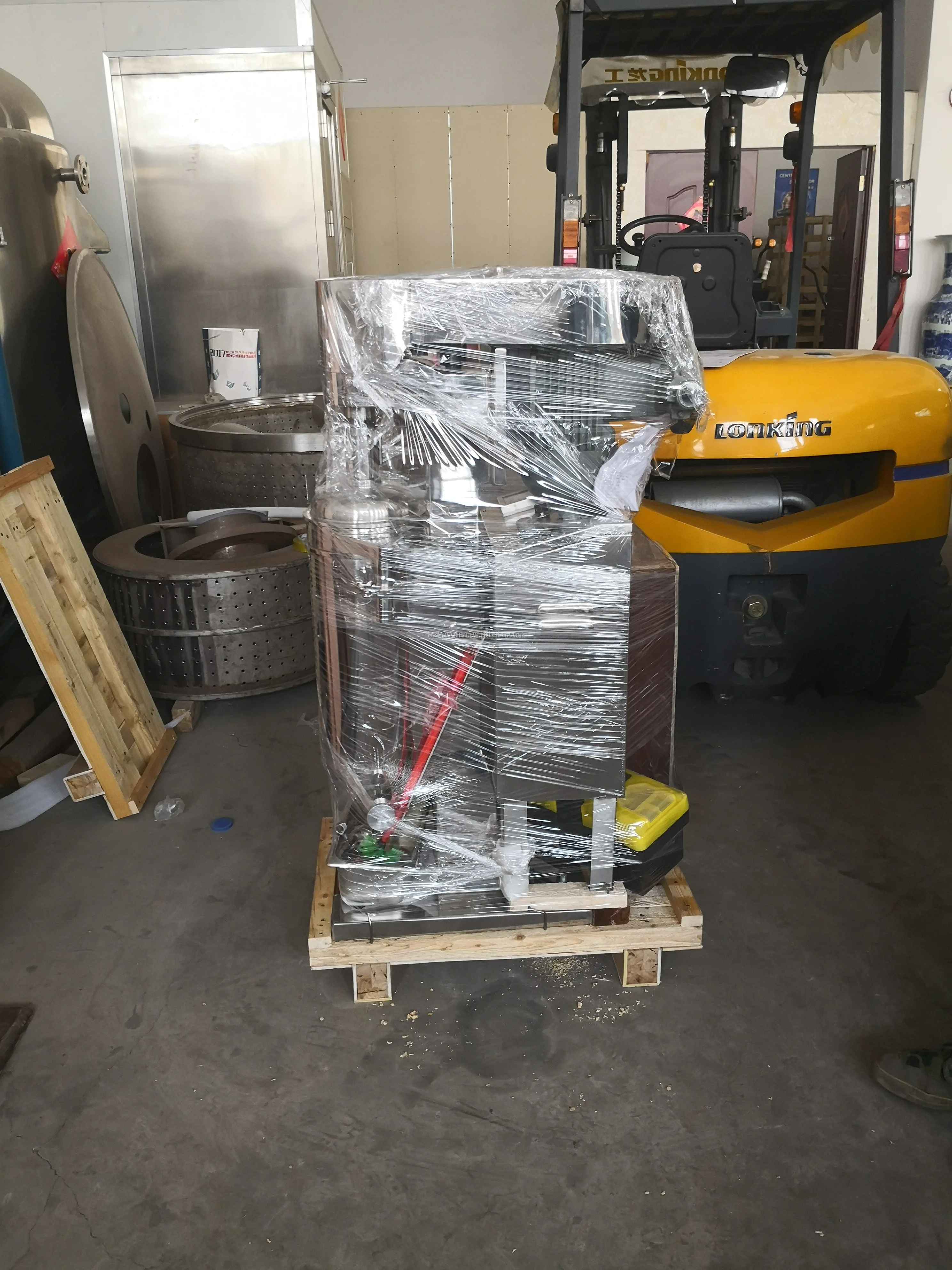

Package & Shipping
Related Products
Company Information
VR

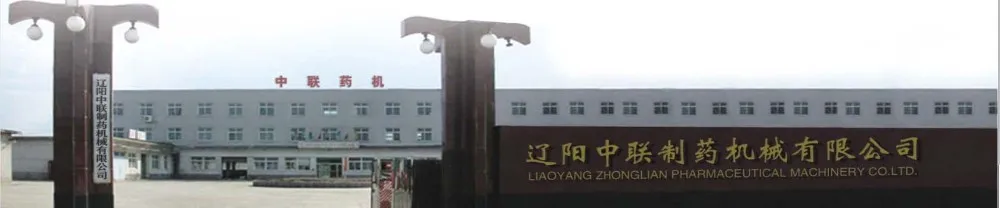

Liaoyang Zhonglian Machinery Company was established in October 2001,own many years of professional production experience.The company is located in China's earliest engaged in the centrifuge factory liaoyang city,liaoning province,covers product workshop area of seven thousand square meters,special engaged in the centrifuge separator and other machinery.The products have been widely used in many industries,such as food,chemical and many other industries.Our products were exported to many countries,North American countries such as the USA, Mexico.Aoutheast Asian countries such as Thailand, Singapore, Malaysia, Indonesia.East Asian countries such as Korea.South American countries such as Venezuela, Peru. With reliable quality & excellent after-sales service,we won the support of the broad masses of overseas customers.
