Vtops Fast Speed Automatic Bottle Liquid Filling Machine Edible Oil Vinegar Sauce Paste Milk Honey
- Category: >>>
- Supplier: Zhengzhou Vtops Machinery Co. Ltd.
Share on (1600951940554):
Product Overview
Description
Product Description

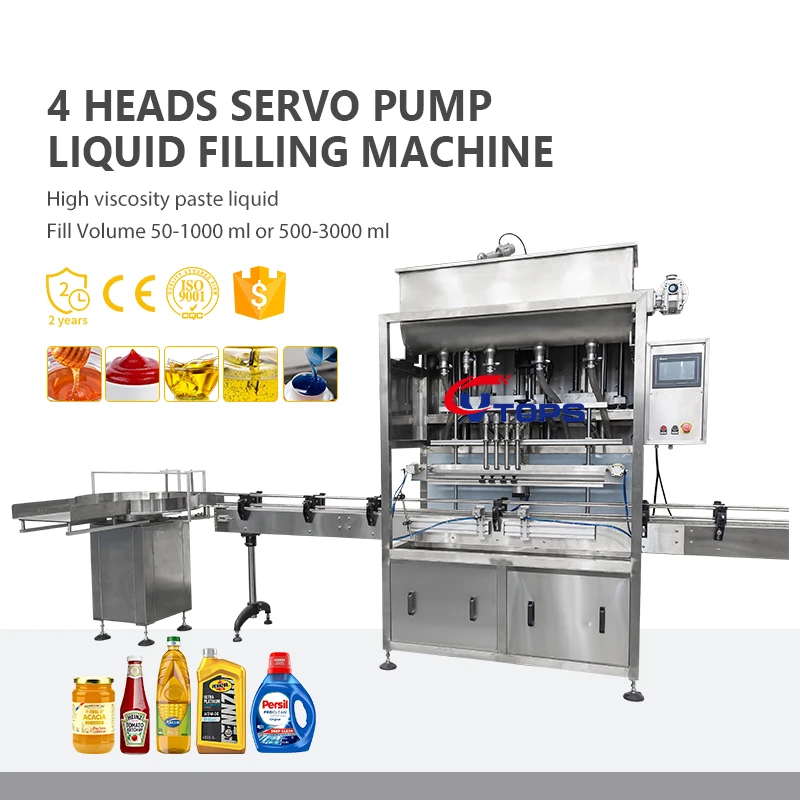

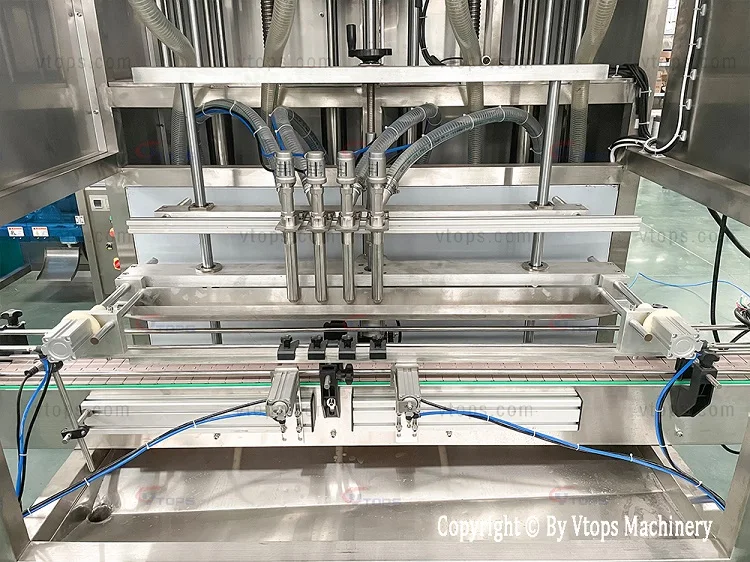

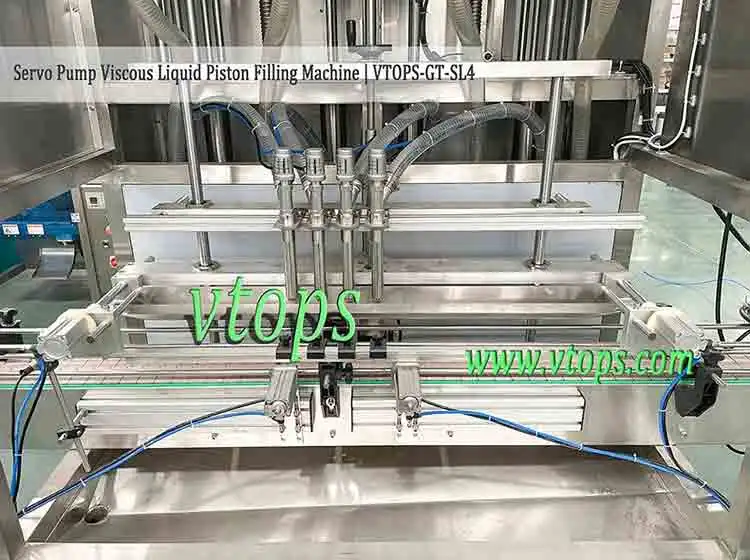

Automatic 4 Nozzles Four Head Liquid Honey Laundry Detergent Shampoo Juice Oil Filling Machine
Automatic piston filling machine is also named automatic piston filler. The piston filler machine is widely used in the filling of high viscosity liquid and paste products. Such as: honey, tomato sauce, rice wine, seafood sauce, grease, lubricants, detergent, washing liquid and other high viscosity liquid.

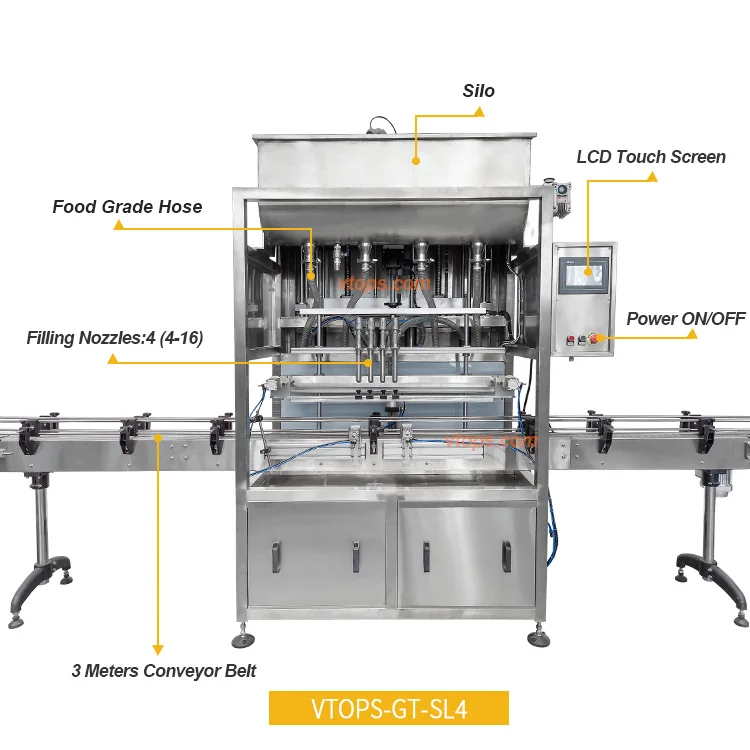

Specification
Model | GT-SL4 | GT-SL6 | GT-SL8 | GT-SL12 | GT-SL16 | ||||
Brand | VTOPS | ||||||||
Manufacturer | Zhengzhou Vtops Machinery Co., Ltd. | ||||||||
Nozzles | 4 | 6 | 8 | 12 | 16 | ||||
Output | 500-1000 bph | 800-1600 bph | 1000-2000 bph | 1500-3000 bph | 2000-4000 bph | ||||
Fill Volume | 50-1000 ml or 500-3000 ml | ||||||||
Storage Tank | 200 liters (At the machine top) | ||||||||
Blender in Tank | Optional | ||||||||
Measurement Accuracy | ≥ 99% (>100ml) | ||||||||
Air Pressure | 0.5-0.7 mpa | ||||||||
Air Consumption | 20 lph | 30 lph | 40 lph | 60 lph | 100 lph | ||||
Contained Conveyor Belt | 3 meters | 3 meters | 4 meters | 6 meters | 6 meters | ||||
HMI | LCD Touch Screen | ||||||||
Control System | PLC | ||||||||
Voltage | AC Three-phase 380V 50/60Hz | ||||||||
Power | 2.0 Kw | 2.5 Kw | |||||||
Dimensions (cm) | 400×110×210 | 400×110×230 | 400×115×230 | 600×100×230 | 600×100×230 | ||||
Machine Weight | 300 kgs | 400 kgs | 500 kgs | 700 kgs | 900 kgs | ||||
Suitable for：
Features:
1. Servo motor driven the piston to achieve accuracy filling.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.
2. A special three-way valve for each filling nozzle.
3. The filling volume is adjustable on LCD touch screen; simple and convenient.
4. The bottles are automatically enters, fills, and exits.
5. Skip or stop filling if without bottles.
6. The filling volumes are accurate and has a counting function.
7. Equipped with filling nozzle to prevent dripping and drawing.
8. Equipped with a diving filling system to ensure that the filling process does not foam and prevent the filling material from overflowing.
9. Sanitary valve piping. Quick installation connection, easy disassembly and installation.

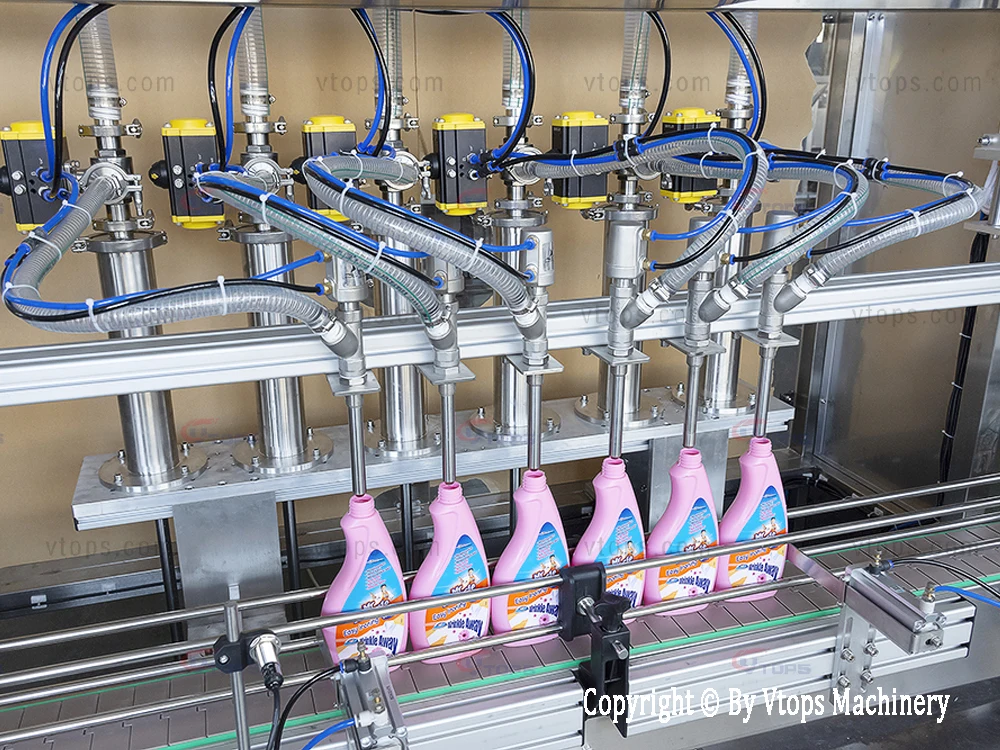

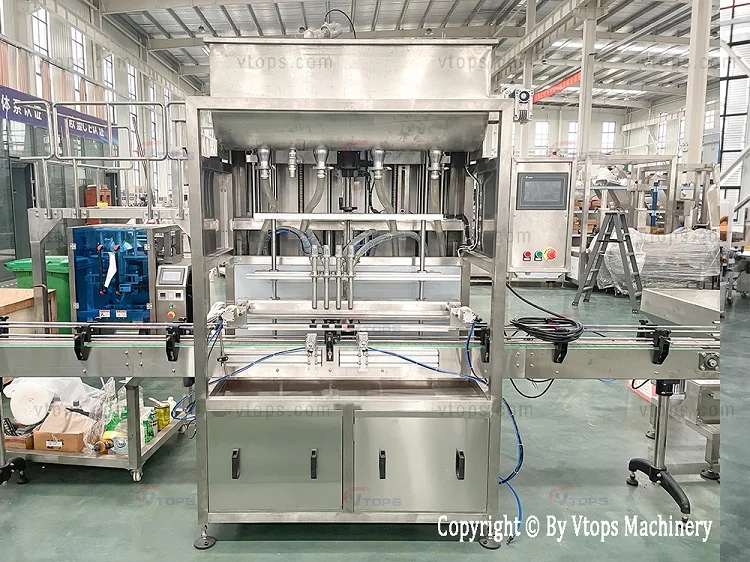

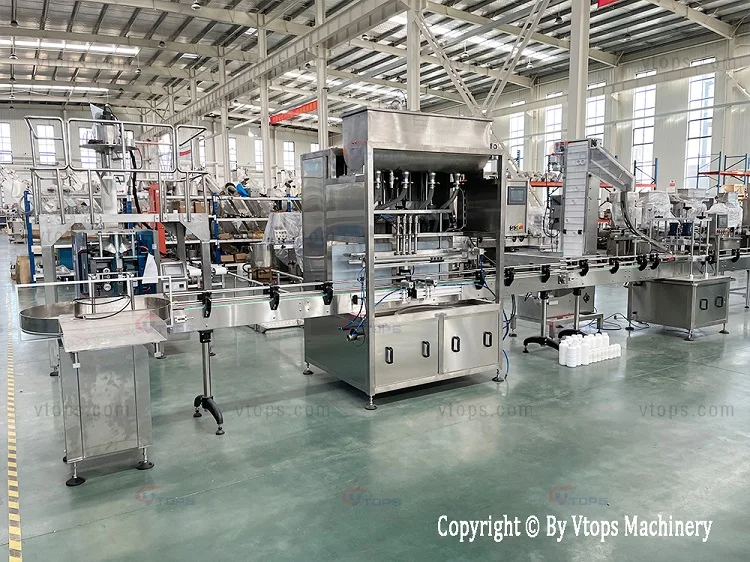

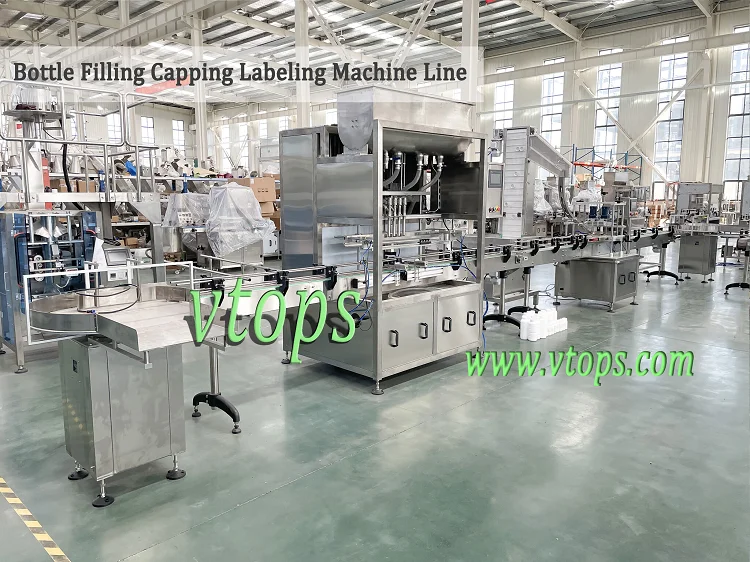

Details Images:
Realted Products

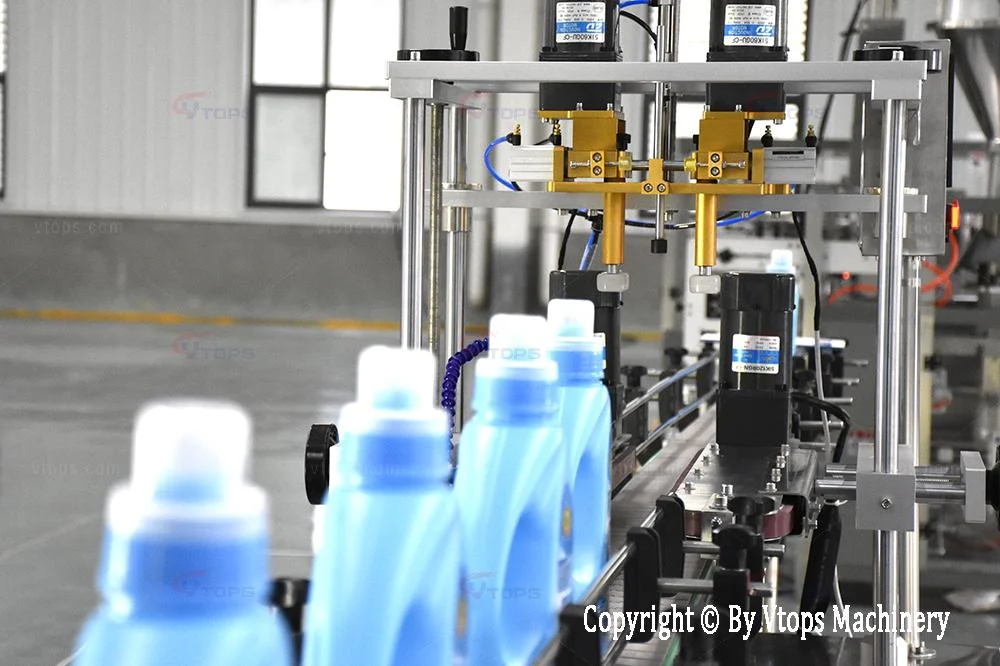

12 Nozzles Liquid Filling Machine
It is used in the fill a wide range of water-thin to low-viscosity liquid without gas. Such as, juice, soy sauce, vinegar, edible oil, oral liquid, disinfectant, pesticide, chemical, detergent, lubricating oil, cosmetics, and so on.
Company Profile
ZHENGZHOU VTOPS MACHINERY CO., LTD.
Zhengzhou Vtops Machinery Co Ltd founded in 2001, is located in Zhengzhou, Henan province, the geographical center of China. The company is ideally situated with easy access to aviation, rail and truck transport services. VTOPS design and manufacture Powder Auger Fillers, Granular Weigh Fillers, Liquid Piston Fillers and other packaging machines.
Super-Fast Response
7 *24 online services. Multi-channels to reach us at any time, including WhatsApp, WeChat, Skype,mail etc.All the emails and
complaints will be replied in 4h.
complaints will be replied in 4h.
Customization Services
VTOPS can do OEM according to customers' request. You can get the solutions for FREE.
Technical Support
Our chief engineer provides you with The most professional and reliable online service. Any problem can be sent to: taka@vtops.com
Packing & Delivery
1. Manner of Packing: Covered by plastic film, packaging in export wooden cases in container.
2. Delivery Time: 7-10 working days after payment.
2. Delivery Time: 7-10 working days after payment.
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are manufacturer since 2001.
As the same of most manufacturers, we first carry out domestic trade, and registered Alibaba (Chinese Trade) in 2005.
2.Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine
We would like to send you new one since we have one year warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it.
Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4.Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
A: We are manufacturer since 2001.
As the same of most manufacturers, we first carry out domestic trade, and registered Alibaba (Chinese Trade) in 2005.
2.Q: What’s the guarantee of the machine?
A: We have 2 year’s guarantee of the machine
We would like to send you new one since we have one year warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it.
Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.
3.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4.Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)
5.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
