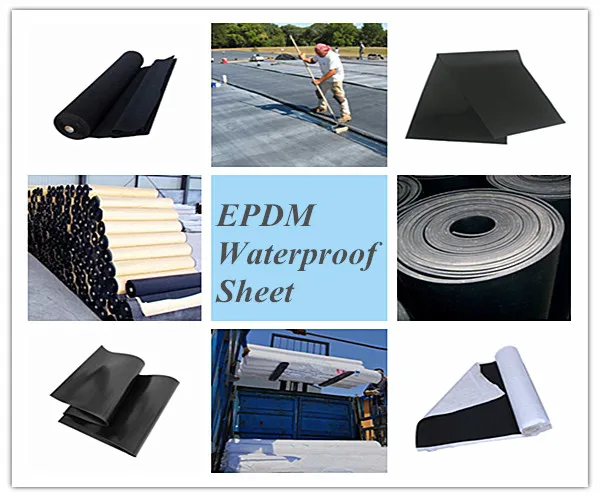

EPDM Waterproofing membrane |
EPDM Rubber Waterproofing membranes is a synthetic rubber, synthetic tire blends as the base material, adding reinforcing agents,softeners, antioxidants, curing agents processing aids to promote mixing by kneading, mixing, extrusion, rolling and curingshaping and other processes can be processed into sheet curling volume of new high elastic waterproof material.
![]() | ![]() | ![]() | |
Homogeneous (H) Type | Fleece Backing (L) Type | Self-adhesive (SA) Type |
![]() | ![]() |
Unvulcanized EPDM | vulcanized EPDM rubber |
can be glued and welded together | only can be glued together |
Advantages |
♦ Good quality
♦ Competitive price
♦ Delivery time short
♦ Width, Length, Thickness, color, all of these customized as yours demands
1. Excellent dimensional ability;
2. Anti-UV, Weather resistance, anti-corrosion resistance, long service life
3. Excellent tensile strength and elongation
4. High and low temperature resistance(130℃;-40℃);
5. Easy installation, solid joint, and non-pollution
Specification |

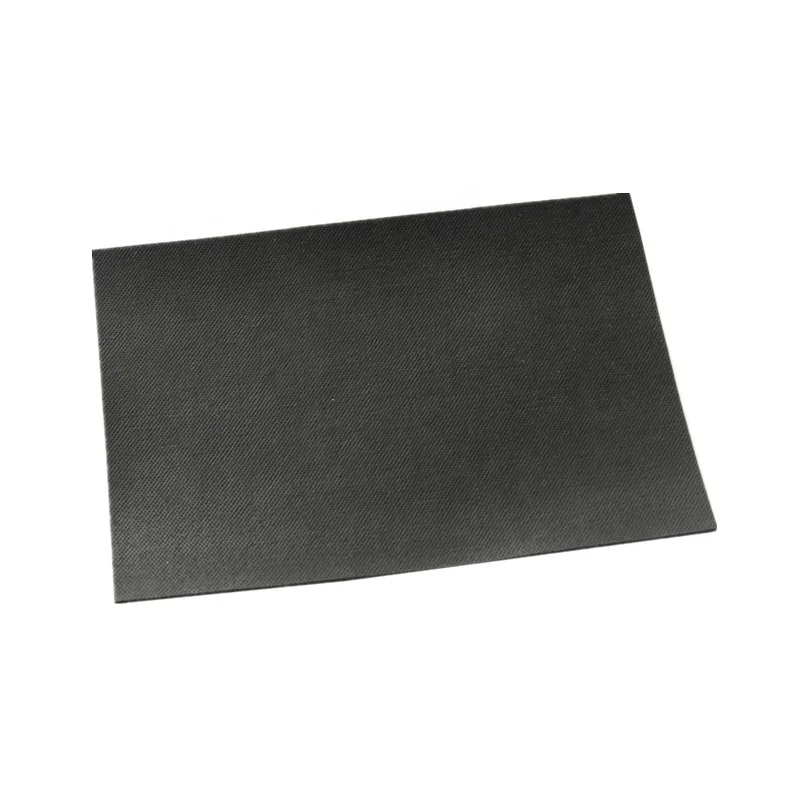

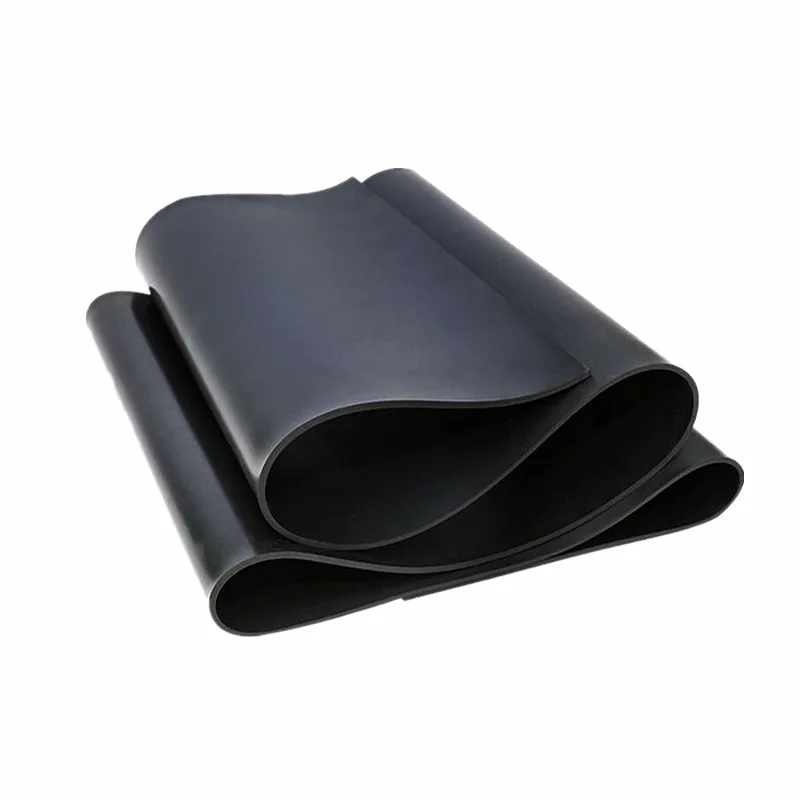

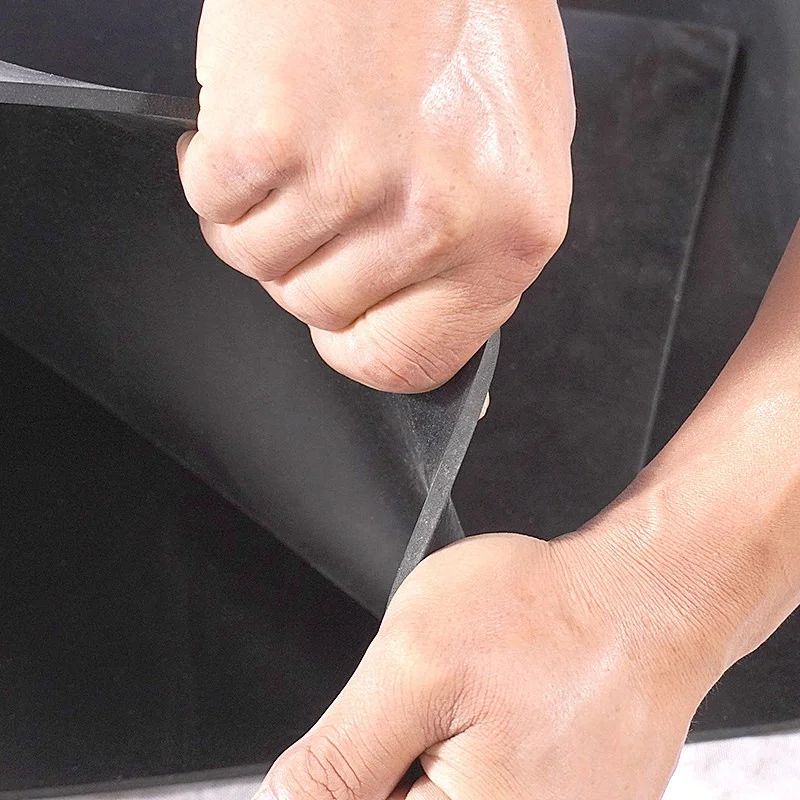

![]() | Specification: 1. Product Name: EPDM Waterproofing Sheet 2. Material: Rubber EPDM 3. Color: Black, White, or customized 4. Length: 20m-200m/roll, or customized 5. Width: 2m-8m, or customized 6. Thickness: 1mm,1.2mm,1.5mm,2mm, or customized |
Item | index | |||
(N/cm) | Normal temperature≥ | 7.5 | ||
Tension Strength (MPa) | 60℃≥ | 2.3 | ||
Elongation at break | Normal temperature≥ | 450 | ||
-20℃ | 200 | |||
Tear strength N≥ | 25 | |||
(0.3Mpa.30 min)Water tightness | No seeage | |||
Flexibility at low temperature ≤ | -40 | |||
Alkaline[10%Ca(OH)2 | Fracture tensile strength retention %≥ | 80 | ||
Normal temperature×168h] | ||||
Keep rate tore elongation%≥ | 80 | |||
(40℃×168h),200×10-8Ozone aging | — | |||
Artificial climate ageing | Fracture tensile strength retention %≥ | 80 | ||
Elongation retention rate%≥ | 70 |
Application |
•Suitable for all kinds of roof, basement, tunnel, steel structure roof; civil and commercial building roof and underground waterproof projects; bridge, subway, dam etc.
•Especially used for waterproof projects with high requirements in corrosion resistance, distortion and durability.
•Swimming pool, tunnels, pond , pool , irrigation system.
Tunnel | Subway |
Bridge | Basement |
Building Roof | Underground |
Packing&Shipping |
Rolled with hard materials and packed with plastic bags or woven bags.
Precautions for storage and transportation:
1.The product is packed in plastic woven bags.
2.Strictly prevent sun and rain during transportation, strictly prohibit approaching the fire source, prevent collision, and ensure that the packaging is intact.
3. When the product is stored, store it in a ventilated and cool place, and it is forbidden to approach the fire source.
Shandong Bring Plenitude New Materials Co.,Ltd. |
Shandong Bring Plenitude New Materials Co.,Ltd. is located in Tai’an city, China. which is a large manufacturer specializing in the production of geotechnical and waterproof materials. Products Include geomembrane, steel and plastic/fiberglass/polyester geogrid, non woven geotextile, geocell, geomat, waterproofing sheet, GCL etc.
The factory quipped with a number of six advanced production lines, the company has obtained ISO9001, ISO14001 and other certifications, our products are not only popular in domestic engineering projects and bidding, but also exported to more than 30 countries and enjoyed a high popularity and reputation.
our factory |
We are manufacturers with our own factories and can offer you excellent prices.
our certificate |
The company has passed ISO9001 / ISO14001 / OHSAS18001 and CE certificate.
