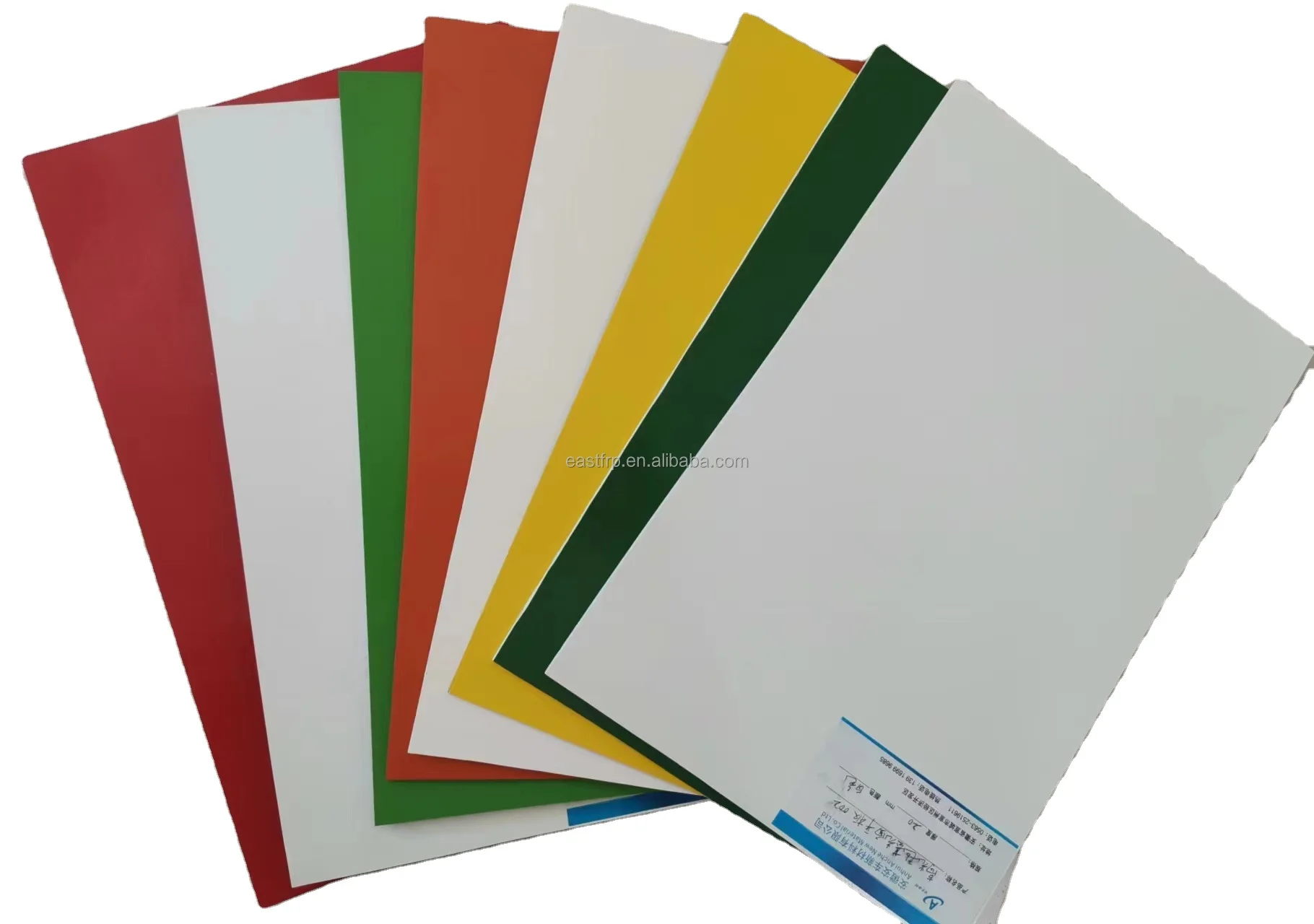

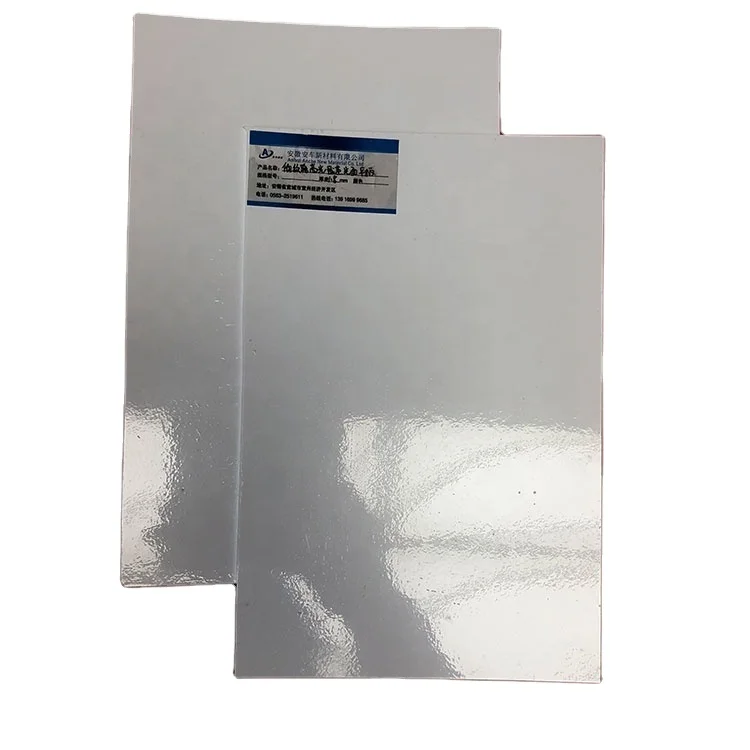

Glossy surface fiberglass sheets fiberglass insulation board wall panel
- Category: >>>
- Supplier: Anhui Anche New Material Co. Ltd.
Share on (1600952016900):
Product Overview
Description
Product Description
FRP PANEL: FRP sheet is made of thermosetting plastics and reinforced glass fiber, and its strength is greater than that of steel and aluminum. The product will not produce deformation and fission at ultra-high temperature and low temperature, and its thermal conductivity is low. It is also resistant to aging, yellowing, corrosion, friction and easy to clean.
HG003

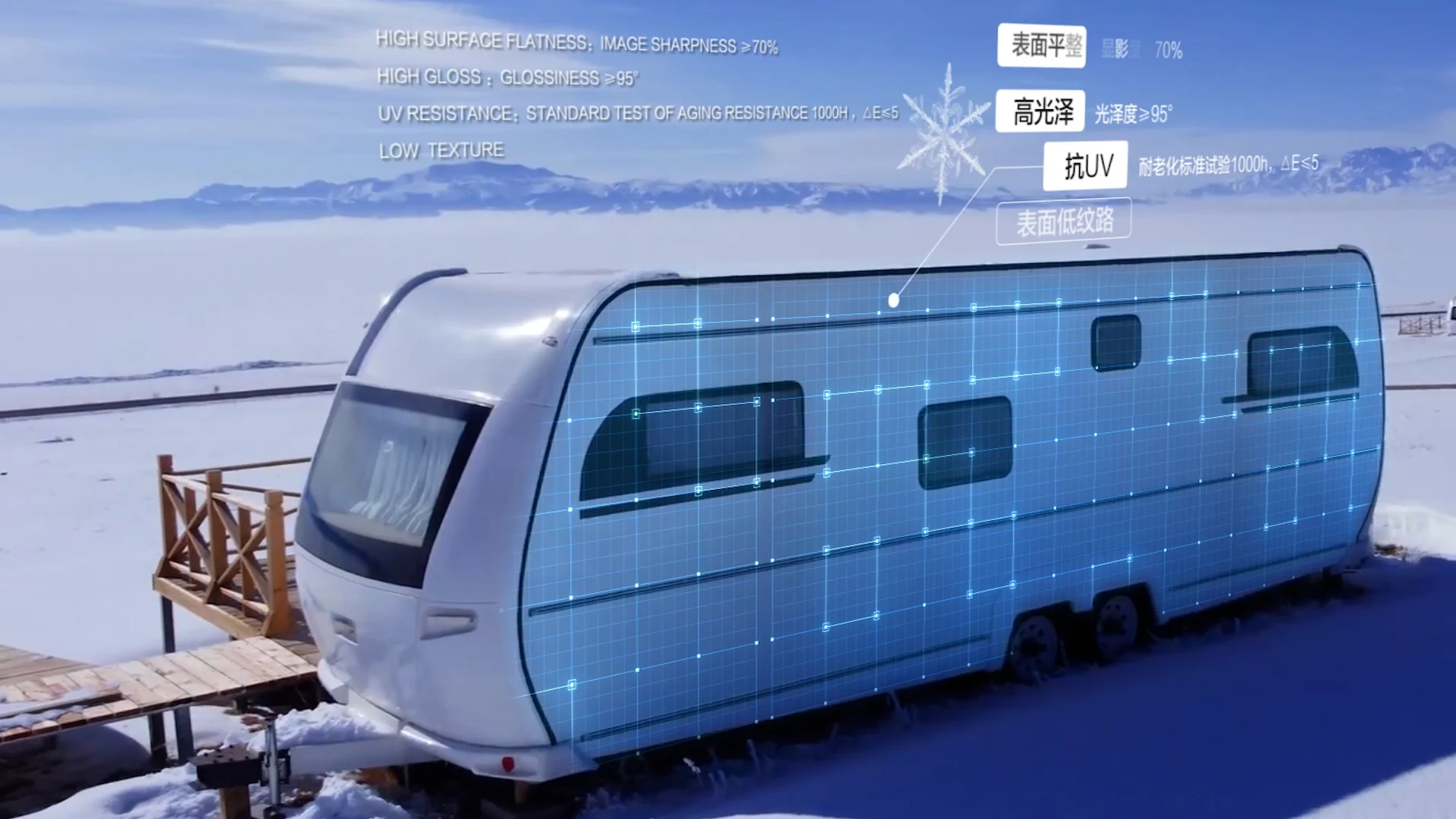

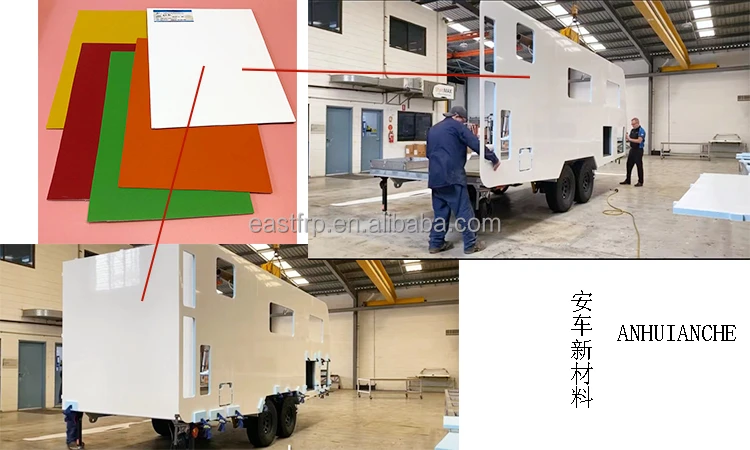

HG003 FRP panel independently developed by Anche is a high-end sheet widely used in the field of RV, with beautiful surface,metallic luster, high-quality gel coat coating, strong weather resistance and good UV resistance.
Details Images

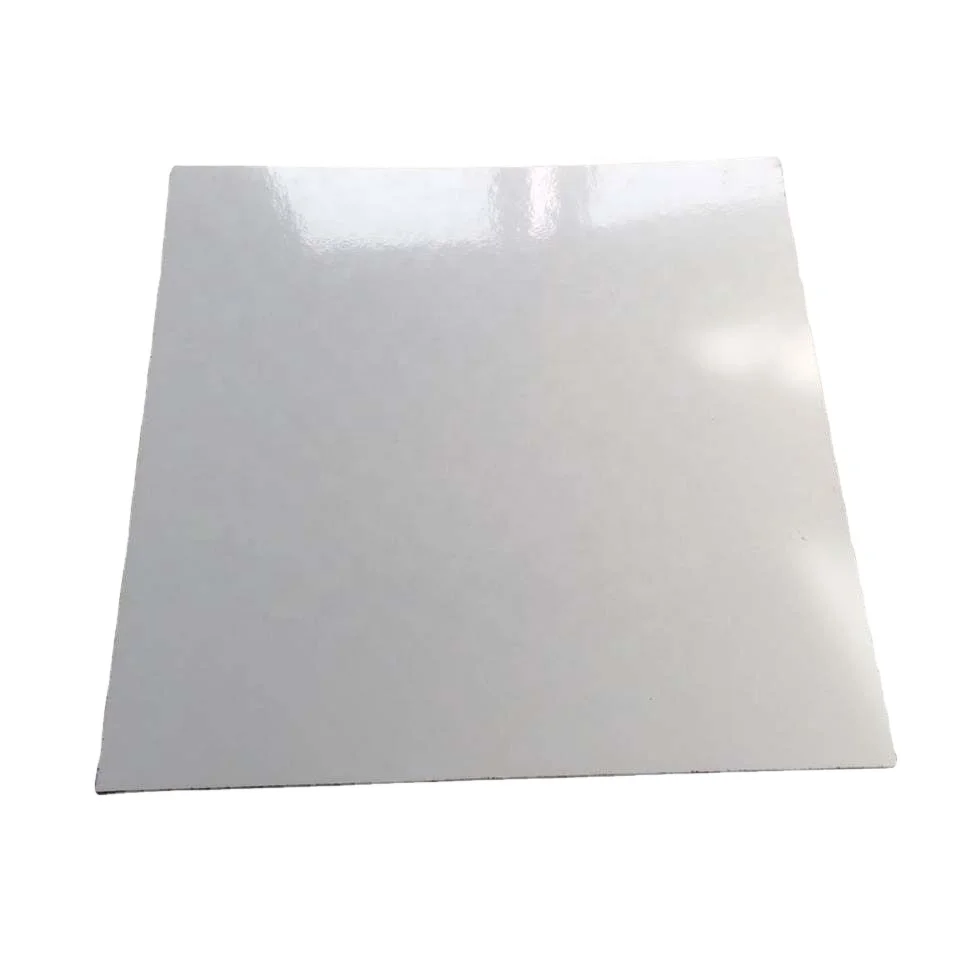

Surface (Gel-coat)
High-quality Gel-coat to improve the material's UV resistance and color durability, while increasing the gloss of the surface of the plate and making the surface not appear pores, cracking, scratches and other phenomena thus form a very beautiful and striking appearance.The Gel coat also provides greater resistance to corrosion and can be cleaned.
Middle (Fiberglass felt or Woven Roving fibergalss)
Anche imported from abroad using glass fiber mat and fiber cloth, and resin bonding stronger, more soluble in styrene, at the same time anche products high strength, light weight, good toughness. The characteristics of good impact resistance are also well displayed.
Back Side (Resin)
The substrate surface of the FRP panel is more flat, clean, no air hole, no crack, no scratch, adhesion is better.
High-quality Gel-coat to improve the material's UV resistance and color durability, while increasing the gloss of the surface of the plate and making the surface not appear pores, cracking, scratches and other phenomena thus form a very beautiful and striking appearance.The Gel coat also provides greater resistance to corrosion and can be cleaned.
Middle (Fiberglass felt or Woven Roving fibergalss)
Anche imported from abroad using glass fiber mat and fiber cloth, and resin bonding stronger, more soluble in styrene, at the same time anche products high strength, light weight, good toughness. The characteristics of good impact resistance are also well displayed.
Back Side (Resin)
The substrate surface of the FRP panel is more flat, clean, no air hole, no crack, no scratch, adhesion is better.
Product Paramenters
Item | Units | Parameter | Testing Standard |
Tensile Strength (felt base) | Mpa | 60-90 | GB/T 1447-2005 |
Tensile Strength (woven roving) | Mpa | 90-150 | GB/T 1447-2005 |
Flexural Strength (felt base) | Mpa | 130-180 | GB/T 1449-2005 |
Flexural Strength (woven roving) | Mpa | 250-300 | GB/T 1449-2005 |
Water Absorption | / | 0.24% | GB/T 1462-2005 |
Density | g/cm3 | 1.3-1.5 | / |
Impact Strength | kJ/㎡ | ≥30 | GBT 1451-2005 |
Barcol Hardness | Hba | ≥35 | GB/T 3854-2017 |
Application

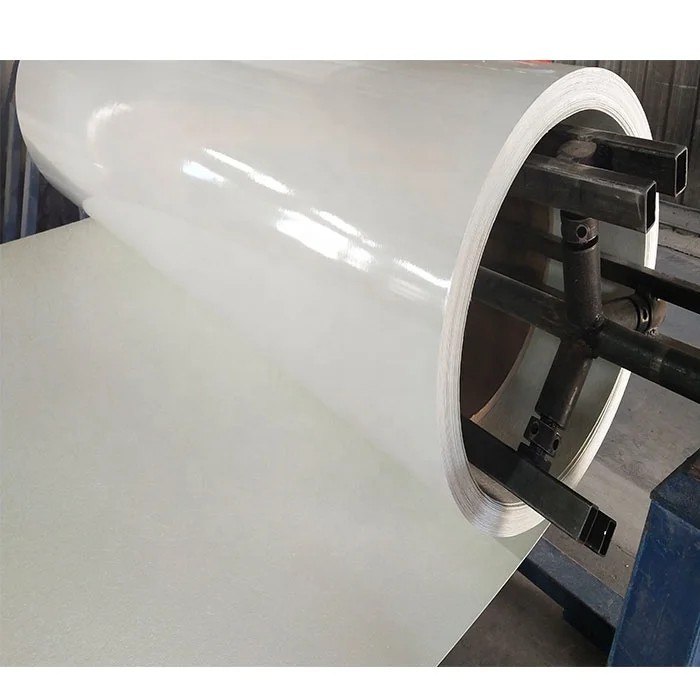

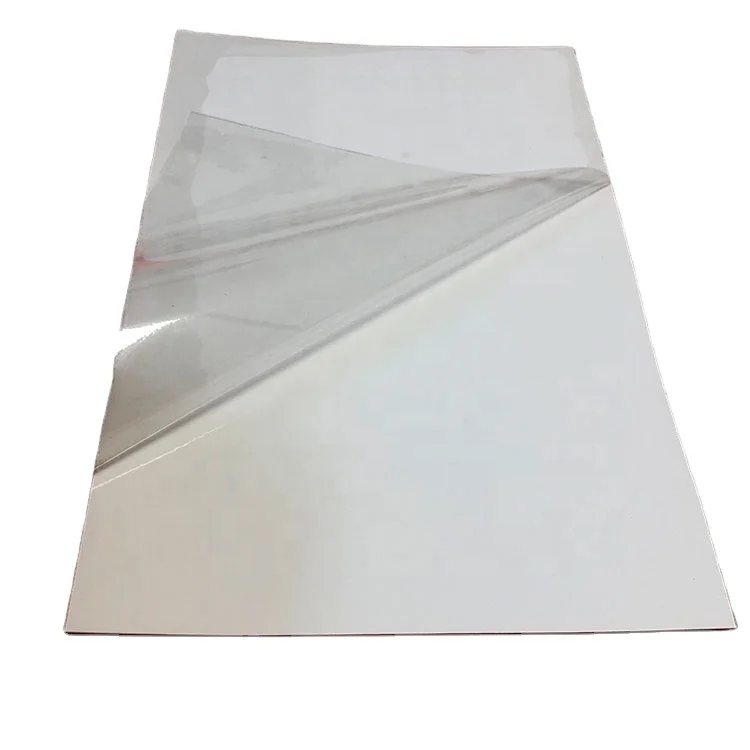

Product packaging

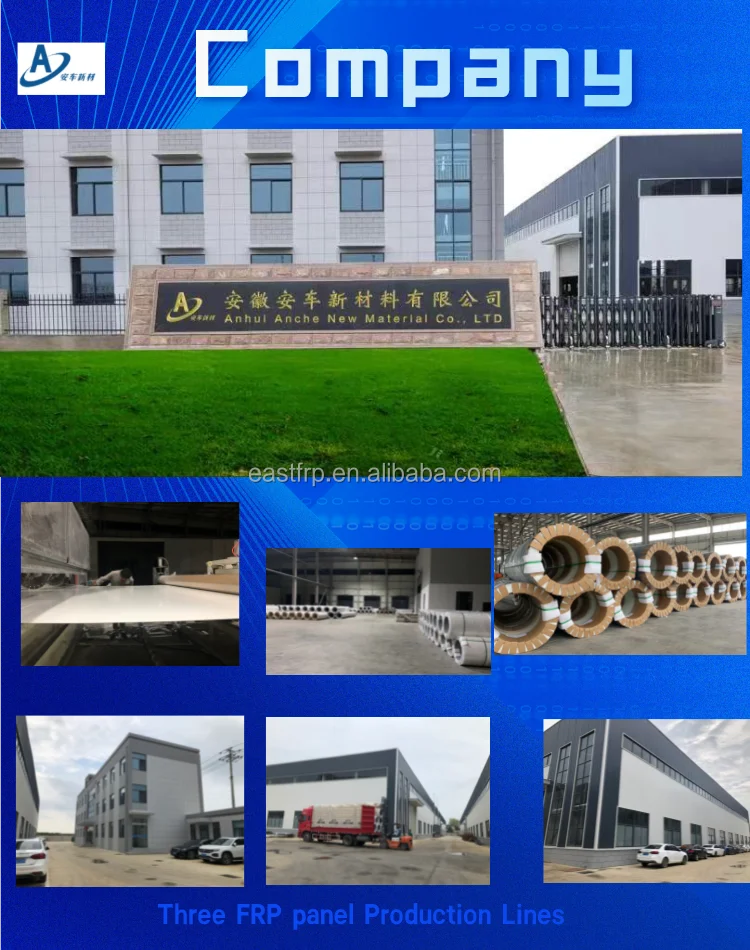

COMPANY PROFILE

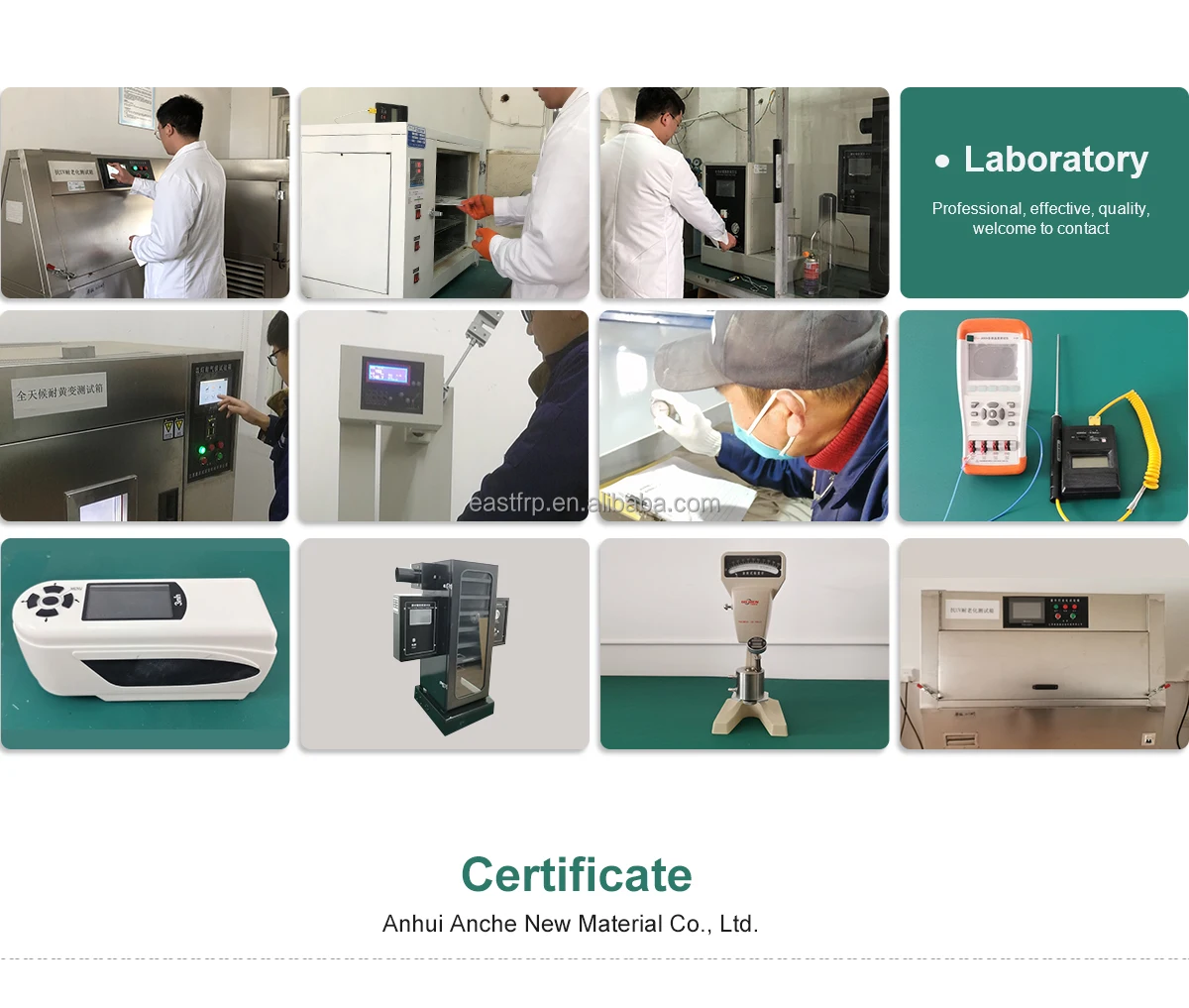

Company Lab Test
WE ASSURE
1 Stable Quality
2 Quick Response
3 Independent Laboratory
4.Fast Delivery
1 Stable Quality
2 Quick Response
3 Independent Laboratory
4.Fast Delivery
FAQ
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in ANHUI,CHINA.
Q: Do you have quality control?
A: Yes, we have gained SGS authentication and we have our own lab .
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q:How about the delivery time?
A: Generally it is 7-14 days.
A: Yes , we are a manufacturer, We have own factory, which is located in ANHUI,CHINA.
Q: Do you have quality control?
A: Yes, we have gained SGS authentication and we have our own lab .
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q:How about the delivery time?
A: Generally it is 7-14 days.
