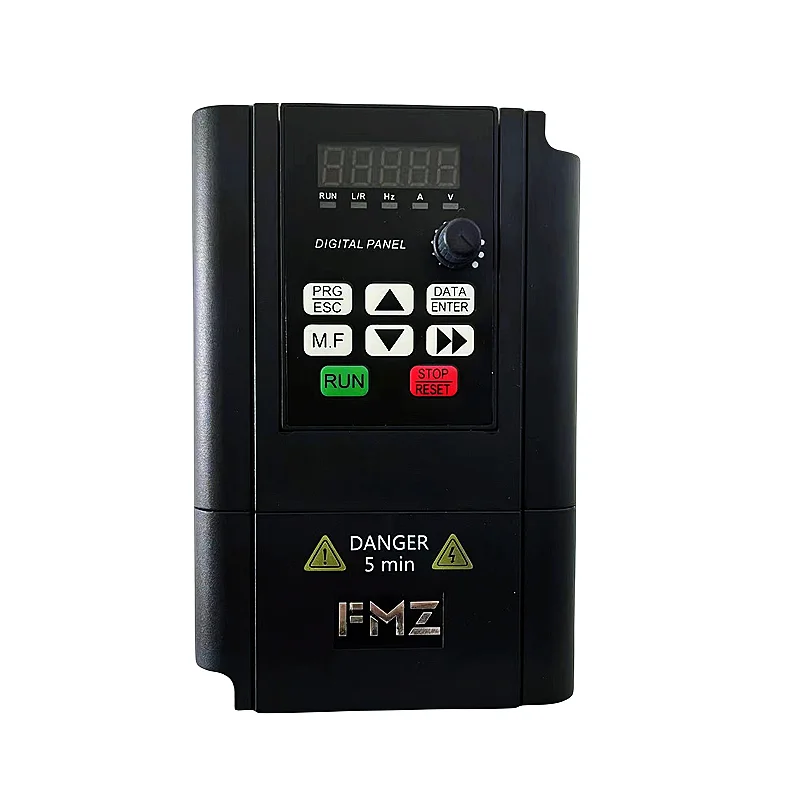

5.5KW 220V variable frequency drive single phase to single phase frequency converter 50hz 60hz vfd ac drive vfd inverter
- Category: >>>
- Supplier: Shanghai Fmz Industry Co. Ltd.
Share on (1600952140761):
Product Overview
Description
Product Description
Product name | H800 220V/380V High Performance AC Drive/VFD | ||||||
Power range | 0.75KW-450KW | ||||||
Output Frequency Range | Vector control: 0 ~300Hz V/F control: 0 ~320Hz | ||||||
Control Mode | Open loop vector control (SVC) Closed loop vector control (FVC) V/F control | ||||||
Starting Torque | G type: 0.5 Hz/150% (SVC); 0 Hz/180% (FVC) P type: 0.5 Hz/100% | ||||||
Communication port | Support RS-485 and other mainstream fieldbus communication | ||||||
Application | Special for Synchronous Air Compressor, textile machinery, knitting machine, winding machine and etc. | ||||||
Model And Technical Data

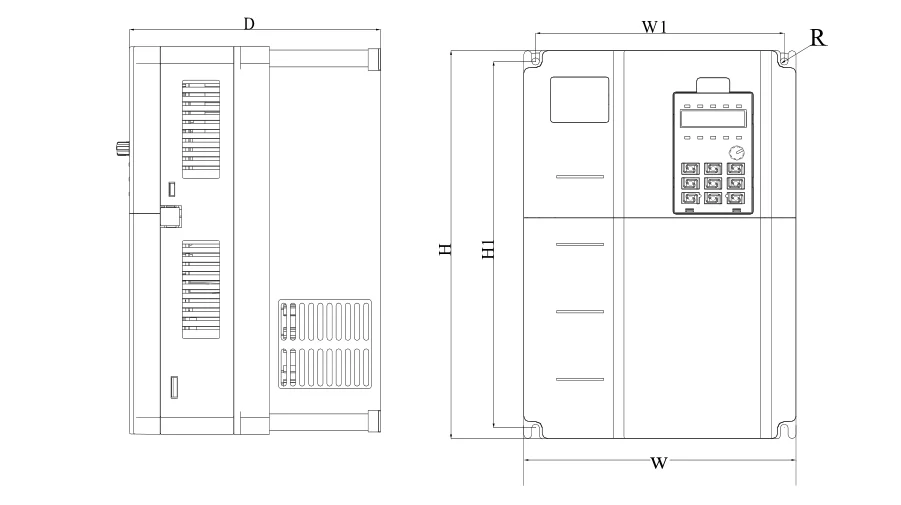

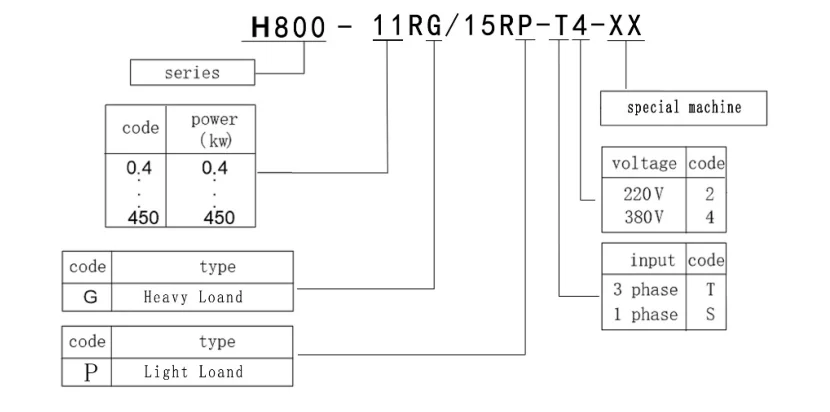

Model No. | Adapter Motor (HP) | Motor Power (KW) | Input Current (A) | Output Current (A) | Outline Dimensions （H*W*D） （mm) | |||||
Single Phase Power: 220V, 50/60Hz | ||||||||||
H800-0R4G/0R7P-S2 | 0.5 | 0.4 | 5.4 | 2.5 | 186*126*157 | |||||
H800-0R7G/1R5P-S2 | 1 | 0.75 | 8.2 | 4 | ||||||
H800-1R5G/2R2P-S2 | 2 | 1.5 | 14 | 7.5 | ||||||
H800-2R2G/4R0P-S2 | 3 | 2.2 | 23 | 10 | ||||||
H800-4R0G/5R5P-S2 | 5.5 | 4.0 | 38 | 17 | ||||||
H800-5R5G/7R5P-S2 | 7.5 | 5.5 | 55 | 25 | 256*146*172 | |||||
H800-7R5G/11RP-S2 | 10 | 7.5 | 65 | 32 | ||||||
Three Phase Power: 380V, 50/60Hz | ||||||||||
H800-0R7G/1R5P-T4 | 1 | 0.75 | 3.4 | 2.3 | 186*126*157 | |||||
H800-1R5G/2R2P-T4 | 2 | 1.5 | 5.0 | 3.7 | ||||||
H800-2R2G/4R0P-T4 | 3 | 2.2 | 5.8 | 5.1 | ||||||
H800-4R0G/5R5P-T4 | 5 | 3.7 | 10.5 | 9.0 | ||||||
H800-5R5G/7R5P-T4 | 7.5 | 5.5 | 14.6 | 13 | 256*146*172 | |||||
H800-7R5G/11RP-T4 | 10 | 7.5 | 20.5 | 17 | ||||||
H800-11RG/15RP-T4 | 15 | 11 | 26 | 25 | ||||||
H800-15RG/18RP-T4 | 20 | 15 | 35 | 32 | 322*208*192 | |||||
H800-18RG/22RP-T4 | 25 | 18 | 38.5 | 37 | ||||||
H800-22RG/30RP-T4 | 30 | 22 | 46.5 | 45 | ||||||
H800-30RG/37RP-T4 | 40 | 30 | 62 | 60 | 430*283*230 | |||||
H800-37RG/45RP-T4 | 50 | 37 | 76 | 75 | ||||||
H800-45RG/55RP-T4 | 60 | 45 | 92 | 90 | 510*340*280 | |||||
H800-55RG/75RP-T4 | 75 | 55 | 113 | 110 | ||||||
H800-75RG/90RP-T4 | 100 | 75 | 157 | 152 | ||||||
H800-90RG/110RP-T4 | 125 | 90 | 180 | 176 | 602*474*298 | |||||
H800-110RG/132RP-T4 | 150 | 110 | 214 | 210 | ||||||
H800-132RG/160RP-T4 | 175 | 132 | 256 | 253 | ||||||
H800-160RG/200RP-T4 | 210 | 160 | 307 | 304 | ||||||
H800-200RG/220RP-T4 | 260 | 200 | 385 | 380 | 965*569*370 | |||||
H800-220RG/250RP-T4 | 300 | 220 | 430 | 426 | ||||||
H800-250RG/280RP-T4 | 350 | 250 | 468 | 470 | ||||||
H800-280RG/315RP-T4 | 370 | 280 | 525 | 520 | ||||||
H800-315RG/355RP-T4 | 430 | 315 | 590 | 590 | ||||||
H800-355RG/400RP-T4 | 480 | 355 | 665 | 650 | 1435*812*400 | |||||
H800-400RG/450RP-T4 | 530 | 400 | 705 | 690 | ||||||
H800-450RG/500RP-T4 | 615 | 450 | 790 | 775 | ||||||

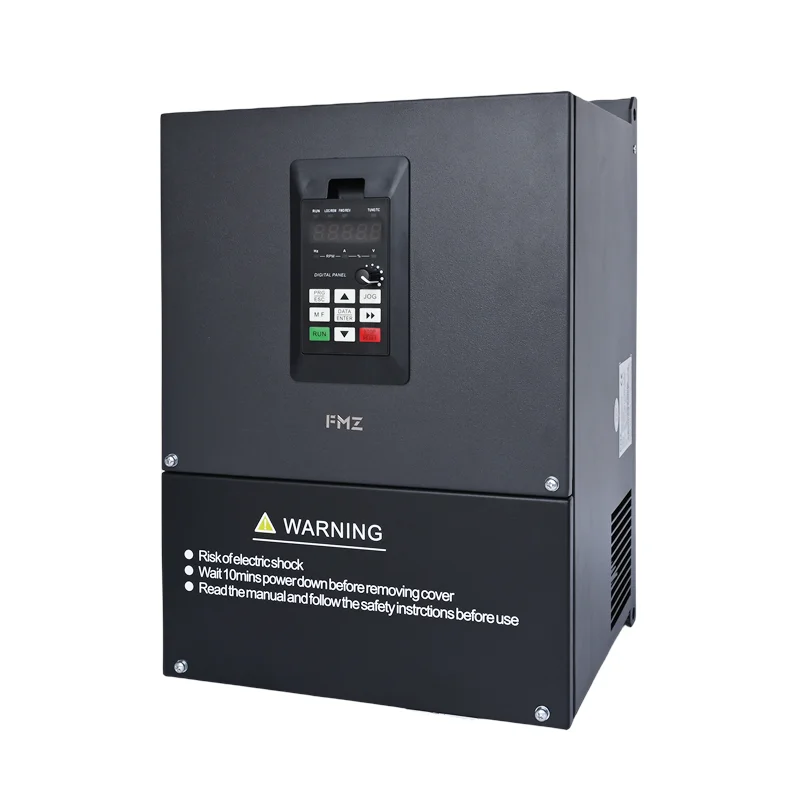

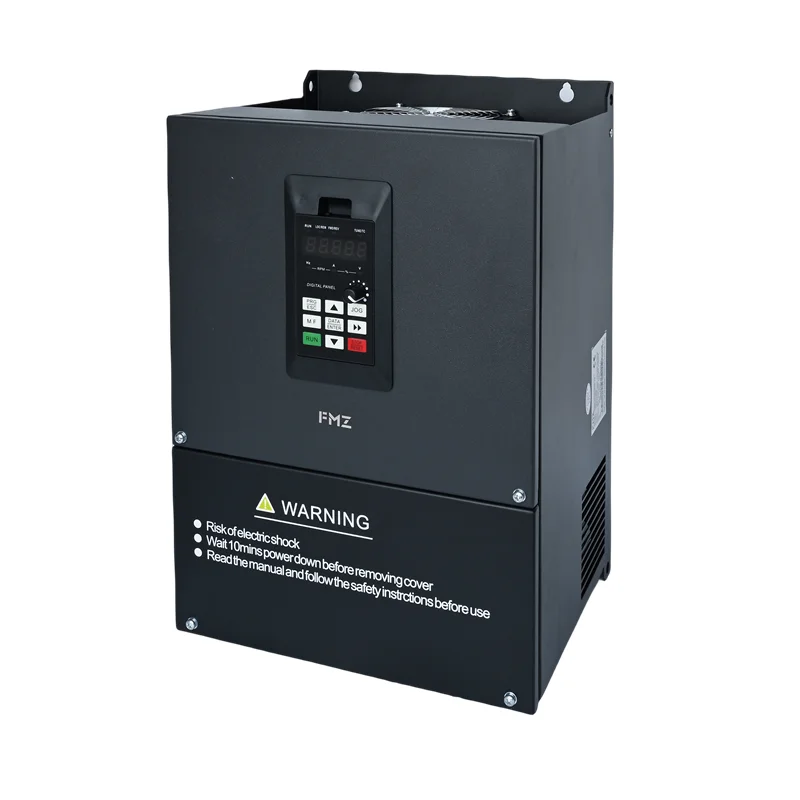

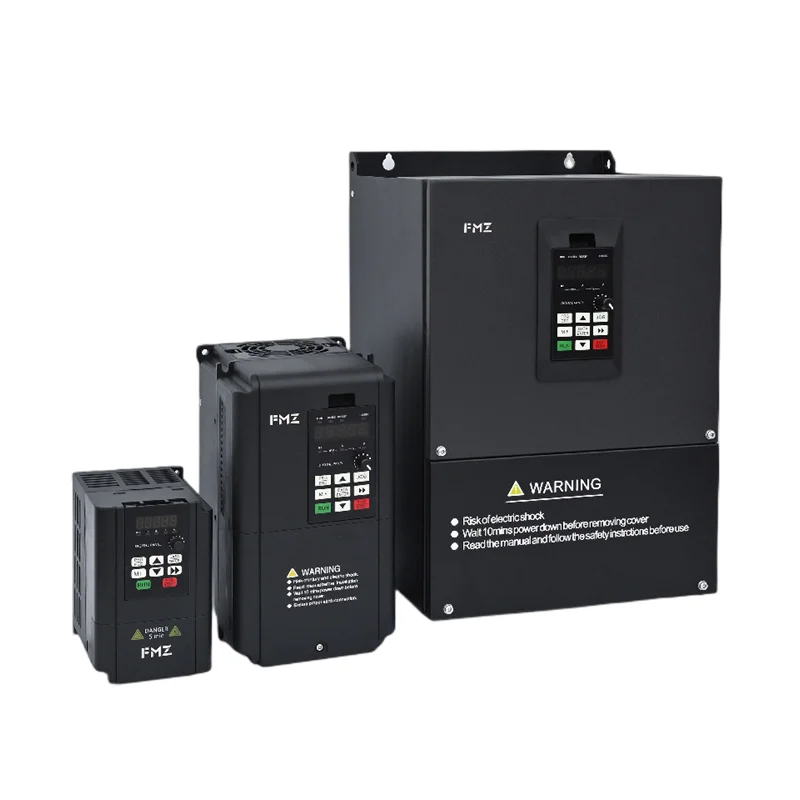

H800 Series Frequency Inverter
H800 series satisfies high performance requirements by using a unique control method to achieve high torque, high accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of adapting severe power network, temperature, humidity, and dusty environment exceeds those of similar products made by other companies, which improves the products reliability noticeably.
H800 Vector VFD
H800 considers customers’ needs and combines general purpose function and industrial-oriented function. It features PI control, simple PLC, flexible I/O terminals and pulse frequency setting. You can select whether to save the parameters upon power off or stop, bind frequency setting channel with command channel, zero frequency return difference zero frequency hysteresis, main and auxiliary frequency setting, traverse operation, length control, etc. It is an integral, cost-effective and highly reliable solution for manufacture in the related fields.
H800 series can satisfy the customers’ requirements on low noise and EMI by using optimized PWM technology and EMC design. H800 series frequency inverter is equipped with braking unit. If there is a need for energy-consuming braking, please select a braking resistor according to the manual.
H800 series can satisfy the customers’ requirements on low noise and EMI by using optimized PWM technology and EMC design. H800 series frequency inverter is equipped with braking unit. If there is a need for energy-consuming braking, please select a braking resistor according to the manual.
Advantages
1. LED Keypad Display. Through it, operation and configuration of the inverter can be done.
2. H800 series inverter is equipped with braking unit. If there is a need for energy-consuming braking, please select a braking resistor according to the manual.
3. High torque starting characteristics: 0.5 Hz/150% (SVC); 0Hz/180% (FVC), speed stabilization accuracy up to ±5% (FVC), wide speed range, and super adaptability;
4. It can realize accurate parameter self-learning and provide excellent motor drive performance
5. It has multiple guarantees such as fast current limit, overload, overvoltage, overheating, load drop, etc., instantaneous stop and non-stop function, realizes the complete separation of VF and operation, and also has the function of overexcitation;
6. Abundant expansion card options, support I/O expansion, communication bus expansion, support RS-485 and other mainstream field bus communication, support a variety of PG cards;
7. Support asynchronous motor and synchronous motor control at the same time;
4. It can realize accurate parameter self-learning and provide excellent motor drive performance
5. It has multiple guarantees such as fast current limit, overload, overvoltage, overheating, load drop, etc., instantaneous stop and non-stop function, realizes the complete separation of VF and operation, and also has the function of overexcitation;
6. Abundant expansion card options, support I/O expansion, communication bus expansion, support RS-485 and other mainstream field bus communication, support a variety of PG cards;
7. Support asynchronous motor and synchronous motor control at the same time;
Specification
Product name | H800 Series 220V/380V AC Drive/VFD |
Place of Origin | Shanghai, China |
Brand Name | FMZ |
Model Number | H800-5R5G/7R5P-S2 |
Type | Frequency inverters |
Control mode | Open loop vector control (SVC) Closed loop vector control (FVC) V/F control |
Input voltage | 220V |
Rated power | 5.5KW |
Output Type | Single phase output |
Output Current | 25A |
Output Frequency | 50Hz/60Hz |
Size | 146*256*172MM |
Weight | 3.6KG |
Warranty | 18 months |
Wiring diagram
Installation Instructions
Packing & Delivery
1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)
2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)
2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
Single Product Size | 208*322*192MM | ||||||
Single Package Dimension | 390*260*280MM | ||||||
Single Gross Weight | 6.5KG | ||||||
