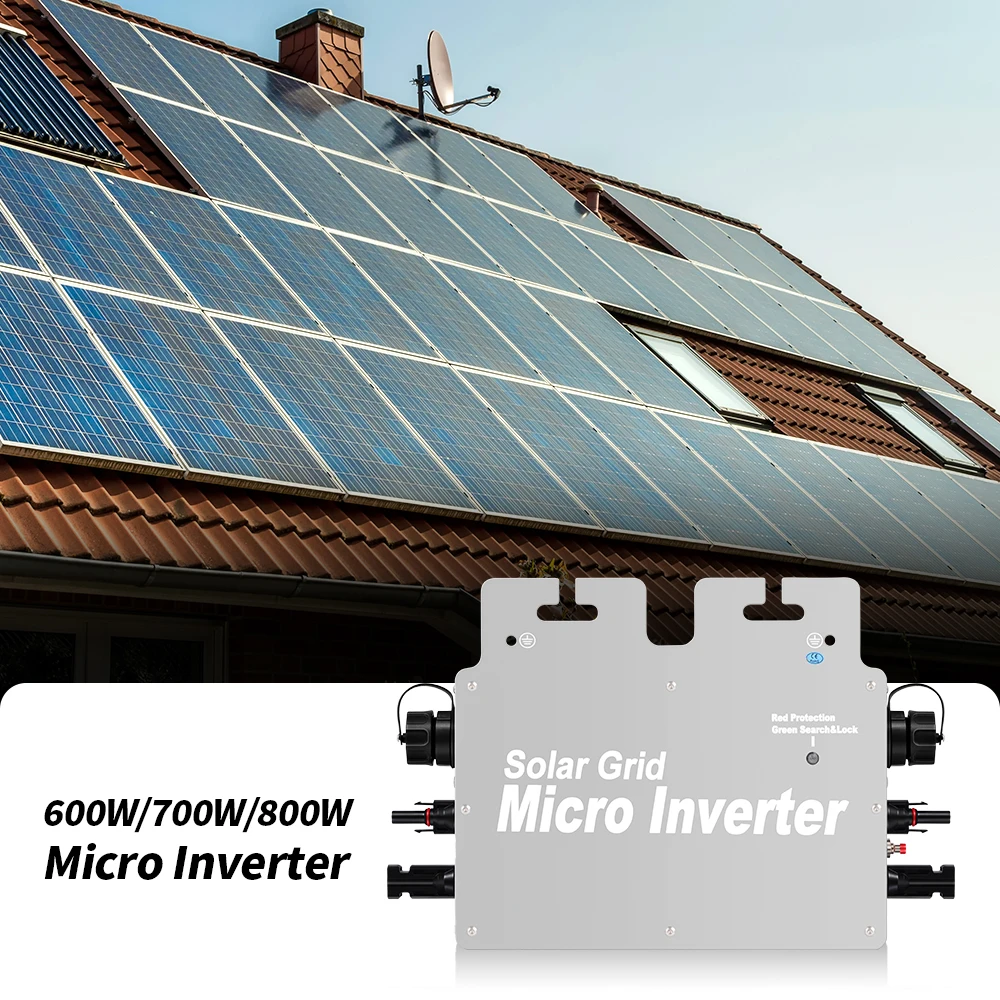

Home Use On Grid Solar Micro Inverter GT700W 800W 1000Watt Plug And Play Grid Tied Micro Inverters Cheap Price
- Category: >>>
- Supplier: Jingjiang Alicosolar New Energy Co. Ltd.
Share on (1600952910307):
Product Overview
Description
Product Description
Home Use On Grid Solar Micro Inverter GT700W 800W 1000Watt Plug And Play Grid Tied Micro Inverters Cheap Price

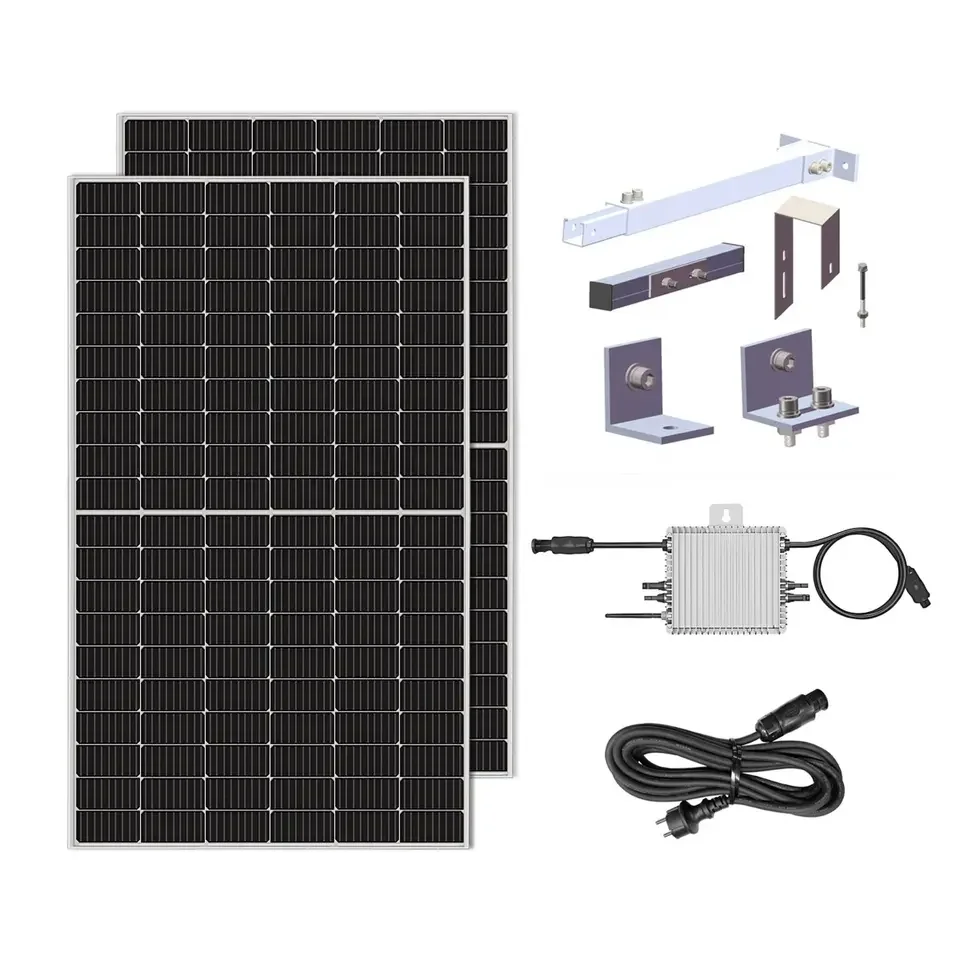

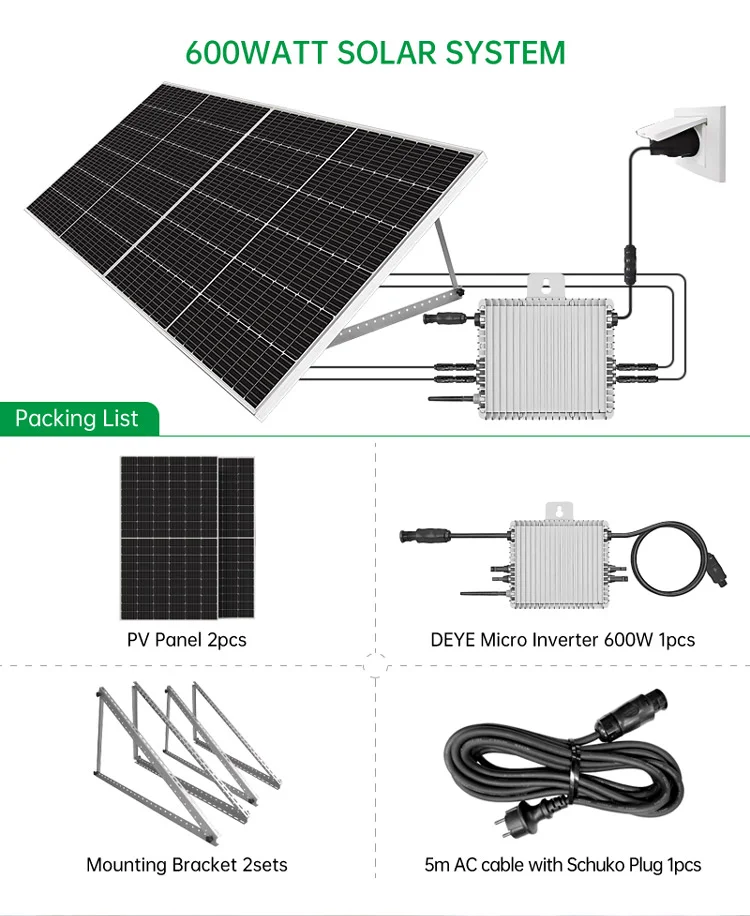

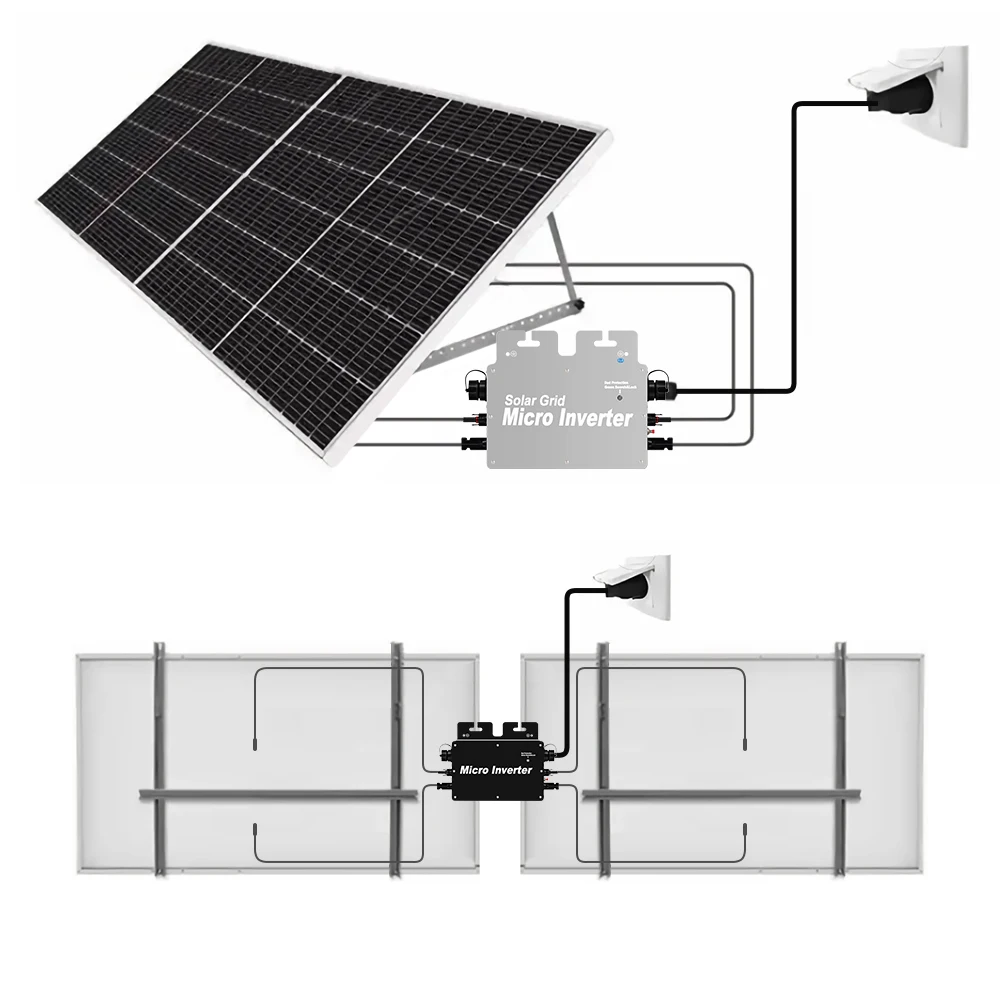

TANDARD CONFIGURATION
Alicosolar 300w-410w mono solar panel
Solar Bracket
Micro Inverter

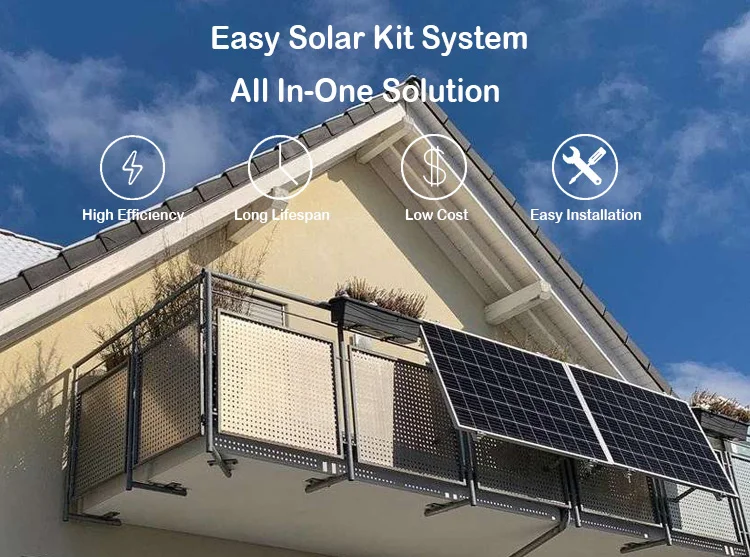

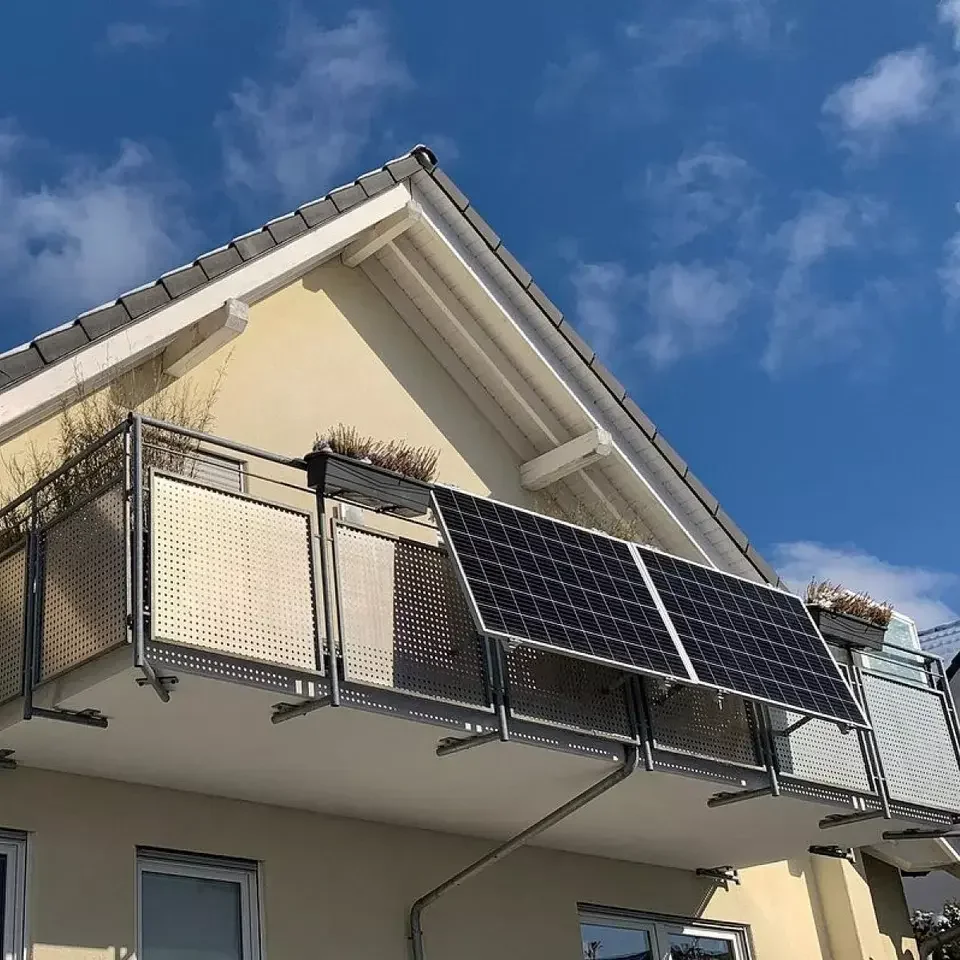

MULTIPLE SCENARIOS
Specification
600/700w/800 W micro inverter Balcony solar whole system | ||||||
Model | HM-600 | HM-700 | HM-800 | |||
Input Data (DC) | ||||||
Commonly used module power (W) | 240 to 405+ | 280 to 470+ | 320 to 540+ | |||
Maximum input voltage (V) | 60 | |||||
MPPT voltage range (V) | 16–60 | |||||
Start-up voltage (V) | 22 | |||||
Maximum input current (A) | 2 × 11.5 | 2 × 11.5 | 2 × 12.5 | |||
Maximum input short circuit current (A) | 2 × 15 | |||||
Number of MPPTs | 2 | |||||
Number of inputs per MPPT | 1 | |||||
Output Data (AC) | ||||||
Rated output power (VA) | 600 | 700 | 800 | |||
Rated output current (A) | 2.61 | 3.04 | 3.48 | |||
Nominal output voltage/range (V) | 230/180-275 | |||||
Nominal frequency/range (Hz) | 50/45–55 or 60/55–65 | |||||
Power factor (adjustable) | > 0.99 default 0.8 leading…0.8 lagging | |||||
Total harmonic distortion | < 3% | |||||
Maximum units per branch | 8 | 7 | 6 | |||
Efficiency | ||||||
CEC peak efficiency | 96.70% | |||||
CEC weighted efficiency | 96.50% | |||||
Nominal MPPT efficiency | 99.80% | |||||
Nighttime power consumption(mW) | < 50 | |||||
Mechanical Data | ||||||
Ambient temperature range (°C) | -40 to +65 | |||||
Dimensions (W × H × D mm) | 250 × 170 × 28 | |||||
Weight (kg) | 3.0 | |||||
Enclosure rating | Outdoor IP67 (NEMA 6) | |||||
Cooling | Natural convection (no fans) | |||||
Features | ||||||
Communication | 2.4 GHz Proprietary RF (Nordic) | |||||
Type of isolation | Galvanically Isolated HF Transformer | |||||
Monitoring | S-Miles Cloud | |||||
Compliance | VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 | |||||

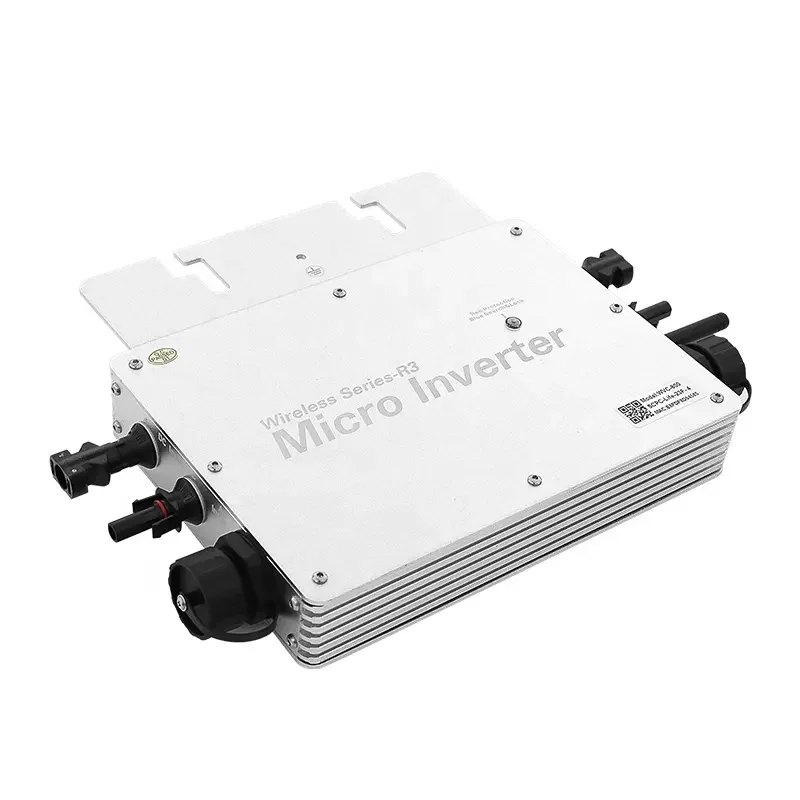

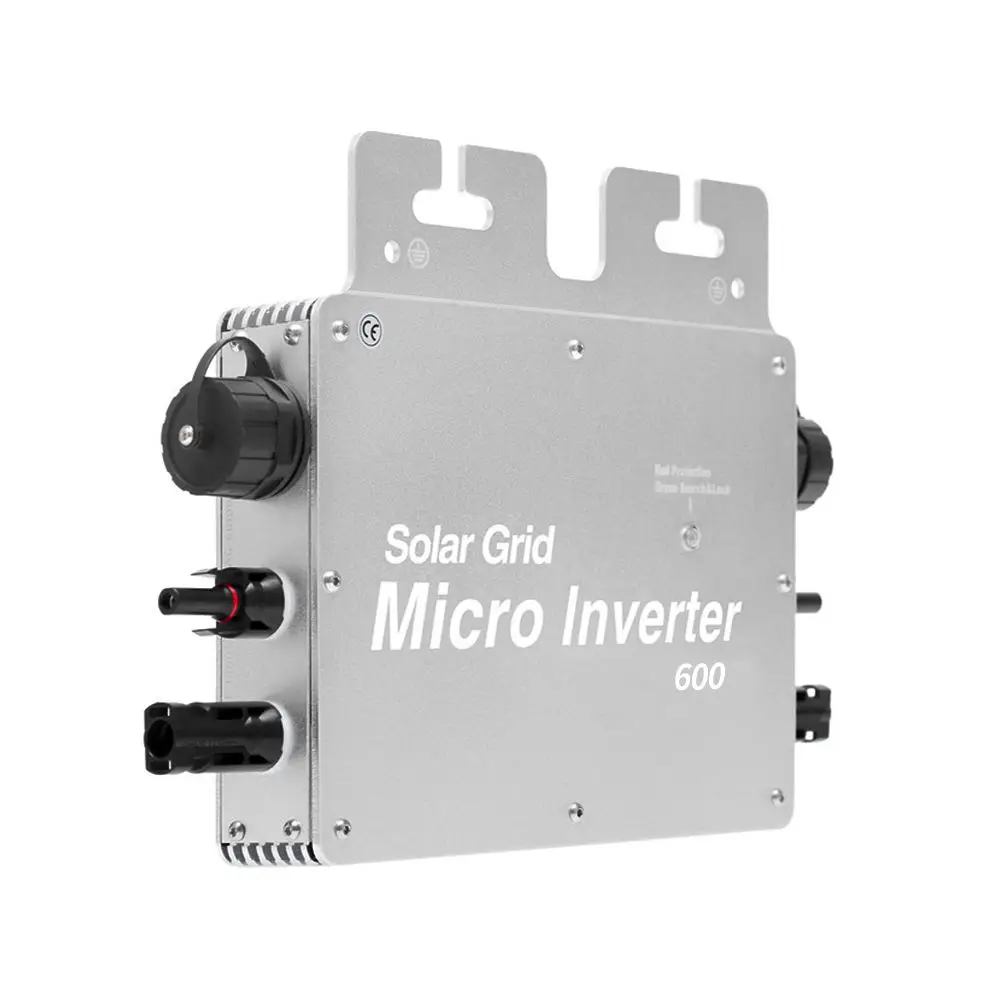

Micro Inverter Model:SUN600G2-US-208/240
Max. DC Input Voltage:60V
Max. DC Input Current:13A
Startup Voltage:22V
MPPT Voltage Range:22~55V
Rated Output Power:600W
Peak Efficiency:95%
Night Power Consumption:110mW
Dimensions (W x H x D):185 x 161 x 29mm
Weight:2.4KG
Max. DC Input Current:13A
Startup Voltage:22V
MPPT Voltage Range:22~55V
Rated Output Power:600W
Peak Efficiency:95%
Night Power Consumption:110mW
Dimensions (W x H x D):185 x 161 x 29mm
Weight:2.4KG

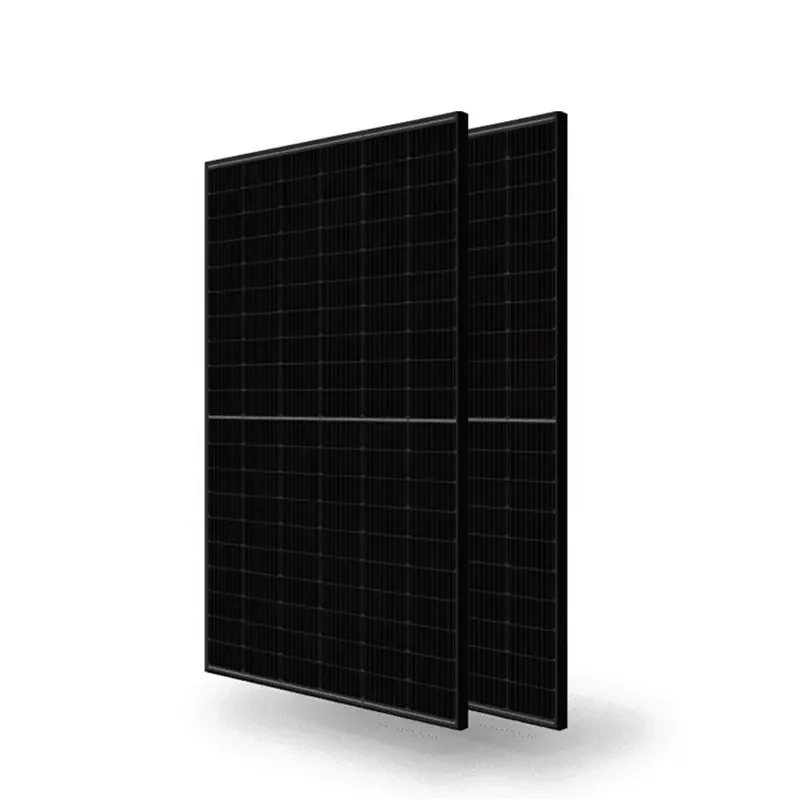

Module:ASM410-M10
Maximum Power - PMP:410W
Weight:21.5KG
Dimension:1722*1134*35mm
Frame: Anodized Aluminium Alloy
Junction box: IP67/IP68 3diodes
MaxWind Load/ Snow Load: 2400Pa/5400Pa
Operating and Storage Temperature:-40+~85℃
Maximum Power - PMP:410W
Weight:21.5KG
Dimension:1722*1134*35mm
Frame: Anodized Aluminium Alloy
Junction box: IP67/IP68 3diodes
MaxWind Load/ Snow Load: 2400Pa/5400Pa
Operating and Storage Temperature:-40+~85℃

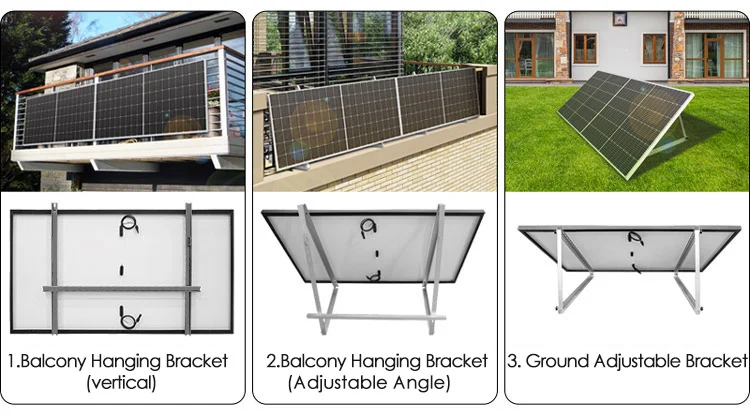

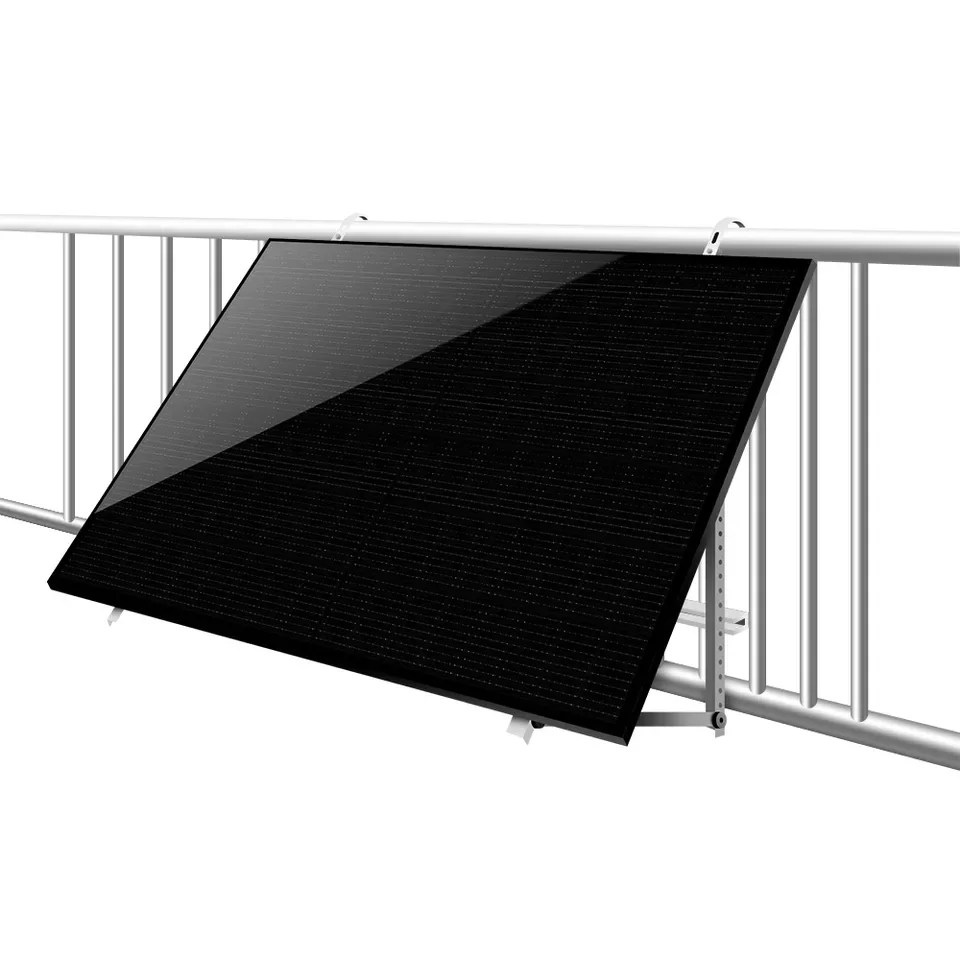

Step 1： Assemble the tripod according the required angelStep 2: Balcony Hook Installation
Step 3: Solar Panel Installation
Step 4:Rail installed with T-Bolt Sets
Step 5: Hang the balcony hook on the balcony and fix it tightly with screws
More steps you can ask from our company staff.
Step 3: Solar Panel Installation
Step 4:Rail installed with T-Bolt Sets
Step 5: Hang the balcony hook on the balcony and fix it tightly with screws
More steps you can ask from our company staff.

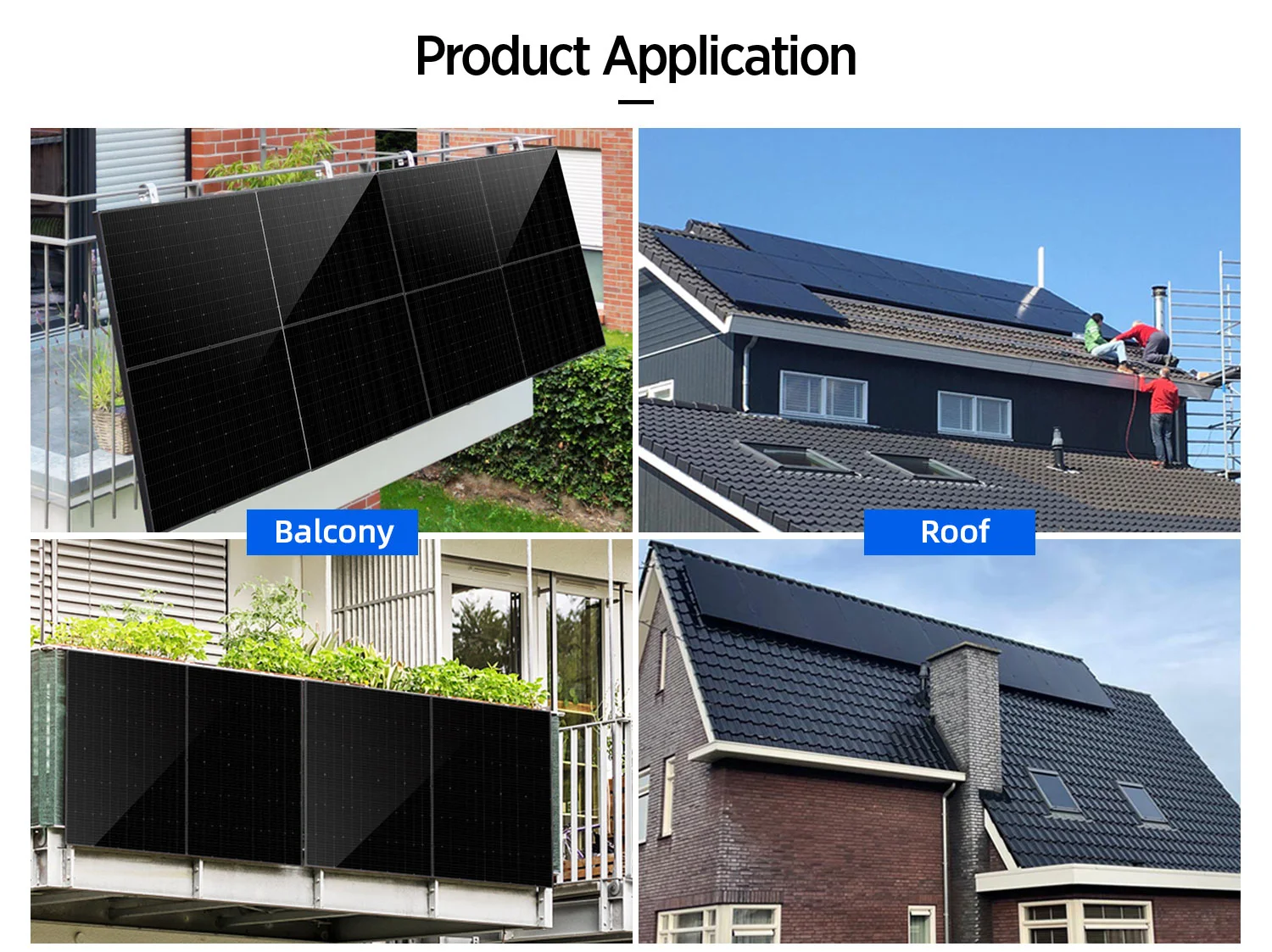

Applications
Contact Us
Hello, nice to meet you.
I am Aimee.
Please feel free to contact me if you are interested in this product.
Email: sales08(at)alicosolar,com
WA: +86 15161032013
Wechat: +86 15161032013
