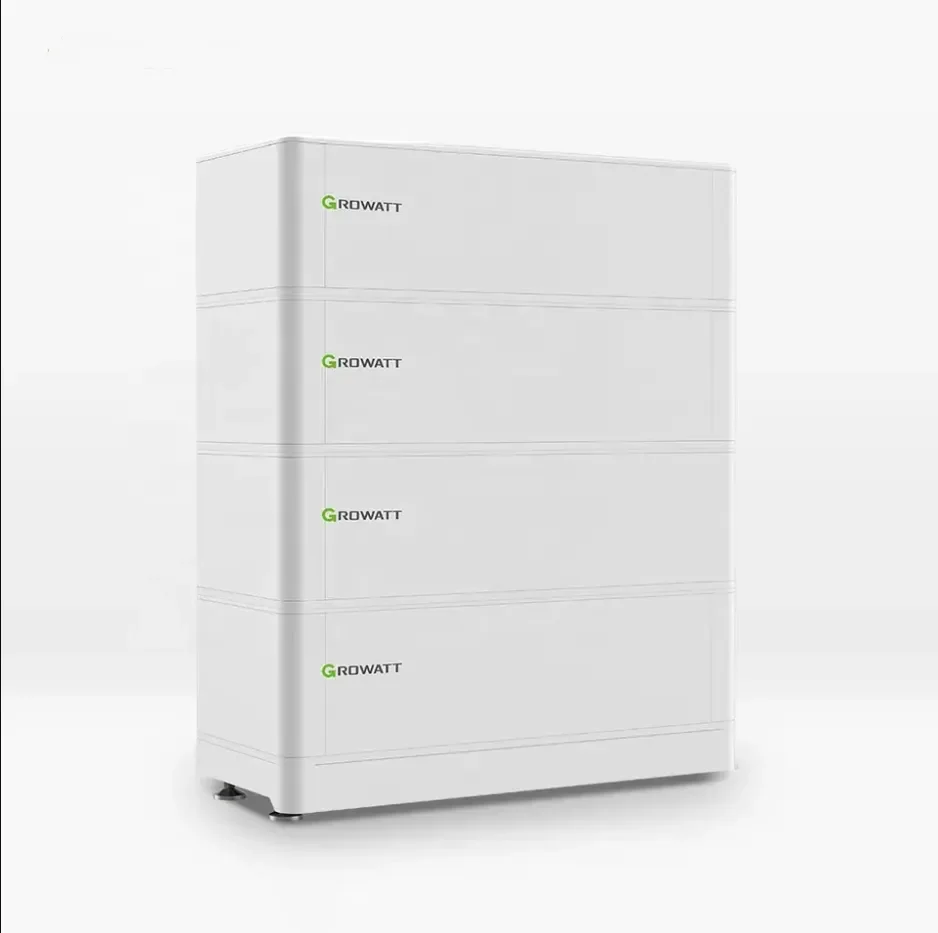

Growatt ARK LV 2.56kWh to 25.6kWh lithium iron phosphate battery system low voltage energy storage lifepo4 battery 2.56kwh
- Category: >>>
- Supplier: Hefei Jingsun New Energy And Technology Co. Ltd.
Share on (1600952926501):
Product Overview
Description
Product Description

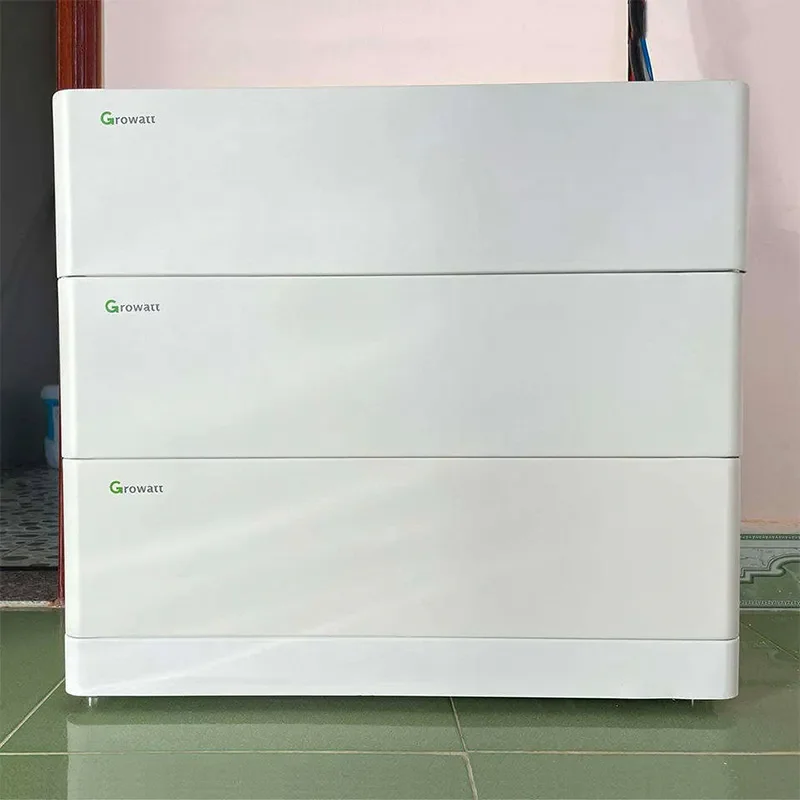

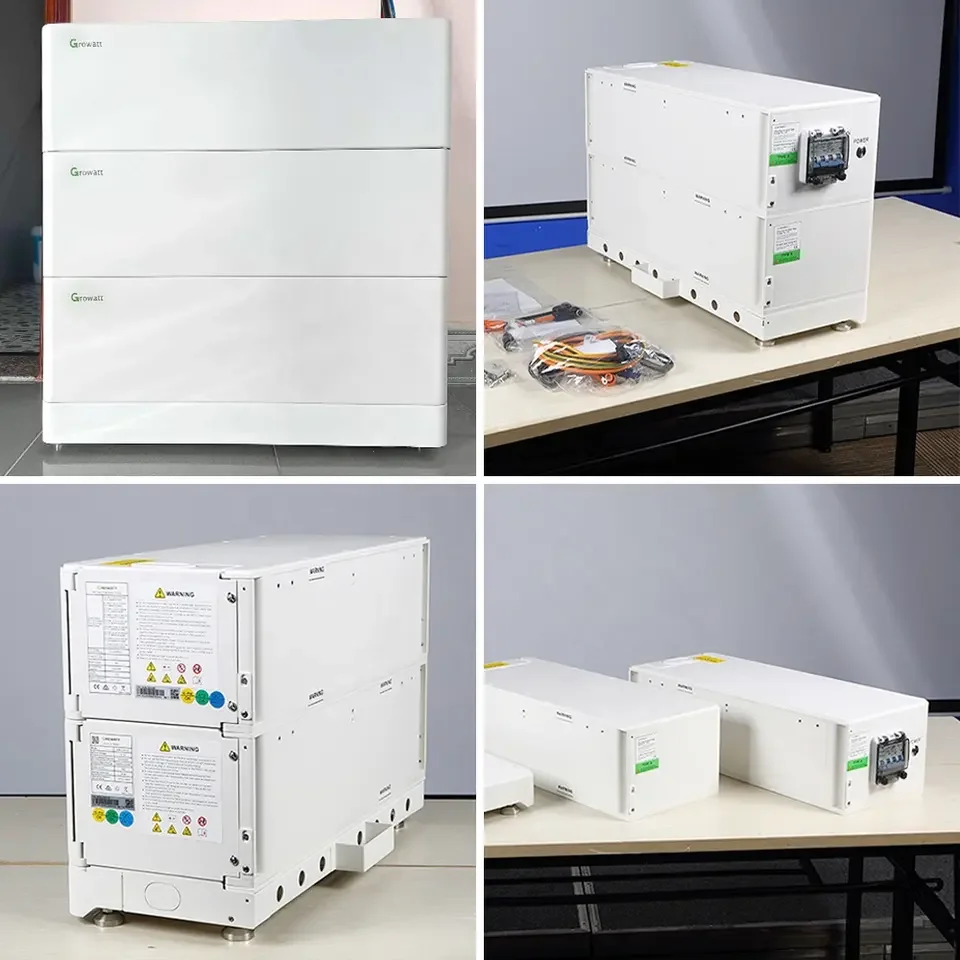

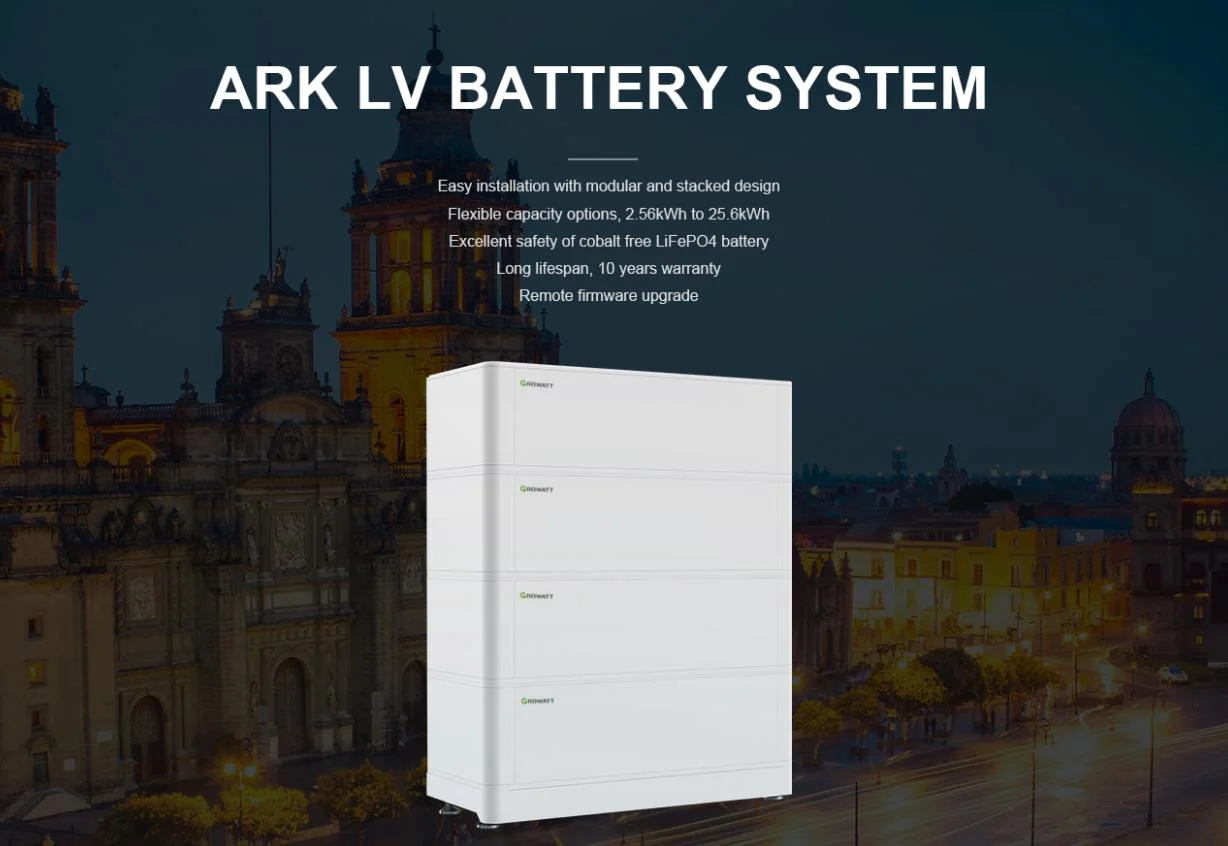

ARK LV Battery System
• Flexible capacity options, 2.56kWh to 25.6kWh
• Excellent safety of cobalt free LiFePO4 battery
• Easy installation with modular and stacked design
• Remote firmware upgrade
• Long lifespan, 10 years warranty
• Flexible capacity options, 2.56kWh to 25.6kWh
• Excellent safety of cobalt free LiFePO4 battery
• Easy installation with modular and stacked design
• Remote firmware upgrade
• Long lifespan, 10 years warranty

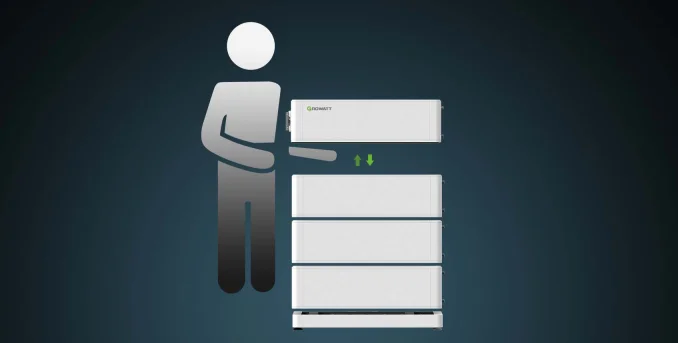

Easy installation with modular and stacked design Flexible capacity options, 2.56kWh to 25.6kWh Floor installation requires extra base
Multi-level Protections from Inverter and BMS Excellent safety of colbat free LiFePO4 battery

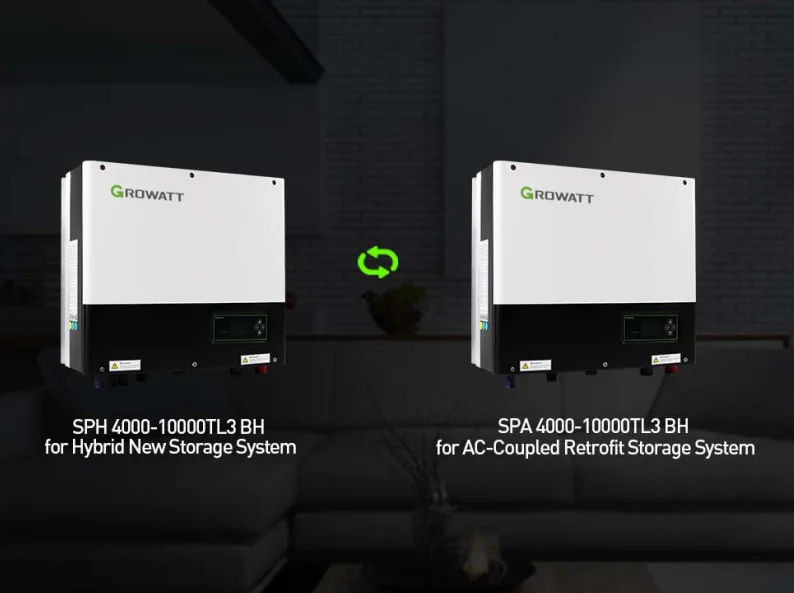

For Hybrid New Storage System For AC-Coupled Retrofit Storage System ARK-LV battery modules required for each storage inverter

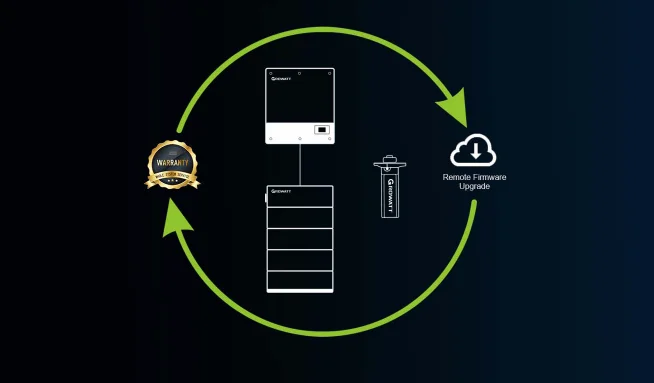

Remote firmware upgrade
Include BMS controller Battery discharge: -10-50°C, battery charge: 0-50°C
Include BMS controller Battery discharge: -10-50°C, battery charge: 0-50°C
Specification
Model | ARK 2.5L | ARK5.1L | ARK7.6L | ARK10.2L | ARK12.8L | ||||
Battery module | ARK 2.5L-A1 (2.56kWh, 51.2V, 30kg) | ||||||||
No. of modules | 1 | 2 | 3 | 4 | 5 | ||||
Energy Capacity | 2.56kWh | 5.12kWh | 7.68kWh | 10.24kWh | 12.8KWH | ||||
Dimension (mm)(W/D/H) | 650/260/170 | 650/260/340 | 650/260/510 | 650/260/680 | 650/260/850 | ||||
Weight | 30kg | 60kg | 90kg | 120kg | 150kg | ||||
Max Charge/ Discharge Current | 25A | 50A | 75A | 100A | 100A | ||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | ||||||||
Nominal Voltage | 51.2V | ||||||||
Operating voltage Range | 47.2 - 56.8V | ||||||||
IP Protection | IP65 | ||||||||
Installation | Wall-mounted or Floor installation*1 | ||||||||
Operation Temperature | -10~50°C*2 | ||||||||
DoD | 90% | ||||||||
Communication Port | CAN | ||||||||
Certification | IEC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||||||||
Model | ARK 15.3L | ARK17.9L | ARK20.4L | ARK23.0L | ARK25.6L | ||||
Battery module | ARK 2.5L-A1 (2.56kWh, 51.2V, 30kg) | ||||||||
No. of modules | 6 | 7 | 8 | 9 | 10 | ||||
Energy Capacity | 15.35kwh | 17.92kWh | 20.48kWh | 23.04kWh | 25.64KWH | ||||
Dimension (mm)(W/D/H) | 650/260/1020 | 650/260/1190 | 650/260/1360 | 650/260/1530 | 650/260/1700 | ||||
Weight | 180kg | 210kg | 240kg | 270kg | 310kg | ||||
Max Charge/ Discharge Current | 100A | 100A | 100A | 100A | 100A | ||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | ||||||||
Nominal Voltage | 51.2V | ||||||||
Operating voltage Range | 47.2 - 56.8V | ||||||||
IP Protection | IP65 | ||||||||
Installation | Wall-mounted or Floor installation*1 | ||||||||
Operation Temperature | -10~50°C*2 | ||||||||
DoD | 90% | ||||||||
Communication Port | CAN | ||||||||
Certification | IEC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||||||||

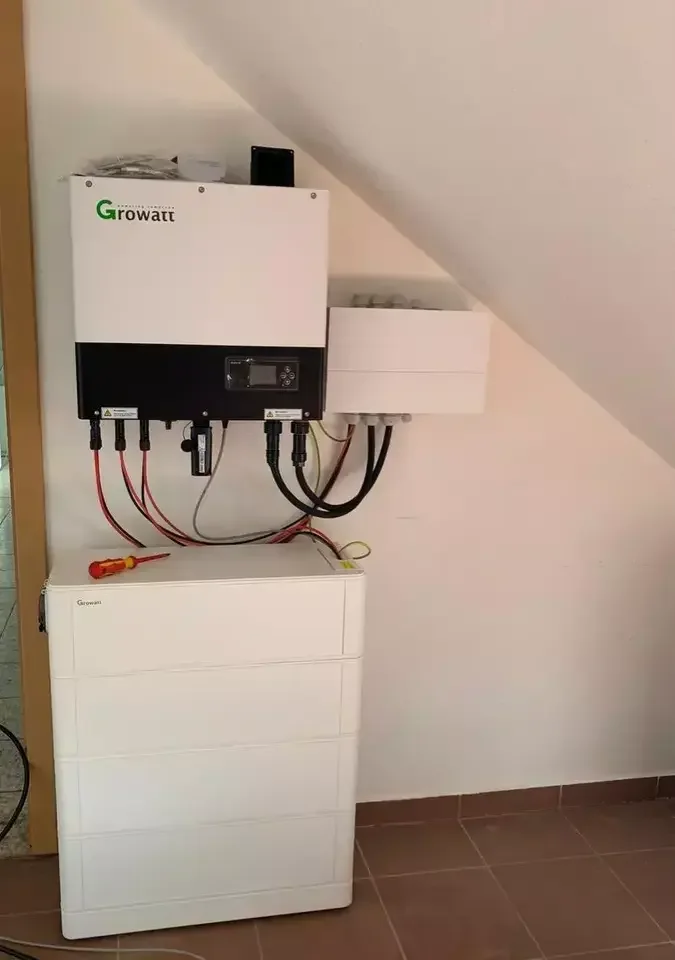

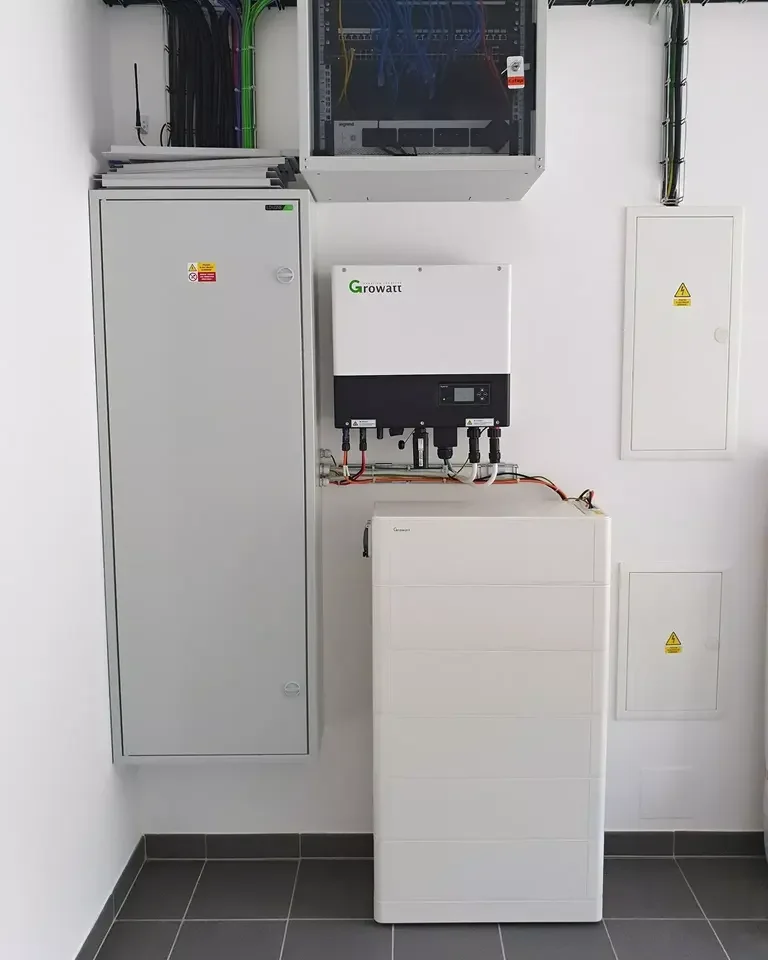

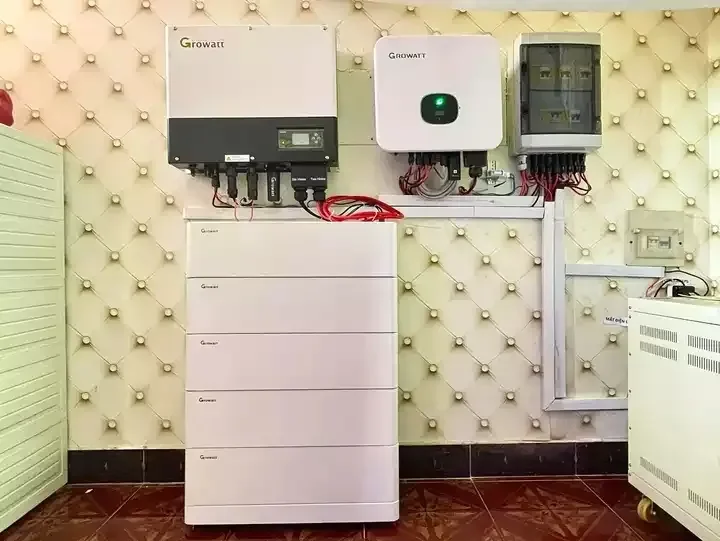

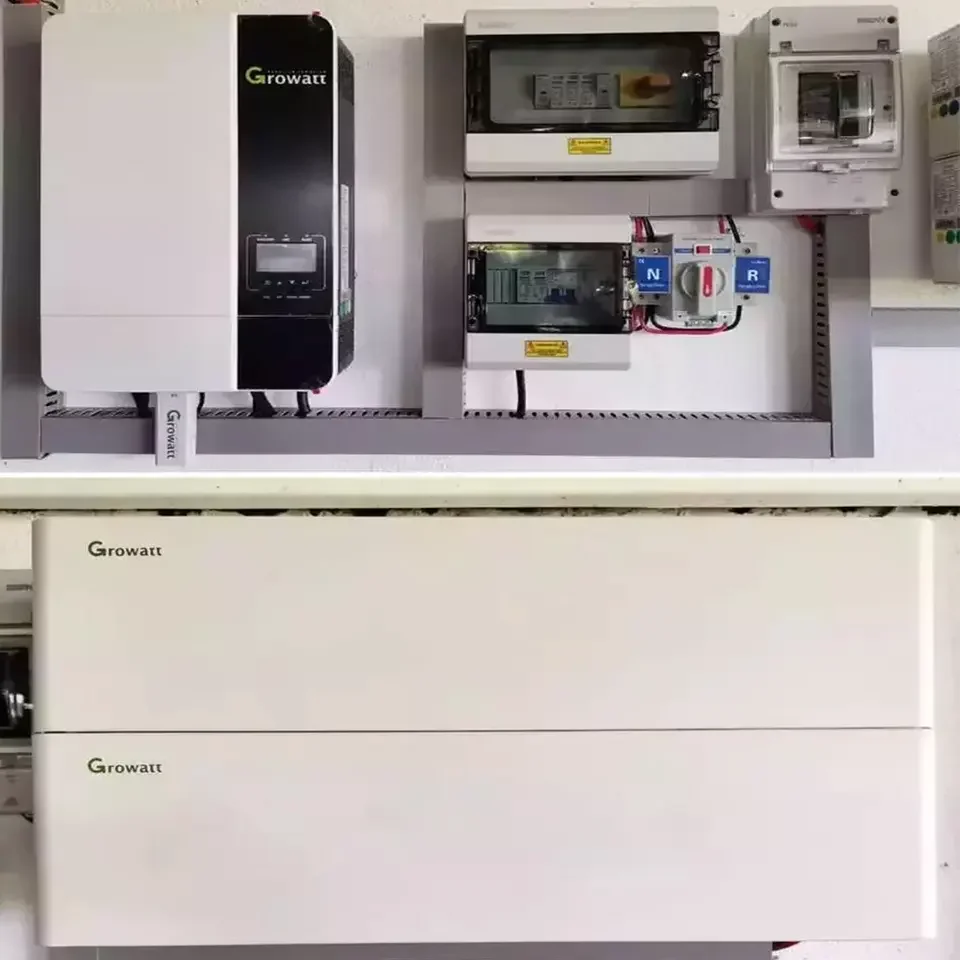

Projects Pictures

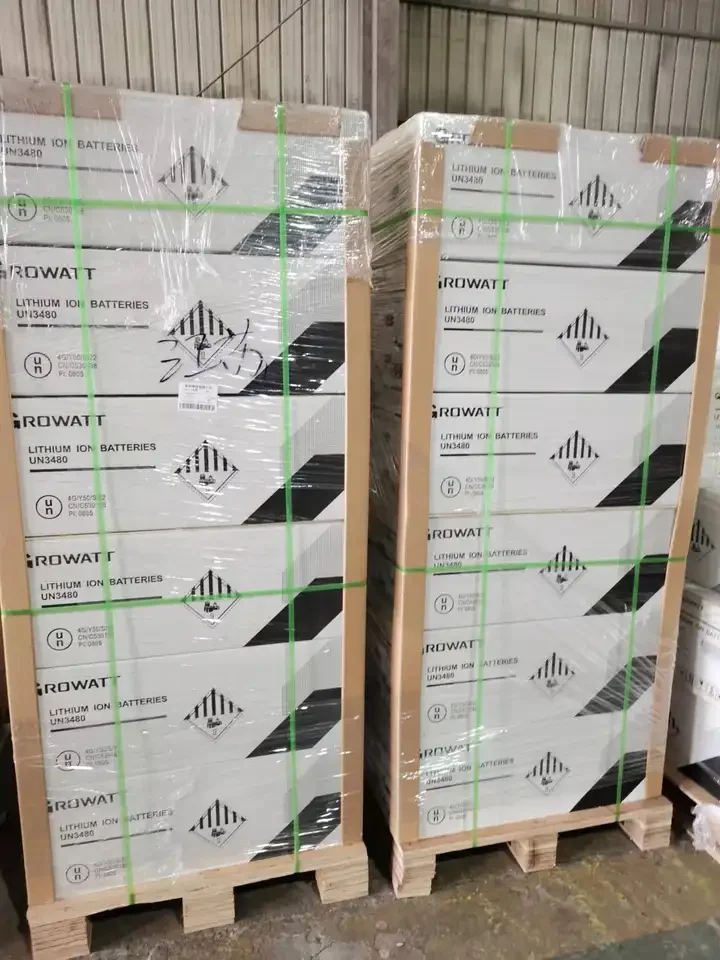

Packing
FAQ
1. who are we?
We are based in Anhui, China, start from 2020,sell to Northern Europe(30.00%),North America(10.00%),South
America(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),South Asia(1.00%). There are total about 11-50 people in ouroffice.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar panels,solar inverter,solar panel system,combine box,solar system related products
4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:null
We are based in Anhui, China, start from 2020,sell to Northern Europe(30.00%),North America(10.00%),South
America(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),South Asia(1.00%). There are total about 11-50 people in ouroffice.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar panels,solar inverter,solar panel system,combine box,solar system related products
4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:null
