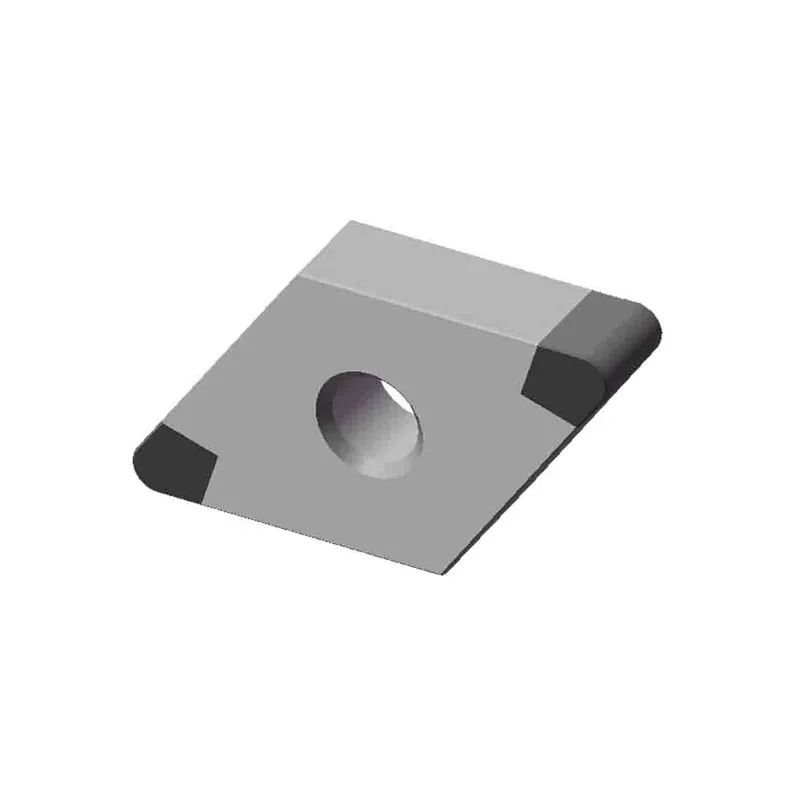

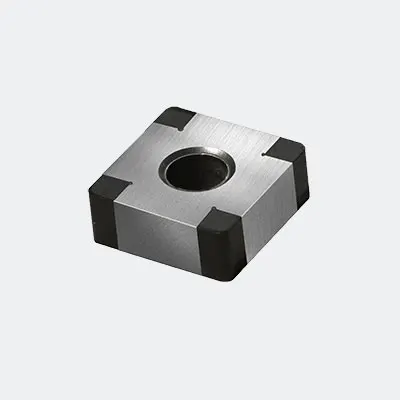

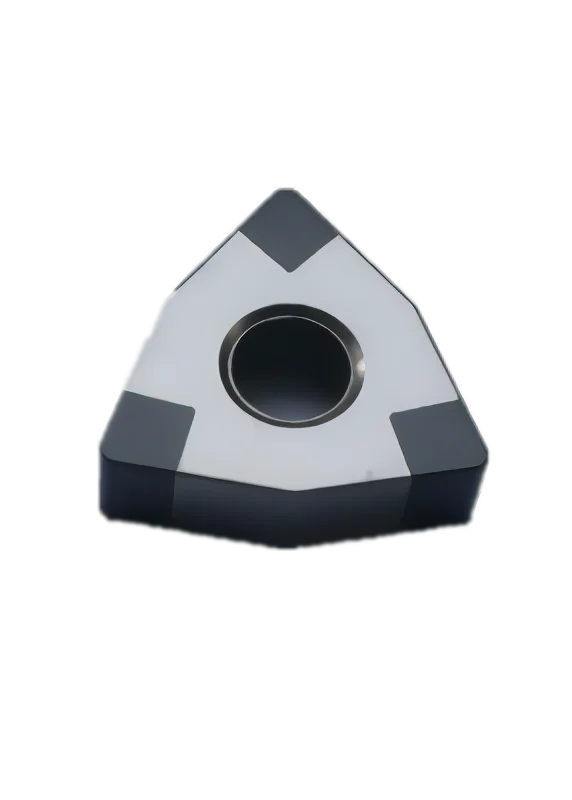

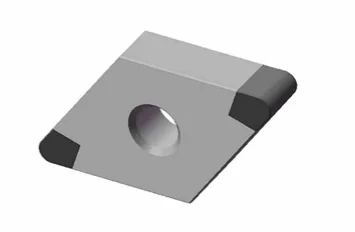

MULTI TIPPED PCBN INSERTS VCGW CBN CUTTING TOOLS
- Category: >>>
- Supplier: Chn-Top Sci&tech Co. Ltd.
Share on (1600953533932):
Product Overview
Description
Product Overview

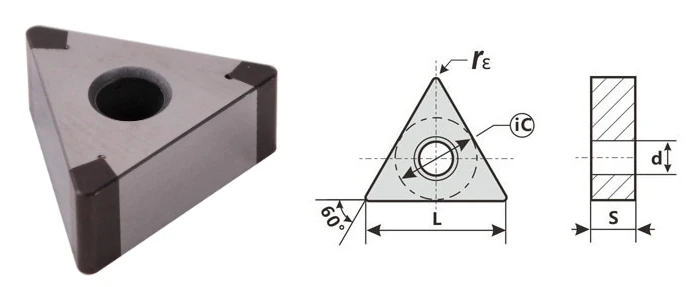

Solid Corner CBN Inserts
Solid corner CBN inserts, thoroughly brazed PCBN inserts are usually made to last and offer the right support for a longer period of time. They are given that durability nature because they are made of tungsten carbide base with cutting edges that are brazed, could be an alternative to solid cbn inserts for hard metal machining in some cases, solid corner cbn inserts have good heat absorption capacity, superior solder ability and resistance to soldering heat, but solid corner thoroughly brazed cbn inserts have better impact resistance, mainly for interrupted and heavy interrupted machining. Each solid corner equals to two cutting edges when comparing with the tipped cbn inserts, one solid brazed cbn corner means two working tips on both sides.
FEATURES AT A GLANCE
Advantage:
1. Support mirror effect processing.
2. R&D and production ability to keep up with market trends
3 Provides perfect turning surface of the workpiece .
4. Technical support ability to solve processing solutions for customers in all aspects
5. Superior wear protection, temperature and oxidation stability.
They have 6 cutting edges for easy tool change and reduced tool setting time. Has been successfully applied to brake discs,rollers, bearings, flanges, engine cylinder heads, compressor parts and other workpieces.
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Processed Material | Hardened Steel, high strength cast iron, powder metallurgy, gray cast iron | ||
2 | Processing Methods | Finishing, semi-finishing and roughing | ||

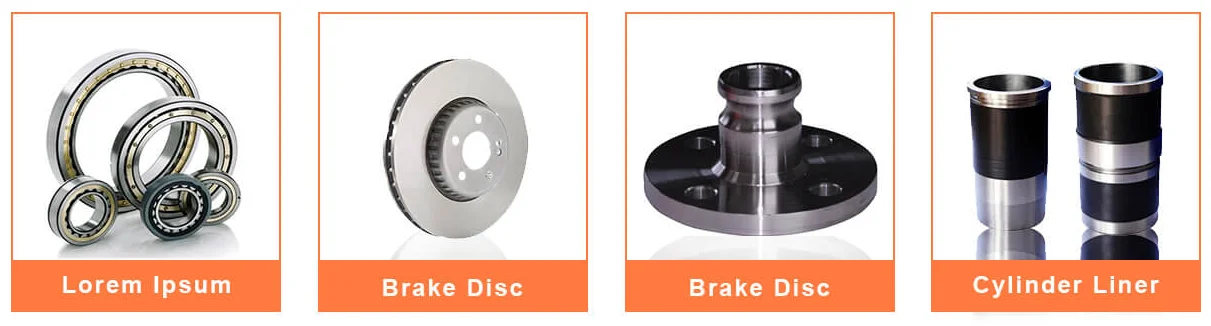

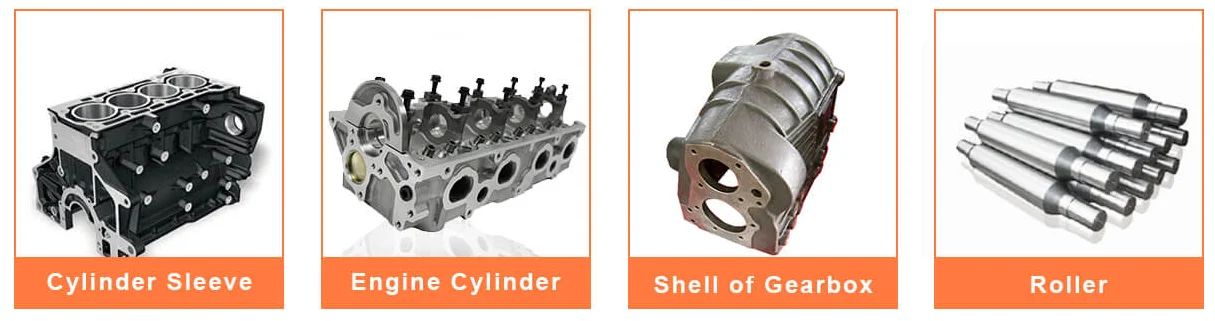

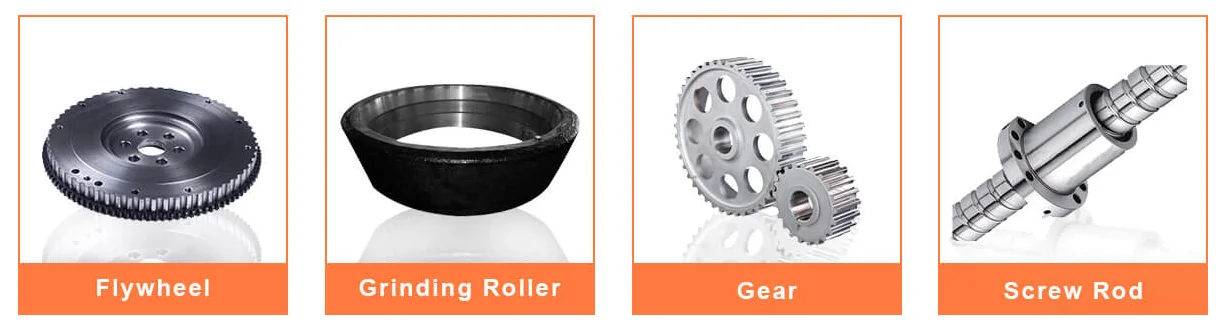

3 | Application | Brake disc, compressor flange, brake drum, gears, valve, bearing, roller, grinding roller, engine cylinder head, cylinder sleeve, cylinder block, etc | ||
4 | Usage | External Turning Tool | ||
5 | Hardness | Super Hard | ||
6 | Model Number | TNGA Series | ||
7 | Keywords | PCBN CNC turning inserts | ||
About Price
We have variety of Solid corner CBN inserts and prices are different, please send me inquire details to check price for you. Thanks!
Packaging
Wide Application
CBN is recognized as a new material with hardness second only to diamond, high temperature resistance twice that of diamond, abrasion resistance four times that of traditional abrasives, and exceptional thermal conductivity. Unrivalled new CBN materials, hundreds of raw materials need to be ground in today's manufacturing arena, from super-alloys and thermal spraying in aerospace to hardened steel in automotive bearings and gears. Using CBN to grind these materials has the highest efficiency and the shortest processing time. The quality of the parts after grinding with CBN abrasive
is better, optimizing the product to prevent thermal damage during finishing, and improving the consistency of the parts
processing quality. These processing technologies take full advantage of the advantages of CBN, because the extended life of the grinding wheel and the reduction of wear, so that expensive machine tools can run longer between grinding tool changes, and the need to adjust the number of times during the operation, more to meet the rhythm of modern automated machine tools, improve productivity and efficiency.
is better, optimizing the product to prevent thermal damage during finishing, and improving the consistency of the parts
processing quality. These processing technologies take full advantage of the advantages of CBN, because the extended life of the grinding wheel and the reduction of wear, so that expensive machine tools can run longer between grinding tool changes, and the need to adjust the number of times during the operation, more to meet the rhythm of modern automated machine tools, improve productivity and efficiency.
Solid corner CBN inserts, thoroughly brazed PCBN inserts are highly suitable for the grey cast iron, and in finishing other heat treated nodular cast irons. The tools are known for their continuous high class performance in cutting any of the hardened steel and performing the task simply and very effectively without any failures. The uncoated pcbn is usually much suitable for small pieces and this is a great benefit since it is good for small pieces and other high speed hardened steel, They also work on top speed and the result is so perfect, The brazed cbn cutting edge stands out as one of the most important quality and perfect makes in the current generation. They outdo many others due to their brazed nature, It is easier to manage and perfectly offers the best outcome. The solid corner cbn inserts for CNC turning cast iron are great in the market, It is through their professional services and many of their important features that they have been used and continues to get a lot of positive remarks. They are good and they offer quality outcome all the time.
FAQ
1. Q:Are you a factory or a trading company?
A:We are a professional manufacturer of ultra-hard material tools
2. Q:How long is your production time?
A:Generally it is 7-15days after the order form is confirmed.
3. Q:What is the minimum quantity?
A:We are a professional manufacturer of ultra-hard material tools
2. Q:How long is your production time?
A:Generally it is 7-15days after the order form is confirmed.
3. Q:What is the minimum quantity?
A:Any quantity order is available.
4. Q:Do you have inspection procedure before shipping?
A:Yes,we do 100% QC inspection
4. Q:Do you have inspection procedure before shipping?
A:Yes,we do 100% QC inspection
