Product Overview
Description
Products Description
1. What is ultrafiltration in water treatment?

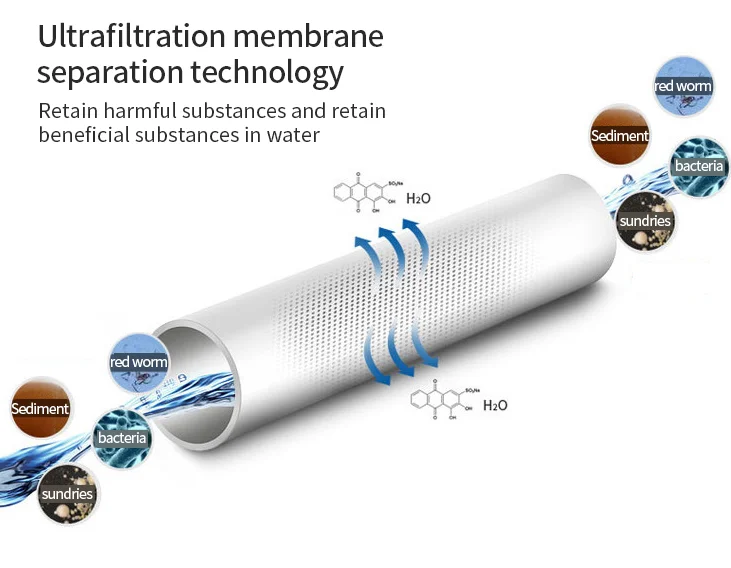

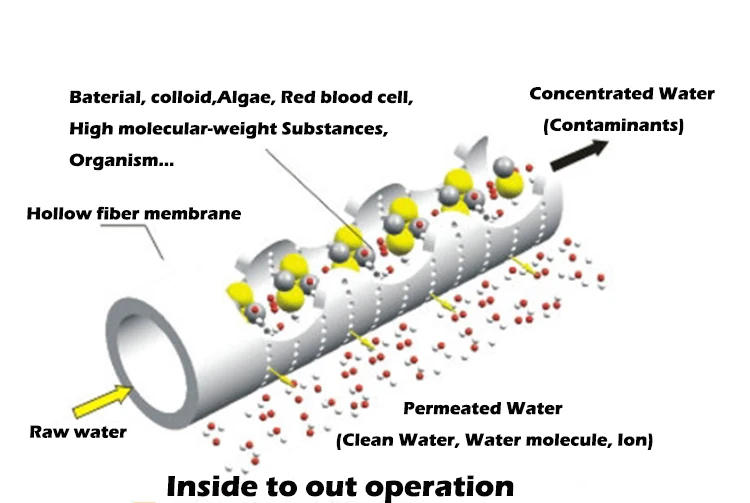

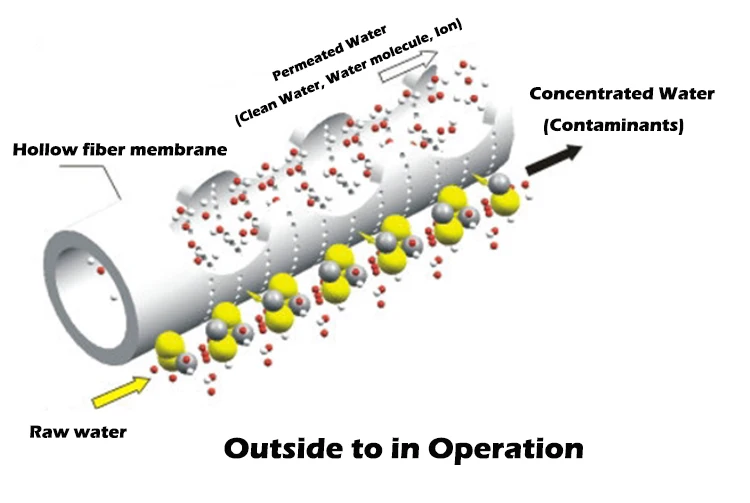

Ultrafiltration systems utilize hollow membrane fibers to eliminate suspended solids, bacteria, viruses, and pathogens from the feed water. Pumps send the treated water through microscopic pores, which act as a physical barrier that only allows filtrates to pass through them. Ultrafiltration strainers are used next to remove solids such as weeds and plastics from the filtered water before it enters the UF system. Ultrafiltration plants have been extremely useful in water and wastewater treatment by continuously providing excellent results. After UF treatment, the water can be sent to a reverse osmosis system for further purification or can be used supplied for immediate public usage.
Ultrafiltration systems utilize hollow membrane fibers to eliminate suspended solids, bacteria, viruses, and pathogens from the feed water. Pumps send the treated water through microscopic pores, which act as a physical barrier that only allows filtrates to pass through them. Ultrafiltration strainers are used next to remove solids such as weeds and plastics from the filtered water before it enters the UF system. Ultrafiltration plants have been extremely useful in water and wastewater treatment by continuously providing excellent results. After UF treatment, the water can be sent to a reverse osmosis system for further purification or can be used supplied for immediate public usage.
2.What is Ultrafiltration (UF) Plant and its importance?
Most regions around the world utilize ultrafiltration plants to maintain sufficient preservation of clean water for public consumption. The water filtration efficiency achieved by UF systems are around 250 times greater than conventional media filtration systems. These plants are also very suitable to many industries that require ultra pure water pushed out from these factories. The ultrafiltration membranes used in these plants are enforced to lower turbidity, or utilize as pretreatment to maintain the effectiveness of your reverse osmosis membrane. These plants are generally considered to be of low cost, easy to operate, carry no contaminate residue, and have considerably high recovery ratio.
Most regions around the world utilize ultrafiltration plants to maintain sufficient preservation of clean water for public consumption. The water filtration efficiency achieved by UF systems are around 250 times greater than conventional media filtration systems. These plants are also very suitable to many industries that require ultra pure water pushed out from these factories. The ultrafiltration membranes used in these plants are enforced to lower turbidity, or utilize as pretreatment to maintain the effectiveness of your reverse osmosis membrane. These plants are generally considered to be of low cost, easy to operate, carry no contaminate residue, and have considerably high recovery ratio.
Product Details

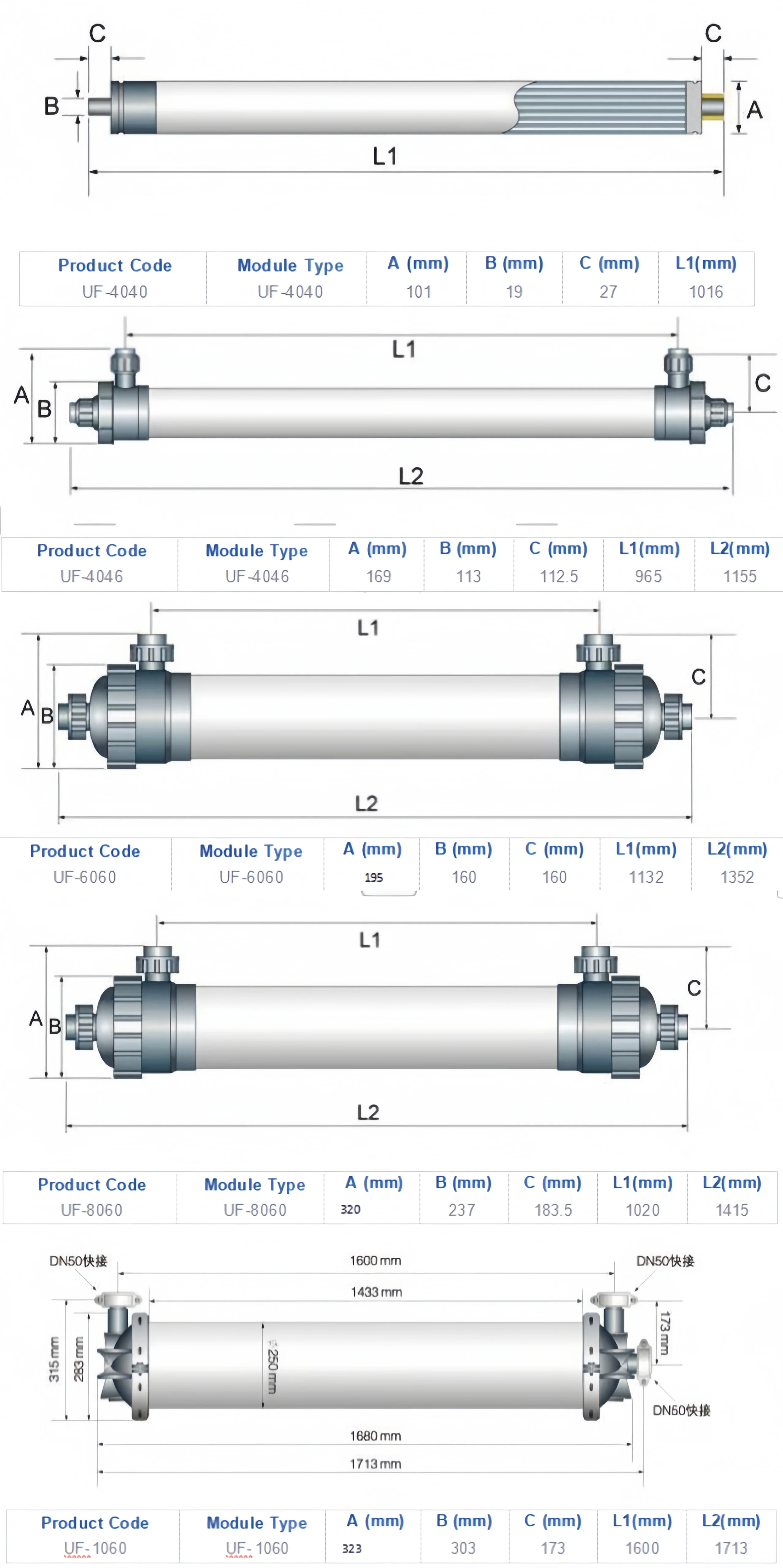

Module | UF-4040 | UF-4046 | UF-6060 | UF-8060 | UF-1060 |
Module type | Inside-out | Inside-out | Inside-out | Inside-out | Inside-out |
Shell and seal materials | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins |
Membrane Material | PAN/PVC | PAN/PVC | PAN/PVC | PAN/PVC | PAN/PVC |
Molecular Weight Cut off(Dalt on) | 100.000 | 100.000 | 100.000 | 100.000 | 100.000 |
Size (mm) | Ø90× 1016 | Ø90× 1155 | Ø160× 1352 | Ø200× 1415 | Ø250× 1713 |
Effective membrane area | 4m2 | 4.8m2 | 15m2 | 25m2 | 52m2 |
Hollow fiber id/od size | 1.0mm/1.6m m | 1.0mm/1.6m m | 1.0mm/1.6m m | 1.0mm/1.6m m | 1.0mm/1.6m m |
Max operating pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa | 0.3Mpa |
Suggest operating pressure | <0.2Mpa | <0.2Mpa | <0.2Mpa | <0.2Mpa | <0.2Mpa |
Max transmembrane pressure | <0.2Mpa | <0.2Mpa | <0.2Mpa | <0.2Mpa | <0.2Mpa |
Backwash pressure | 0.05-0. 1Mpa | 0.05-0. 1Mpa | 0.05-0. 1Mpa | 0.05-0. 1Mpa | 0.05-0. 1Mpa |
Produced water pollution index ( SDI 25) | <3 | <3 | <1 | <3 | <3 |
Initial flux | 0.8m3/h | 1.0m3/h | 4.5m3/h | 5m3/h | 9m3/h |
Design flux | 40-80L/m2/ h | 40-80L/m2/ h | 40-80L/m2/ h | 40-80L/m2/ h | 40-80L/m2/ h |
Operating mode | Full flow or cross flow filtration | Full flow or cross flow filtration | Full flow or cross flow filtration | Full flow or cross flow filtration | Full flow or cross flow filtration |
Bacteria removal rate | >4log | >4log | >6log | >6log | >6log |
Permeate turbidity | <0. 1NTU | <0. 1NTU | <0. 1NTU | <0. 1NTU | <0. 1NTU |
Operating temperature | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
PH range | 2~ 10 | 2~ 10 | 2~ 10 | 2~ 10 | 2~ 10 |

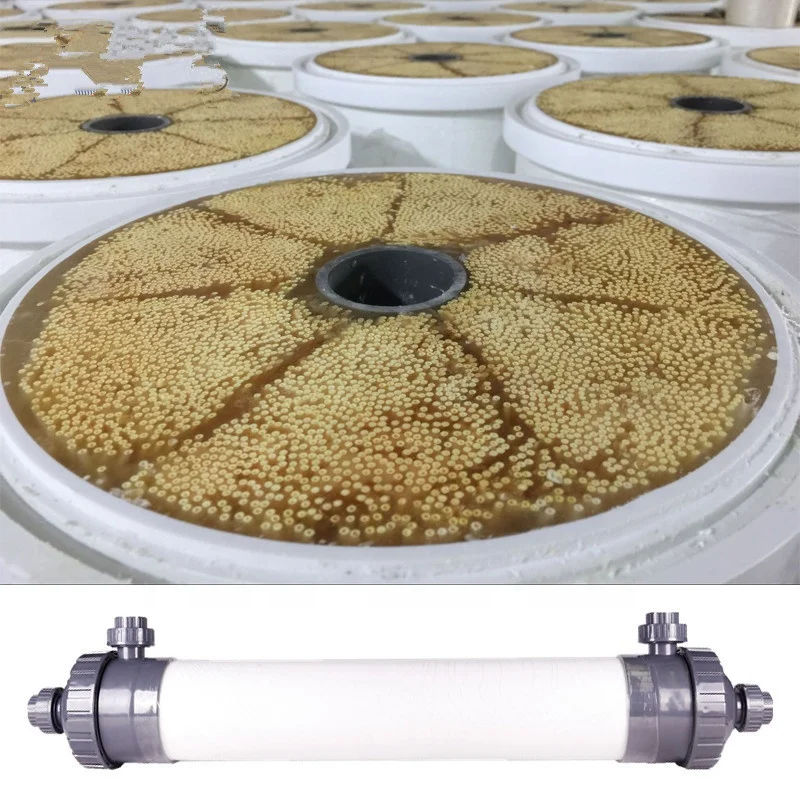

Detailed Images

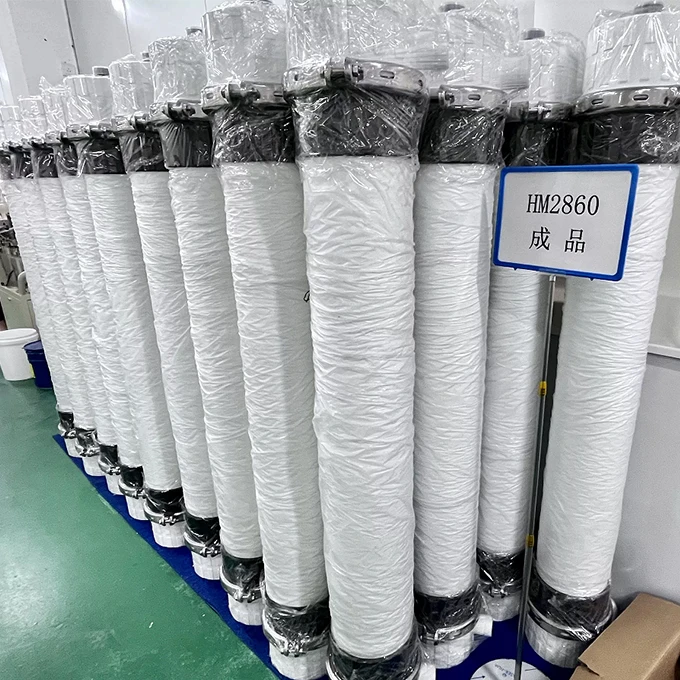

Exhibition & Workshop
Shanghai Aqua-tech water exhibition(6th-9th, June, 2023)
Indonesia water exhibition(29th-1th, September, 2023)
Why Choose Us
Company Profile
HUAMO MembranceTeam started in Silicon Valley by a group of scientists, engineers and market specialists who are highly motivated, innovative, experienced and knowledgeable in water treatment, filtration and separation technologies. HUAMO Membrane specializes in the development of Reverse Osmosis, Nano filtration membranes andSea Water membranes for a wide range of industrial applications. HUAMO products are used in chemical&petrochemical, power generation, municipal, food and beverage, oil &gas, dyeing& printing, pulp &paper industries as well as specialty& custom needs.
Headquarter in Quanzhou, China
Started by a group of former Koch&Dow experts,set membrane branch in 2013.Huamo markets are developing:USA,Italy,Mexico, Netherlands, China, Middle East,India,Vietnam.......
Asia branch office in Shanghai
By 2020,Huamo had more than 1,000 big plants all over the world,including US, China, Italy, Netherlands, Uzbekistan,Korea,etc.

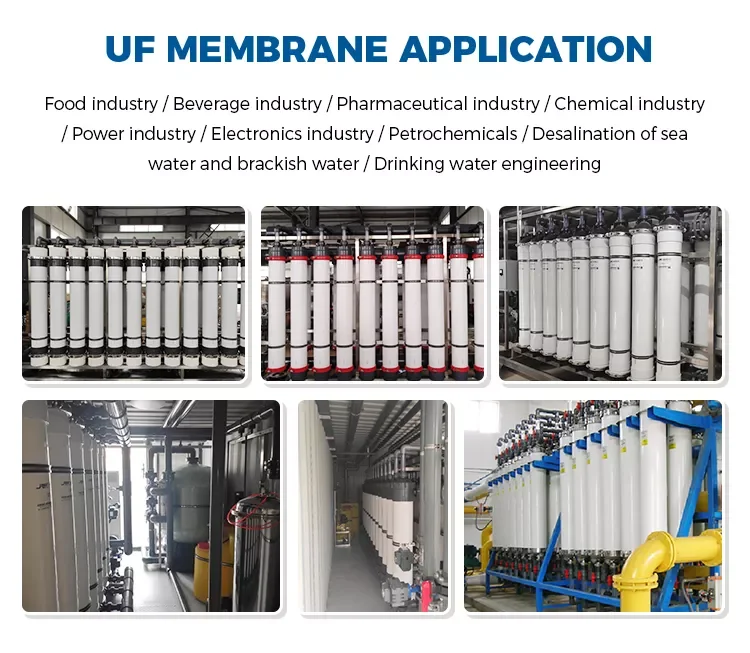

Project cases
