Product Overview

Description

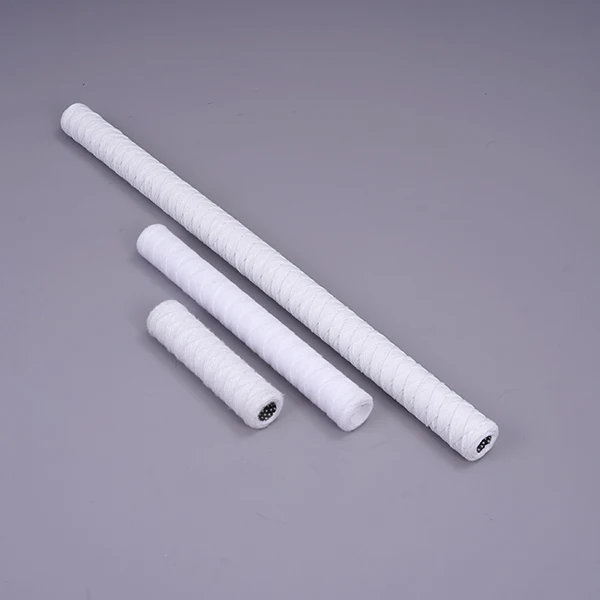

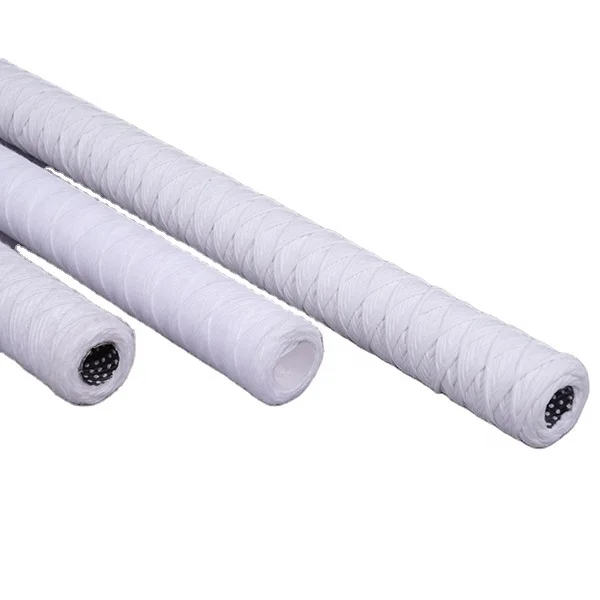

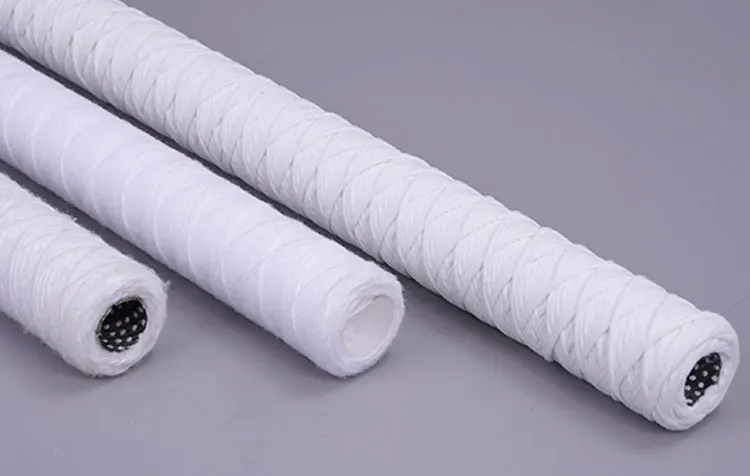

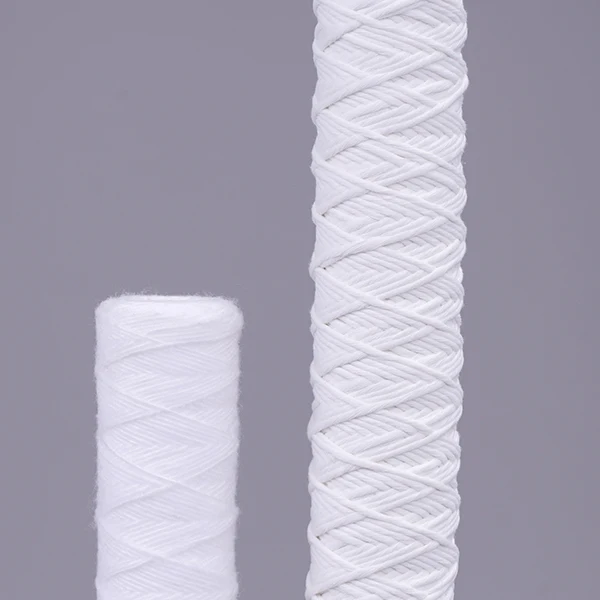

>>>STRING WOUND FILTER CARTRIDGE

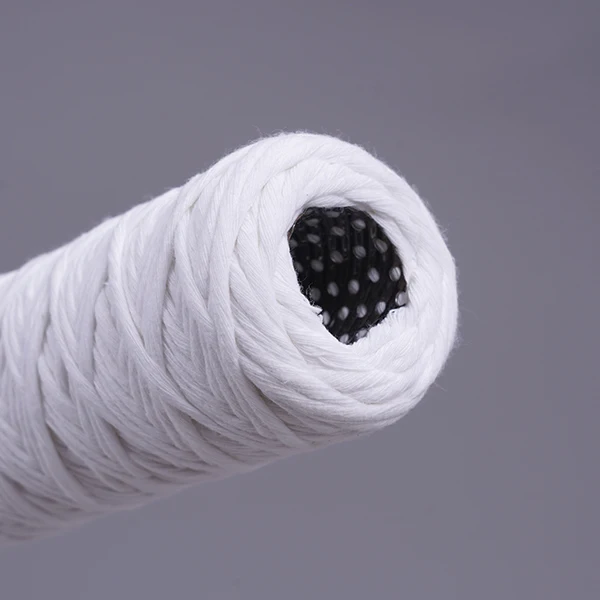

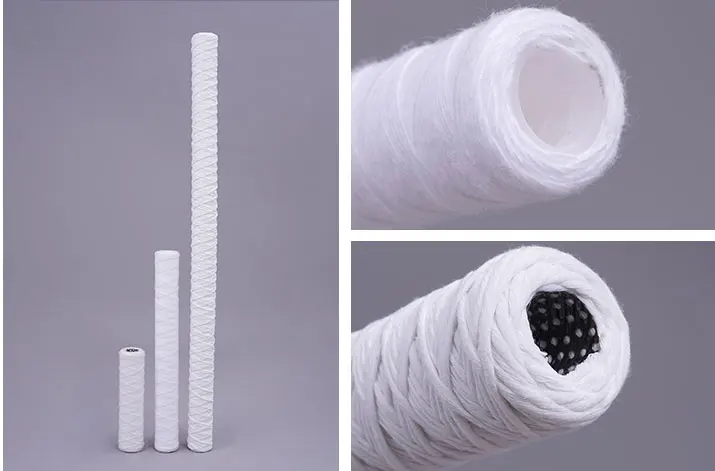

String wound filter cartridge is a kind of filter cartridge for depth filtration at low viscosity and low impurity content conditions. It is made of textile fiber yarn (polypropylene yarns, skim cotton yarn, etc.). These yarns are precisely wound on the porous skeleton (PP or stainless steel) to form a honeycomb structure that is loose outside and dense inside. As a result, it offers excellent filtration and absorption performance and can effectively remove suspended solids, fine particles, rust and other impurities from fluids. String wound filter cartridges are high quality and are available at an affordable price.




Product name:
String wound filter cartridge
Winding material:
Polypropylene yarns,skim cotton yarn,Fiberglass material etc

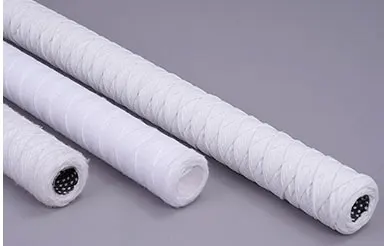

Skeleton material:
PP or Stainless steel

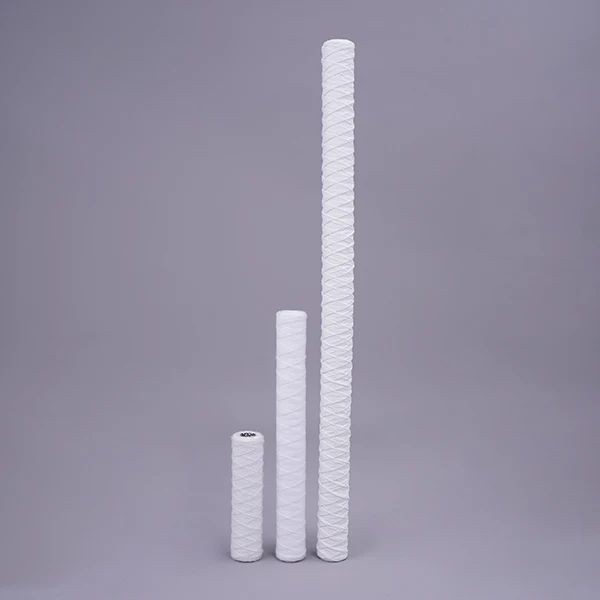

Outer dimensions:

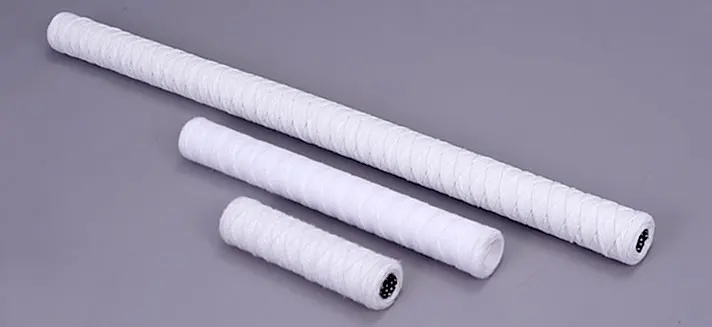

250 mm, 500 mm,750 mm,1000 mm,10",20",30",40"
Microns:
1 um, 3 um, 5 um,10 um, 20 um, 30 um,50 um, 70 um,100 um
Temperature resistance:
Plastic skeleton polypropylene yarn core:70°C;
Stainless steel skeleton polypropylene yarn core:< 90°C;
Stainless steel skeleton absorbent cotton yarn core:<120°C.
Flow rating:
Take filter cartridge with a length of 250 mm at a differential pressure
of 0.02 MPa and media is clear water at room temperature as an example.
Filter rating (um):1,3,5,10,20,30,50
High flow rating (m/h)0.3,04,0.5,1.1,1.5,2,2.5







Highly efficient filtration of impurities

The structure is sparse on the outside and dense on the inside, effectively intercepting particle impurities at all levels, with high dirt holding capacity and long service life.

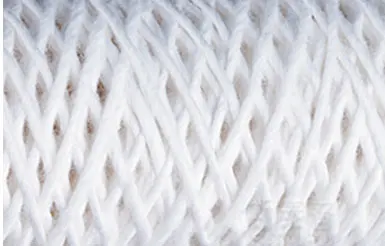

Various Filter Materials

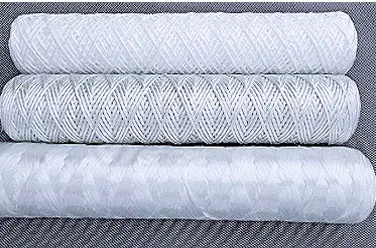

Polypropylene yarns, Skim cotton yarn, Fiberglass material.Three different materials, used in different environments.Water filtration to achieve precise filtration effect.



Customized On Demand

Various types of non-standard filter elements can be customized according to different needs of customers.


Features:
1.High filtration accuracy, low differential pressure, high flow, high dirt holding capacity and
long service life.
2.Filter pores are small inside and large outside to offer good depth filtration effect.
3.Filter cartridges are made of various materials to meet the filtration requirements of various
liquids and achieve an ideal filtration effect.
