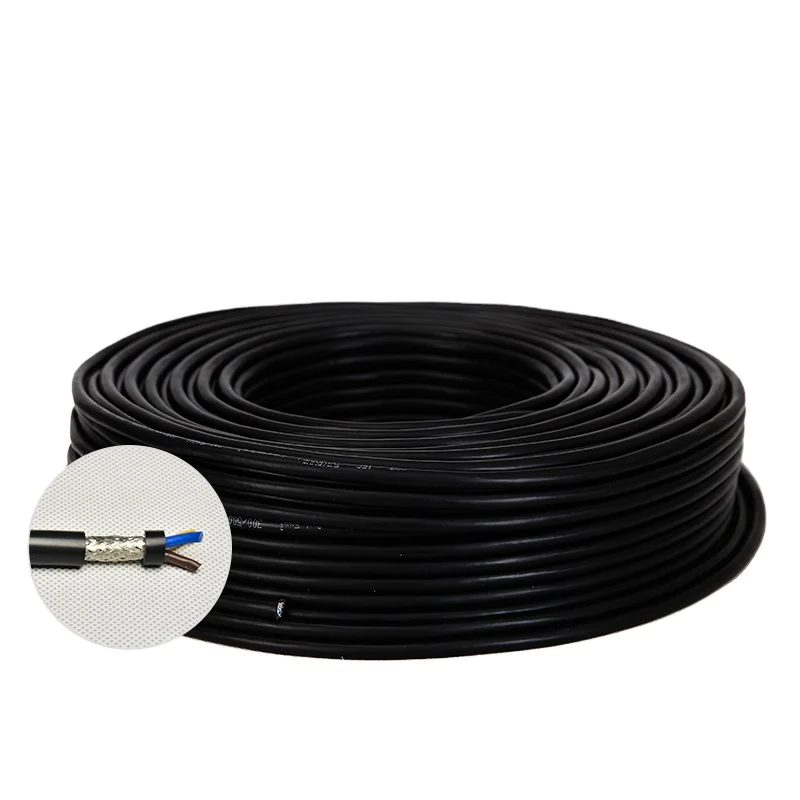

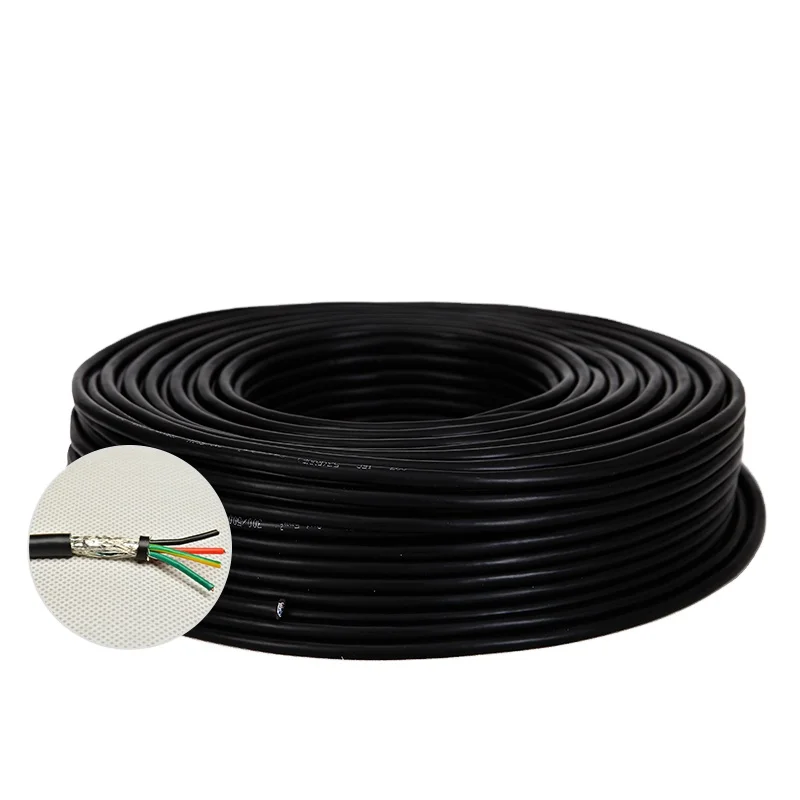

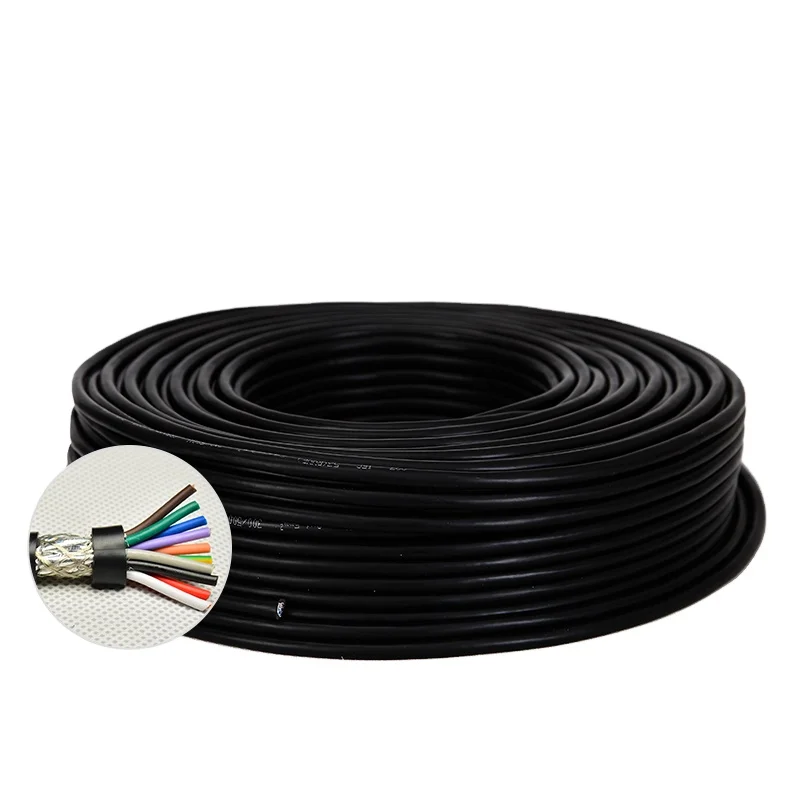

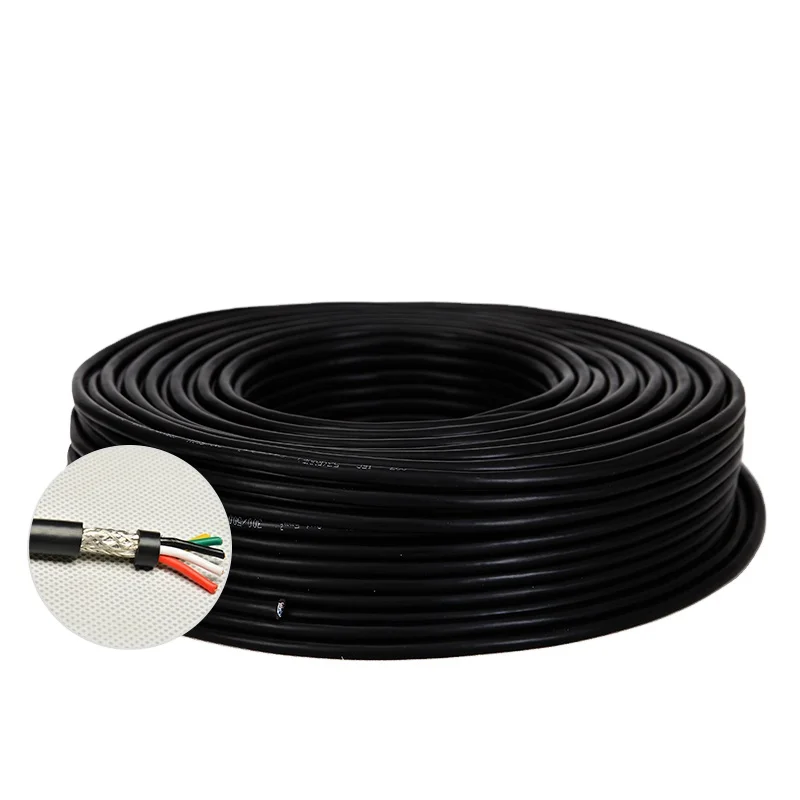

E249743 30V UL 2854 Robot Cable

* Style Number: UL2854
* Rated Temperature: 80°C
* Rated Voltage: 30V.
* Spark Voltage: 3KV.
* Dielectric Strength: 2000Vac for 60 seconds without breakdown.
* Flammability Grade: VW-1, FT1, FT2.

* Conductor Material: High purity copper wire strands, tinned or bare, optional.
* Conductor Size: 36AWG or more.
* Insulation: AWM complying material.
* Insulation Color: Black, brown, red, orange, yellow, green, blue, voilet, gray, white, pink, transparent, etc.
* Core Quantity: 2 cores or above.
* All individually insulated conductor wires cabled together, twisted lay length to be determined.
* Sheath: Polyvinyl Chloride PVC.
* Sheath Color: Black, Gray, White, or any other customized color.
* Screen Shield: tinned copper wire strands, or spiral wrapped with aluminum foil.
* Shield Coverage: 65% minimum.
* Standard: AWM, UL758, UL1581.

* Agile routing and handling.
* Easy process while assembled with wire harness and cable sets.
* Uniform insulation thickness for easy stripping.
* Resistant to oil, organic solvent, strong acid, gas, and other chemicals.
* Good molded with connector and plug.
* UV resistant.
* Capable of handling temperature extremes to -20°C.

* Application: electronic equipment wiring purpose.
* Case examples: AC Distribution Box, Electric Baker, Hand Mixer, etc.

* No contain of hazardous substances, phthalates, or heavy metals.
* RoHS, and RoHS2.0 compliant.
* Reach compliant.
* WEEE compliant.
