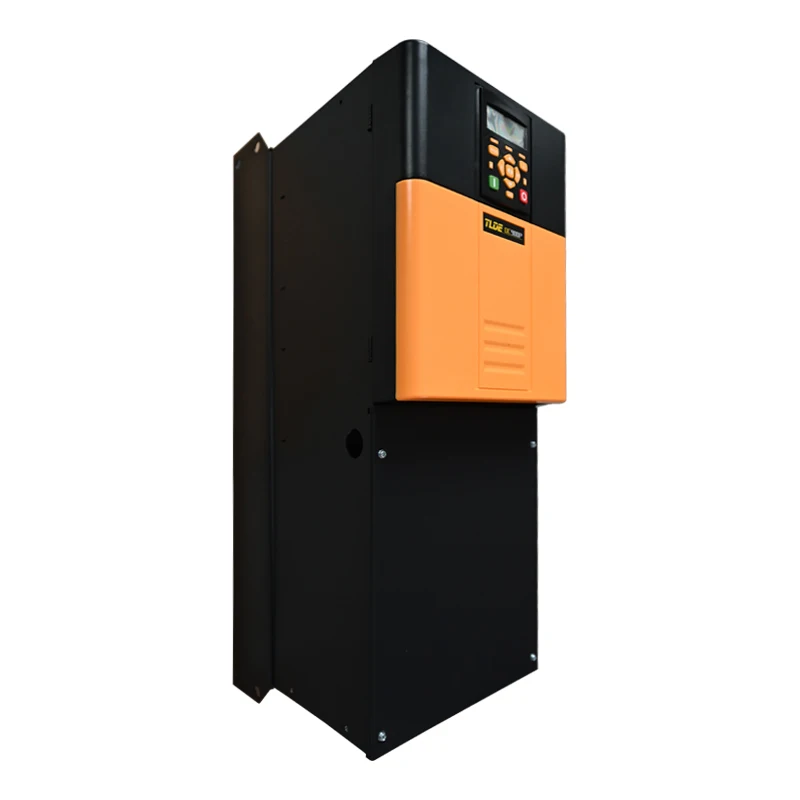

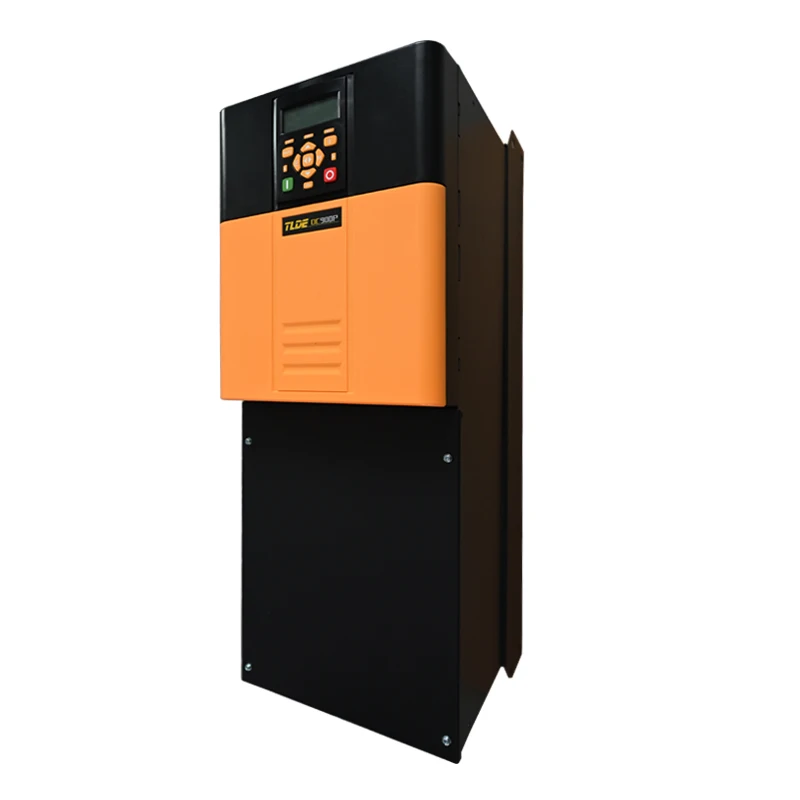

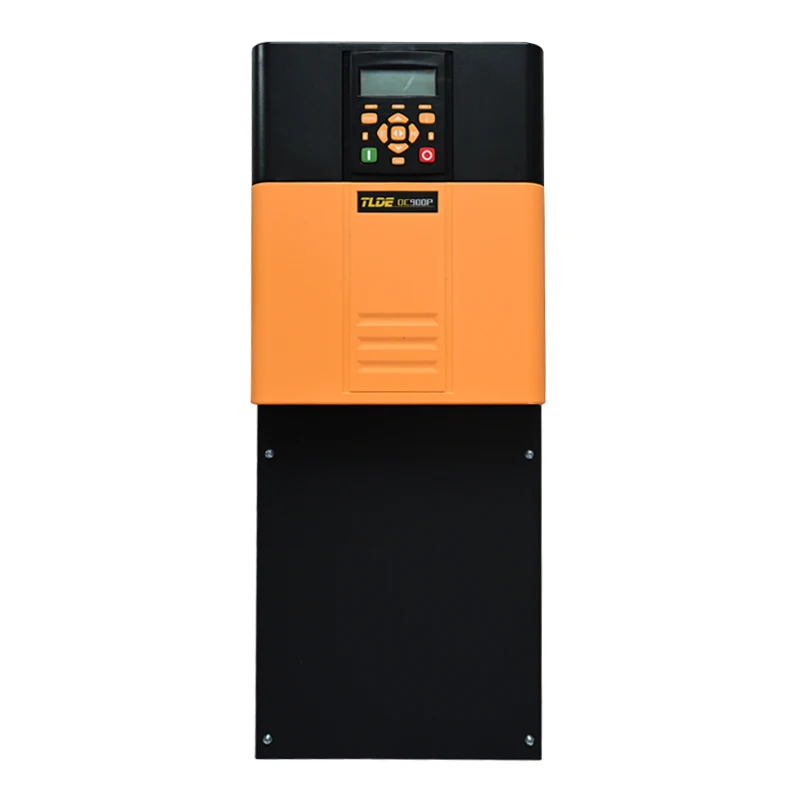

TLDE new DC900P 4 500 850 30 1 0 0DC full digital DC controller drive, compatible with Parker, Siemens
- Category: >>>
- Supplier: Anhui Tailaide Automation Technology Co. Ltd.
Share on (1600953906342):
Product Overview
Description
Product Description

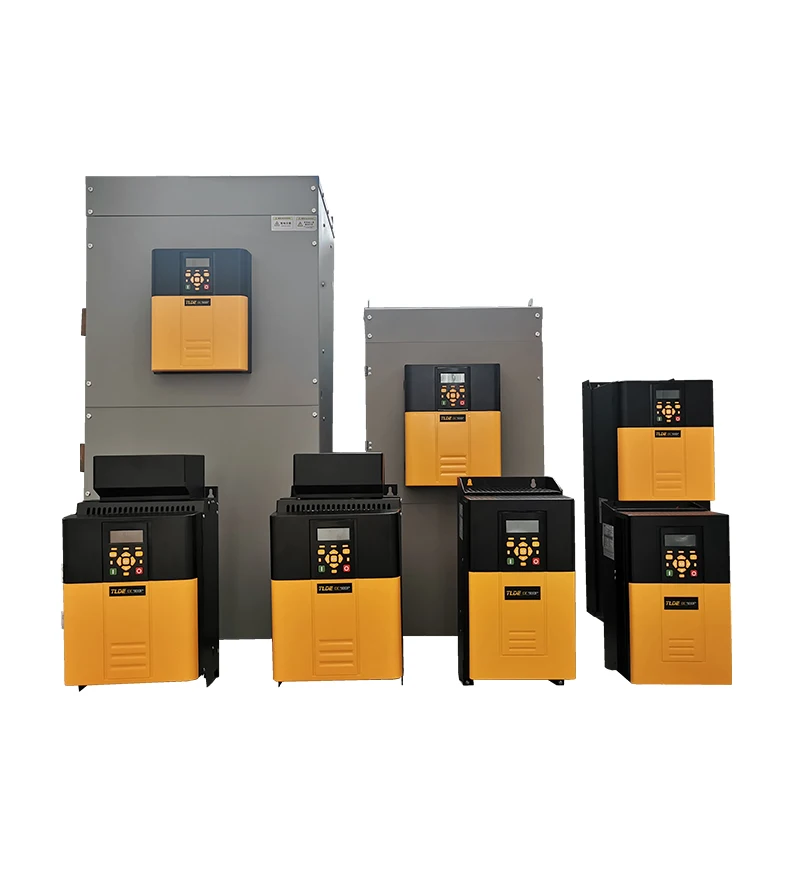

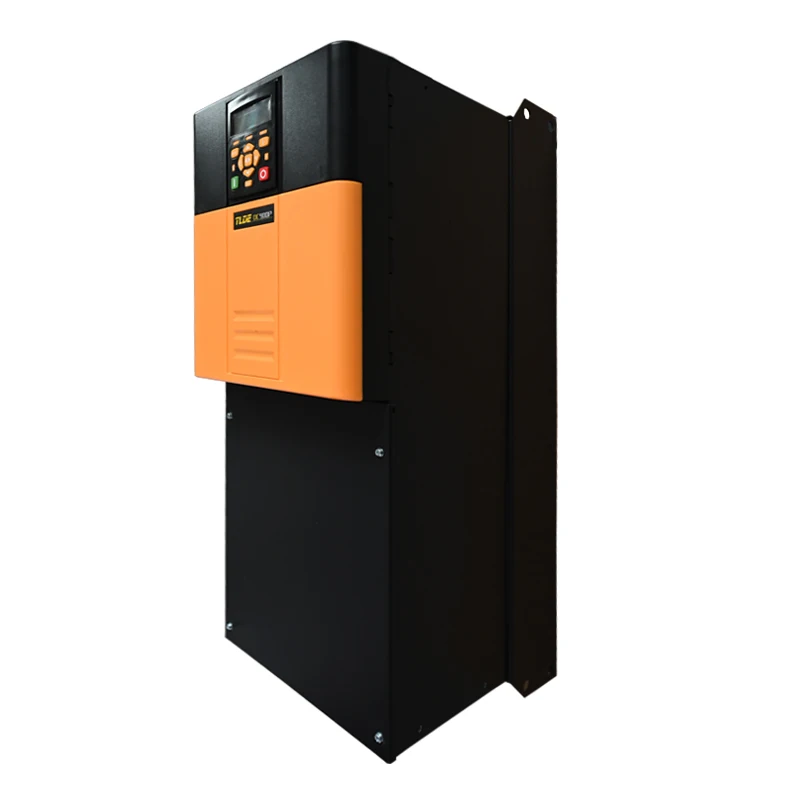

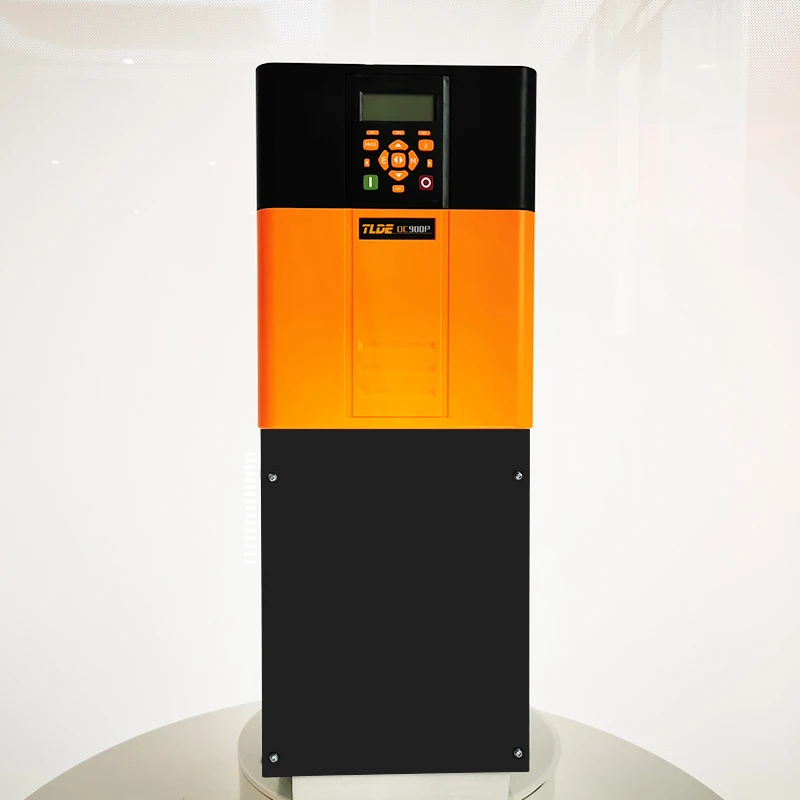

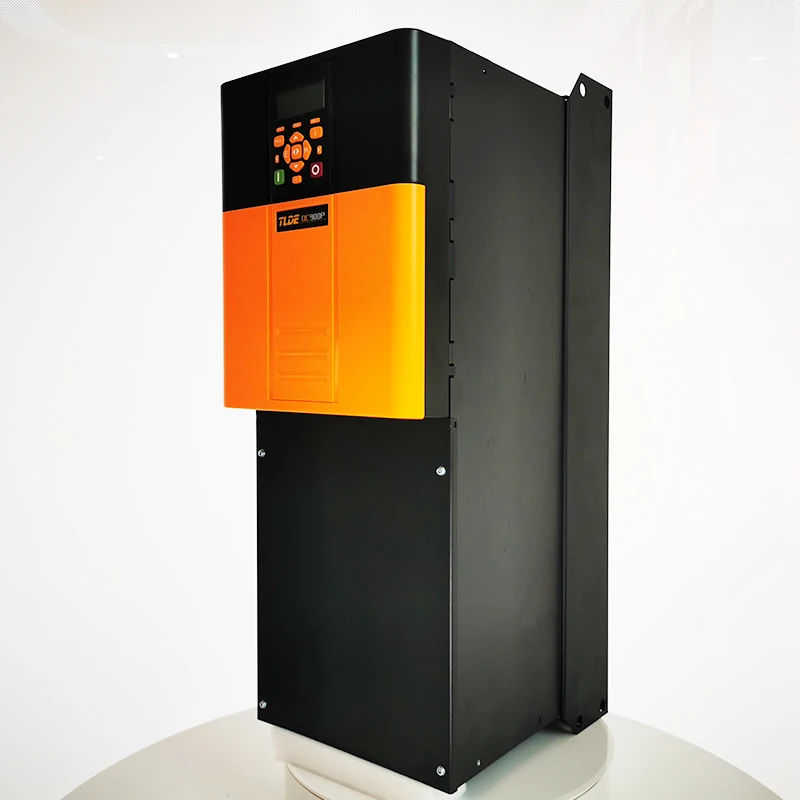

DC900P series DC drive.
The DC900P is a new generation DC drive that uses an advanced control platform to provide high flexibility and high performance for a wider range of applications.
Widely used in system integration design, DC900P has functional block programming, multiple communication protocol support and feedback options. Available in 2Q or 4Q options, standard output range 20-850A.
The DC900P DC drive is based on a high-performance 32-bit microprocessor to provide advanced functionality and performance, and can be integrated with the AC controller in the same system.
Functional Features.
●DC900P provides the function block programming software DSELite is based on computer Windows operating system modular configuration software. Each control function block is designed as a software module, which can realize the internal free connection, and it becomes very easy to achieve the functions required by users;
● A large number of communication and I/O options can be controlled applications or integrated into a larger system, easy to create functional programming, custom functions and controls to provide users with high flexibility and multi-functional DC motor control platform
● Large screen bilingual liquid crystal display - English and Chinese liquid crystal display, intuitive menu structure, engineering environment design of the operation panel, to achieve fast and simple access to all parameters and function blocks of the driver. In addition, it provides local start/stop, speed setting and direction control, which provides great convenience for equipment debugging.
● Fast debugging, performance optimization and easy maintenance: With its self-tuning algorithm, the DC900P can be configured and debugged in minutes without adjusting the motor and without requiring a high level of engineering knowledge. High precision current feedback (0.06%) to achieve more stable low speed control, the operation interface can be set standby operation monitoring and simple maintenance.
● A large number of communication and I/O options can be controlled applications or integrated into a larger system, easy to create functional programming, custom functions and controls to provide users with high flexibility and multi-functional DC motor control platform
● Large screen bilingual liquid crystal display - English and Chinese liquid crystal display, intuitive menu structure, engineering environment design of the operation panel, to achieve fast and simple access to all parameters and function blocks of the driver. In addition, it provides local start/stop, speed setting and direction control, which provides great convenience for equipment debugging.
● Fast debugging, performance optimization and easy maintenance: With its self-tuning algorithm, the DC900P can be configured and debugged in minutes without adjusting the motor and without requiring a high level of engineering knowledge. High precision current feedback (0.06%) to achieve more stable low speed control, the operation interface can be set standby operation monitoring and simple maintenance.
Low RS485 / RTU
Low Canopen
Low profibus-dp
Low Profinet
A variety of communication cards available for selection, support standard PN,DP and modbus communication protocols, ESD protection design, communication anti-interference ability;
Low Canopen
Low profibus-dp
Low Profinet
A variety of communication cards available for selection, support standard PN,DP and modbus communication protocols, ESD protection design, communication anti-interference ability;
Product Details
Product Name | DC900P Series DC Drive |
Model Number | DC900P-4-500-850-30-1-0-0 |
Type | DC/DC Inverters |
Input Voltage | 100-500v |
Output Voltage | 500v |
Rated Current | 850A |
Output Frequency | 50Hz/60Hz |
Package Size | 253*700*358 |
Weight | 48KG |
Warranty | 12 Months |
DC900P series DC driver is widely used in cable, metallurgy, rubber and plastic, papermaking, material handling, test bench and other industries.

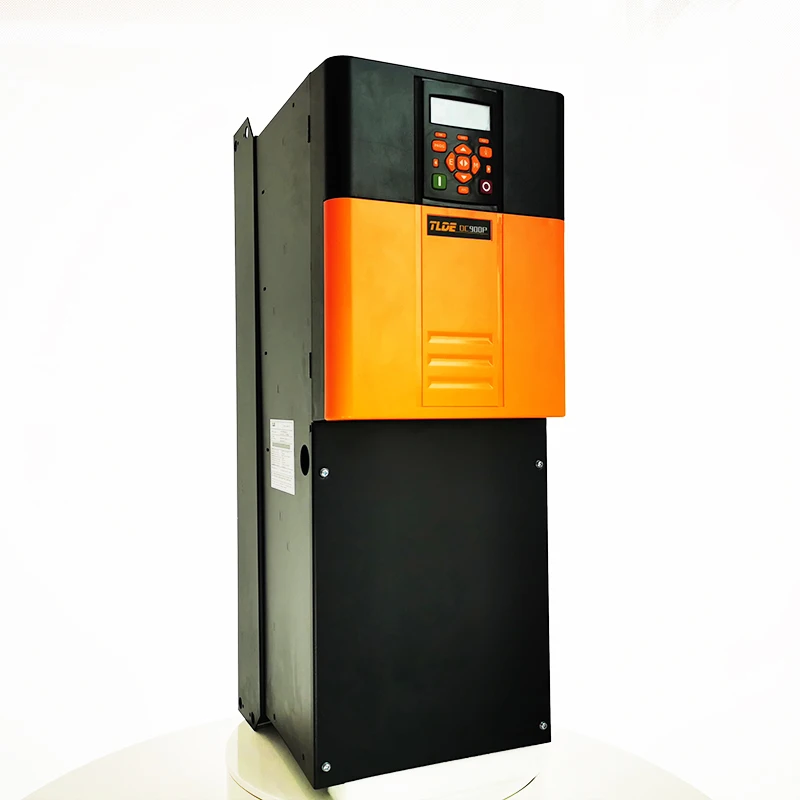

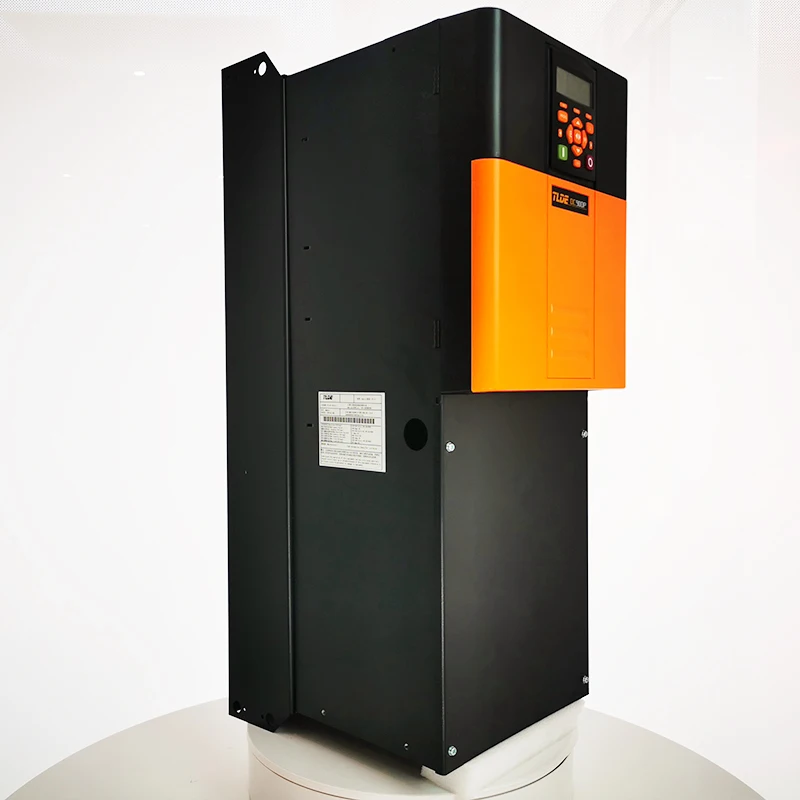

DC900P series DC drive
850A
DC900P series DC drive
850A
DC900P series DC drive
850A
DC900P series DC drive
850A
DC900P series DC drive
850A
DC900P series DC drive
850A
Selection Table
DC900P Models | Simple Models | Rated current | Input voltage | Mode of operation |
DP900P-2-500-35-10-1-0-0 | DC901P/35A | 35A | 10A | Irreversible |
DP900P-4-500-35-10-1-0-0 | DC900P/35A | 35A | 10A | Reversible |
DP900P-2-500-40-10-1-0-0 | DC901P/40A | 40A | 10A | Irreversible |
DP900P-4-500-40-10-1-0-0 | DC900P/40A | 40A | 10A | Reversible |
DC900P-2-500-80-10-1-0-0 | DC901P/80A | 80A | 10A | Irreversible |
DC900P-4-500-80-10-1-0-0 | DC900P/80A | 80A | 10A | Reversible |
DC900P-2-500-120-10-1-0-0 | DC901P/120A | 120A | 10A | Irreversible |
DC900P-4-500-120-10-1-0-0 | DC900P/120A | 120A | 10A | Reversible |
DC900P-2-500-160-10-1-0-0 | DC901P/160A | 160A | 10A | Irreversible |
DC900P-4-500-160-10-1-0-0 | DC900P/160A | 160A | 10A | Reversible |
DC900P-2-500-200-20-1-0-0 | DC901P/200A | 200A | 20A | Irreversible |
DC900P-4-500-200-20-1-0-0 | DC900P/200A | 200A | 20A | Reversible |
DC900P-2-500-280-20-1-0-0 | DC901P/280A | 280A | 20A | Irreversible |
DC900P-4-500-280-20-1-0-0 | DC900P/280A | 280A | 20A | Reversible |
DC900P-2-500-400-30-1-0-0 | DC901P/400A | 400A | 30A | Irreversible |
DC900P-4-500-400-30-1-0-0 | DC900P/400A | 400A | 30A | Reversible |
DC900P-2-500-550-30-1-0-0 | DC901P/550A | 550A | 30A | Irreversible |
DC900P-4-500-550-30-1-0-0 | DC900P/550A | 550A | 30A | Reversible |
DC900P-2-500-750-30-1-0-0 | DC901P/750A | 750A | 30A | Irreversible |
DC900P-4-500-750-30-1-0-0 | DC900P/750A | 750A | 30A | Reversible |
DC900P-2-500-850-30-1-0-0 | DC901P/850A | 850A | 30A | Irreversible |
DC900P-4-500-850-30-1-0-0 | DC900P/850A | 850A | 30A | Reversible |
DC900 -4000A | Custom | Custom | Custom | Custom |
Installation Instructions
Size and Installation DC900P series

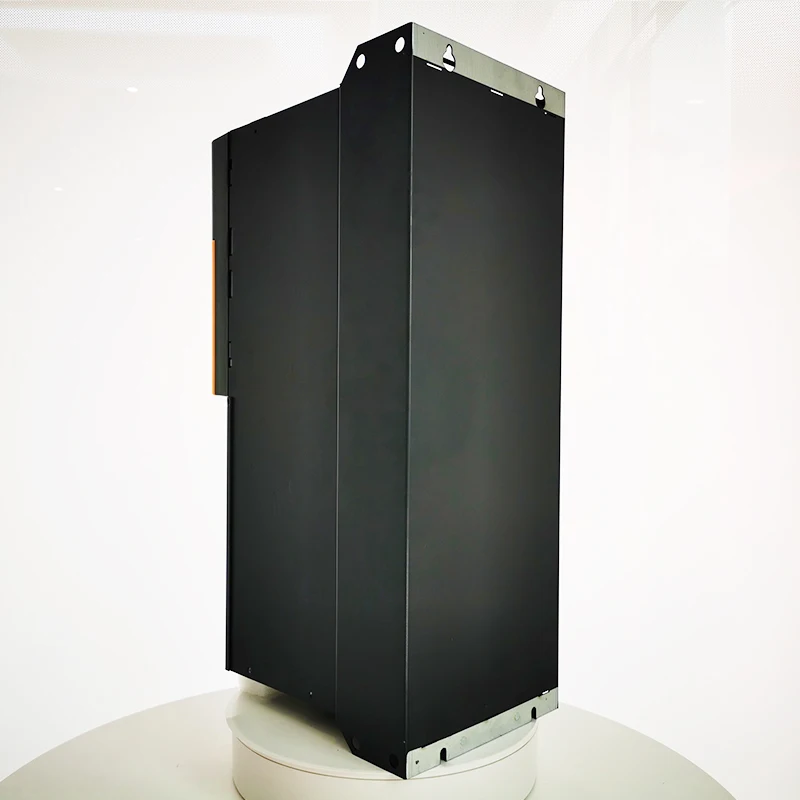

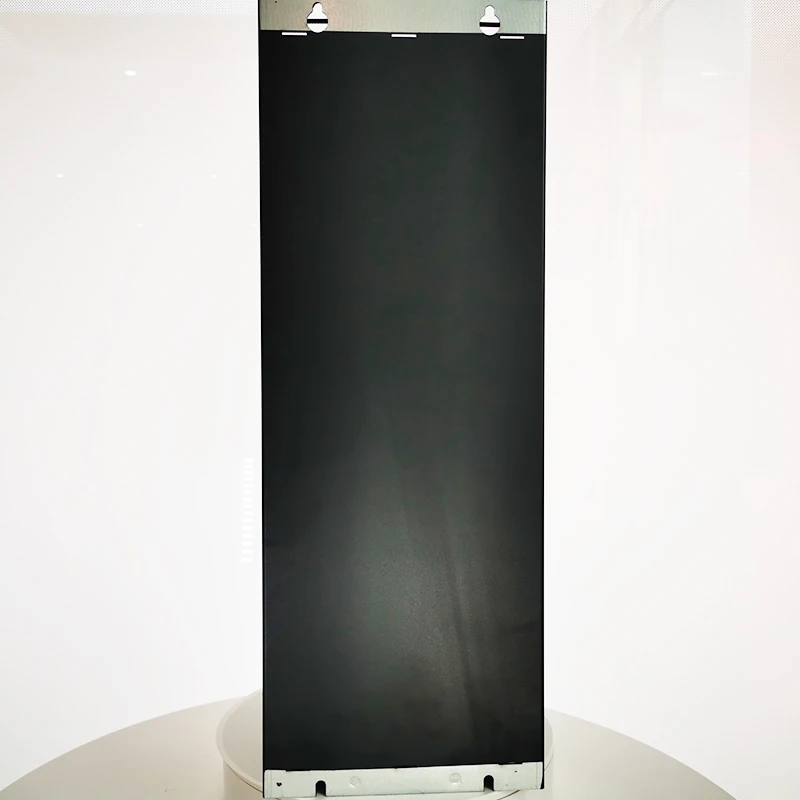

All units are designed for simple and economical panel mounting using keyhole slots.
Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower orbridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a systemand improving operator safety.
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower orbridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a systemand improving operator safety.

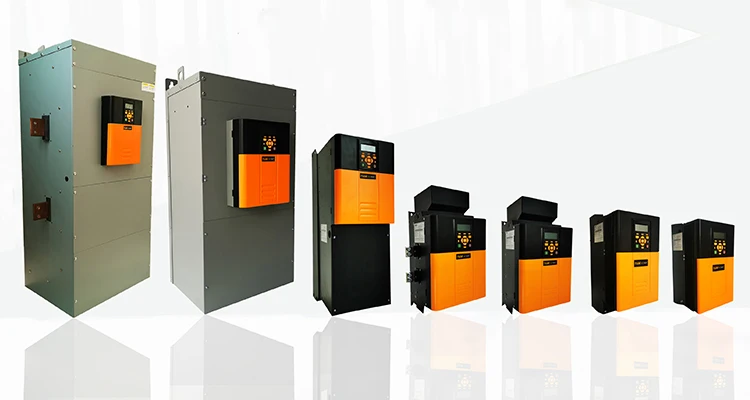

20A-35A
40A-160A
200A-280A
400A-900A
Rated current (A) | Weight（KG） | Overall size（MM) | Mounting size(MM) | ||
A x B x C | D | E1 | |||
20-35 | 6.4 | 196*372*211 | 140 | 363 | |
40-160 | 11.3 | 196*430*255 | 140 | 412 | |
200 | 18 | 250*485*180 | 200 | 400 | |
280 | 20 | 300*485*180 | 200 | 400 | |
400 | 42 | 253*700*358 | 150 | 680 | |
550 | 42 | 253*700*358 | 150 | 680 | |
750 | 48 | 253*700*358 | 150 | 680 | |
850 | 48 | 253*700*358 | 150 | 680 | |
Unpacking and handling
Note: The packing case is flammable, if not handled properly on site, may lead to the generation of toxic gas. Please keep this packing case for recycling. Improper packing may result in damage during transportation. Higher power drivers (1000-4000A) are specially packed so as not to be damaged during handling.
When handling, use a safe and proper handling method. Before moving it, find a flat surface to rest on.
When handling, use a safe and proper handling method. Before moving it, find a flat surface to rest on.

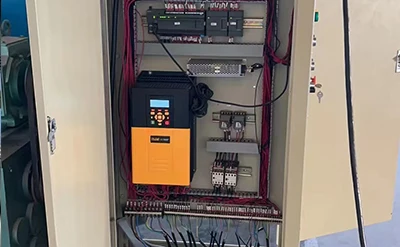

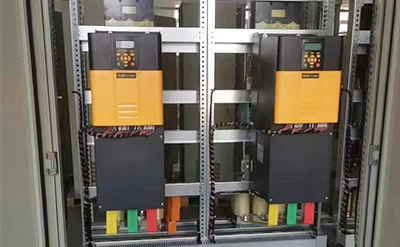

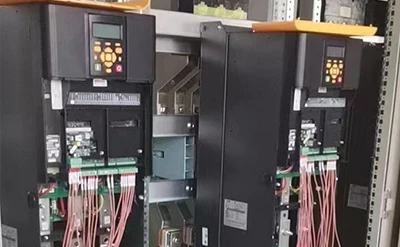

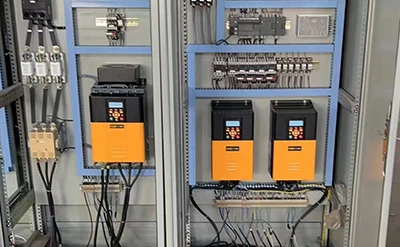

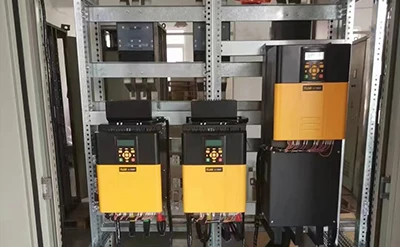

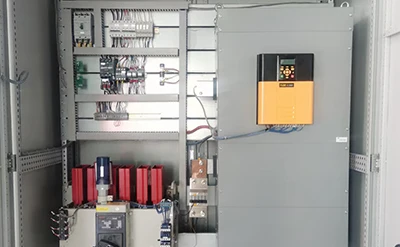

Photos of The Scene
