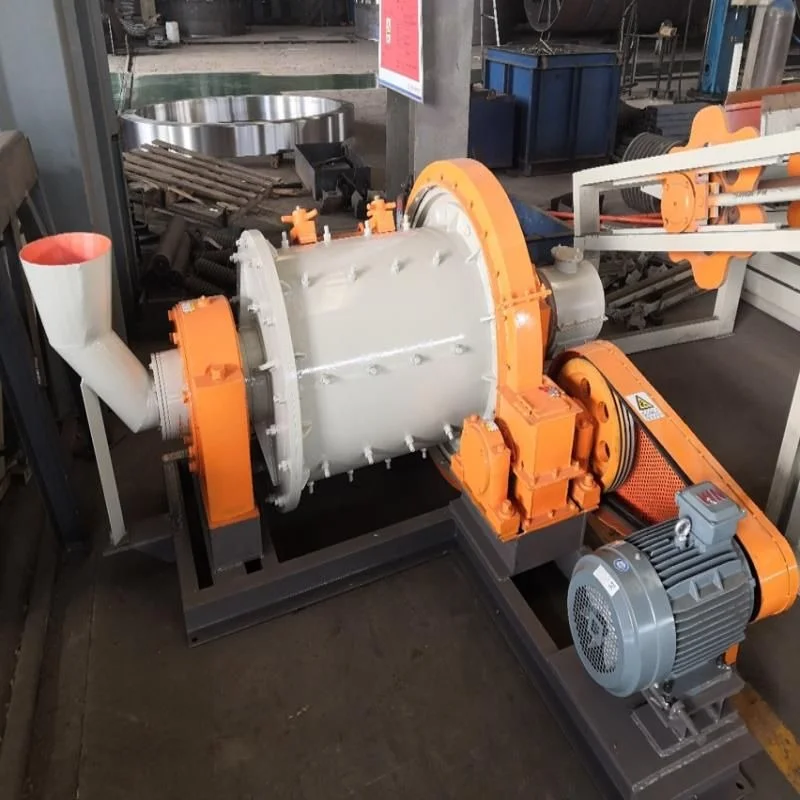

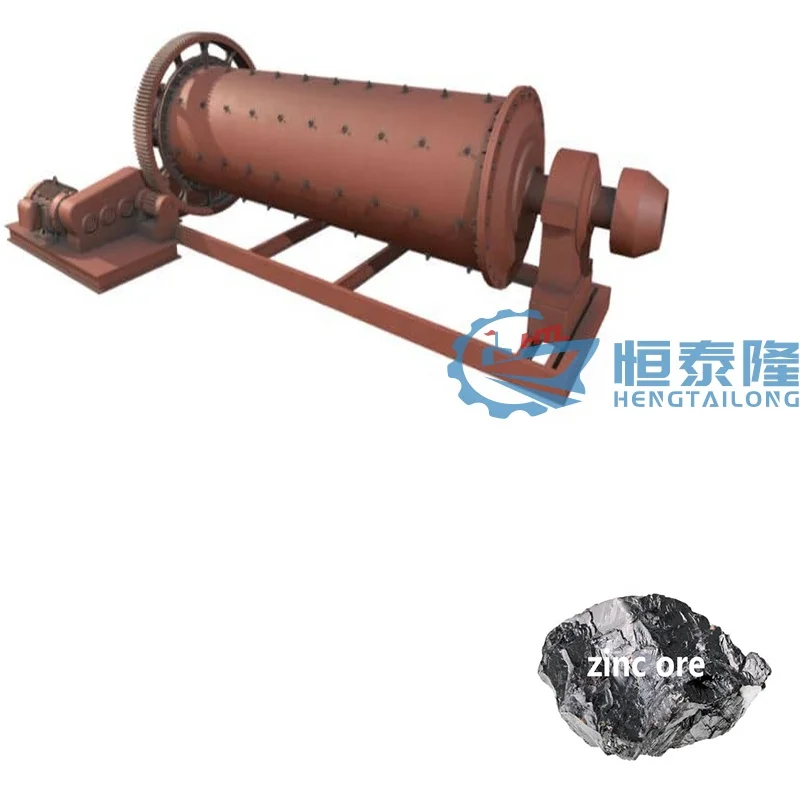

small capacity gold ore black powder ball mill grinding machine with diesel engine
- Category: >>>
- Supplier: Henan Hengtailong Machinery Co. Ltd.
Share on (1600953964070):
Product Overview
Description
Product Description

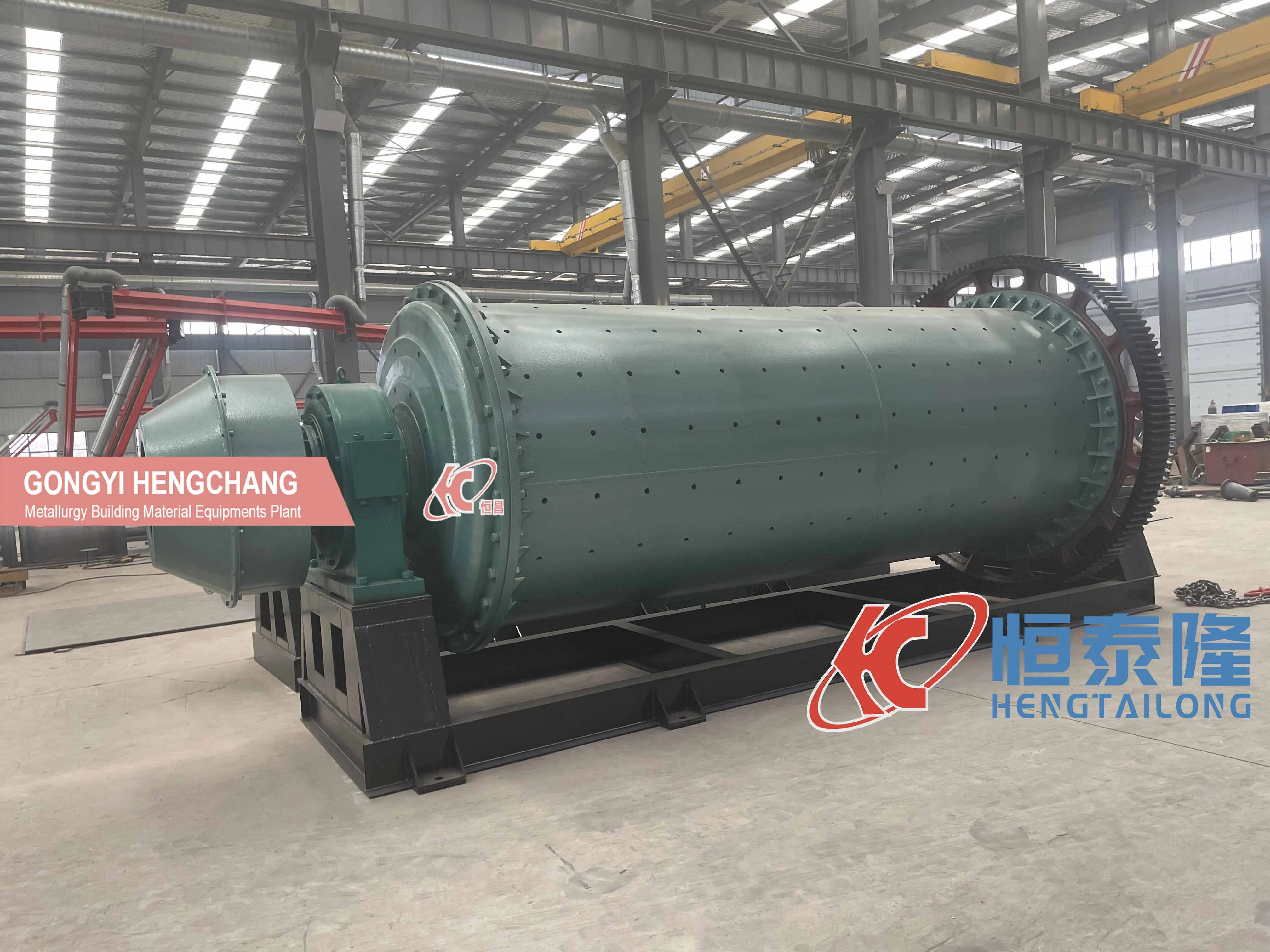

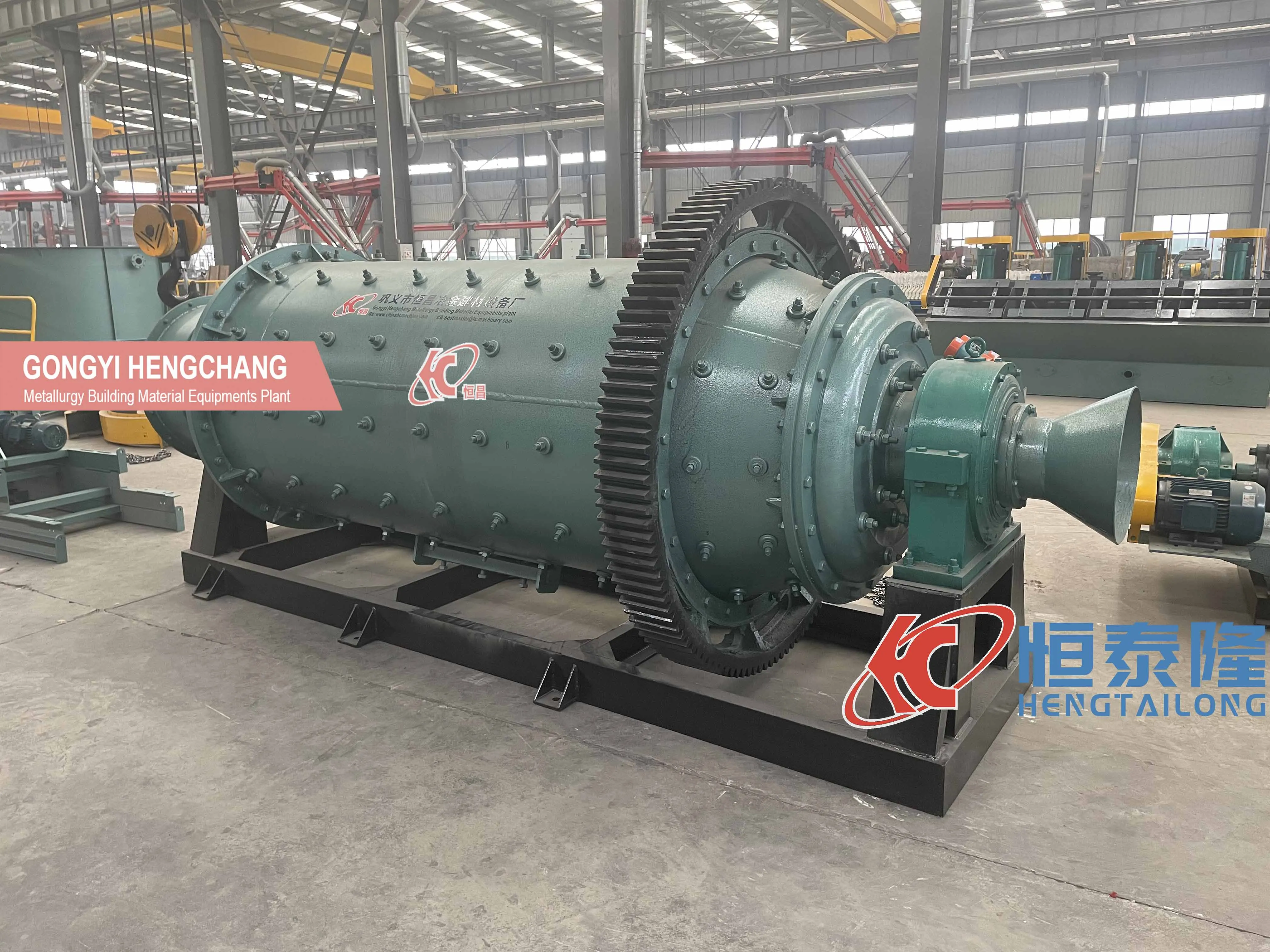

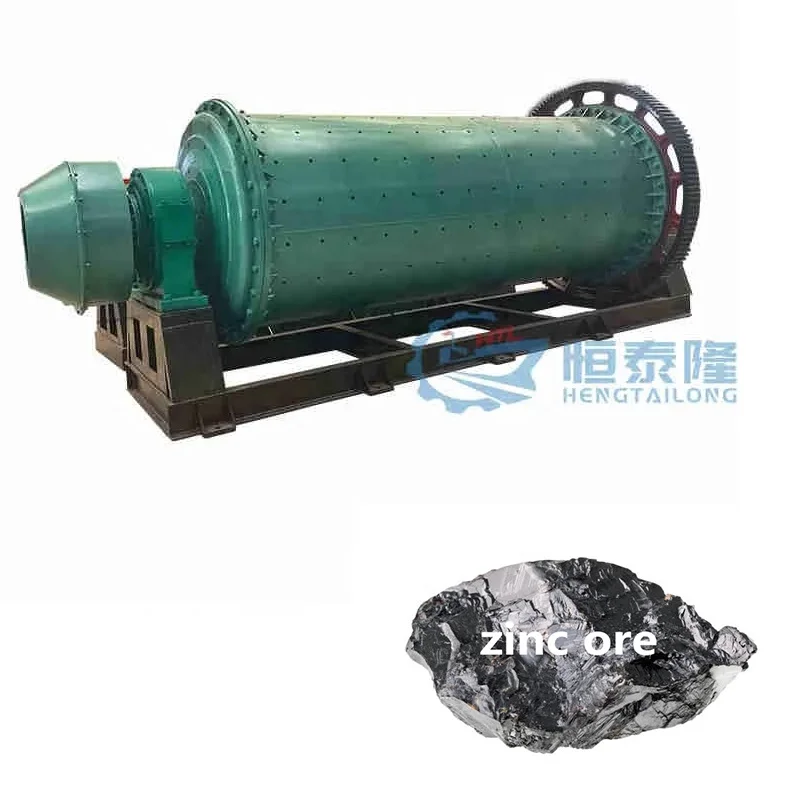

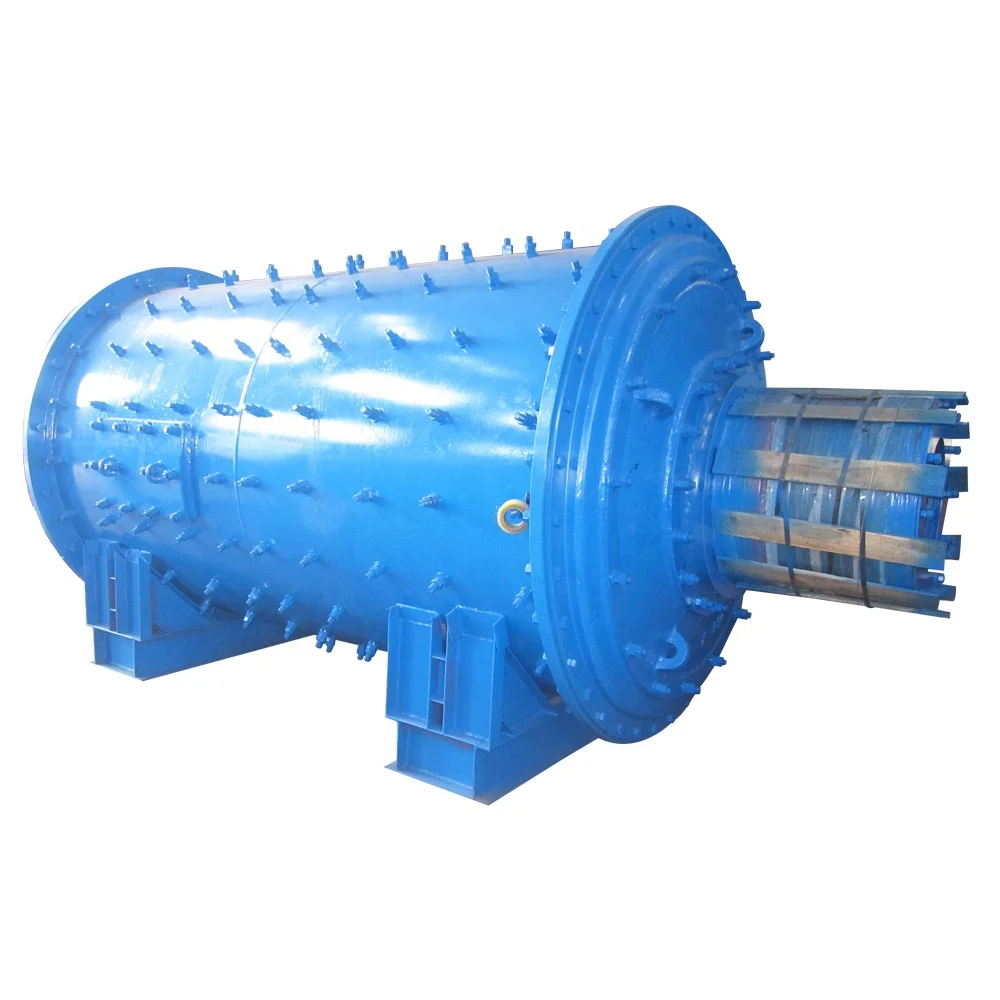

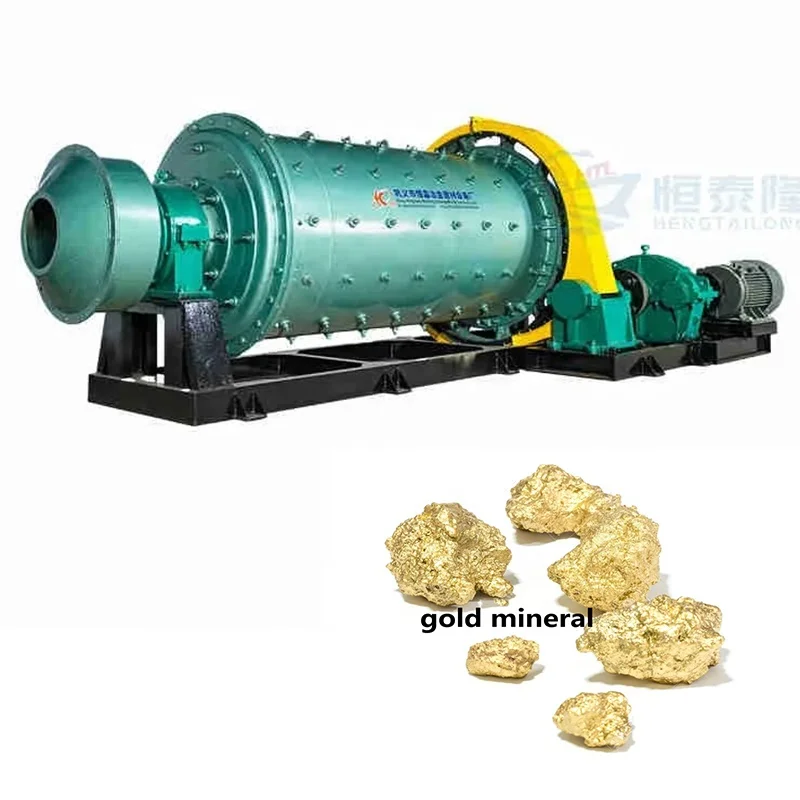

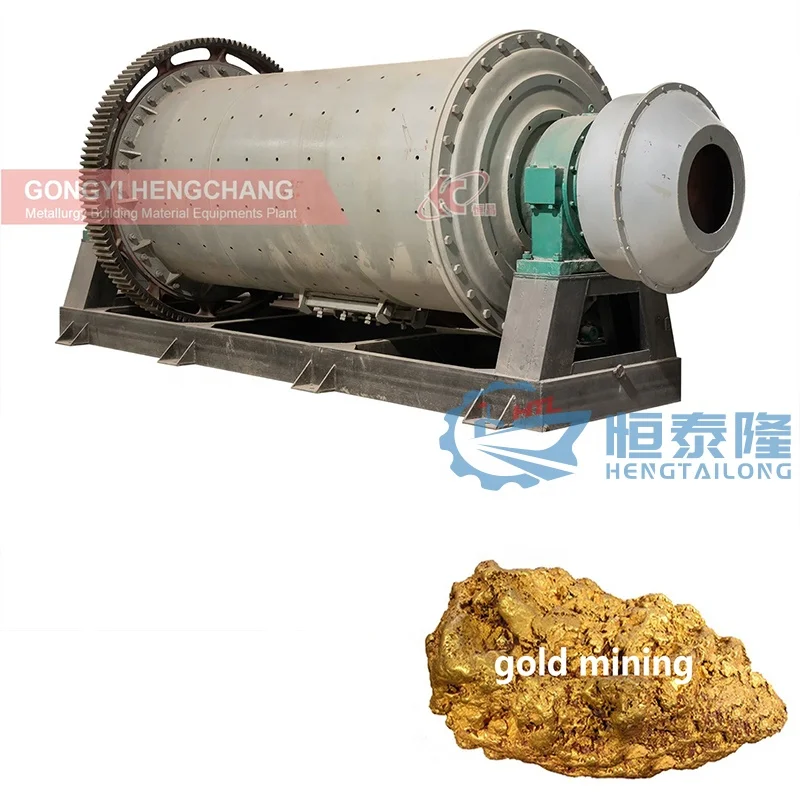

small capacity gold ore black powder ball mill grinding machine with diesel engine
Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
Product Application
It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing, and glass and ceramics, with dry or wet abrasive ore and other abrasive materials.

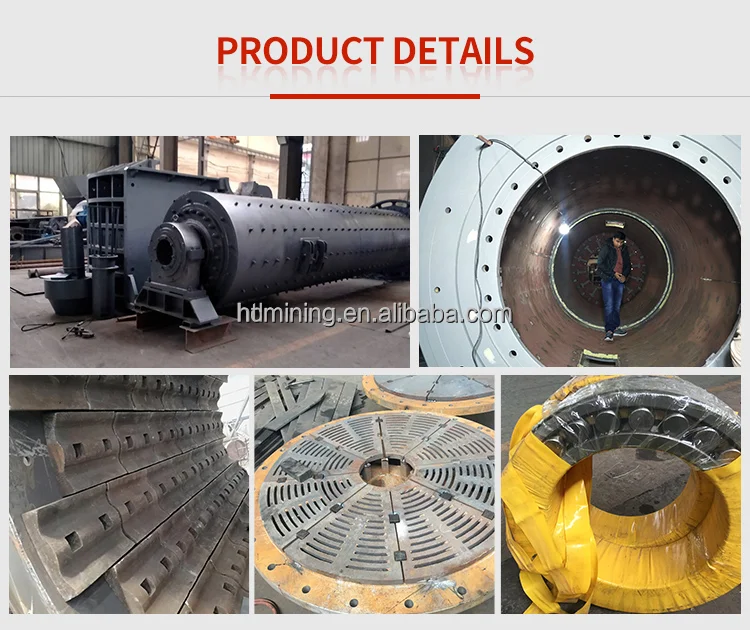

Product Details
1.Large application range, simple structure and convenient maintenance;
2.Large capacity and continuous work are very obvious Capacity range from 1-130 tph, final product can be 30- 500 mesh;

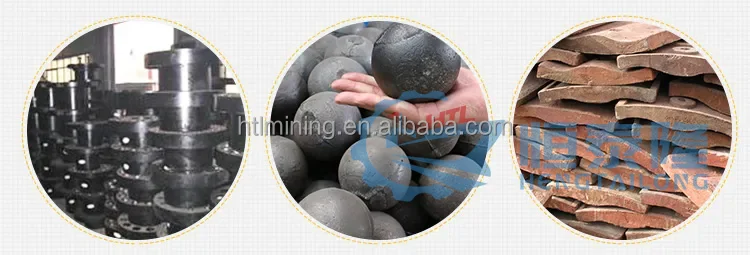

3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.
2.Large capacity and continuous work are very obvious Capacity range from 1-130 tph, final product can be 30- 500 mesh;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.

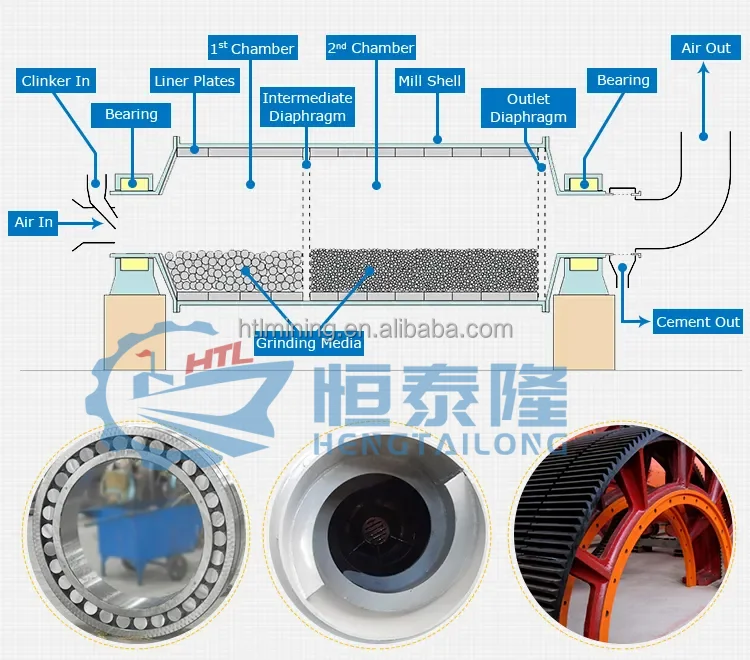

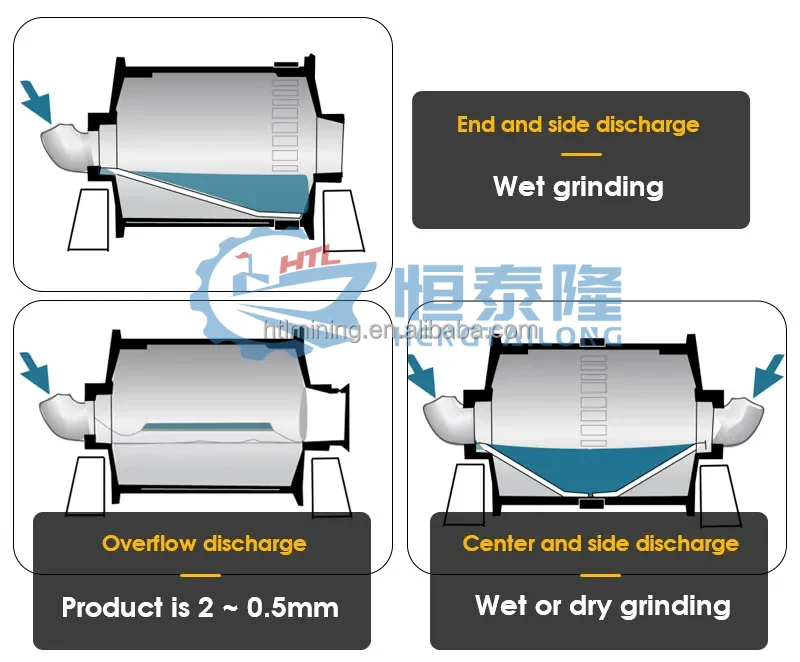

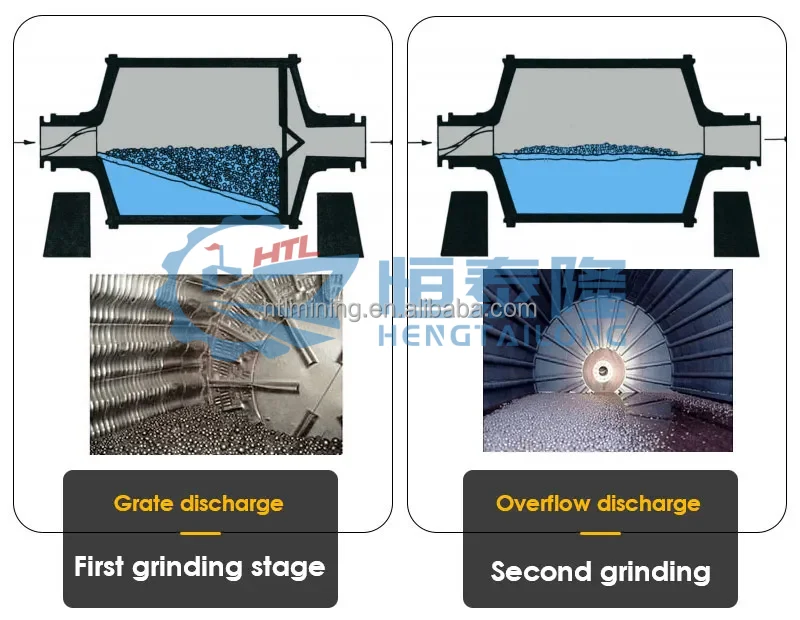

Working Principle
This ball mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear.
The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time , the steel ball is carried tosome height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse, the material then enters into the second warehousefor regrinding with the steel ball and scaleboard.
In the end, the powder is discharged by output material board andthe end products are completed.
In the end, the powder is discharged by output material board andthe end products are completed.
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
About Hengtailong
Exhibition & Customer Visit
Before-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.

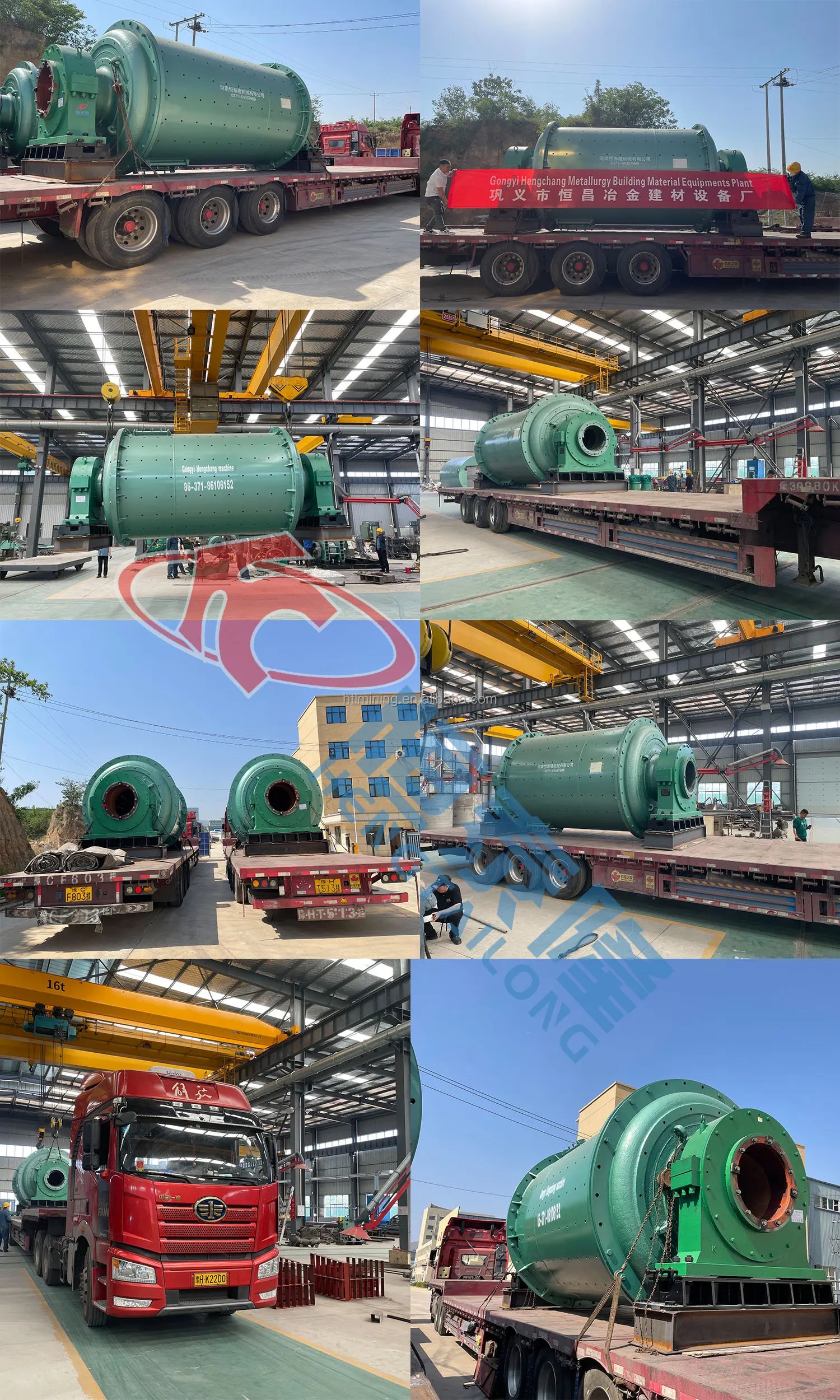

Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
