Automatic Flange And Notch Channel Letter Bending Machine X180 Cut Processing Flat Aluminum/Stainless Steel/Galvanized Sheet
- Category: >>>
- Supplier: Shenyang Jiahua De-Long Science Technology Co. Ltd.
Share on (1600954239745):
Product Overview
Description
Product Description

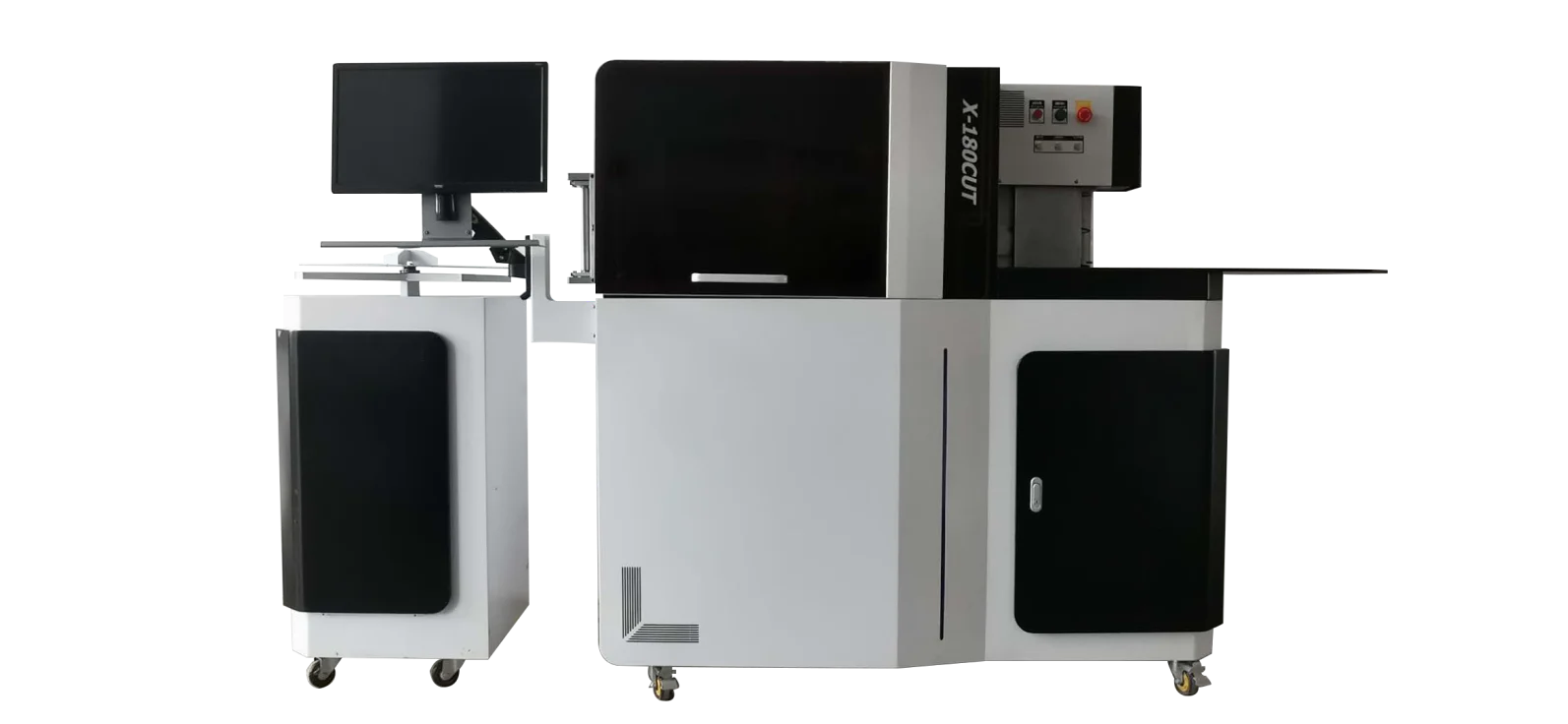

CNC channel letter bending machine
MODEL | X180cut | ||||||
Feeding system | Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system) | ||||||
Slotting system | Hard alloy planer | ||||||
Notching structure | Notching by air cylinder | ||||||
Flanging structure | Pneumatic flanging by air cylinder | ||||||
Bending system | Double -pole alternate part-arc institution and patented alternative arc-extrusion structure | ||||||
Driving motor | Servo motor 3 set ; stepper motor 1 set | ||||||
Weight | 800kg | ||||||
Dimensions | Body:L2140mm*W700mm*H1560mm;Feeding tableL500mm*W500mm*H1100mm | ||||||
Material category | Flat aluminum /Stainless steel / Galvanized plate (height: 20-180mm） | ||||||
Material thickness | Flat aluminum :0.6 - 1.5 mm/ SS ： 0.3-1.2mm / Galvanized sheet ： 0.4-1.2mm | ||||||
Flanging thickness | Flat aluminum 0.8mm | ||||||
Notching angle | 30°/ 120° | ||||||
Flanging width | 10mm | ||||||
Support format | AI / PLT / DXF / NC | ||||||
Feeding accuracy | Length + 0.1mm Radius > 4mm | ||||||
Control card | Leetro Four -axis motion control card | ||||||
Software system | Auto drive / CBS4 auto bending system | ||||||
Input voltage | 220V 50Hz 3Kw | ||||||
Air pressure | 0.6-0.8Mpa | ||||||
Details Images
Feeding system
Precision screw transmission and mechanical arm alternatively feeding structure
Use grinding screw，more precision，more stabilization
High quality encoder (closed loop self-test system)
Splice Reminding structure
Slotting system
Hard alloy planer tool
Circular progressive slotting structure
Notching structure +Flanging structure
Pneumatic Notching structure
Special scrap box
Flanging structure
Bending system
Double -pole alternate part-arc institution and patented alternative arc-extrusion structure
High quality Servo motor
Electric system
High quality servo drivers
Push-in IO integrated PCB board
Company Profile
We specialize in manufacturing solvent printer, eco solvent printer, uv flatbed printer, printing mdeia, CNC rounters, laser engraving/cutting machines, plasma cutting machines and cutting plotter. Our products are widely used widely used in various industries such as arts and crafts processing, advertising, clothing, leather processing, model-and printed-hectograph making, woodworking, woodworking and stone working.
Since 2001, Jiahua has begun targeting the foreign market. Now our product has been sold to Europe, USA, South America, North America, and Africa, totally more than 50 countries.
We pay much more attention on the quality than price, we believe quality is the base of survival and growth.
We welcome all the customers all around the world to make great business and share the success together

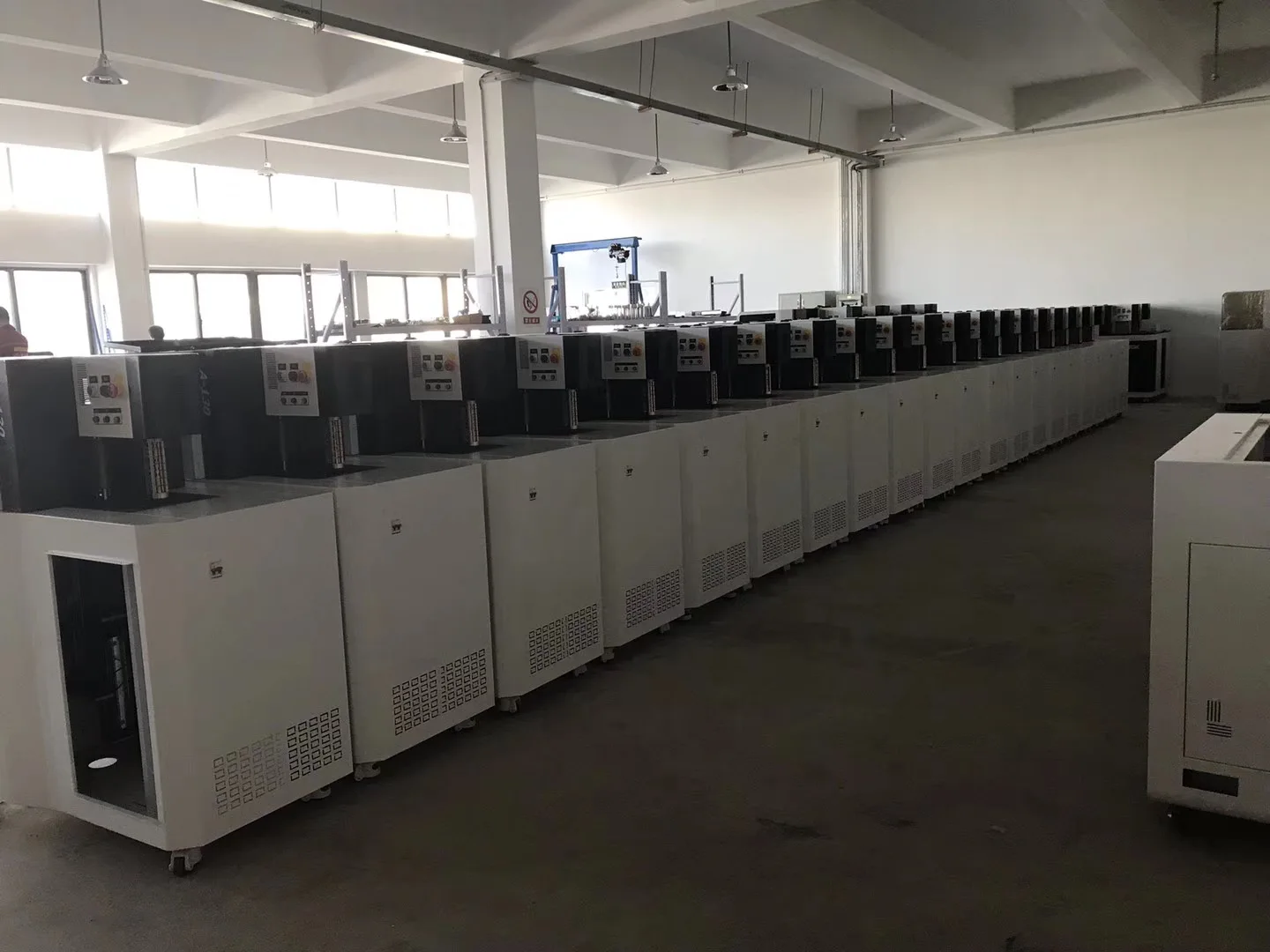

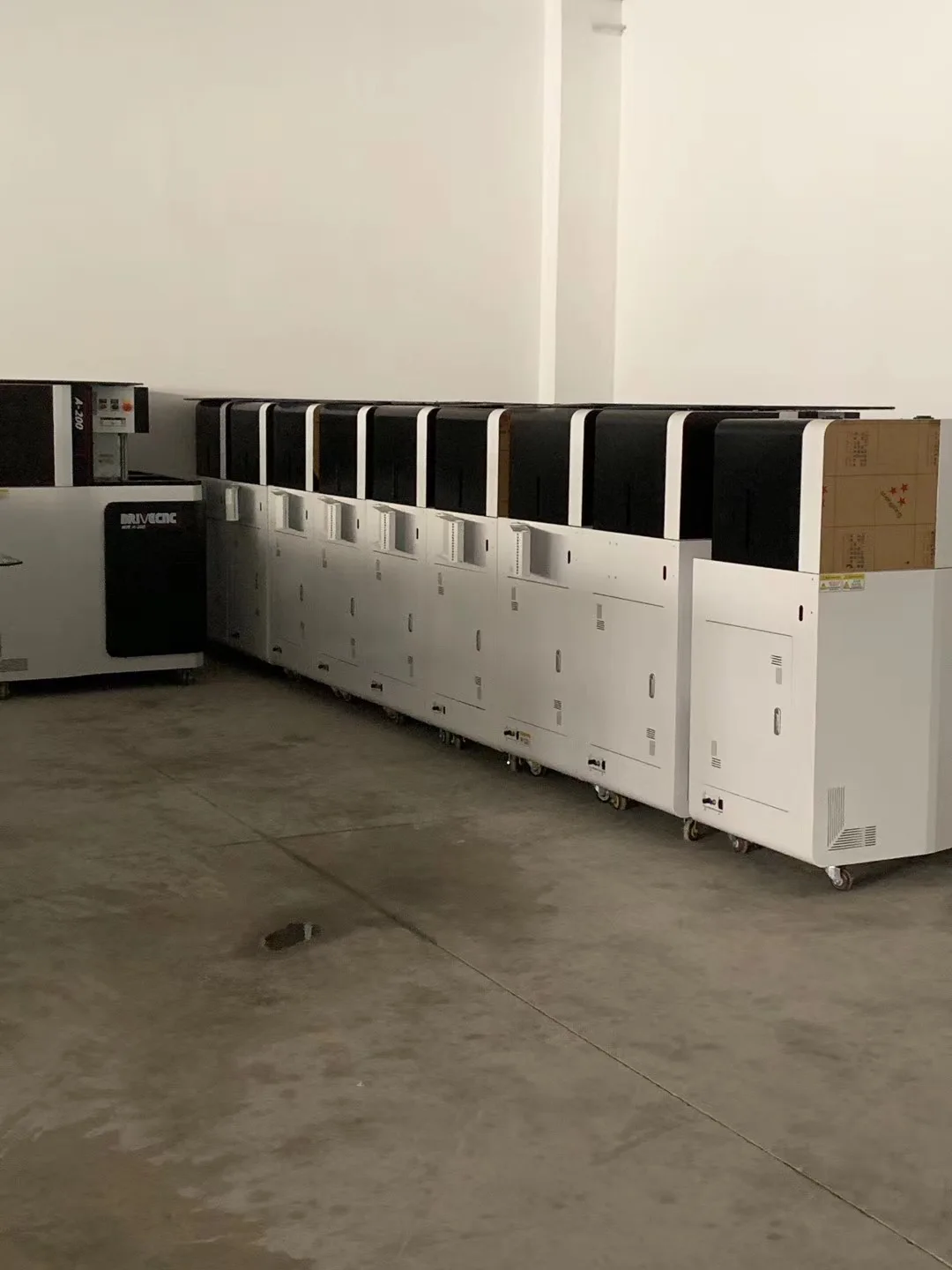

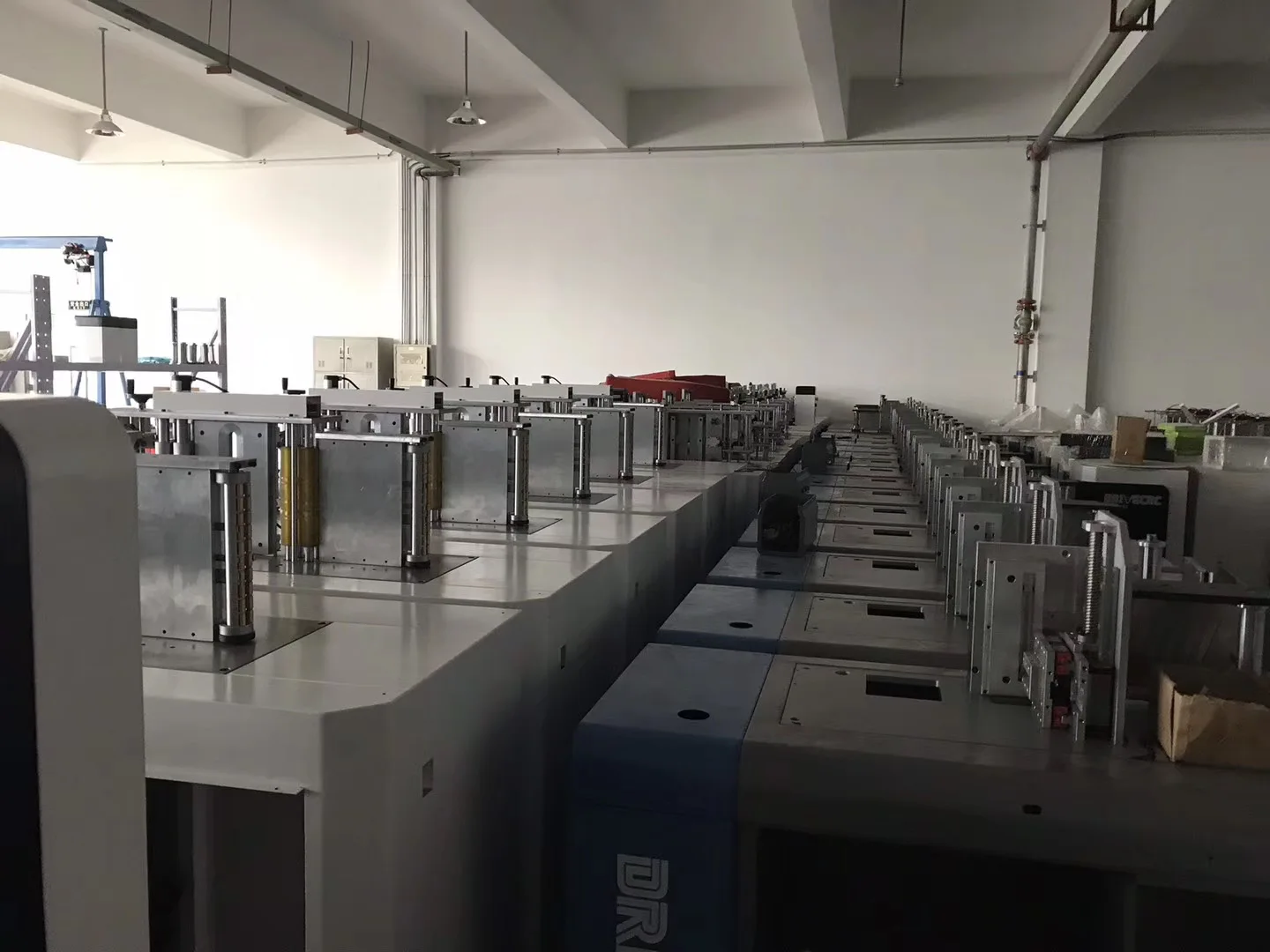

Our Factory

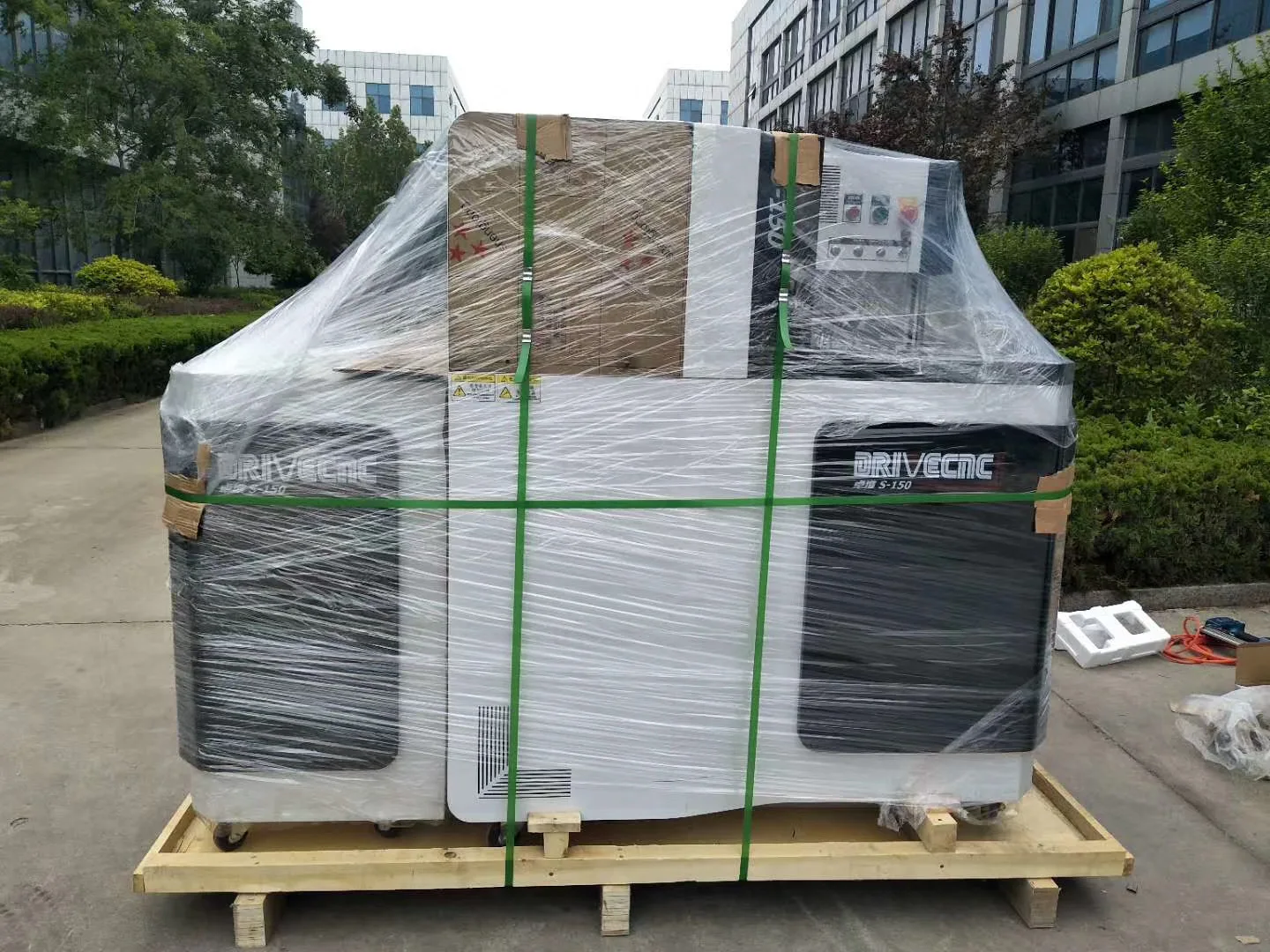

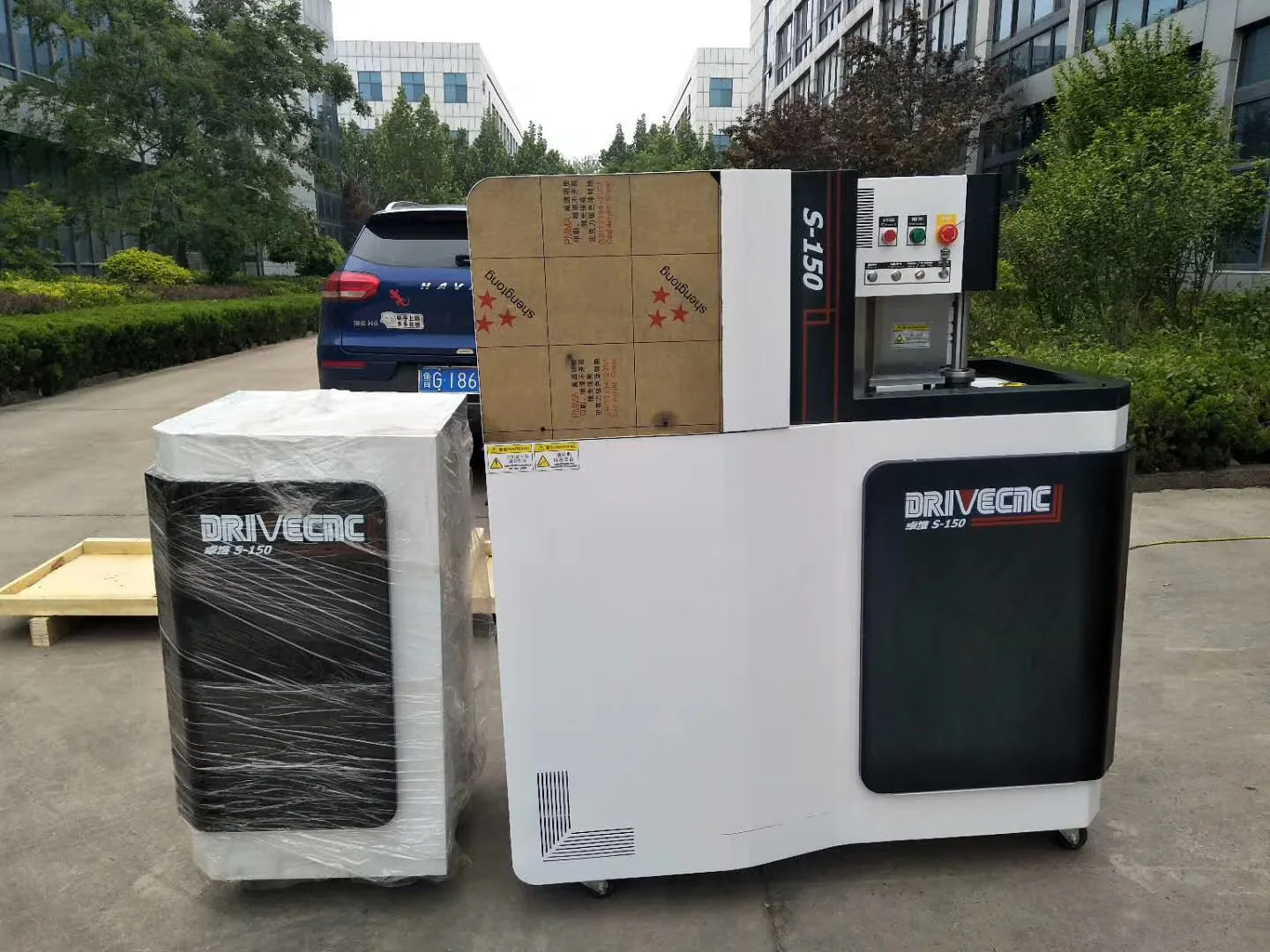

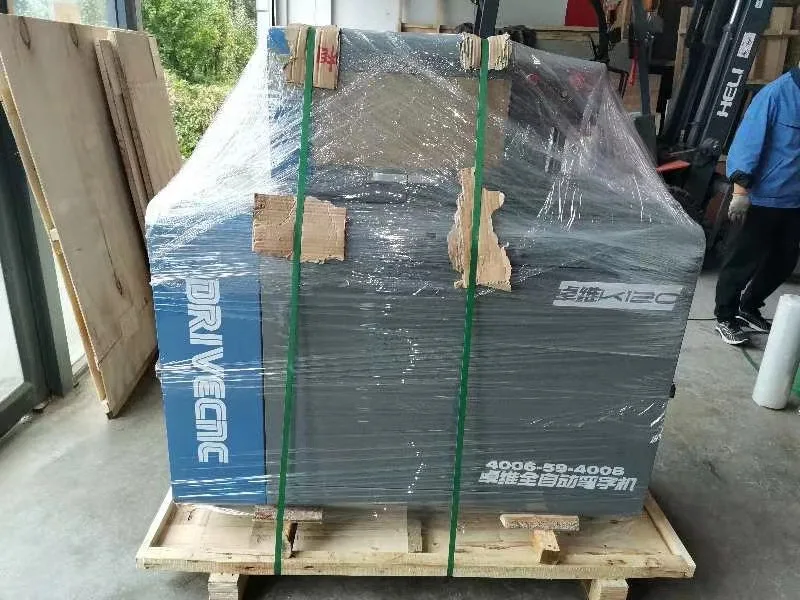

Packing & Delivery

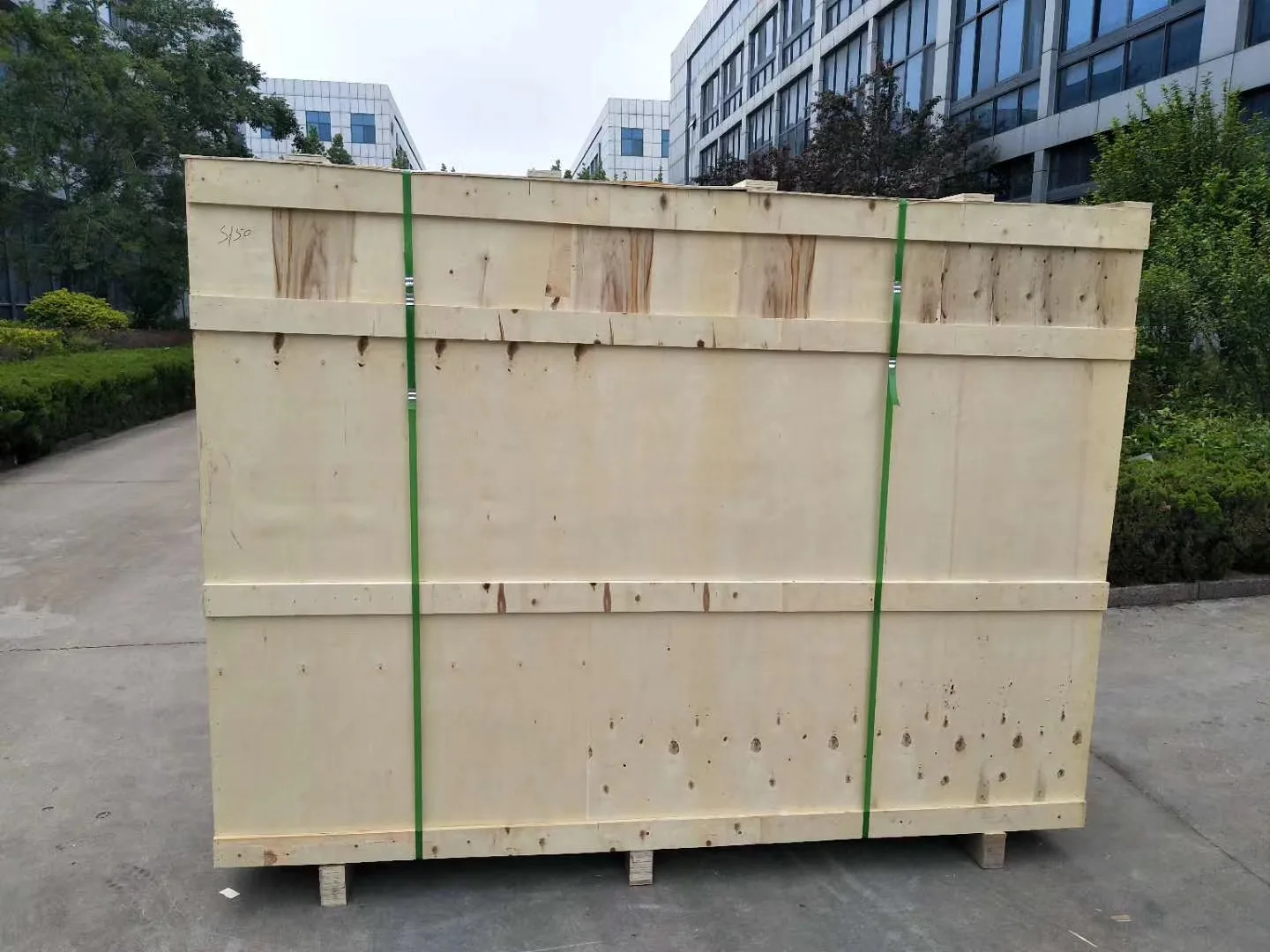

Wooden case

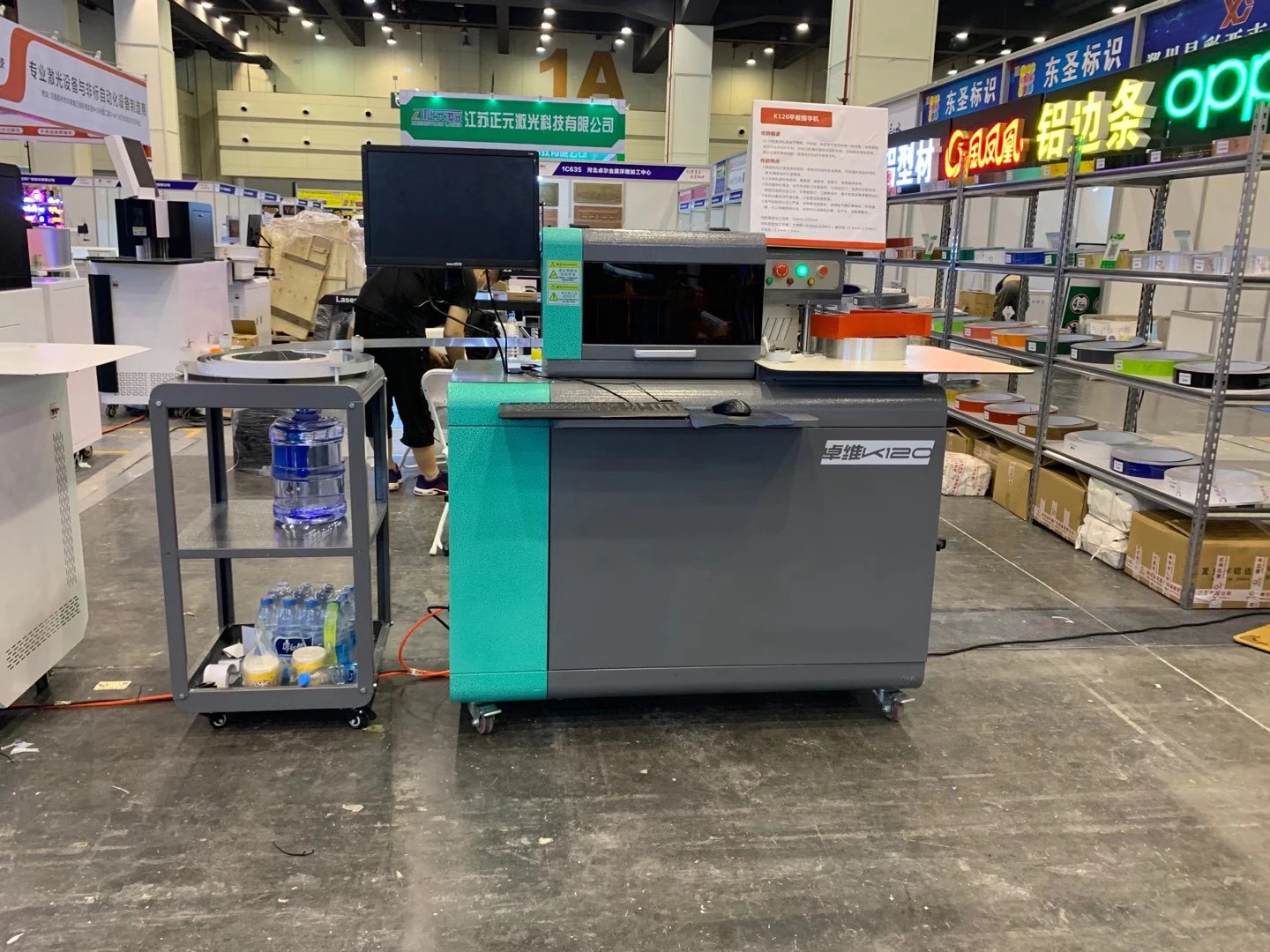

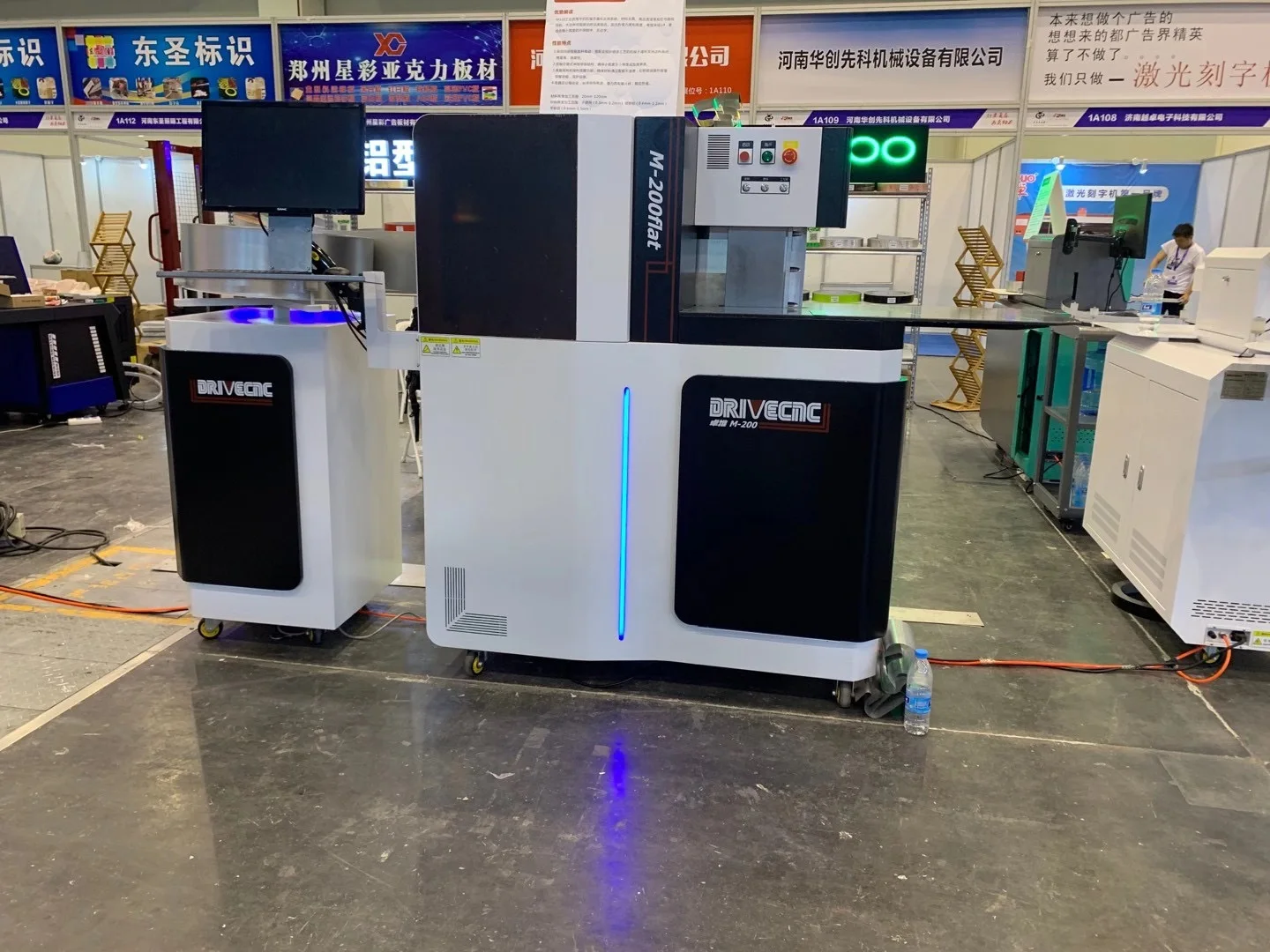

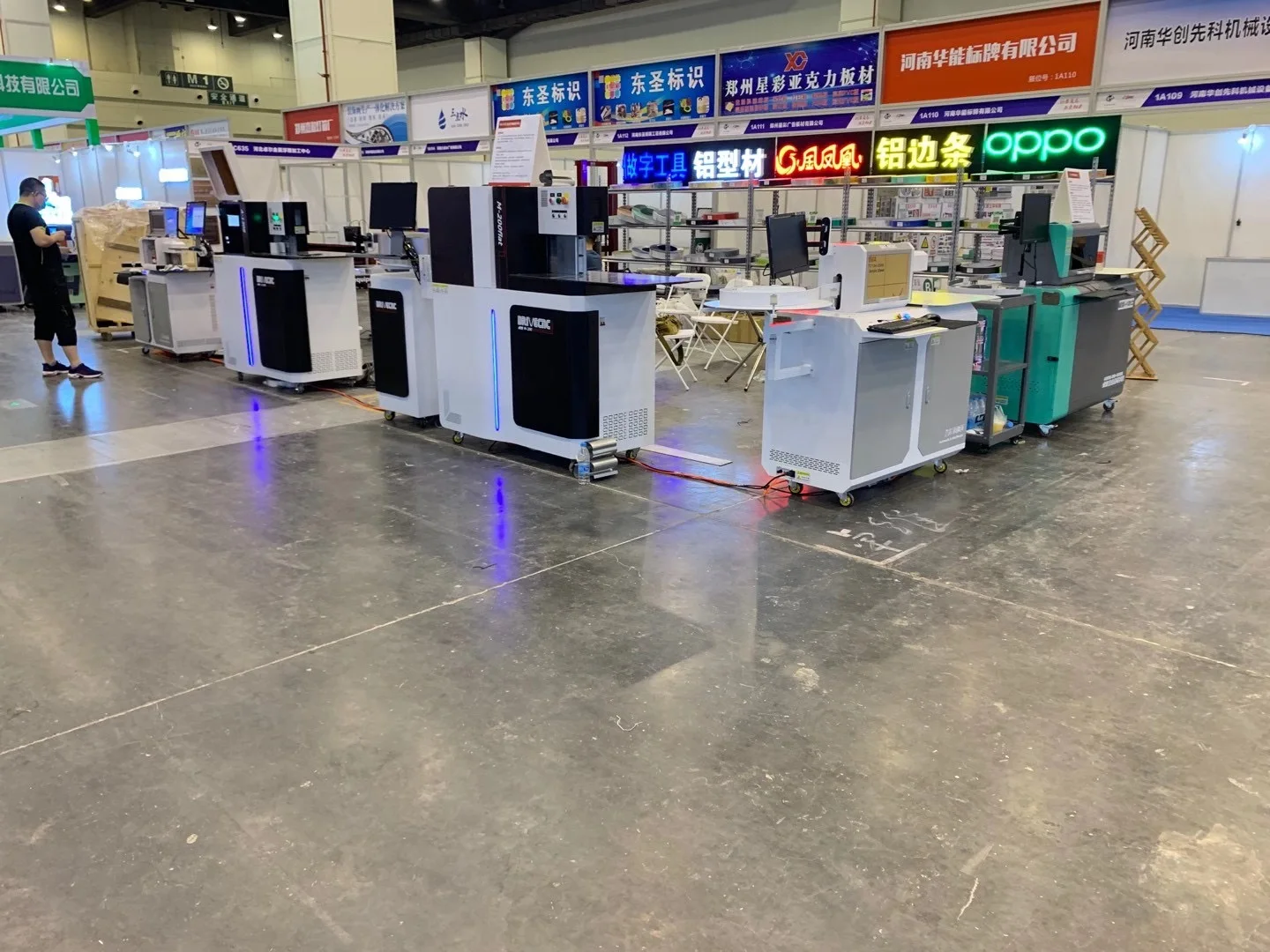

Our exhibition

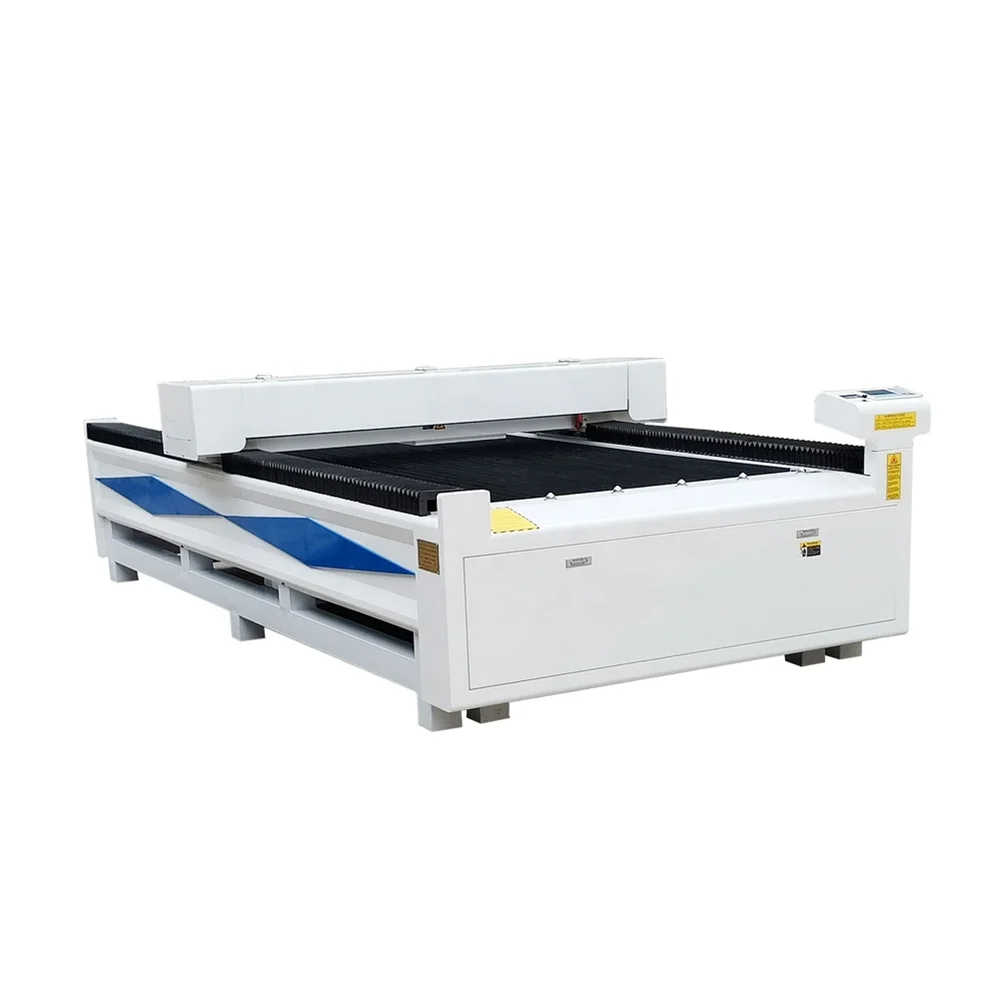

Related Product
