ZKLF2575 ZKLF2575 2RS Double Row Axial Thrust Angular Contact Ball Screw Support Bearing
- Category: >>>
- Supplier: Shandong Hongfan Bearing Co. Ltd.
Share on (1600954243000):
Product Overview
Description

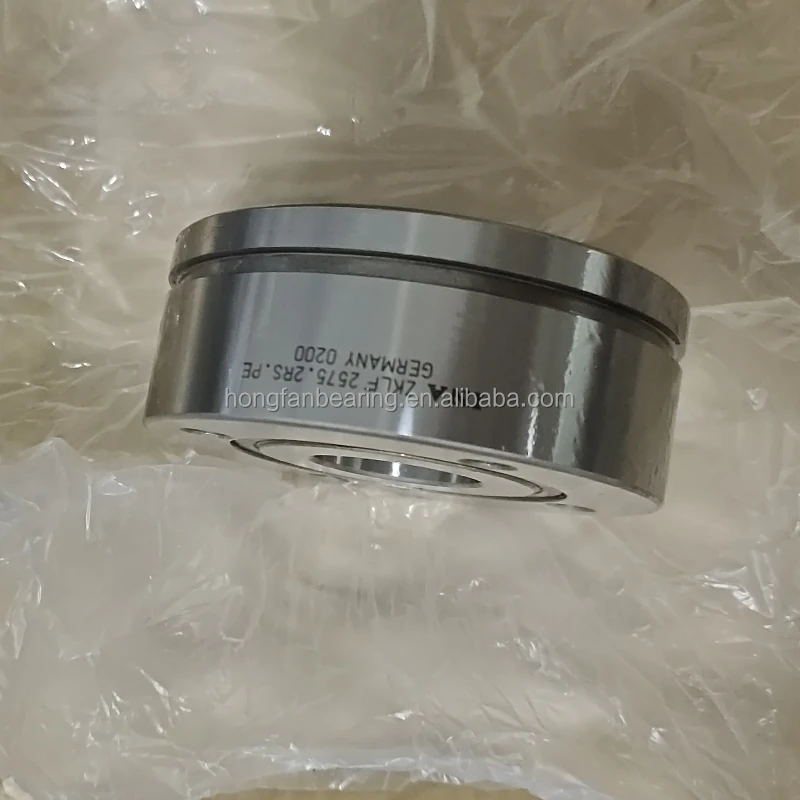

ZKLF2575 ZKLF2575-2RS Double Row Axial Thrust Angular Contact Ball Screw Support Bearing
Details Images

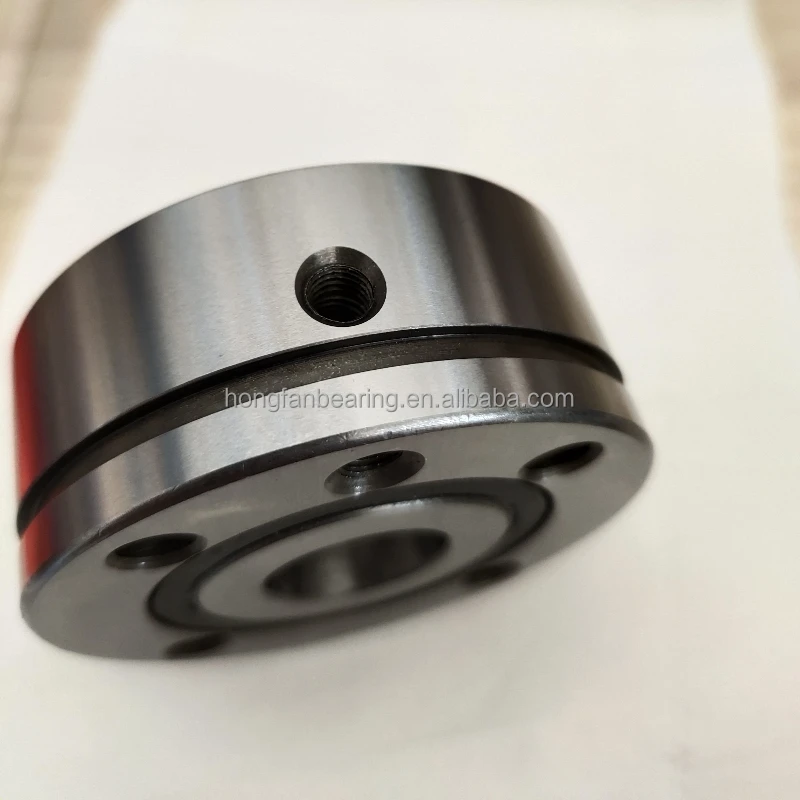

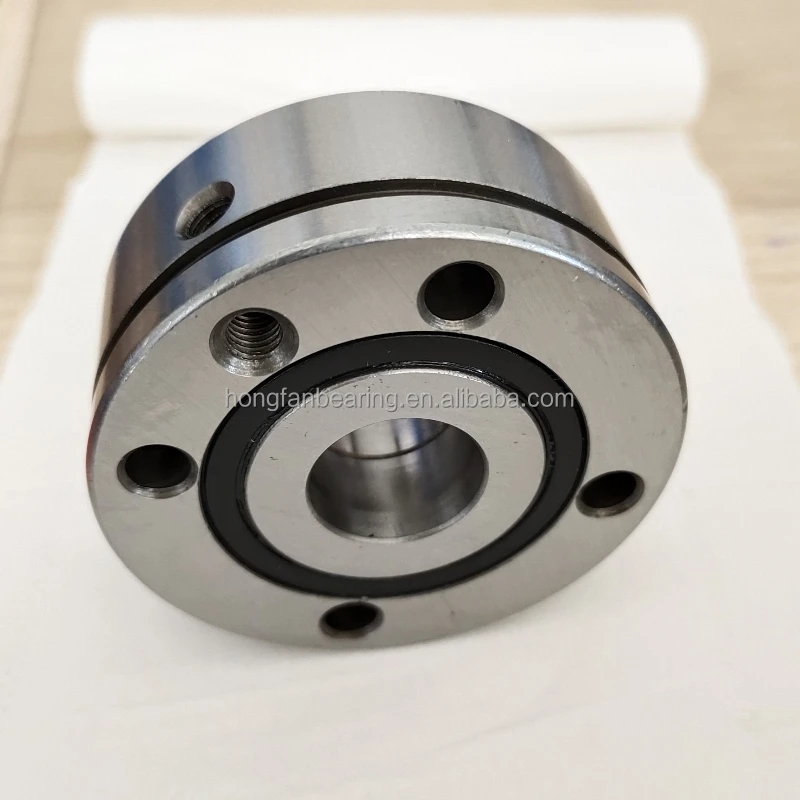

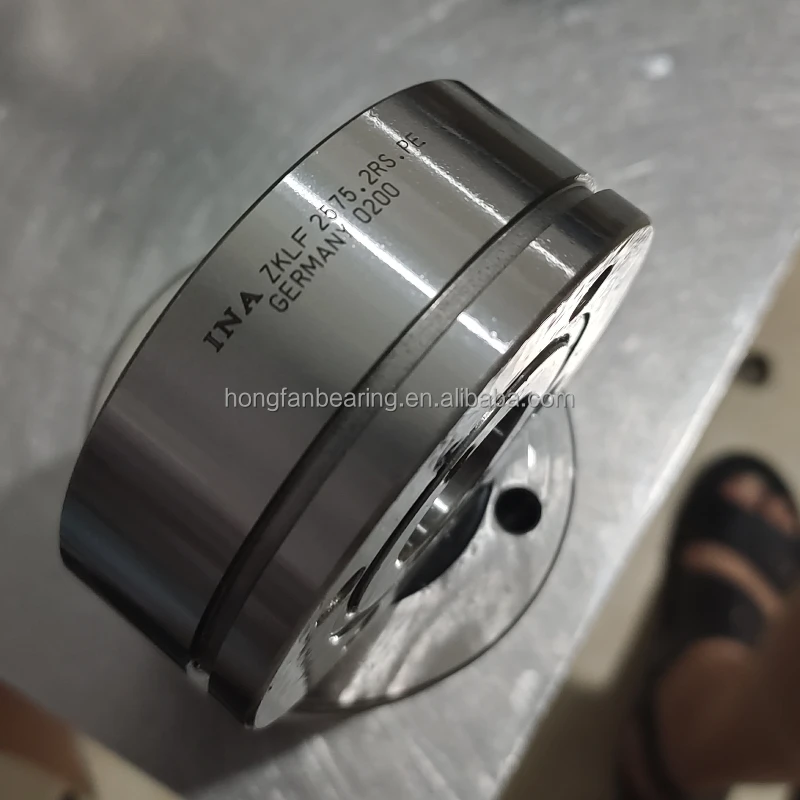

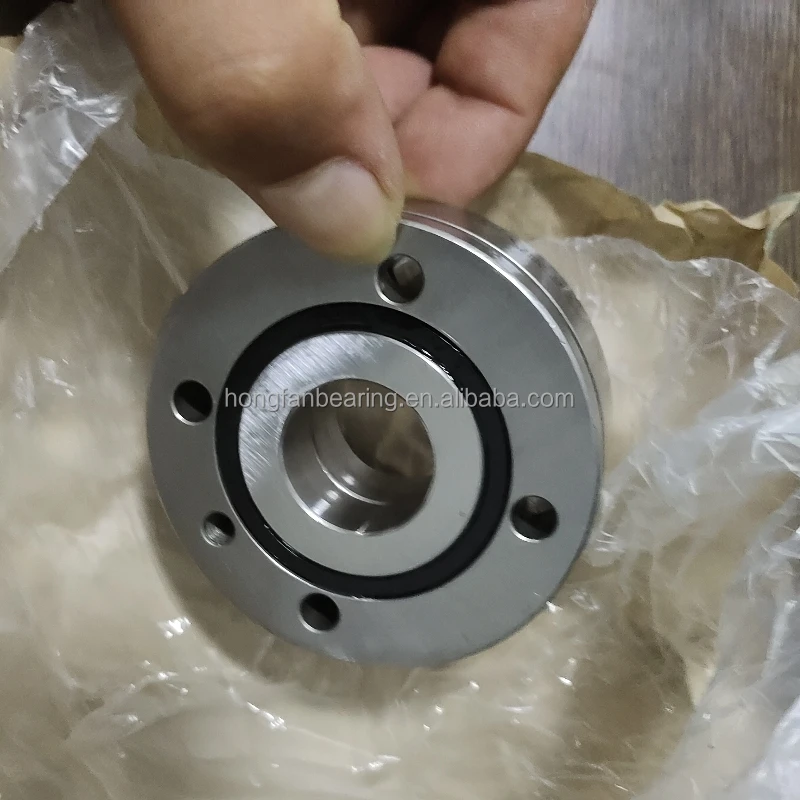

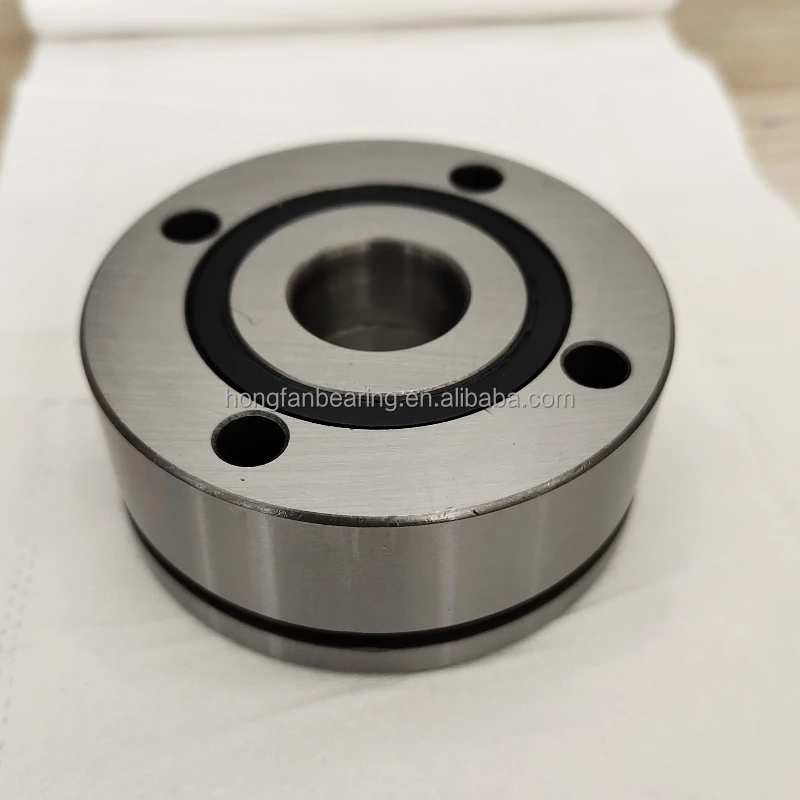

ZKLF2575 ZKLF2575-2RS Double Row Axial Thrust Angular Contact Ball Screw Support Bearing
* With lip seals or minimal gap seals ZKLF..-2RS, ZKLF..-2Z, ZKLF..-2RS-PE
* Matched pair ZKLF..-2RS-2AP
* Matched pair ZKLF..-2RS-2AP
Suffix description
* 2RS---------Lip Seal At Both Sides Of The Bearing, Axial Fitting
* PE-----------Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings
* 2RS---------Lip Seal At Both Sides Of The Bearing, Axial Fitting
* PE-----------Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

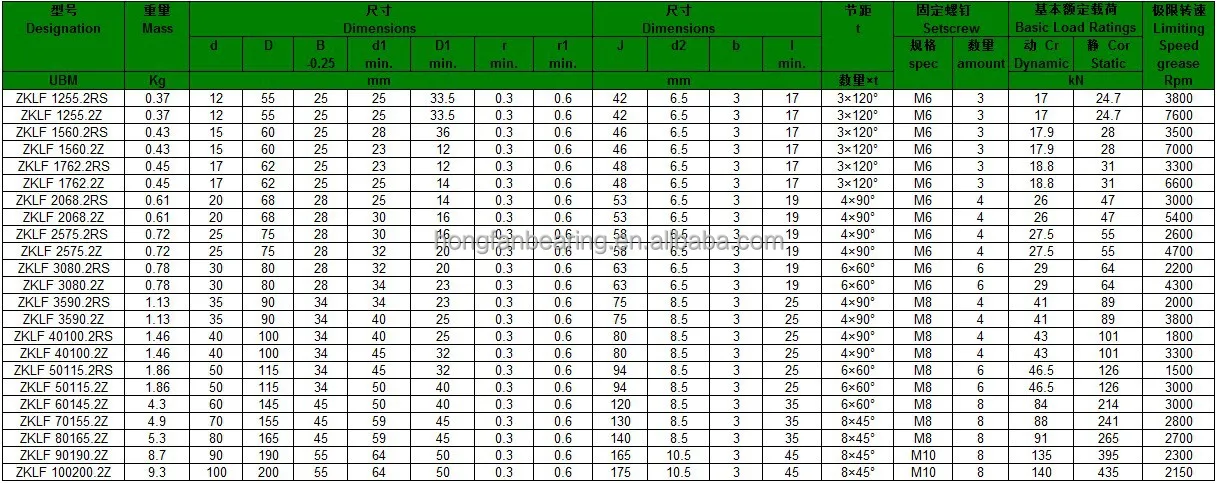

Product Paramenters
ZKLF..-2RS | ZKLF..-2Z | d (mm) | D (mm) | B (mm) |
double direction, for screw mounting, lip seals on both sides | double direction, for screw mounting, gap seals on both sides | |||
ZKLF1255-2RS-XL | ZKLF1255-2Z-XL | 12 | 55 | 25 |
ZKLF1560-2RS-XL | ZKLF1560-2Z-XL | 15 | 60 | 25 |
ZKLF1762-2RS-XL | ZKLF1762-2Z-XL | 17 | 62 | 25 |
ZKLF2068-2RS-XL | ZKLF2068-2Z-XL | 20 | 68 | 28 |
ZKLF2575-2RS-XL | ZKLF2575-2Z-XL | 25 | 75 | 28 |
ZKLF3080-2RS-XL | ZKLF3080-2Z-XL | 30 | 80 | 28 |
ZKLF30100-2RS-XL | ZKLF30100-2Z-XL | 30 | 100 | 38 |
ZKLF3590-2RS-XL | ZKLF3590-2Z-XL | 35 | 90 | 34 |
ZKLF40100-2RS-XL | ZKLF40100-2Z-XL | 40 | 100 | 34 |
ZKLF40115-2RS-XL | ZKLF40115-2Z-XL | 40 | 115 | 46 |
ZKLF50115-2RS-XL | ZKLF50115-2Z-XL | 50 | 115 | 34 |
ZKLF50140-2RS-XL | ZKLF50140-2Z-XL | 50 | 140 | 54 |
ZKLF60145-2Z-XL | 60 | 145 | 45 | |
ZKLF70155-2Z-XL | 70 | 155 | 45 | |
ZKLF80165-2Z-XL | 80 | 165 | 45 | |
ZKLF90190-2Z-XL | 90 | 190 | 55 | |
ZKLF100200-2Z-XL | 100 | 200 | 55 |
Products Description
Product name | ZKLF2575 ZKLF2575-2RS Double Row Axial Thrust Angular Contact Ball Screw Support Bearing |
Material | chrome steel |
Size | 25X75x28mm |
Weight | 0.761kg |
Packing type | CLUNT packaging |
Sample | Available but its charged |
Delivery time | 1.1-2 days for 100-200pcs 2.One week for 10000-20000pcs |
Payment terms | Paypal,western union,alibaba and TT |
Thrust angular contact ball bearings have the characteristics of low friction, high rotation accuracy, high limit speed, etc., can withstand higher axial and radial loads and have higher tilt rigidity. This kind of bearing is especially suitable for the field of compound load and precision. It is widely used in machine tool rotary table, grinding head and various test equipment.
Bearing characteristics:
1. High precision: the precision can reach P4, P2 level;
2. High rigidity: all bearings in this series are provided with preload;
3. High speed: It can be used in the working place with high speed.
4. Multi-directional load: The contact angle is 60 °, which can bear axial load, radial load and overturning load.
5. Low friction: small rotating friction torque.
Scope of application: It is widely used in machining centers, precision rotary tables, high-precision testing machinery, medical equipment, etc.Screw roller bearing seat ZKLN2557-2 rs can replace the big brand .

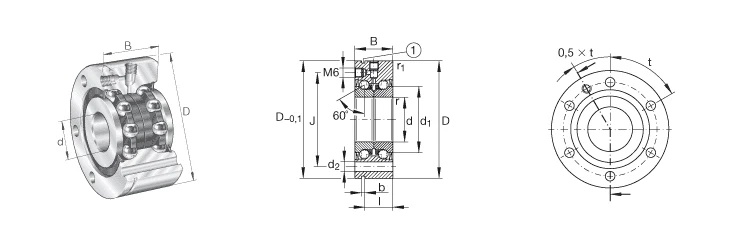

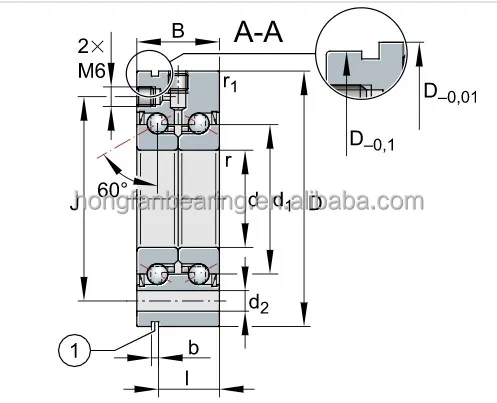

structure as a separate outer ring, two and a half of inner ring and ball cage components and sealing ring. , is made up of two direction of 60 ° arranged according to O form of angular contact ball bearing contact Angle. •
can withstand the bearing load from two directions can bear radial load. , can be in assembly time is obtained by precise locknut preloading. , a sealing ring or dust cover to prevent the pollution of bearing internal. , bearing is pre-filled with the high quality and long life of compound lithium base grease.
Can then be reproduced by greasing holes, grease lubrication. ,
can work at 30 ° C to + 120 ° C - (by grease, sealing ring material and plastic cage's decision). , can be used for precise installation of occasions, such as driving screw. • double sealing ring or dust cover.
Bearing characteristics:
1. High precision: the precision can reach P4, P2 level;
2. High rigidity: all bearings in this series are provided with preload;
3. High speed: It can be used in the working place with high speed.
4. Multi-directional load: The contact angle is 60 °, which can bear axial load, radial load and overturning load.
5. Low friction: small rotating friction torque.
Scope of application: It is widely used in machining centers, precision rotary tables, high-precision testing machinery, medical equipment, etc.Screw roller bearing seat ZKLN2557-2 rs can replace the big brand .
structure as a separate outer ring, two and a half of inner ring and ball cage components and sealing ring. , is made up of two direction of 60 ° arranged according to O form of angular contact ball bearing contact Angle. •
can withstand the bearing load from two directions can bear radial load. , can be in assembly time is obtained by precise locknut preloading. , a sealing ring or dust cover to prevent the pollution of bearing internal. , bearing is pre-filled with the high quality and long life of compound lithium base grease.
Can then be reproduced by greasing holes, grease lubrication. ,
can work at 30 ° C to + 120 ° C - (by grease, sealing ring material and plastic cage's decision). , can be used for precise installation of occasions, such as driving screw. • double sealing ring or dust cover.
Our Advantages
Our Advantage:
We supply service as below:
1, OEM service, custom bearing's size, logo and packing.
2, CE certificate, EPR certificate. SGS report.
3, One year warranty.
4, Competitive wholesale price. 5, Short lead-time and fast delivery.
6, Free sample for regular customers.
New buyer can get part bearings as free sample
1, OEM service, custom bearing's size, logo and packing.
2, CE certificate, EPR certificate. SGS report.
3, One year warranty.
4, Competitive wholesale price. 5, Short lead-time and fast delivery.
6, Free sample for regular customers.
New buyer can get part bearings as free sample
Packing & Shipping
Packing:
Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with us)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as following.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with supplier)
.
Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with us)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as following.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with supplier)
.

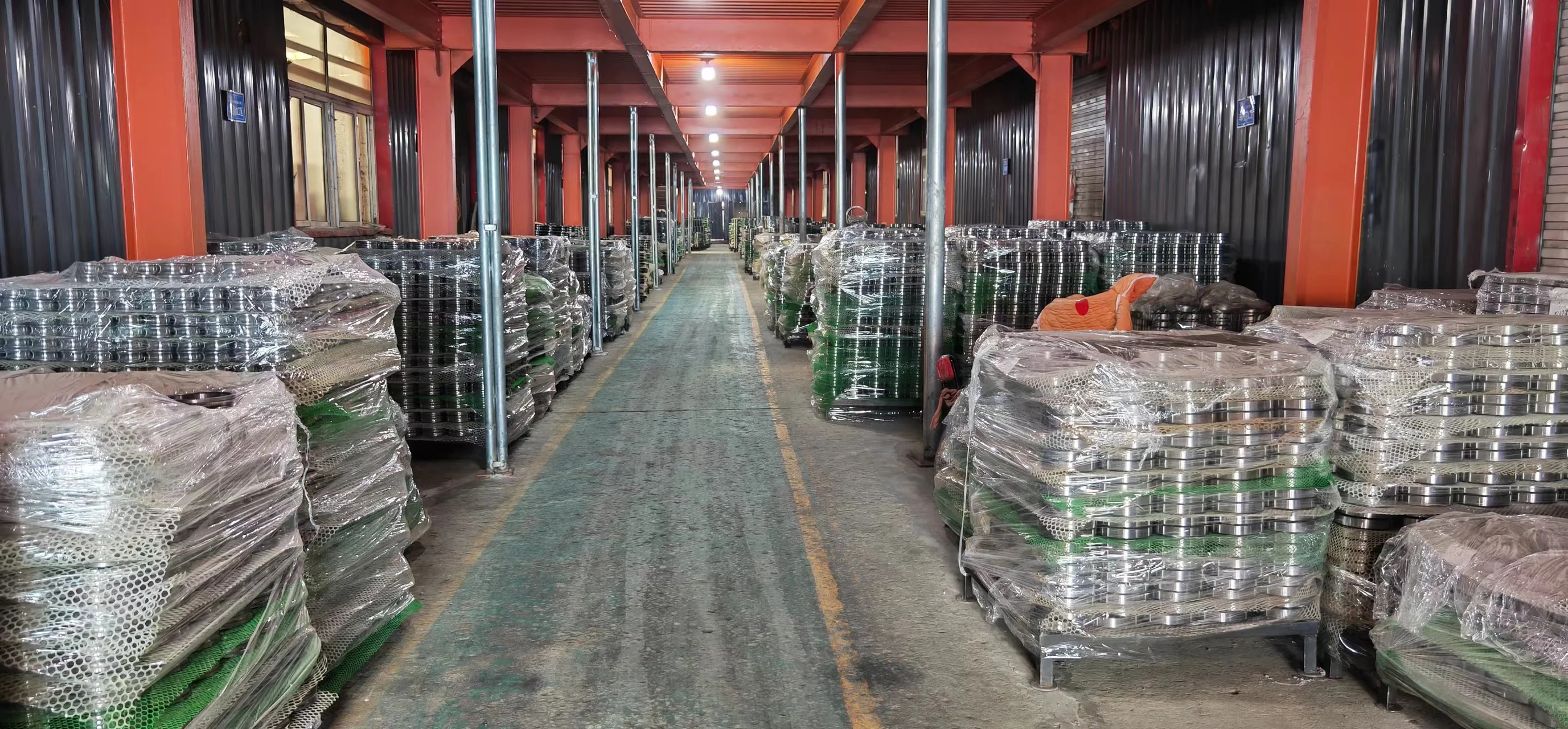

Company Profile
