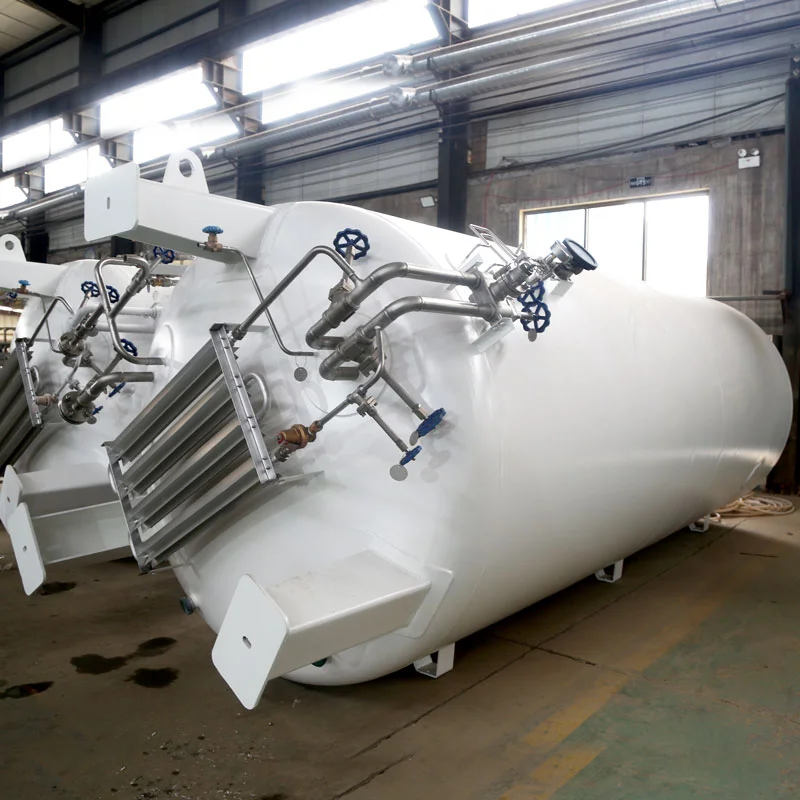

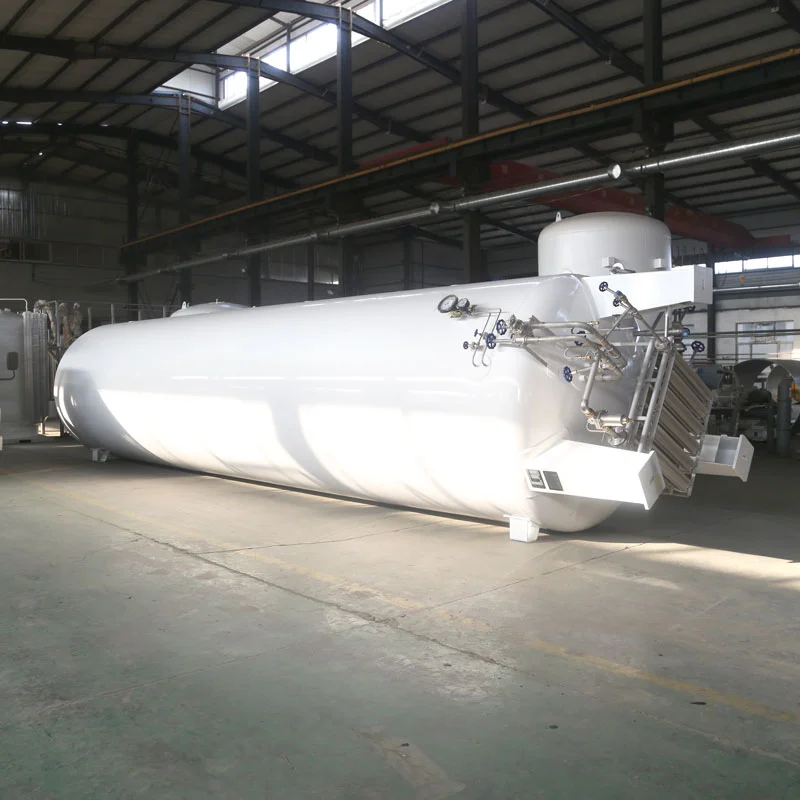

15m3 8bar Cryogenic Storage Tank For Industrial Gas Liquid Oxygen Nitrogen Argon CO2 LNG
- Category: >>>
- Supplier: Xinxiang Jinxin Import And Export Machinery Co. Ltd.
Share on (1600954495020):
Product Overview
Description
Product Description
High Quality Cryogenic Liquid Storage Tank
Cryogenic liquid storage tank is with double wall, vertical or horizontal structure, adopting vacuum powder insulation, has features of compact structure, low issuance date, small footprint, centralized control, safe and reliable, easy operation and
maintenance.
Specific cryogenic liquid storage tanks with given pressure and effective volume can be manufactured as required.
Cryogenic Storage Tank Main Features
1.Cryogenic liquid tank, I produced one, two, three types of pressure vessel in a series of products, the products strictly in accordance with GB150 "pressure vessel", GB18442-2011"stationary vacuun insulation cryogenic pressure vessel" and "fixed safety Technology Supervision" type of pressure vessel design, manufacture, insection and acceptance.
2.Cryogenic liquid storage tanks for double wall, vertical(horizontal)structure, the use of vacuum power insulation , with a compact, low issuance date, small footprint, centralized control, safe, reliable, easy operation and maintenance.
3.The low-temperature liquid storage tank is a vacuum powder insulation type, and the structure is composed of a content device and an outer container, which can be divided into two types: vertical and horizontal. According to the contents of containing medium, selection of materials for austenitic stainless steel, 0Gr18Ni9; outer container materials according to the regions of the user choose different Q235 - B or Q345R, inside and outside the container sandwich heat insulating materials are filled perlite and vacuum.
4.Insulation material selection of hot pearl sand filling layer and vacuum, the company to superb technology and unique filling process, commitment to quality assurance, in order to achieve the best effect of heat insulation. The anti-corrosion coating on the surface of sand blasting, blowing, spraying, while using a two-component fast curing liquid coating.

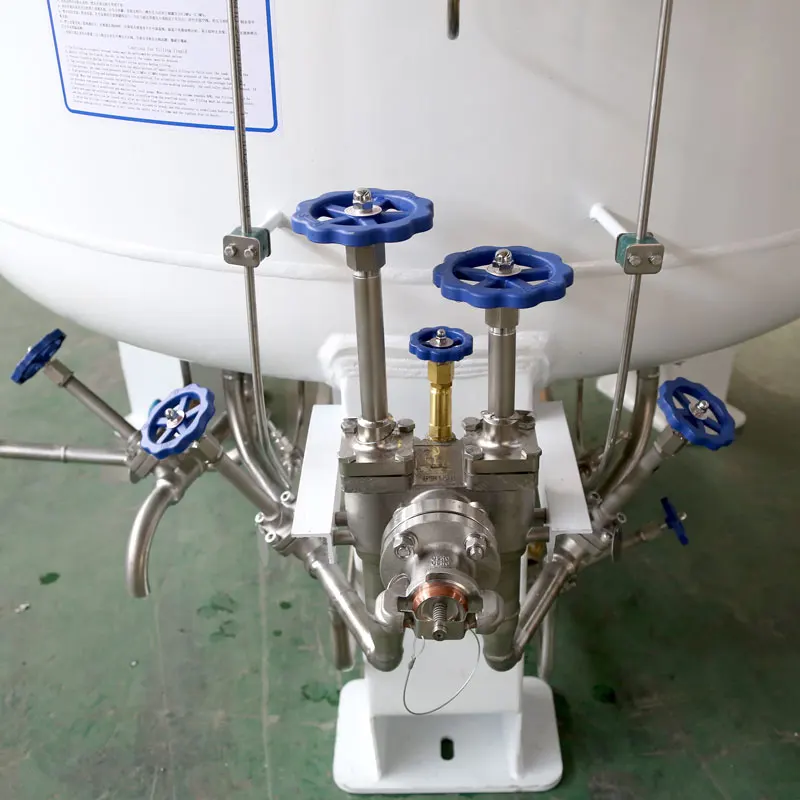

5.Storage tanks using the combination, safety system valve, the use of two groups of safety valve at the same time, the safety valve on a regular check can be closed to the side, the other side to continue to work to ensure the safe operation of the tank.

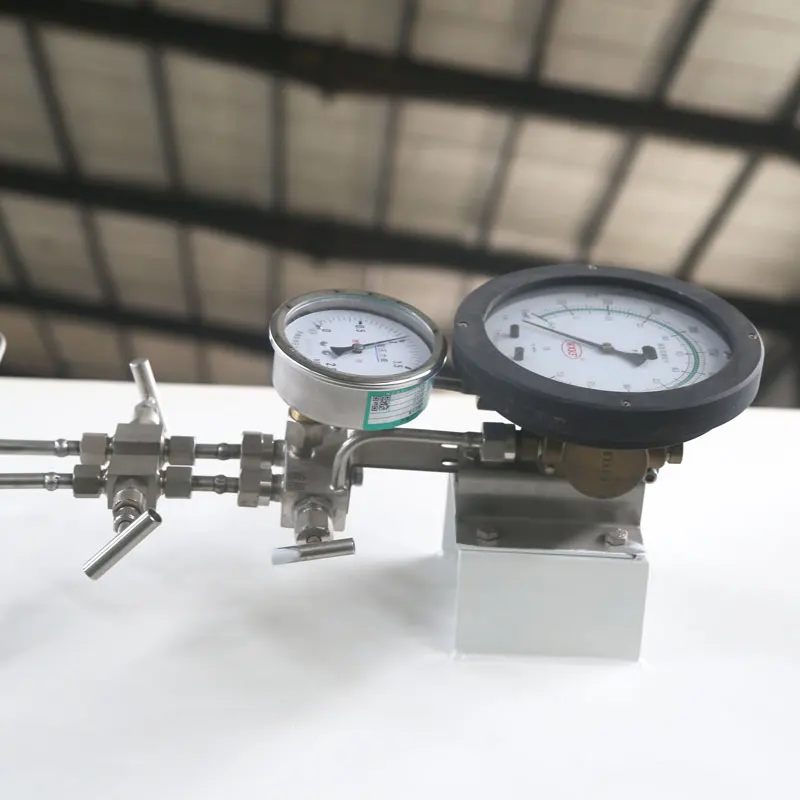

6.Tank contents of the upper part of the set pressure gauge, differential pressure type liquid level gage and liquid level control table, can at any time to master the content storage and pressure changes for filling and discharge operations.
7.The lower part of the storage tank is provided with a special storage tank vacuum detection, vacuum gauge and vacuum valve can be used at any time and at any time to detect the vacuum degree of the sandwich layer, to ensure the safe operation of the storage tank.
2.Cryogenic liquid storage tanks for double wall, vertical(horizontal)structure, the use of vacuum power insulation , with a compact, low issuance date, small footprint, centralized control, safe, reliable, easy operation and maintenance.
3.The low-temperature liquid storage tank is a vacuum powder insulation type, and the structure is composed of a content device and an outer container, which can be divided into two types: vertical and horizontal. According to the contents of containing medium, selection of materials for austenitic stainless steel, 0Gr18Ni9; outer container materials according to the regions of the user choose different Q235 - B or Q345R, inside and outside the container sandwich heat insulating materials are filled perlite and vacuum.
4.Insulation material selection of hot pearl sand filling layer and vacuum, the company to superb technology and unique filling process, commitment to quality assurance, in order to achieve the best effect of heat insulation. The anti-corrosion coating on the surface of sand blasting, blowing, spraying, while using a two-component fast curing liquid coating.
5.Storage tanks using the combination, safety system valve, the use of two groups of safety valve at the same time, the safety valve on a regular check can be closed to the side, the other side to continue to work to ensure the safe operation of the tank.
6.Tank contents of the upper part of the set pressure gauge, differential pressure type liquid level gage and liquid level control table, can at any time to master the content storage and pressure changes for filling and discharge operations.
7.The lower part of the storage tank is provided with a special storage tank vacuum detection, vacuum gauge and vacuum valve can be used at any time and at any time to detect the vacuum degree of the sandwich layer, to ensure the safe operation of the storage tank.
Technical Paramenters
Effective volume | 2~150 m3 |
Working pressure | 0.2~1.6Mpa |
Working medium | Liquid oxygen, liquid argon, liquid nitrogen, LNG |
Installation style | Vertical or horizontal |
Notice: Special cryogenic liquid storage tanks are welcomed to be customized as per the give pressure and effective volume. Send inquiry

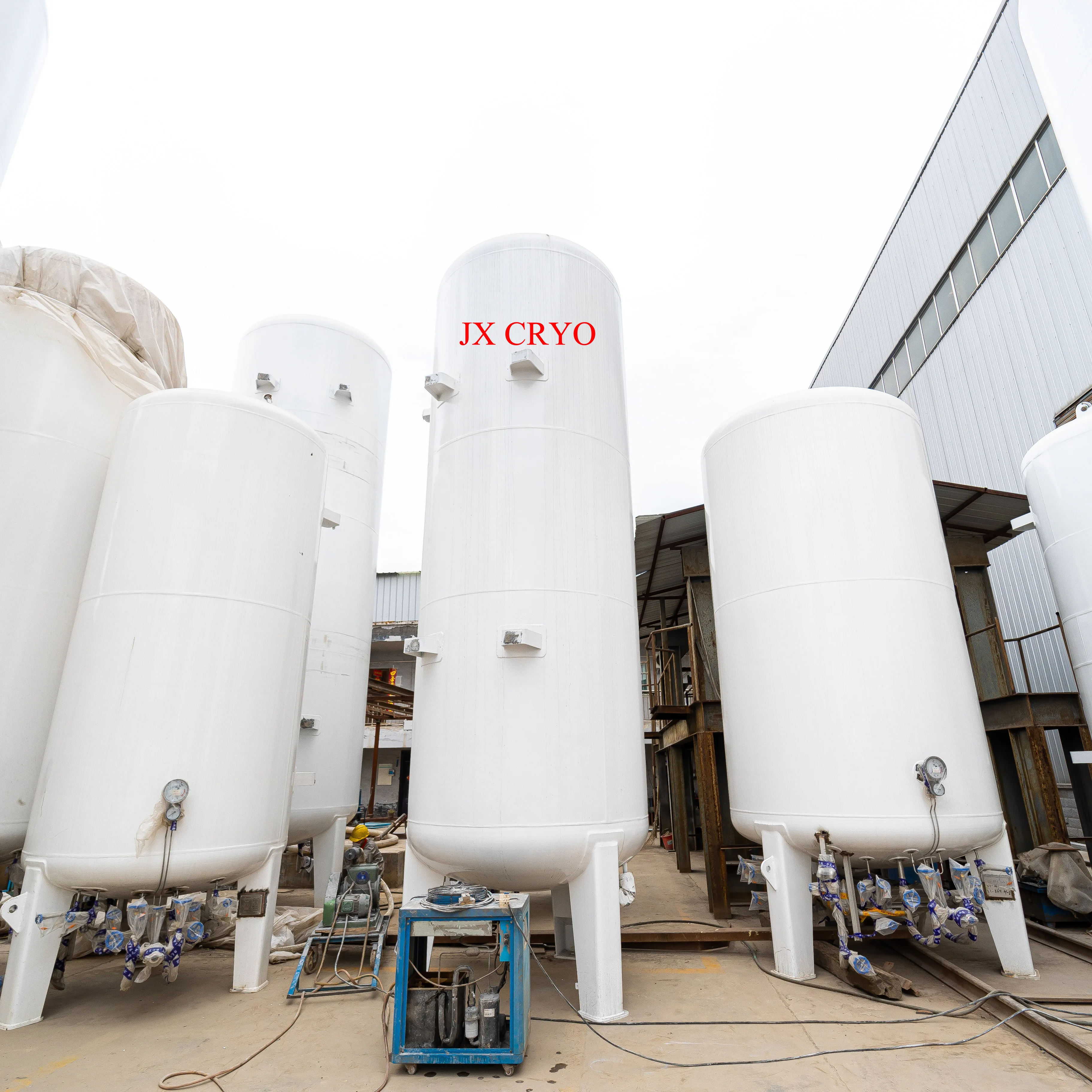

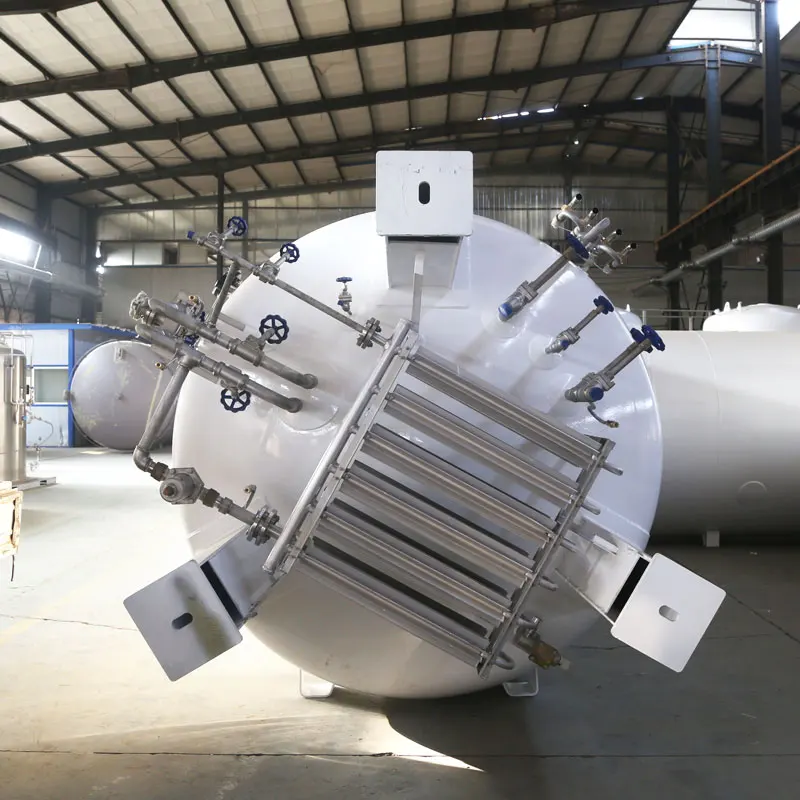

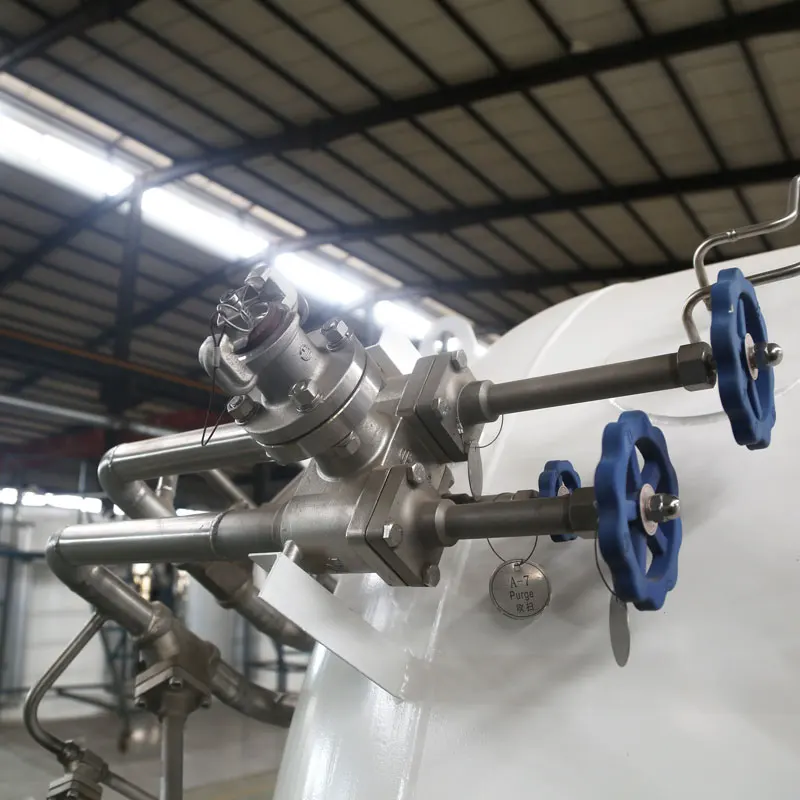

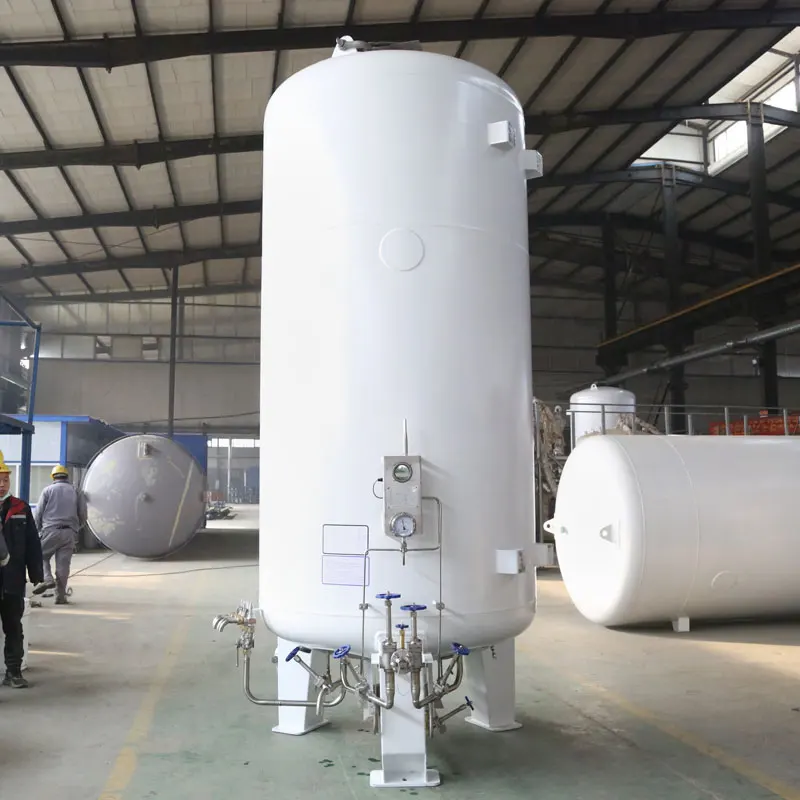

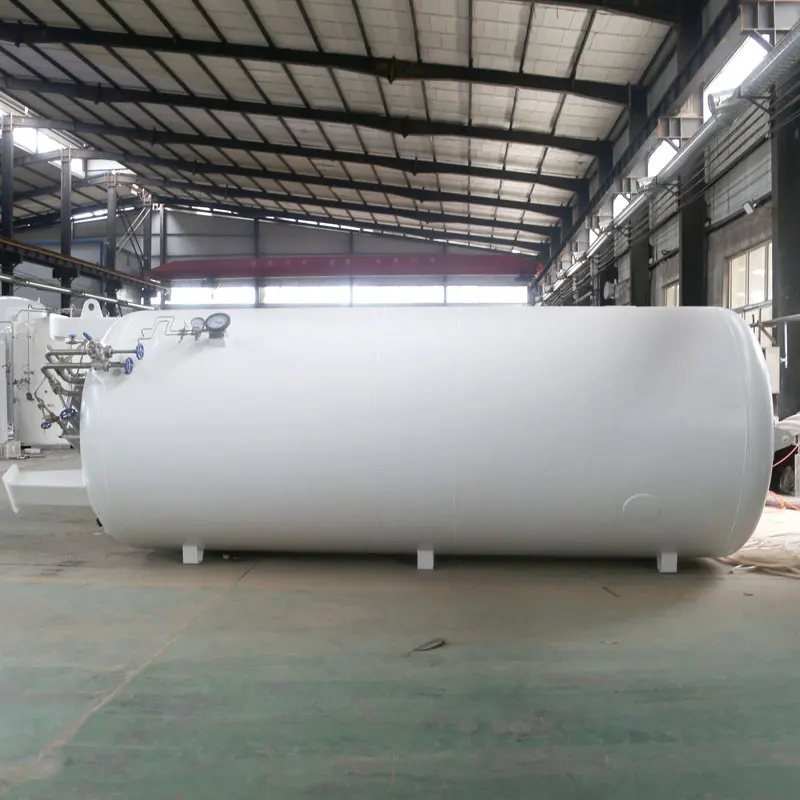

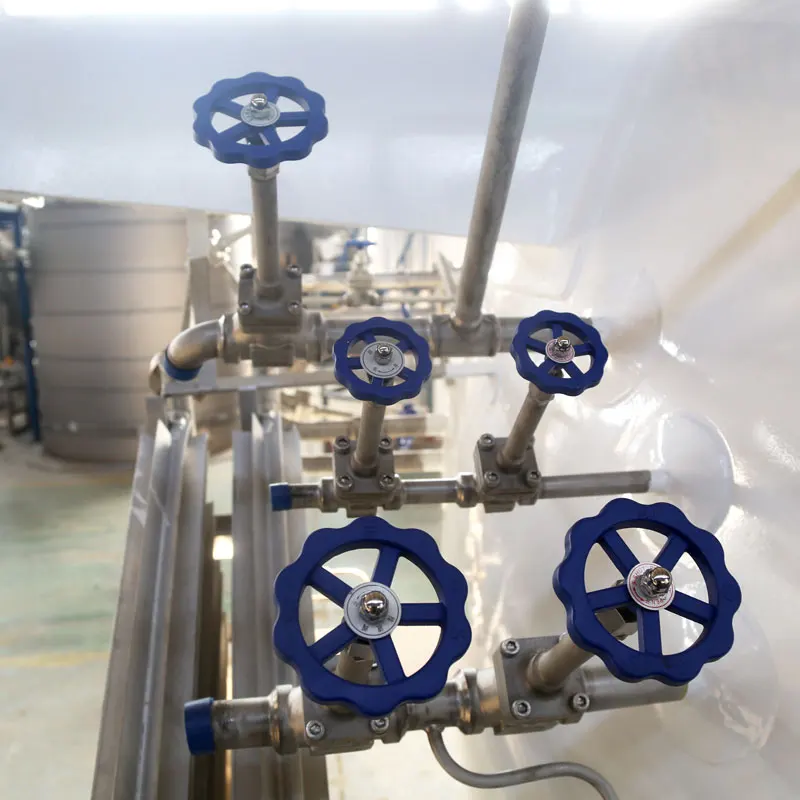

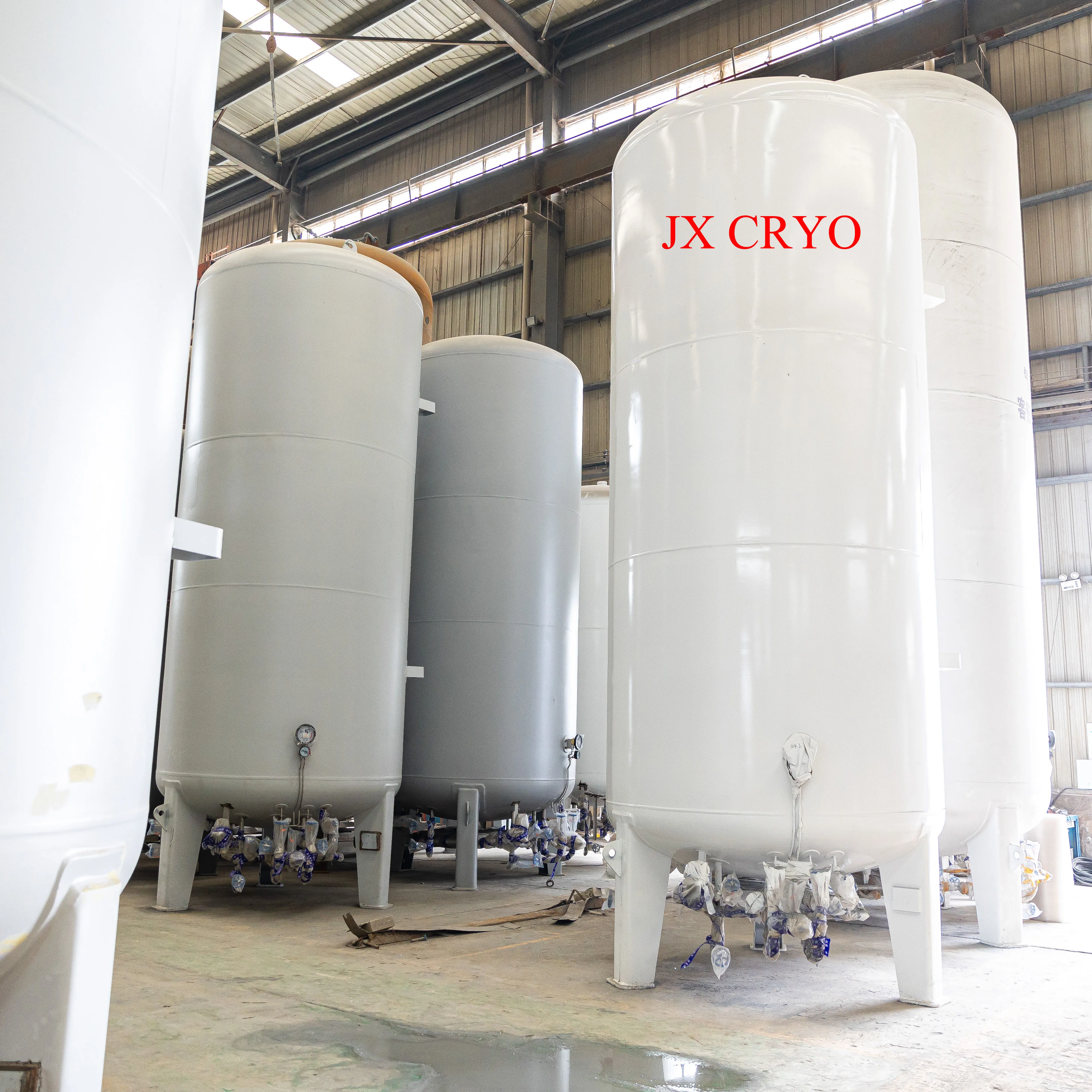

Details Images

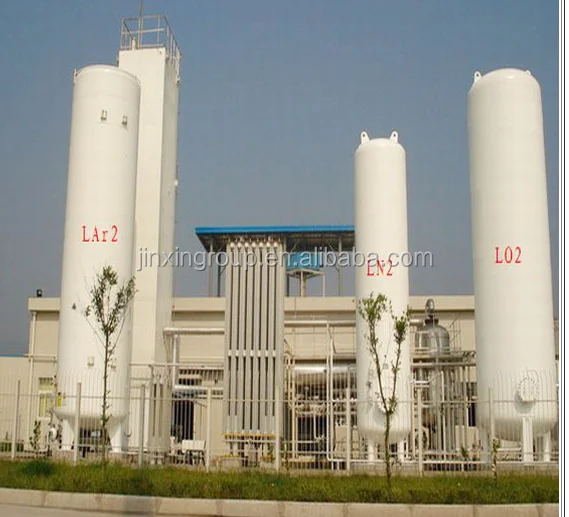

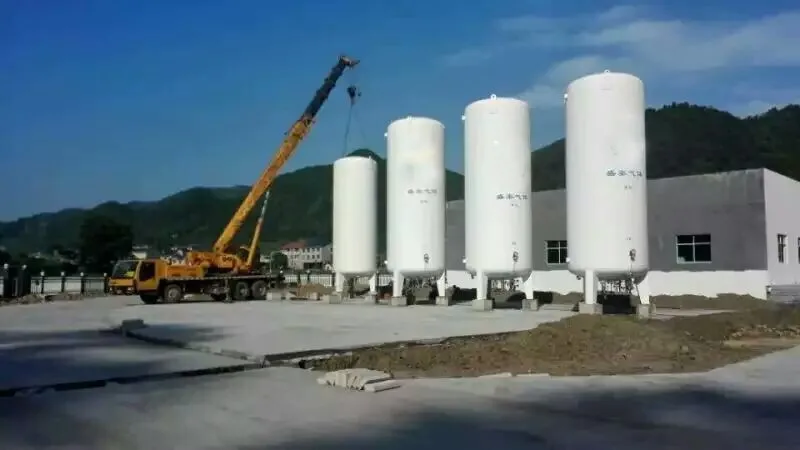

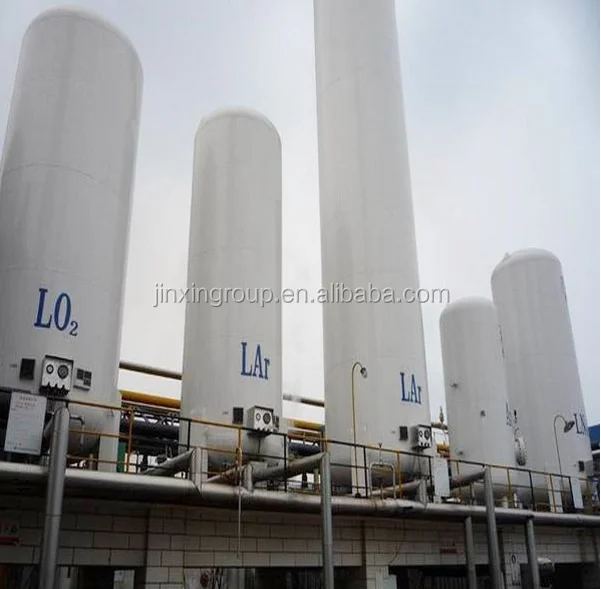

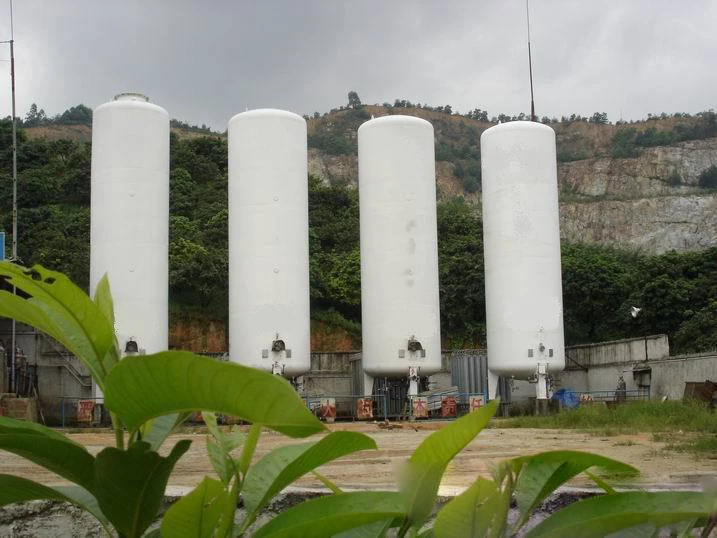

Product Application

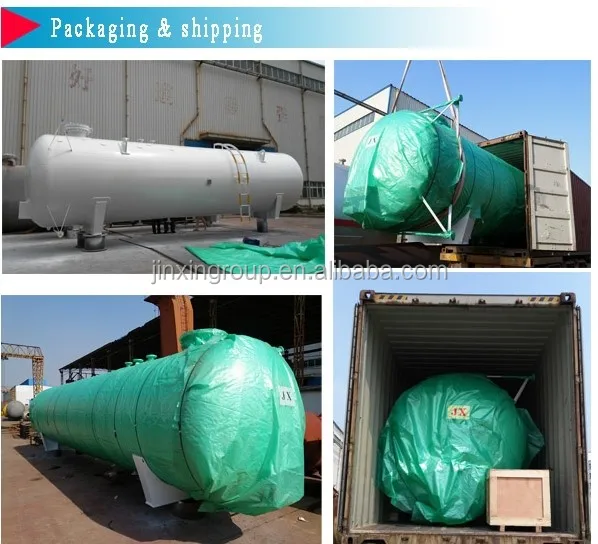

Packing & Delivery
Valves will be matched with the tank together.
Related Produts
lquid nitrogen self-pressurized cylinder from 15L-500L
Liquid nitrogen container from 2L-100L
Cryogenic protective gloves
32cm/38cm/48cm/58cm/68cm

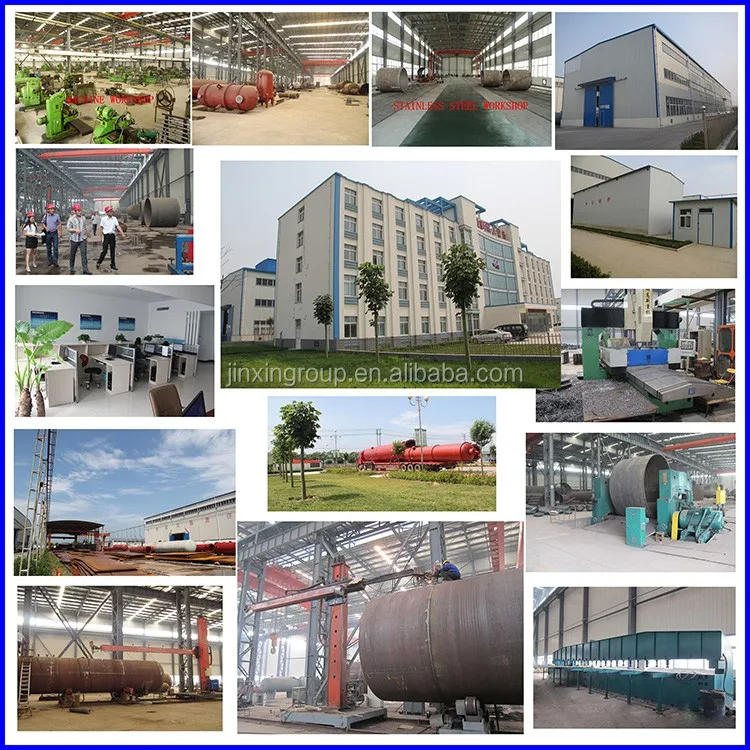

Company Profile
