Manufacture 5 axis cnc machine with tool changer for shoe mould Large 5 axis cnc milling machine for metals
- Category: >>>
- Supplier: Shandong Shanshu Machinery Co. Ltd.
Share on (1600954598136):
Product Overview
Description
Feature
3D Wooden Buddha Statue Foam Carving Making cnc 5 axis drilling machine

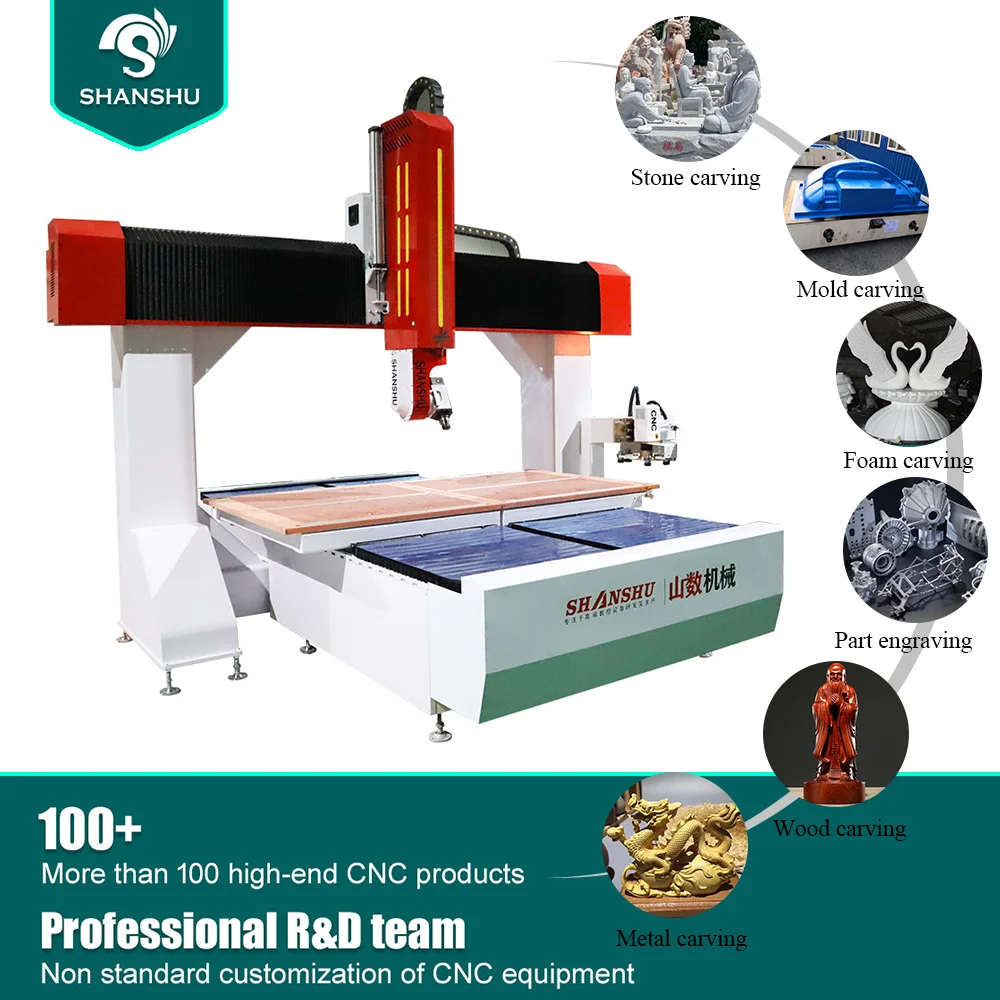

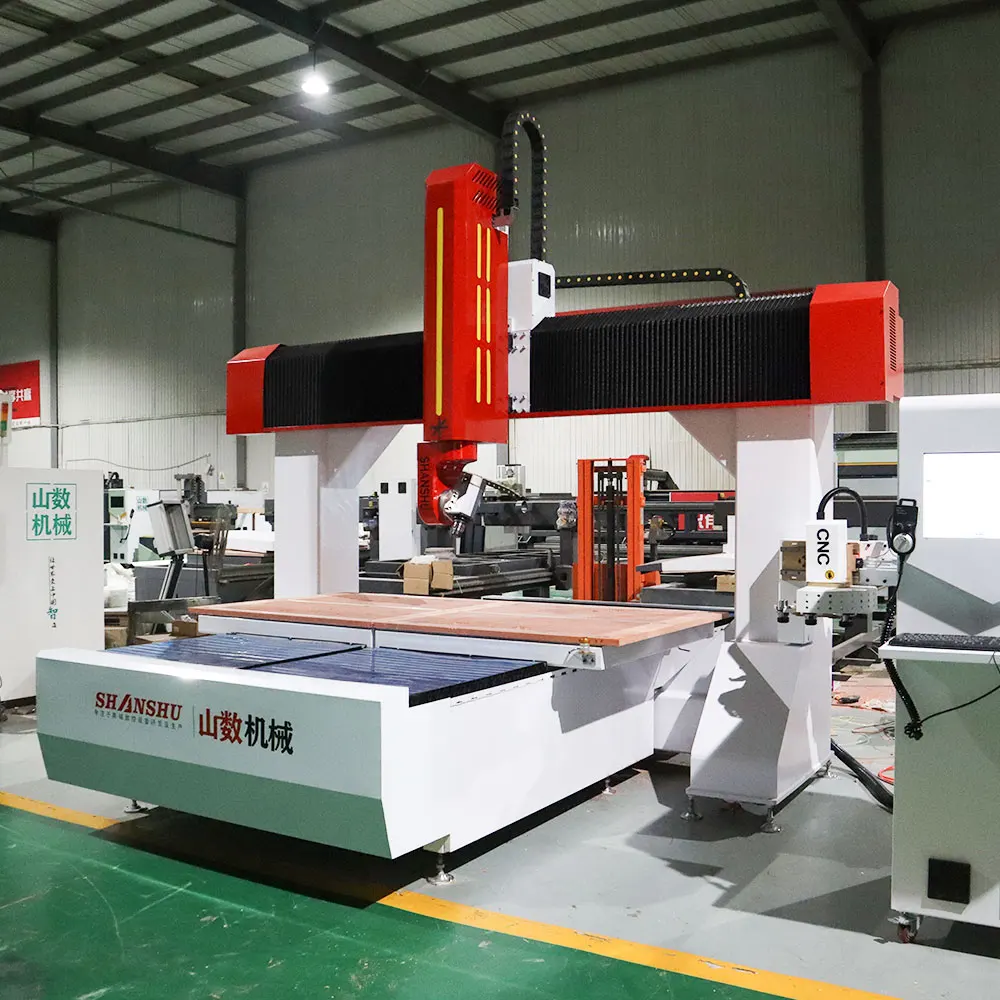

This is a 5 axis CNC router specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.
* With control system, high machining accuracy and high performance.
* High Z-axis travel, so that very suitable for processing large-scale three-dimensional surface.
* Auto tool change, greatly improve the quality and efficiency.
* With control system, high machining accuracy and high performance.
* High Z-axis travel, so that very suitable for processing large-scale three-dimensional surface.
* Auto tool change, greatly improve the quality and efficiency.
More than100 testing projects
with worry free quality
with worry free quality
Specification
Product name | 2513 5-Axis Cnc Router |
Brand Name | SHANSHU |
Working Table Size(mm) | 2500*1300mm |
Travel (Z Axis)(mm) | 100-1300mm |
Bed support | welding of steel structure，tempering |
Table Structure | Welding platform, vacuum adsorption platform (including 7.5KW high-pressure air pump) |
Rail | Steel strip dustproof 30 high precision straight square rail（Original flange slider） |
Turn-screw | X-axis 4020TBI high-precision grinding screw ,Z-axis 4020TBI high-precision grinding screw ,Y-axis 3220TBI high-precision grinding screw |
Spindle power | 11KW |
Tool magazine | 8-blade disc tool changer magazine |
Five axis head | Yaskawa 750W+400W bus absolute value AC server |
Motor drive | XYZ axis Yaskawa 1300w bus absolute value AC servo |
Control system | New generation 610MA-E5-VGA five axis dedicated system |
Auxiliary function | ITCP |
Details Images

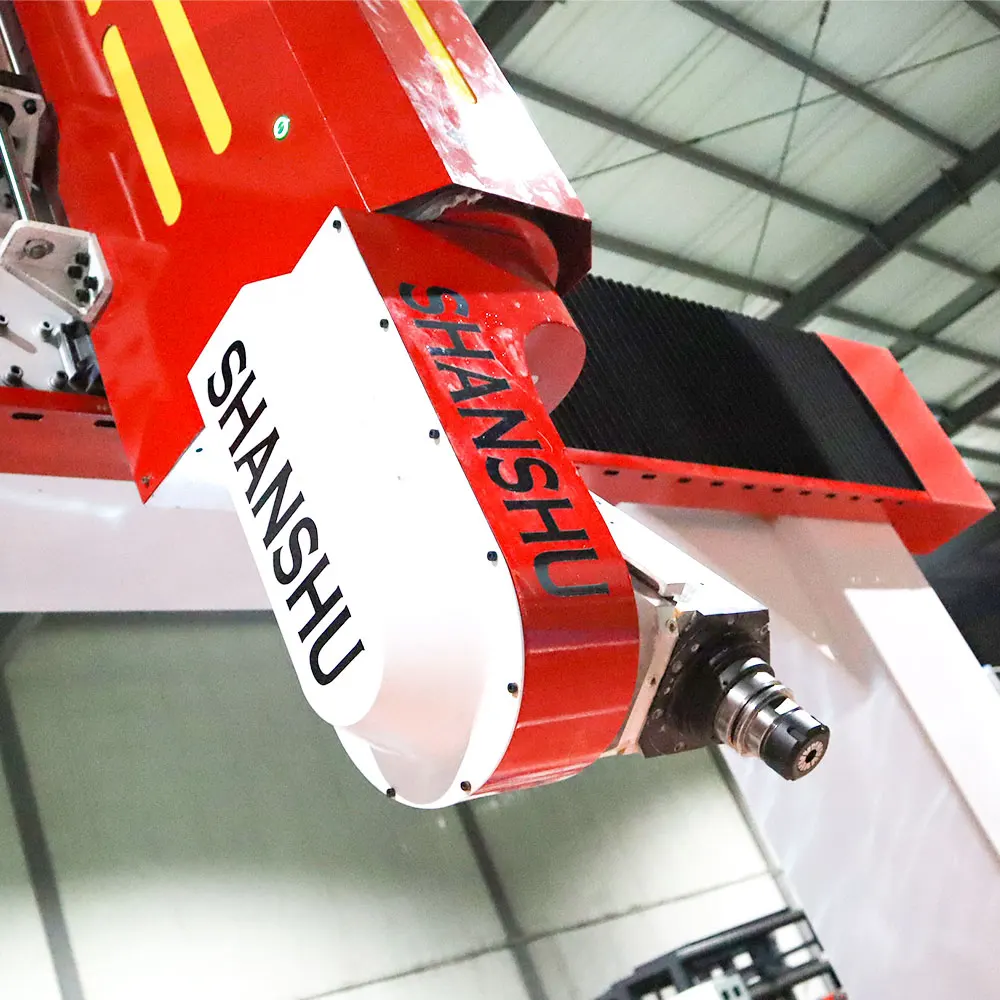

11KW spindle

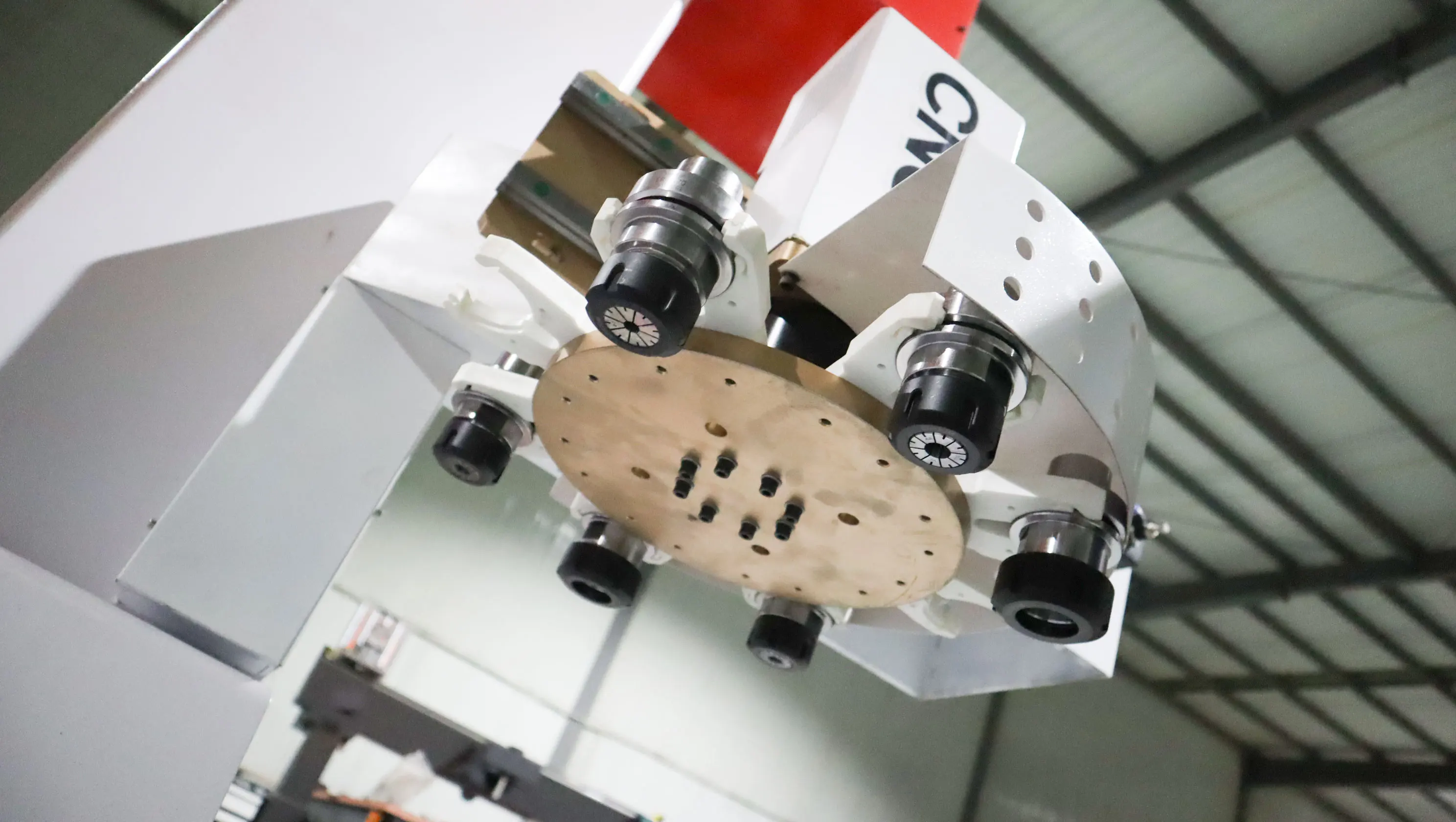

Tool magazine

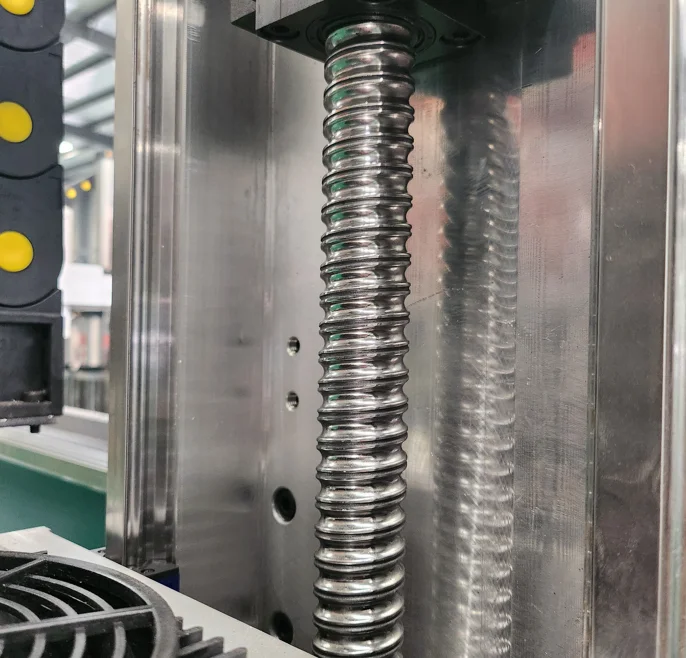

High precision grinding screw-rod
T-slot vacuum table
Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic
sheeting, PVC pipe, wooden planks and other non-metallic mold.
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic
sheeting, PVC pipe, wooden planks and other non-metallic mold.
Foam carving
Metal Parts processing
Wood carving
Stone carving
Plastic carving
Model processing
CLIENT FEEDBACK

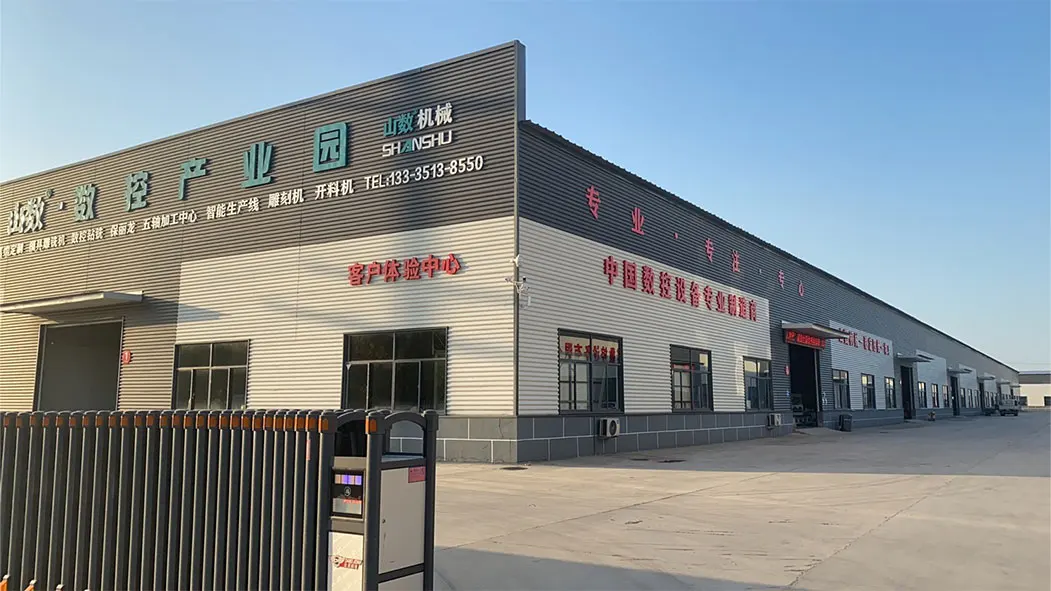

Company Profile
Shan dong shanshu Machinery Co.,Ltd.is a high-tech enterprise focusing on the research and developmentproductionand sales ofau-tomated woodworking CNC machines and panel furniture production line equipment. We have 16 years of specialization in industar exported and more than 10000 sets of machines to more than 180 countries and areas.
Production and delivery
VR
FAQ
Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
A: The complete machine has a one-year warranty and Life time maintenance.
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
