Modular Jack Up Barge Self elevating Pontoon Barge for sale
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (1600954657452):
Product Overview
Description
Product Description

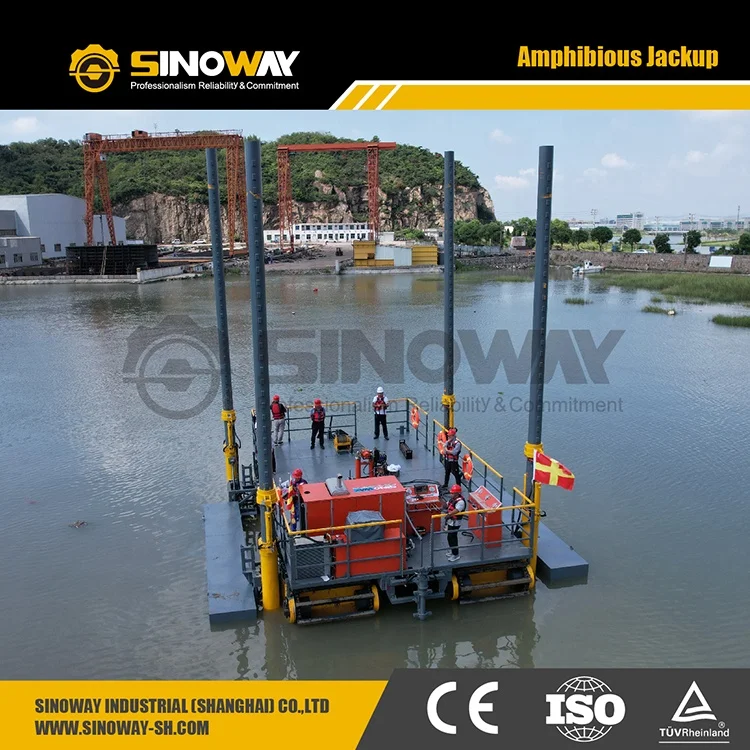

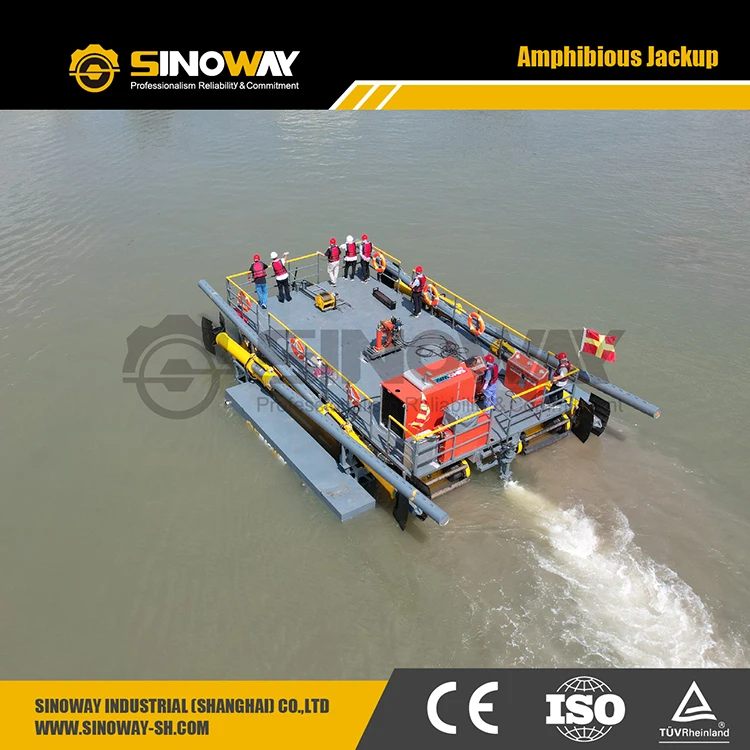

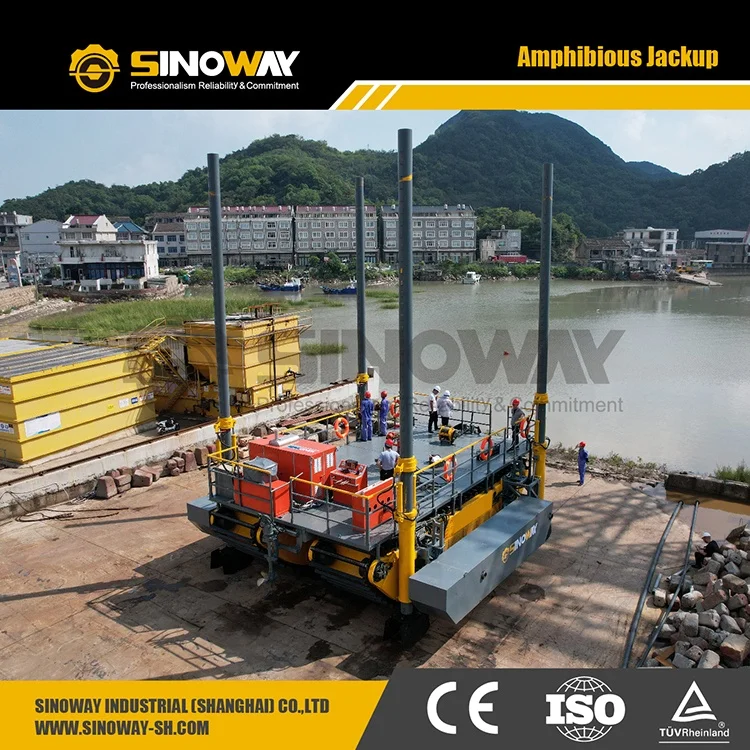

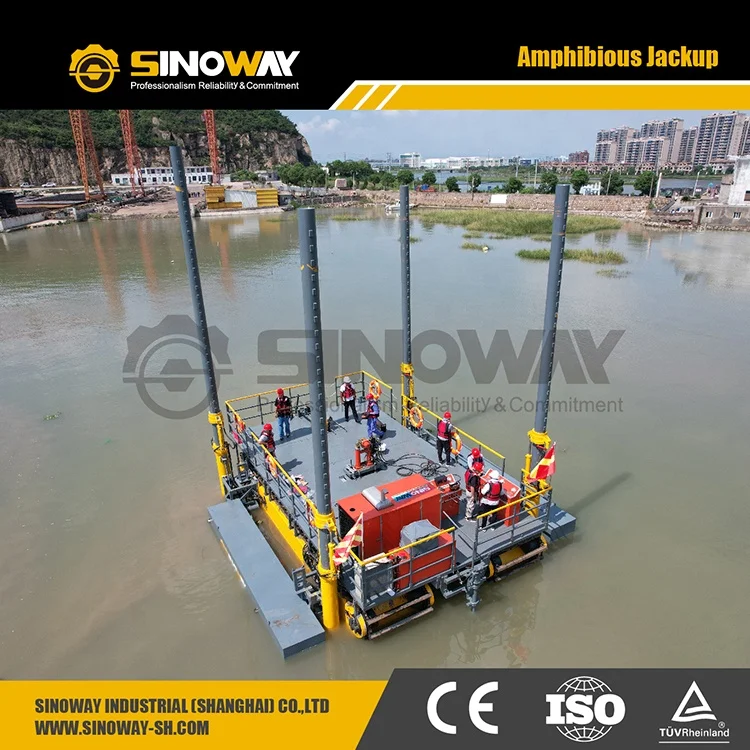

Sinoway SWSC150J modular jack-up barge is a type of mobile amphibious jack-up platform that consists of a buoyant hull (Pontoons)
fitted with a number of movable legs, capable of raising its hull over the surface of the sea. One robust Cummins engine is as power pack to drive crawler pontoon and jacking activities. The buoyant hull enables transportation of the unit and all attached machinery to a desired location. Once on location the hull is raised to the required elevation above the sea surface supported by the sea bed.
Jack up barges can be utilised in a range of marine environments which include intertidal, estuarial waters, rivers, dams and limited offshore areas where water depth and sea conditions permit.
fitted with a number of movable legs, capable of raising its hull over the surface of the sea. One robust Cummins engine is as power pack to drive crawler pontoon and jacking activities. The buoyant hull enables transportation of the unit and all attached machinery to a desired location. Once on location the hull is raised to the required elevation above the sea surface supported by the sea bed.
Jack up barges can be utilised in a range of marine environments which include intertidal, estuarial waters, rivers, dams and limited offshore areas where water depth and sea conditions permit.
Product Show
Product Paramenters
Main technical Specification | |
Gross weight | 30 ton |
Max. payload | 10 ton |
Type | 4-cylinders, water cool, turbocharging |
Rated power | 186 kw (250 hp)/2200 rmp |
Max. pressure | 320 MPa |
Max. flow | 2 × 360 L/min |
Main pump | Doosan |
Multi-way valve | Doosan |
Control valve | Doosan |
Travel motor | Doosan |
Travel speed on land | 0~2.4 km/h |
Travel speed on water | 0~0.8 km/h |
Grade ability | 30° |
Crane capacity | 8 ton (optional) |
Crane’s working radius | 12 m |
Hydraulic winch’s max pulling force | 20 ton |
Hydraulic winch’s total rope length | 50 m |
Ground pressure | 0.125 Kgf/cm2 |
Overall size (L × W × H) | 9500×6050×4100 mm |
Width of pontoon, length of pontoon | 2010 mm/1700 mm |
Platform size (L × W × H) | 8500×6000×2100 mm |
Cabin | All-steel broad cab, 360 visual angle, centralized control operator panel, ratating chair, air conditioner |
Size (L × W × H) | 1600×2000×1840 mm |
