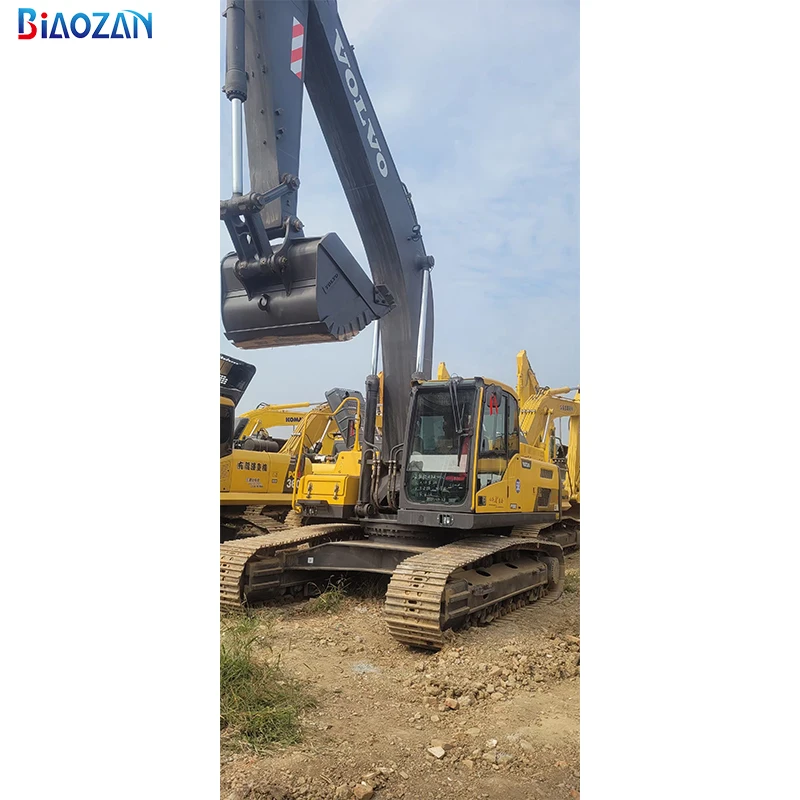

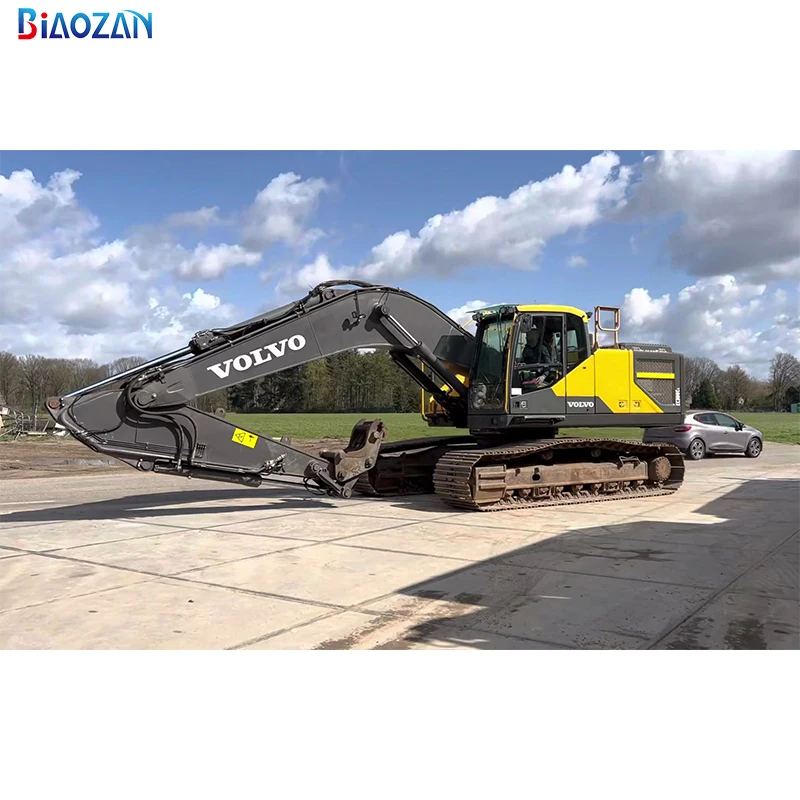

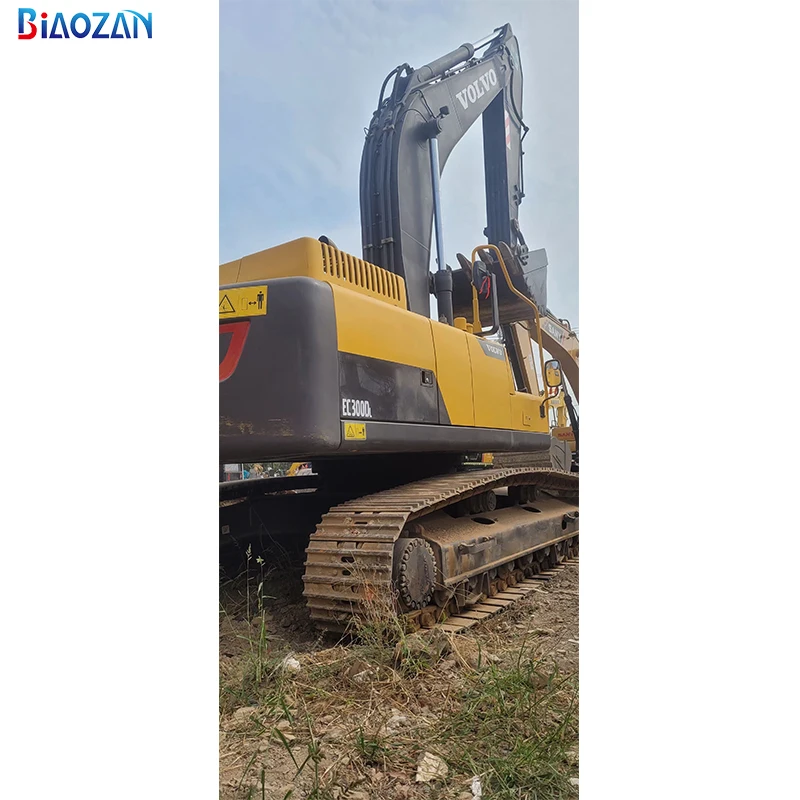

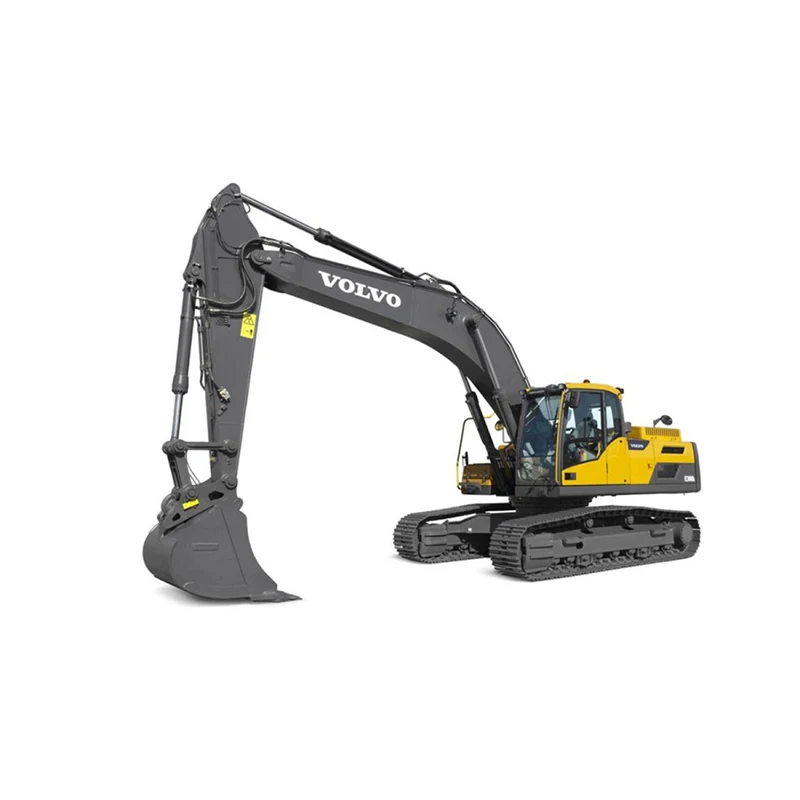

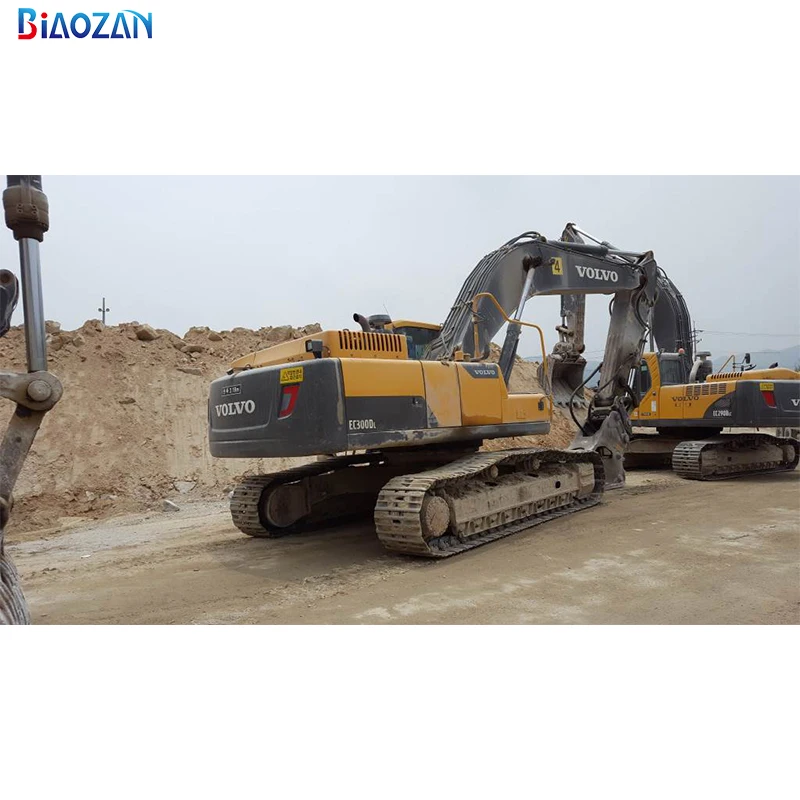

Hyundai Wholesale 30 Tons 1.4 Cubic Meters Heavy Second Hand Old Excavator Used Volvo Ec300Dl
- Category: >>>
- Supplier: Shanghai Biaozan Industrial Co. Ltd.
Share on (1600954770752):
Product Overview
Description
Products Description
item | value |
Product model | EC300DL |
Product model | Crawler excavators |
Product dynamics | Conventional power |
Bucket form | Backhoe |
Product tonnage | 30TON |
Working weight of complete machine | 30.04TON |
Bucket capacity | 1.4M³ |
Boom length | 6200MM |
Rod length | 2550MM |
Overall size | 10.64×3.19×3.09M |
Track plate width | 600MM |
Track gauge | 2590MM |
Minimum ground clearance | 480MM |
Counterweight ground clearance | 1135MM |
Engine type | D7E |
Maximum output power | 170KW |
Maximum flow of main pump | 2 x 263L/MIN |
Working hydraulic oil circuit | 33.3/36.3 |
Traveling hydraulic circuit | 36.3MPA |
Rotary hydraulic circuit | 27.9MPA |
Fuel tank capacity | 470L |
Hydraulic tank | 195L |
Engine oil change amount | 32L |
coolant | 41L |
Travel speed | 3.4/5.4KM/h |
Bucket digging force | 186KN |
Bucket rod digging force | 161KN |
Maximum tractive effort | 247KN |
Maximum excavation radius | 10190MM |
Maximum digging depth | 6850MM |
Maximum excavation height | 9660MM |
Maximum unloading height | 6670MM |
Maximum vertical digging depth | 5730MM |
