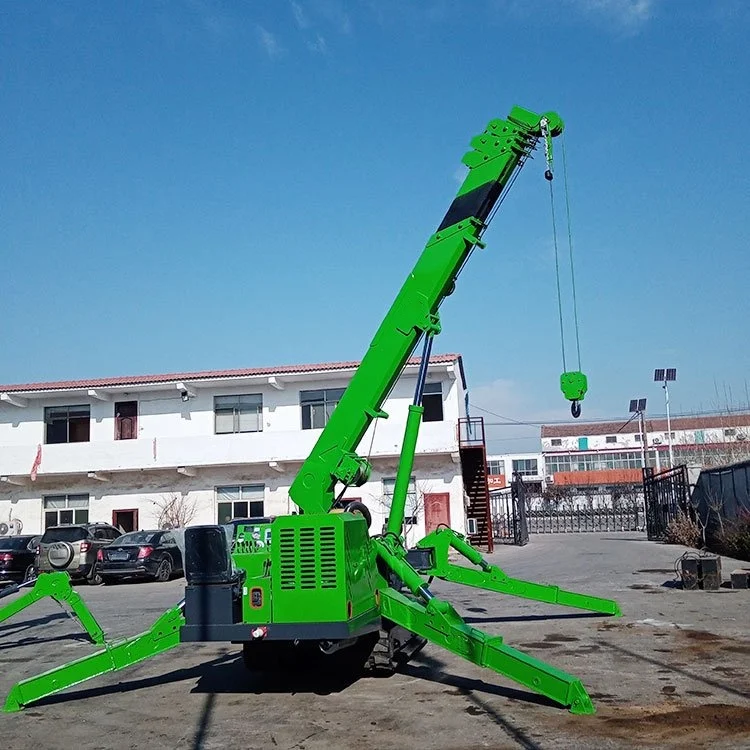

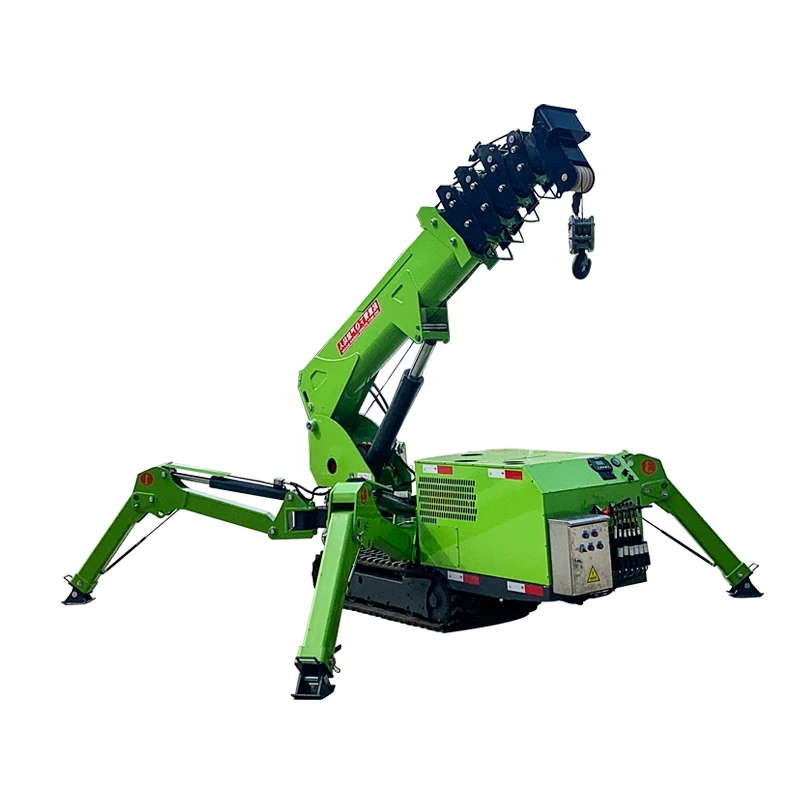

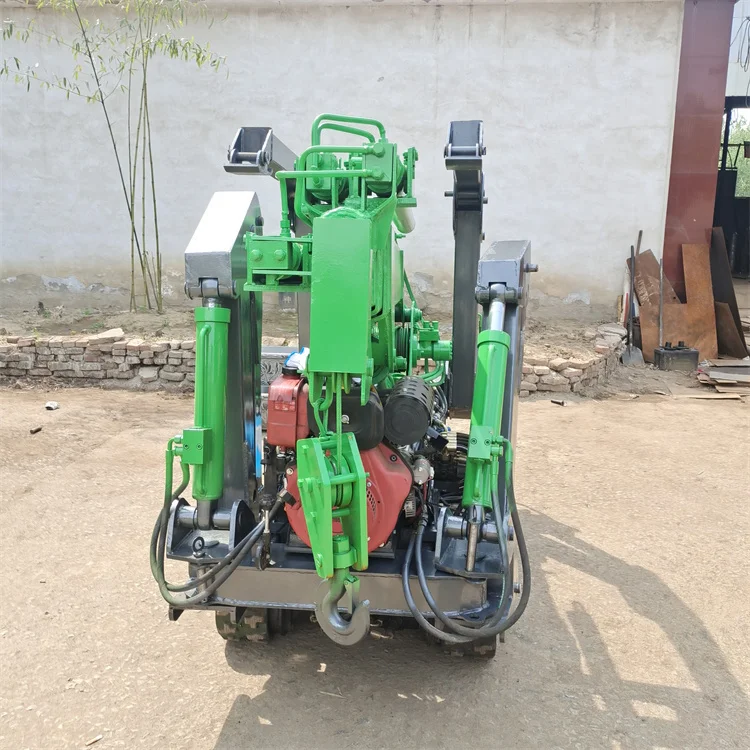

3 Ton Spider Cranes Ground Lift Mini Folding Construction Cranes 3t Hydraulic Motor Mini Spider Crane
- Category: >>>
- Supplier: Jining Hongrun Machinery Equipment Co. Ltd.Jining Ltd.
Share on (1600954826231):
Product Overview
Description
Note
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you
Product Description
Model | 1.2T Spider crane | 3T Spider crane | 5T Spider crane | 8T Spider crane |
Maximum working radius | 5m*0.3t | 8.83m*0.15t | 14m*0.5t | 16m*0.2t |
Maximum ground lift | 5.8m*0.8t | 9.2m*0.7t | 16m*0.8t | 17m*0.9t |
Hook lifting speed | 0-8m/min(4 ropes） | 0-8m/min(4 ropes） | 12m/min (4 ropes) | 12m/min (4 ropes) |
Specification of steel wire rope | ∮8mm*35m | ∮8mm*45m | ∮11mm*80m | ∮11mm*120m |
Telescopic arm form | 4-section lifting arm U-shaped high-strength manganese | 6-section lifting arm, pentagonal structure | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure |
Telescopic arm length | 1.7-5m | 3.1m-9.2m | 4m-15m | 4.7m-16.5m |
Arm length/time | 5m/22sec | 9.2m/20sec | 12.3m/54sec | 12.3m/54sec |
Arm angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
Rotation angle/speed | 0-360°（continuous) /60sec | 0-360°(continuous)/60sec | 0-360°(continuous)/60sec | 0-360°(continuous)/60sec |
Maximum depth amplitude of support legs | 3800（L）*3000（after）（front）mm | 4010（L）*3260（after）（front）mm | / | 6300（L）*4600（after）（front）mm |
Walking mode | Hydraulic motor drive, two speed | Hydraulic motor drive, two speed | Hydraulic motor drive, two speed(Rubber track) | Hydraulic motor drive, two speed(Rubber track) |
Walking speed | 0-2.5km/h | 0-2.5km/h | 0-5.5km/h | YN27GBZ |
Climbing ability | 25°(36%) | 20°(36%) | 20°(36%) | YN27GBZ |
Electric voltage | AC380V | AC380V | AC380V | YN27GBZ |
Engine | HONDA | Changchai EV80/F195 | YN27GBZ | YN27GBZ |
Engine start mode | Electric start | Electric start | Electric start | Electric start |
Startup performance | -5-40℃ | -5°C－40°C | -5°C－40°C | -5°C－40°C |
Fuel | diesel oil | diesel oil | diesel oil | diesel oil |
Battery capacity | 12V 45AH | 12V 45AH | 12V 45AH | 12V 45AH |
Operational characteristics | Manual operation, manual walking+remote control (optional) | Manual operation, manual walking+remote control (optional) | Manual operation, manual walking (optional remote control) | Manual operation, manual walking (optional remote control) |
Standard configuration | Diesel engine and electric motor (dual power) | Diesel engine and electric motor (dual power) | Diesel engine and electric motor (dual power) | Diesel engine and electric motor (dual power) |
Vehicle size(L*W*H) | 2095*600*1393 mm | 2830*800*1650mm | 4500*1360*2100 mm | 6000*1600*2200 mm |

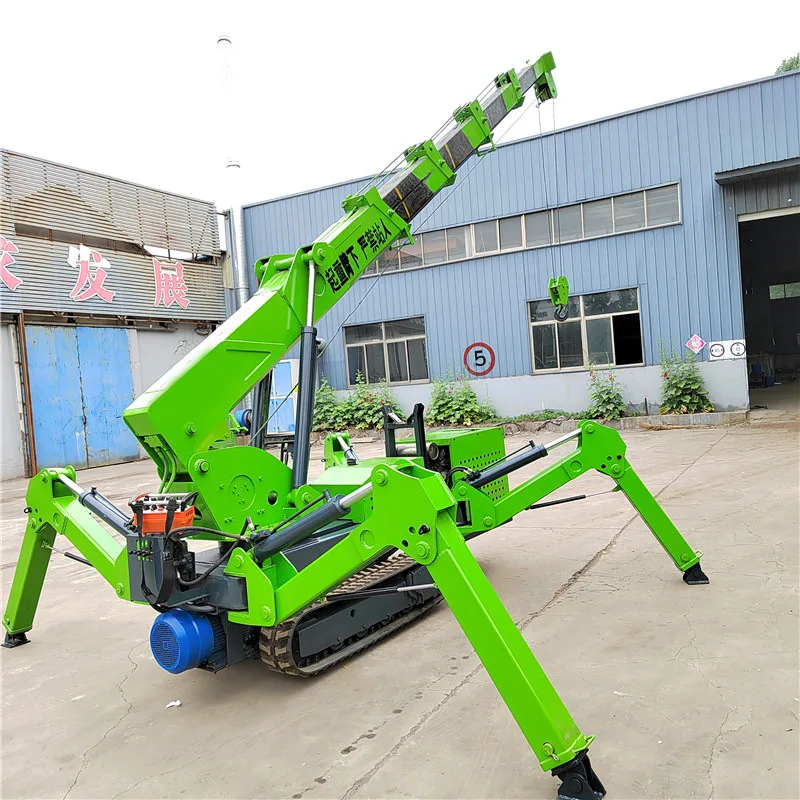

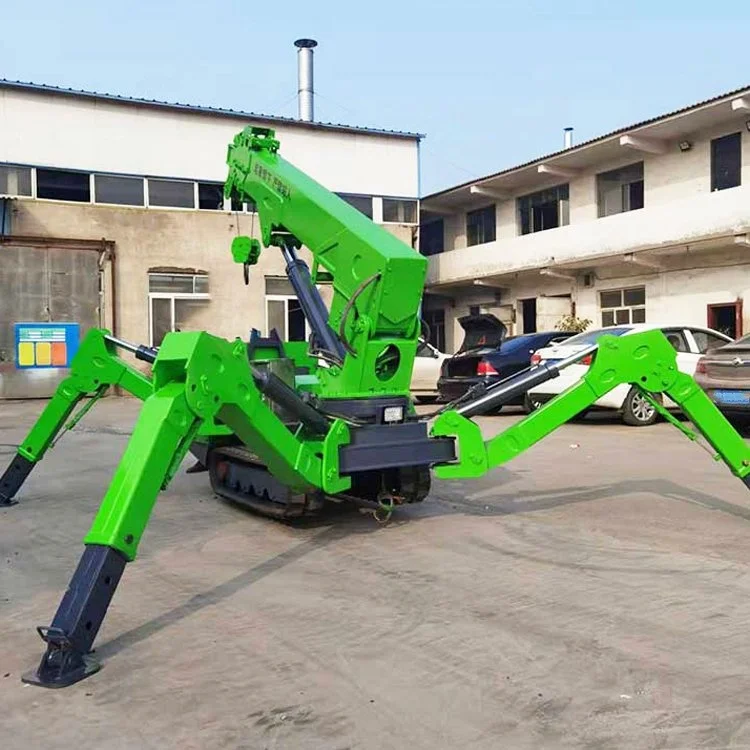

The tracked spider crane has compact storage, light weight, convenient transportation, and excellent traffic ability. Adopting sturdy and powerful rubber tracks, the track width and height can be adjusted. This product is suitable for indoor and complex soil conditions. Left and right differential, sliding, turning; Small turning radius; Unrestricted workspace; Even in very narrow and limited spaces, the device can work freely.
We have many models and colors to choose from, and support customization
Please contact me and I will recommend products to you according to your needs！！！

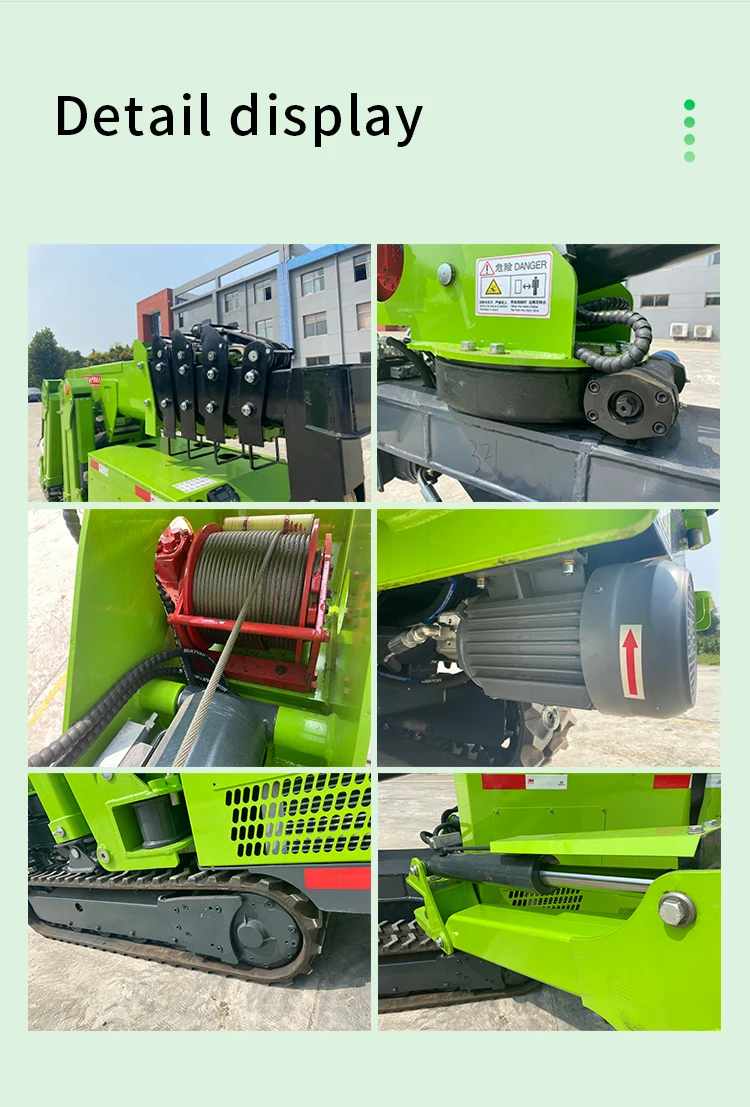

Product Details
Recommend Products
Why Choose Us
Company Profile
Certifications
Contact us
FAQ
1.Are you manufacture?
Ans: Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
Ans.:Full payment before shipment.we'll show you the photos of the products and packages before you pay the balance.
3.What is yourterms of delivery?
Ans.: EXW, FOB,CFR, CIF.
4.How about your delivery time?
Ans.: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.What is the warranty of our machine?
Ans.:Our main machine enjoys a l year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery.And we will attach our inspectreport for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
Ans.: 1.We keep good quality and competitive price to ensure our customers
10.Do you have any certificates for your machine?
Ans.:All of our products coming with the certificates of CE, ISO9001.
