Wiztech Alkali Flake Caustic Soda Solution Production Plant by Ion Membrane Electrolytic Cell
- Category: >>>
- Supplier: Fujian Wiztech Intelligence Technology Co. Ltd.
Share on (1600955063752):
Product Overview
Description
Product Overview
SODIUM HYPOCHLORITE PLANT
3% 5% 10% 12% NaClO Bleach Liquid Production Plant
It's a membrane electro-chlorination system that use salt, water, alkali as raw material to produce chlorine gas and form sodium hypochlorite solution ( Bleach liquid) which concentration from 3% up to 15%.

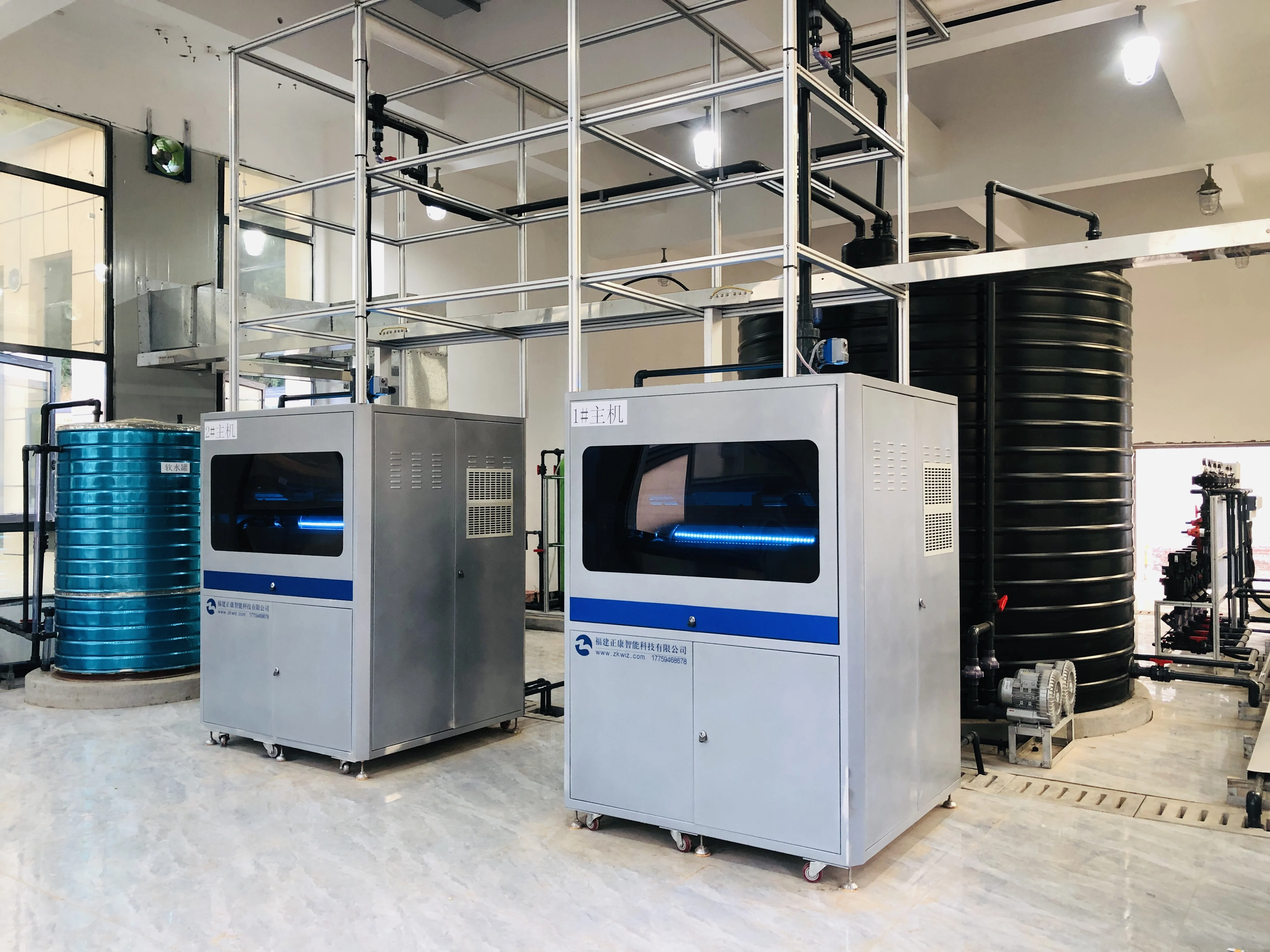

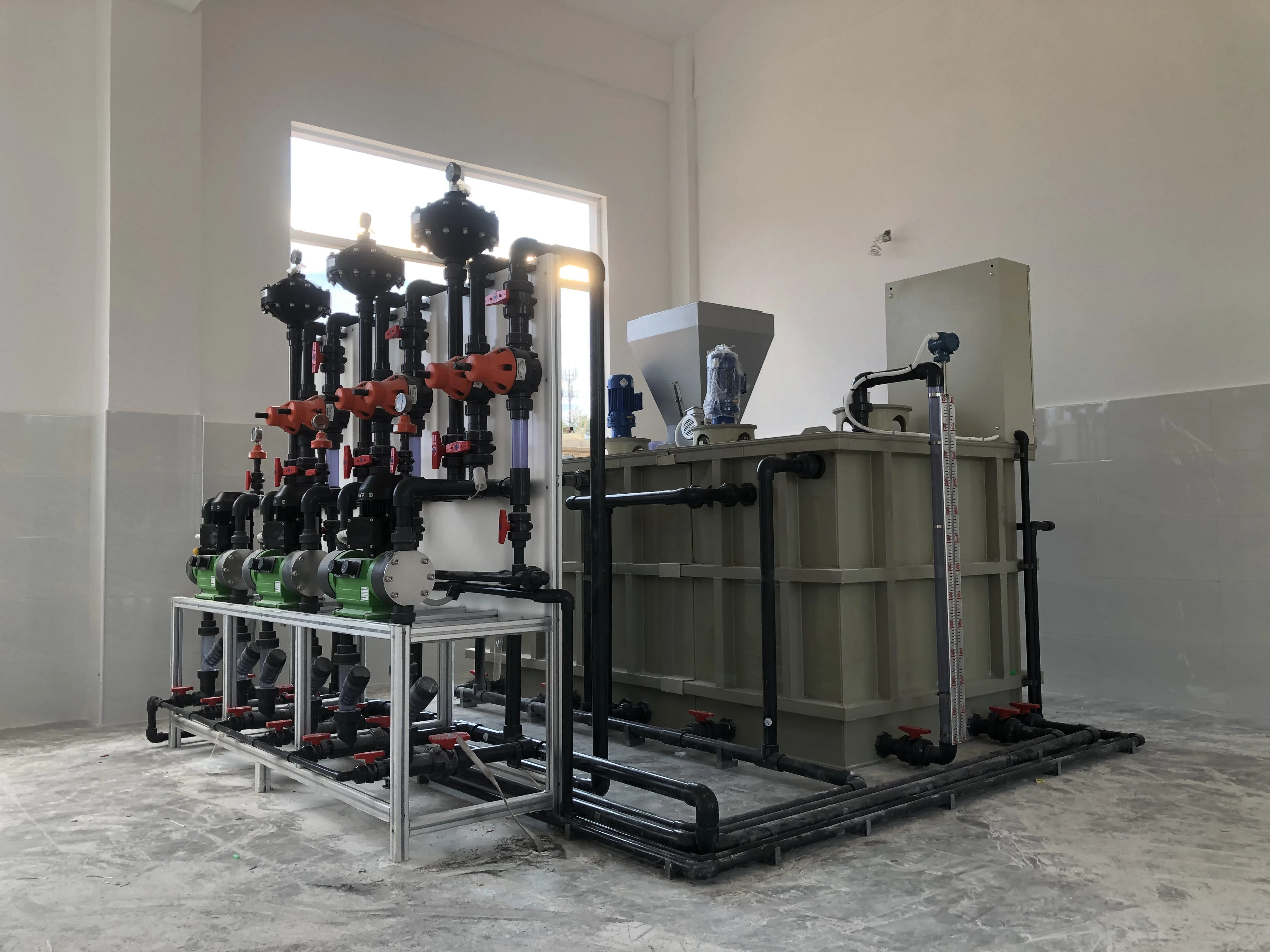

Wiztech membrane chlorination plant system 12.5% sodium hypochlorite production line

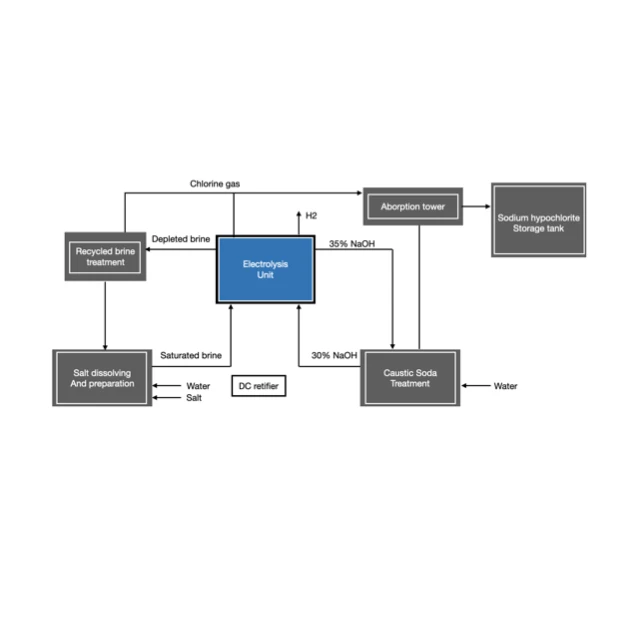

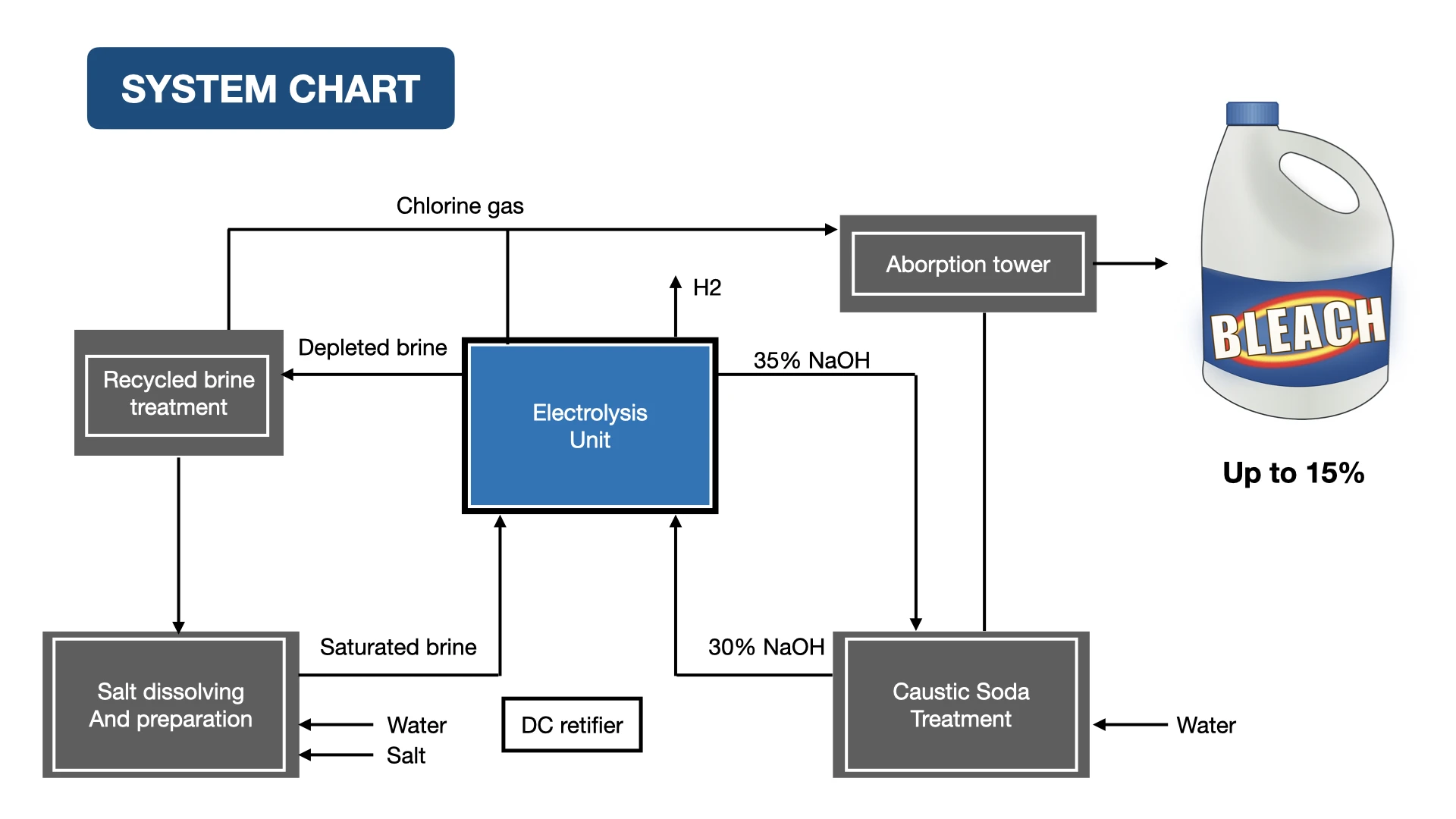

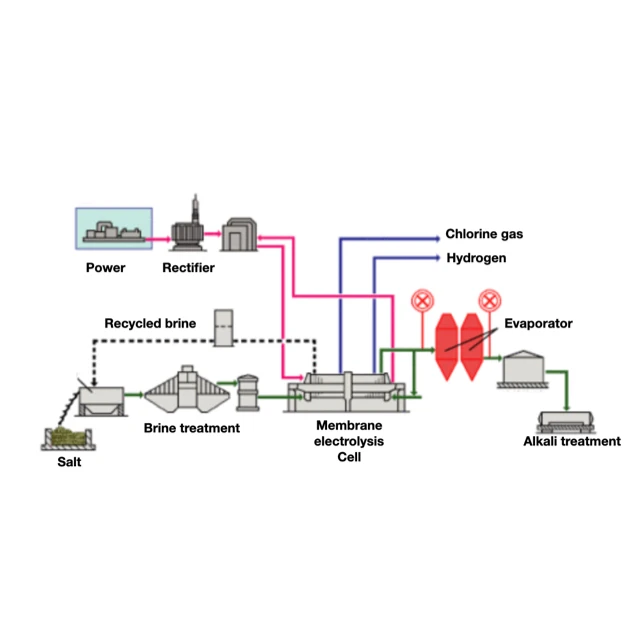

Membrane electro-chlorination principal
The electrolysis cell is the core component of our Membrane Electro-chlorination System, where a series of fundamental electrochemical processes take place, converting raw materials into valuable products. This controlled environment ensures the safe and efficient generation of sodium hypochlorite solution. Here's a more detailed breakdown of the electrolysis process:
* Brine Introduction: The process commences with the introduction of brine, a concentrated salt solution, into the anode compartment of the electrolysis cell. This brine serves as the source of chlorine production.
* Cathode Compartment: Simultaneously, a 30% caustic soda solution is introduced into the cathode compartment. This alkaline solution is essential for the production of sodium hydroxide (NaOH) and hydrogen (H2) gas.
* Membrane Separation: A specialized membrane, a critical element in the system, segregates the anode and cathode compartments. This membrane is highly selective, allowing the migration of specific ions while preventing the unwanted mixing of chemicals.
* Chlorine Generation: Within the anode compartment, chloride ions (Cl-) present in the brine undergo oxidation. This results in the release of chlorine gas (Cl2), which is collected and further processed.
* Hydroxide and Hydrogen Production: In the cathode compartment, hydroxide ions (OH-) are produced through the reduction of water (H2O). This process generates sodium hydroxide (NaOH) and hydrogen gas (H2).
* Efficient Separation: The membrane ensures that the chlorine and sodium hypochlorite produced in their respective compartments remain separated, preventing cross-contamination.
This well-orchestrated electrolysis process not only guarantees the production of sodium hypochlorite solution but also promotes safety, efficiency, and resource conservation. It exemplifies our commitment to delivering cutting-edge water treatment solutions to our valued customers.
* Brine Introduction: The process commences with the introduction of brine, a concentrated salt solution, into the anode compartment of the electrolysis cell. This brine serves as the source of chlorine production.
* Cathode Compartment: Simultaneously, a 30% caustic soda solution is introduced into the cathode compartment. This alkaline solution is essential for the production of sodium hydroxide (NaOH) and hydrogen (H2) gas.
* Membrane Separation: A specialized membrane, a critical element in the system, segregates the anode and cathode compartments. This membrane is highly selective, allowing the migration of specific ions while preventing the unwanted mixing of chemicals.
* Chlorine Generation: Within the anode compartment, chloride ions (Cl-) present in the brine undergo oxidation. This results in the release of chlorine gas (Cl2), which is collected and further processed.
* Hydroxide and Hydrogen Production: In the cathode compartment, hydroxide ions (OH-) are produced through the reduction of water (H2O). This process generates sodium hydroxide (NaOH) and hydrogen gas (H2).
* Efficient Separation: The membrane ensures that the chlorine and sodium hypochlorite produced in their respective compartments remain separated, preventing cross-contamination.
This well-orchestrated electrolysis process not only guarantees the production of sodium hypochlorite solution but also promotes safety, efficiency, and resource conservation. It exemplifies our commitment to delivering cutting-edge water treatment solutions to our valued customers.
MEMBRANE
The membrane is a perfluorosulfonic acid/carboxylic acid composite membrane. The transportation temperature is 2 to 50°C. Avoid contact with other items, drying, and wrinkles. Store it in a 2% NaHCO3 solution.
PRODUCT SPECIFICATIONS
Module | 10% solution production per hour | Active chlorine concentration |
WIZG-50L | 50L | 10% |
WIZG-100L | 100L | 10% |
WIZG-150L | 150L | 10% |
WIZG-200L | 200L | 10% |
WIZG-250L | 250L | 10% |
WIZG-300L | 300L | 10% |
WIZG-350L | 350L | 10% |
WIZG-400L | 400L | 10% |
WIZG-500L | 500L | 10% |
WIZG-600L | 600L | 10% |
WIZG-700L | 700L | 10% |
Successful Project
There are 2 factories copying our machine with our photos and technical data, so we don't displace here, please contact us for detail.
