mineral cow salt lick block making press machine hydraulic block making machine
The hydraulic stretching machine is suitable for the pressing process of metal materials, such as: metal stamping and bending,flanging, thin plate stretching, and the pressing, correction, cold extrusion of metal parts, etc. It can also realize thepressing and molding process of plastic products and powder products.




The structure is divided into three parts: the main engine, the hydraulic transmission device and the electrical control device.It has an independent hydraulic transmission device and electrical control box, which can be controlled centrally on the consoleto realize three operating specifications of adjustment, manual and semi-automatic cycles.


Working pressure, working speed, stroke range, etc. can be adjusted according to process needs, and can complete both ejection and stretching processes.




PRODUCT SPECIFICATIONS


Model
Salt brick size(diameter mm)
Salt brick weight(Kg)
Power(KW)
Block/minute
Remark
CR32-300
120
2
22
3-4

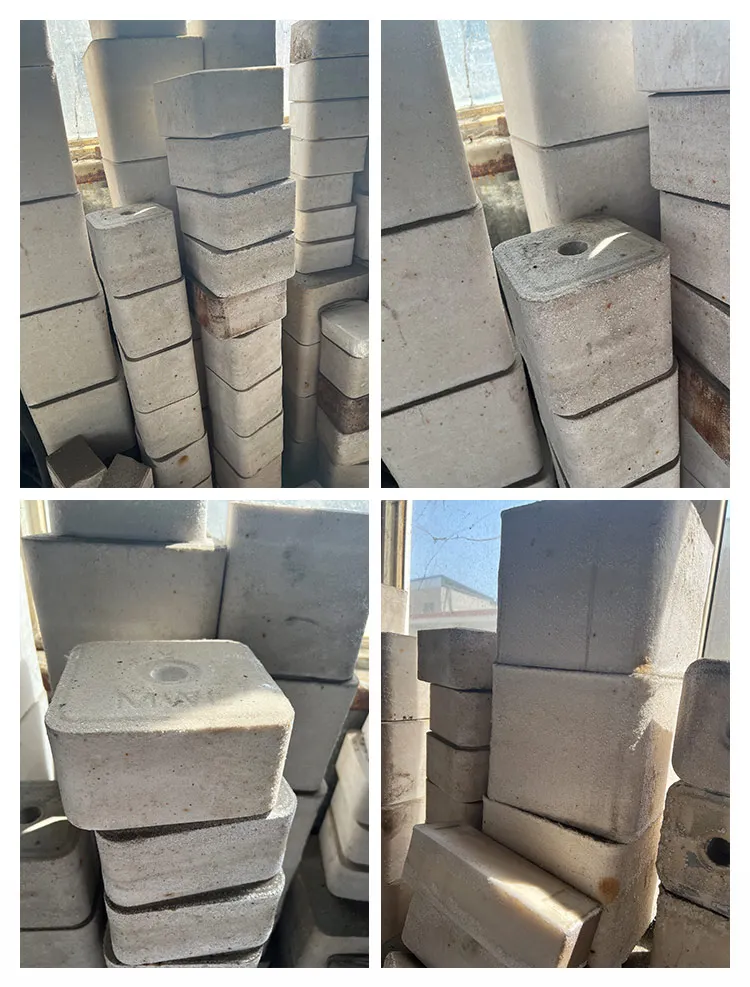

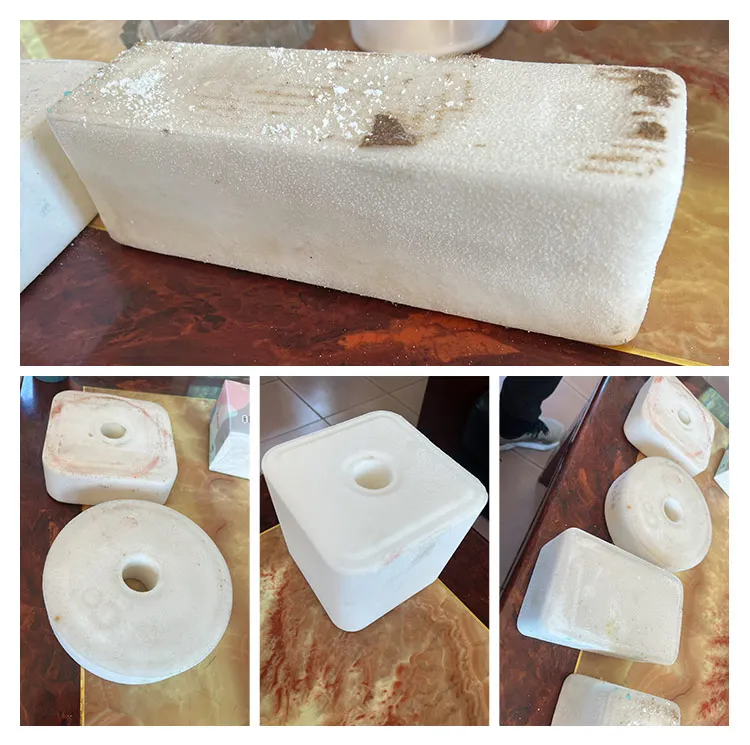

Salt brick size and weight can be customized
CR32-400
145
2-5
30
3-4
Salt brick size and weight can be customized
CR32-500
145-185
2-10
37
3-4
Salt brick size and weight can be customized
CR32-630
185-240
5-20
60
3
Salt brick size and weight can be customized

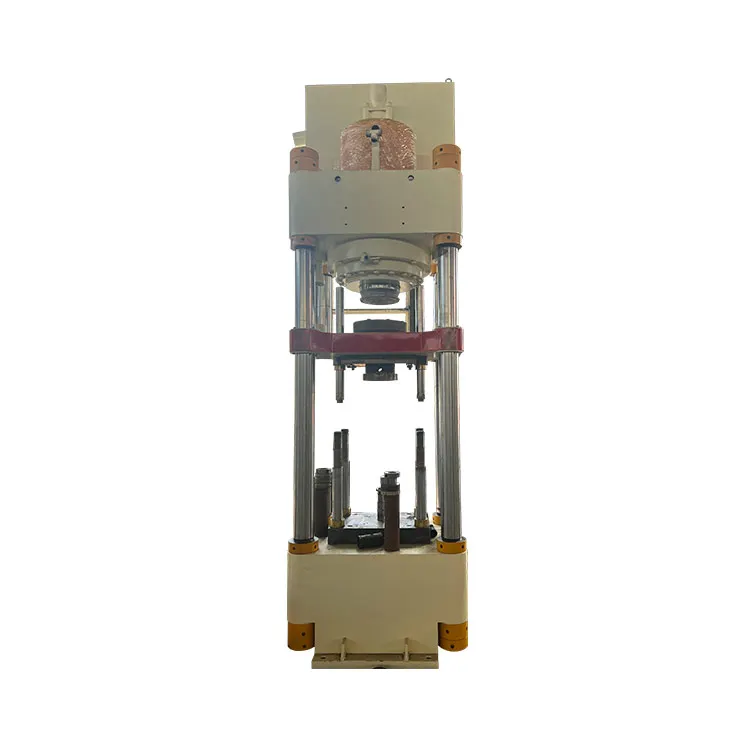

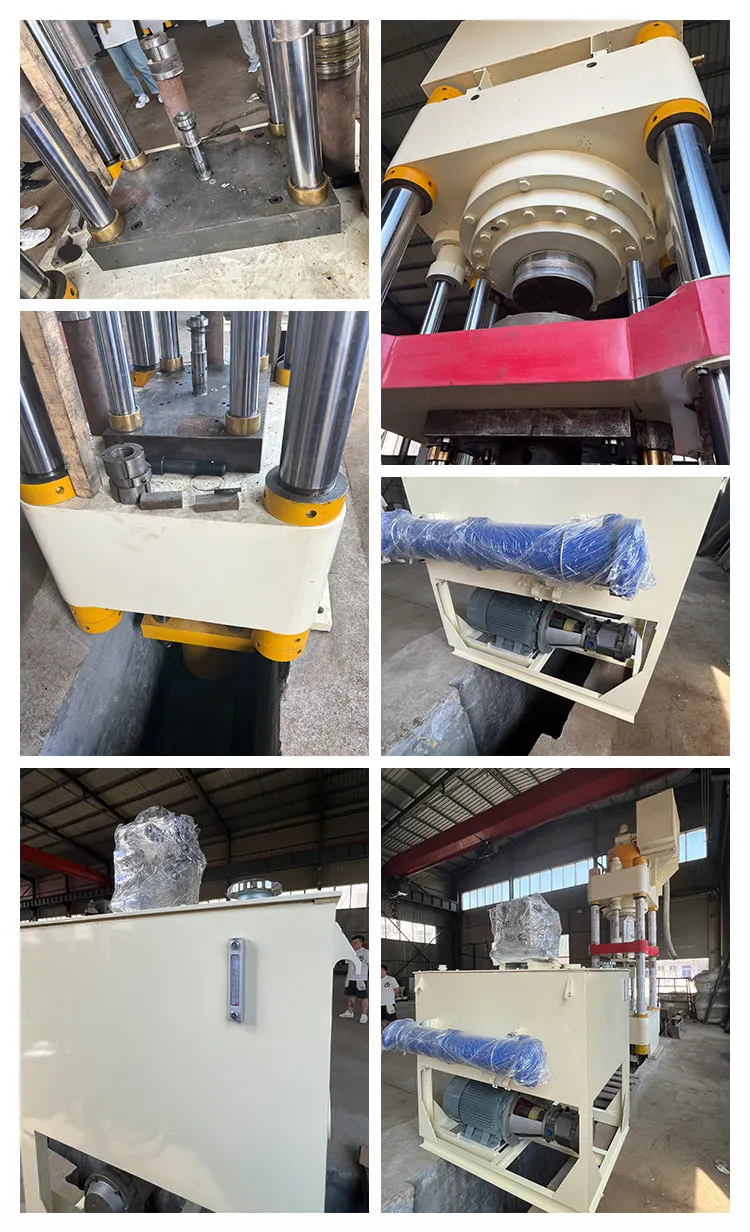

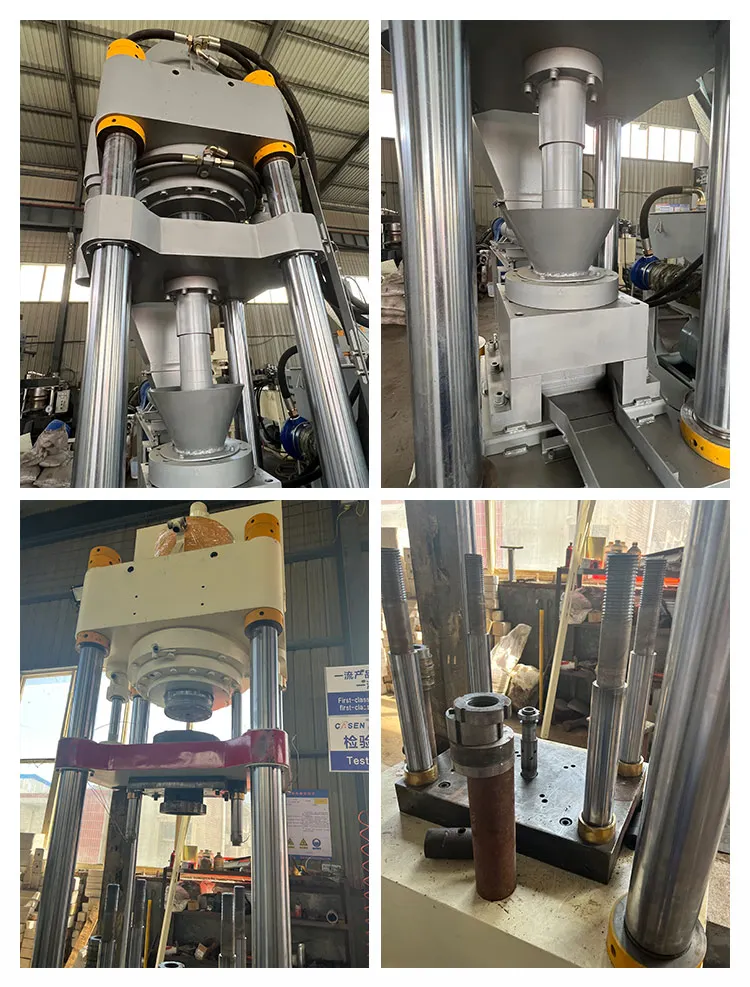

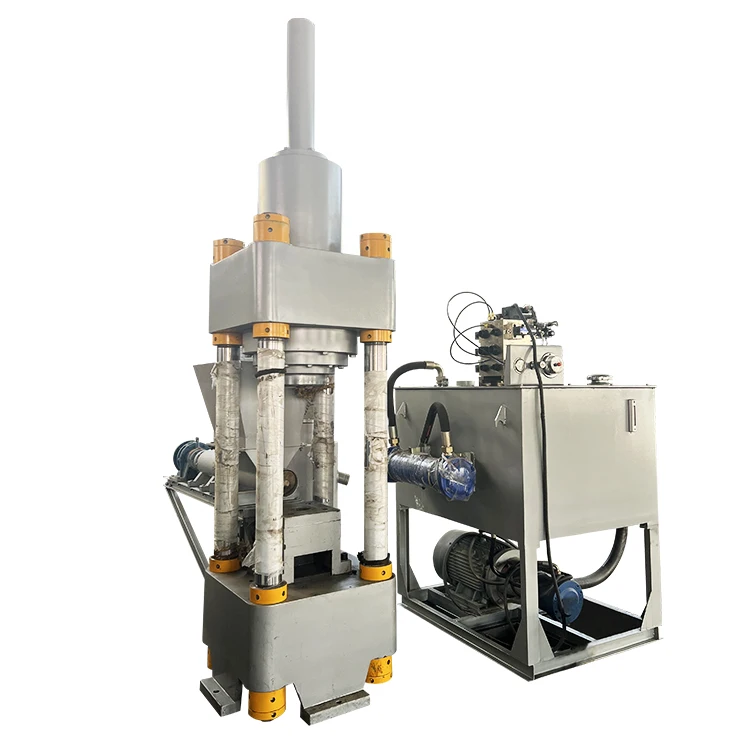

The small-power, high-pressure hydraulic cattle and sheep fully automatic salt licking machine produced by our factory is a four-column hydraulic machine with high pressure and high accuracy. This press adopts advanced mechanical,electrical and hydraulic integrated control, with automatic feeding device, floating bidirectional pressure, so that the product molding density can be effectively controlled. The hydraulic system uses advanced cartridge valve blocks to minimize the heat generation of the hydraulic system To ensure the continuous and frequent stable work of the hydraulic press; the mechanical block positioning and stepless adjustment mechanism of the three positions of loading, forming and demoulding determine the stable and adjustable geometric size of the product. Equipped with oil cooling device. It adopts PLC and man-machine interface centralized control, with
manual and automatic operation modes, and is equipped with mechanical limit devices to ensure product consistency.


SIMILAR PRODUCTS






PRODUCT CONFIGURATION






Packing and Shipping




Our warm team




FAQ


1、What is your minimum order quantity?
Answer: The minimum order quantity is 1
2、What should we do if there is a problem with the machine?
Answer: If there is a malfunction, please notify us immediately.During the warranty period, if a malfunction occurs, we will respond immediately upon receiving notification from the buyer
3、Do you have an English manual for each machine?
Answer:Yes.We provide instructions and other relevant data
