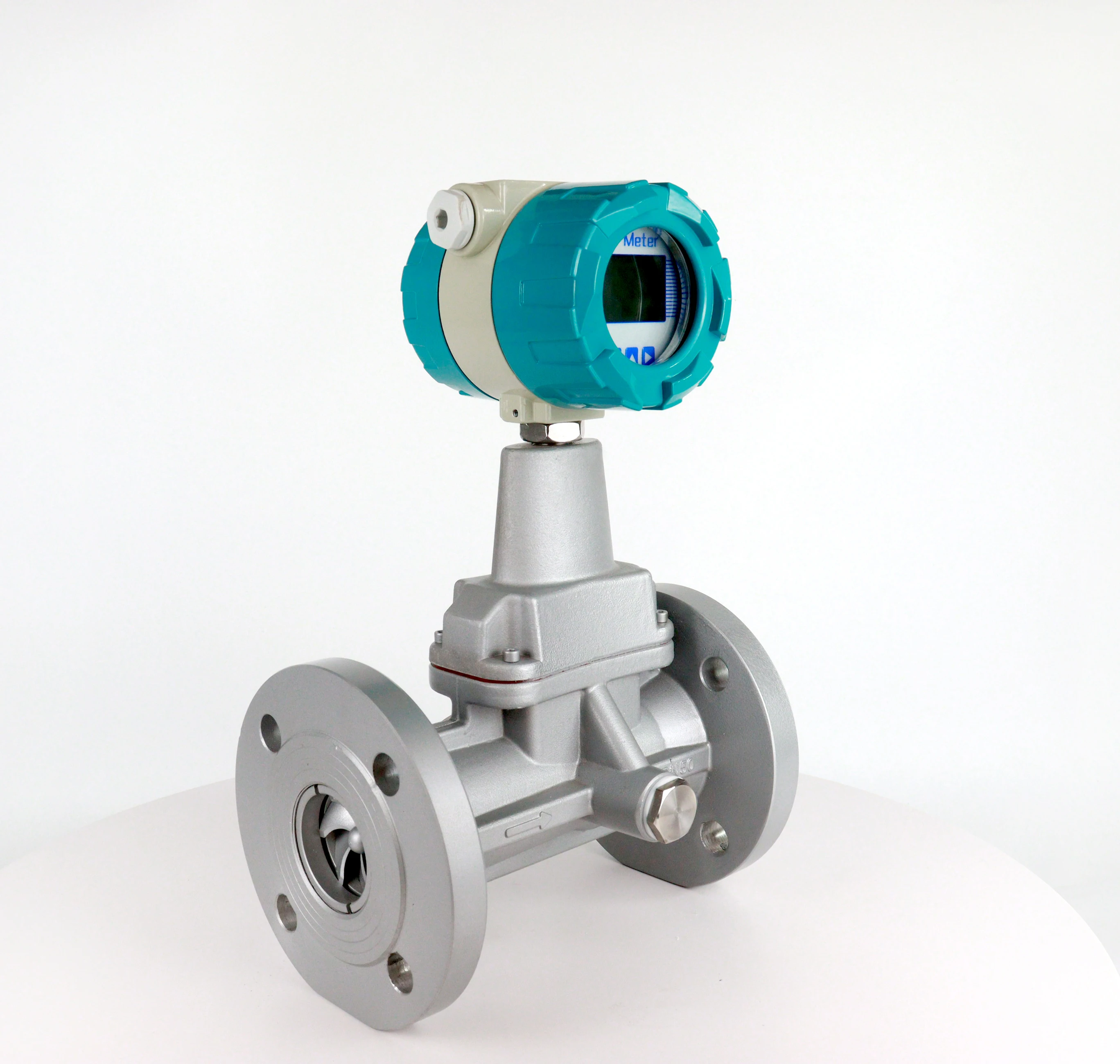

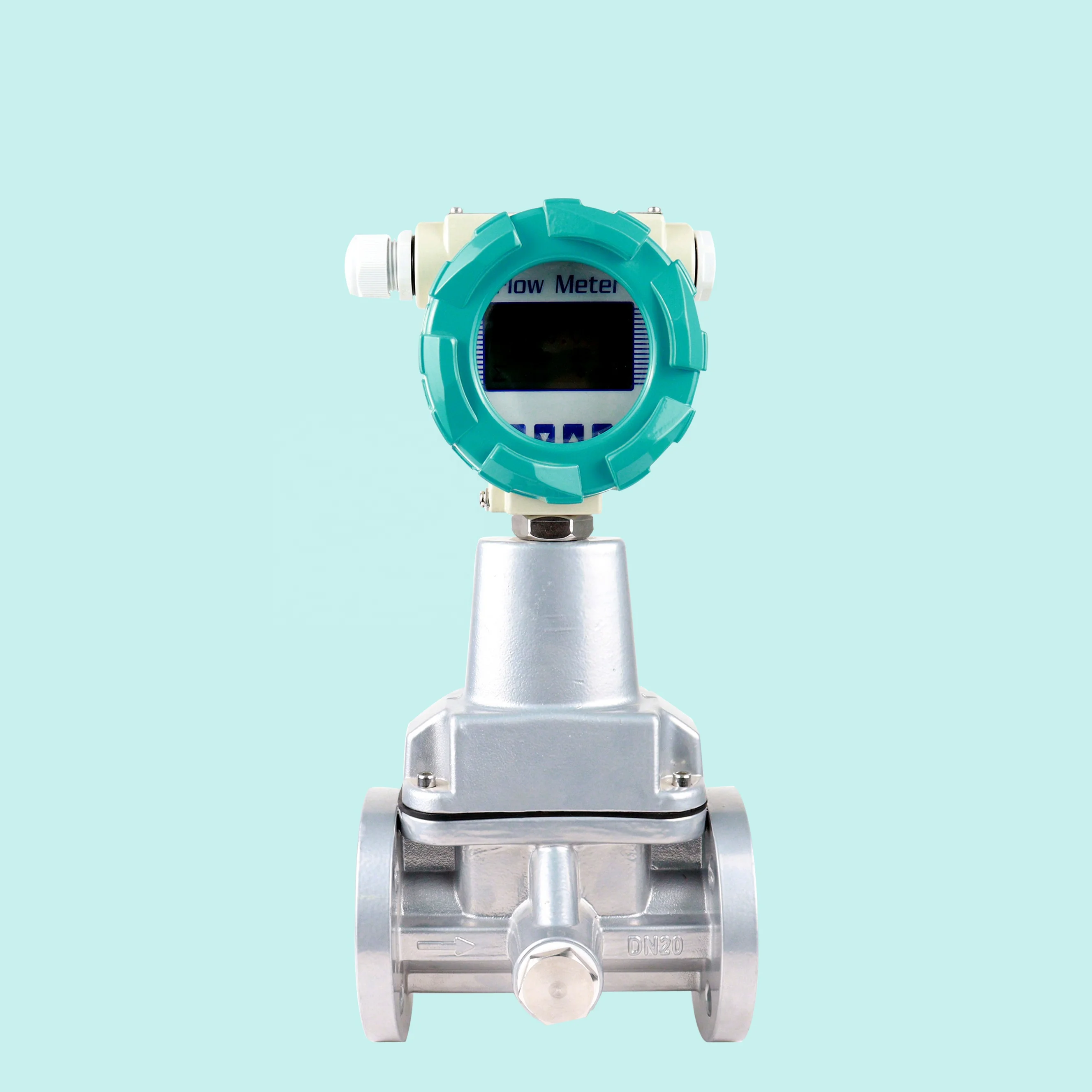

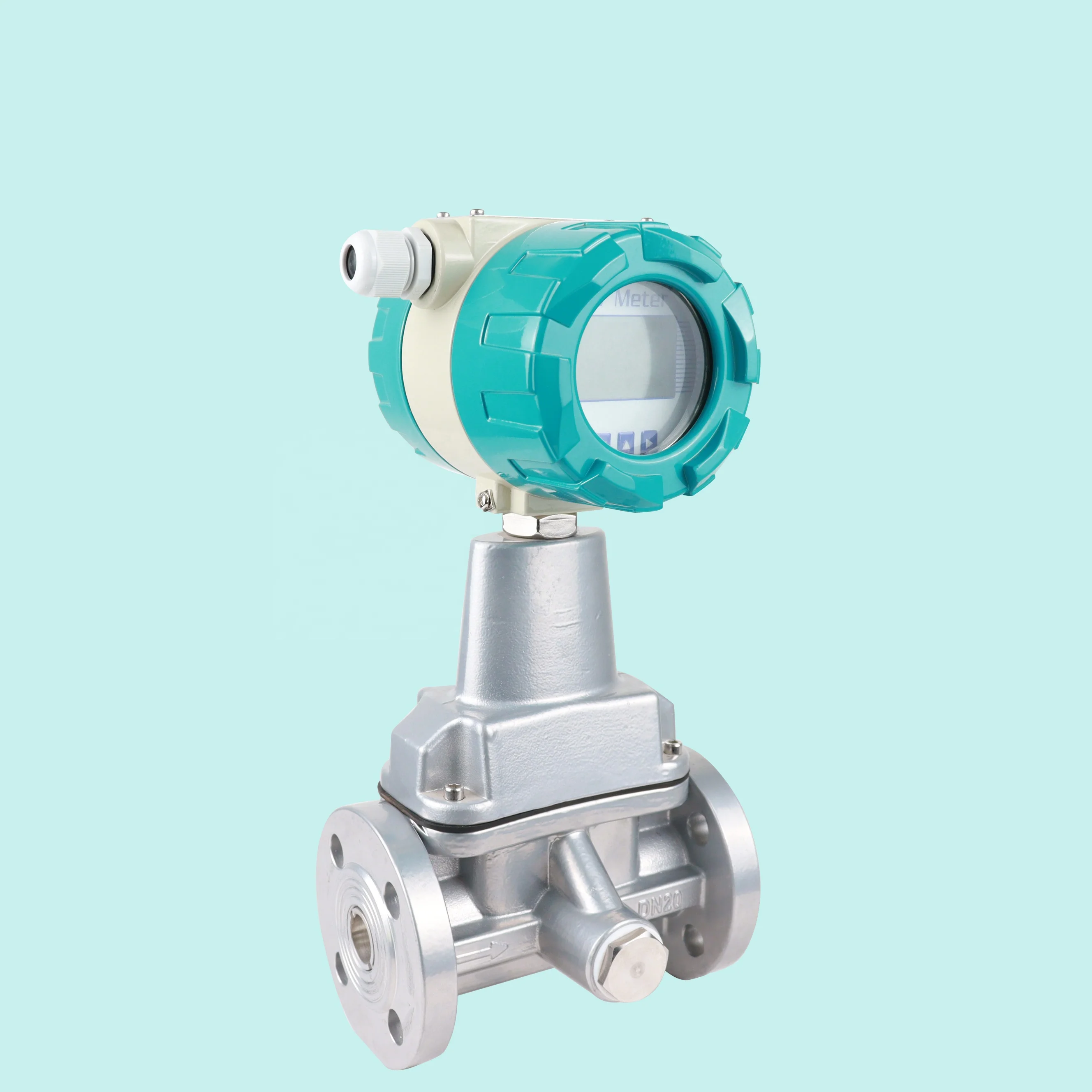

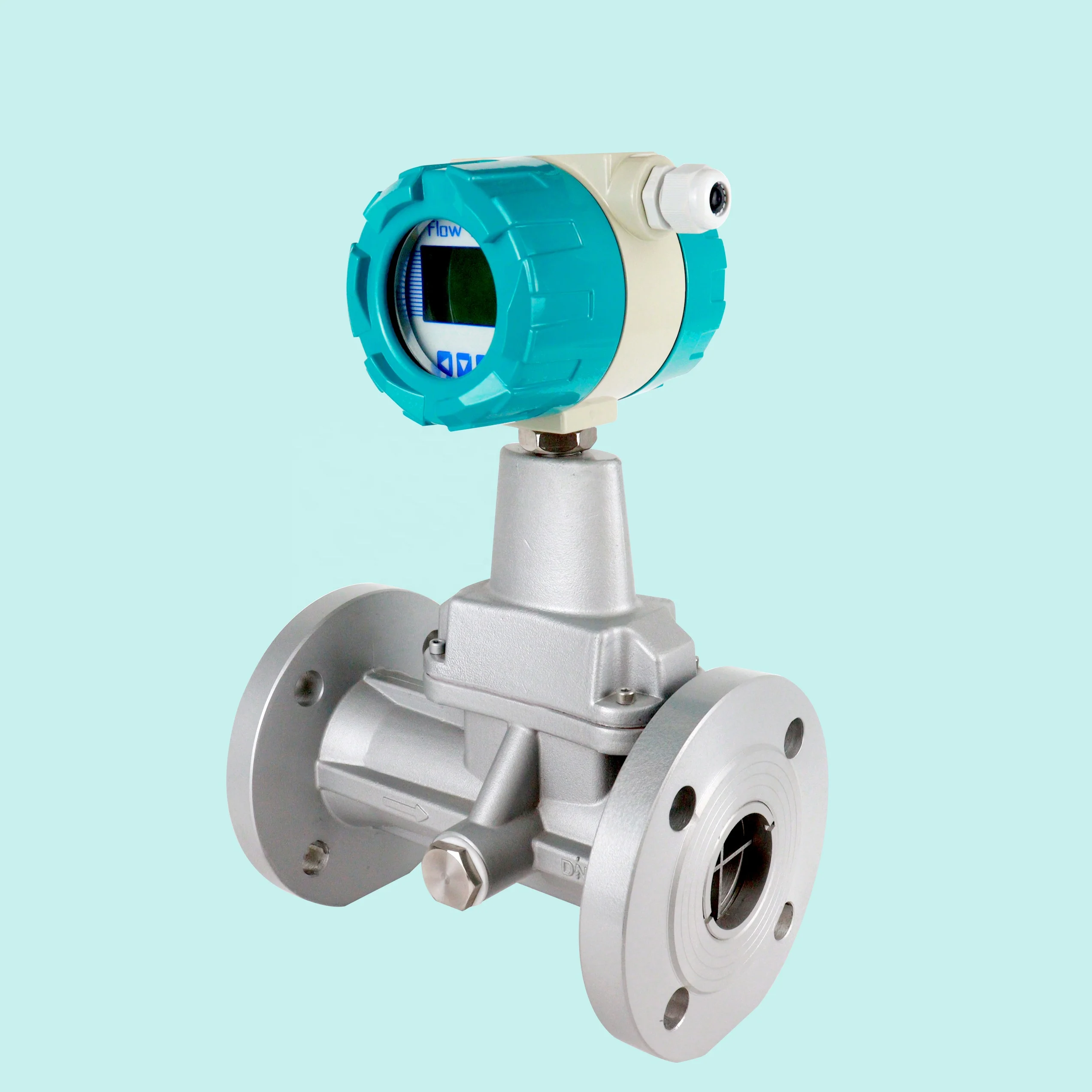

With 4-20mA pulse output flowmeter Precession vortex flowmeter natural gas compressed air flowmeter

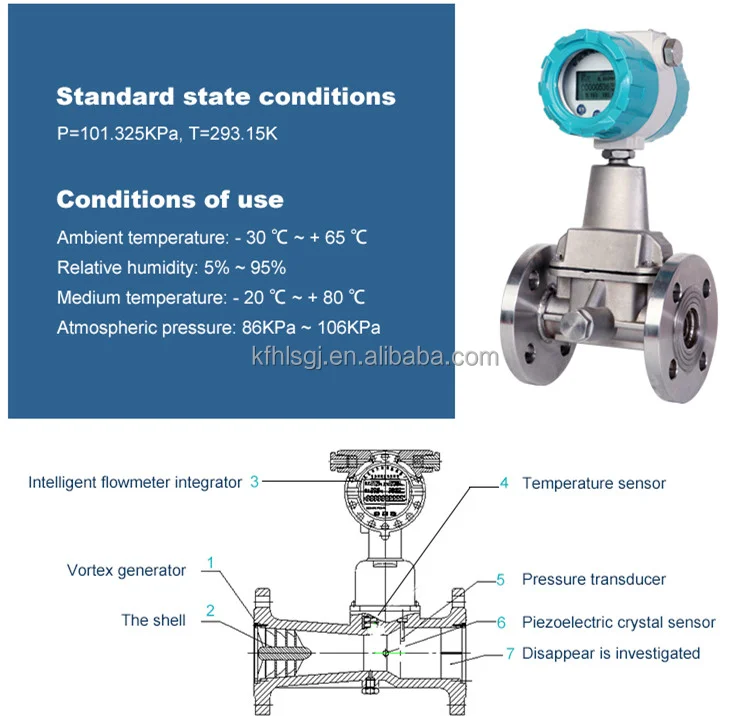

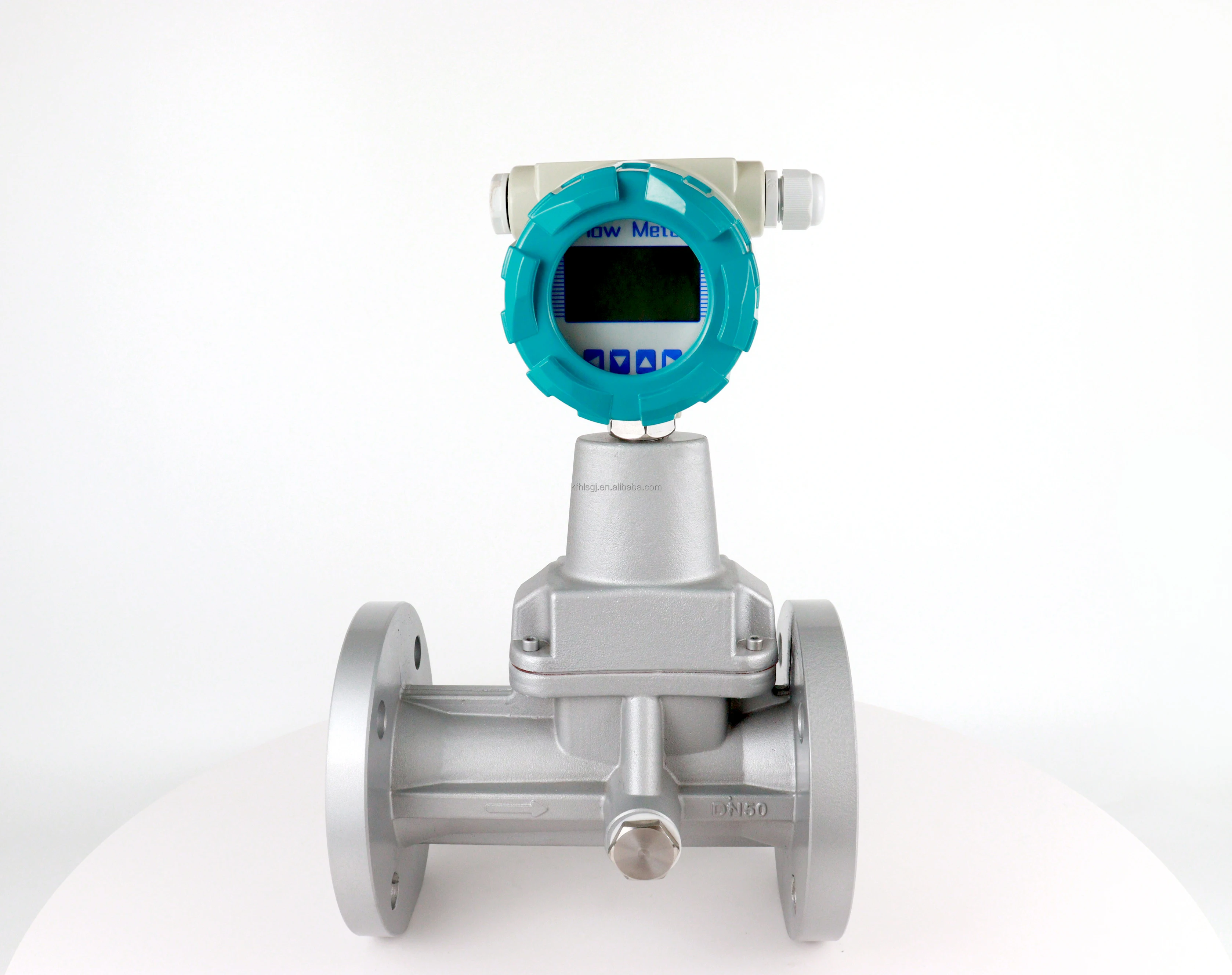

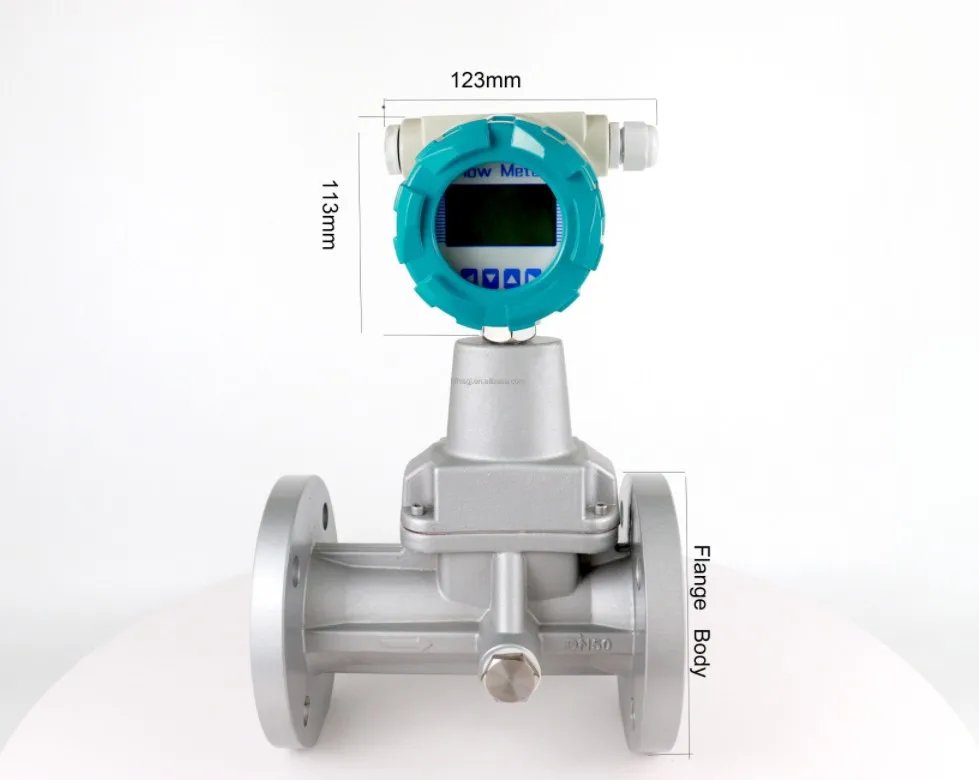

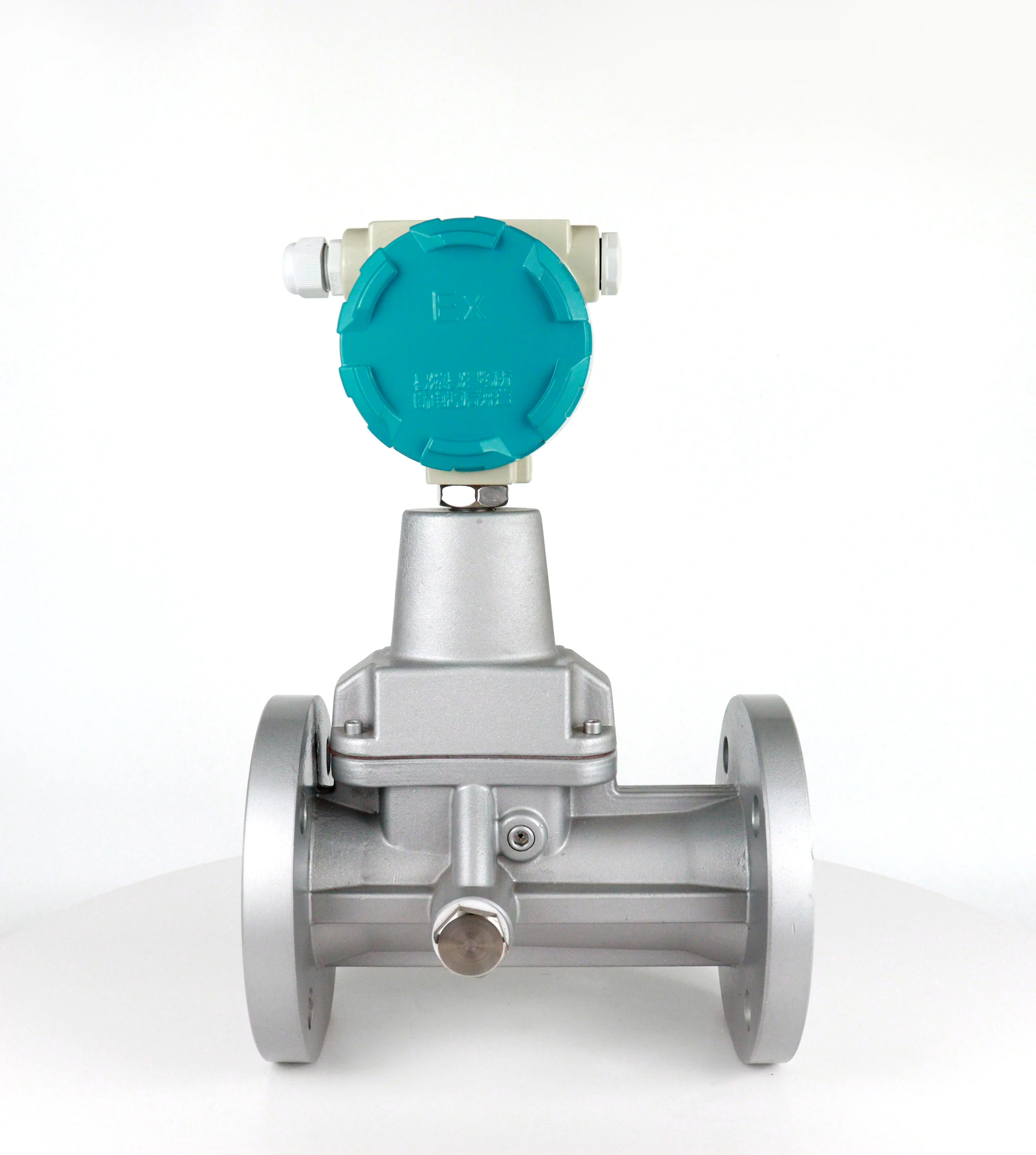

Flowmeter structure

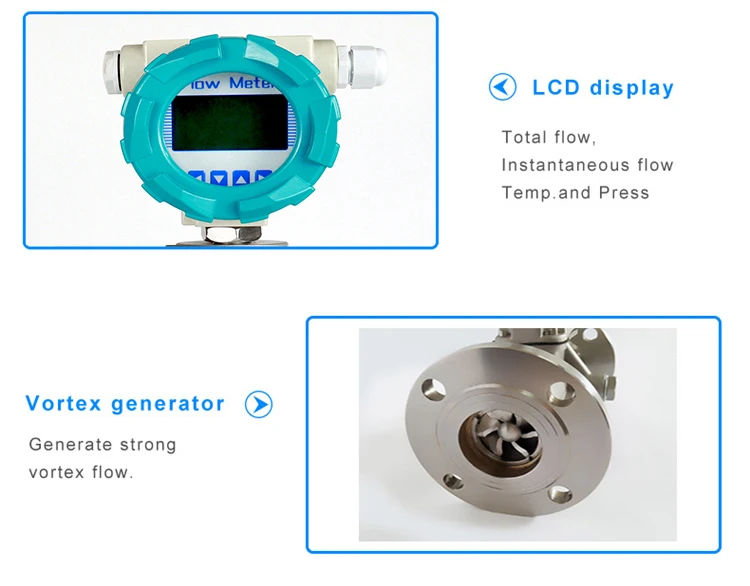

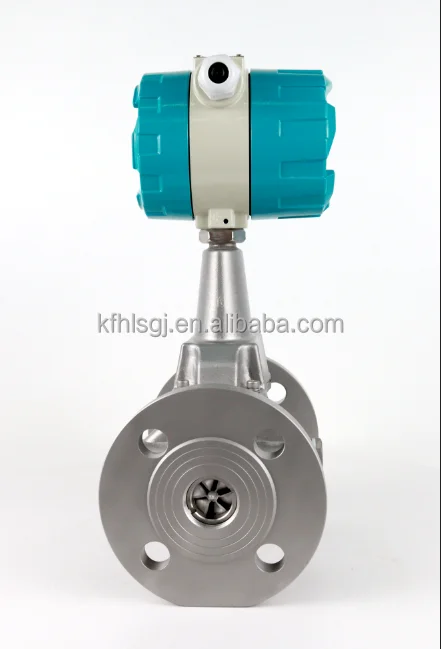

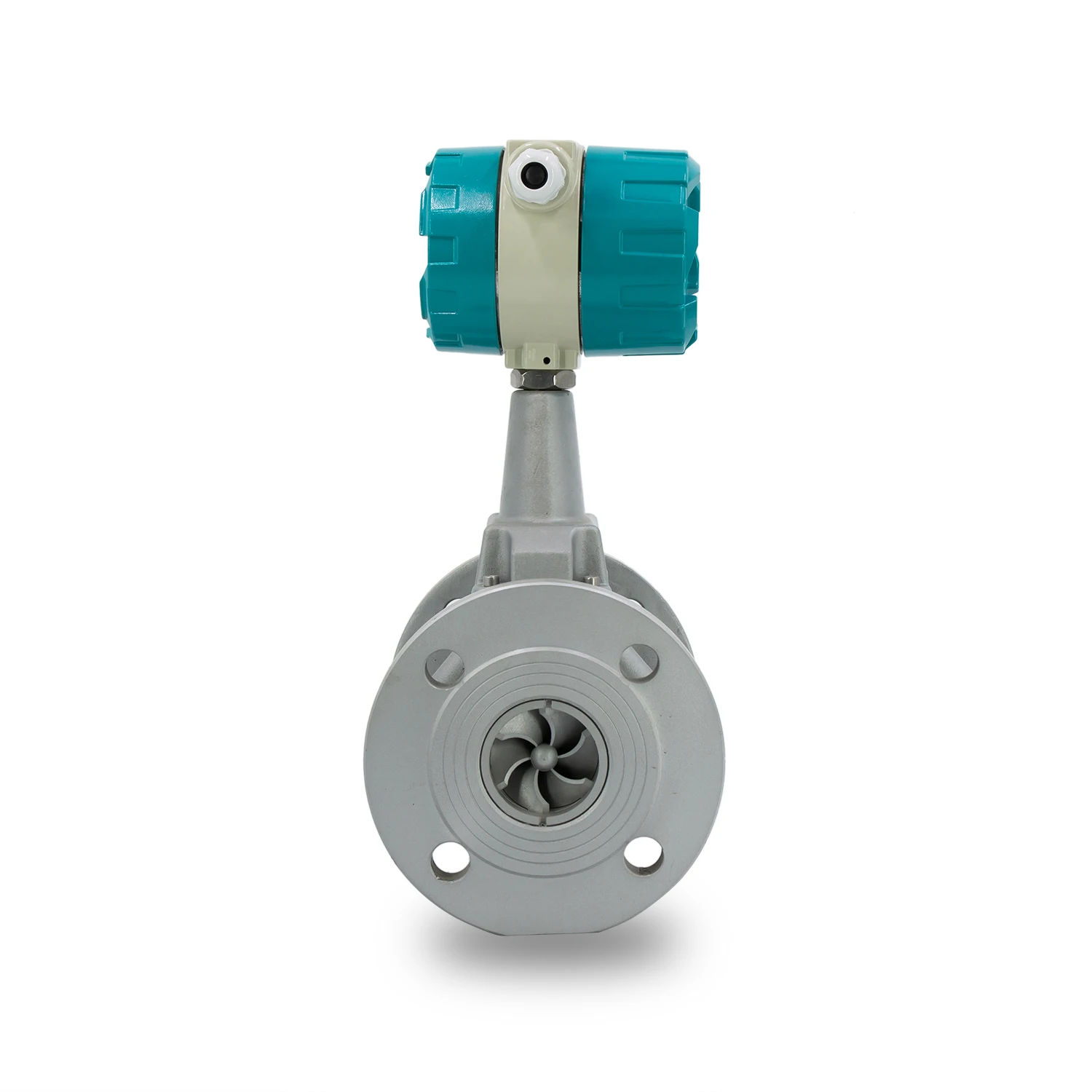

Vortex generator: a helical blade with a certain angle, which is fixed at the front of the constricted section of the shell, forcing the fluid to generate a strong vortex flow,
Shell: It has a certain shape of fluid channel. According to different working pressures and conditions of use, the shell material can be cast aluminum alloy, stainless steel, copper, etc.

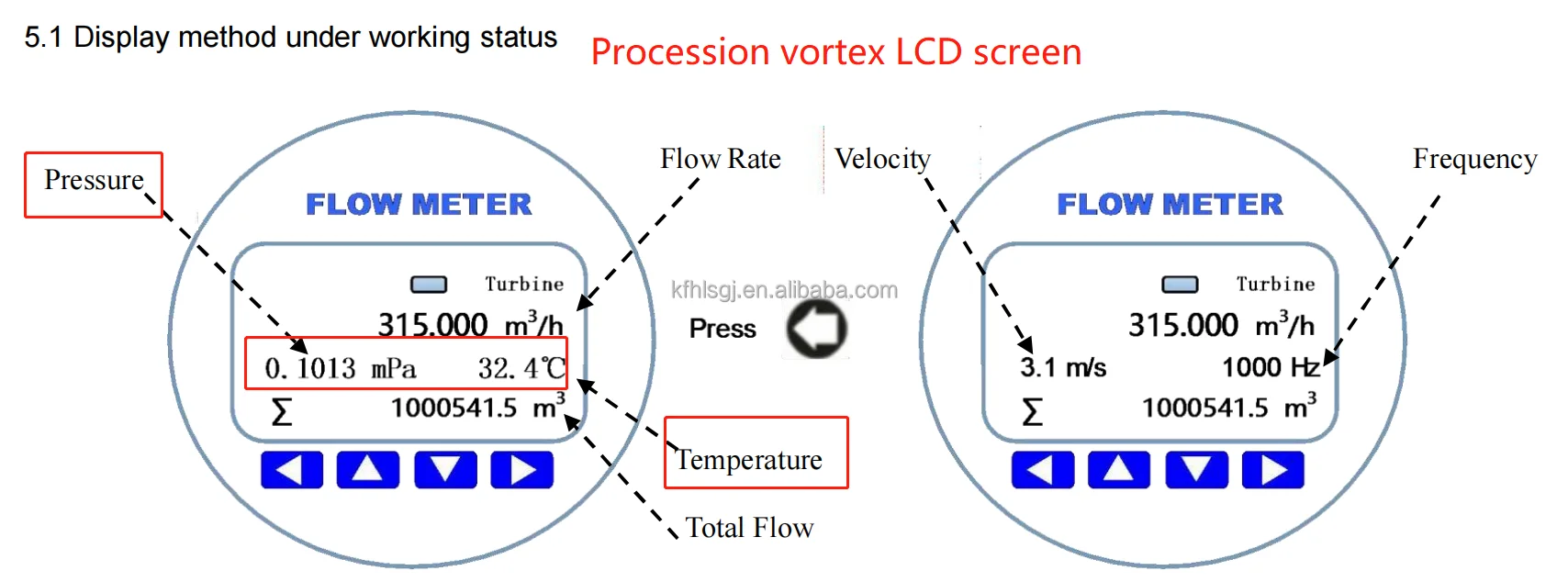

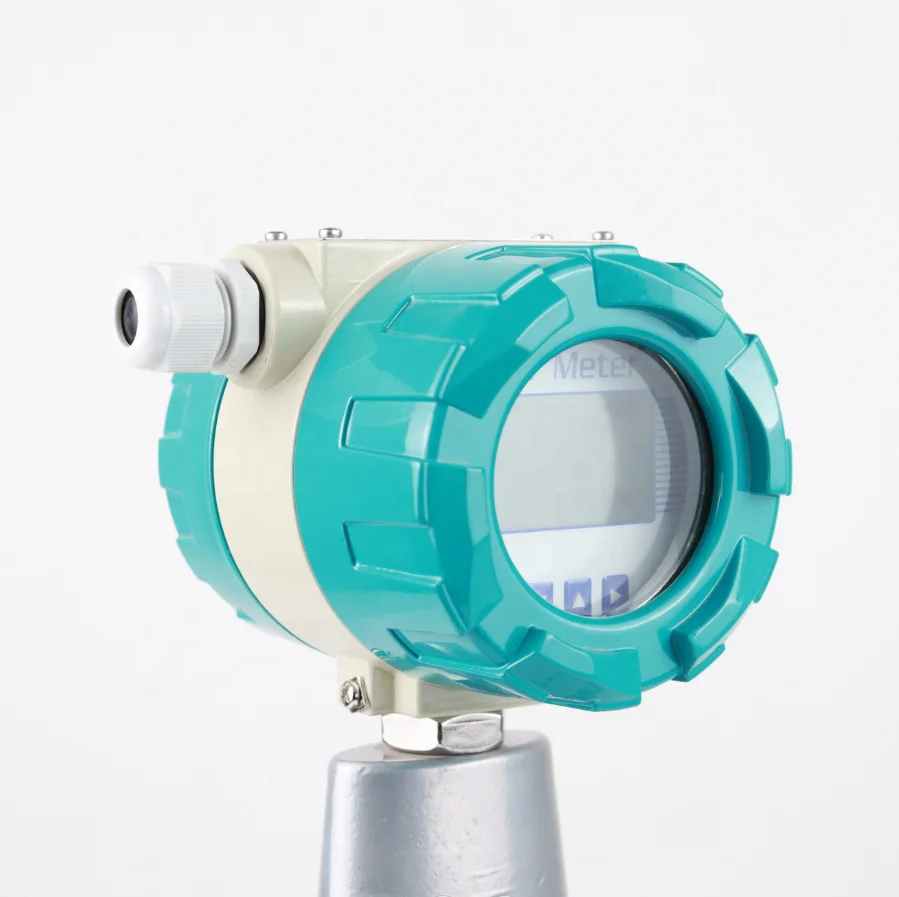

Intelligent flow totalizer: It is composed of temperature, pressure detection analog channel, flow detection digital channel and microprocessor unit, liquid crystal drive circuit and other auxiliary circuits, and is equipped with an external signal interface.

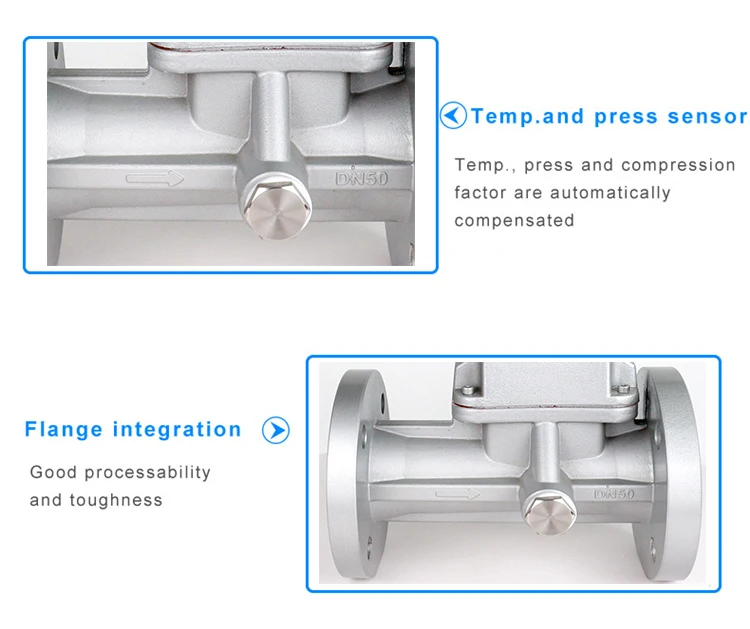

Temperature sensor: Pt1000 platinum resistance is used as the temperature sensitive element. Within a certain temperature range, its resistance value has a corresponding relationship with the temperature.
Pressure sensor: The piezoresistive diffusion silicon bridge is used as the sensitive element, and the bridge arm resistance will change as expected under the action of external pressure. Therefore, under the action of a certain excitation current, the potential difference between the two output ends is proportional to the external pressure.
Piezoelectric crystal sensor: installed near the throat of the expansion section of the shell, it can detect the frequency signal of vortex precession,
Racemulator: fixed in the outlet section of the shell, its function is to eliminate the vortex flow to reduce the impact on the performance of the downstream instrument,
Vortex generator: a helical blade with a certain angle, which is fixed at the front of the constricted section of the shell, forcing the fluid to generate a strong vortex flow,
Shell: It has a certain shape of fluid channel. According to different working pressures and conditions of use, the shell material can be cast aluminum alloy, stainless steel, copper, etc.
Intelligent flow totalizer: It is composed of temperature, pressure detection analog channel, flow detection digital channel and microprocessor unit, liquid crystal drive circuit and other auxiliary circuits, and is equipped with an external signal interface.
Temperature sensor: Pt1000 platinum resistance is used as the temperature sensitive element. Within a certain temperature range, its resistance value has a corresponding relationship with the temperature.
Pressure sensor: The piezoresistive diffusion silicon bridge is used as the sensitive element, and the bridge arm resistance will change as expected under the action of external pressure. Therefore, under the action of a certain excitation current, the potential difference between the two output ends is proportional to the external pressure.
Piezoelectric crystal sensor: installed near the throat of the expansion section of the shell, it can detect the frequency signal of vortex precession,
Racemulator: fixed in the outlet section of the shell, its function is to eliminate the vortex flow to reduce the impact on the performance of the downstream instrument,

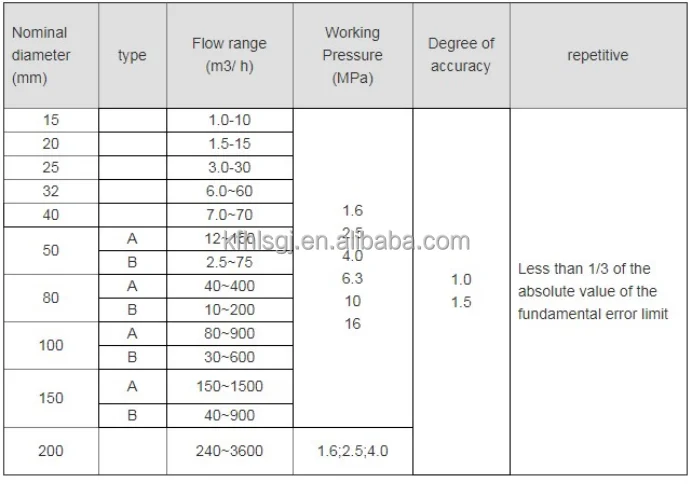

Specification

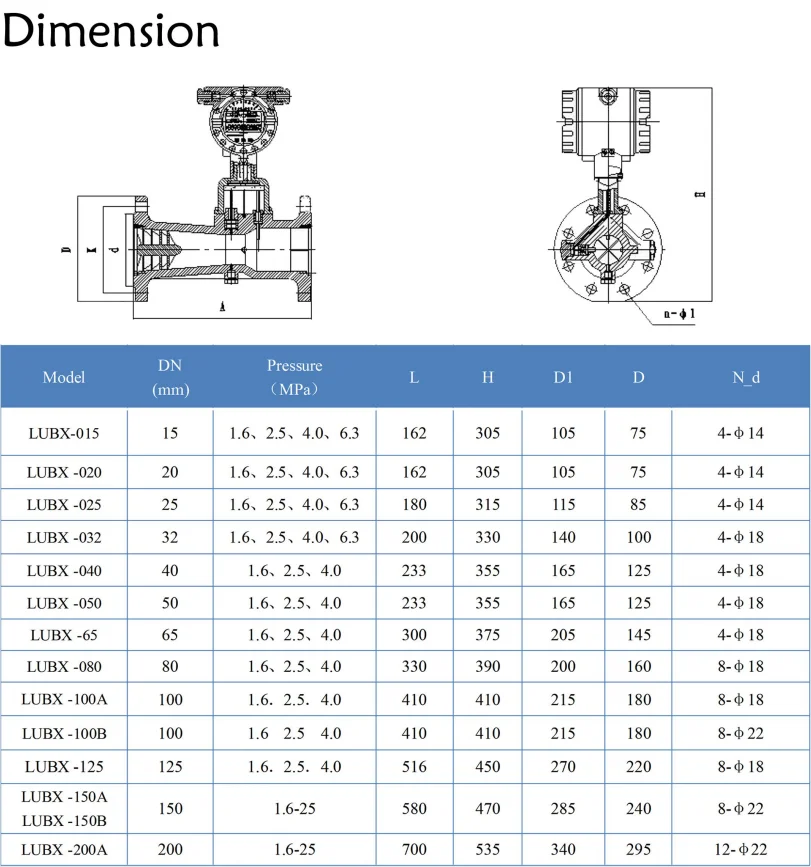

Power supply | A. External power supply: +24VDC±15%, ripple < 5%, suitable for 4 ~ 20mA output, pulse output, alarm output, RS-485, etc B.Internal power supply: 1 set of 3.6V lithium batteries (ER26500). | ||||
Power consume | A. External power supply:≤2w;B. Internal power supply: average power consumption 1mW. | ||||
Pulse output mode | A. Pulse signal of working condition, high level ≥20V, low current ≤1V; B. Calibration pulse signal, matching with IC card valve controller, high amplitude ≥2.8V, low amplitude ≤0.2V. C. Calibration pulse signal, high level ≥20V, low level ≤1V. | ||||
RS485 | A. Using RS-485 interface, can be directly connected with the host computer or secondary recorder, remote display flow. B. By RS-485 interface and HW- ⅰ data collector matching, form a telephone network communication system, a data collector can take 15 flow meters; C. It consists of RS-485 interface and HW- ⅱ data collector, which can form a broadband network communication system and transmit data. | ||||
4-20mA | Proportional to the standard volume flow, 4mA corresponds to 0 m3/h, 20 mA corresponds to the maximum standard volume flow. System: two wire or three wire. | ||||
Control signal output | A. Upper and lower limit alarm signal (LP) : photoelectric isolation, high and low level alarm, alarm level can be set, working voltage +12V~+24V, maximum load current 50mA; B. Valve closing alarm output (BC end, FOR IC card controller) : logic gate circuit output, normal output low level, amplitude ≤0.2V; Alarm output high level, amplitude ≥2.8V, load resistance ≥ 100K ω; | ||||
Real- time data storage | A. Daily record: date, zero point standard volume flow,total volume records for last 5 years. B. Monthly records: standard volume flow and total volume records for each month of the last 5 years. C. Time-lapse records: 1200 time-lapse records of date and time,temperature, pressure, standard volume flow and total volume. | ||||
Save data | The above stored data can be read through the computer to form data reports and graphs for analysis | ||||
Net work | Flow meter is matched with data collector, can communicate through telephone lines or broadband network, read and set the historical data and parameters of each flow meter in the network. | ||||
Explosion | ExdIIBT4; ExiaIICT4 | ||||
Protect grade | IP65 | ||||
Pressure loss | ΔP1 —— Actual pressure loss of flowmeter (KPa); ρ —— density of the measured medium (kg/m3) ΔP —— Pressure loss (KPa) of flowmeter when medium is dry air | ||||
Socket | The outer wiring interface is M20×1.5 internal thread | ||||
