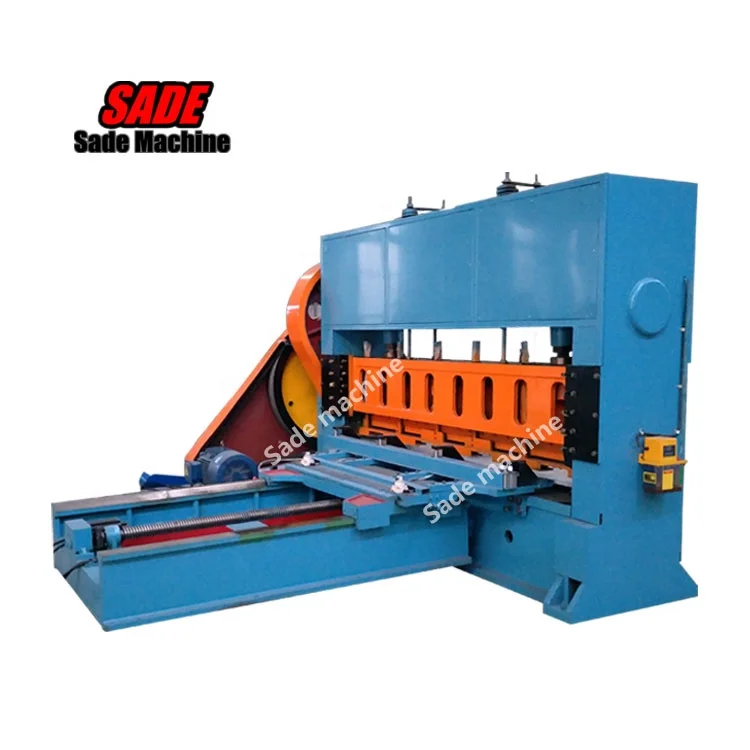

automatic heavy duty expanded mesh machine with famous electric

Product Overview

Description

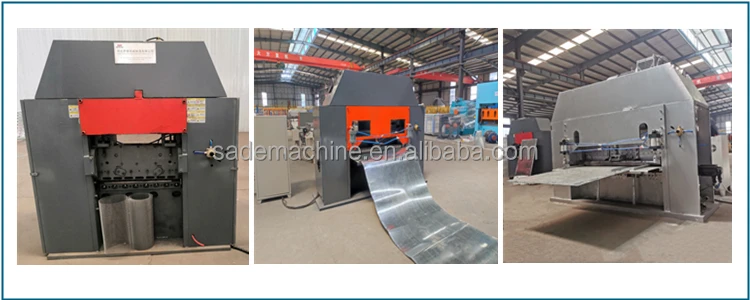

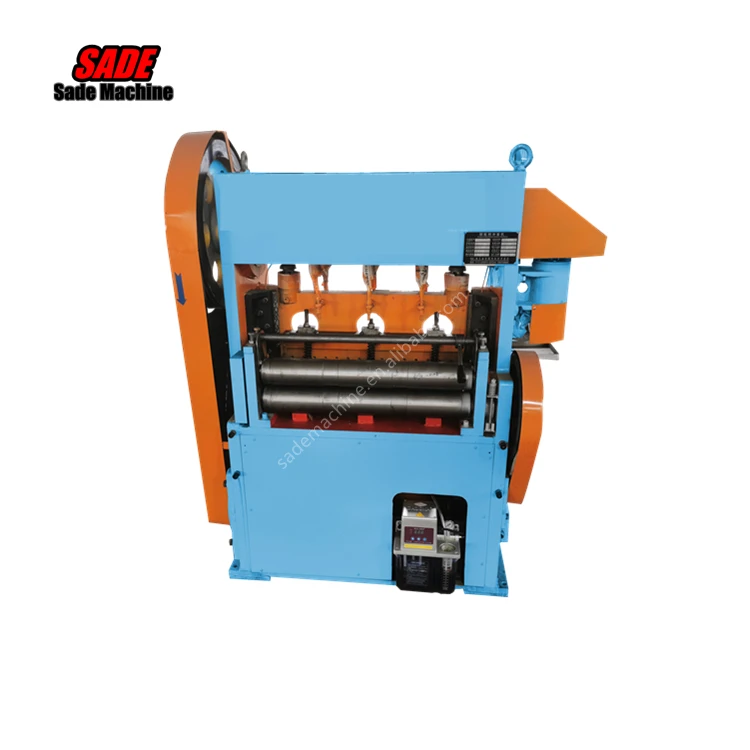

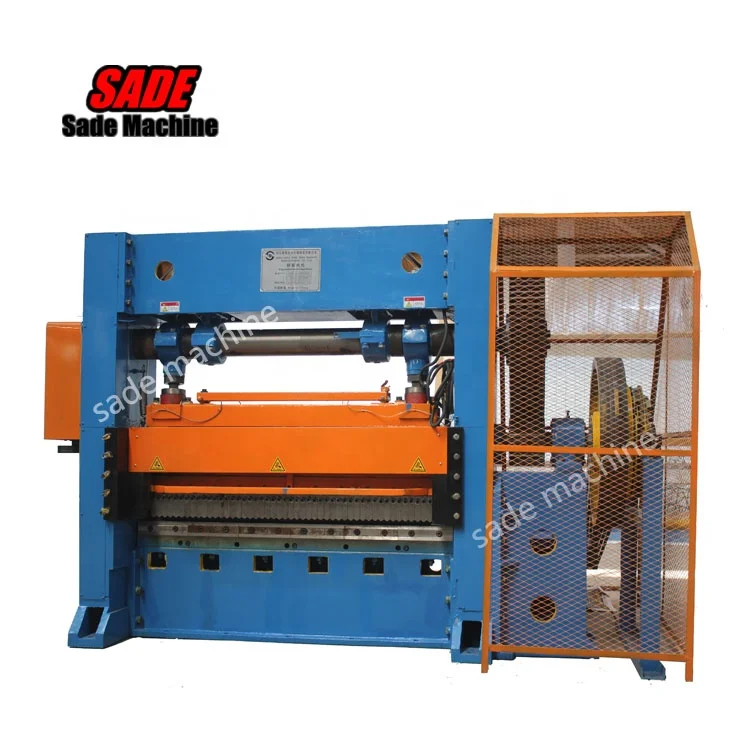

     Automatic expanded metal mesh machine

        Expanded mesh machine can punches and cuts various steel plates or iron plates, and then stretches them into a diamond mesh mesh. This is called a diamond mesh. The other is that it punches a steel plate to form a circular hole or various shaped meshes.It suitable for Low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, etc .

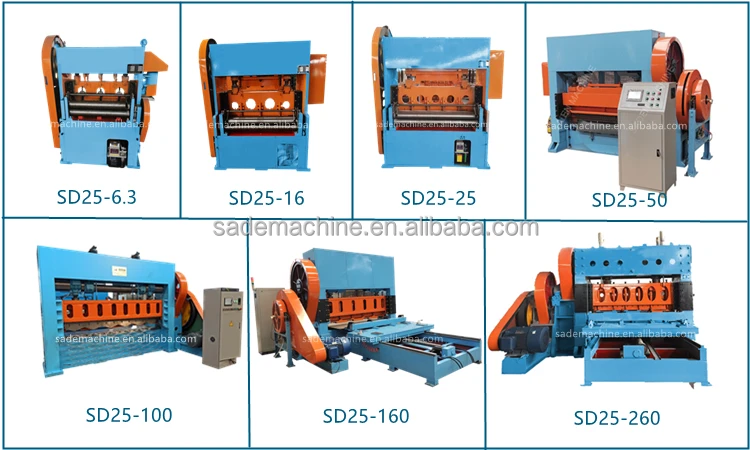

Type	SD25-6.3	SD25-16	SD25-25	SD25-50	SD25-63	SD25-100/2000	SD25-100/2500	SD25-160/2000	SD25-160/2500	SD25-160/3200	SD25-260/2000	SD25-260/2500
Max. Net Width mm	650	1000	1250	1600	2000	2000	2500	2000	2500	3200	2000	2500
Working Speed times/min	280-320	250-280	250-280	100-120	80-90	70-85	60-80	50-60	45-60	45-60	45-60	45-60
Material thickness mm	0.1-1.5	0.2-1.5	0.2-1.5	0.3-2.5	0.3-3	0.3-4	0.3-4	0.5-8	0.5-8	0.5-6	0.5-10	0.5-10
Length of Mesh mm	20	25	30	100	100	240	240	240	240	240	150	150
Motor Power   kW	4	5.5	5.5	11	11	18.5	22	30	30	30	55	55
Feeding Distance  mm	0-10	0-10	0-10	0-15	0-15	0-30	0-30	0-30	0-30	0-30	0-40	0-40
Weight mm	1200	2000	3000	6000	11000	12000	14000	17000	19000	21000	26000	29000



Expanded Metal Mesh Machine-High Speed Type









Type	SD5-10 High speed	SD25-25 High speed	SD25-50 High speed	SD25-50 High speed
Max. Net Width/mm	700	1250	1580	1580
Working Speed times/min	600-650	400-550	350-380	200-260
Material thickness/mm	0.15-2.0	0.3-2.0	0.5-2	0.8-4
Length of Mesh/mm	2*1-20*10	4*2-25*12	6*3-60*25	8*4-100*35
Motor Power/kW	7.5	11	22	30
Feeding Distance/mm	0-5	0-5	0-15	0-15
Dimension Size/mm	1520*1150*1750	1200*2300*1800	1800*3000*2100	1830*3100*2030

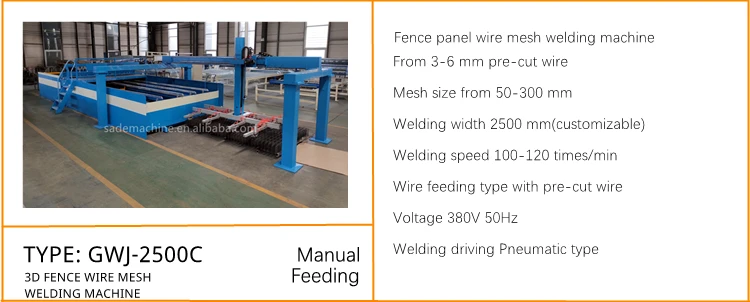

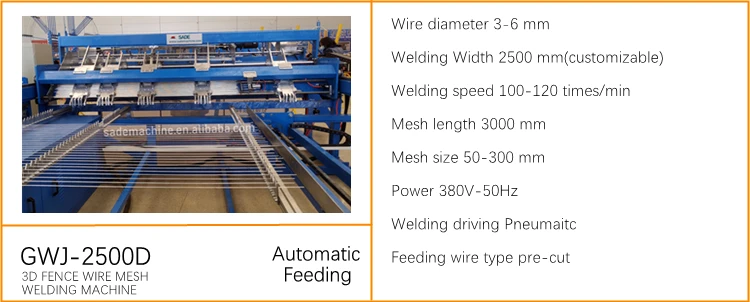

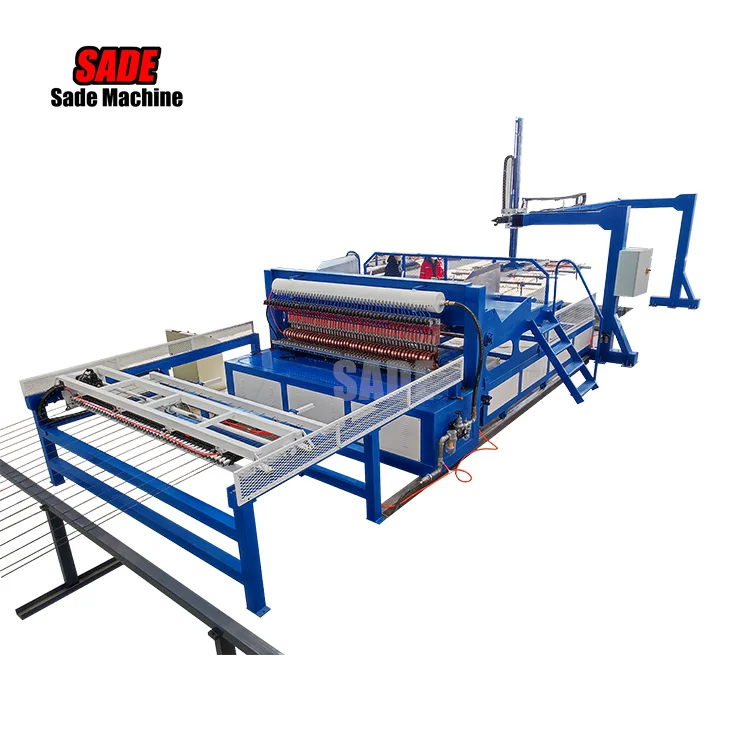

New developed pneumatic welding machine . The (5-12mm/3-6mm) welding speed can be up to maximum 100-120 times/min.It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc.





Type	Technology Des.
Wire Diameter/mm	5-12
Mesh Panel WIdth/mm	2500(available of customization)
Mesh Panel Length/mm	3000-6000
Welding Speed times/min	80-100

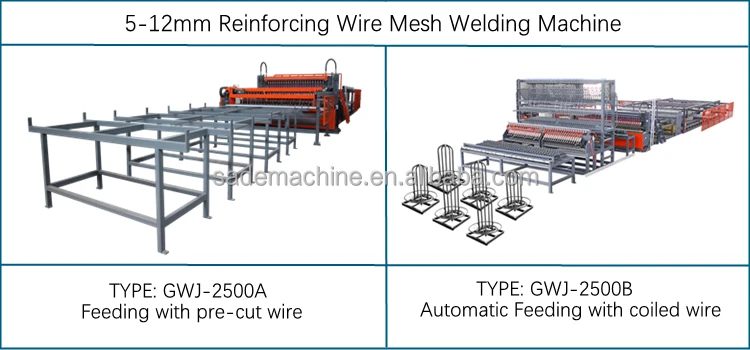

Wire Feeding Way	pre-cut(GWJ-2500A)  / coiled wire(GWJ-2500B)
Mesh Size/mm	100-300
Rated Voltage/V-Hz	380-50
Welding Driving Way	Pneumatic
Control System	PLC(Siemens/Mitsubishi/other)
Mesh Panle WIdth/mm	2500(available of customization)
Key Words	Wire Mesh Making Machine
