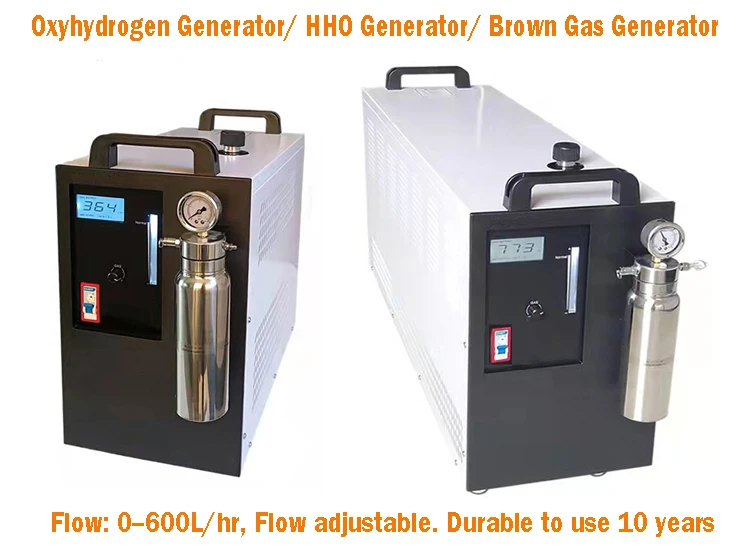

oxyhydrogen generator HHO generator brown gas generator 200L to 600L
- Category: >>>
- Supplier: Jinan Mao An Instrument Co. Ltd.
Share on (1600955468599):
Product Overview
Description
Product Introduction
Hydrogen oxygen generator, use water as fuel for welding. in normal uses, oxygen helps hydrogen to burn into water again. Whole process is quite clean, no pollution.
Machine is easy use, safe, precision, fire high temperature, no pollution and high working efficiency.
Oxyhydrogen generator just use above principle, through electrolysis water to produce H2 and O2. Main parts have: electrolysis cell, power system, gas/water separator, cooling system, safety system, gas cleaning system, electric control systems etc. And electrolysis cell is the most important part. Our electrolysis cell is integration formed, which guarantee no liquid leakage. Promise to use 10 years on average.
Product Parameters

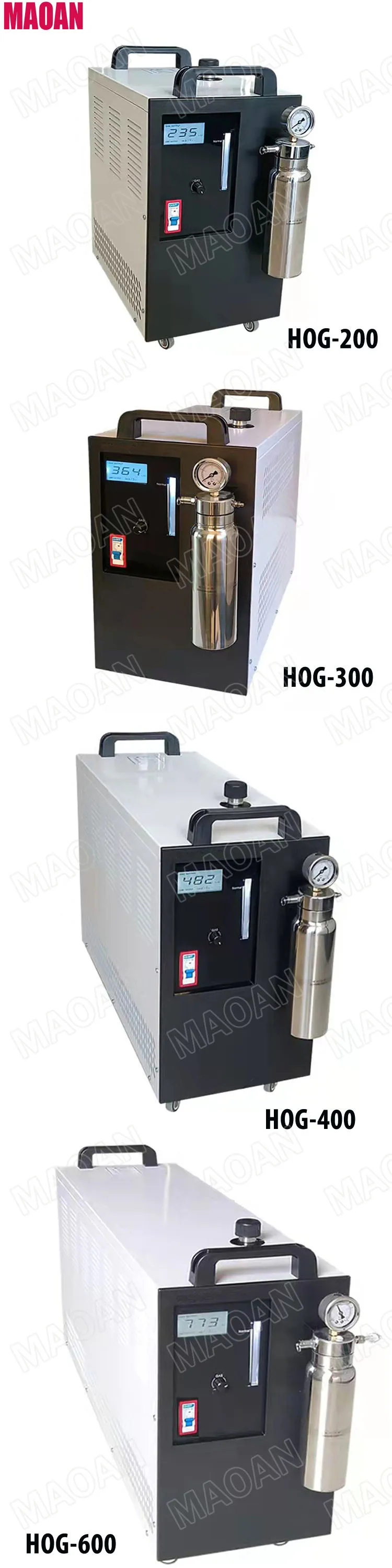

Model No | HOG-200
| HOG-300
| HOG-400 | HOG-600 |
Gas Output Flow(L/hr) | 0-200 adjustable | 0--300 adjustable | 0-400 adjustable | 0--600 adjustable |
Gas Output Pressure | 0.1--0.15MPa | |||
Gas Burning Temp | Around 2800 0C | |||
Input Voltage | 220V±10% or 110V±10% 50--60HZ | |||
Water requirement | Pure water or distilled water | |||
Electrolysis cell No | 2pcs | 3pcs | 4pcs | 6pcs |
Cell Capacity(ml) | 4100 | 6300 | 8400 | 12400 |
Power Consumption | 0.8 | 1.2 | 1.6 | 2.5 |
Each Cell Current | 12--14A(DC) | |||
Water Adding | By manual | |||
Extra water Tank Quantity | 1pcs | 1pcs | 1pcs | 1pcs |
Water Consumption ( L/Hour ) | 0.06 | 0.09 | 0.12 | 0.18 |
Equipment Size (cm) | 53*30*54 | 65*30*54 | 76*30*54 | 1020*30*54 |
Weight (kgs) | 17 | 22 | 26 | 46 |

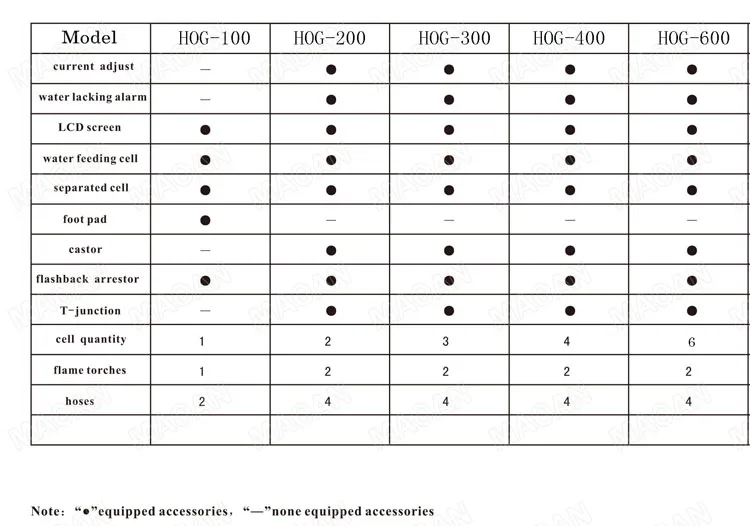

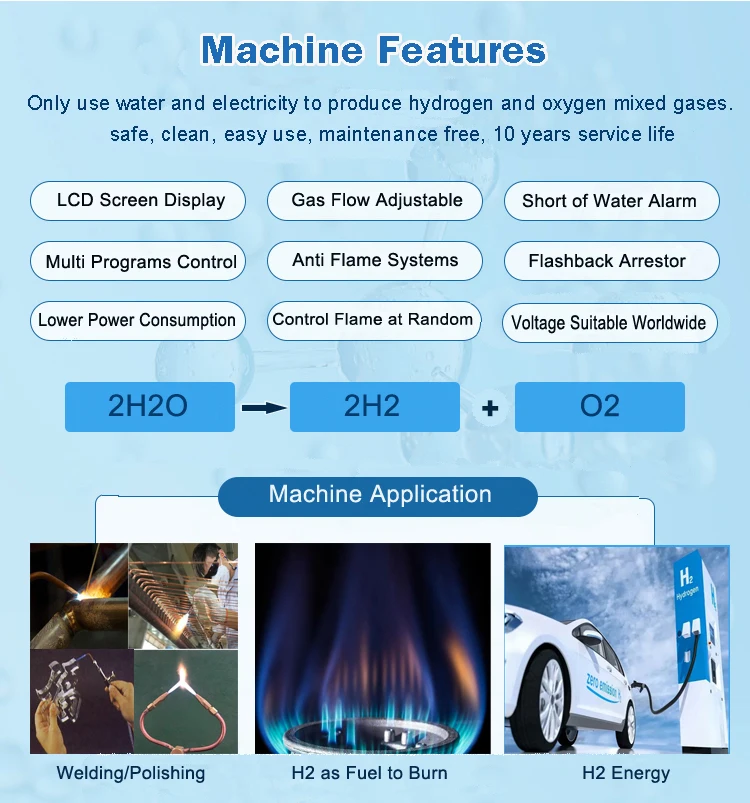

Product Characters

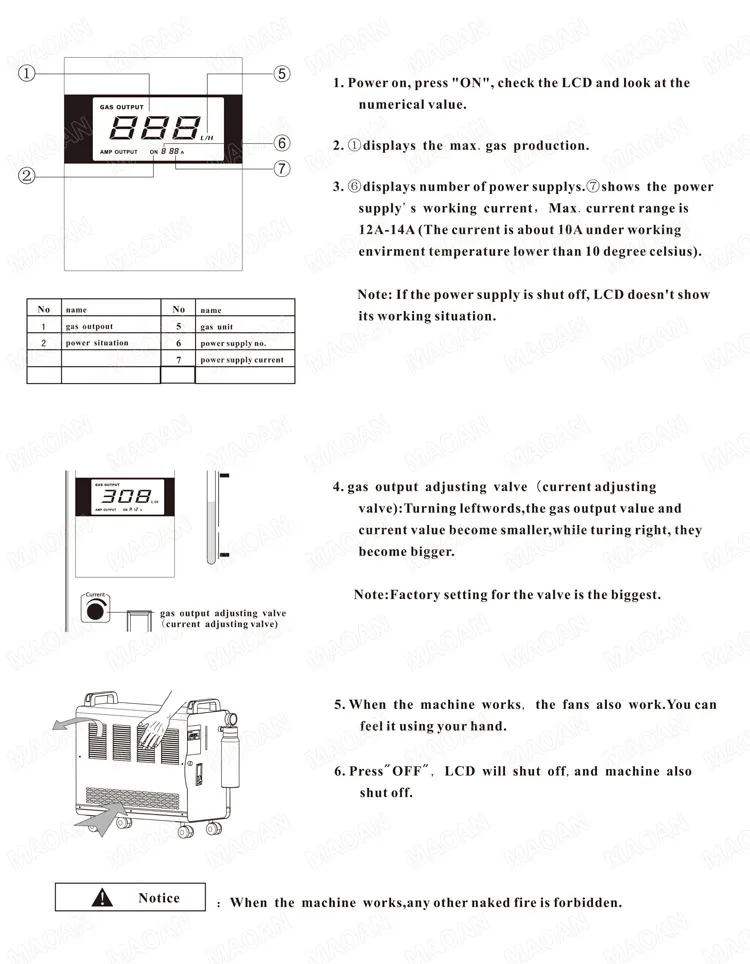

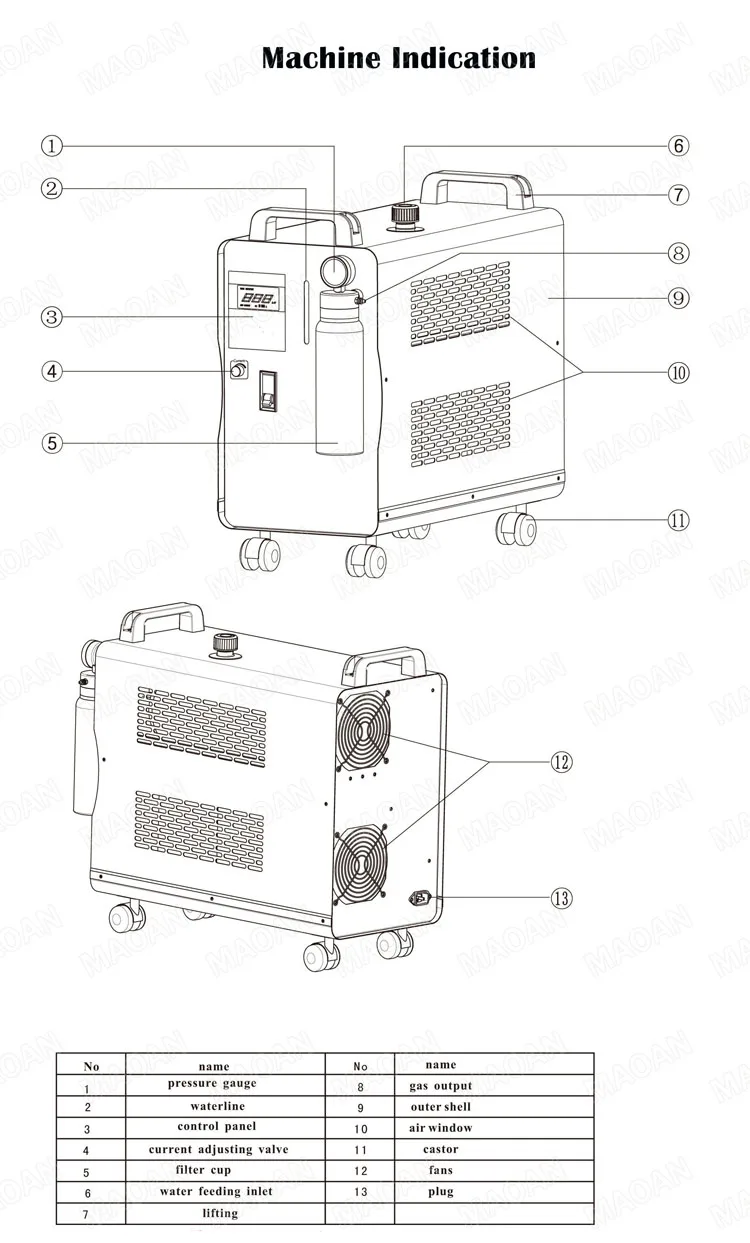

Machine Indication

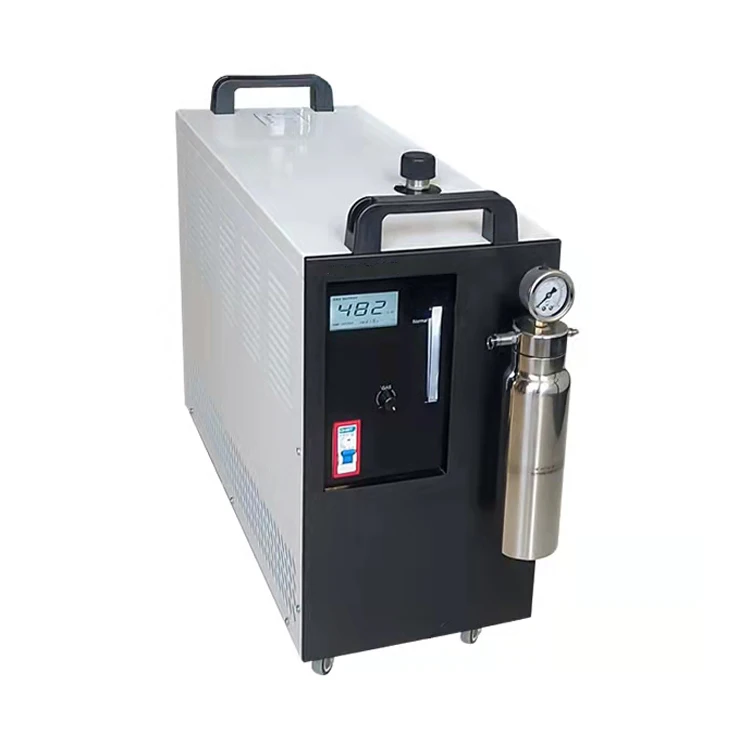

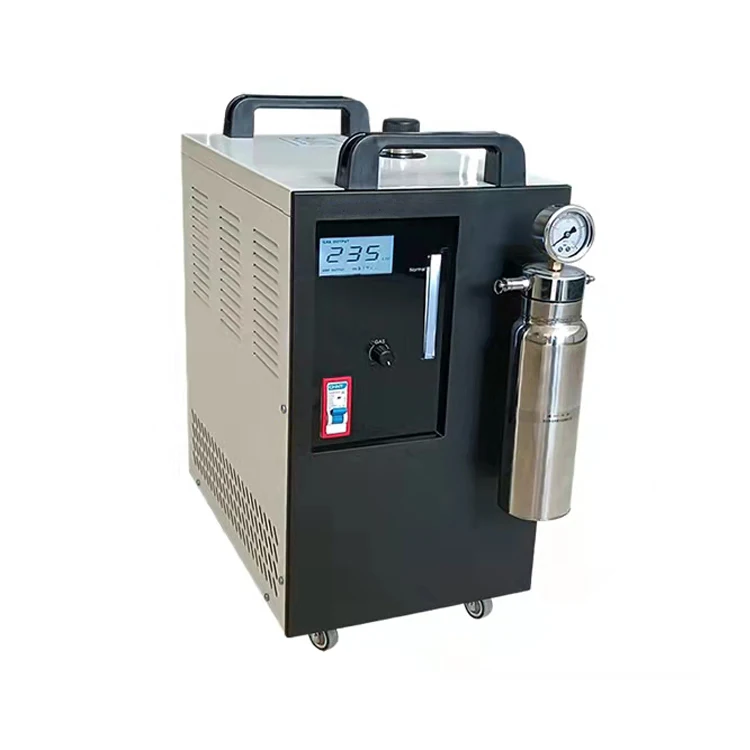

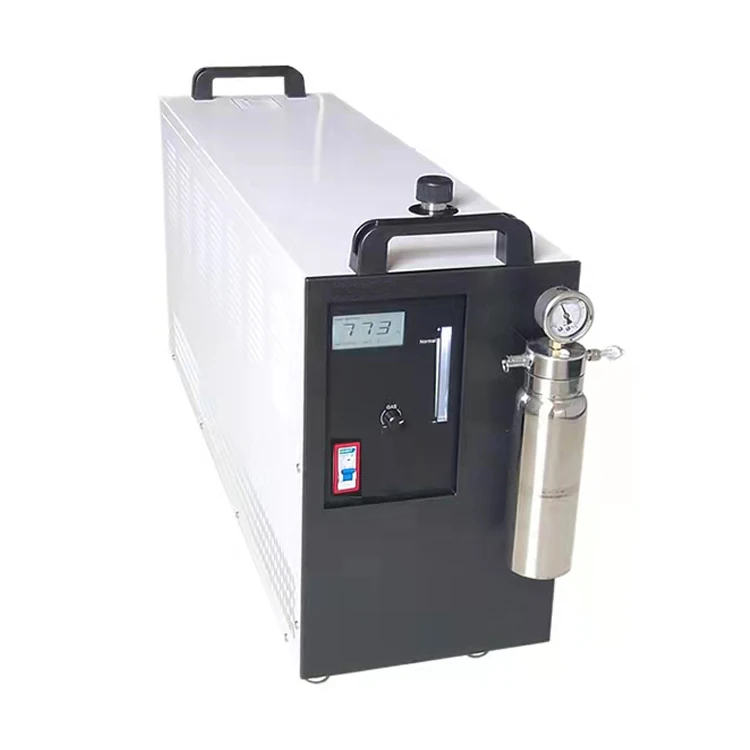

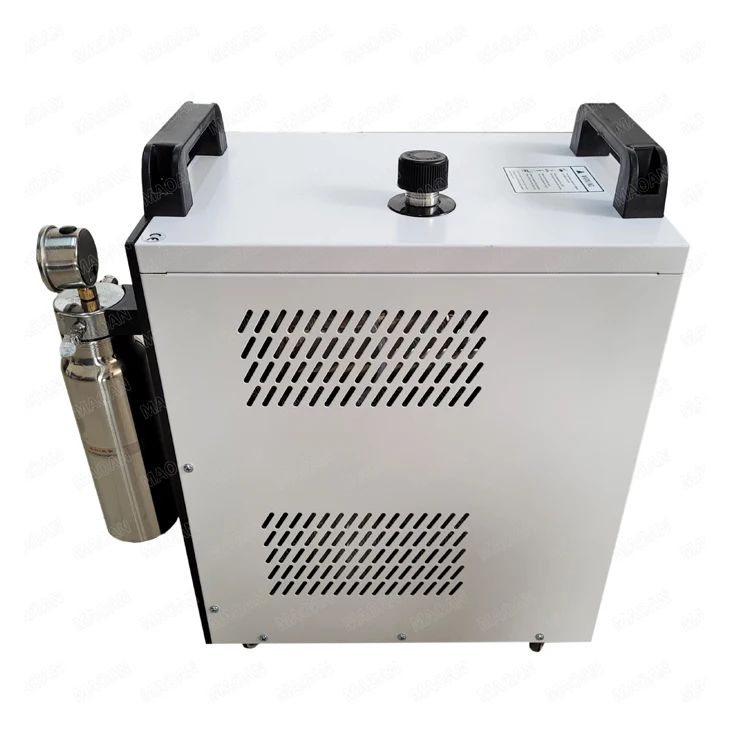

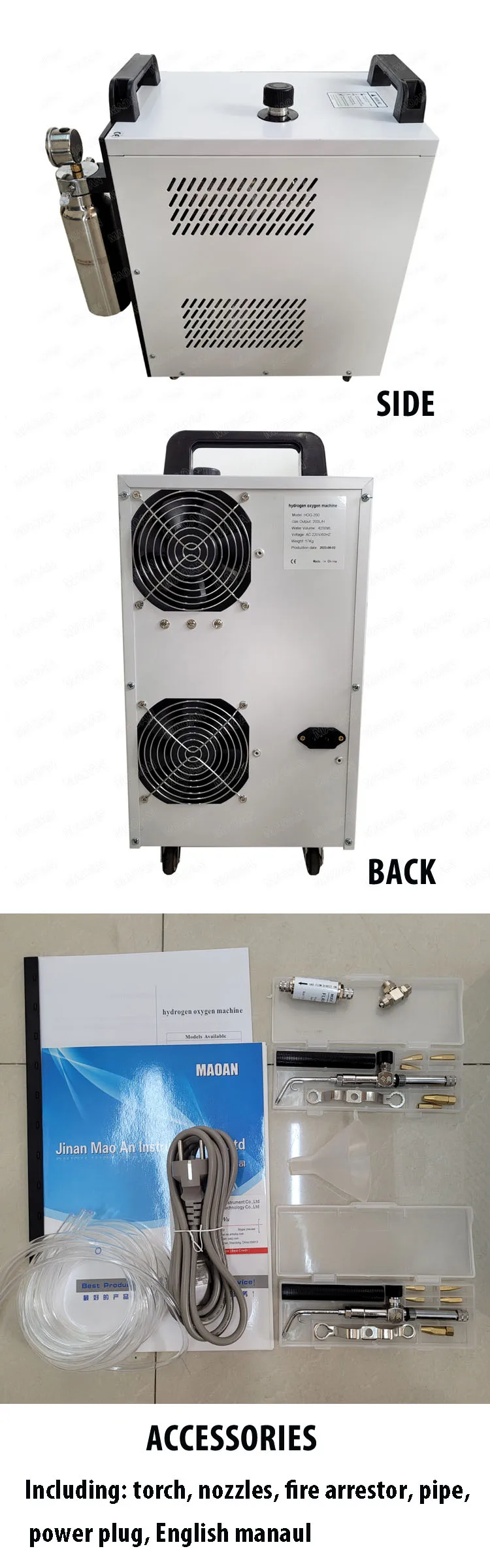

Product Pictures
