School Bus Plataforma Para 8ch Dvr 1080p Hdd Mobile Dvr Ssd Mdvr Tracker 3g 4g Mdvr
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1600955538808):
Product Overview
Description
Products Description

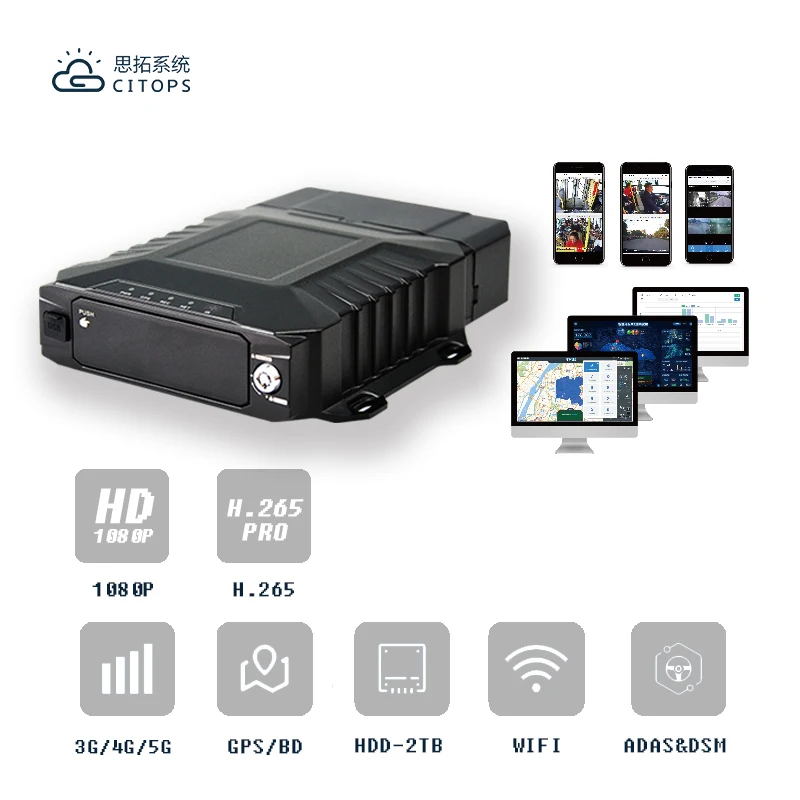

School Bus Plataforma Para 8ch Dvr 1080p Hdd Mobile Dvr Ssd Mdvr Tracker 3g 4g Mdvr It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies.
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
Item | parameters | ||
Audio and Video Inputs | video input | 8ch AHD audio input | |
audio input | 4ch audio input | ||
Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) | |
speech output | 1ch audio output | ||
Audio and video parameter coding | video coding | H.264 Main Profile/H.265 | |
Resolution | 1080P/720P/D1 optional | ||
audio coding | Default G.726,G.711A optional | ||
storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk | |
SD | Support 1 SD card | ||
wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world | |
WIFI | 2.4/5.8G optional | ||
locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization | |
interface | USB | USB2.0 interface, support export data, external engineering treasure | |
serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | ||
I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | ||
network interface | Support external IPC, support hybrid NVR function | ||
Intercom | 1 special intercom handheld mark interface | ||
Physical Specifications | size | 176.9mm（L）*186.8mm（W）*54mm（H） | |
weight | NW：1.4kg GW：2kg（M52Hv-DGNE1-L as a standard） | ||
work environment | operating temperature | -20〜+70℃ | |
operating humidity | 8%〜90%（No condensation） | ||
Other | operator schema | remote control、APP、WEB | |
· Gravity sensor | Built-in G-Sensor | ||
The product supports 4G+GPS, it is recommended to contact the customer for more information before placing an order.
