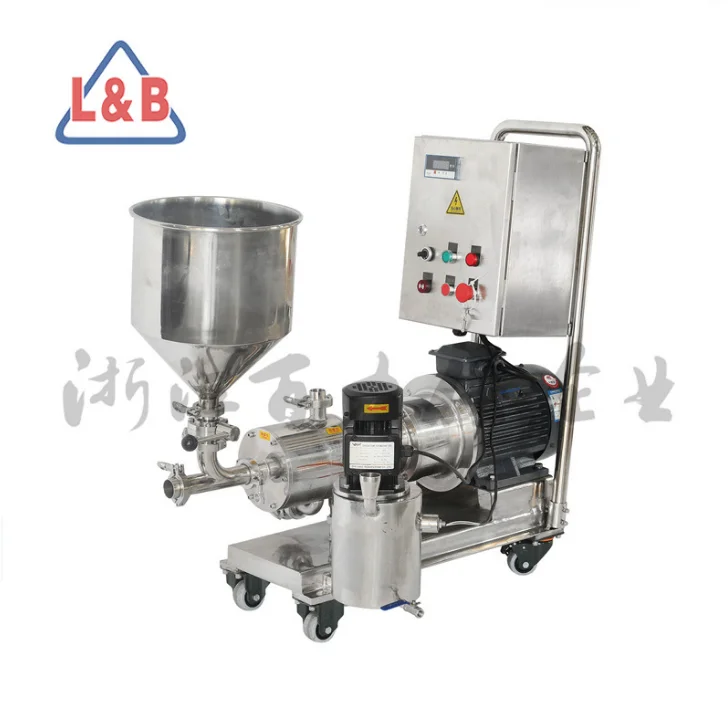

Tobee Effluent Handling
$12,600

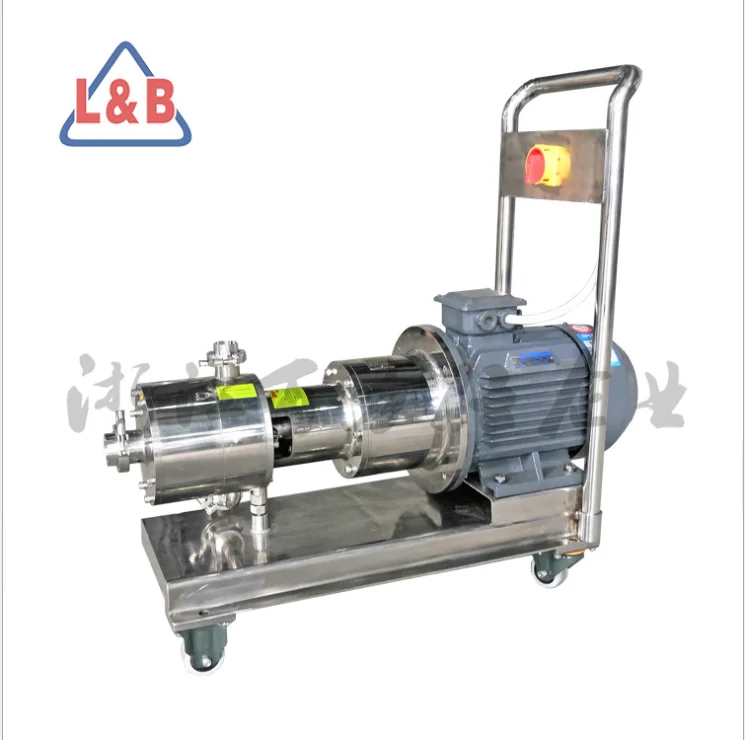

industrial in circulation working smoothie stainless steel multi functional high speed shearing homogenizing emulsifying mixer
- Category: >>>
- Supplier: Zhejiang L&b Machinery Co. Ltd.
Share on (1600955856408):
Product Overview
Description
Product Description

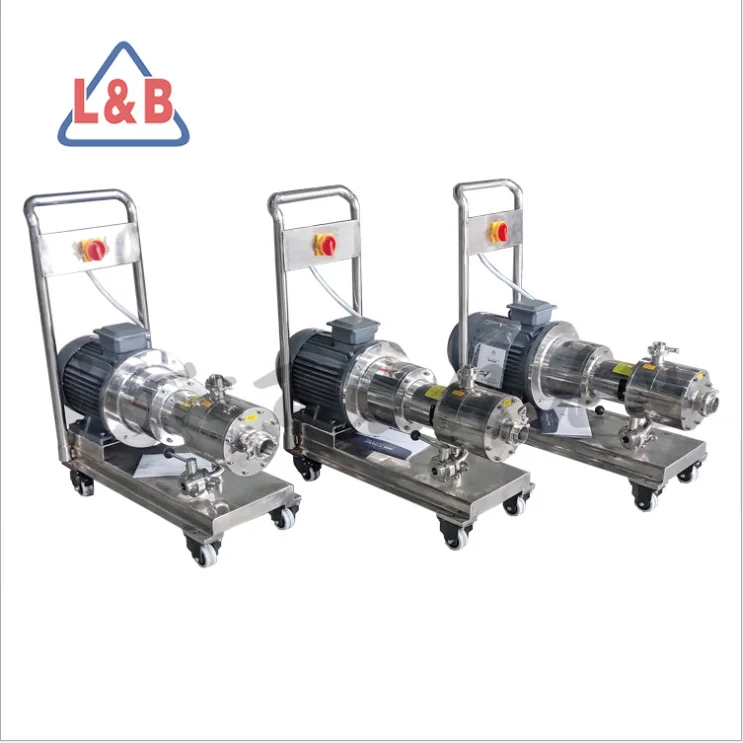

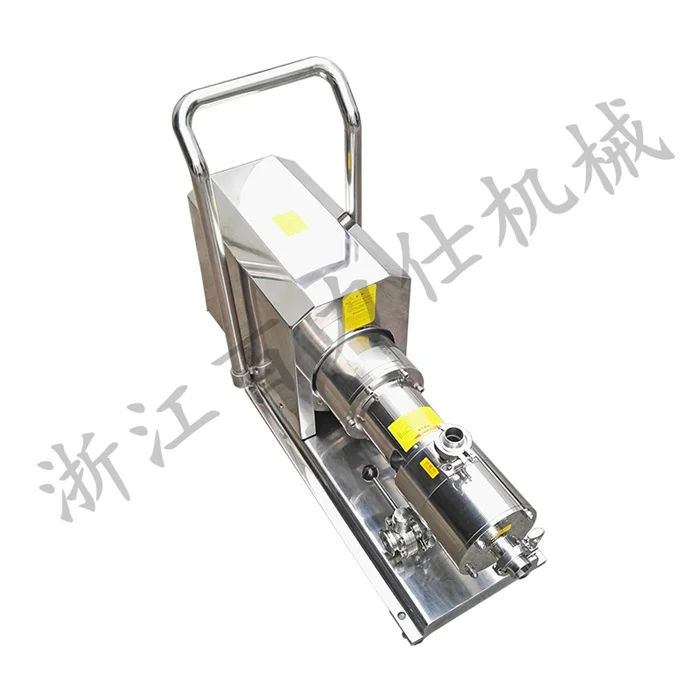

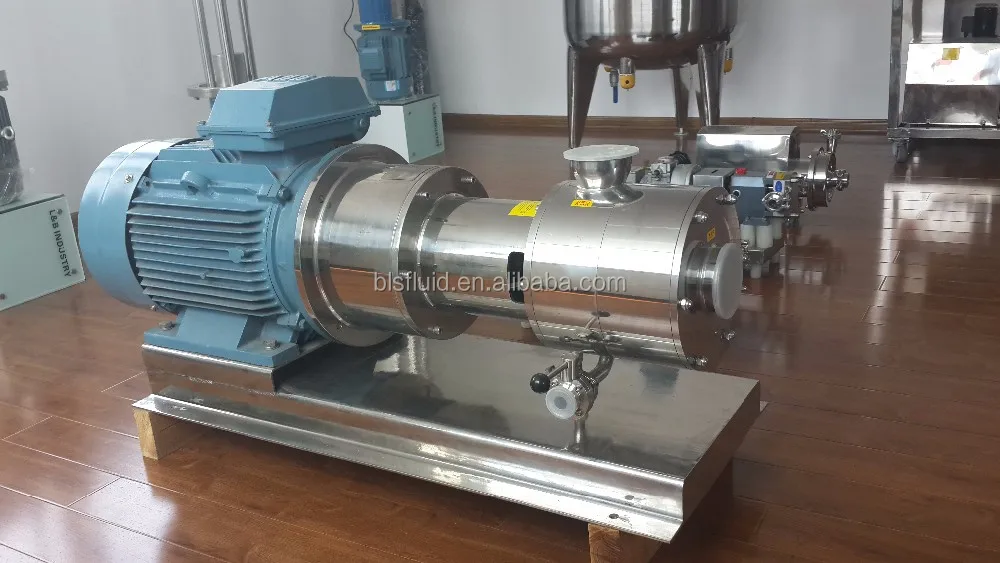

industrial Fruit smoothie making system used stainless steel homogenizing and emulsifying mixer
L&B BRL-3 High shear mixer is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.
BRL-3 High shear mixer is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.
The mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, petroleum, coatings, nano-materials industry
All the sanitary, reliability and rigidity meets the requirements of these industries.
All the sanitary, reliability and rigidity meets the requirements of these industries.
OPERATION THEORY.
The mixer is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair.
Specially designed mixing head is composed of rotor and stator.
The rotor works in high speed and high-frequency mechanical effects from the motor.
The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.
High shear emulsifier combined of two layers or six layers of rotor and stator.
The materials go through the layers after shear dispersion and emulsifying.
Specially designed mixing head is composed of rotor and stator.
The rotor works in high speed and high-frequency mechanical effects from the motor.
The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.
High shear emulsifier combined of two layers or six layers of rotor and stator.
The materials go through the layers after shear dispersion and emulsifying.
APPLICATION：
L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.
Model | Power (kw) | Speed (rpm) | Flow (m³/h) |
BRL3-60 | 4 | 2800 | 0-4 |
BRL3-100 | 7.5 | 2800 | 0-8 |
BRL3-120 | 11 | 2800 | 0-12 |
BRL3-140 | 15 | 2800 | 0-18 |
BRL3-165 | 22 | 2800 | 0-22 |
BRL3-200 | 37 | 2800 | 0-30 |
BRL3-220 | 55 | 2800 | 0-40 |
BRL3-240 | 75 | 2800 | 0-55 |
BRL3-260 | 90 | 1480 | 0-65 |
BRL3-300 | 110 | 1480 | 0-80 |
BRL3-360 | 132 | 1480 | 0-100 |
BRL3-380 | 160 | 1480 | 0-120 |
BRL3-400 | 185 | 1480 | 0-140 |

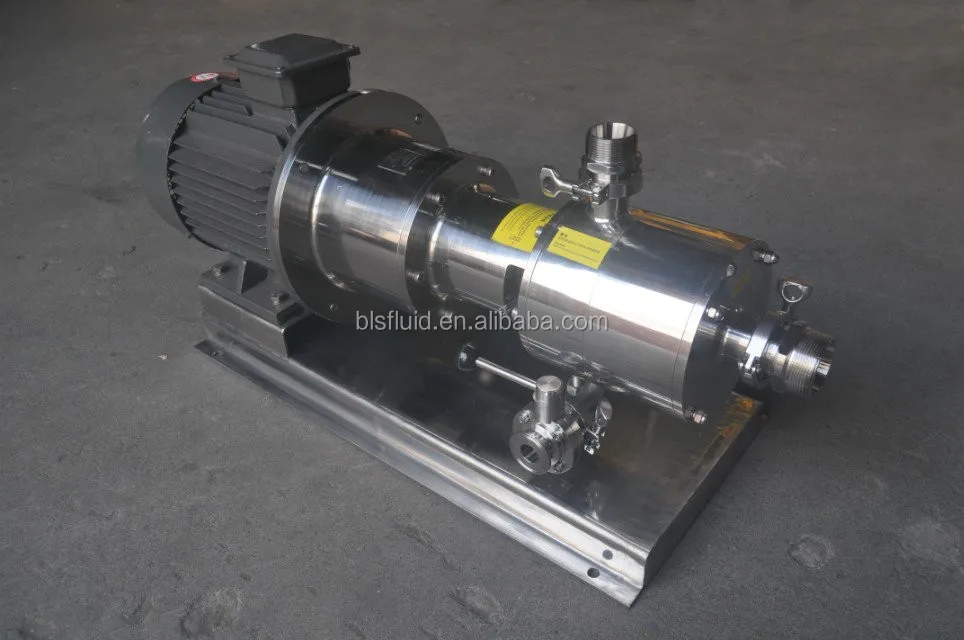

Detailed Images
Quality stainless steel
Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.
Construction: \t

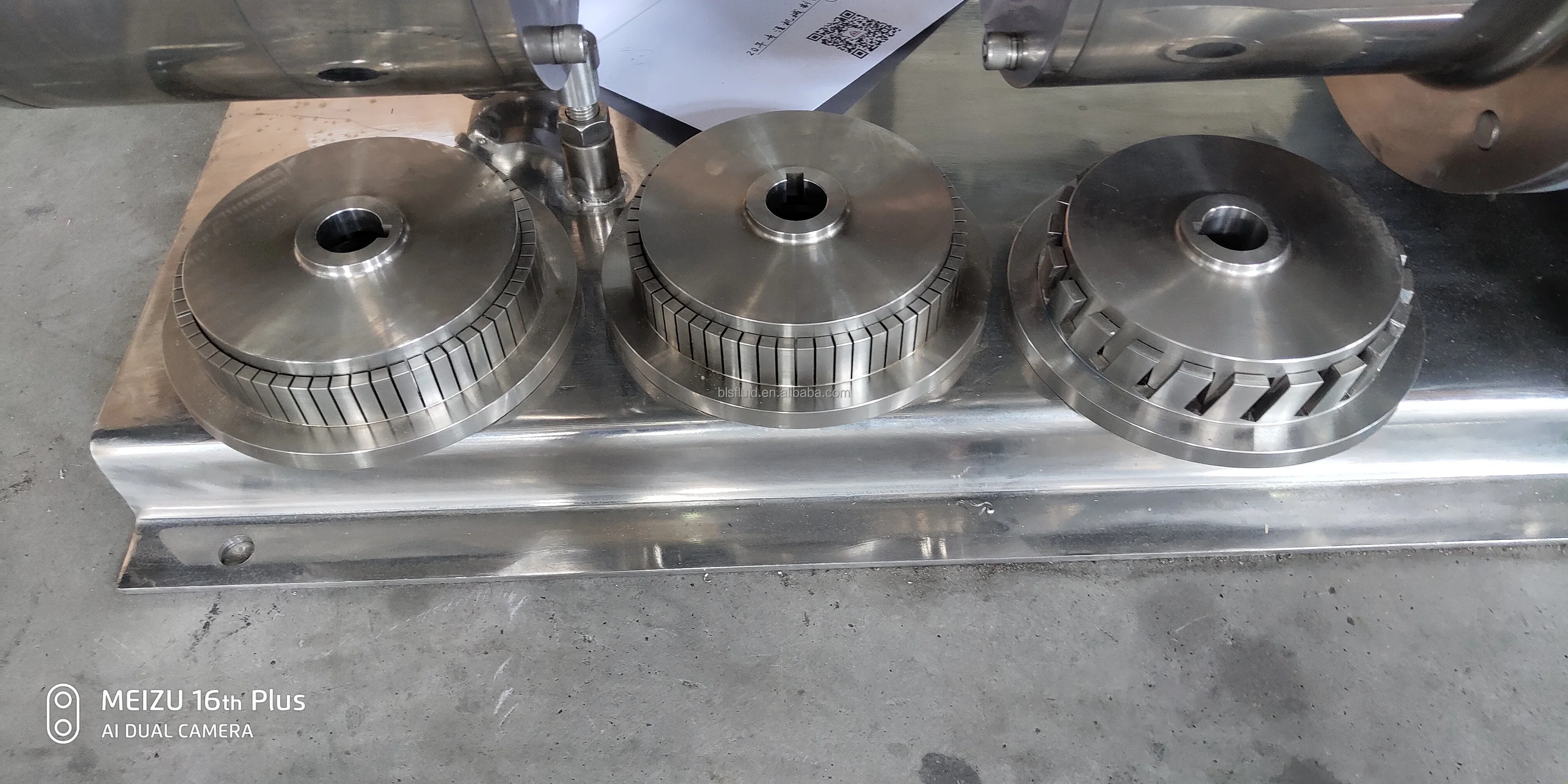

Horizontal three stages rotor and Stator series(CNC treatment)

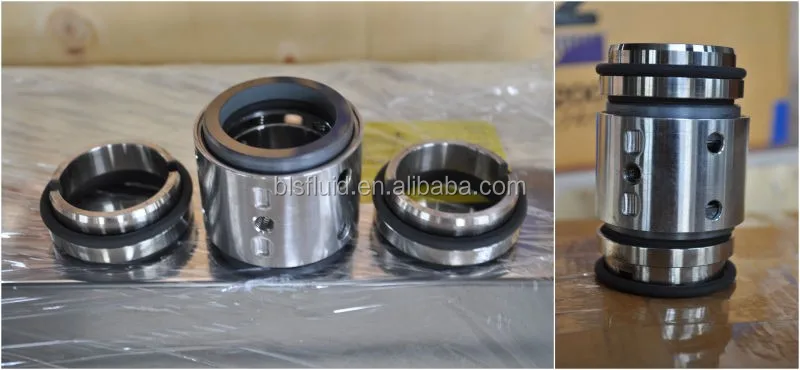

Sealing option:\t
Dual End Mechanical Seal
Pure copper motor:
1)low noise, stable dynamic, sustainable work.
2)with waterproof motor cover
3) The anti-pound coating and the water tray structure of the fuselage improve the safety of the motor, and the motor directly
drives the grinding head to rotate, which saves time.

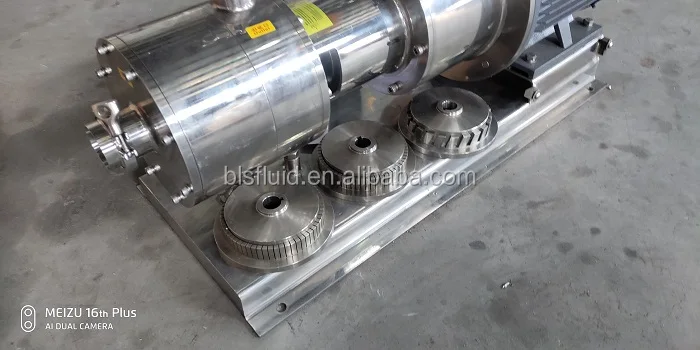

Rotor Type:\tteeth
Rotor and stator space:\tStandard 0.5mm(optional 0.25mm-0.5mm)

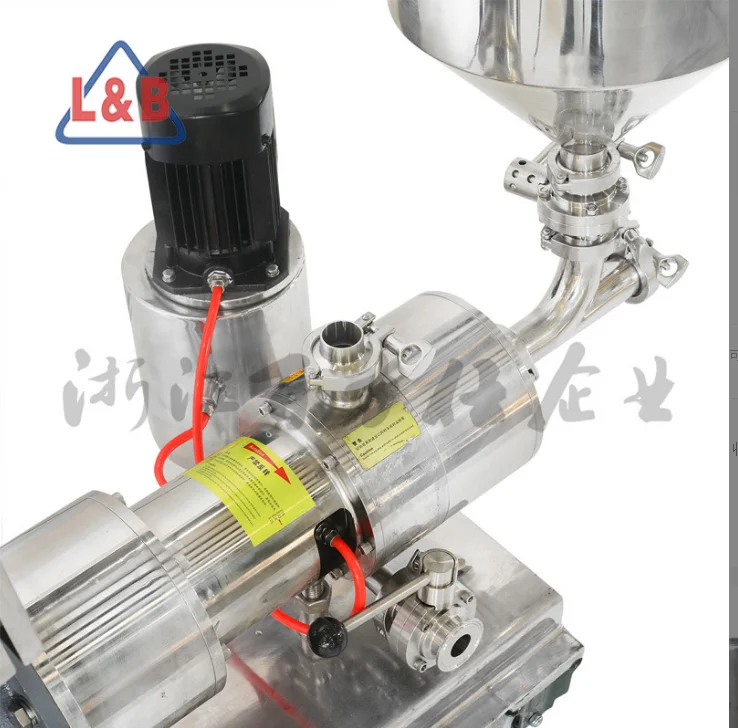

Delicate pump head
High precision stainless steel grinding disc, strict gear structure to achieve ultra-fine shredding effect.
Available pump inlet and outlet port connection:\t
standard Clamp, optional Union, Flange etc.

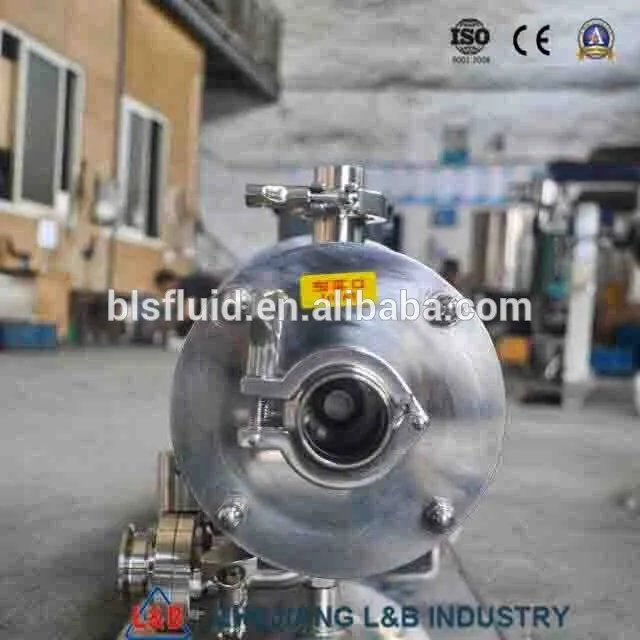

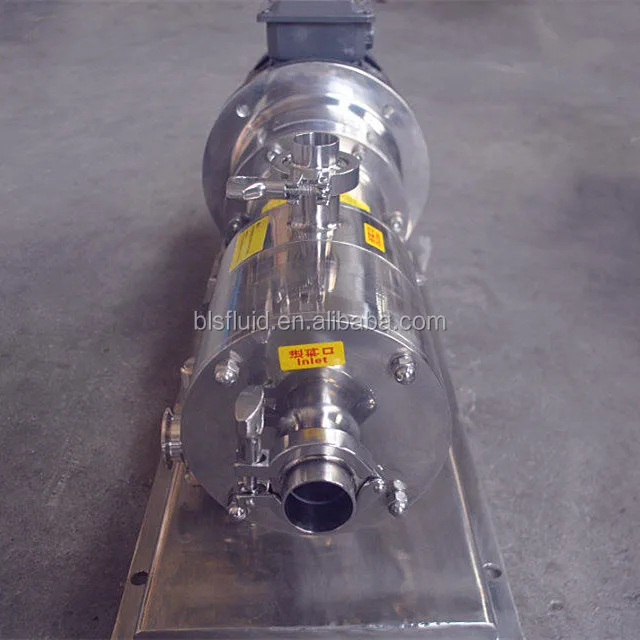

standard clamped pump inlet

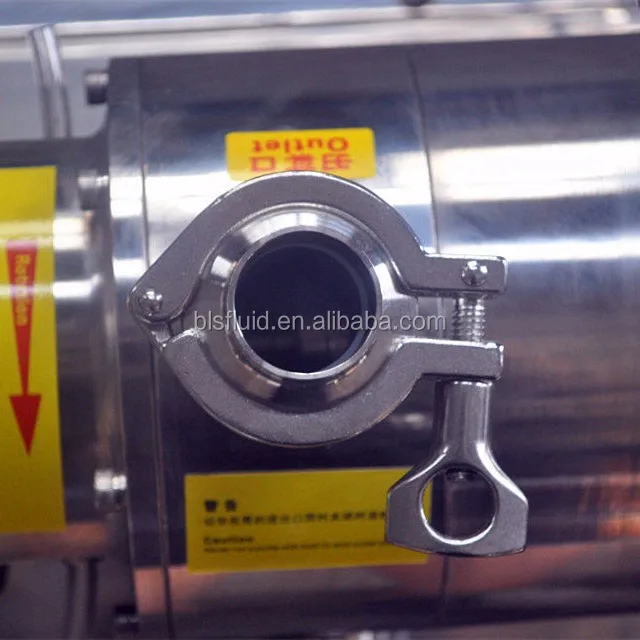

standard clamped pump outlet

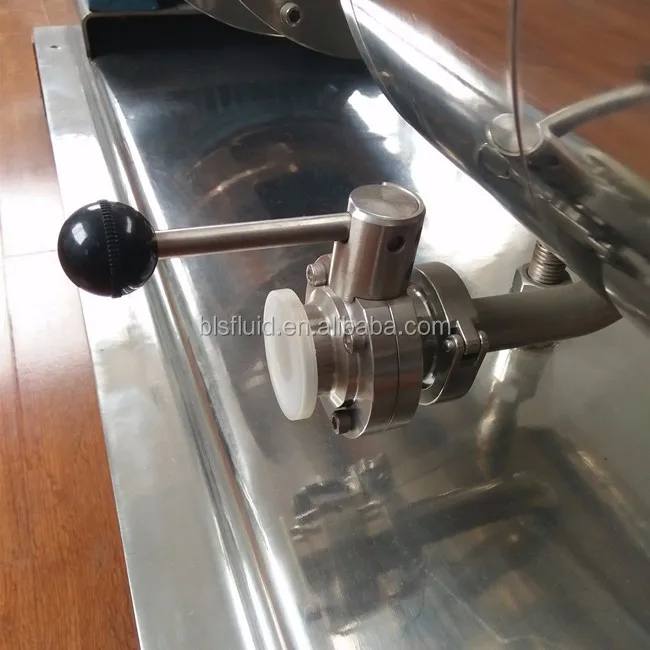

Drain port
clamped, connected with butterfly valve
standard Cooling water port for sealing cooling
customized jacket for cooling part
1) Machine seal cooling jacket: used product temperature 100 degree or more than 100 degree, flowable cooling water cooling machine seal
2)Pump head cooling jacket: suitable for used product temperature 50-60C
1) Machine seal cooling jacket: used product temperature 100 degree or more than 100 degree, flowable cooling water cooling machine seal
2)Pump head cooling jacket: suitable for used product temperature 50-60C

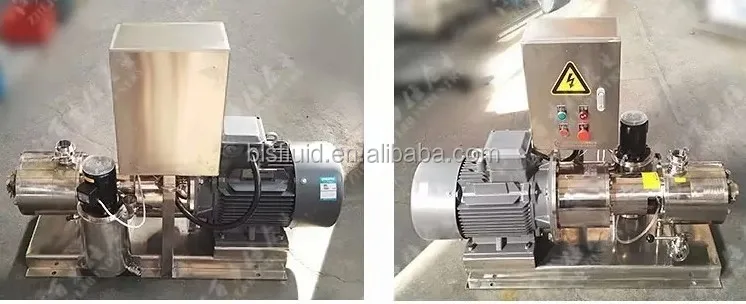

DRIVEN FORMS

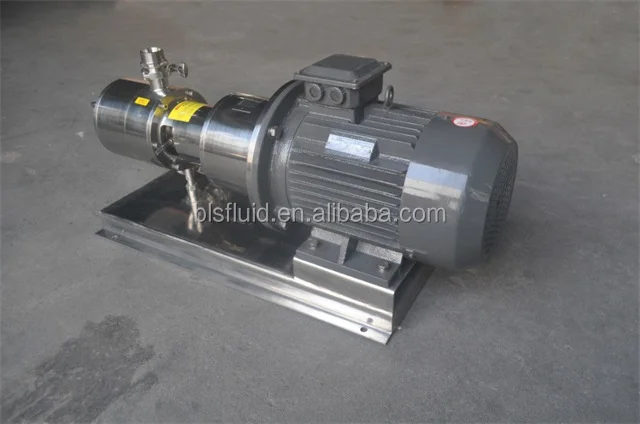

1.Motor + Fix velocity ratio reduction gear :
This form is simple, rotor speed is constant. So that flow is not adjustable . If Frequency transformer added, speed adjustment can be achieved.
This form is simple, rotor speed is constant. So that flow is not adjustable . If Frequency transformer added, speed adjustment can be achieved.
DRIVEN FORMS

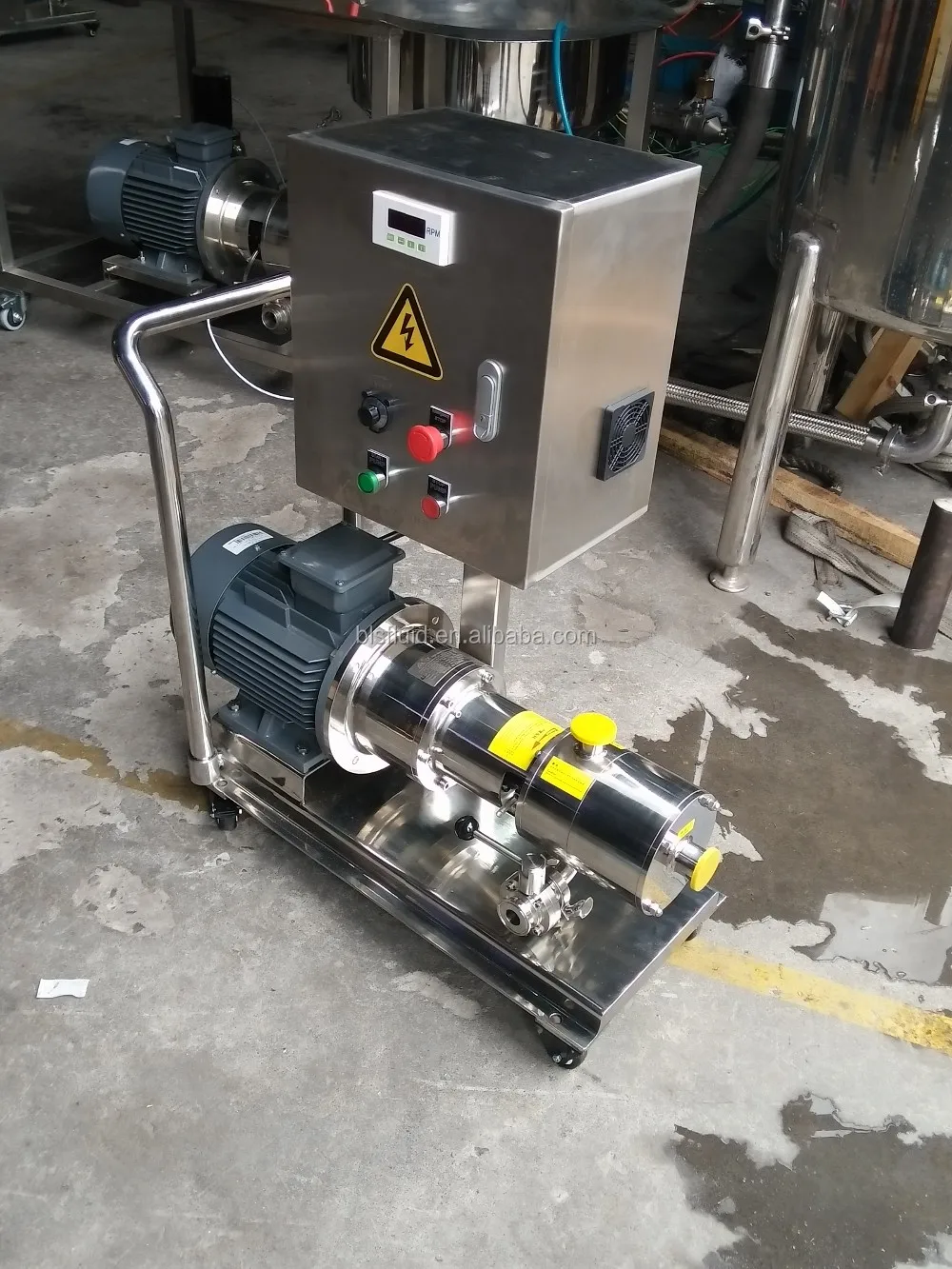

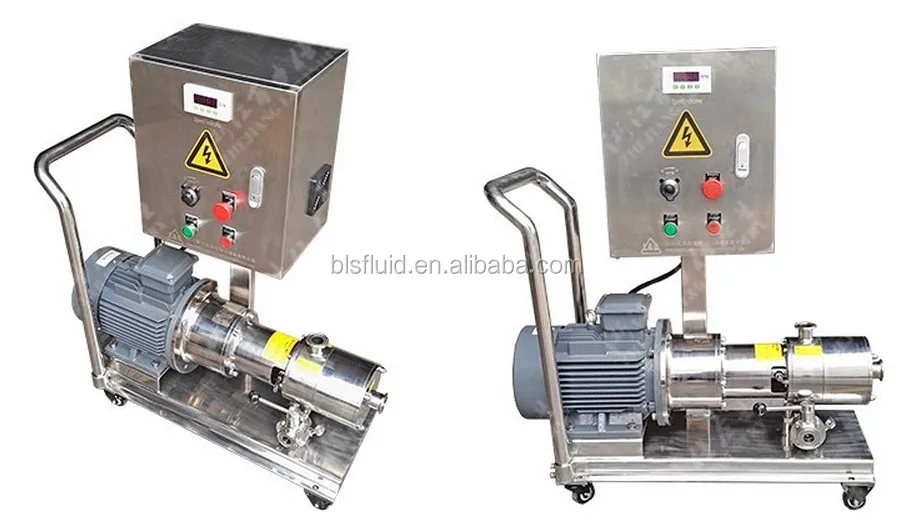

2.Frequency Converter + motor :
speed automatic adjustment can be realized in this way, is a free flow adjustments. The advantage is a higher degree of automation and easy to operate. Inverter drawback is the higher prices, smaller low-speed torque.
speed automatic adjustment can be realized in this way, is a free flow adjustments. The advantage is a higher degree of automation and easy to operate. Inverter drawback is the higher prices, smaller low-speed torque.
