Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale
Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale

Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale

Share on (1600955873213):


Price:$5,500.00

Quantity:


Product Overview

Description



Low Price Dry Wet Grinding Ball Mill for Lead Oxide Gold Ore Silica Sand For Sale


Products Description

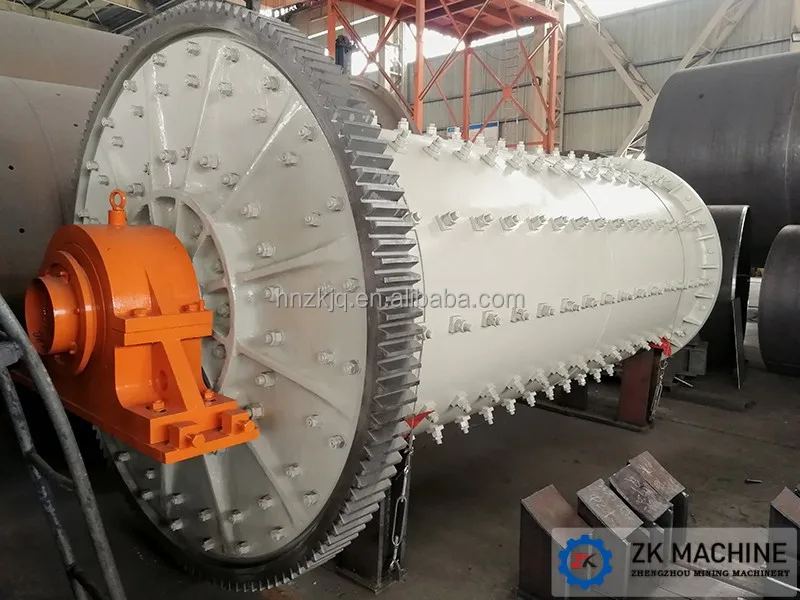

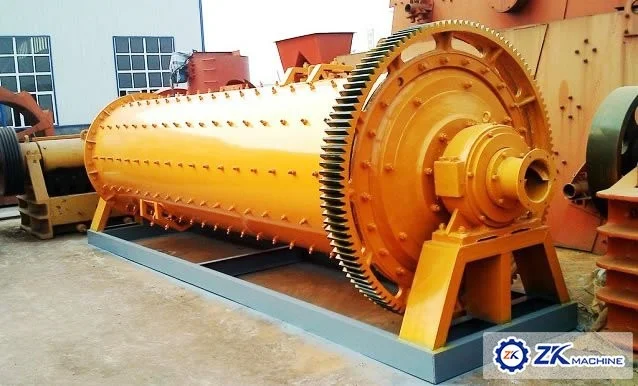

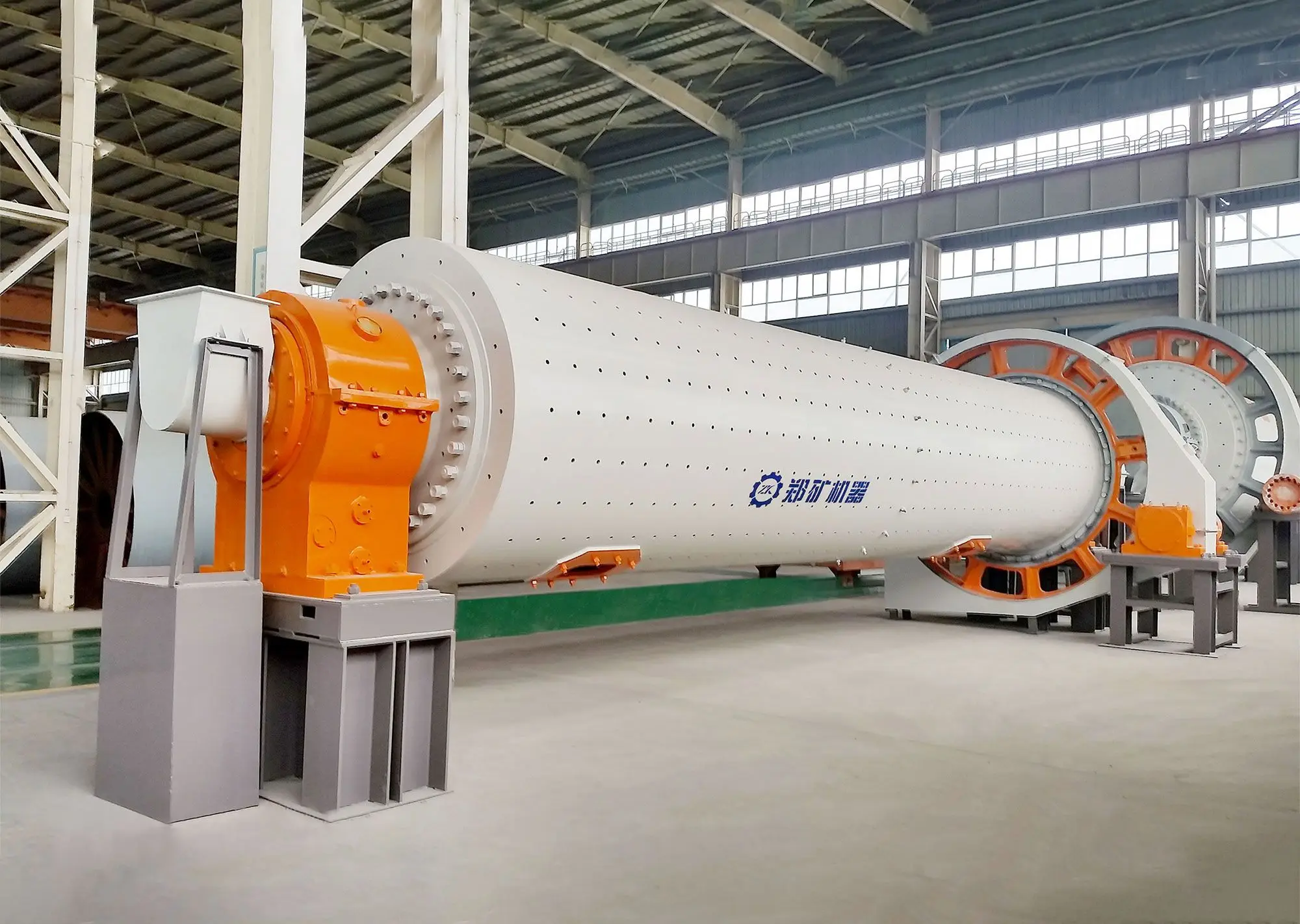

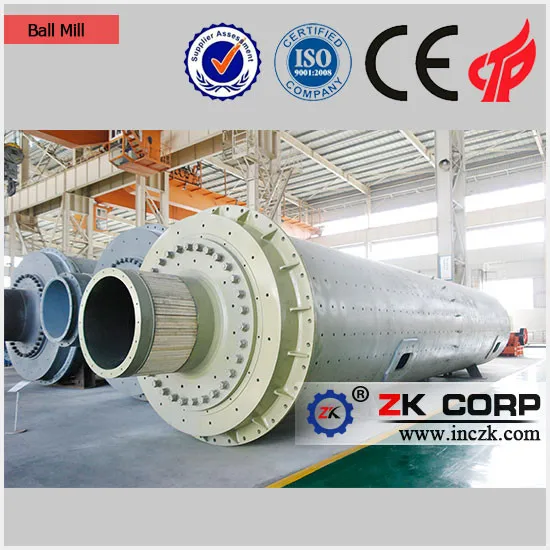

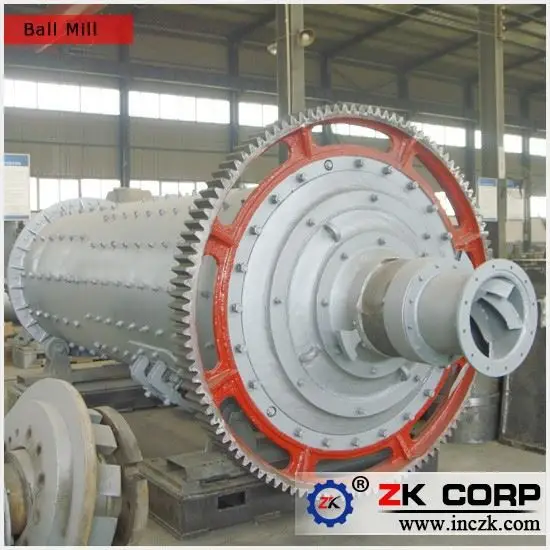

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials. The feed size to ball mill shall be smaller than 25mm, the output size can be adjusted by revising steel balls ratio.




Main Features
1) This Ball mill machine changes the intrinsic grinding mill structure.
2) Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.
3) Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.
4) The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.


Technical Parameter


Model
Rotate Speed (r/min)
Grinding Media Weight (T)
Grinding Media Weight (T)
Discharge Size (mm)
Output(t/h)
Motor Power (KW)
900*1800
36~38
1.5
≤20
0.075-0.89
0.65-2
18.5
900*3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
1200*2400
36
3
≤25
0.075-0.6
1.5-4.8
30
1200*3000
36
3.5
≤25
0.074-0.4
1.6-5
37
1200*4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
1500*3000
29.7
7.5
≤25
0.074-0.4
2-5
75
1500*4500
27
11
≤25
0.074-0.4
3-6
110
1500*5700
28
12
≤25
0.074-0.4
3.5-6
130
1830*3000
25.4
11
≤25
0.074-0.4
4-10
130
1830*4500
25.4
15
≤25
0.074-0.4
4.5-12
155
1830*6400
24.1
21
≤25
0.074-0.4
6.5-15
210
1830*7000
24.1
23
≤25
0.074-0.4
7.5-17
245
2100*3000
23.7
15
≤25
0.074-0.4
6.5-36
155
2100*4500
23.7
24
≤25
0.074-0.4
8-43
245
2100*7000
23.7
26
≤25
0.074-0.4
8-48
280
2200*4500
21.5
27
≤25
0.074-0.4
9-45
280
2200*6500
21.7
35
≤25
0.074-0.4
14-26
380
2200*7000
21.7
35
≤25
0.074-0.4
15-28
380
2200*7500
21.7
35
≤25
0.074-0.4
15-30
380
2400*3000
21
23
≤25
0.074-0.4
7-50
245
2400*4500
21
30
≤25
0.074-0.4
8.5-60
320
2700*4000
20.7
40
≤25
0.074-0.4
12-80
400
2700*4500
20.7
48
≤25
0.074-0.4
12-90
430
3200*4500
18
65
≤25
0.074-0.4
According to the process condition
800


Our Service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

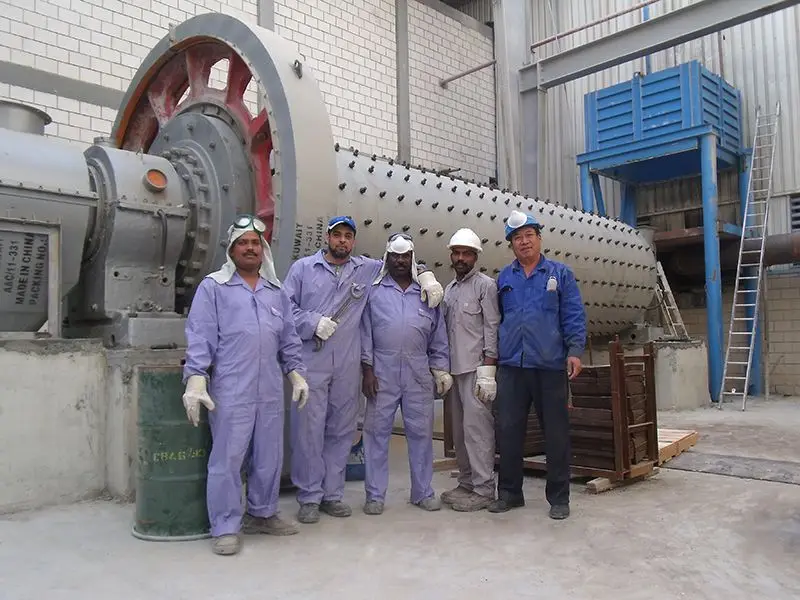

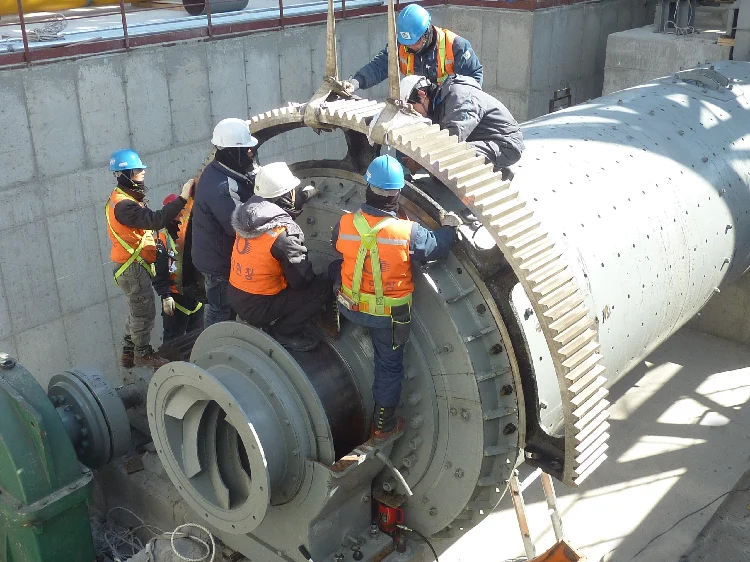

Successful Cases



Country: Indonesia
Ball Mill Size: 3×12m
Requirement: Capacity: 20ton/hour,Feeding size: 2mm Discharge size: 325 mesh, >90%.



Country: Zambia
Ball Mill Size: 2.7x4.5m
Capacity:500tpd
Process: two stages one close-circuit crushing, one stage one-circuit grinding and classification, one roughing-two scavenging-ten cleaning.


Country: Iran
Ball Mill Size: 1.45x3.6m
Processing capacity: 5t/h





Packing&shipping


Packing.
1.ZK CORP will make proper packing for different machine, which is suitable for sea transport and land transport.
2.Main part will be in nude. Small parts will be packed in wooden box.

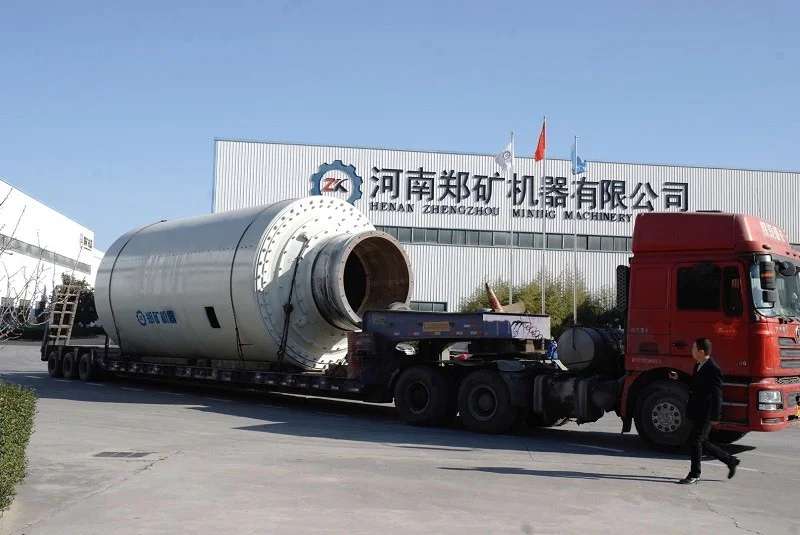

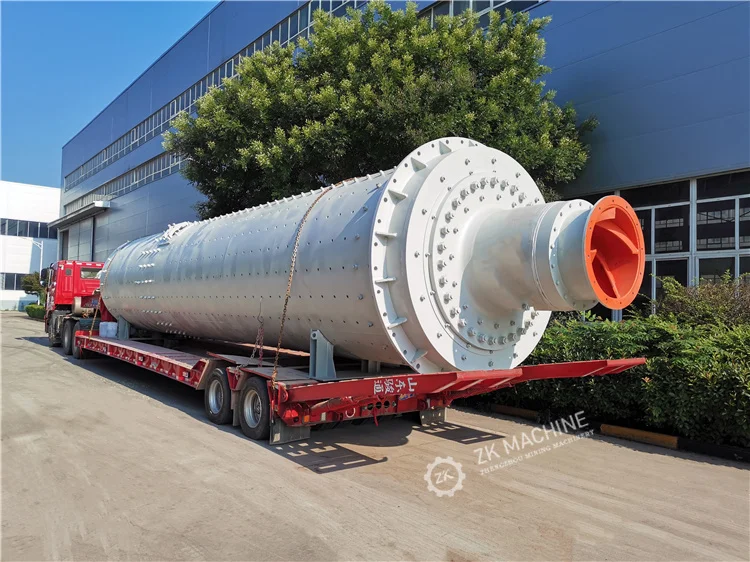

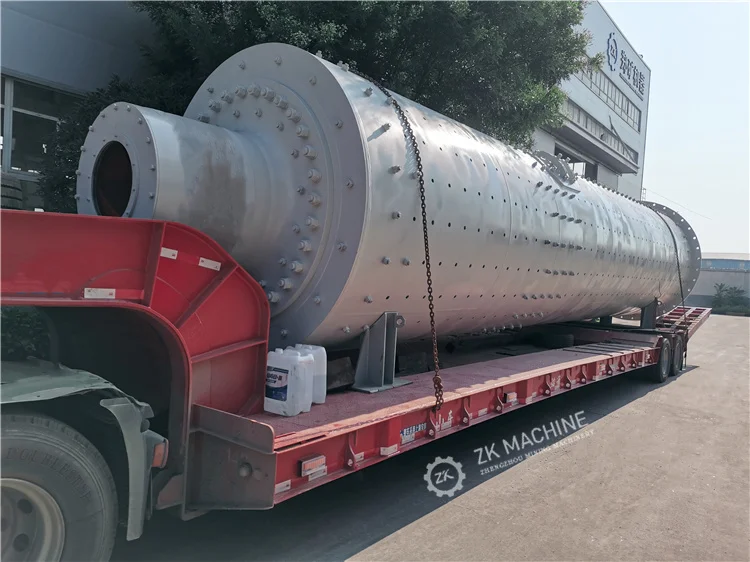

Transport.
1. ZK CORP can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.




Company Profile

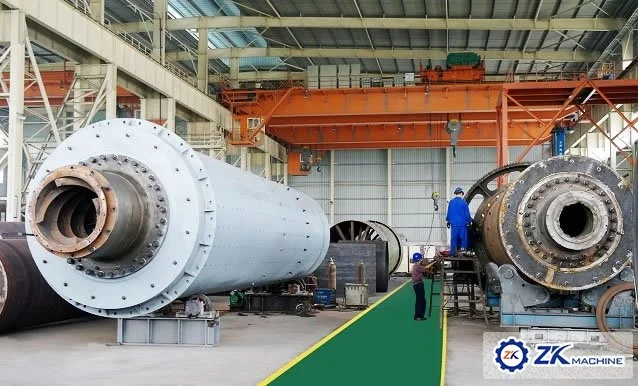

Henan Zhengzhou Mining Machinery Co., Ltd. was founded in 1956, area of 70000 square meters, plant construction area of 40000 square meters with six modern workshops, two heavy machinery workshops, one Municipal Technology Center and more than 260 sets of machining, assembling, welding and other equipments.It is appointed as the fixed equipment-providing factory by Chinese Ministry of Machine Building and HENAN Mechanical Electronic Bureau.

The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.




FAQ


To help us provide you the first-rate service, could please kindly answer the following questions before sending an inquiry?

♥ How many tons do you want to produce per hour?

♥ What are your raw material to process?

♥ What are output sizes you want? like 150-300 meshes

May i have your email or whapp? So that our manager can contact you and quote.
