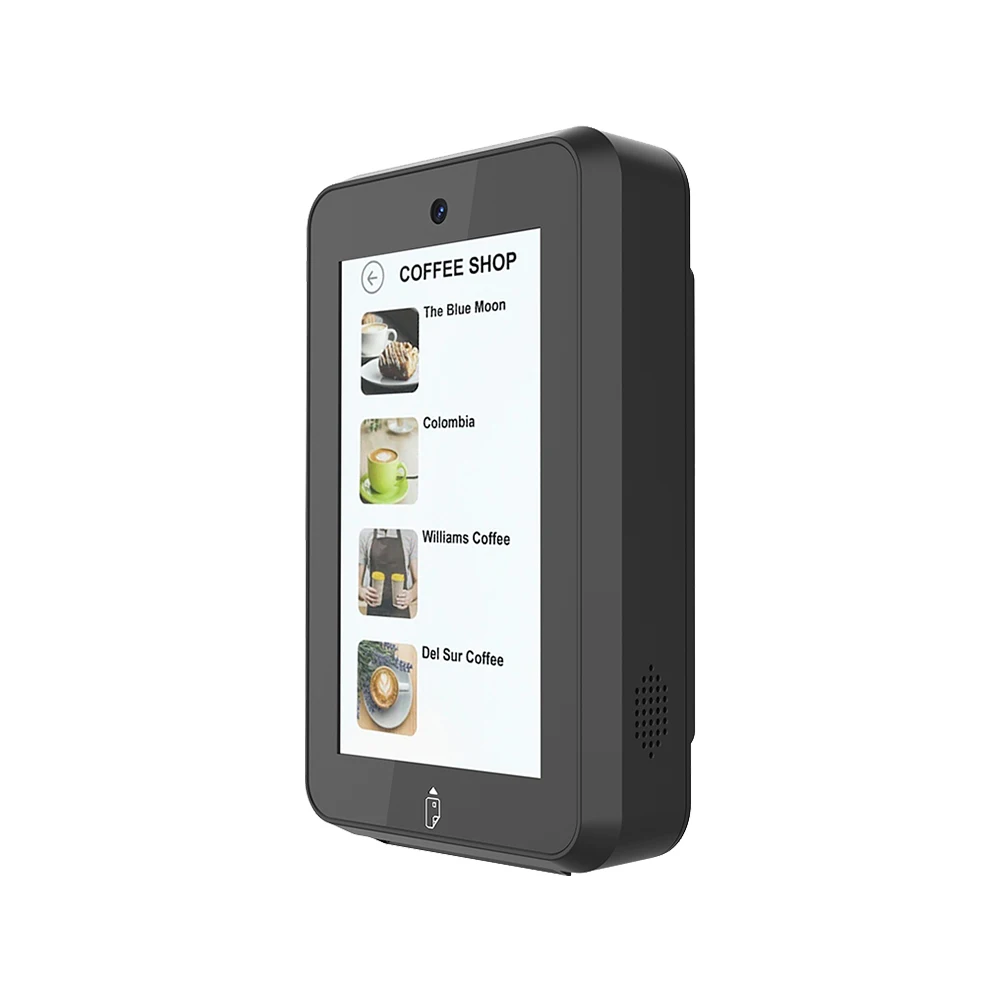

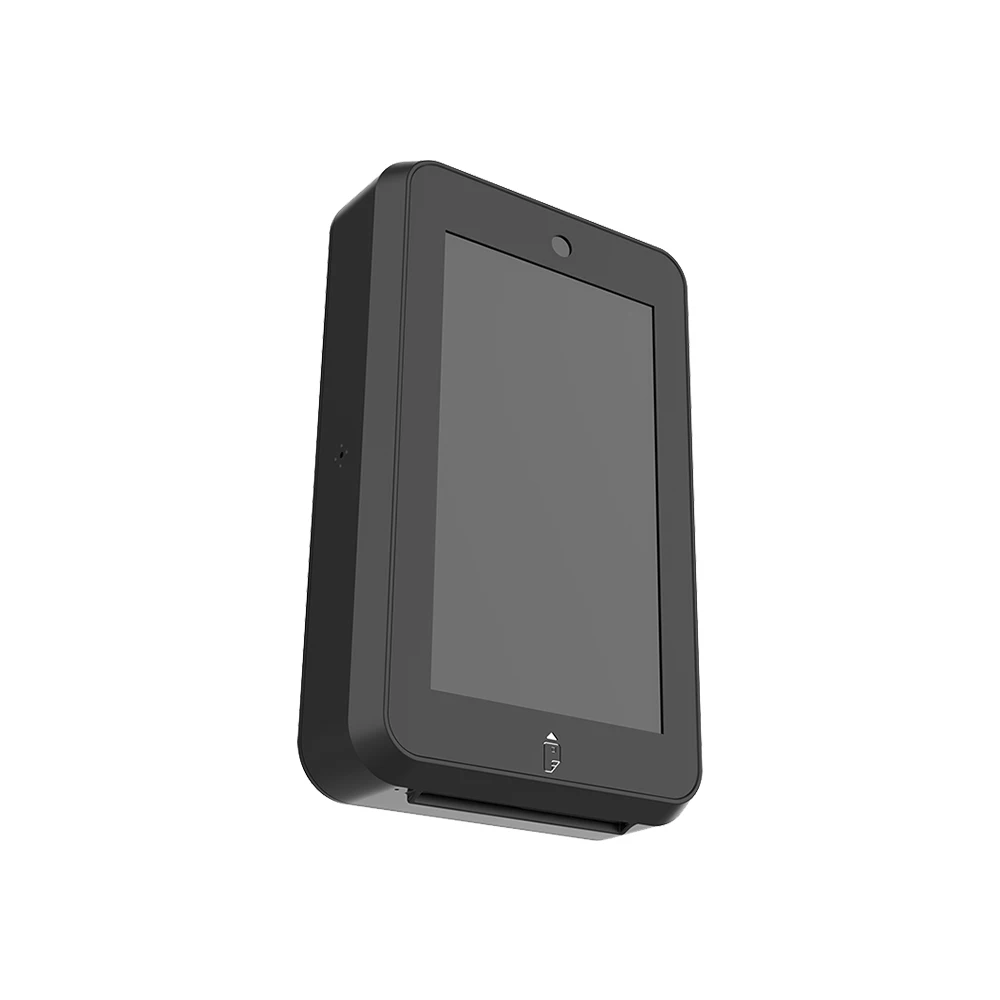

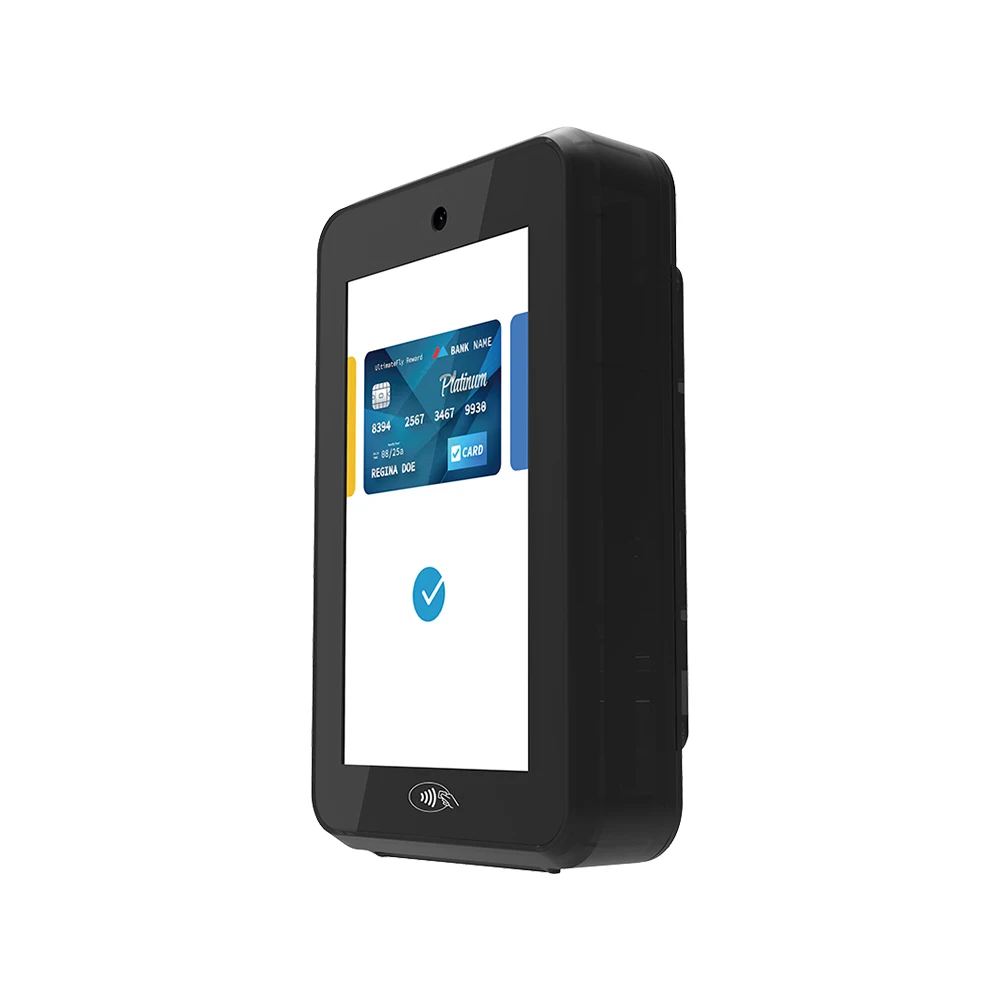

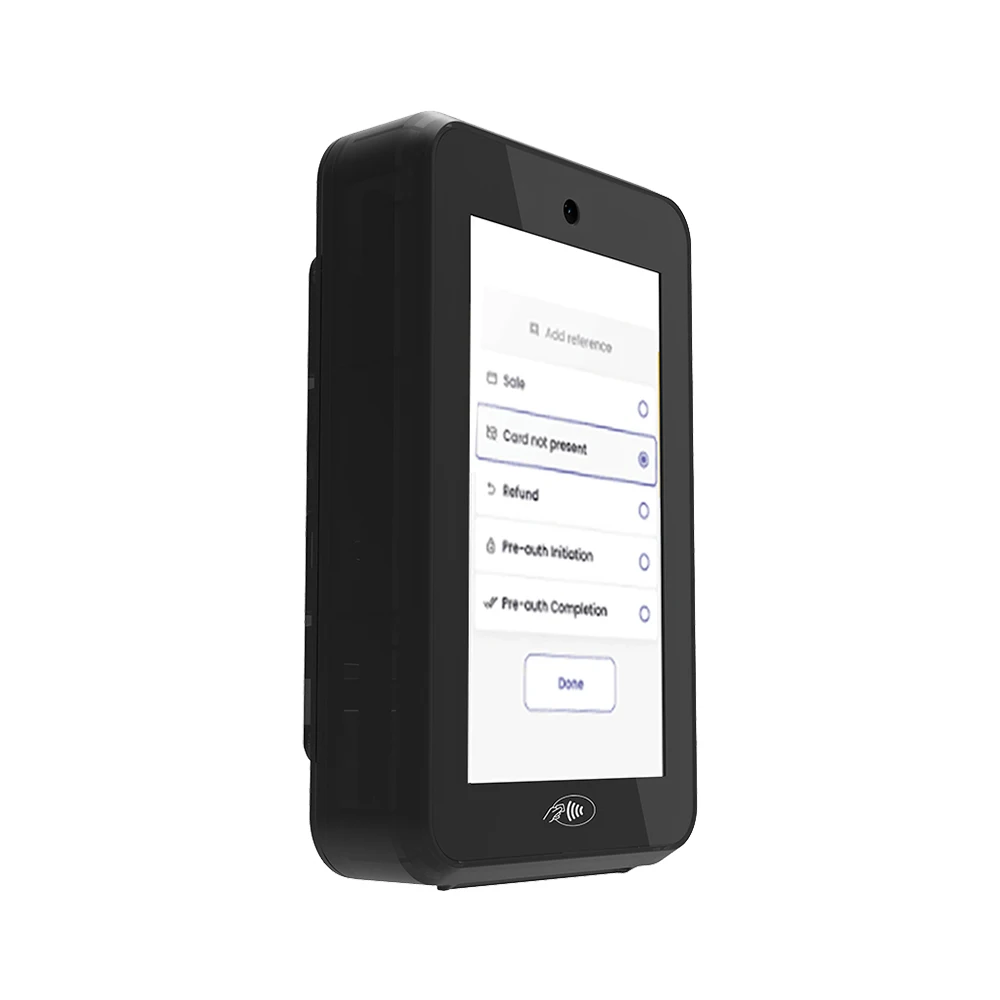

High quality self service pos system android wall mounted unattended sales payment terminal CM30
- Category: >>>
- Supplier: Shenzhen Hcc Technology Co. Ltd.Shenzhen Ltd.
Share on (1600955941876):
Product Overview
Description
Product Description
1.New-generation Unattended Experience
A.Large Screen of 5.0 inch TFT IPS LCD
B.resolution 1280*720
C.Pin on Glass NFC
2.Robust and Reliable
Designed to perform in the harshest of outdoor environments with IP54, IK08 certificates
3.Accept Any Payment
SoftPOS + EMV/PCI dual verion bring you flexibility for various scenarios
4.Rich Connectivity:with the addition of MDB interfaces
BT,WIFI, 4G connectivity, the CM30 extends its connection capabilities and enables to add optional modules to enhance flexibility
5.A Future-proof Platform
The Android-based platform sustains endless possibilities
A.Large Screen of 5.0 inch TFT IPS LCD
B.resolution 1280*720
C.Pin on Glass NFC
2.Robust and Reliable
Designed to perform in the harshest of outdoor environments with IP54, IK08 certificates
3.Accept Any Payment
SoftPOS + EMV/PCI dual verion bring you flexibility for various scenarios
4.Rich Connectivity:with the addition of MDB interfaces
BT,WIFI, 4G connectivity, the CM30 extends its connection capabilities and enables to add optional modules to enhance flexibility
5.A Future-proof Platform
The Android-based platform sustains endless possibilities
Basic Characteristics | ||
OS | Safedroid OS (based on Android 11.0) | |
CPU | Quad-Core ARM Cortex-A53 2.0GHz | |
ROM | 32GB ROM EMMC | |
RAM | 2GB RAM LPDDR | |
Display | 5.0 inch TFT IPS LCD, resolution 1280*720 | |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 152*93*41mm | |
Weight | 418g | |
Keys | 2xPhysical keys | |
Input | Chinese/English, and supports handwriting and soft keyboard | |
Interfaces | ||
Micro SD Card Slot | 1 Pcs | |
SIM Card Slot | 2 Pcs Micro SIM | |
PSAM Card Slot | 4 Pcs Conforms to ISO7816 standard | |

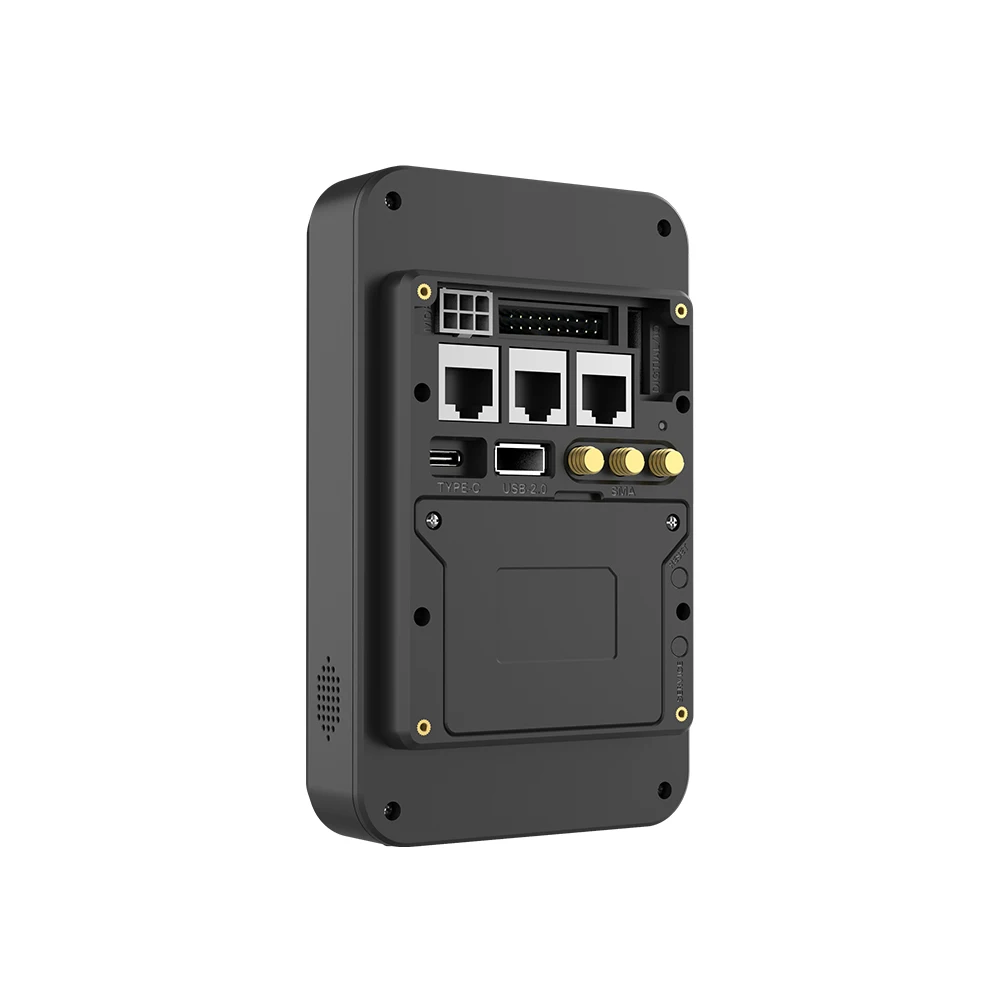

Peripheral Ports | 1*RS232 1*LAN, 100Mbps 1*USB Type A, USB2.0 HOST 1*USB Type C, USB2.0 1*MDB Slave 2*SMA, External antenna | |
Power | ||
DC | 12v-48V DC (via MDB Slave / RS232) | |
Radio Communication | ||
WIFI | IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz | |
Bluetooth | BT 5.0 and earlier | |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
4G(3G/2G) | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 | |
Environment | ||
Operating Temperature | -20°C to 60°C | |
Storage Temperature | -30°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Payment | ||
Contactless Card Reader | Supports 14443A /14443B | |
Smart Card Reader | Supports ISO7816 standard | |
Certification | ||
Electromagnetic | IP/IK Certified CE, Rohs, FCC, GMS | |
Expansion and peripherals | ||
Camera front | 5MP | |
Audio | Speaker, Mic, Buzzer | |
Physical Protection | ||
IP/IK Certified | IP54, IK08 | |
More Products
Company Profile
Quality Inspection
Certifications
Package & Shipping
FAQ
Q. Are you manufacturer?
A.Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
Q. Would you provide SDK for me?
A.Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
Q. What warranty for the products?
A.According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
Q.What is the minimum order?
A.We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
Q. Can we get the free sample?
A.Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
Q. Do you accept Paypal?
A.Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
Q. What's the delivery time?
A.Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
Q.Which way to deliver the goods?
A.By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
Q. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
A.Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
Q. Would you provide SDK for me?
A.Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
Q. What warranty for the products?
A.According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
Q.What is the minimum order?
A.We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
Q. Can we get the free sample?
A.Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
Q. Do you accept Paypal?
A.Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
Q. What's the delivery time?
A.Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
Q.Which way to deliver the goods?
A.By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
Q. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
