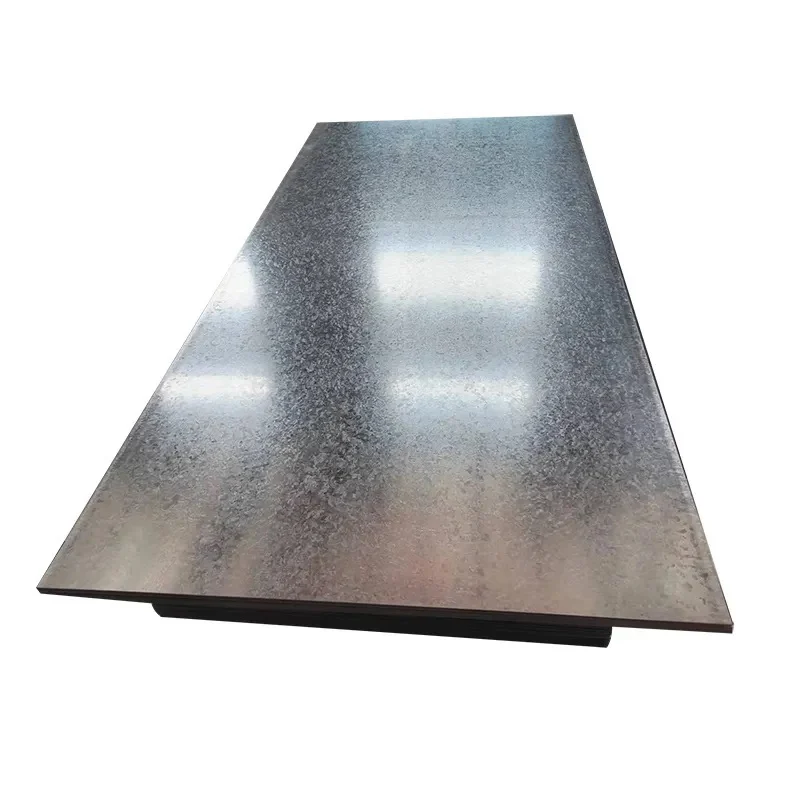

Custom zink sheet/galvanized steel price per kg iron factory
- Category: >>>
- Supplier: Henan Quanshuo Metal Material Co. Ltd.
Share on (1600956072144):
Product Overview
Description
Product Overview

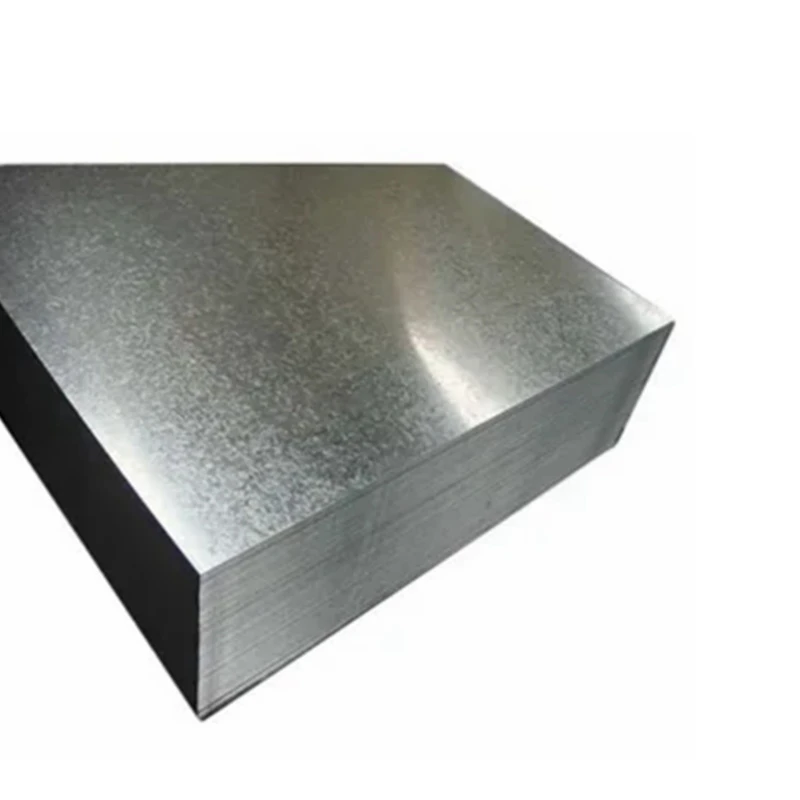

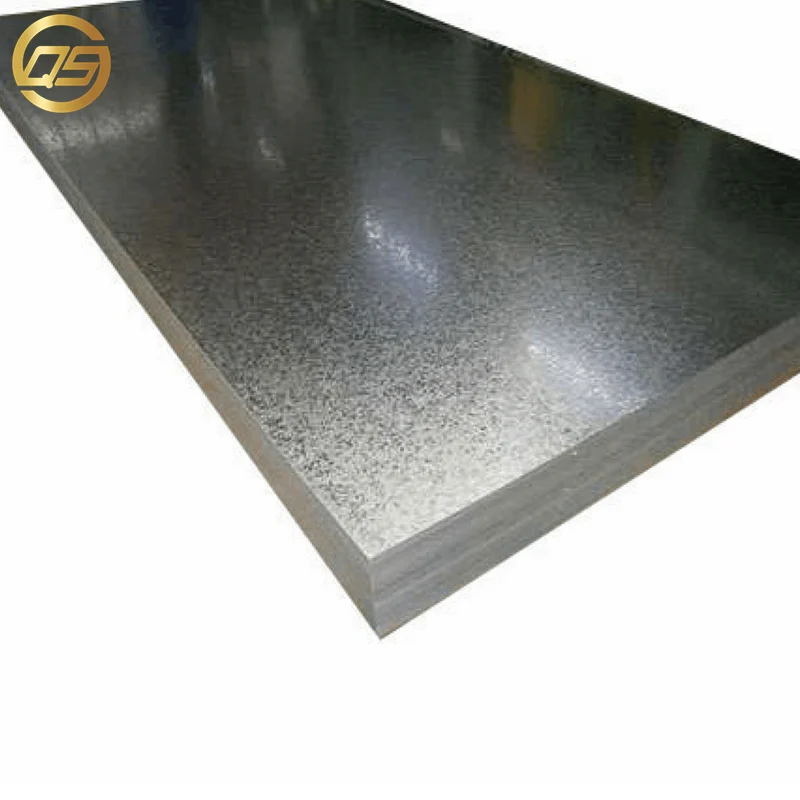

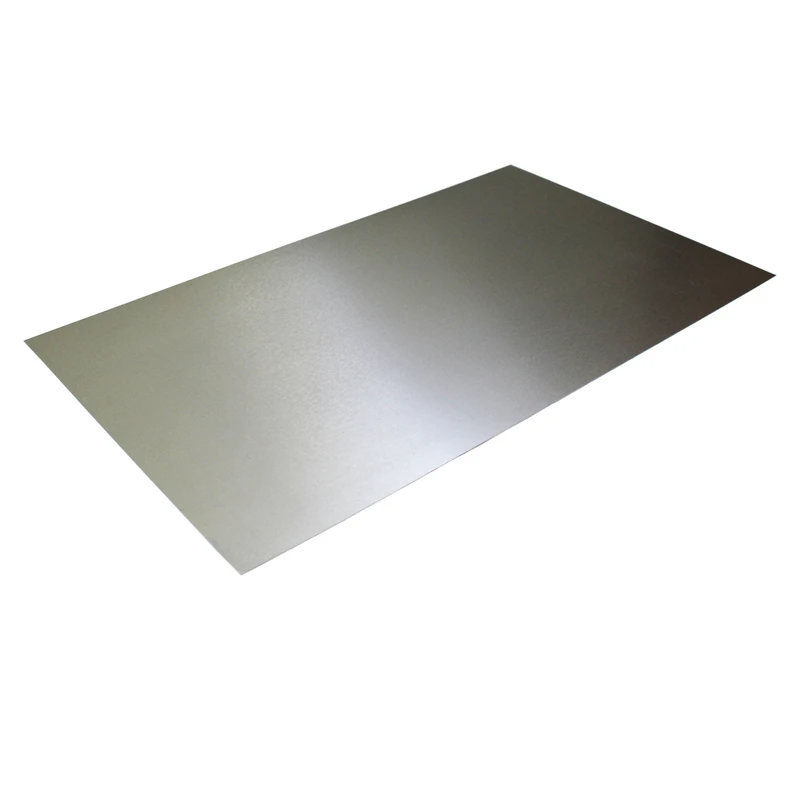

Hot Dipped Galvanized Steel Sheet
Hot-dipped galvanized steel combines the strength of steel with the corrosion resistance and durability of zinc coating. It is commonly used in the construction, automobile, and home appliance industries. As a professional supplier of galvanized metal, Quanshuo Metal has two hot dip galvanizing lines with an annual output of 300,000 tons. We can offer hot dip galvanized steel in coil, sheet, plate, and strip, with or free of spangles. The available thickness ranges from 0.12 to 4 mm and the width is from 600 to 1,500mm. Welcome to contact us for more details.
PRODUCT SPECIFICATIONS
Product Name | DX51D+Z Z275 GI Hot Dipped Galvanized Steel Sheet |
Standard | AISI, ASTM, BS, DIN, EN, GB, JIS |
Material | SGCC, SGCH, G550, DX51D, DX52D, DX53D |
Thickness | 0.12mm-3.0mm |
Width | 600mm-1500mm |
Tolerance | +/-0.02mm |
Zinc coating | 30-275g/m2 |
Surface treatment | Un-oil, dry, chromate passivated, non-chromate passivated |

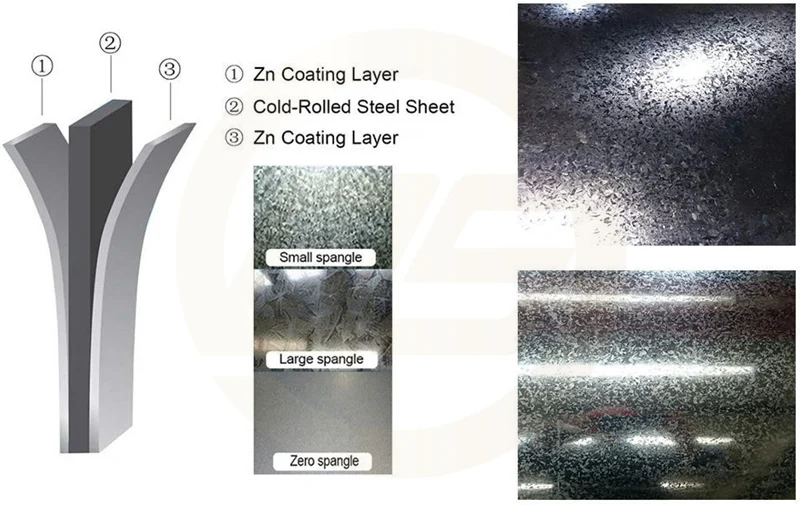

Spangle | Regular spangle, minimal spangle, zero spangle, big spangle |
Technique | Hot rolled, cold rolled |
Package | Standard seaworthy export packing: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve |
Certification | ISO 9001-2008, SGS, CE, BV |
MOQ | 25 Tons |
Delivery | 15-20 days |
Monthly Output | 30000 Tons |
Description | Galvanized steel is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel. Zinc steel is one of the most widely used products, used extensively in the building sector, automotive, agricultural and other areas where the steel needs to be protected from corrosion. |
Payment | T/T, LC, Western Union, Paypal |
Remarks | Insurance is all risks and accept the third party test |
Grade | Yield Strength | Tensile Strength | Mechanical properties elongation after breaking | R90 | N90 |
1 | MPa | MPa | A 80mm % | not less than | not less than |
2 | Bucket capacity | 2.8 M3 | not less than | ||
DX51D+Z | 240-380 | 275-500 | 24 | - | - |
DX52D+Z | 140-300 | 270-420 | 26 | - | - |
DX53D+Z | 140-260 | 270-380 | 30 | - | - |
DX54D+Z | 120-220 | 260-350 | 36 | 1.6 | 0.18 |
Details Images
Galvanized Steel Coil
GI Coil Side View
Zinc Coated GI Coil Stock

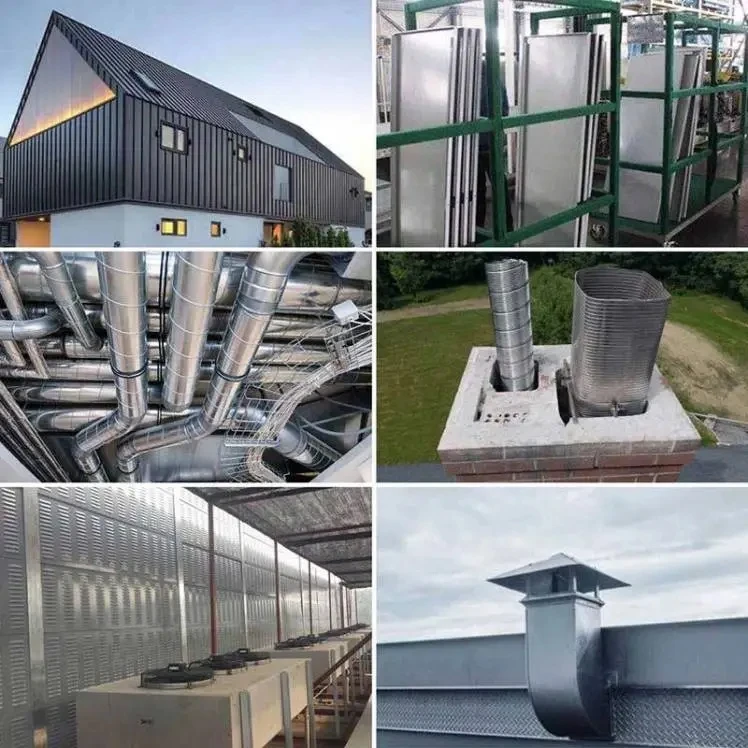

Applications

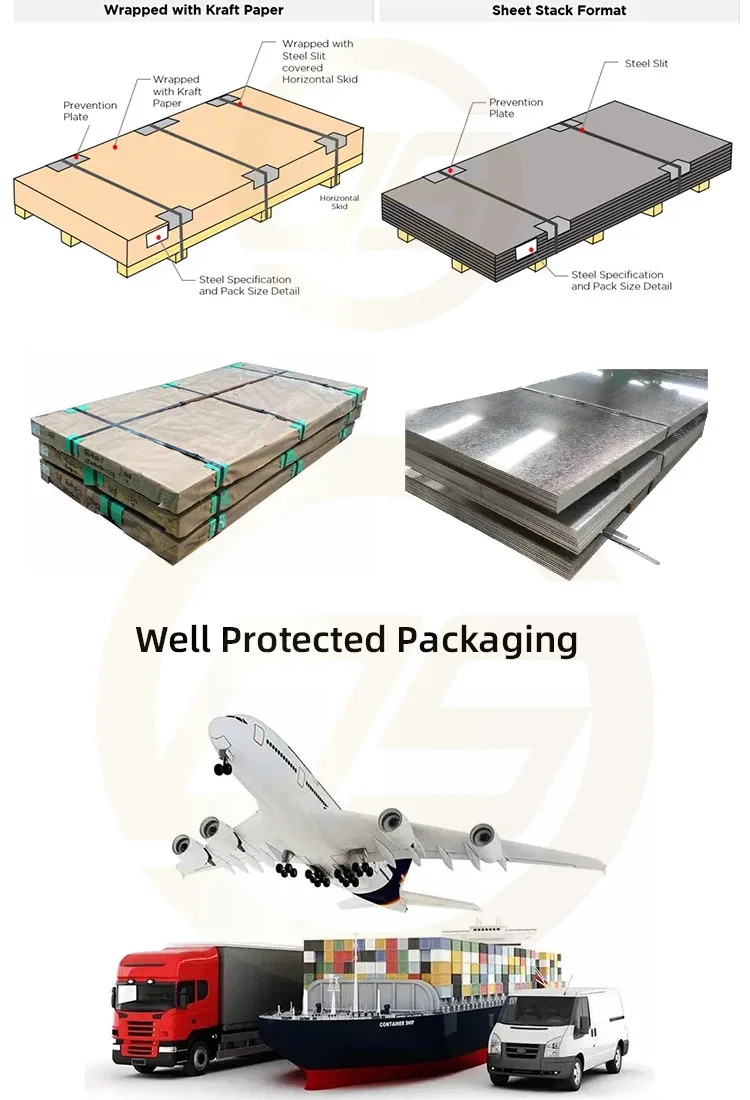

Product packaging
PERFECT PACKING:
Perfect seaworthy package, or as per customer's request.
EXCELLENT TRANSPORT:
Delivery these goods with excellent transporation in 15-35 days after payment.
Perfect seaworthy package, or as per customer's request.
EXCELLENT TRANSPORT:
Delivery these goods with excellent transporation in 15-35 days after payment.
Our Advantages
1. Competitive price with raw material
2. Large production line
3. Excellent quality and abundant stock with fast delivery
2. Large production line
3. Excellent quality and abundant stock with fast delivery

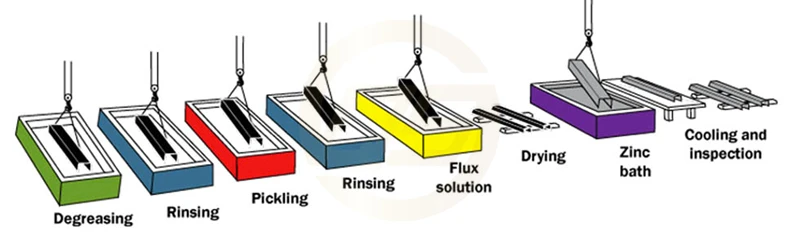

Because it is produced through applying Zn coat on both faces by hot dip process. It enjoys both the physical protective feature and the electrochemical protective property of Zn.
>>Machinability: It can satisfy the processing requirements of rolling, coiling, and other processes alike.
>>Thermal resistance: Common HDG steel plate normally works under 230℃ and has its color changed at 250℃, however, Galvanized steel plate can sustain the environment at 315℃ for a long time.
>>High reflectivity: The reflection ability of heat and light is twice as much as those of hot-dip zinc steel sheets, and its reflectivity is more than 0.70, which is an ideal construction material for saving energy.
>>Machinability: It can satisfy the processing requirements of rolling, coiling, and other processes alike.
>>Thermal resistance: Common HDG steel plate normally works under 230℃ and has its color changed at 250℃, however, Galvanized steel plate can sustain the environment at 315℃ for a long time.
>>High reflectivity: The reflection ability of heat and light is twice as much as those of hot-dip zinc steel sheets, and its reflectivity is more than 0.70, which is an ideal construction material for saving energy.
SALES AND SERVICE NETWORK
FAQ
Q1:What is your terms of payment?
A1:We usually accept T/T in advance, and L/C for large sums. If you prefer other payment terms, please discuss them.
Q2:What is your delivery time?
A2:For products in stock, we can ship them within 7 days after receiving the payment. For customer orders, production time is 15-30 workdays after receiving the payment.
Q3:Can I place an sample order and what is your MOQ if l accept your quality?
A3:Yes, we can send you samples but you may pay the express fees and customized samples will take about 7-15 days, our MOQ is 25 tons.
Q4:How could you guarantee your products?
A4:Mill Test Certification is supplied with shipment, We also accept and support third-party inspection. We also could issue a warranty to the customer to guarantee the quality.
Q5:How can I get the price of the needed product?
A5:lt's the best way if you can send us the material, size, and surface, so we can produce it for you to check the quality. If you still have any confusion, just contact us. we would like to be helpful.
A1:We usually accept T/T in advance, and L/C for large sums. If you prefer other payment terms, please discuss them.
Q2:What is your delivery time?
A2:For products in stock, we can ship them within 7 days after receiving the payment. For customer orders, production time is 15-30 workdays after receiving the payment.
Q3:Can I place an sample order and what is your MOQ if l accept your quality?
A3:Yes, we can send you samples but you may pay the express fees and customized samples will take about 7-15 days, our MOQ is 25 tons.
Q4:How could you guarantee your products?
A4:Mill Test Certification is supplied with shipment, We also accept and support third-party inspection. We also could issue a warranty to the customer to guarantee the quality.
Q5:How can I get the price of the needed product?
A5:lt's the best way if you can send us the material, size, and surface, so we can produce it for you to check the quality. If you still have any confusion, just contact us. we would like to be helpful.
