Product Overview

Description



Product Description


High-Vacuum Reflow Oven KD-V43plus




Specification


Name
High-vacuum reflow oven
Model
KD-V43plus
Welding size
300*300mm
Gas
Nitrogen system,Formic acid
Oven size (LxWxH)
1600*1200*1400mm
Weight
280kgs
Ultimate vacuum
5*10﹣4Pa
Max Temperature
600°C
Heating speed
Fastest can reach to 60°C /Min ( Red copper heating platform)
Cooling speed
More than 15 °C/Min, Chamber with cooling water circulate
Lateral temperature difference
±5℃
Carrier loader weight
5KG
Power
Max:21.5KW, Working power:8-10KW
Heating Platform
Special treatment red copper platform
Power standard
380V, 50HZ/60HZ,3-phase five-wire,10 square copper wire
Current
3 x40 A
Control way
Siemens PLC+IPC

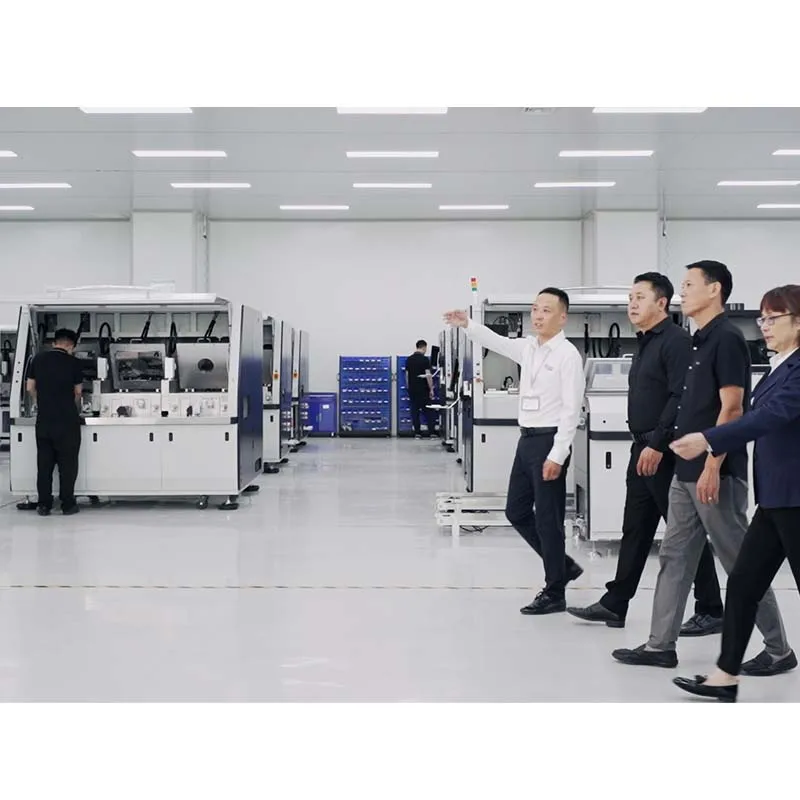

Company profile
Chengliankaida Technology Co., Ltd was founded in 2007 with its headquarters in Tongzhou district, Beijing, covering an area of 20000 square meters. With the company's fast development, in early 2023, our Zunhua factory was put into operation and covers an area of 35000 square meters.
As a high-tech enterprise, we focus on researching and developing a series of Vacuum soldering system solution and production
lines for semiconductor electronic device packaging.
With more and more customers working with our equipment, we getting more high praise from the users.
Company have achieved a series of accomplishments, including 15 practical patents, software patents, design patents ,and
currently, more than 25 patents are in the process of being applied for.
We will continue to innovate, constantly upgrade our products, increase technology and process development, and strive to become
an internationally renowned equipment enterprise.
