Round Manhole Cover Manhole Cover Water Tank Brewing Vessels Manway Stainless Steel Tanks Fermentter Manway
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.
Share on (1600956136018):
Product Overview
Description

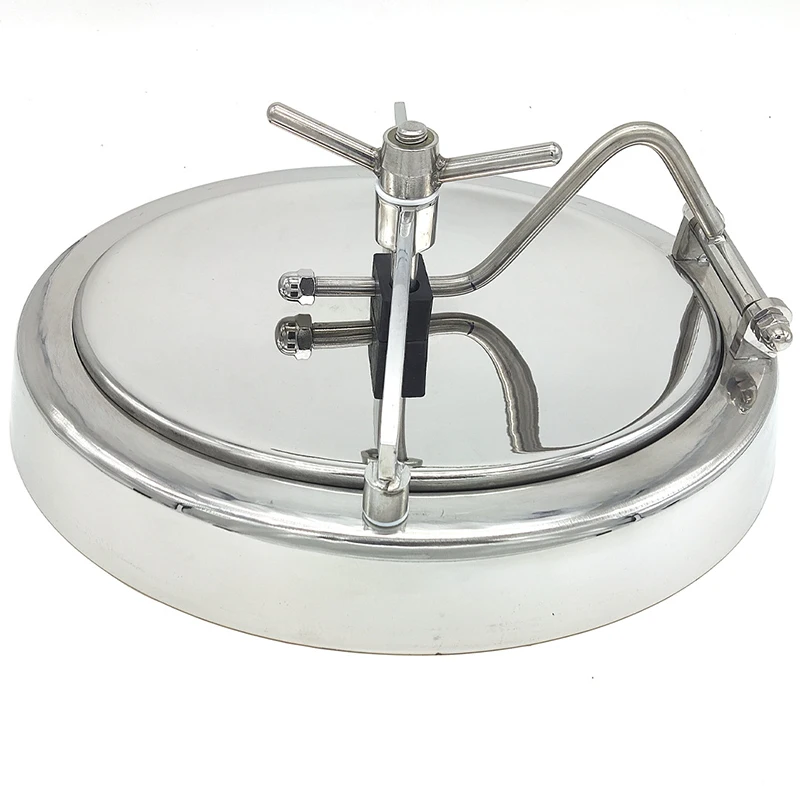

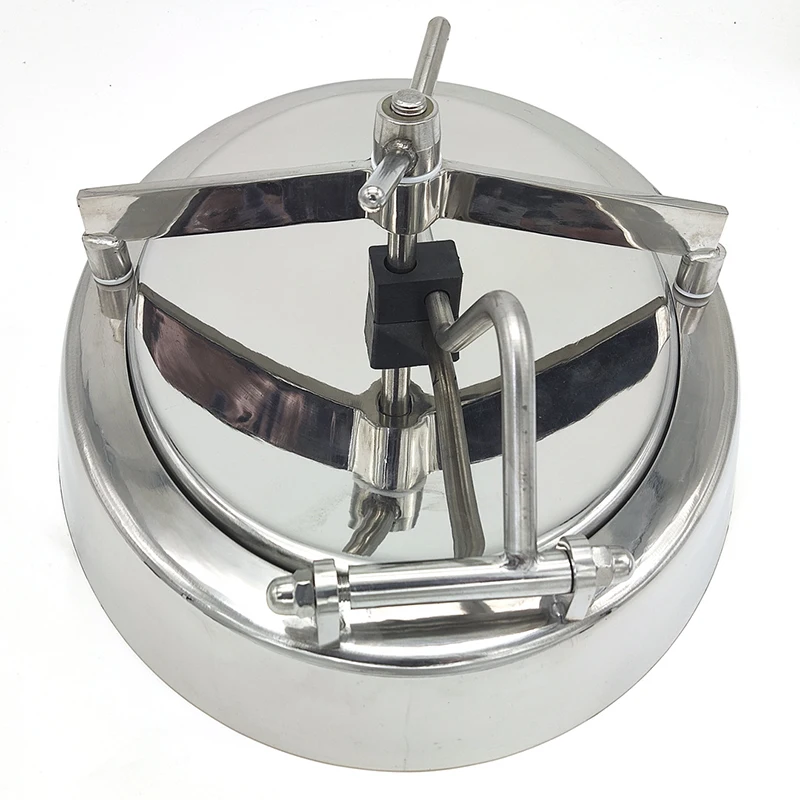

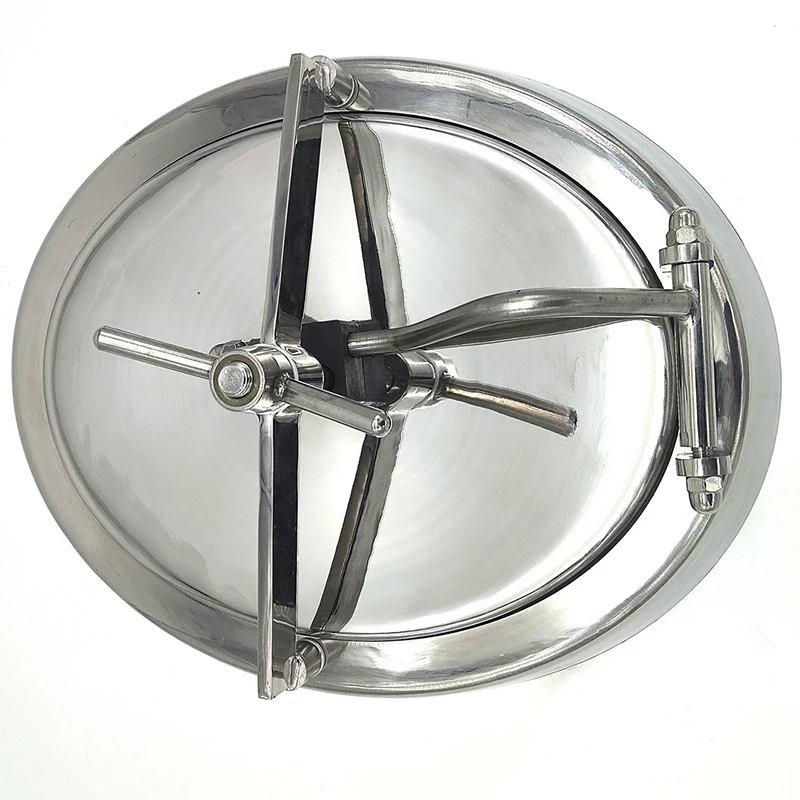

Round Manhole Cover Manhole Cover Water Tank Brewing Vessels Manway Stainless Steel Tanks Fermentter Manway
Sanitary stainless steel manhole covers are usually installed on top of a tank or vessel for emergency of safety pressure relief. It is usually used together with air breathing valve and other safety devices. It is also used as the entrance for daily
inspection, repair, maintenance, medium feeding and cleaning inside the tank or vessel.
Sanitary stainless steel manhole covers are widely used in hygienic industries like food, beverage, brewery, pharmaceutical
vessels.
Specifications
Manhole Cover Material: | SS304, or 316L |
Seal Material: | Silicone, EPDM or FPM |
Handle | Plastic, or Stainless Steel |
Working Pressure: | Normal, or upto 3bar |
Surface Treatment: | Mirro, or Matt |
Polishing: | 0.4 ~ 0.8 μm |
Sight Glass: | With DN50 sight glass, or full view sight glass |
Main Types and Data:
1. Sanitary Circular Manhole Cover Without Pressure
1. Sanitary Circular Manhole Cover Without Pressure
Pressure: | normal |
Diameter: | 150mm ~ 800mm |
Wall thickness: | 3mm |
Body Height: | 80mm ~ 120mm upon request |
2. Sanitary Round Manhole Cover With Pressure
Pressure: | Up to 3 bar |
Diameter: | 150mm ~ 600mm |
Wall thickness: | 3mm |
Body Height: | 100mm ~ 120mm upon request |
3. Sanitary Circular Manhole Cover With Sight Glass
Pressure: | Up to 3 bar |
Diameter: | 150mm ~ 600mm |
Wall thickness: | 3mm |
Body Height: | 100mm ~ 120mm upon request |
Sight Glass: | DN50 sight glass, or full view sight glass |
4. Sanitary Elliptic Oval Shape Manhole / Manway Cover.
Pressure: | 2 bar to 5 bar |
Size: | 330 X 430mm, 350 X 450mm, 430 X 530mm, 530 X 630mm or on request |
Cover: | In flat shape of arc shape |
Handle: | Holder or frame |
5. Sanitary Rectangular Manhole / Manway Cover
Pressure: | 0.2 bar to 1 bar |
Size: | 235 X 185mm, 425 X 335mm, 535 X 435mm or on request |
Height: | 80 ~ 150mm |
Wall Thickness: | 8mm |
