40 foot detachable prefabricated office container homes Modern Minimalist SHIPPING CONTAINER HOME
- Category: >>>
- Supplier: NF Tech Development (Jiangsu) Co. Ltd.
Share on (1600956901586):
Product Overview
Description
Products Description
40ft( 807Sq.ft) Expansible Fold-able Container House | ||
Front-dimension for expansion | L11.8m （38.7ft）, W2.43m(7.5ft) , H2.43m (8ft) | |
Expanded dimension | 11.8m （38.7ft）, W6.3m(20.7ft) , H2.43m (8ft) | |
Floor space | 75 ㎡ ( 807Sq.ft) | |
Total weight | Around 8 T | |
Main Body Peripheral Structure | ||
Top frame main beam | 3.0 bending beam | |
Top frame sub-beam | 40 * 80 * 2.0 Galvanized square pipe | |
Bottom frame main beam | 3.0 bending beam | |
Bottom frame sub-beam | 80 * 80 * 2.5 Galvanized square pipe | |
Flip bottom frame | 80 * 80 * 2.5 Galvanized square pipe + 40 * 60 * 2.0 square pipe | |
Flip wall frame | 40 * 80 * 2.0 Galvanized square pipe | |
Flip the top frame | 40 * 80 * 2.0 Galvanized square pipe | |
Rotary wall frame | 80 * 80 * 2.5 Galvanized square pipe | |
The top insulation | 75mm glass wool with wire mesh | |
Bottom insulation | 0.3mm pressure veneer + 75mm glass wool | |
The Floor | 18mm calcium silicate plate + 1.6mm ground glue | |
Steel door | 50 socket type steel door * 2 sets | |
The door | KFC style double-open glass doors | |
Hollow window | Plug-type plastic steel sliding window * 8 sets | |
Exterior wall panels | Double-sided 0.3 / 75mm rock wool wall panel | |
Internal partition wall plate | Double-sided 0.3 / 50mm rock wool wall panel | |

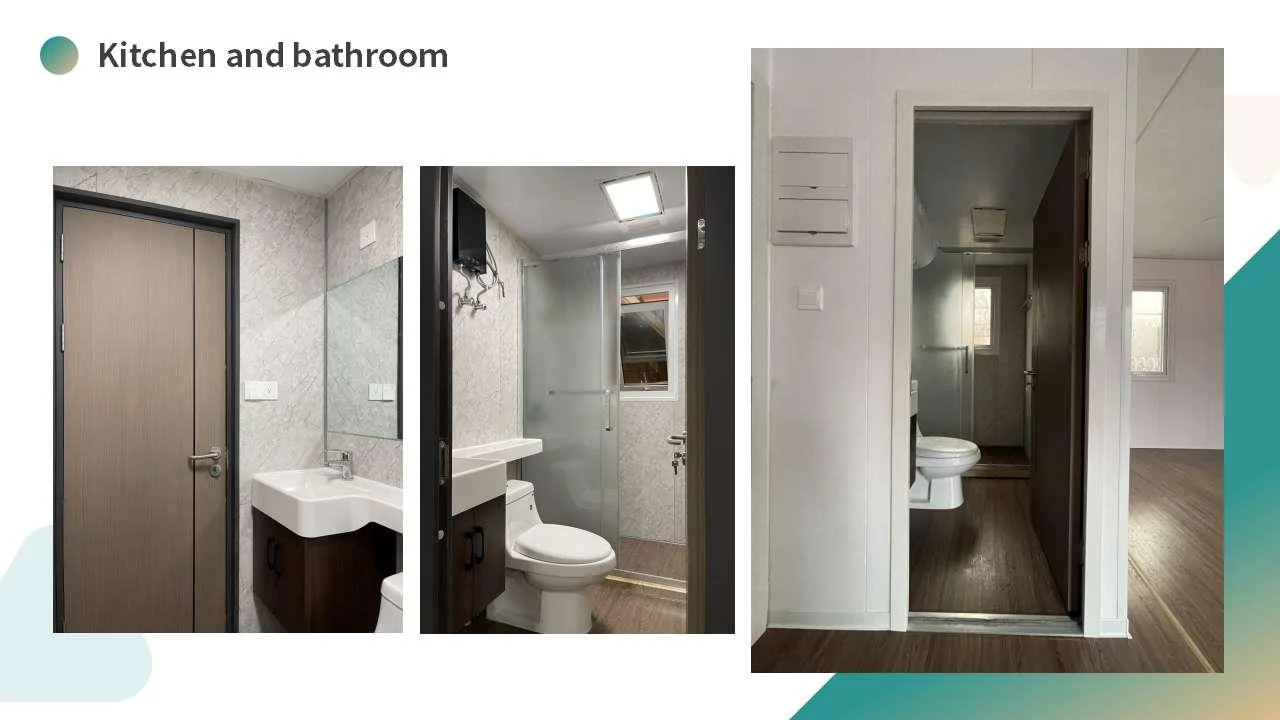

Sanitary Ware Hardware | ||

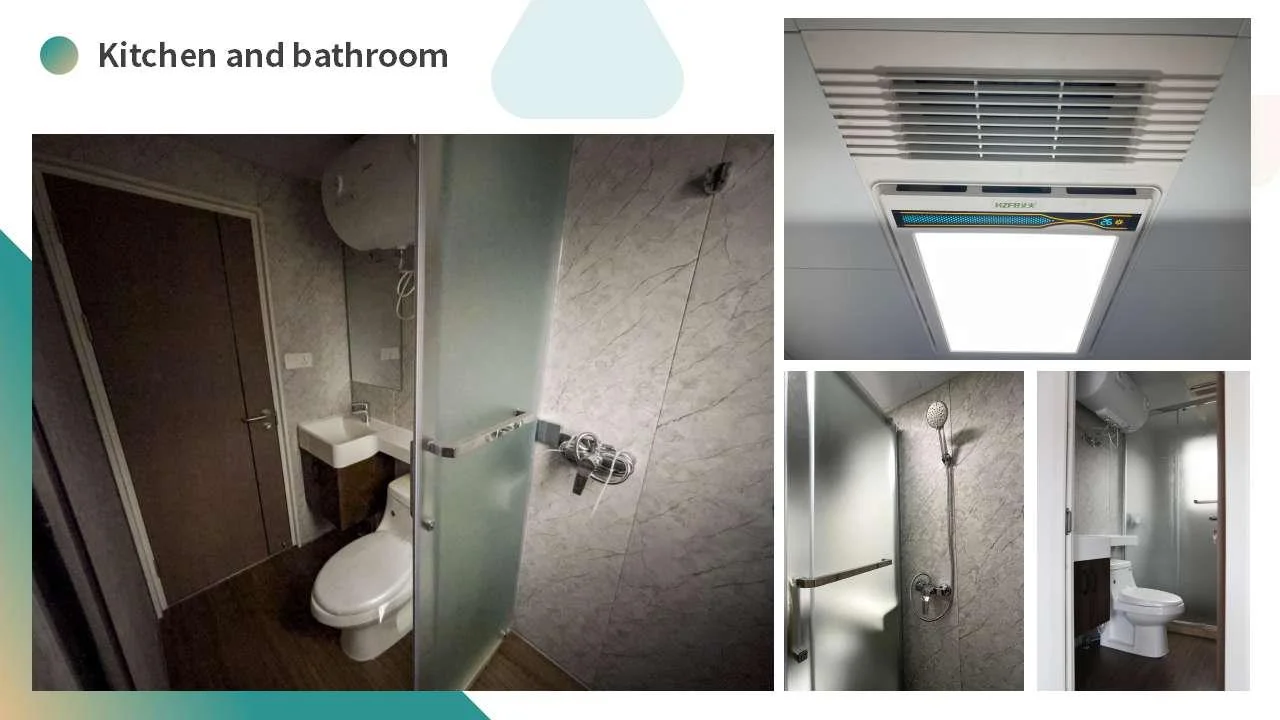

Toilet | Jpottery and porcelain toilet * 1 set | |
Sprinkler | Hand-held shower * 1 set | |

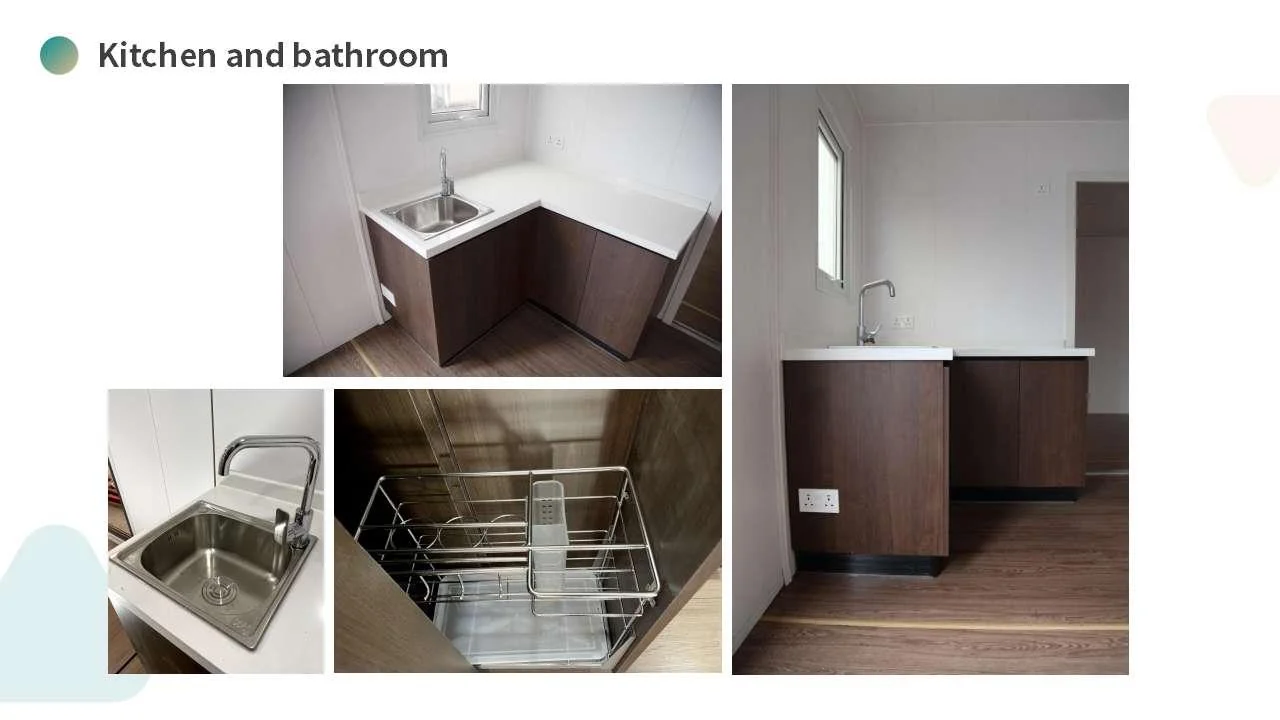

Cabinet Basin | Cabinet-type table on the basin * 1 set | |
Water supply and drainage | Water supply and drainage * 1 set | |

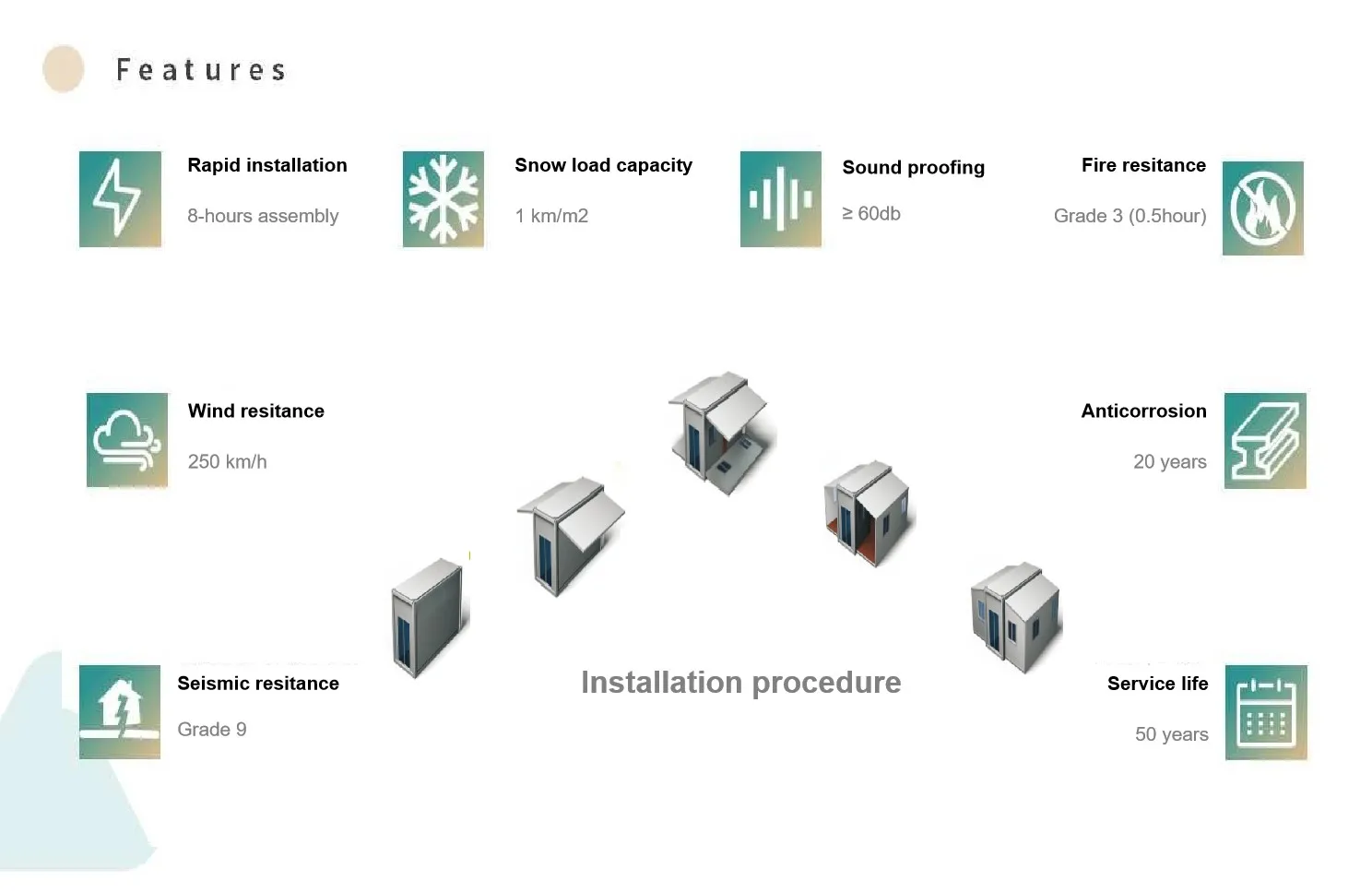

Product Advantage
Details Images
