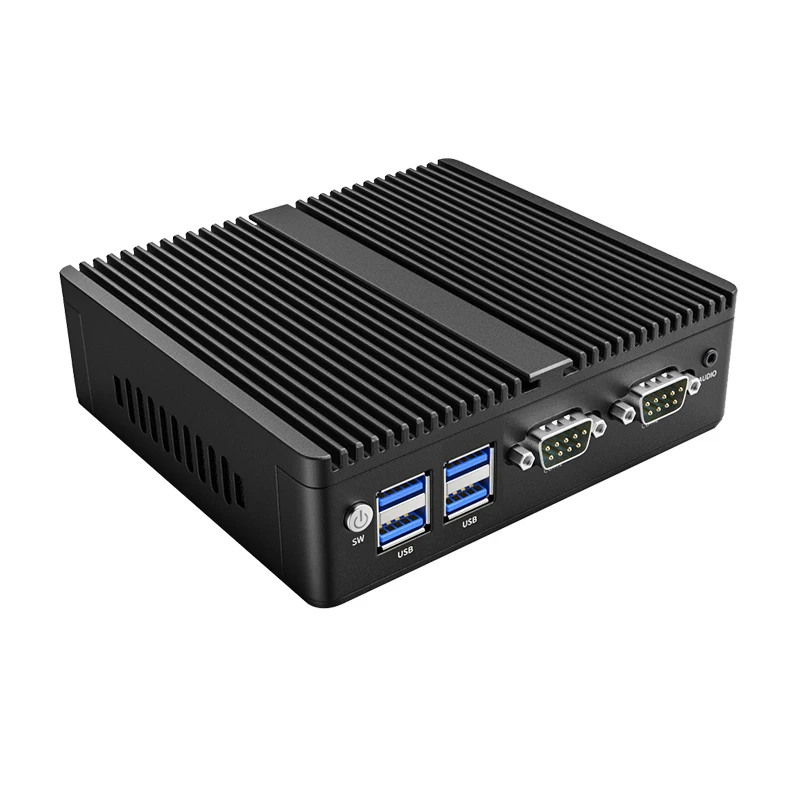

Fanless Box Home Router Firewall PC N2840 J1900 J4125 I3 4005U with 2NIC 2COM RS232 RS485 Applied in Firewalls, Network Servers
- Category: >>>
- Supplier: Shenzhen Yiyun Electronic Limited Company
Share on (1600957116355):
Product Overview
Description
Product Description
-2 x Realtek RTL8111 RJ45 LANs, 4 x USB2.0, 2 x USB3.0.
-1* SO-DIMM DDR3L Slot Support 4GB/8GB Max.
-Support two storage: 1xMsata 3.0/+1x2.5''SATA SSD/HDD.
-1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN, etc.
-Full Aluminum Alloy solid-built shell with three-sided ice thorns, excellent cooling performance.
-Fanless system without a cooling fan, works as long as 7x24 hours.
-Low consumption TDP and can be mounted back of the monitor by VESA bracket(optional).
-1* SO-DIMM DDR3L Slot Support 4GB/8GB Max.
-Support two storage: 1xMsata 3.0/+1x2.5''SATA SSD/HDD.
-1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN, etc.
-Full Aluminum Alloy solid-built shell with three-sided ice thorns, excellent cooling performance.
-Fanless system without a cooling fan, works as long as 7x24 hours.
-Low consumption TDP and can be mounted back of the monitor by VESA bracket(optional).
- Applied in Firewall, Network Server, Network Security, VPN Router, etc.
Product Spec
| Mechanical | |
| Material | Aluminum alloy |
| Colour | Black |
| Size | 136x126x40mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/Vesa |
| Motherboard | Intel Celeron N2810 Dual core 2 threads 2.0Ghz Intel HD Graphics |
| CPU | Intel Celeron N2840 Dual core 2 threads 2.16Ghz up to 2.58Ghz Intel HD Graphics |
| Intel Celeron J1900 2.0GHz up to 2.41GHz(Turbo boost Technology) Quad Core Four Threads Intel HD Graphics | |
| Intel Celeron N4000 1.1GHz up to 2.6GHz(Turbo boost Technology) Dual Core 2 Threads Intel® UHD600 | |
| Intel Celeron J4125 2.0GHz Max to 2.7GHz Quad Cores Four Threads Intel® UHD600 | |
| Intel Celeron 3215U 1.7GHz Dual Cores 2 Threads Intel ® core graphics card | |
| Intel Core i3-4005U 1.7GHz Dual Cores 4 Threads Intel HD Graphics 4400 | |
| Intel Core i3-5005U 2.0GHz Dual Cores 4 Threads Intel HD Graphics 5500 | |
| Display Ports | 1 x HDMI, 1 x VGA, support synchronous or asynchronous display |
| Color | Black |
| Network Card | 2 x Realtek RTL8111 |
| Expand | 1 x SIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection |
| Memory | 1 x DDR3L SODIMM ram slots, Max support 8GB RAM |
| Storage | 1 x Msata SSD, 1 x 2.5''SATA3.0 SSD/HDD |
| Other Function | Support AES-NI, ESXi, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc |

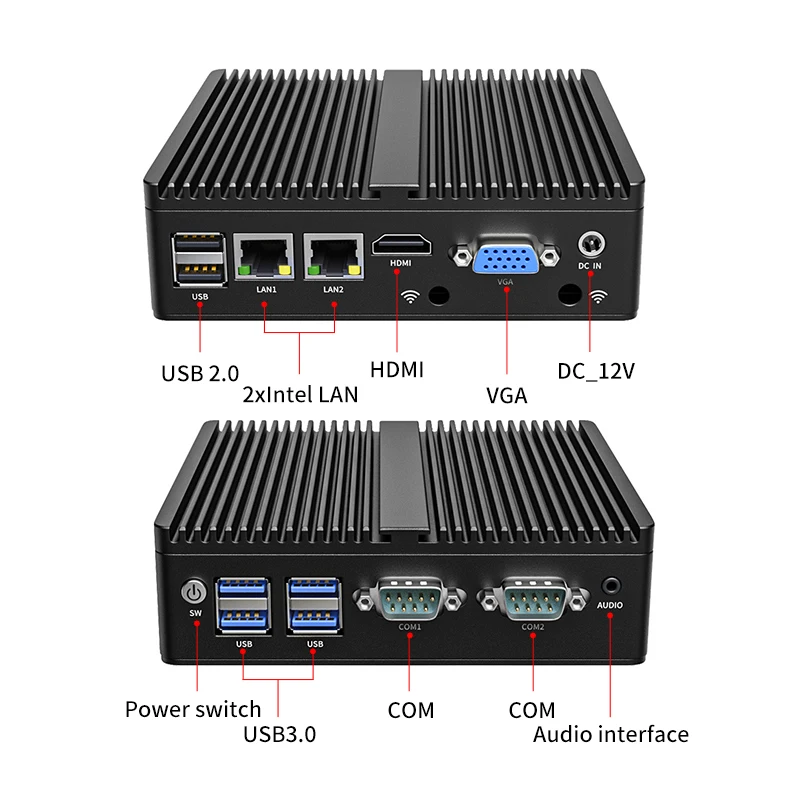

| I/O Interfaces | |

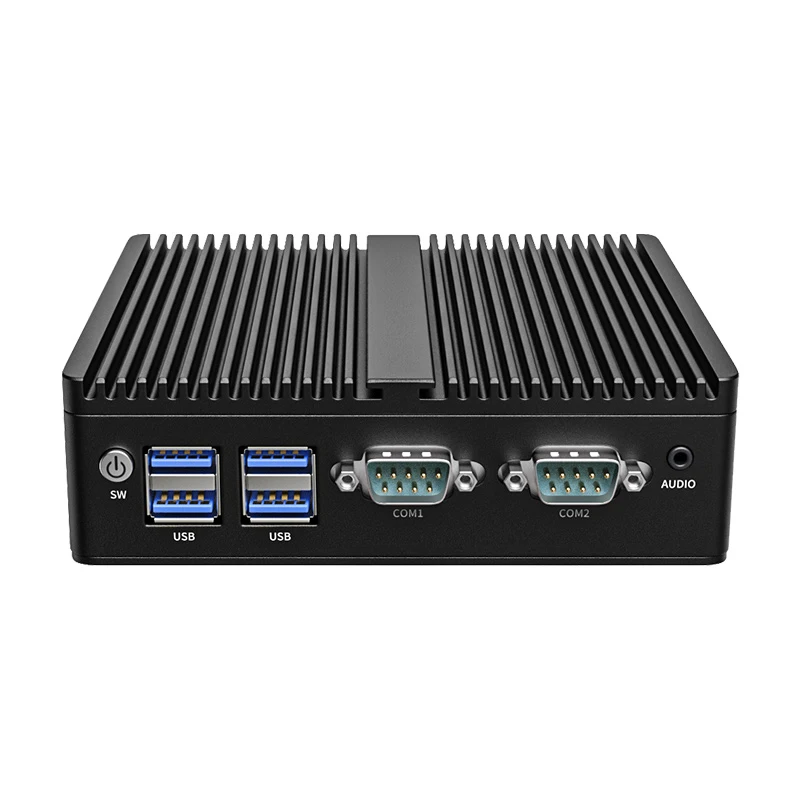

| Front Panel | 2 x USB3.0(i3 4005U/5005U with 4USB3.0,2USB2.0) |
| 2 x USB2.0 | |
| 2 x COM (one can setup as RS485) | |
| 1 x Power Switch | |
| 1 x Audio | |

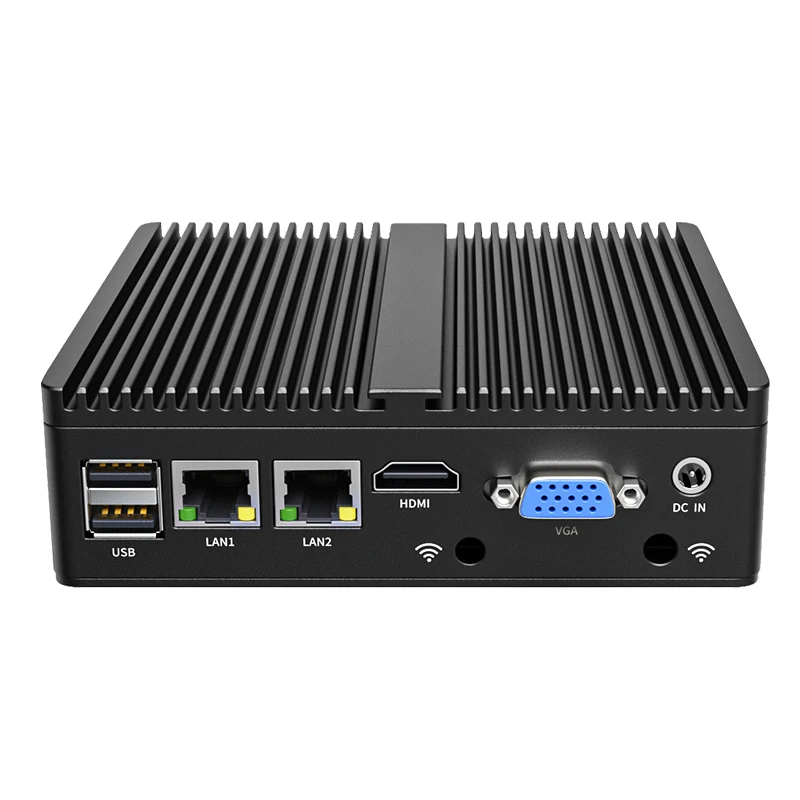

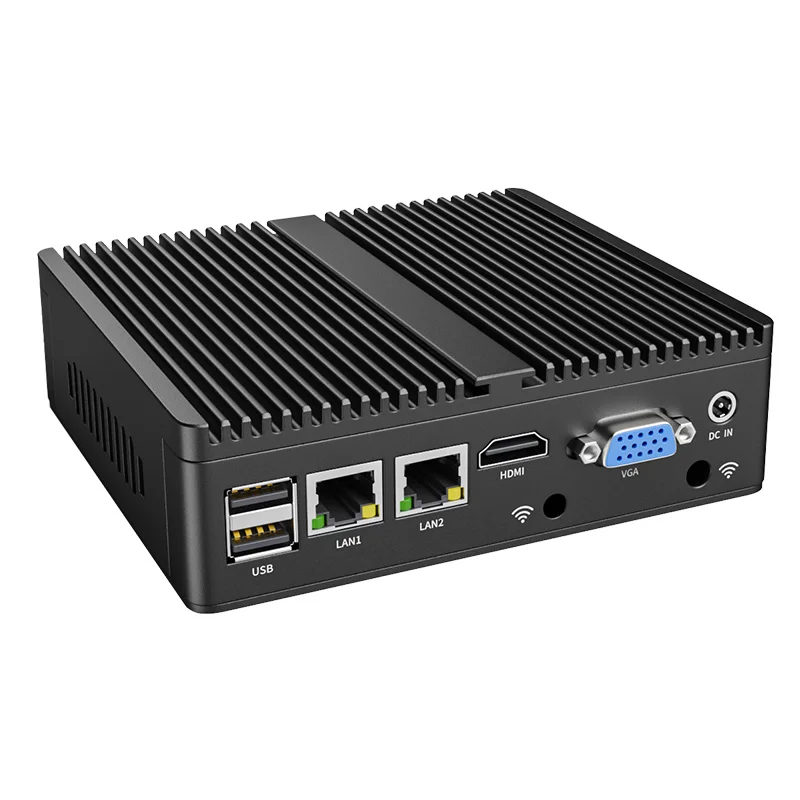

| Rear Panel | 2 x LAN |
| 2 x USB2.0 | |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x WiFi Holes | |
| 1 x DC-IN | |
| Software Support | |
| Bios | AMI EFI BIOS |
| System Support | Windows, Linux Ubuntu, pfSense, OPNsense etc |
| General | |
| Cooling Mode | Fanless |
| Power Supply | DC12V-4A 5.5*2.5mm |
| Packing List | Firewall pc, power supply, power cord, warranty card |
| Machine size&Weight | 136x126x40(mm)/ 0.7KG/unit |
| Packing size&Weight | 20x17x12(cm)/ 1.5KG/unit |
| Environment | |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
