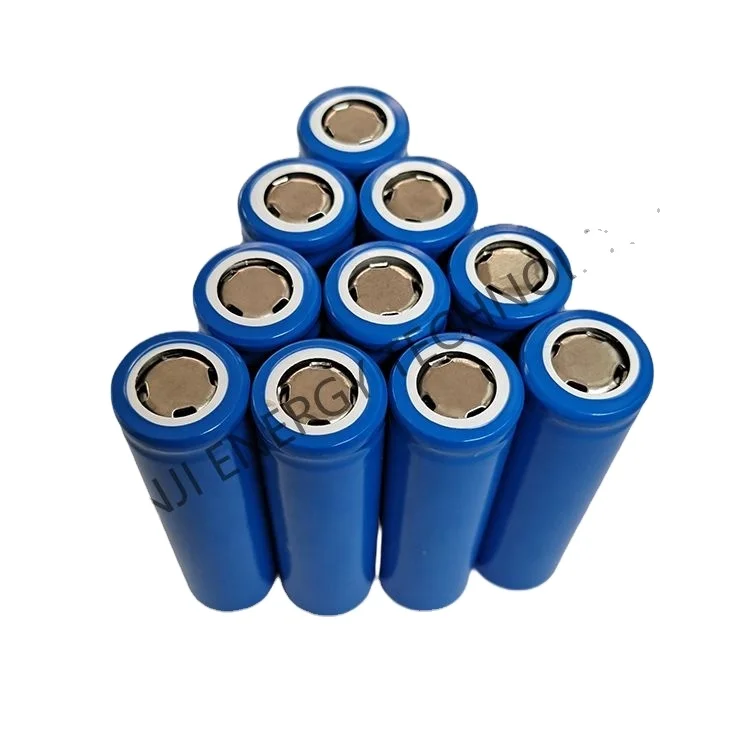

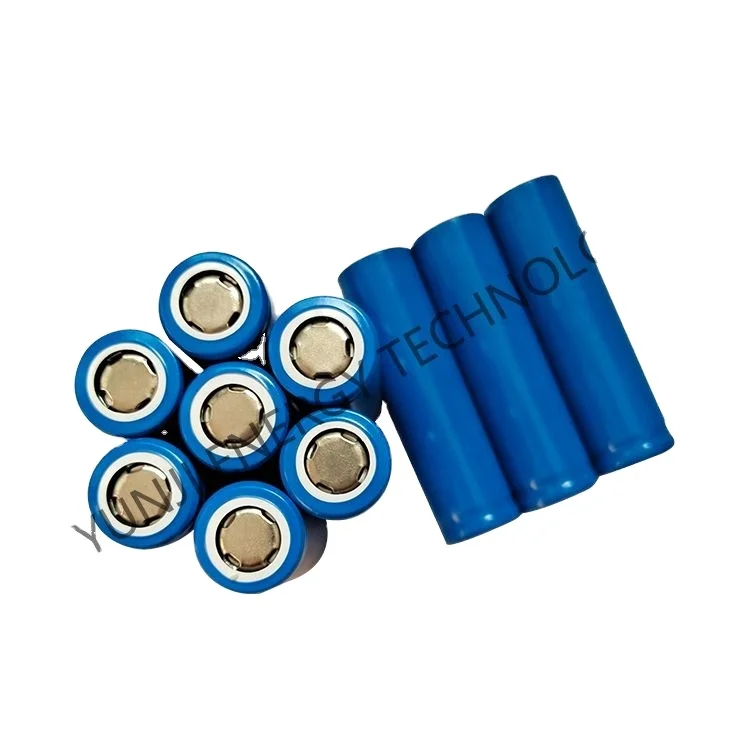

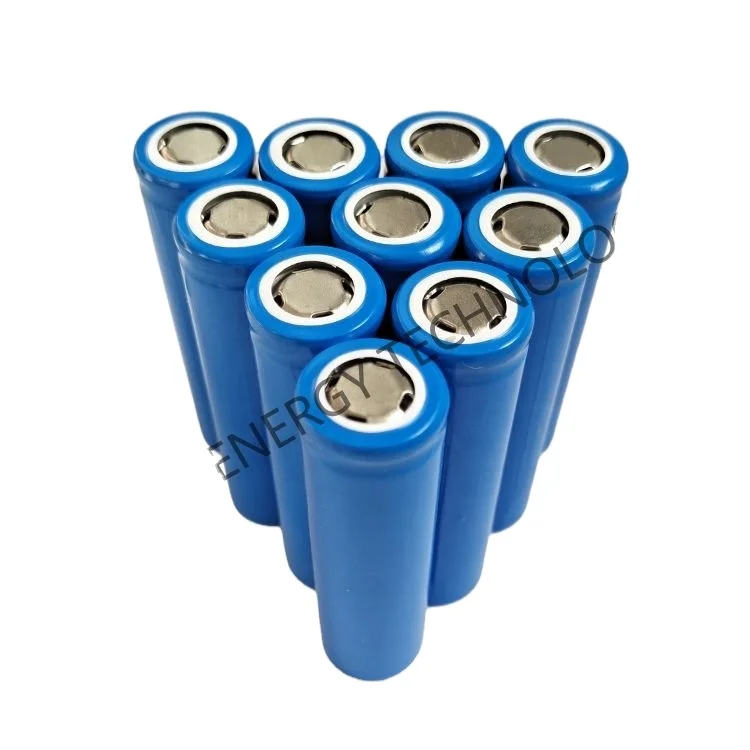

Sodium Ion Battery 32140 Na Ion Cell SIB 10Ah

Specifications

Parameters

Remark

Model Name

NaCR32140-ME10

SIB Rechargeable Battery Cell

Nominal Capacity

10.0Ah

@0.5c,25°C
4.0V-2.0V discharge

Nominal Voltage

3.05V (0.5C Discharge to 2.0V)

Operation voltage

Standard Charge

0.5C
4.0V
0.5A

Constant current
Constant voltage
End current

Fast Charge

2.0C
4.0V
0.5A

Constant current
Constant voltage
End current

Max.Charge Voltage

4.00±0.05V

Fast Discharge

3C

Constant current

Max.Discharge Current

10C(10s)

Instant current

Approx.Weight

269g

Internal Resistance

≤3mΩ

AC Impedance,
1000Hz at 50%SOC
