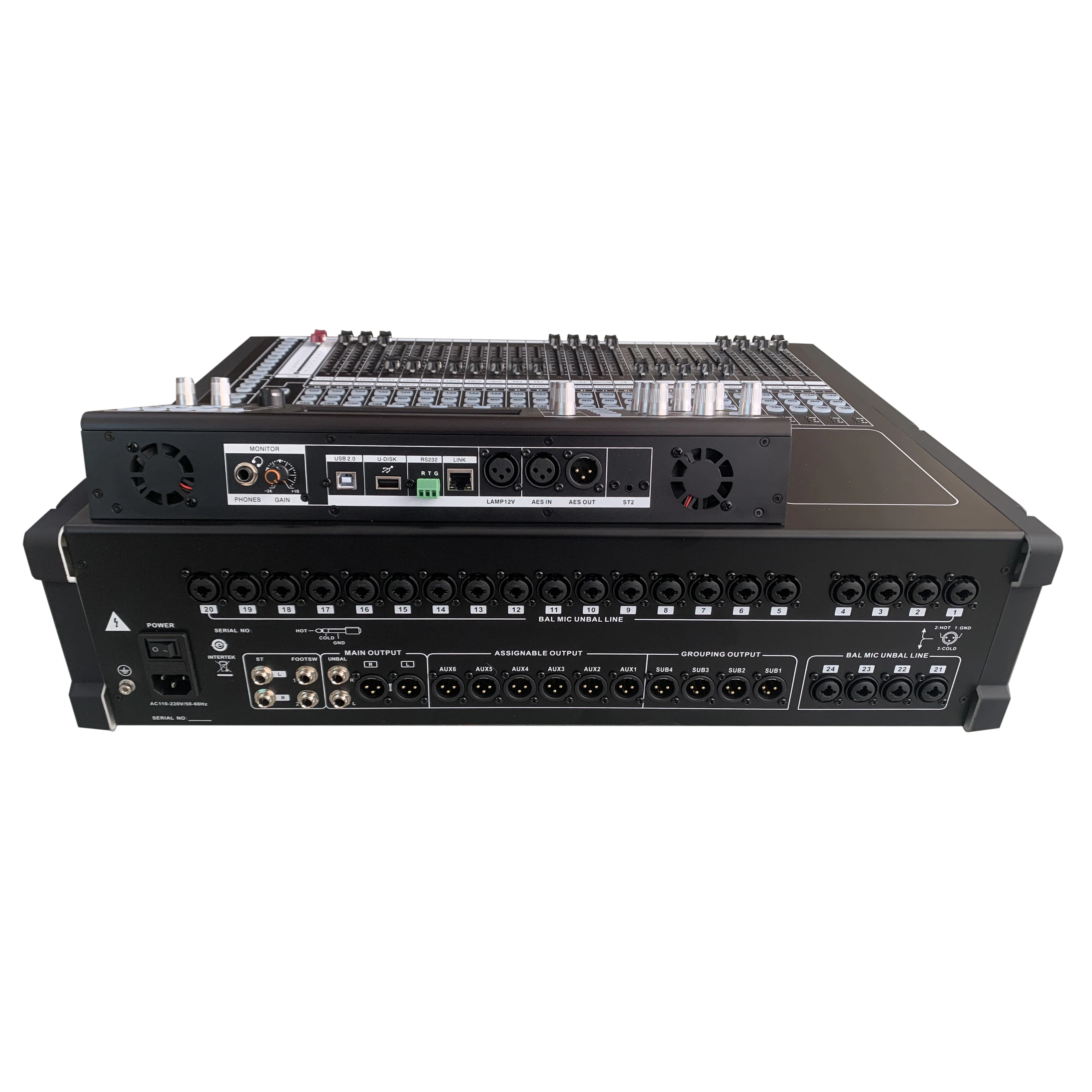

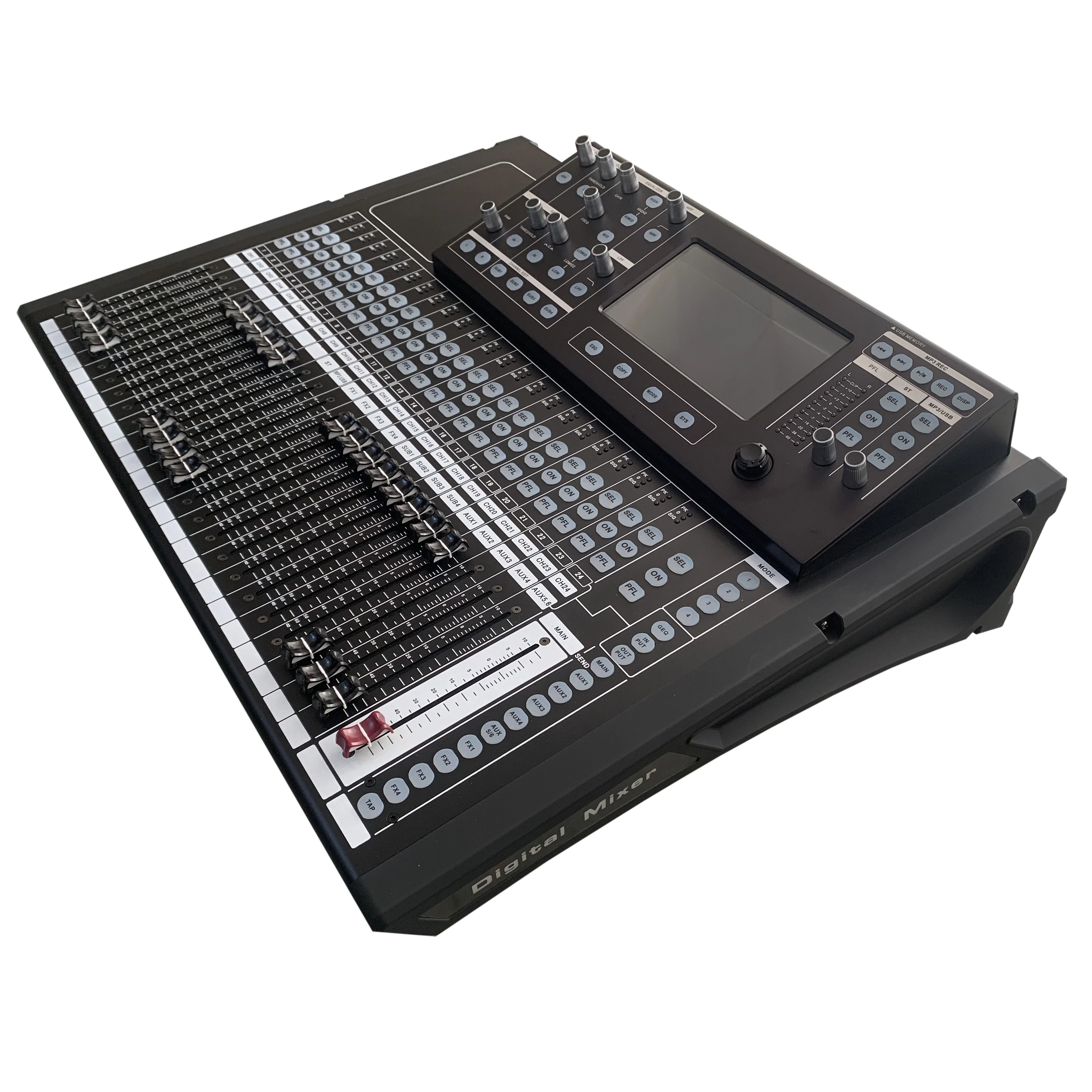

professional audio Sound Equipment/Amplifiers/Speaker Digital Mixer 24 Channel Professional Audio Dj Console T24 Digital Mixer
- Category: >>>
- Supplier: Guangzhou Marco Electronics & Technology Co. Limited
Share on (1600957192074):
Product Overview
Description
Specification

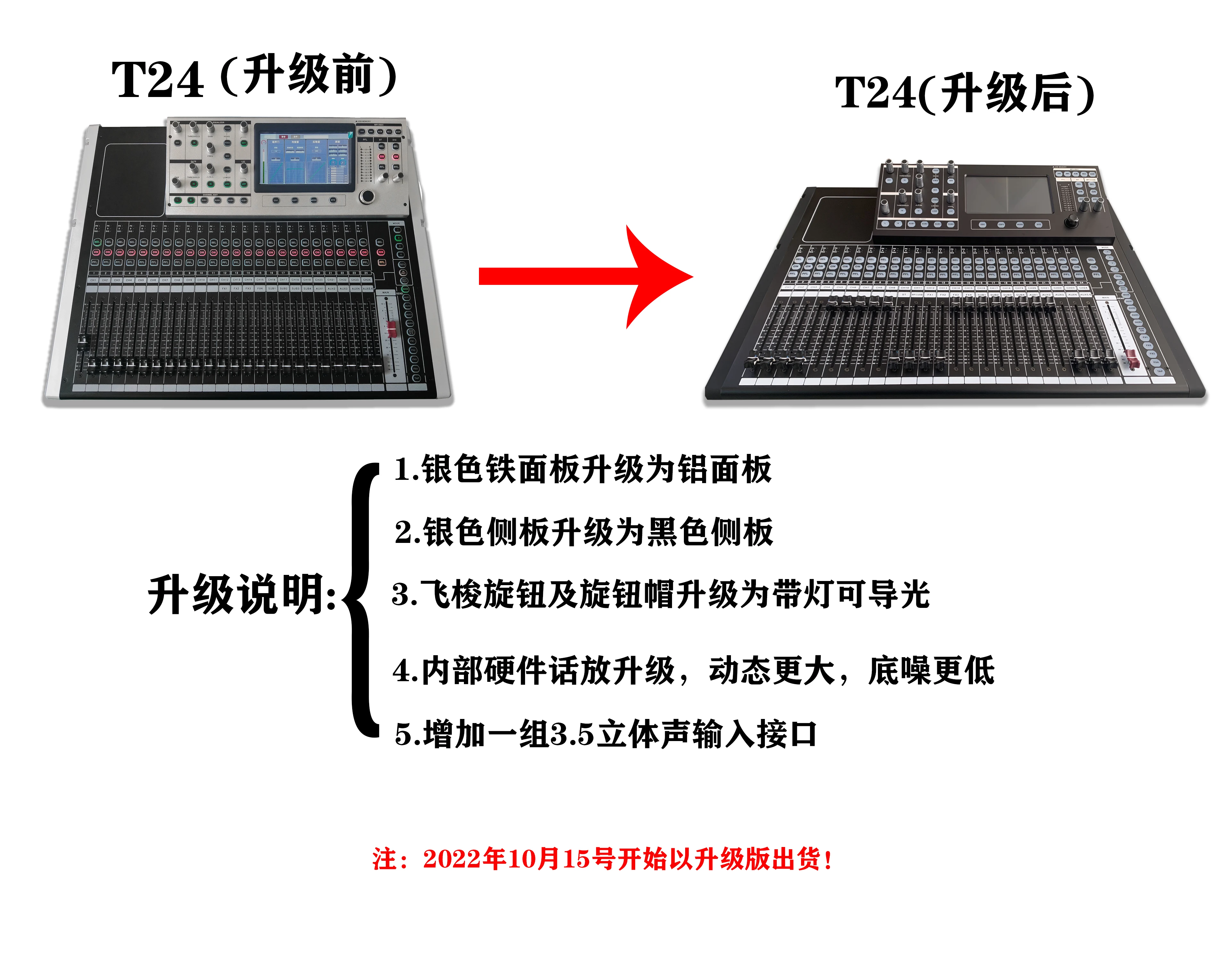

T24:24 CHANNELS DIGITAL MIXER
Product parameters
* 24 Channels MIC input 1 stereo inputs
* 1Group Digital input: fiber / sound card, MP3
* Input channel pan adjustment
* MIC input gain adjustment (digital gain)
* +48V phantom power (MIC channels can be turned on and off independently)
* Built-in noise gate, Compressor, high and low pass, input 5 Bands equalization, delay, channel harmony adjustment
* Channel parameter fast copy function, Feedback Exterminator.
* Support input channels odd-even Joint adjustment
* Input and output EQ ON/OFF
* Multi-function knob
* Each channel has a multi-function menu, mute and monitor
* The channel is equipped with 100MM motorised l Faders, signal and peak light (25 ALPS motorised faders)
* 12-channel signal output (main output L, R, 6-channel AUX output, 4 Channels Group output)
* AUX output (before/after fader)
* Output processing: high and low pass filtering, 15-band parametric equalization, compressor, delay, phase
* Digital recording function
* Double row 3 color 12-segment level indicator
* Built-in sound card (MP3, PC directly play music)
* 4 quick scene recall modes, 20 modes storage
* User parameter storage and recall (can be managed on the pc side)
* Built-in four-channel dual DSP effects
* FX foot switch interface
* Fiber input/output
* Multi-OS operating system (IOS system, Android system, WINDOWS system)
* Support wired network port adjustment (or external router wireless adjustment
* 7 inch 800*480 capacitive touch display
* User-customizable layer, output mixed editing function
* 24 Channels MIC input 1 stereo inputs
* 1Group Digital input: fiber / sound card, MP3
* Input channel pan adjustment
* MIC input gain adjustment (digital gain)
* +48V phantom power (MIC channels can be turned on and off independently)
* Built-in noise gate, Compressor, high and low pass, input 5 Bands equalization, delay, channel harmony adjustment
* Channel parameter fast copy function, Feedback Exterminator.
* Support input channels odd-even Joint adjustment
* Input and output EQ ON/OFF
* Multi-function knob
* Each channel has a multi-function menu, mute and monitor
* The channel is equipped with 100MM motorised l Faders, signal and peak light (25 ALPS motorised faders)
* 12-channel signal output (main output L, R, 6-channel AUX output, 4 Channels Group output)
* AUX output (before/after fader)
* Output processing: high and low pass filtering, 15-band parametric equalization, compressor, delay, phase
* Digital recording function
* Double row 3 color 12-segment level indicator
* Built-in sound card (MP3, PC directly play music)
* 4 quick scene recall modes, 20 modes storage
* User parameter storage and recall (can be managed on the pc side)
* Built-in four-channel dual DSP effects
* FX foot switch interface
* Fiber input/output
* Multi-OS operating system (IOS system, Android system, WINDOWS system)
* Support wired network port adjustment (or external router wireless adjustment
* 7 inch 800*480 capacitive touch display
* User-customizable layer, output mixed editing function
Mixer size/weight
WxDxH：637*515*215MM（The length includes 6.35 input socket, the width includes the side panel, the height includes the machine
foot; the knob is not included）
Net Weight：12KG Gross Weight：15.5KG
Package size：760*620*310MM
WxDxH：637*515*215MM（The length includes 6.35 input socket, the width includes the side panel, the height includes the machine
foot; the knob is not included）
Net Weight：12KG Gross Weight：15.5KG
Package size：760*620*310MM
technical parameter
Input | Mic/Line Inputs：1-24 | Balanced, XLR and 1/4" TRS jack, | Control | Faders | ALPS 100mm motorised | |||
Input Sensitivity（XLR/TRS） | XTR1.5mv,TRS change to 7mv | Touch Screen | 7”TFT，800×480 resolution | |||||
Analogue Gain | -32db To 10db , 0.6~0.7 Steps | Output Groups | Yes | |||||
Maximum Input Level (XLR / TRS) | +19dBu/+29dBu | Mute Groups | No | |||||
Input impedance(XLR / TRS) | MIC＞5K ，LINE＞10K | Network | TCP/IP Ethernet for PC and iOS apps | |||||
Mic Stereo Line Inputs | Yes | System Update | USB disk | |||||
Parameters linked | EQ, dynamics, insert, delay, assignments, sends, Ducker | Wire connected | Windows PC software connected | |||||
Polarity | Normal/Reverse | Wireless connected | Windows PC/iPad/android | |||||
Stereo Line Inputs | Input Processing | Source | Local CH1-CH24，ST1 Local ST2 digital | |||||
ST1/ST2 | Balanced，1/4 TRS Jack | EQ | 5-Band EQ, (20HZ--20KHZ)±12dB, Q 0.3~15 available | |||||
ST3 connector | USB B Streaming，U Disk，S/PDIF | High and low pass | 12db/24db,(BT/BS/LRK),20-20K | |||||
Input Sensitivity | Nominal 4dB | Noise gate | Self key Sidechain | |||||
Analogue Gain | -32db To 10db , 0.6~0.7 Steps | Gate threshold | -135db To-40db | |||||
Maximum Input Level | +29dB | Attack /release | 50us-300ms/10ms-5s | |||||
Input Impedance | >7KΩ | Compressor | Self key Sidechain | |||||
Stereo linked | Yes | Threshold / Ratio | -40db-+6db/1:1 infinity | |||||
Parameters linked | EQ, dynamics, insert, delay, assignments, sends, Ducker | Delay | MAX 20ms | |||||
Polarity | Normal/Reverse | |||||||

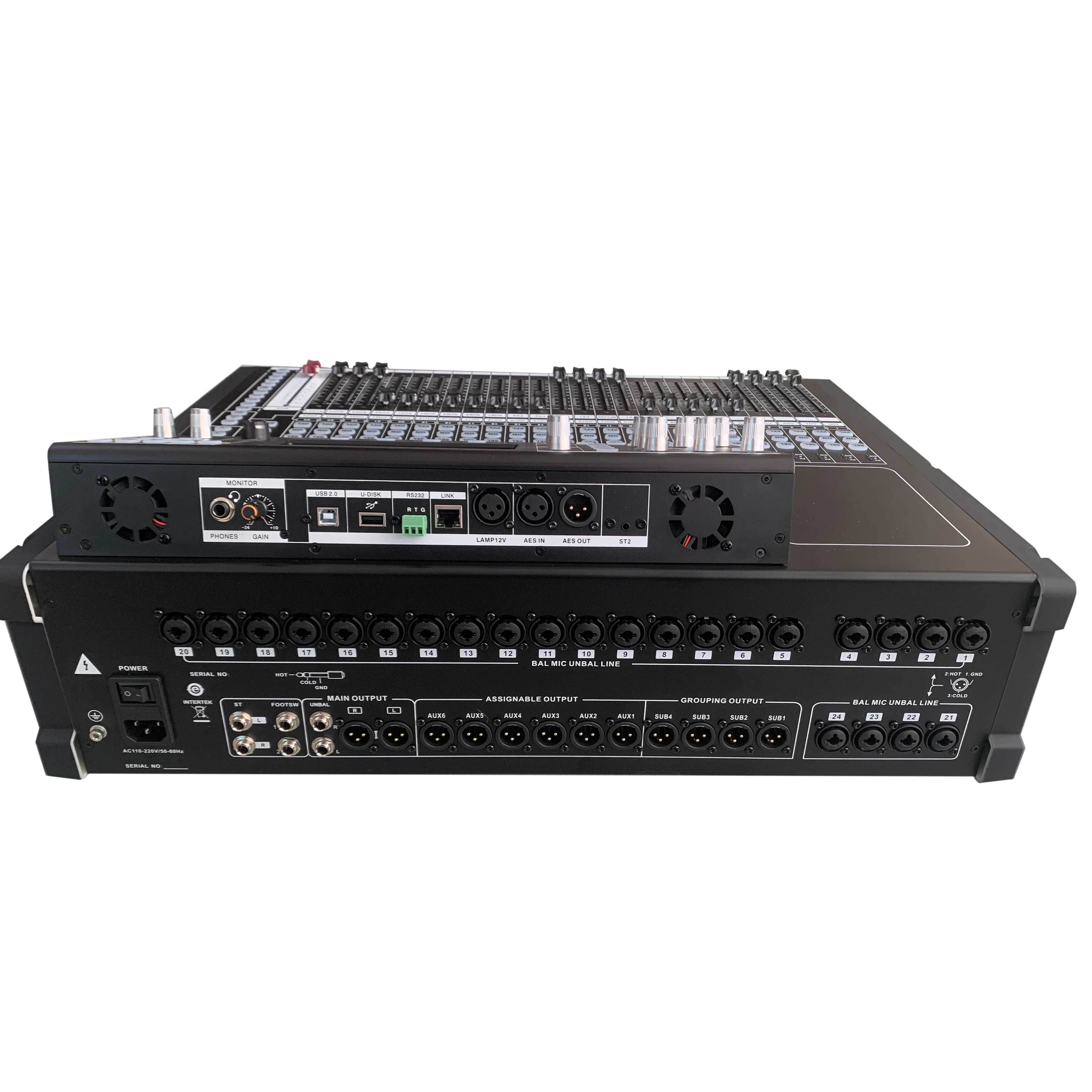

Outputs | Mix1-10 and LR Out | Balanced，XLR，L/R,4SUB,6AUX | Output Processing | Output channels | L/R,4SUB,6AUX | |||
Ouput Impedance | <75Ω | EQ | 15 Bands EQ, (20HZ--20KHZ)±12dB,Q0.3~15 available | |||||
Nominal Output | +4dbu=0db meter reading | High and low pass | 12db/24db,(BT/BS/LRK),20-20KHZ | |||||
Residual Output Noise | =-91dbu | Compressor | Self key Sidechain | |||||
Mix insertion | Assign FX to the mix channel | Threshold / Ratio | -40db-+6db/1:1 infinity | |||||
Dynamic Range | 112dB | Delay | MAX 30ms | |||||
S/N Ratio | XLR≥ 92db,TRS≥82db | USB | Driver | CH340(USB A) | ||||
Maximum Output Level | 4VAC MAX | USB A | USB disk | |||||
THD | ＜0.0003%（1KhzFull Power） | Stereo Record | 2channels(wav/mp3)48KHz 24 | |||||
Frequency Response | 20HZ-20KHZ+/-0.5db | Stereo Playback | 2channels(WAV/MP3)32-96KHz,16-24bit | |||||
Sampling Rate | 48KHz ±100PPM | USB Audio | USB Audio Streaming | USB B | ||||
ADC/DCA | 24 bit Delta-sigma | Send (upstream) | 2channels WAV，32KHz-96KHz 24bit | |||||
FX | Internal FX | 4x RackFX engine,Send>Return or Inserted | Return (downstream) | 2Channels WAV，MP3,48KHz,24Bit | ||||
Types | Reverbs, Delays, Gated Reverb, ADT | |||||||
4 dedicated Stereo FX returns | Fader, Pan, Mute, Routing to Mix/LR, 5-Band PEQ | |||||||
System | Linux system | Chinese or English | Power | 100-240VAC,50-60H,150W | ||||
