28Khz Ultrasonic piezoelectric Langevins transducer with ultrasonic generator

Product Overview

Description

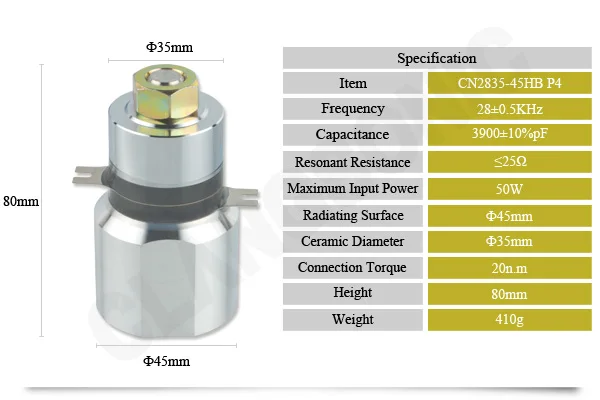

Specifications

1, piezoelectric vibration transducer
2,Board radiating surface,
3, homogeneous sounding board
4, better kinetic energy

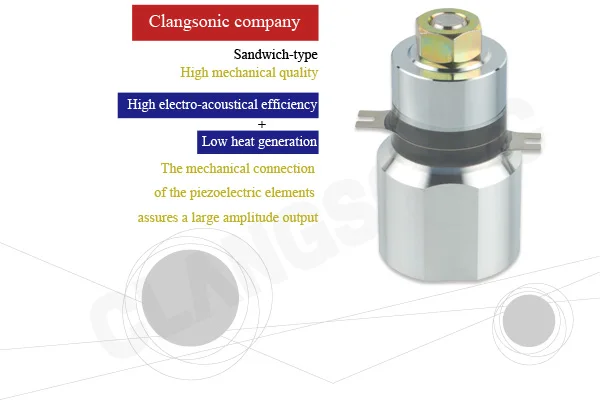

High mechanical quality of CLANGSONIC’s piezo ensures that these sandwich-type ultrasonic transducers offer high electro-acoustical efficiency and low heat generation.The mechanical connection of the piezoelectric elements assures a large amplitude output.

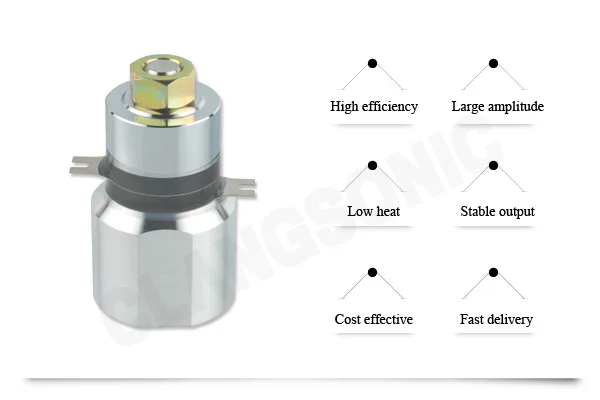

Main Features



Application

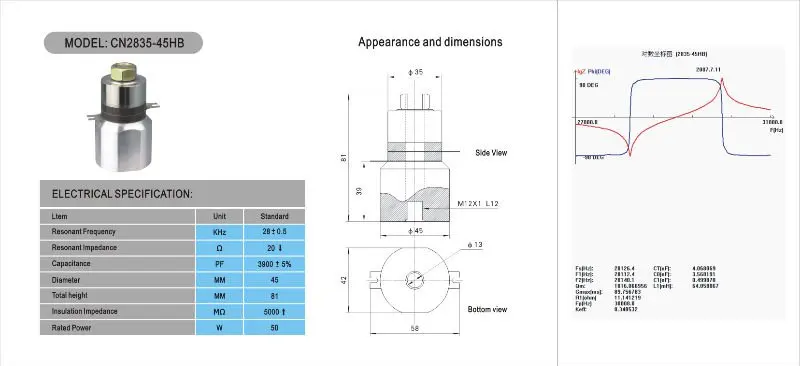

Specification

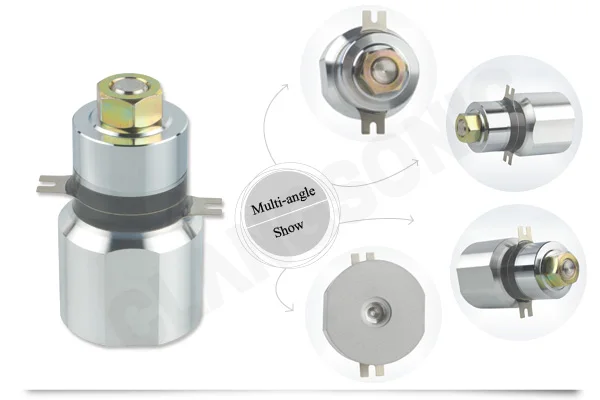

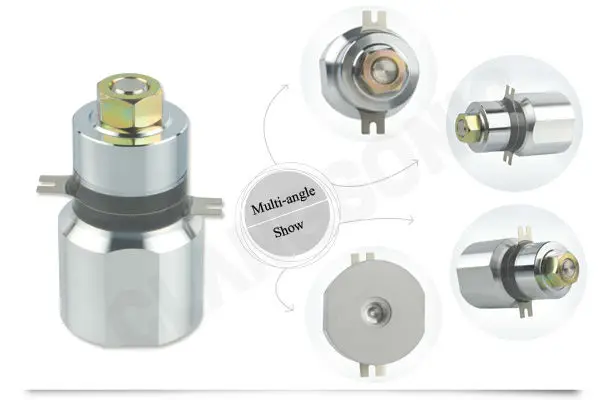

Multi-angle Picture





Multi-choice





Strong Points





Package Information





CN2835-45HB
Quantity(pcs)	30
N.W.(kgs)	12.3
G.W.(kgs)	14
Dimensions(L*W*H)(cm)	39*34*14







Delivery Time



Standard product will be shipped out within 2 working days after payment received!!



Payment Methods



1.T/T



2.L/C



3.D/P



4.D/A



5.West Union



6.Paypal



7.MoneyGram



8.Escrow



Warranty



100% brand new when leaving the factory. The seller guarantee quality of the products  (excluding wearing parts) for a period of 2 years from the date of trial run finish under our technician's guidence.
