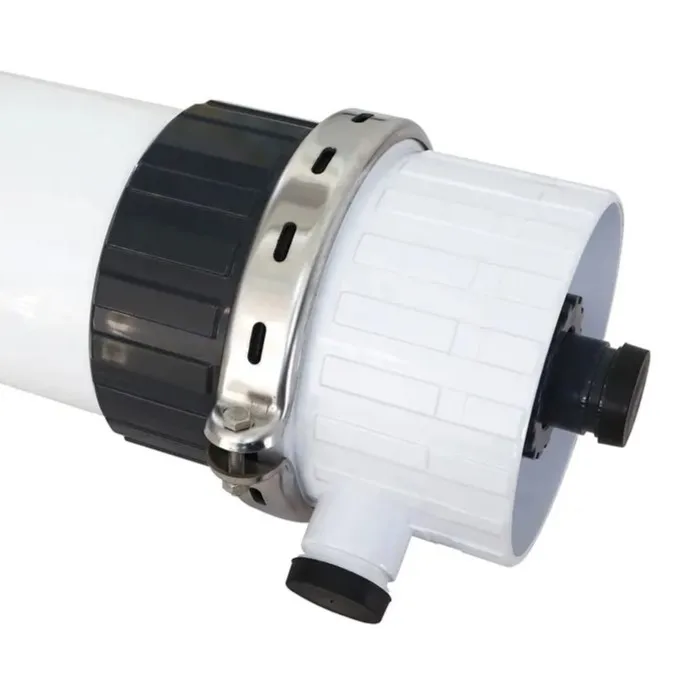

China Suppliers Pvdf uf2860 Membrane Ultrafiltration Membrane Hollow Fiber Membrane Water Filter
- Category: >>>
- Supplier: Huzhou Xianhe Instrument Technology Co. Ltd.
Share on (1600957412242):
Product Overview
Description
Product Description

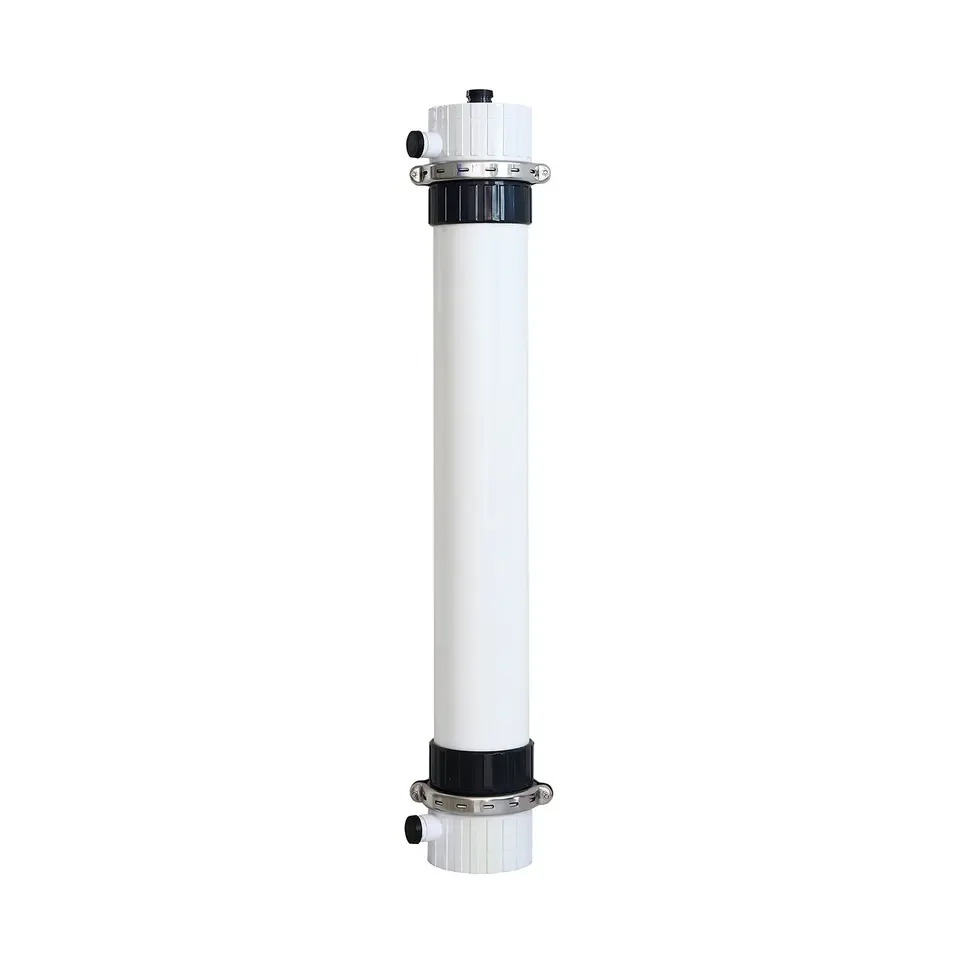

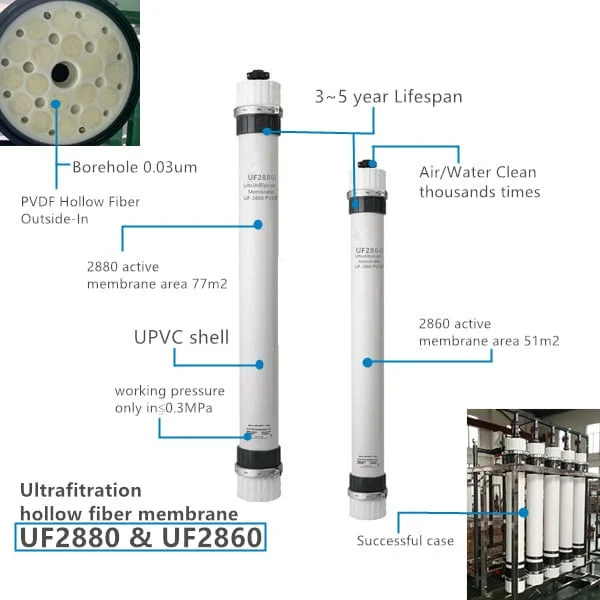

ULTRA FILTRATION MEMBRANE UF-2860/UF-2880
UF2860 UF 2880 are an Ultra Filtration membrane module made by PVDF material hollow fiber tubes, and cover is PVC shell. These UF membranes are characterized by Antibacterial function.(especially good for removing particulate, virus, colloid, albumin protein,gelatin, carbon black, organic compound.......)

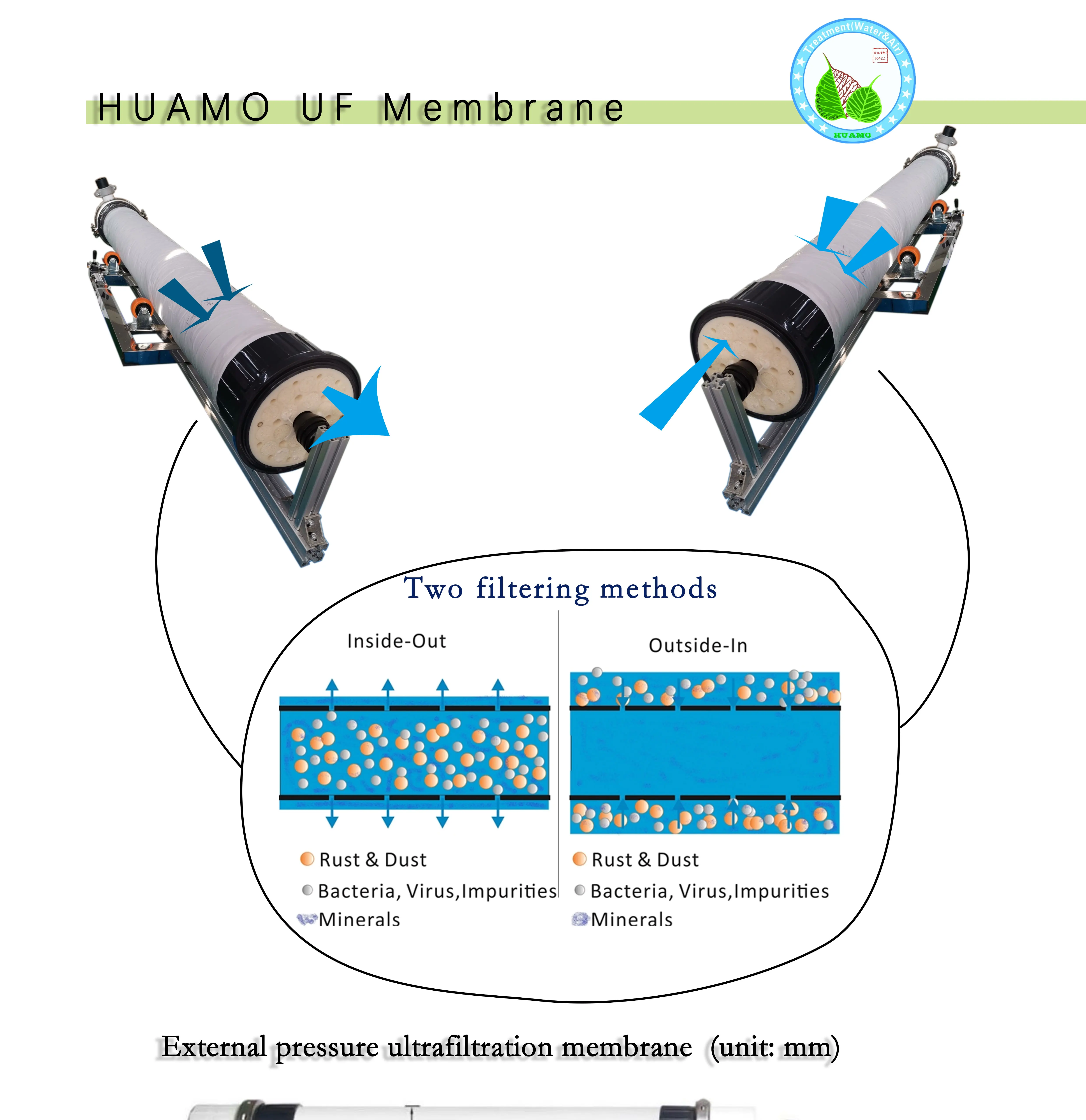

Product working principle
Membrane Characteristics

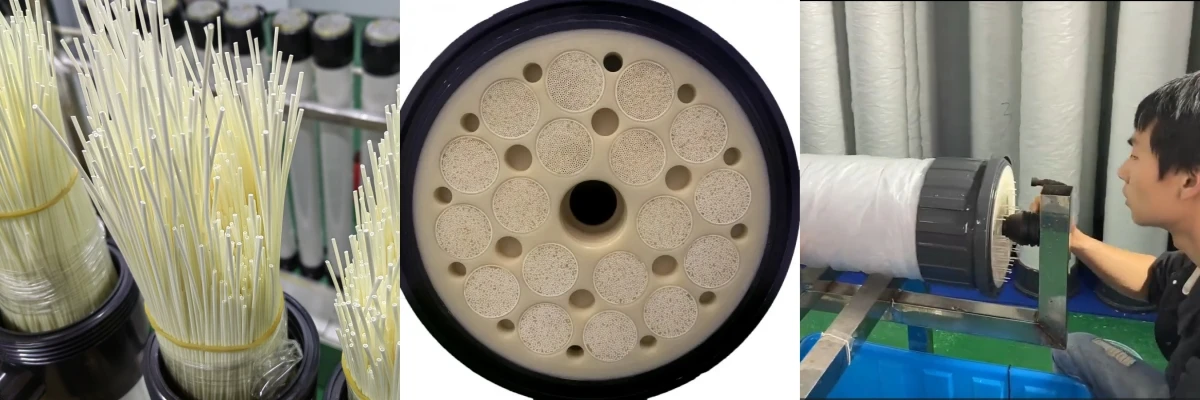

The hollow fiber membrane module produced by HUAMO uses polyvinylidene fluoride (PVDF) as the raw material, and is made by
advanced production technology with its own intellectual property rights. The membrane itself has high strength, high water production, and high With its anti-oxidation, anti-pollution and easy cleaning features, it can effectively filter out bacteria, colloids, suspended solids, rust, macromolecular organics and other substances in the water.
1.Good hydrophilicityadvanced production technology with its own intellectual property rights. The membrane itself has high strength, high water production, and high With its anti-oxidation, anti-pollution and easy cleaning features, it can effectively filter out bacteria, colloids, suspended solids, rust, macromolecular organics and other substances in the water.
2. High filtration accuracy
3. Good mechanical strength
4. Long life and strong anti-pollution ability
5. Stable product performance

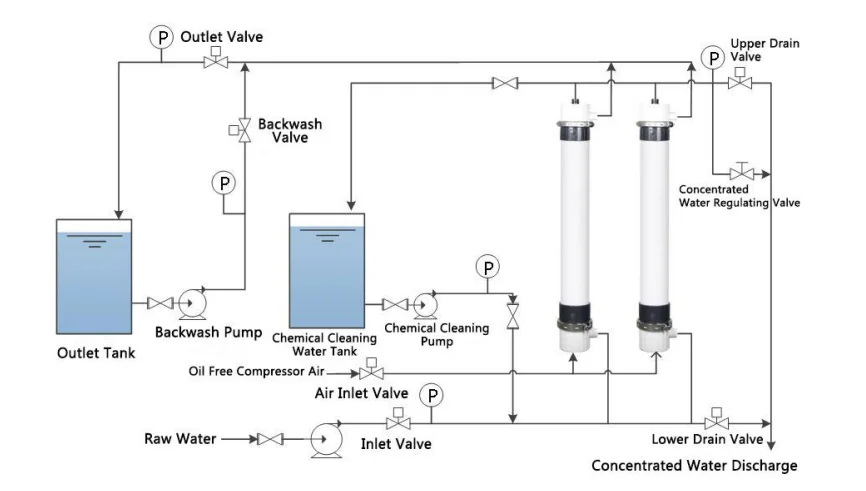

Flow chart of UF System
Specification

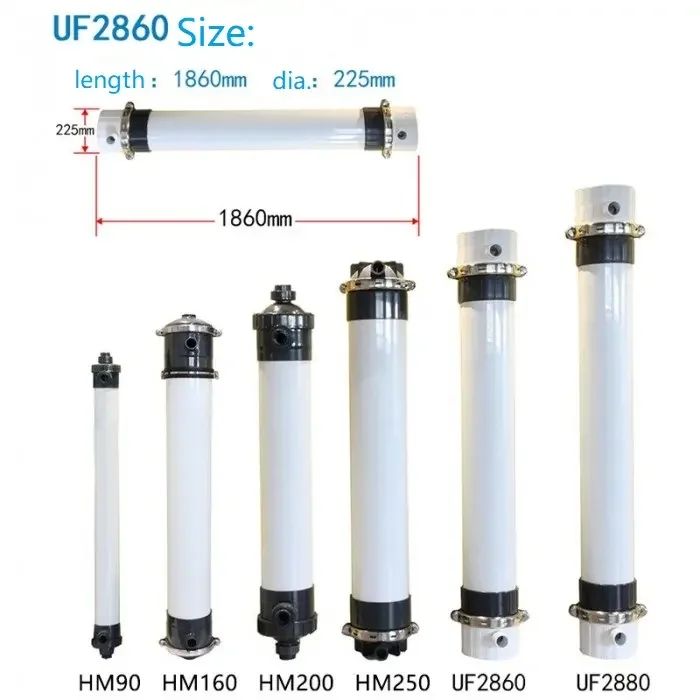

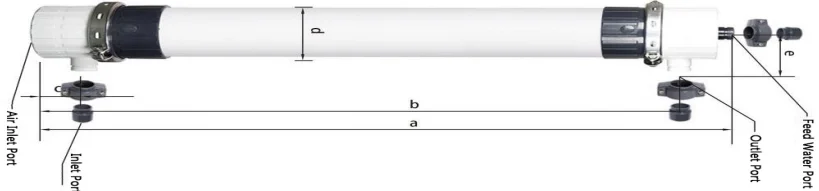

Dimensions （mm） | Module Type | A (mm) | B (mm) | C (mm) | D(mm) | E(mm) |
UF-4040 | UF-2860 | 1860 | 1725 | 95 | 225 | 80 |
UF-2880 | 2360 | 2225 | 95 | 225 | 80 |
Model | UF-2860 | UF-2880 | ||
Specs | Membrane area（㎡) | 51 | 77 | |
Materials | （PVDF） | |||
Pore size | 0.03um | |||
Hollow fiber membrane inner/outer diameter | 0.7/1.3mm | |||
Membrane Shell Materials | （UPVC） | |||
Fiber bonding material | Epoxy resin | |||
Filtration effect | Suspension＞2um | 100% | ||
Turbidity of produced water | ≦0.2NTU | |||
Produced water SDI | ≦3.0 | |||
Warranty | 3-5 years（Except for special water quality） | |||
Terms of Use | Filtration method | External pressure type | ||
Maximum component water inlet pressure | ≦0.3MPa | |||
Recommended normal operating pressure | ≦0.15MPa | |||
Maximum transmembrane pressure difference | 0.2MPa | |||
Operating temperature | temperature 5-45℃ | |||
PH Range | 2－11 | |||
Pre-processing accuracy requirements | ≦150um | |||
Maximum feed water turbidity | ≦50NTU Max 300NTU | |||
Oil content of raw water | ≦2mg/L | |||
Maximum influent residual chlorine concentration | 200mg/L(Maximum residual chlorine concentration of cleaning agent 5000mg/L) | |||
Filtration flux range | flux range 40-80L/㎡·h | |||
Operation Mode | Full-flow filtration or mis-flow filtration | |||
