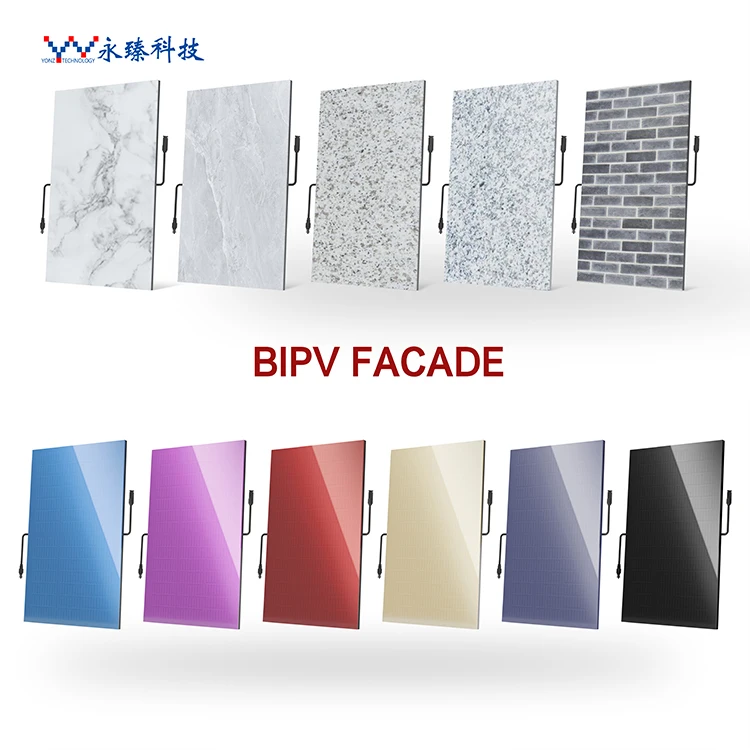

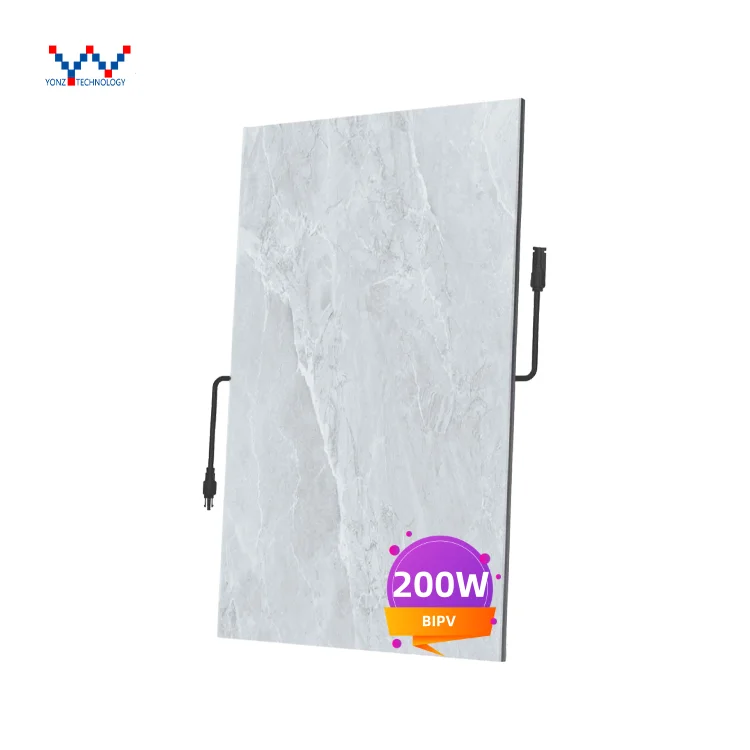

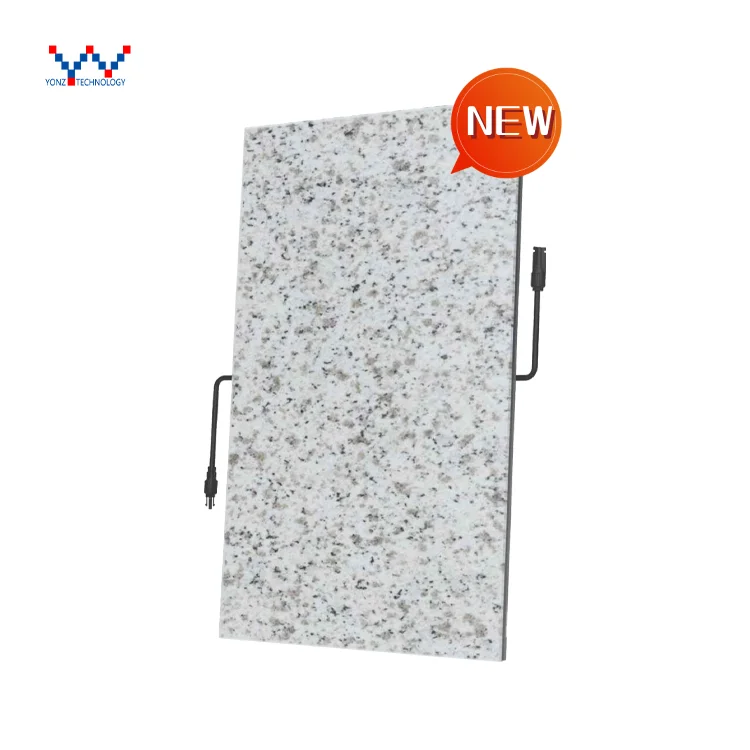

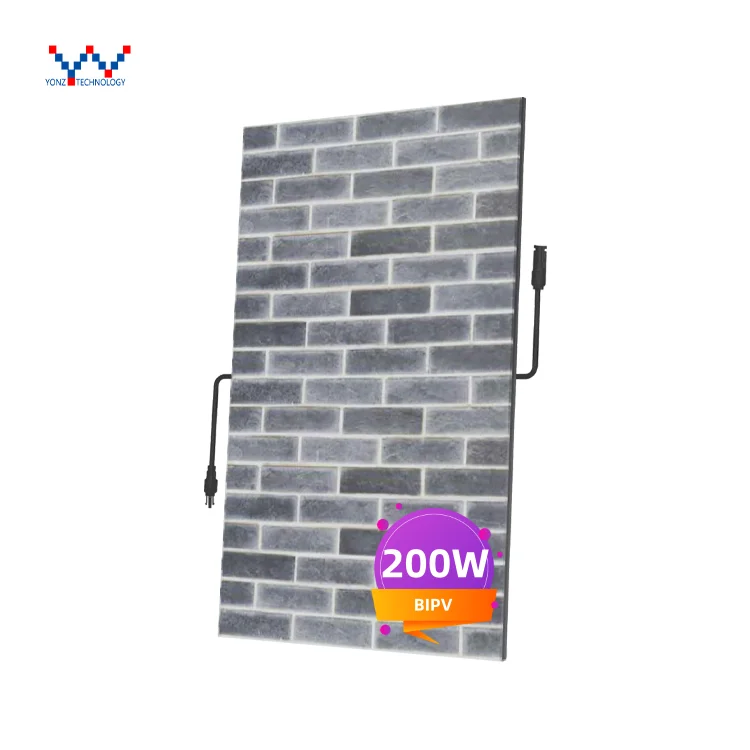

Yonz High Efficiency Building Intergrated PV BIPV Glass From Chinese Manufacturer
- Category: >>>
- Supplier: Yonz Technology Co. Ltd.
Share on (1600957973564):
Product Overview
Description
Electrical performance parameters | Blue Series | Green Series | Purple Series | Red Series | ||||
Solar panel performance under STC standard (tolerance:0～+3%) Product Size：1180*580mm | ||||||||
Maximum rated power (Pmax/W) | 80 85 90 | 85 90 95 | 75 80 85 | 65 70 75 | ||||
Maximum power point voltage (Vmpp/V) | 11.6 12.0 12.4 | 11.6 12.0 12.4 | 11.6 12.0 12.4 | 11.6 12.0 12.4 | ||||
Maximum power point current (lmpp/A) | 6.90 7.08 7.26 | 7.33 7.50 7.66 | 6.47 6.67 6.85 | 5.60 5.83 6.05 | ||||
Open Circuit Voltage (Voc/V) | 14.1 14.6 15.1 | 14.1 14.6 15.1 | 14.1 14.6 15.1 | 14.1 14.6 15.1 | ||||
Short circuit current (lsc/A) | 7.22 7.41 7.60 | 7.67 7.86 8.02 | 6.77 6.98 7.18 | 5.87 6.11 6.33 | ||||
Component efficiency ηm(%) | 11.7 12.4 13.1 | 12.4 13.1 13.8 | 11.0 11.7 12.4 | 9.6 10.3 11.0 | ||||
Solar panel performance under NMOT standards | ||||||||
Maximum rated power (Pmax/W) | 58.7 62.4 66.1 | 62.4 66.1 69.7 | 55.1 58.7 62.4 | 47.7 51.4 55.1 | ||||
Maximum power point voltage (Vmpp/v) | 10.6 11.0 11.4 | 10.6 11.0 11.4 | 10.6 11.0 11.4 | 10.6 11.0 11.4 | ||||
Maximum power point current (lmpp/A) | 5.50 5.65 5.79 | 5.85 5.98 6.11 | 5.16 5.32 5.47 | 4.47 4.65 4.83 | ||||
Open Circuit Voltage (Voc/V) | 13.3 13.8 14.2 | 13.3 13.8 14.2 | 13.3 13.8 14.3 | 13.3 13.8 14.3 | ||||
Short circuit current (Isc/A) | 6.04 6.20 6.36 | 6.42 6.57 6.71 | 5.66 5.84 6.00 | 4.91 5.11 5.30 | ||||
STC (standard test environment): irradiance 1000 W/m², cell temperature 25℃, spectrum AM1.5
NMOT (Nominal Module Operating Temperature): irradiance 800W/m², ambient temperature 20℃, spectrum AM1.5, wind speed 1m/s
NMOT (Nominal Module Operating Temperature): irradiance 800W/m², ambient temperature 20℃, spectrum AM1.5, wind speed 1m/s
Q: Are you a factory or a trading company?
A: We are a professional Photovoltaic Modules Manufacturer in China.
Q: What products we can supply you?
A: Carbonado” Roof PV System, Balcony PV system, BIPV facade products, Off-grid Solar System, hybrid solar system, Carbon Steel Bracket, Aluminum Alloy Bracket , Aluminum Alloy PV Frame , Etc
Q: Can you supply OEM &ODM service ?
A: Yes, we accept the OEM&ODM orders.
Q: How long is the warranty?
A: Product warranty 10 years. Power warranty 25 years.
Q: Can the products pricing be cheaper?
A: Of course, you will be offered a a very good discount with large quantities.
Q: How can I get more detail and price list of your products?
A: please contact us, our sales will send you more detail and our price list.
A: We are a professional Photovoltaic Modules Manufacturer in China.
Q: What products we can supply you?
A: Carbonado” Roof PV System, Balcony PV system, BIPV facade products, Off-grid Solar System, hybrid solar system, Carbon Steel Bracket, Aluminum Alloy Bracket , Aluminum Alloy PV Frame , Etc
Q: Can you supply OEM &ODM service ?
A: Yes, we accept the OEM&ODM orders.
Q: How long is the warranty?
A: Product warranty 10 years. Power warranty 25 years.
Q: Can the products pricing be cheaper?
A: Of course, you will be offered a a very good discount with large quantities.
Q: How can I get more detail and price list of your products?
A: please contact us, our sales will send you more detail and our price list.
